Brand: ORIVISION
Model: ZY-DH941
Input Interface: LAN Port*2, Audio*1
Output Interface: HDMI*1, VGA*1, Audio*1
Video Decoding: H.265/H.264
Protocol: HTTP, HTTPS, RTSP, SRT, UDP/RTP, RTMP protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Two output interface optional, HDMI/VGA
4K H.264/ H.265 ip decoding
Multi protocols: SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.
RTMP Server Supported
Maximum 1Gbps concurrency Supported
OEM/ODM

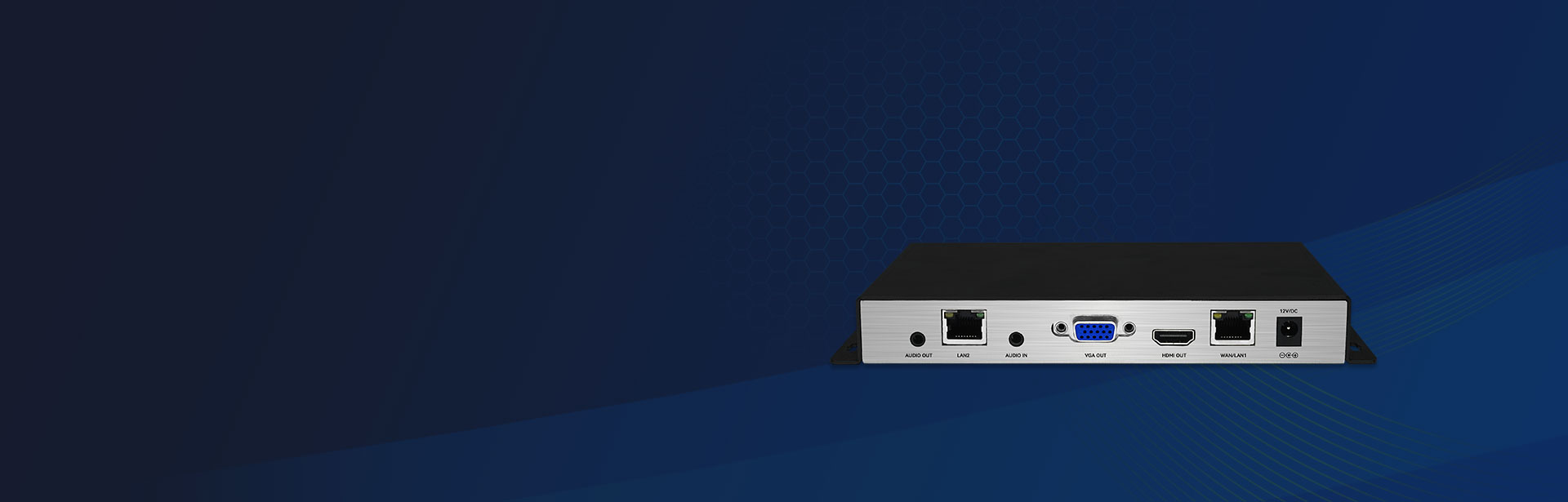

ZY-DH941 has two network ports, 1x HDMI audio and video output interface, 1x VGA video output interface , 1x stereo audio output interface. It can receive network streams from encoders, cameras and other devices through network port 1, and then forward them to network 2.

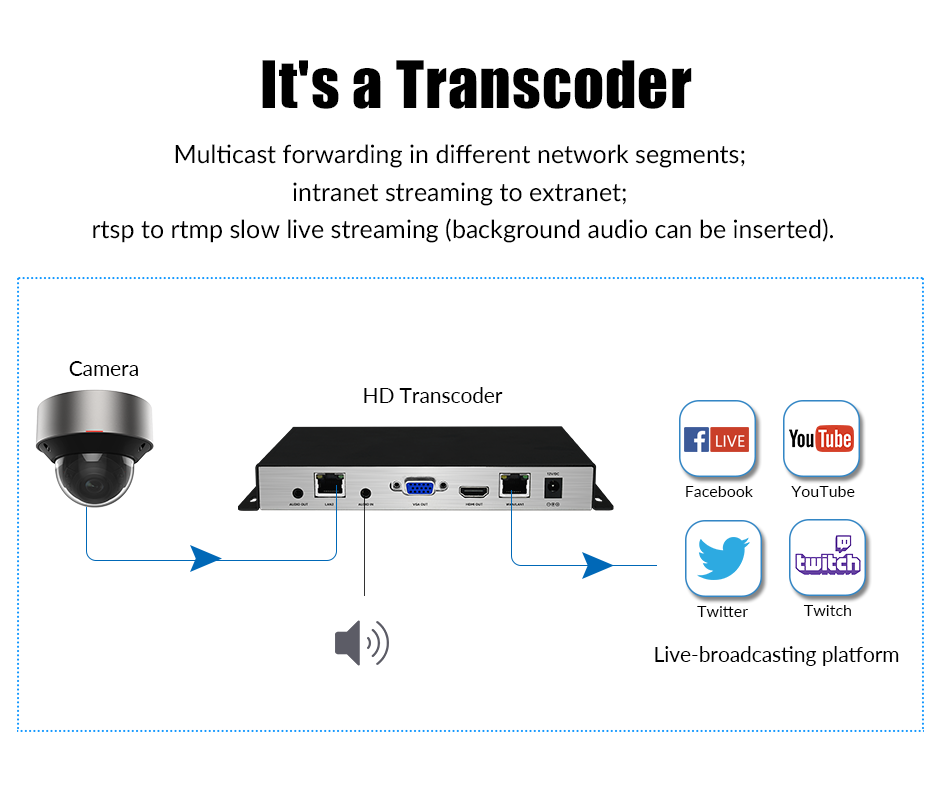

The transcoder can realize multicast forwarding in different network segments. transfer internal network to external network, and transfer rtsp to rtmp slow live broadcast (background audio can be inserted). Support POE power supply. Embedded RTMP server, support maximum 1Gbps concurrency.
It's compatible with SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.
Decoding with the same or different protocol is available.
DH941 highlights video transcoding between H.264 and H.265.
It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.
Hardware decoder supports decoding up to 9 channels of videos simultaneous.
*Note: 9 channels with 720p, or 4 channels of 1080P, or 1 channels of 4K（HDMI interface）.
Supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output VGA and 4k HDMI.
With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP.
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Support AAC/G711 audio format; Audio can be coded separately
Support LAN, WAN
Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | H.265&H.264 HDMI+VGA Video Transcoder |
| Model | ZY-DH941 |
| Input Interface | LAN Port*1,Audio*1 |
| Output Interface | HDMI*1,VGA*1,CVBS*1,Audio*1 |
| Video Decoding | H.265/H.264 |
| Max Input Resolution | 4K@30HZ |
| OLDE Real-time Display | × |
| HDCP | √ |
| DHCP | √ |
| Two-way audio transmission | × |
| Simultaneous Streams (HDMI&VGA ouput) | Support to decode 1 channel 4K@30hz streaming Support to decode 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming |
| Protocol Support | HTTP,HTTPS, RTSP,SRT,UDP/RTP,RTMP |
| OSD Setting | Txt/Picture |
| Output Resolution | 4K@30hz, 1080P60,50,30,25; 720P60,50; 576P50,480P60, 1280*1024P60,1280*800P60,1027*768P60, 800*600P60,1080I60,1080I30 |
| Management | Web Opreation, remote upgrade |
| Language | English/Chinese |
| Power | 12V/DC 1A |
| POE | Optional |
| Size | W:200mm*D:113mm*H:26mm |
| Net Weight | 0.35kg |

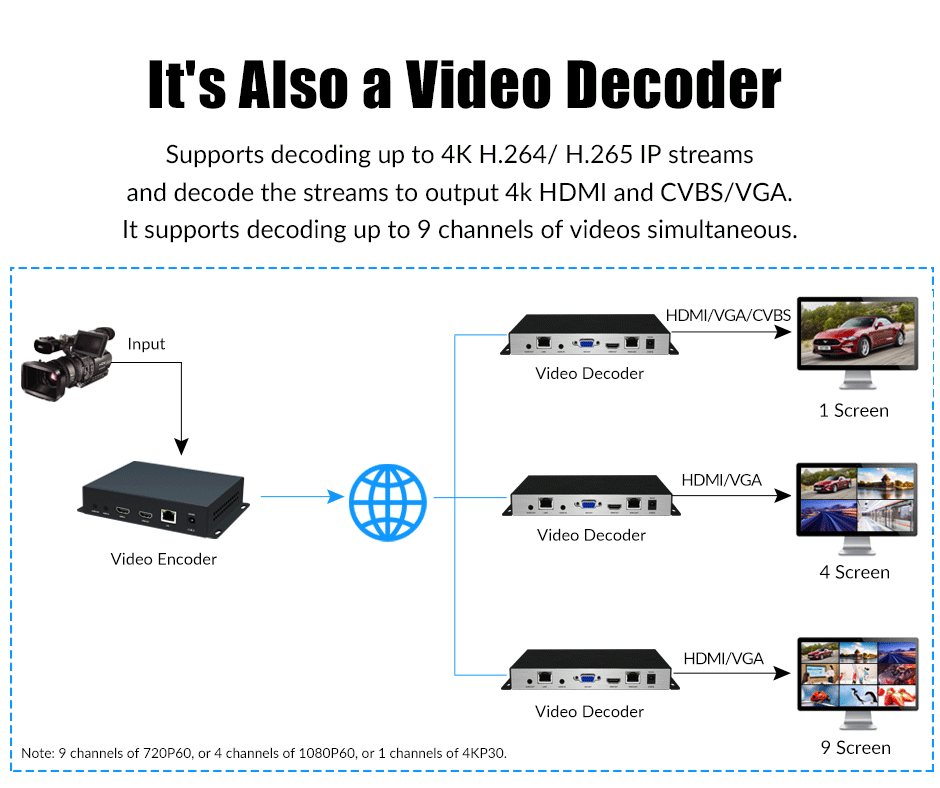

1. Video Decoder Diagram
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

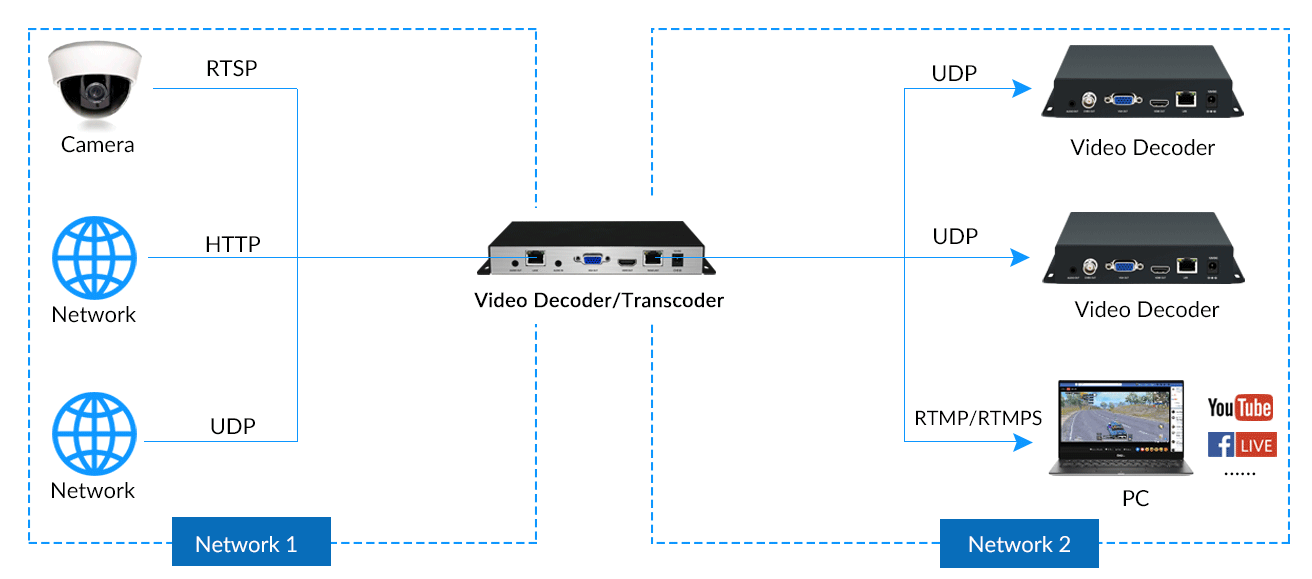

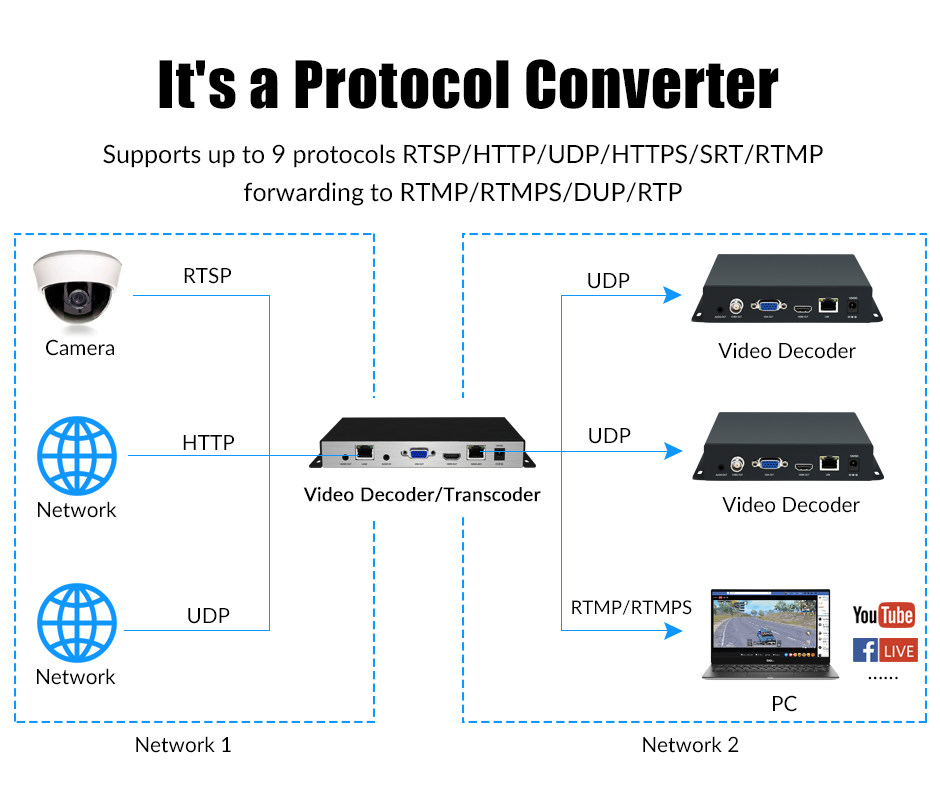

2. Protocol Converter Diagram
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3. Slow Live Streaming Application
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4. Cross-sectional Multimedia Information Distribution Application
A: The default login IP address is 192.168.0.35.
A: The default login account and password are both admin
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
