Brand: ORIVISION
Model: ZY-OH404
Transmitter Input: HDMI1.3b*4
Transmitter Output: LC*1
Receiver Input: LC*1
Receiver Output: HDMI1.3b*4
Resolutuion: Max 1920*1200@60HZ
Transmission Distance: Default: Single model 1-core (10km);
Multimode Dual-Core Module (300m);
20KM 40KM 60KM 80KM (Optional)
Power: 12V/DC 1A

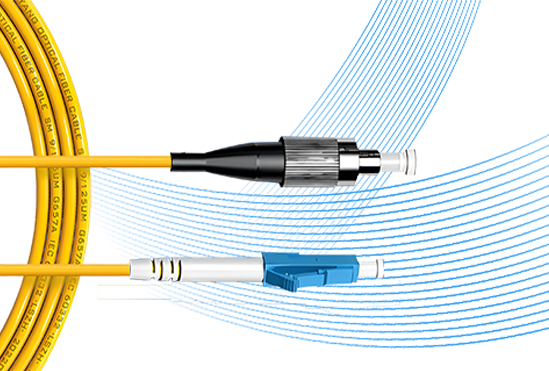

Uncompressed HD fiber optic transmission
Max resolution up to 1920*1200@60HZ
SFP: LC fiber port ( single-mode one-core standard transmit distance is 10KM )

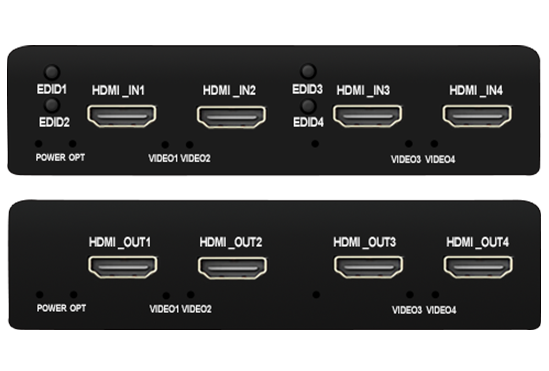

Support EDID and compatible HDMI1 3b
Plug-and-play operation

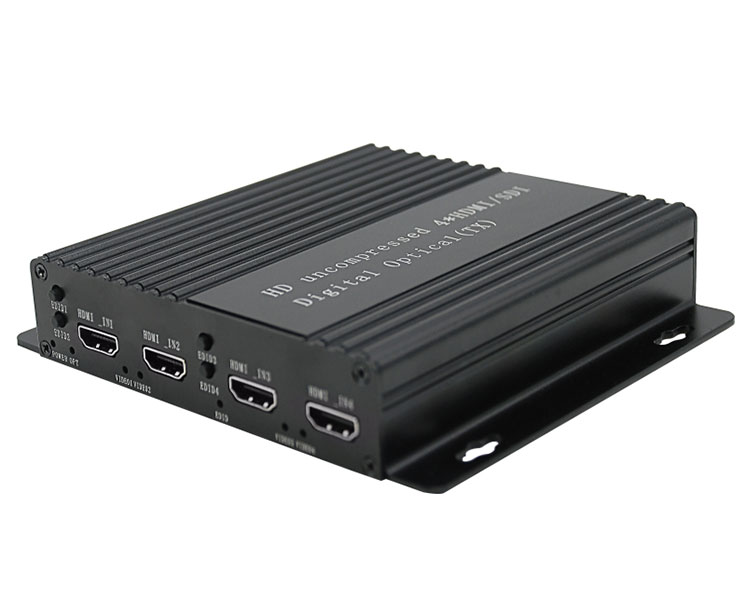

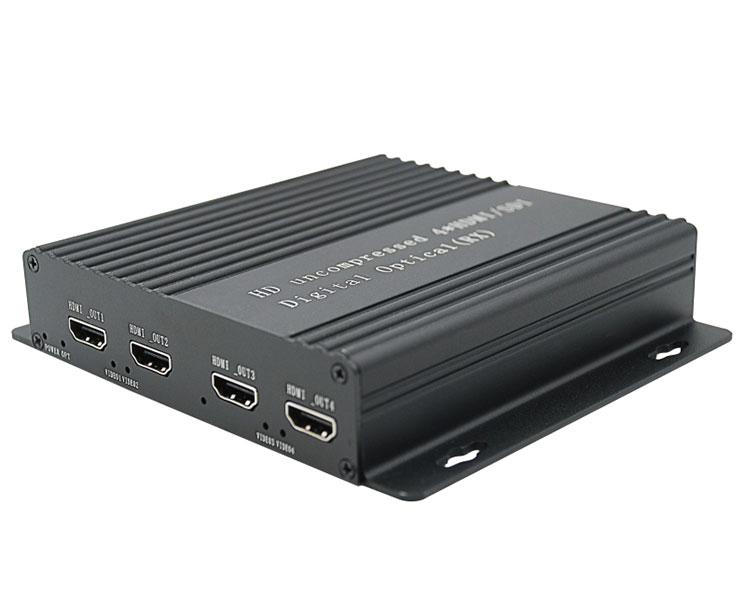

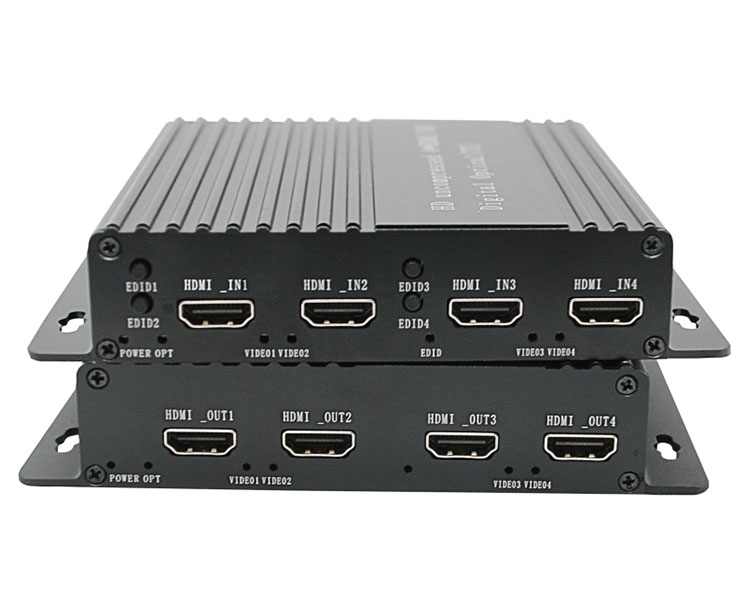

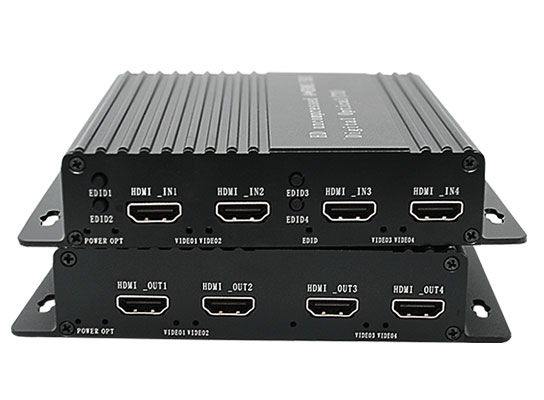

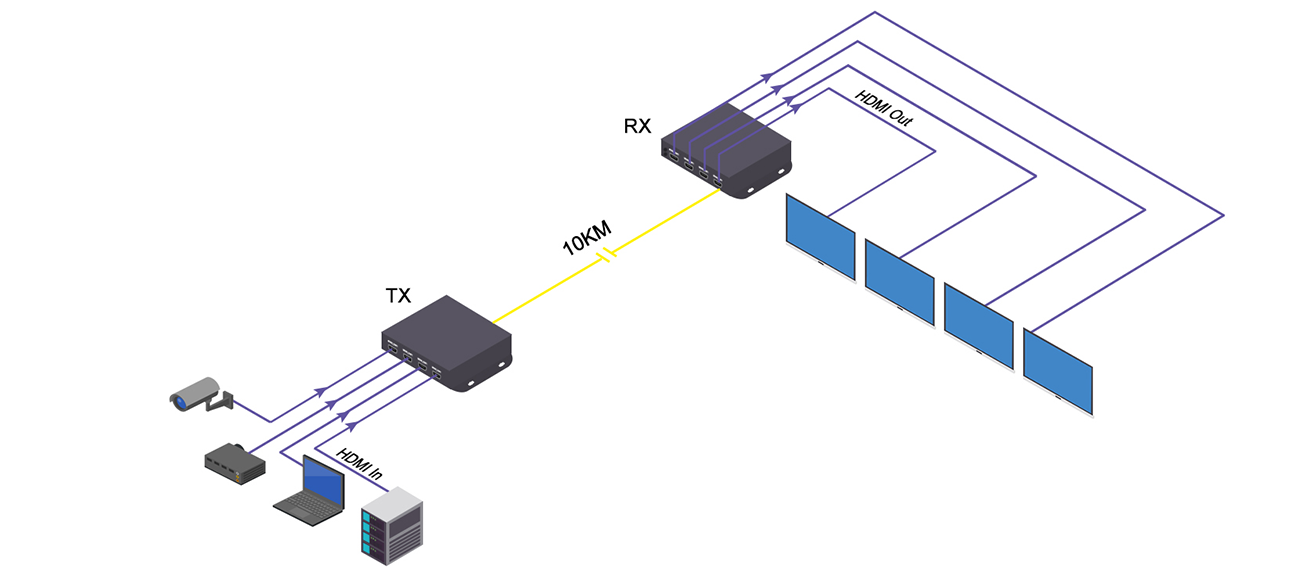

OH404 optical fiber extender is a fiber-based extender designed to extend multiple HDMI signals up to 300m(Using Multimode Dual Core SFP) or 10km,20km,40km,80km (Using Single model one core SFP) over duplex fiber cables.
The OH404 uses advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology. It can easily transmit HDMI HD signals of various resolutions from computers, HD video signal video sources, DVD/DVR, and other devices to the remote end over long distances, with the extremely strong anti-interference capability to ensure signal integrity and stability.

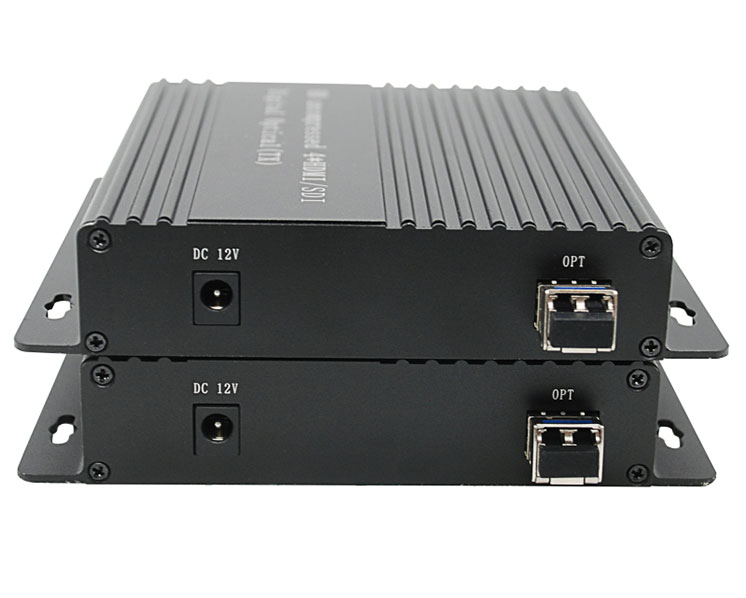

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers lossless HD picture quality at resolutions up to 1920*1200@60Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
Full digital, uncompression hd fiber transmission, SFP (LC) optical attenuation -3db, Wave length 1310nm-1610nm.
Automatic recognition and configuration of various display modes, compatible with support for HDMI 1.3b standard

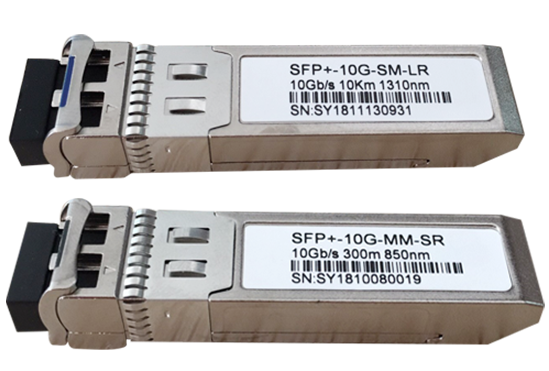

Default:Single model 1-core: 10km
Multimode Dual-Core Module: 300m
Spport 20KM, 40KM, 60KM,80KM OEM
Plug-and-play operation with no software required for easy, immediate installation.
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 4 channel HDMI Fiber Optic Extender |
| Model | ZY-OH404 |
| Transmitter Input | HDMI 1.3b*4 |
| Transmitter Output | LC*1 |
| Recevier Input | LC*1 |
| Recevier Output | HDMI 1.3b*4 |
| Video Agreement | HDMI 1.3 |
| Resolutuion | 1920 x 1200P60/1920 x 1080I60/1920 x 1080I50 1920 x 1080P60/1920 x 1080P50/1920 x 1080P30 1920 x 1080P25/1920 x 1080P24/1280 x 720P60 1280 x 720P50/1680 x 1050P60/1600 x 1200P60 1600 x 900P60/1440 x 900P60/1400 x 1050P60 1366 x 768P60/1360 x 768P60/1280 x 1024P60 1280 x 800P60/1024 x 768P60/800 x 600P60 |
| SFP | Default:Single model 1-core (10km) Multimode Dual-Core Module (300m) Spport 20KM, 60KM,80KM OEM |
| Support EDID | √ |
| Temperature | ‘-20℃ to +70℃ |
| Humidity | 5 to 90 % |
| Power Consumption | 8W/unit |
| Power | 12V/DC 1A |
It is ideal for a wide range of applications requiring long-distance transmission of high-resolution content with the highest quality.
