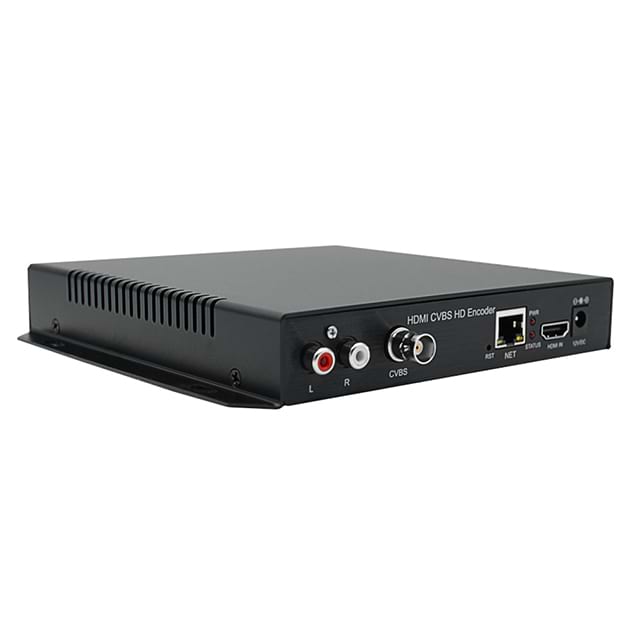

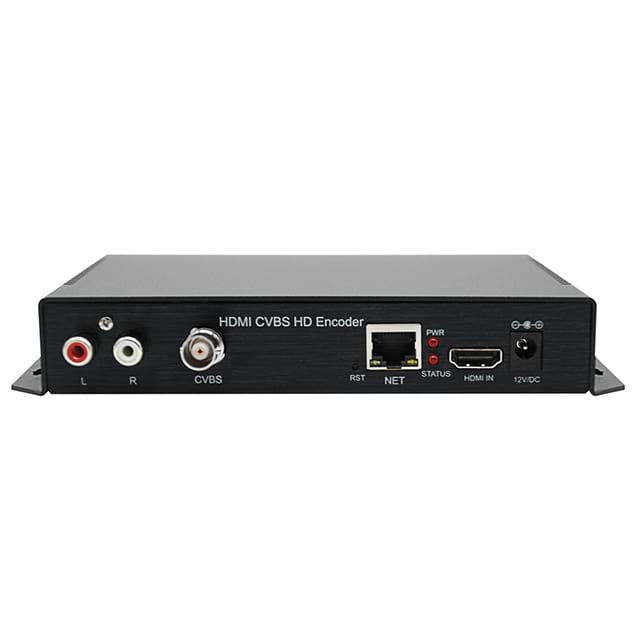

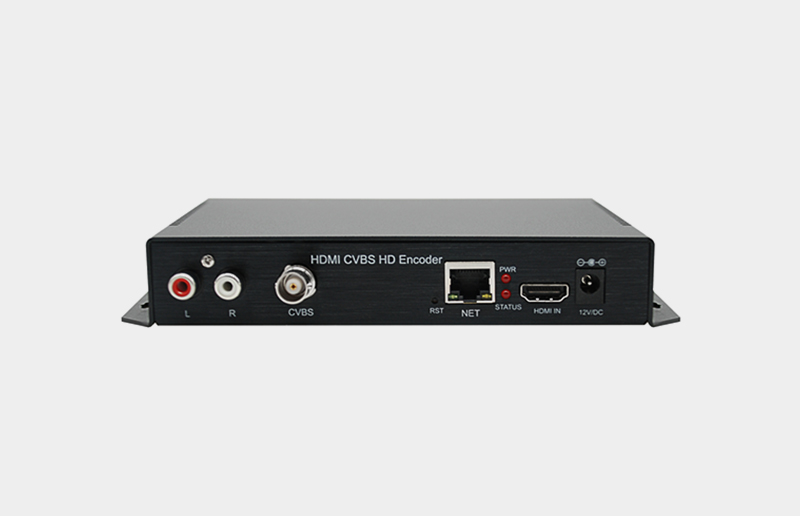

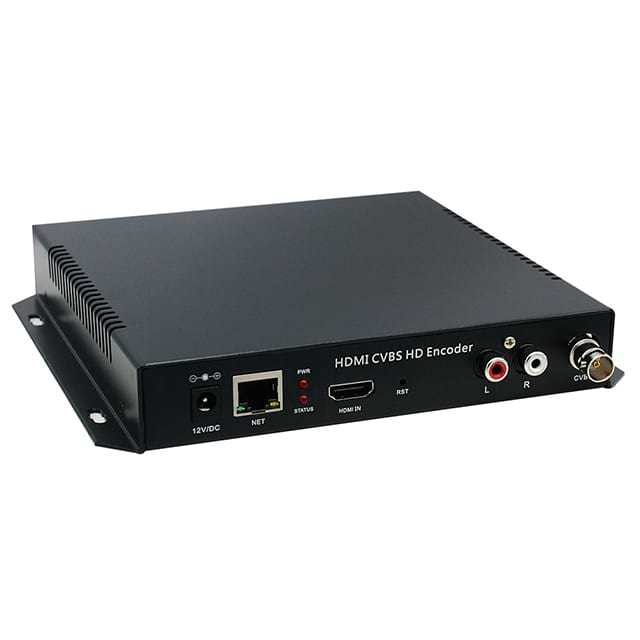

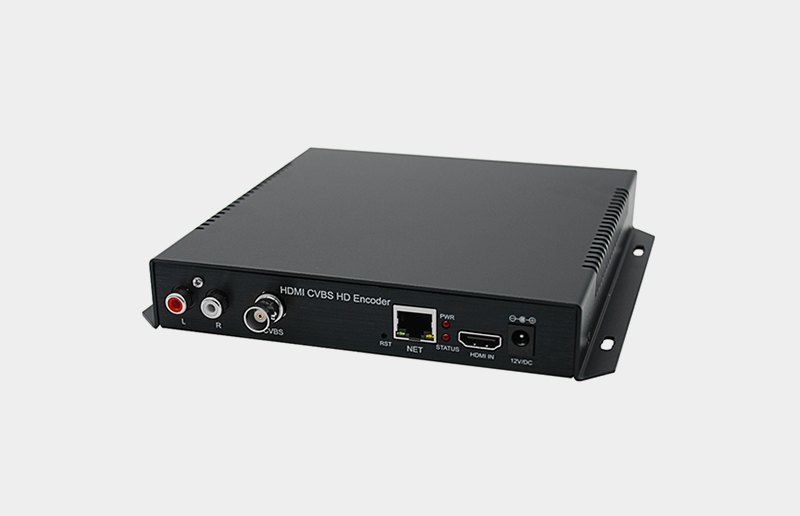

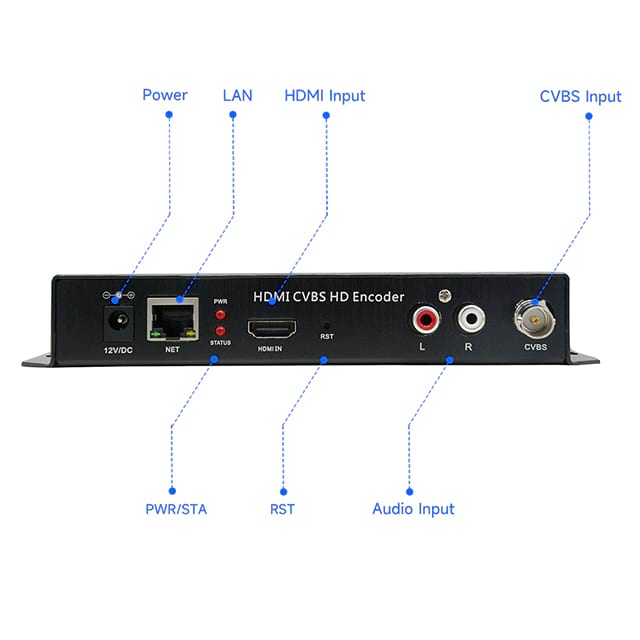

Model: ZY-EHC001 Input Interface: HDMI*1, CVBS(BNC)*1, analog audio*1 Output Interface: LAN Port*1 Video Encoding: H.264 Protocol: HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard ) Warranty: 1 Year Certificate: CE & FCC & Rohs

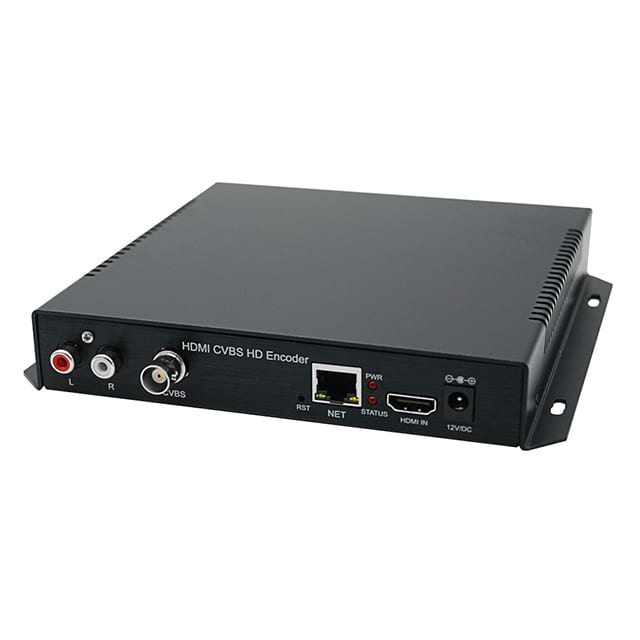

ORIVISION's multi-interface video encoder have dual input interfaces, which encodes HDMI or CVBS video source into IP streams for video transmission over the Internet WAN or LAN through a wired network. It supports H.264 high-performance encoding. Also, it supports the most protocols including HTTP(TS/FLV)/RTMP/RTMPS/ RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, etc.
Higher Compatibility
CVBS+HDMI dual interface design, compatible with various CVBS video sources or HDMI video sources.
Multiple Network Protocols
Supports full range of protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, that means live stream with RTMP/RTMPS.
Good Compatibility
Support Onvif Protocol, and NVR recording, such as Hikvision NVR…
Resolution Setting
Maximum input resolution:1080P@60hz, Maximum output resolution :1080P@60hz Resolution can be set separately.
Web Control
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Obtain IP automatically
Support DHCP and obtain IP automatically.
Audio Synchronization Encoding
Support AAC/G711 audio format; Support Digital /Analog audio loop out.
LOGO/ Image/ Text Overlay
Add any self-defined text, time and image overlay at any position to announce your copyrights.
Local and Remote Transmission
Support LAN, WAN
Support OEM/ODM
OEM: Free print company logo by laser print; MOQ≥1 unit. ODM: Pls send your requirements to us. (info@orivision.cn).
Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
FAQs
Q: What is the default login IP of the encoder?
A: The default login IP address is 192.168.0.31.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: What is the login account and password of the encoder?
A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: How to get the newest firmware and update it?
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware. After get the newest firmware, pls follow the steps as below: Step 1: Download the .rar file, do not unzip the file Step 2: Log in to your Encoder or decoder web user interface and click the System button. Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.) Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
