Brand: ORIVISION
Model: ZY-UCH401
Input Interface: DVI/HDMI/VGA/SDI/Ypbpr, Audio
Output Interface: USB3.0
HDMI Input Resolution: Up to 1080@60hz
USB Out-put Resolution: Up to 1080P@60hz
Support System: Windows, Linux and Mac OS
Software Support: Most sofware: VLC,OBS,Amcap,etc.
Warranty: 1 Year
Certificate: CE & FCC & Rohs

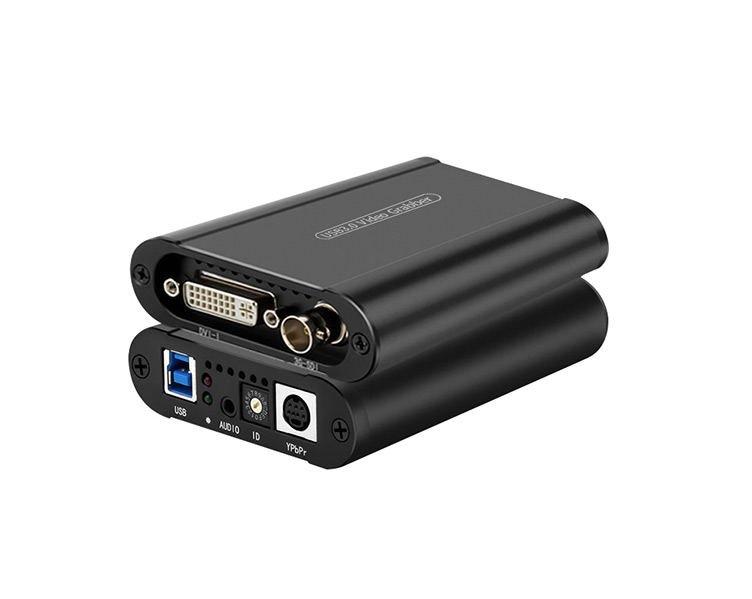

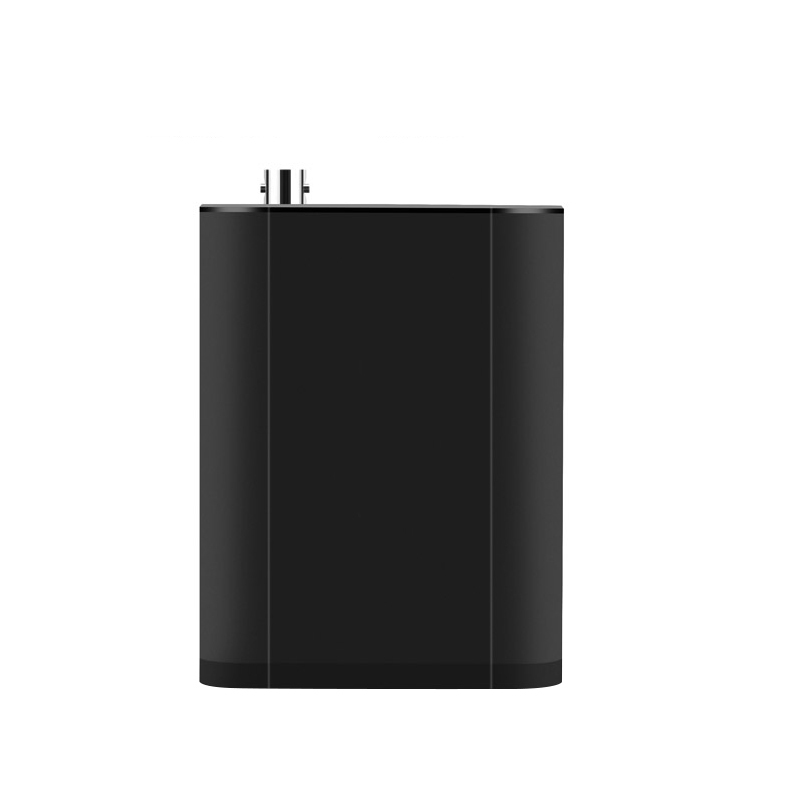

Professional USB3.0 Capture Card
Multi interface: DVI/HDMI/VGA/SDI/Ypbpr
Support 16 hard address dial switch
Windows, Linux, Mac
The usb 3.0 capture card is a USB external SDI / HDMI / DVI / VGA / YPbPr video capture grabber card device for graphics capture,live streaming, recording on your laptop, PC. Free Driver, A driver included with Windows, Linux or OS X(Mac) system ensures plug and play compatibility, Capture one single channel HD video signals.
1080p/60fps & UAC and UVC ,The UAC is compatible with audio capture and audio output , The headphone interface, through which source audio or audio from the input can be monitored.The microphone interface, through which voice can be mixer recorded.

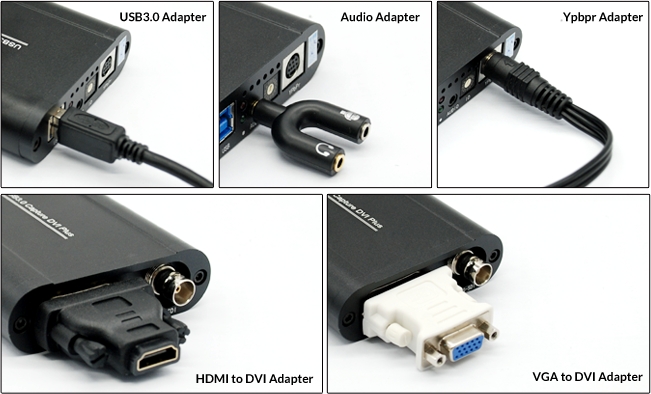

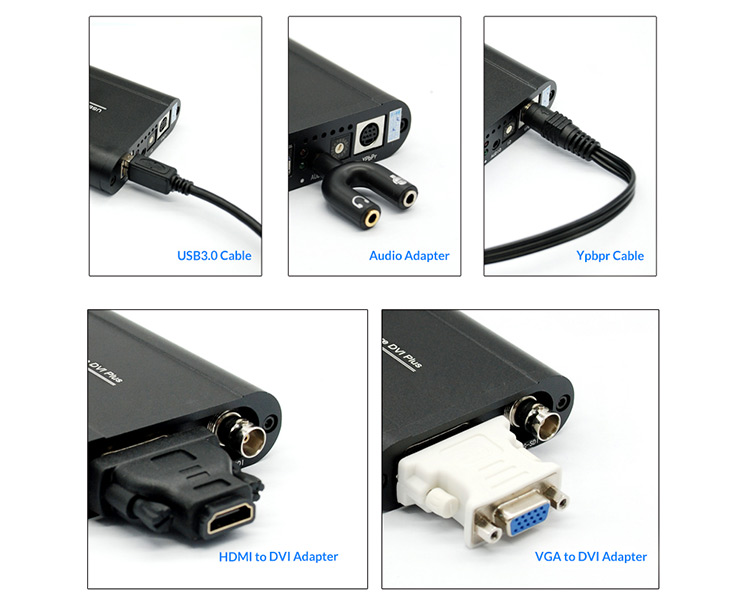

Support DVI/HDMI to DVI/VGA to DVI/SDI/Ypbpr input, meet your higher needs.
Support System: Windows, Linux and Mac OS
Support most acquisition software,
such as VLC/OBS/Amcap, etc
Such as youtube/facebook/twitch/stream, etc
HDMI Input ResolHDMI Input Resolution: Up to 1080P@60hz
USB Out-put Resolution: Up to 1080P@60hz
Without external power supply, compact and portable.
With up to 300~350MB/s transfer speed, to meet your need from capture to display with low latency.

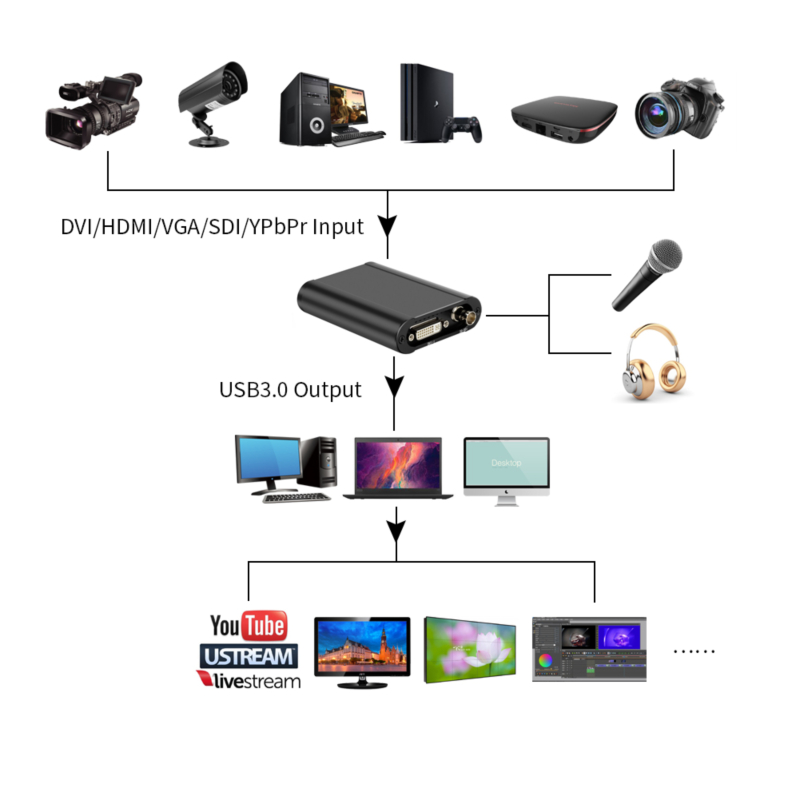

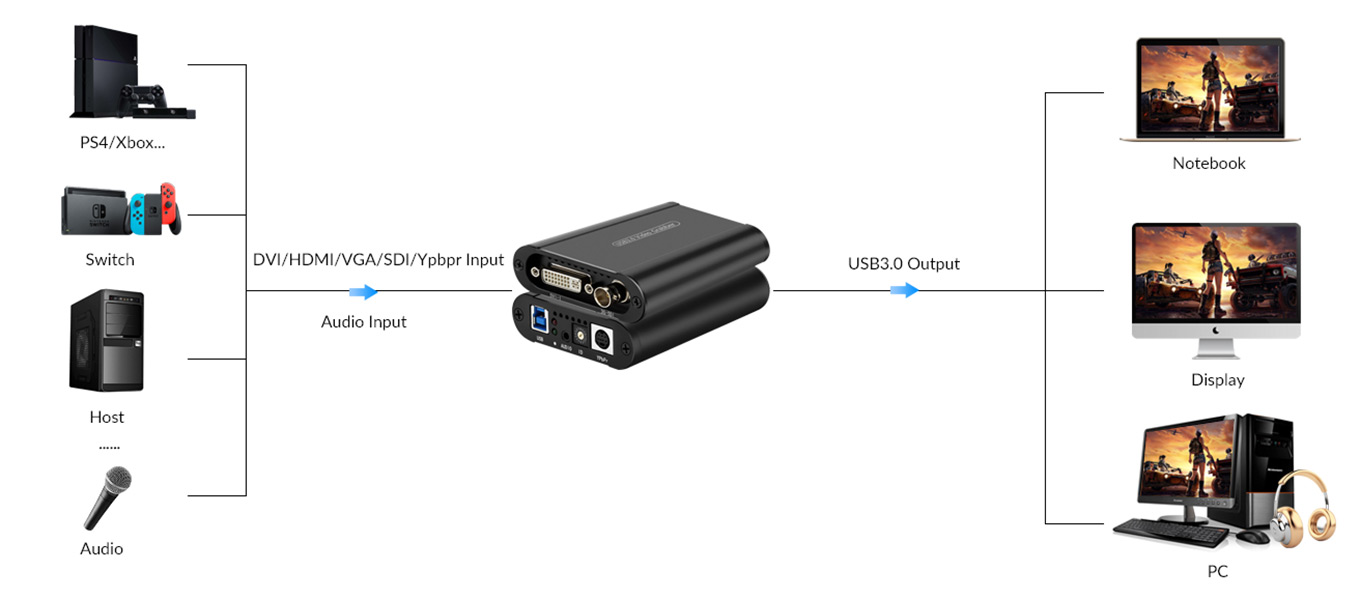

Apply to game live streaming, live broadcasting, online classes, video conference, etc.
| Product Name | DVI(HDMI/VGA)/SDI/YPbPr Video Capture Card |
| Model | UCH401 |

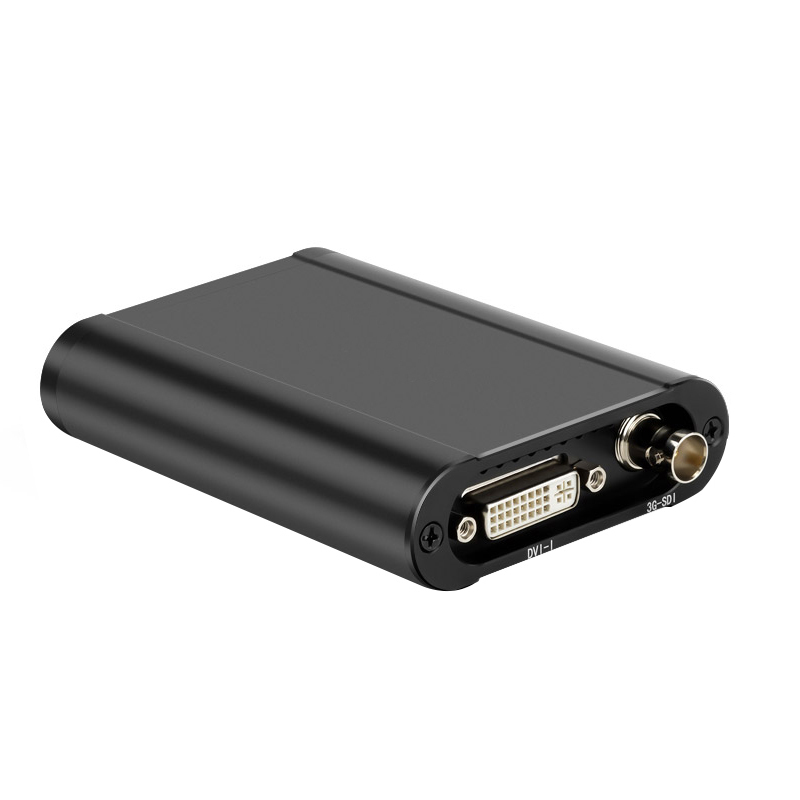

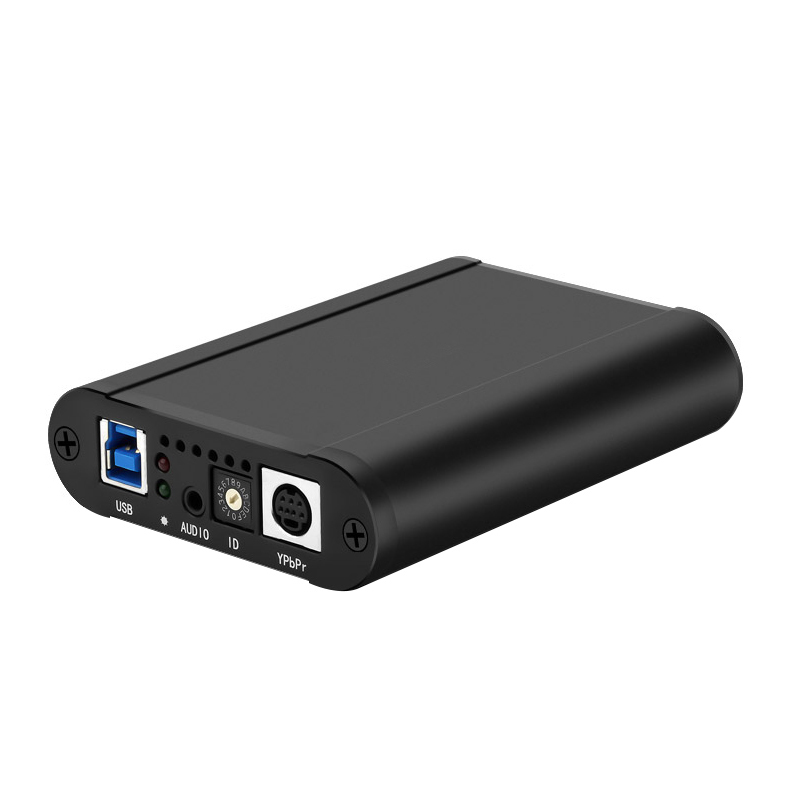

| Input Interface | 1 xBNC，1 xDVI-I ,1 xYPbPr ,1 x3.5mm Audio |
| Video Input | 1 channel DVI video signal input, 1 channel 3G-SDI audio and video signal input, 1 channel HDMI audio and video (video signal to DVI) signal input, 1 channel VGA video to DVI signal input, 1 channel YPbPr video signal input |
| Audio Input | 1 channel PCM audio signal; when SDI, HDMI/DVI/VGA video signal, YPbPr video signal input, external 1 channel audio signal input at the same time; When SDI and HDMI are used, 1 channel of audio signal can be looped. |
| Out-put Interface | USB3.0，360MB/s transmission bandwidth |
| Video Frame | USB3.0 supports all 60 frames, while USB2.0 supports 1080P10, 720P24, 480P60, etc |
| Dial Switch | Support for 16 hard addresses，0、1、2、3、4、5、6、7、8、9、A、B、C、D、E、F |
| SDI Input Format | SD/HD/3G-SDI，conform to SMPTE-259/274/296/372/424/425/292 standard |
| HDMI Input Format | Conform to HDMI 1.4a standard，support 1080P/60HZ 8-bit,(RGB,YUV) |
| VGA Input Format | Pixel 640x400-2048x1536，PAL/NTSC |
| DVI Input Format | Conform to DVI 1.0 standard，single link (480i、576i、480p，576p，720p，1080i，1080p) |
| YPbPr Input Format | 480i、576i、480p，576p，720p，1080i，1080p |
| Transmission Rate | SDI:1.485Gb/s，2.97Gb/s；DVI:225MHZ；HDMI:165MHZ；VGA:170MHZ |
| Output Color Space | YUY2 |
| Software Support | Most sofware: VLC,OBS,Amcap,etc |
| USB Support | Conform to USB Video and UVC standard; Conform to USB Audio UAC standard; |
| Support System | Windows, Linux and Mac OS |
| Power | Without external power supply, compact and portable. |
| Operating temperature | 0°C ~ 50°C |
| Size (L*W*H) | 112x86x26 (mm) |
| Weight | 0.1KG |
Apply to game live streaming, live broadcasting, online classes, video conference, etc.
