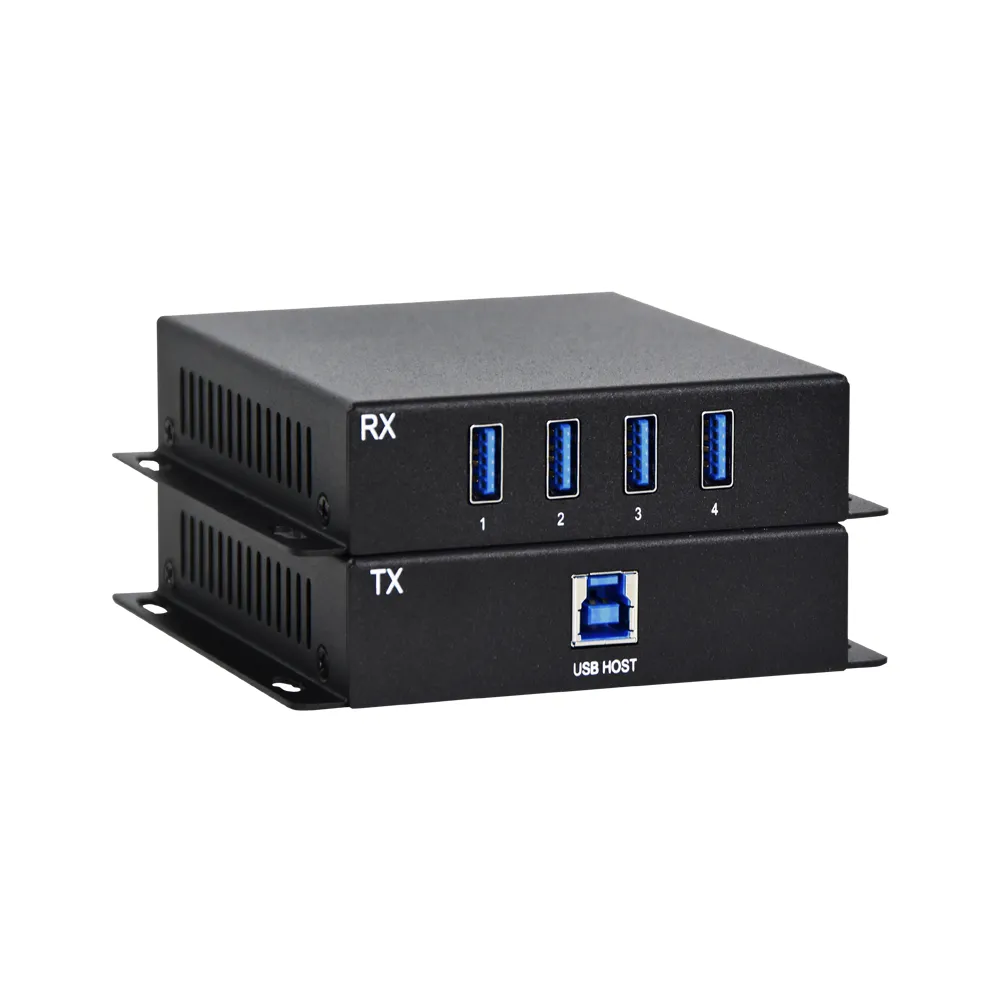

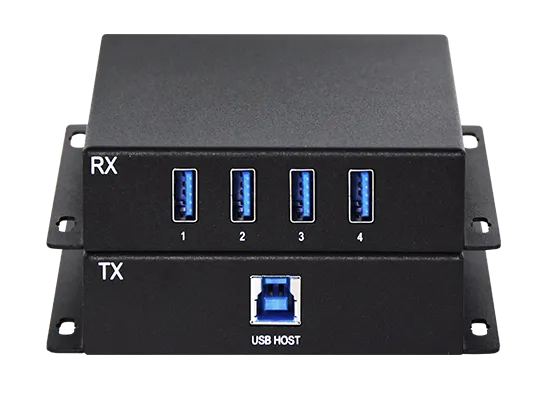

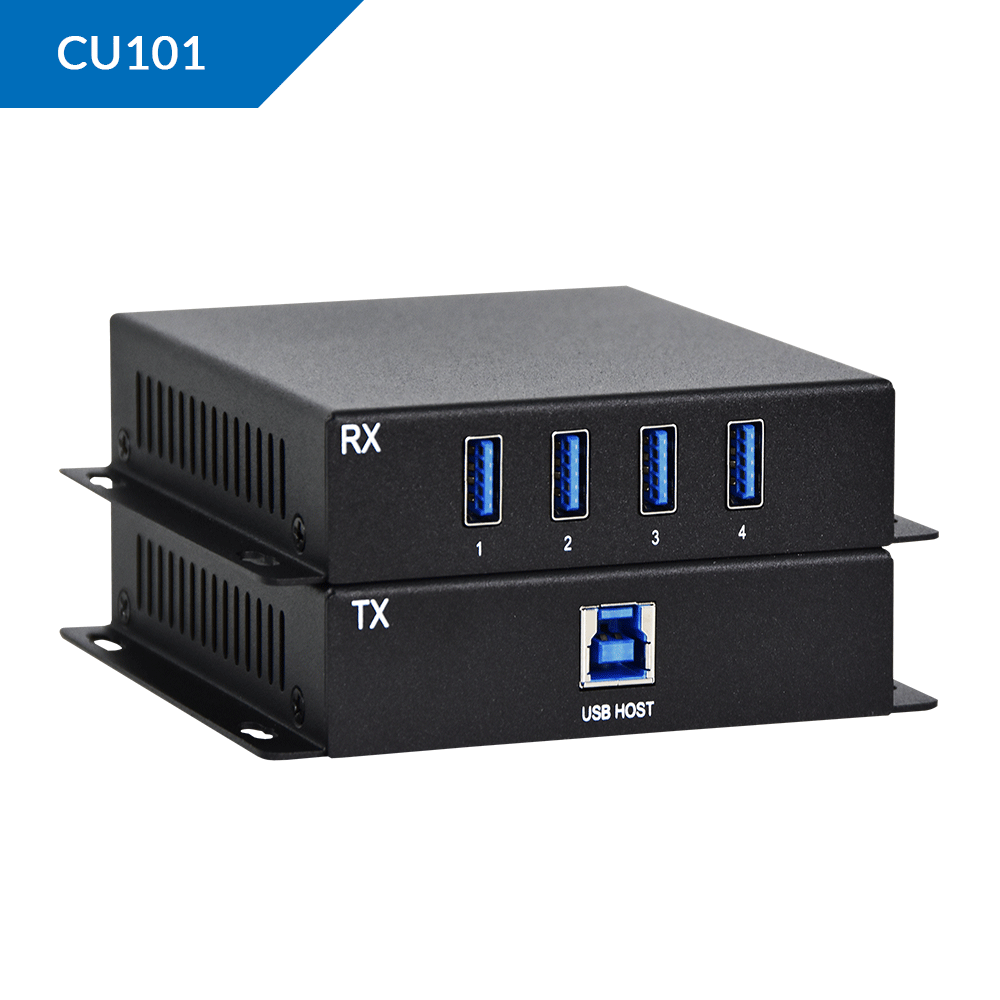

100M USB3.0 Extender Over Cat6a Cable

Extension of USB 3.0 is up to 100m/328ft over CAT6a cable
Backwards compatible with USB 2.0 and 1.1
USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
Simple plug and play, no driver and setting installation required


Availability:



Inquire

Model:
CU101S

Description

Introduction

Parameters

Diagram

Introduction

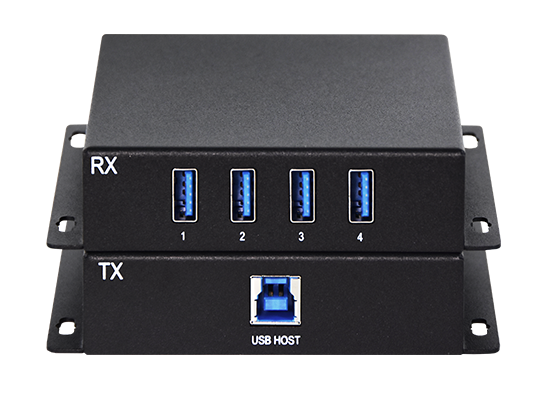

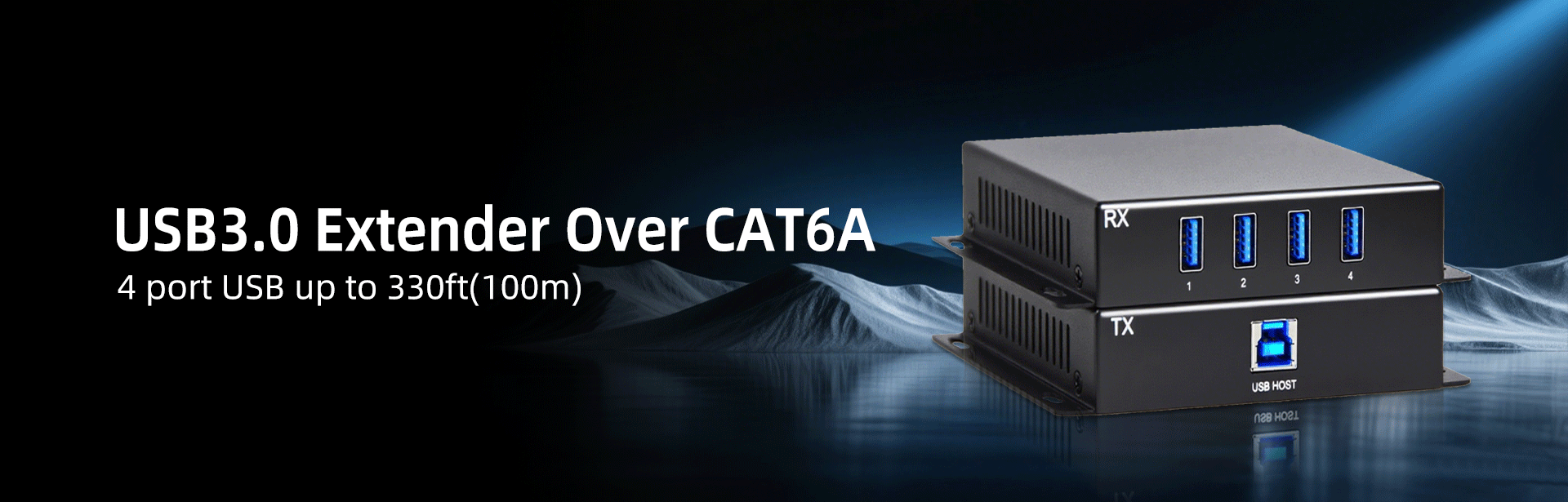

100m/328ft USB3.0 Extender

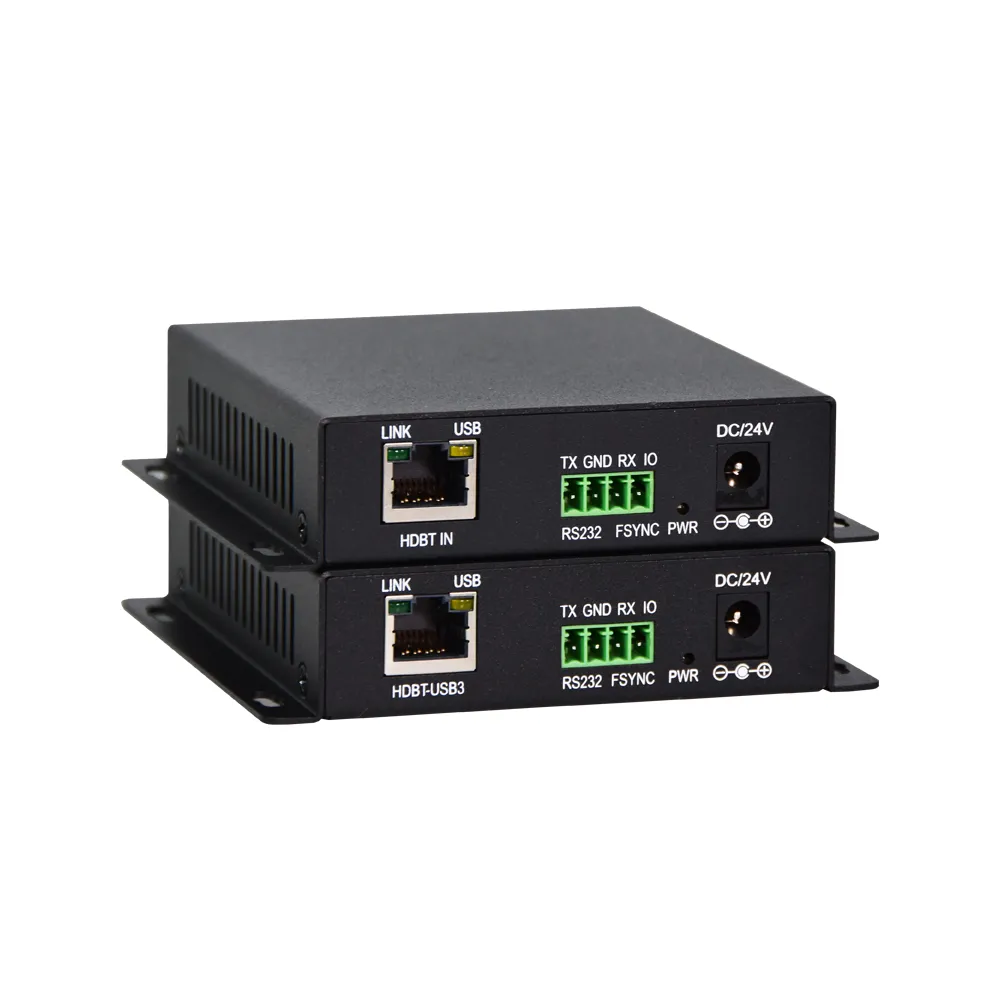

The USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. Bi-directional 24V PoC is also supported.
The product can be widely used for long distance signal transmission between a PC and USB devices.
USB3.0 Extender Up to 100M/328ft

Transmit high-speed USB3.0 signals over Cat 6 cable, perfect for remote setups like offices, surveillance systems, or home entertainment.

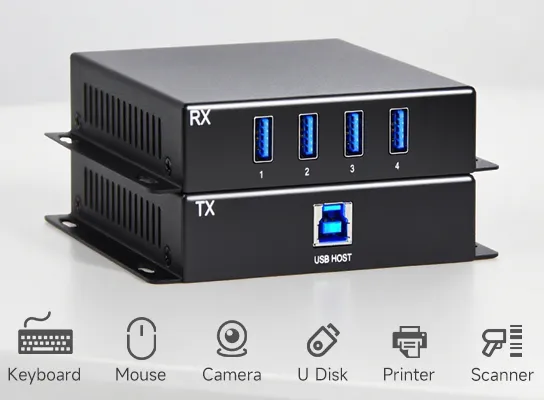

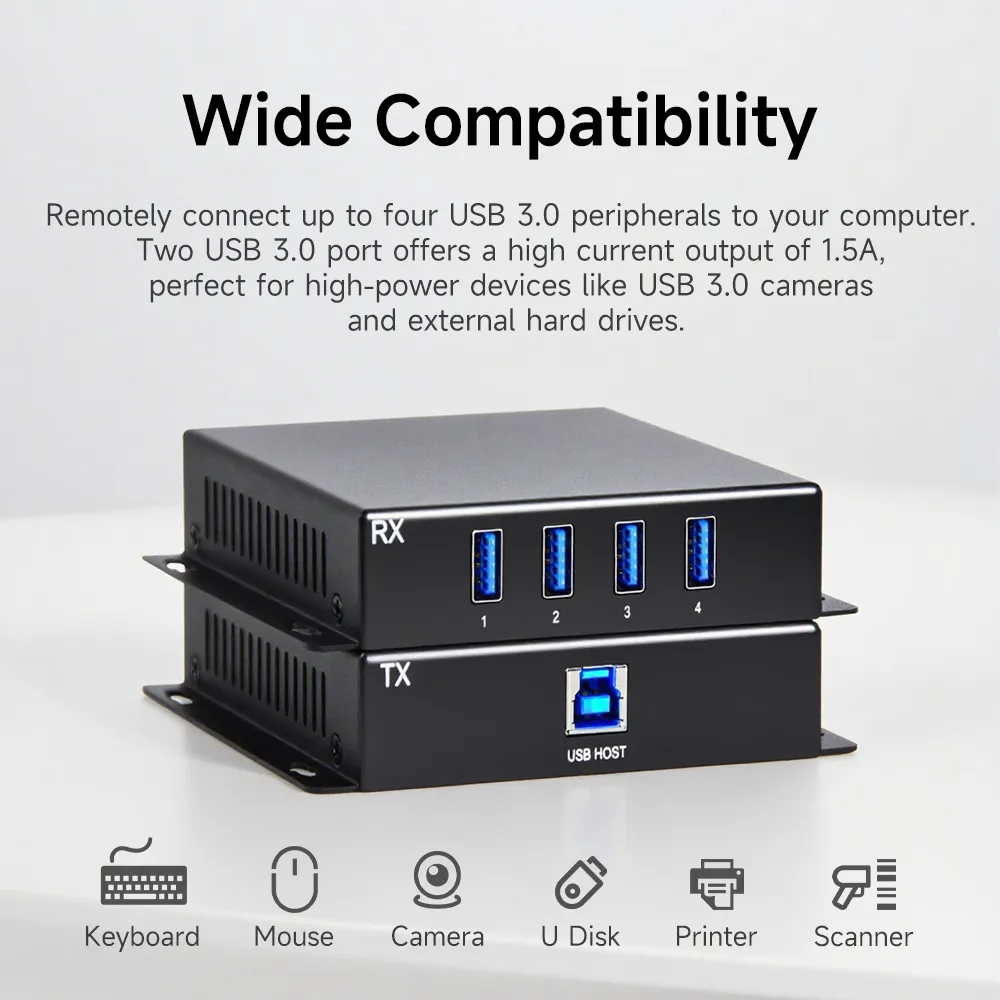

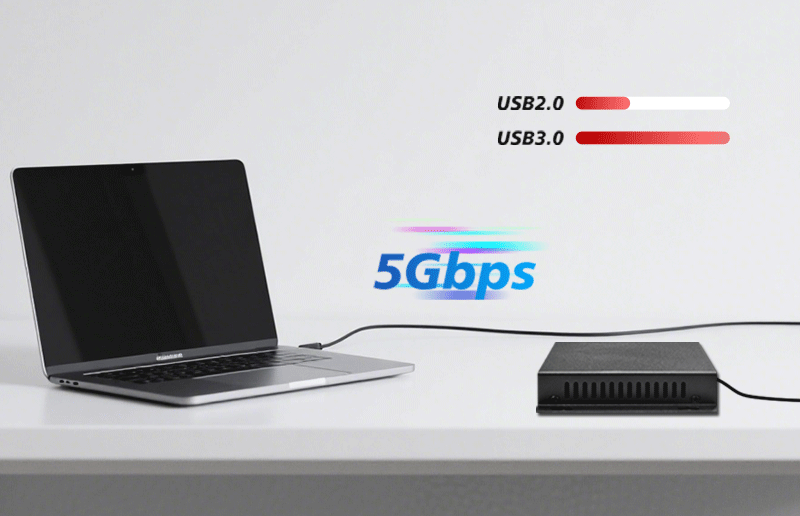

4-Port USB3.0 Hub & 5Gbps Speed

Connect multiple devices (cameras, printers, hard drives) to the receiver with 4 USB3.0 ports, supporting blazing-fast 5Gbps data transfer, backwards compatible with USB 2.0 and 1.1

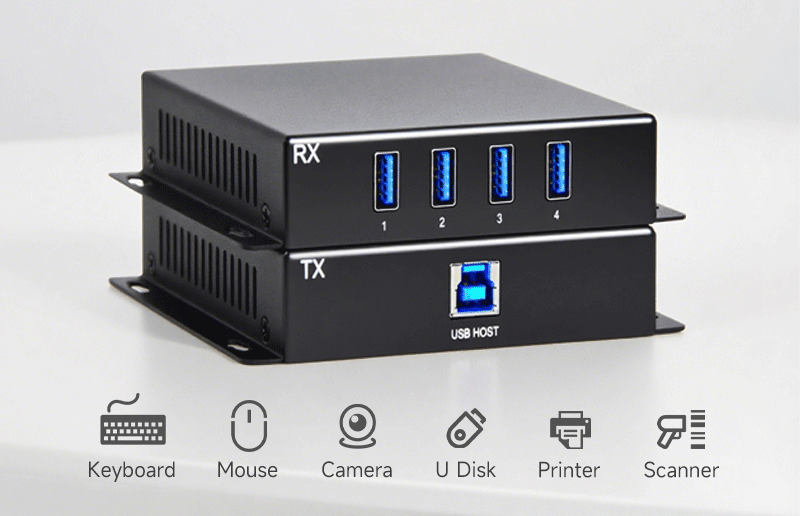

Ideal for High-Power USB Devices

USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver, perfect for high-power USB devices like USB 3.0 cameras, external hard drives, and more.

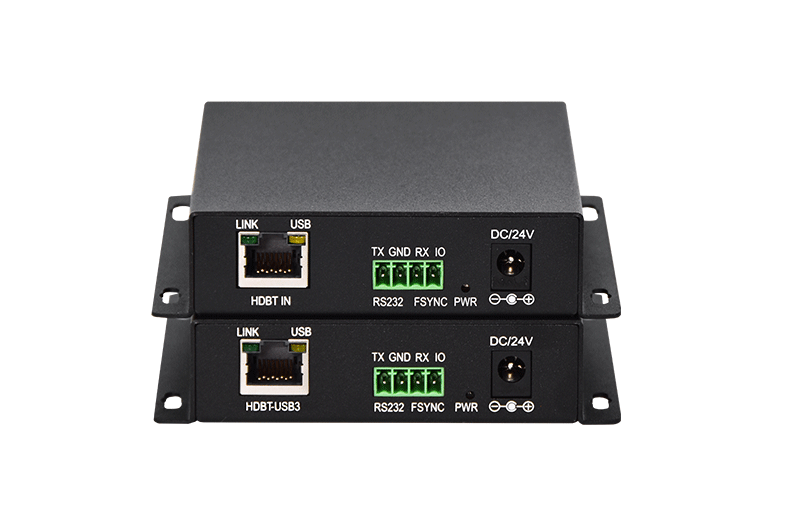

Industrial-Grade Compatibility

Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)

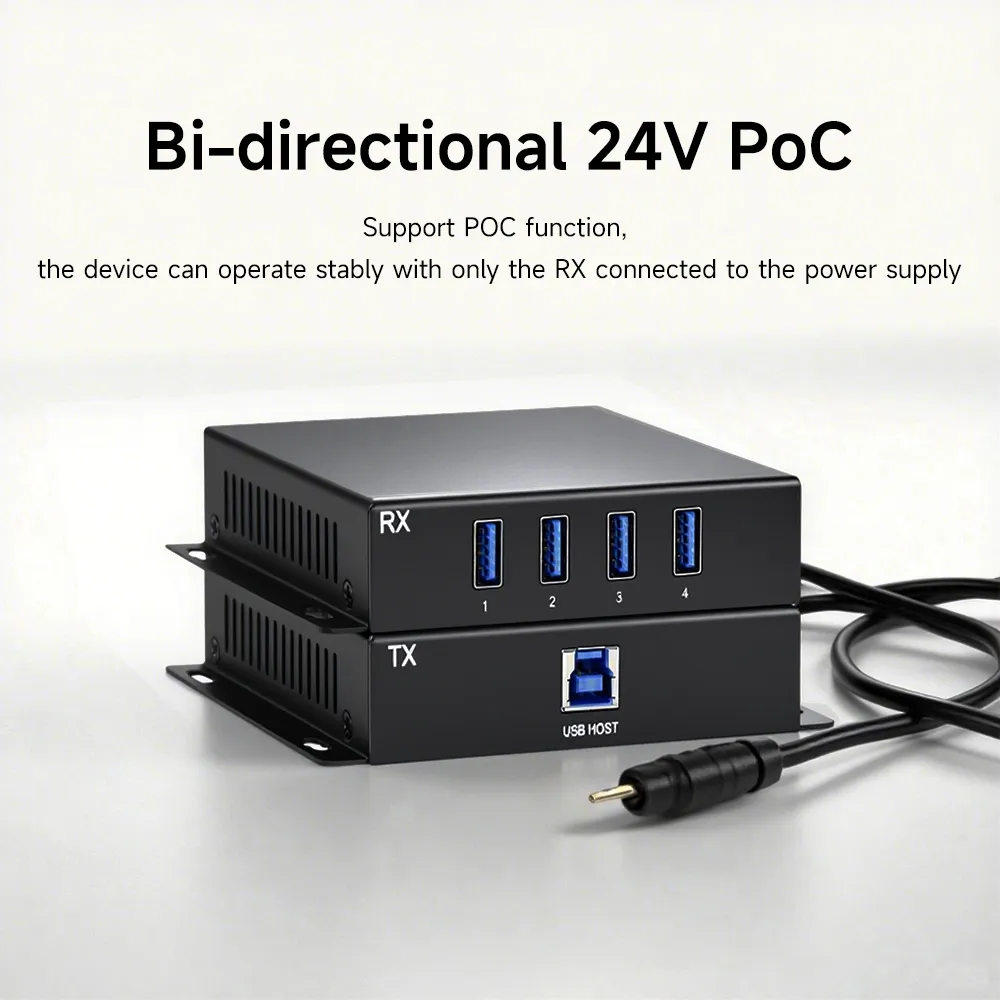

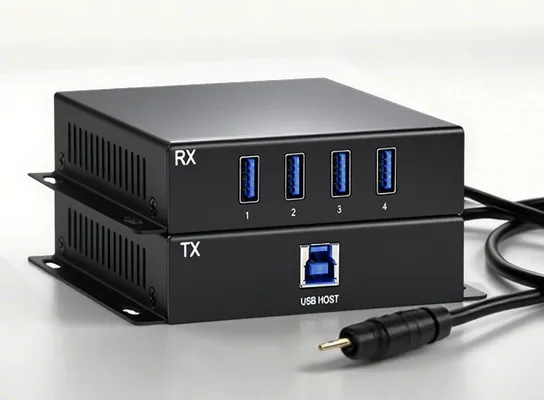

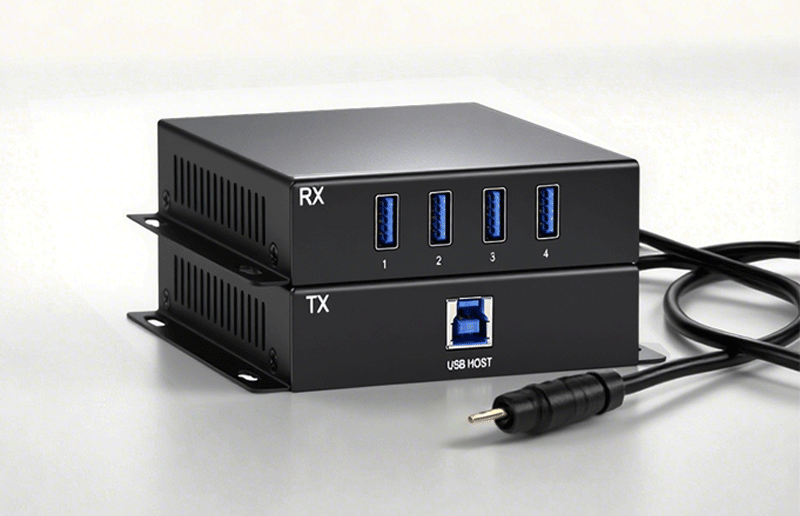

Support POC Function

The device can operate stably with the TX/RX connected to the power supply

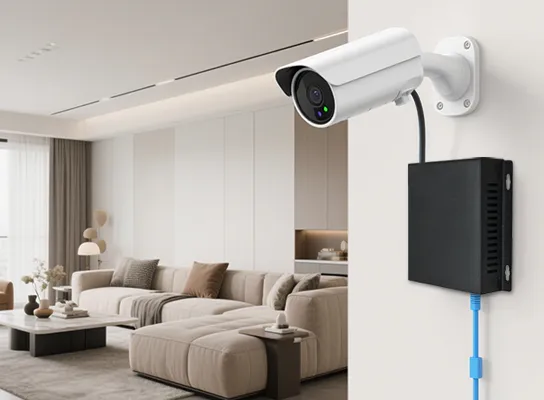

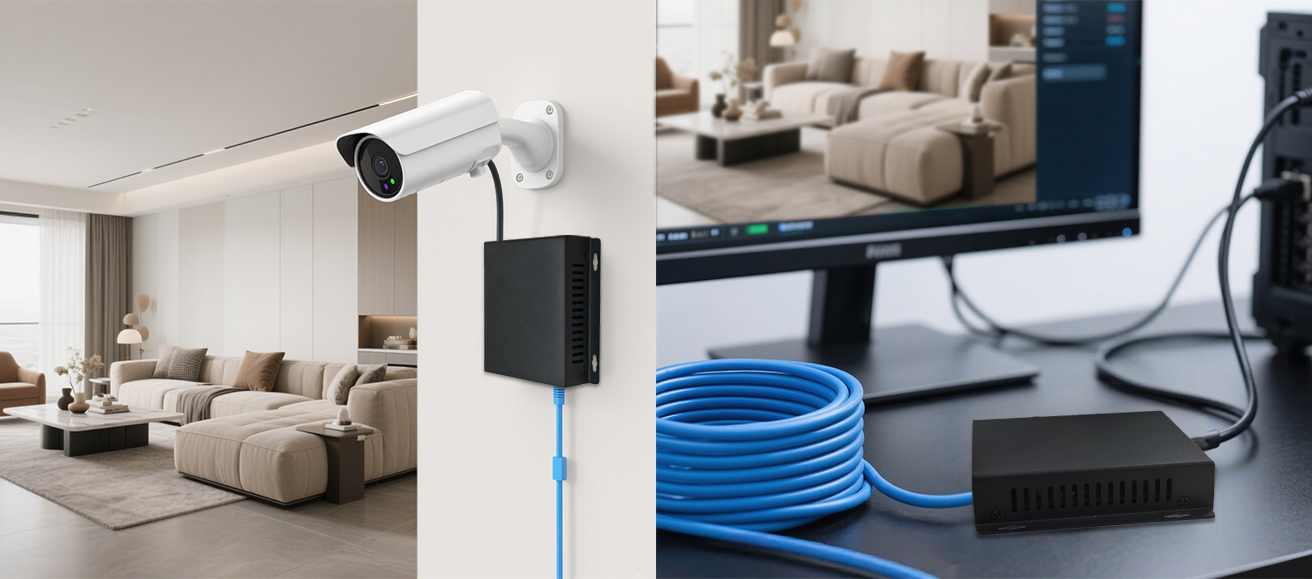

Wide Range of Application Scenarios

This USB3.0 over ethernet extender is perfect for office work, gaming, surveillance, live streaming/recording, astronomical observation, and more.

Parameters Of 100M USB3.0 Extender Over Cat6a Cable

Name	USB3.0 Extender
Model	CU101
Technical
USB Protocol	USB 3.0
Transmission Rate	Up to 5Gbps
Transmission Distance	100m/328ft over CAT6a (F/FTP) cable
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connections

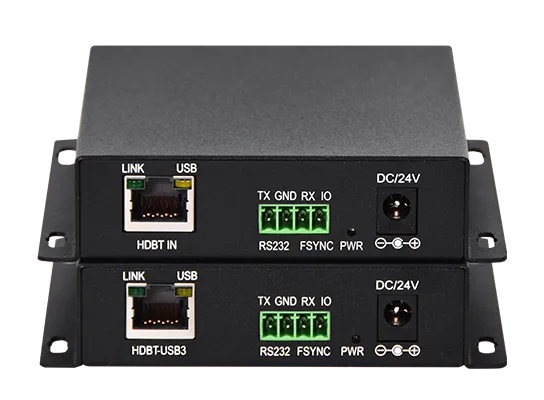

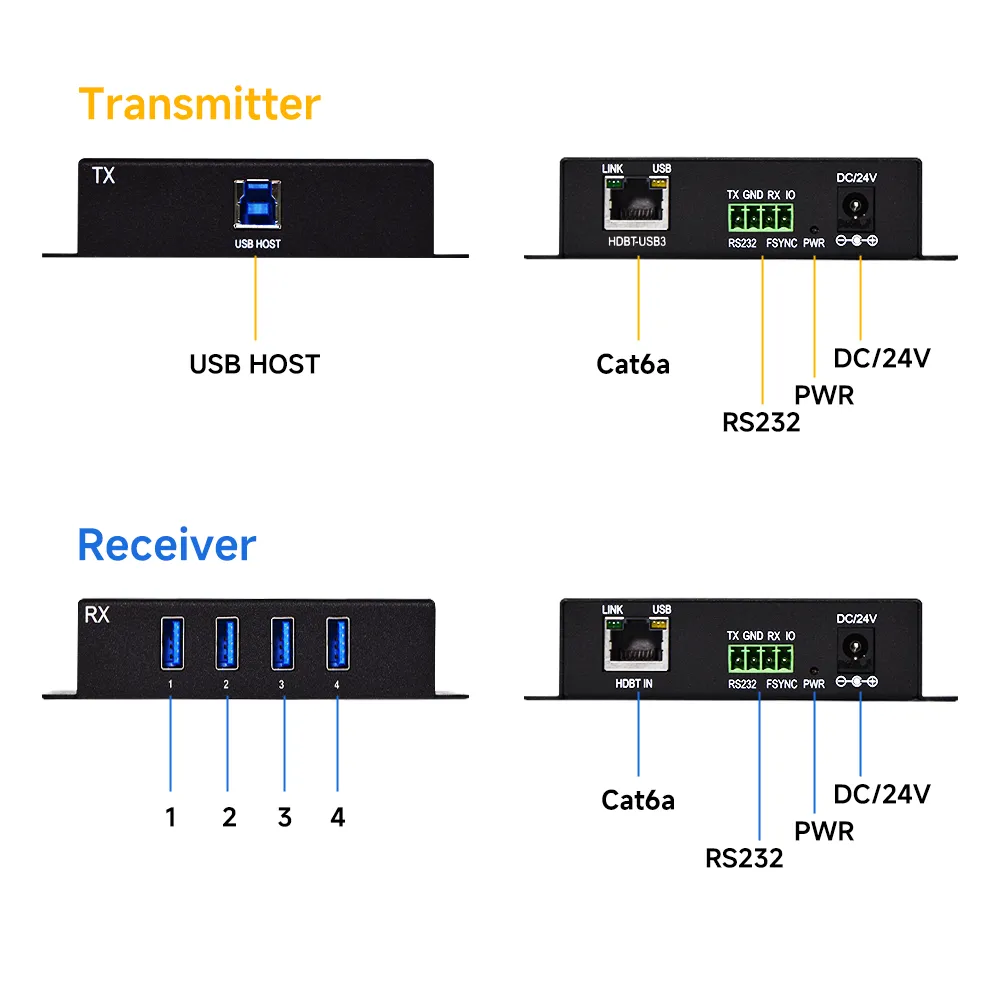

Transmitter	Input: 1× USB HOST [USB-B, 9pin Female] Output: 1× HDBT OUT [RJ45, Female] Control: 1× RS-232 [3pin-3.5mm Phoenix Connector] 1× FSYNC [1pin-3.5mm Phoenix Connector] 1× SERVICE [USB-C, Update Port]
Receiver	Input: 1× HDBT IN [RJ45, Female] Output: 4× USB Devices [USB-A, 9pin Female] Control: 1× RS-232 [3pin-3.5mm Phoenix Connector] 1× FSYNC [1pin-3.5mm Phoenix Connector] 1× SERVICE [USB-C, Update Port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 85mm [W] × 100mm [D] × 25.5mm [H]
Weight	Transmitter: 253g, Receiver: 260g
Power Supply	Input: AC 100~240V 50/60Hz Output: DC 24V/2A
Power Consumption	PoC Power Supply: 40W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity	20%~80% relative humidity, non-condensing
Storage Humidity	10%~90% relative humidity, non-condensing

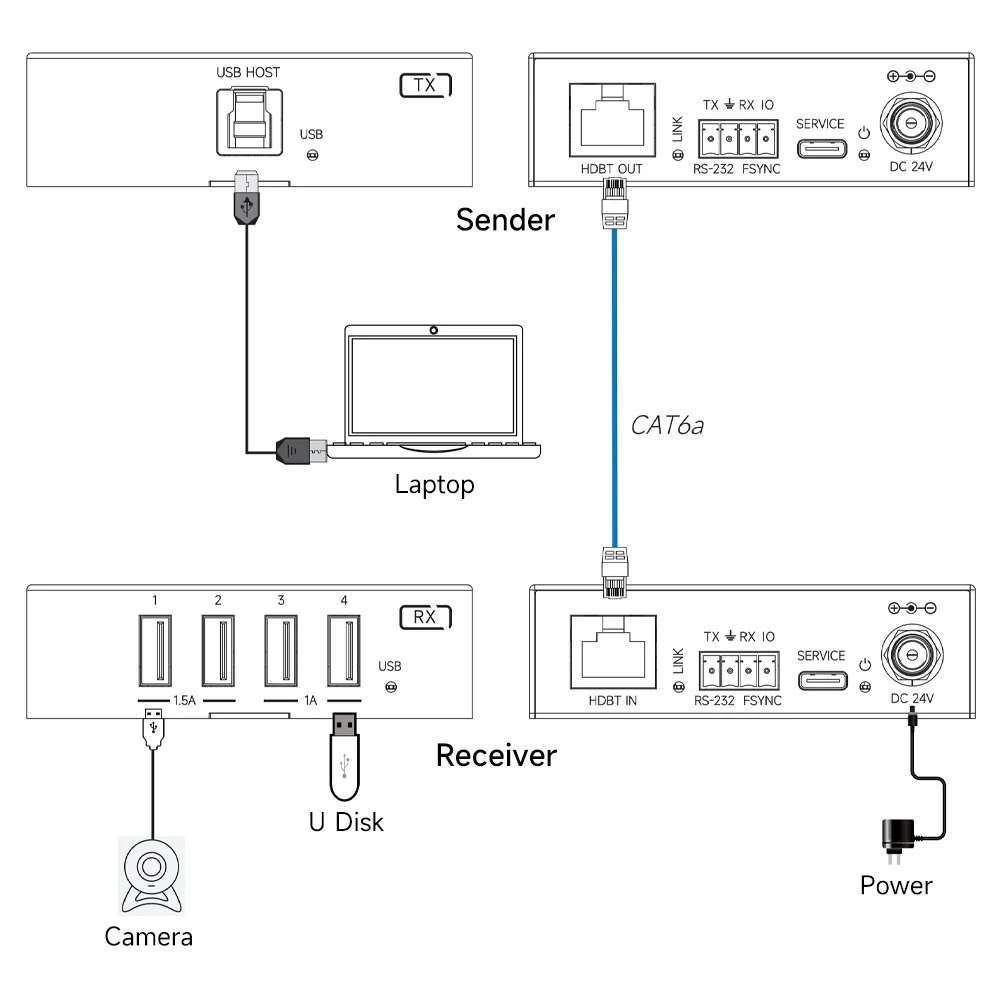

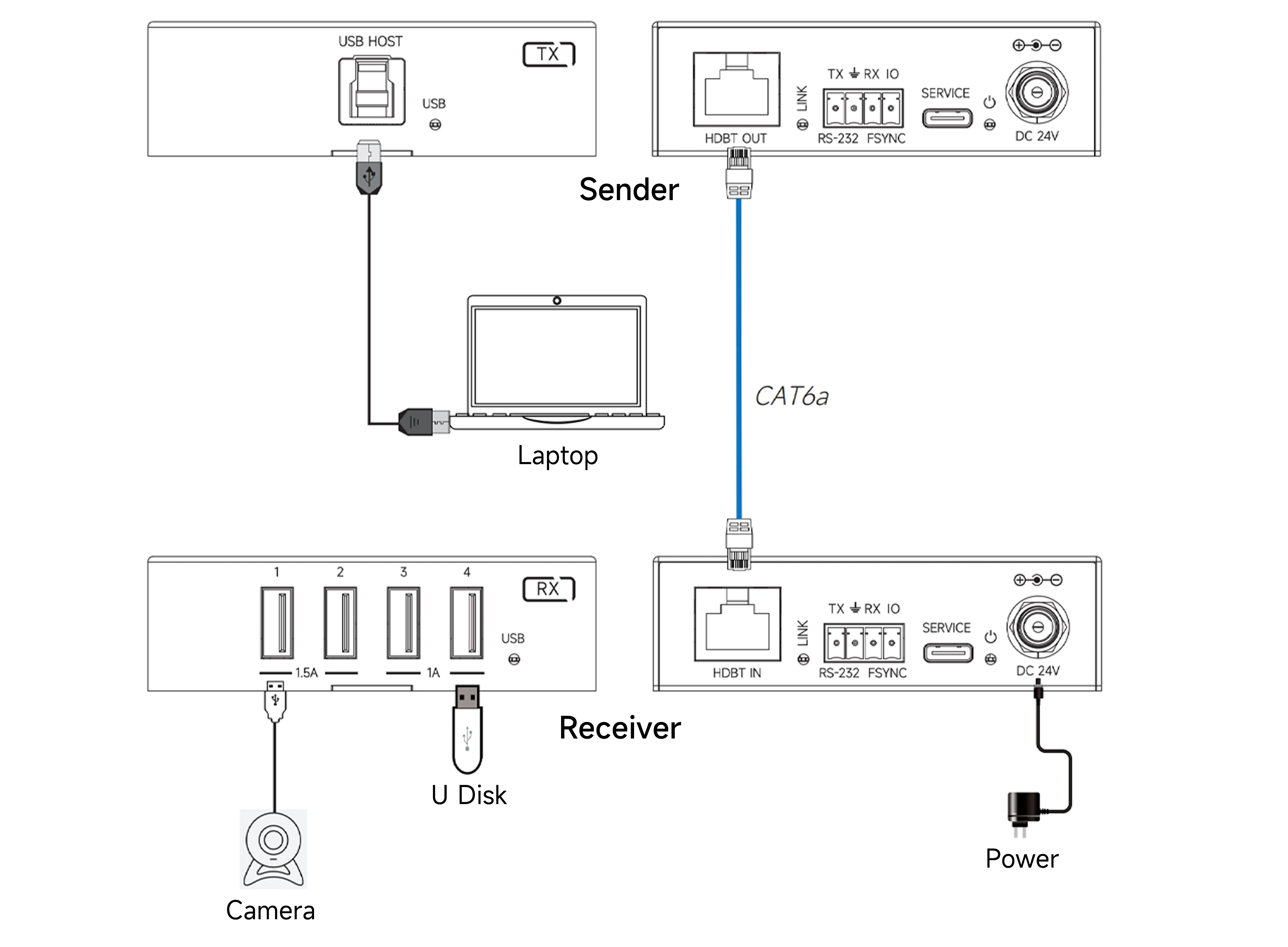

Diagram Of 100M USB3.0 Extender Over Cat6a Cable

Apply to AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
