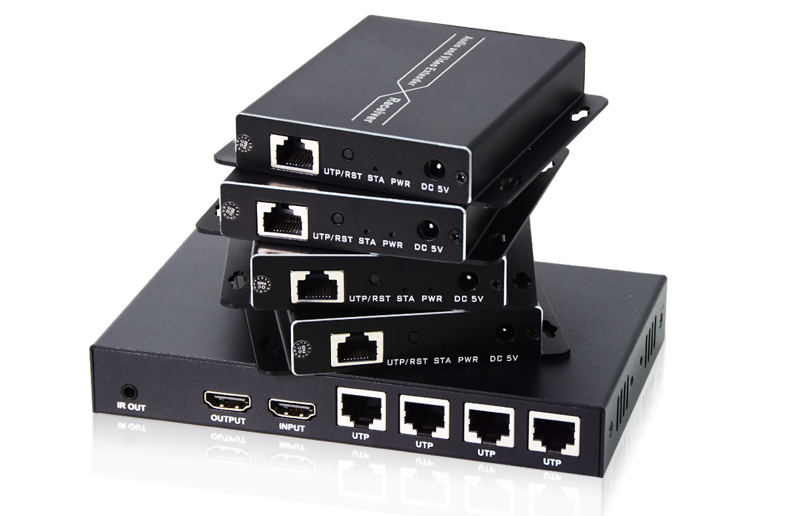

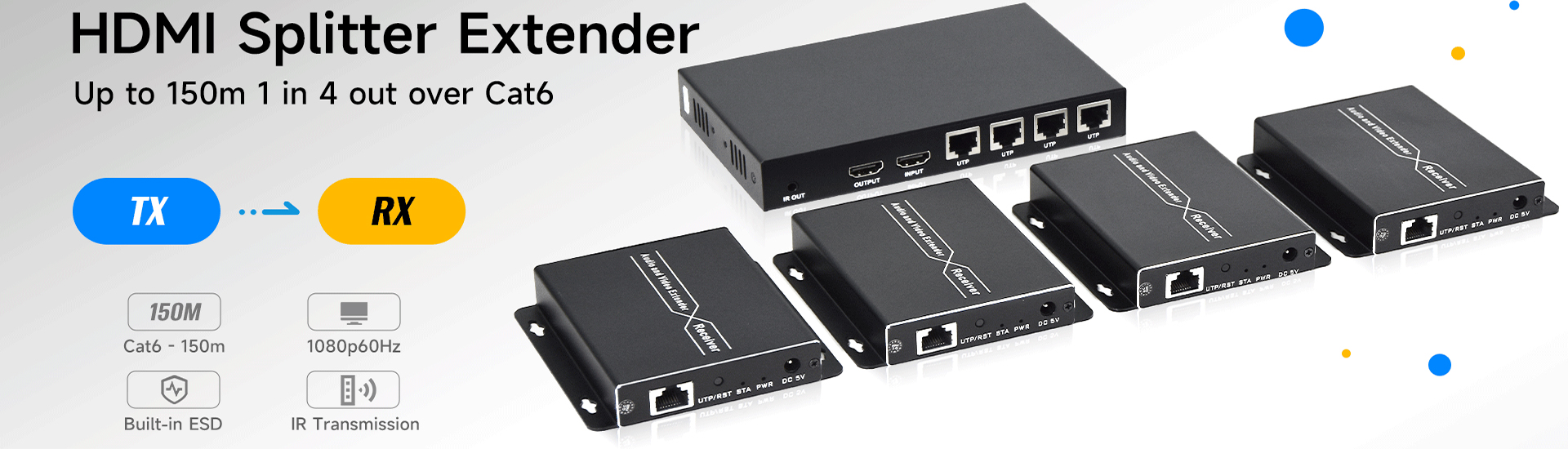

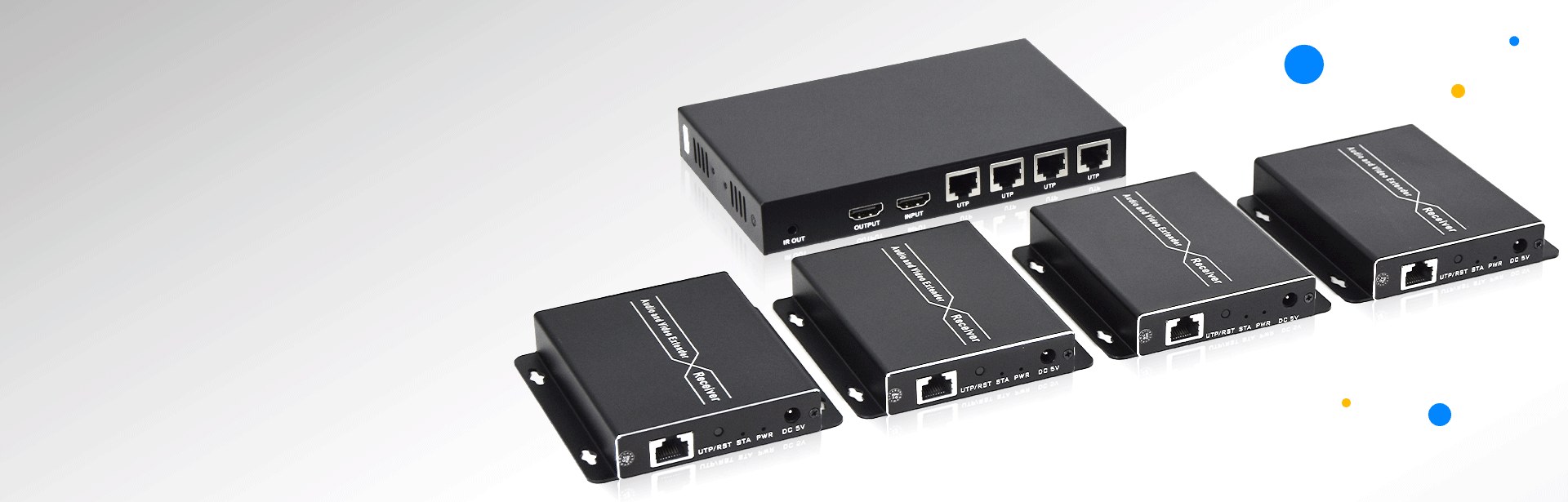

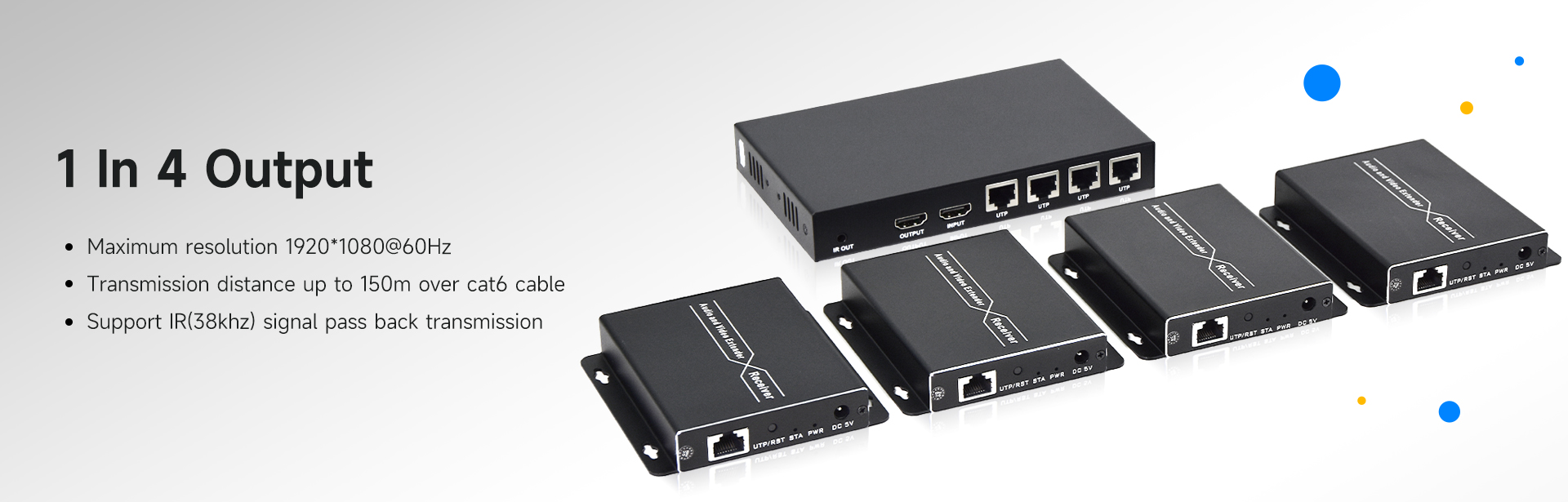

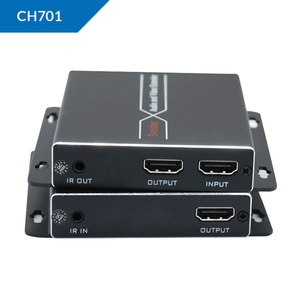

This product is a 1 input 4 outputs splitter extender kit, which integrates the functions of distribution and extension. It distributes 1 HDMI input signal to 4 identical signal outputs, extends these signals up to 150m, and supports 1080P@60 resolution. Supports TCP/IP and enables multi-channel cascading via switches or receivers. While supporting long-distance transmission, it also provides local HDMI output and IR pass back, allowing remote control of the player from the display end. Built-in EDID greatly enhances the device's compatibility.

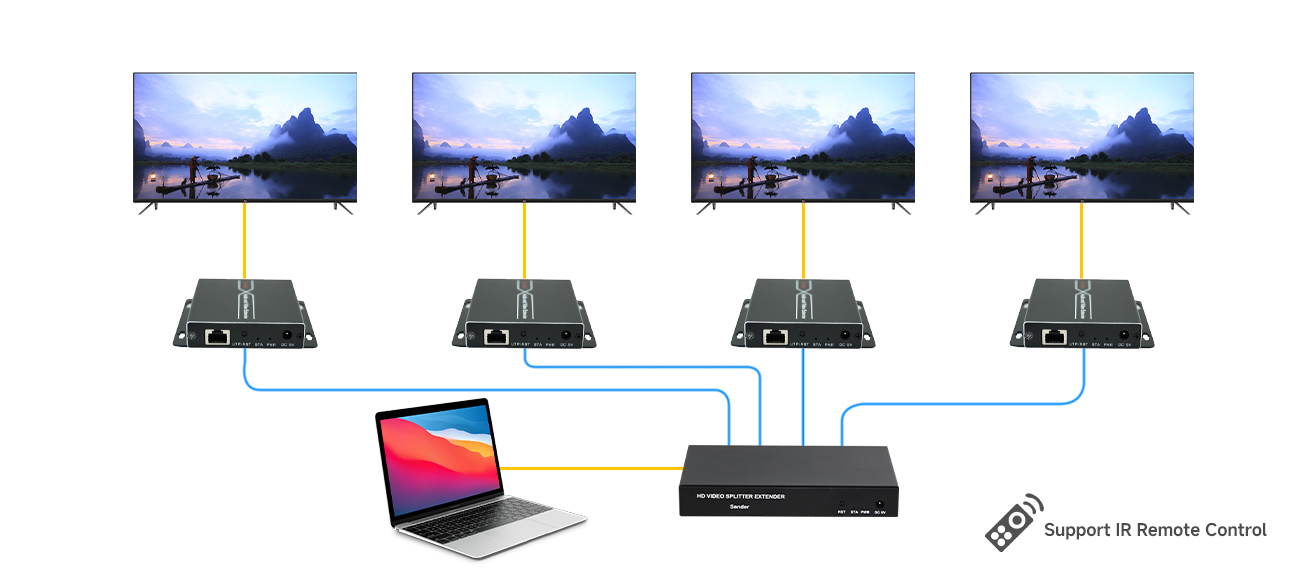

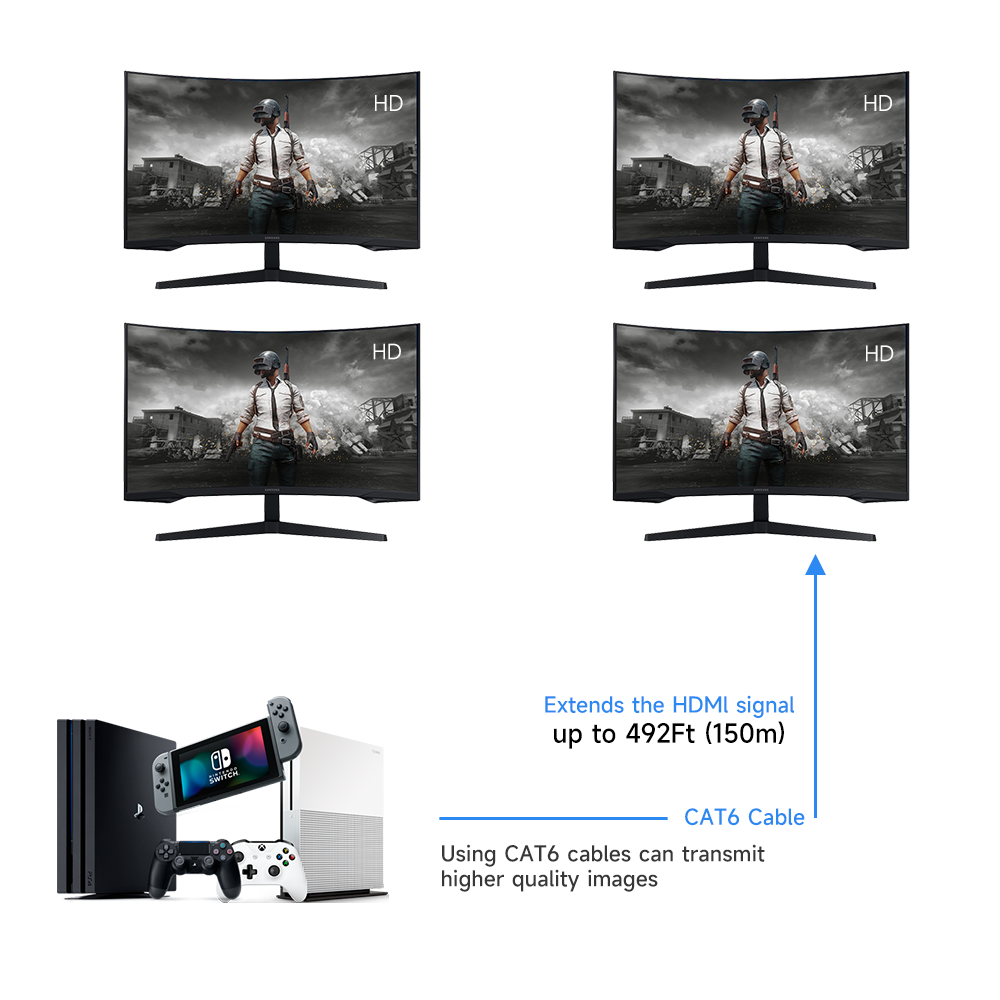

Extend and distribute 1 HDMI Source to 4 HDMI Displays
Send a video signal from an HDMI source, such as a Blu-ray player, PS4/Xbox One, or cable box to 4 HDMI displays simultaneously, up to 492 feet (150 meters) away.
Local Loop Output
Split your signal directly from the location of your source using the local HDMI loop out port on the Transmitter unit, allowing you to connect a 5th display for monitoring purposes with this system.

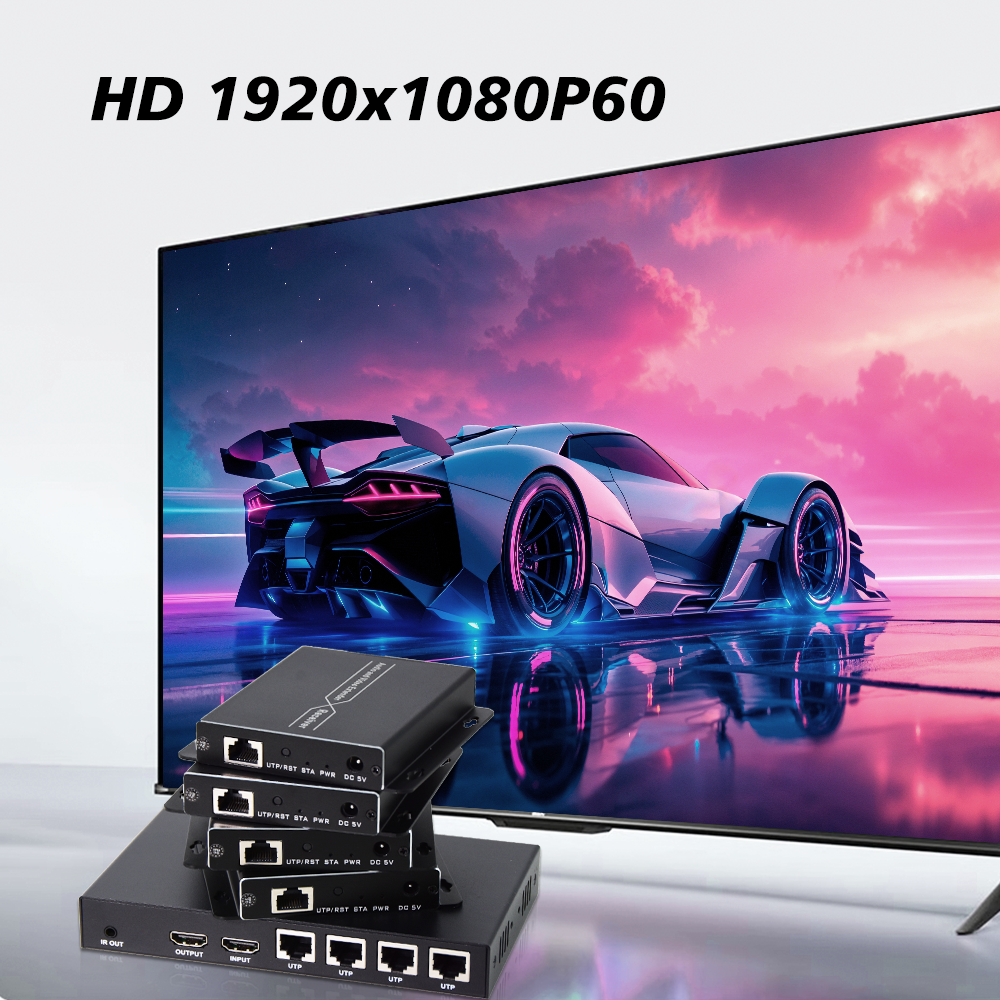

Full HD 1080P & Broad Compatibility

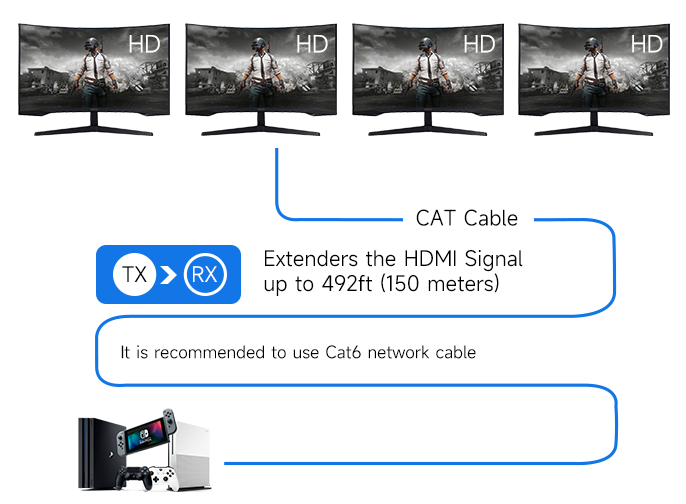

Transmits HD video and audio signals up to 492ft/150m over a single CAT6 cable.

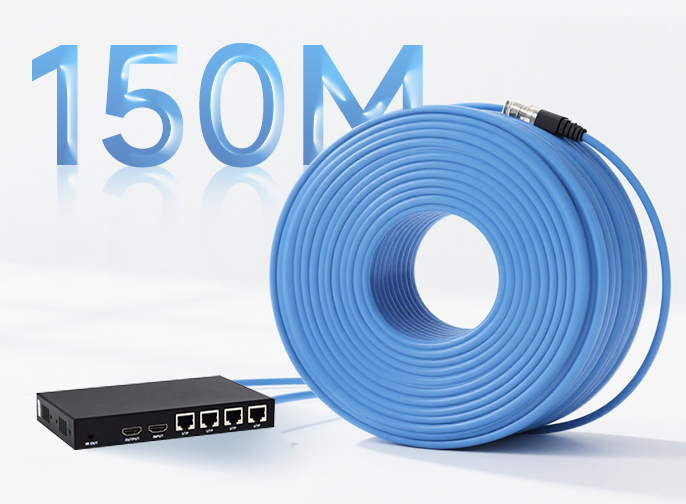

Long Distance Signal Transmission
Transmit your 1080P60Hz signal up to 492 feet away to your display over a single CAT6 cable. Support one to multi receiver transmission via Ethernet switch (up to 253 points)
Supports IR transmission
Support IR(38khz) signal pass back transmission, control a DVD player or other HDMI video source from a remote location with the IR cables
Compatible with different HDMI source devices
Perfect for gaming consoles like Playstation and XBOX, BluRay players, set-top boxes and streaming devices like AppleTV, ROKU and FireTV.
Plug and play
No driver required; Surface mountable metal housing allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference.

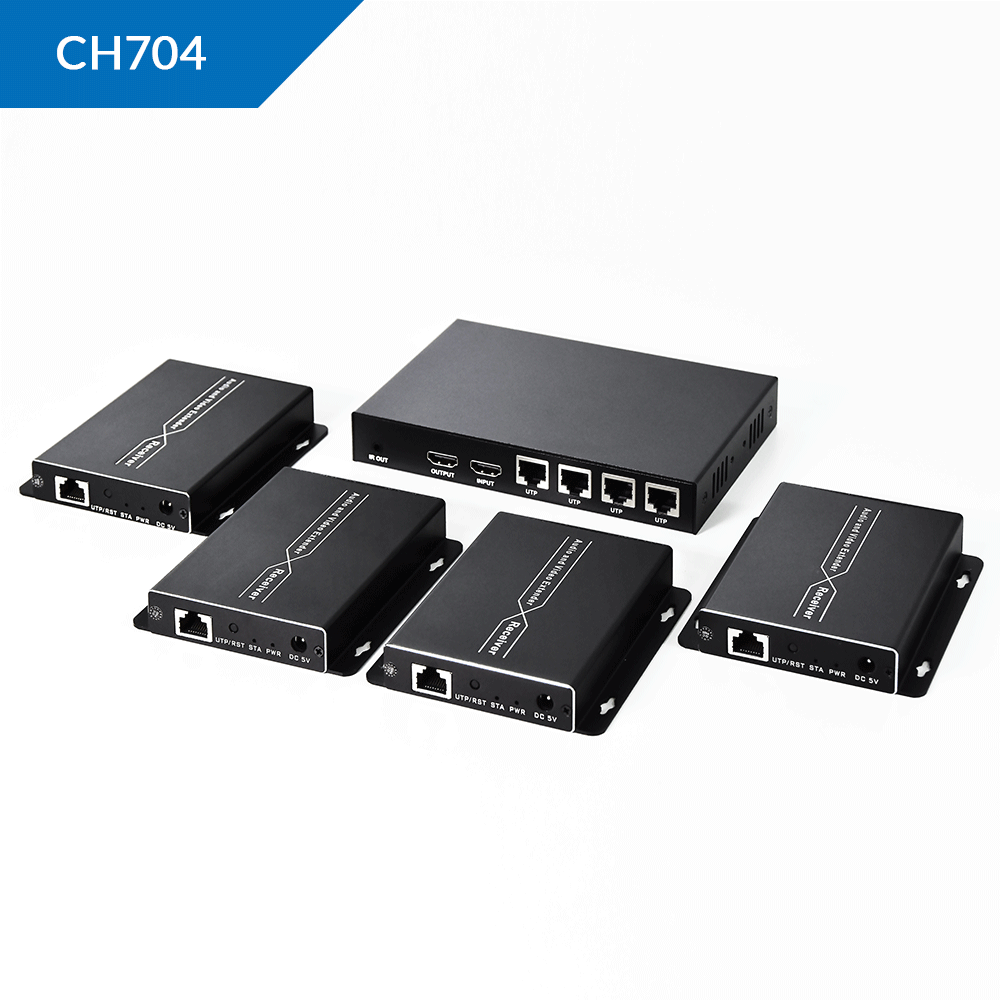

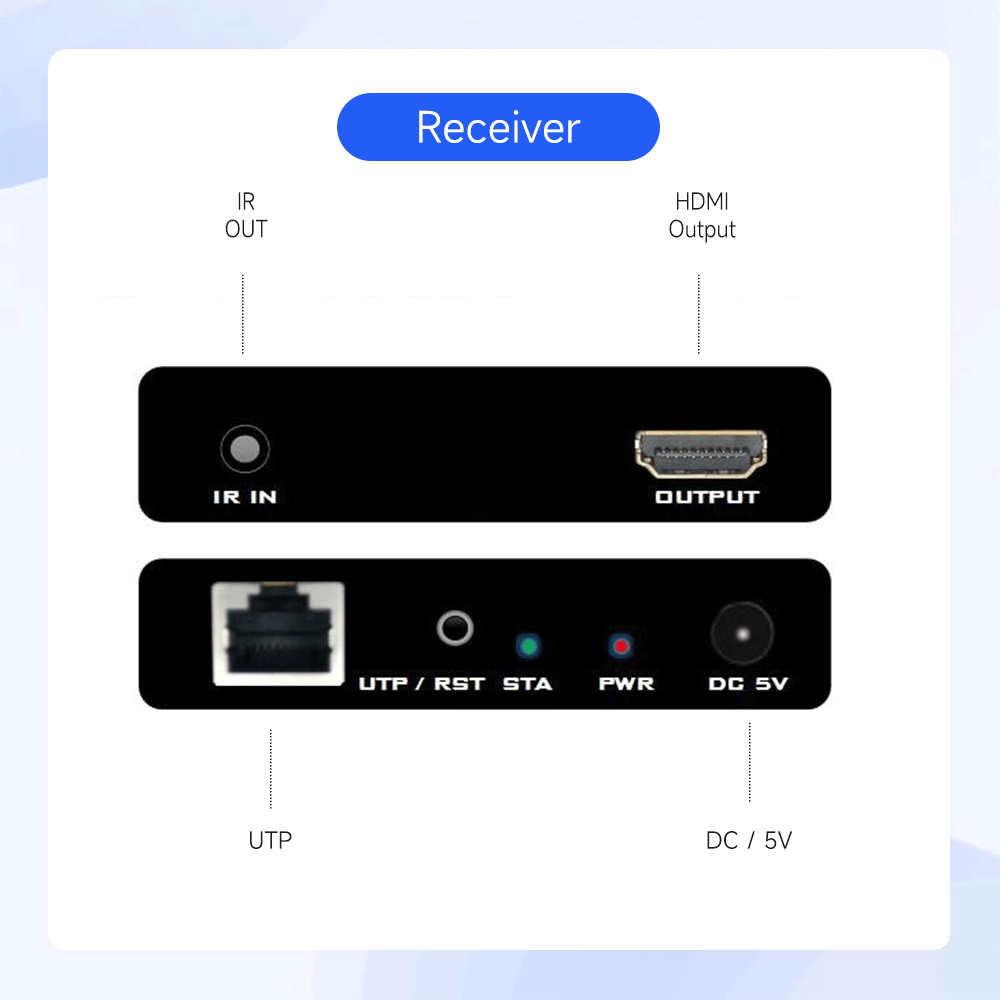

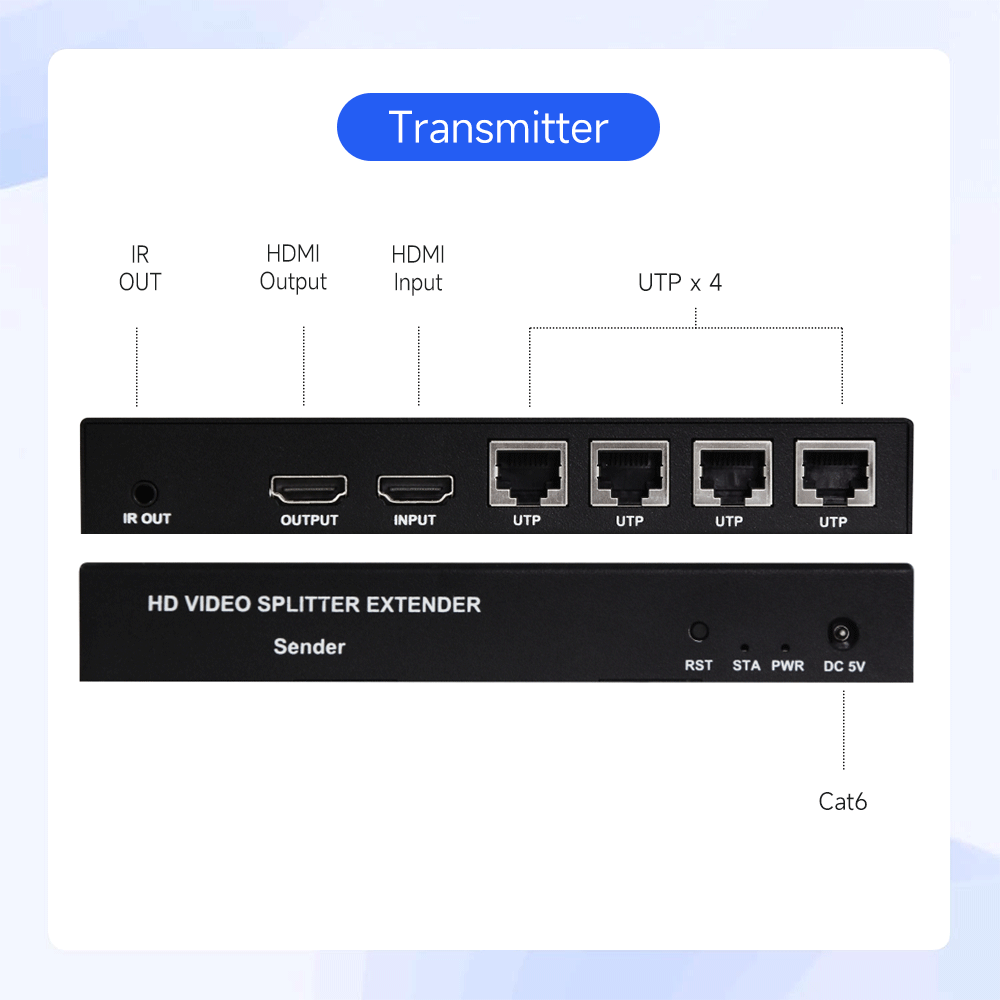

Parameters Of 150M 1080P60 HDMI 1x4 Splitter Extender
Name
HDMI 1x4 Splitter Extender over Cat6
Model
TX-CH701 / RX-CH701R
Video
Interface Standard
HDMI 1.3; HDCP 1.2
Pixel bandwidth
165MHz
Interface bandwidth
6.75Gbps
Resolution
1920*1080@60Hz （backward-compatible）
Video interface
HDMI-A
Impedance
100Ω
HDMI cable length
Recommended <5m (1920x1080@60Hz)
IR
Interface
3.5mm aduio input
Frequency
Standard 38KHz (upgradeable to 20-60KHz)
Signal type
Digital Signal
Transmission direction
Reverse transmission
RJ45
Interface
RJ45/568B
Transmission distance
200M over Cat6 cable
Other
Power supply
DC 5V/1A
Power dissipation
5W/Unit
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
TX: 164*102*24mm RX: 100*97.5*18.6mm

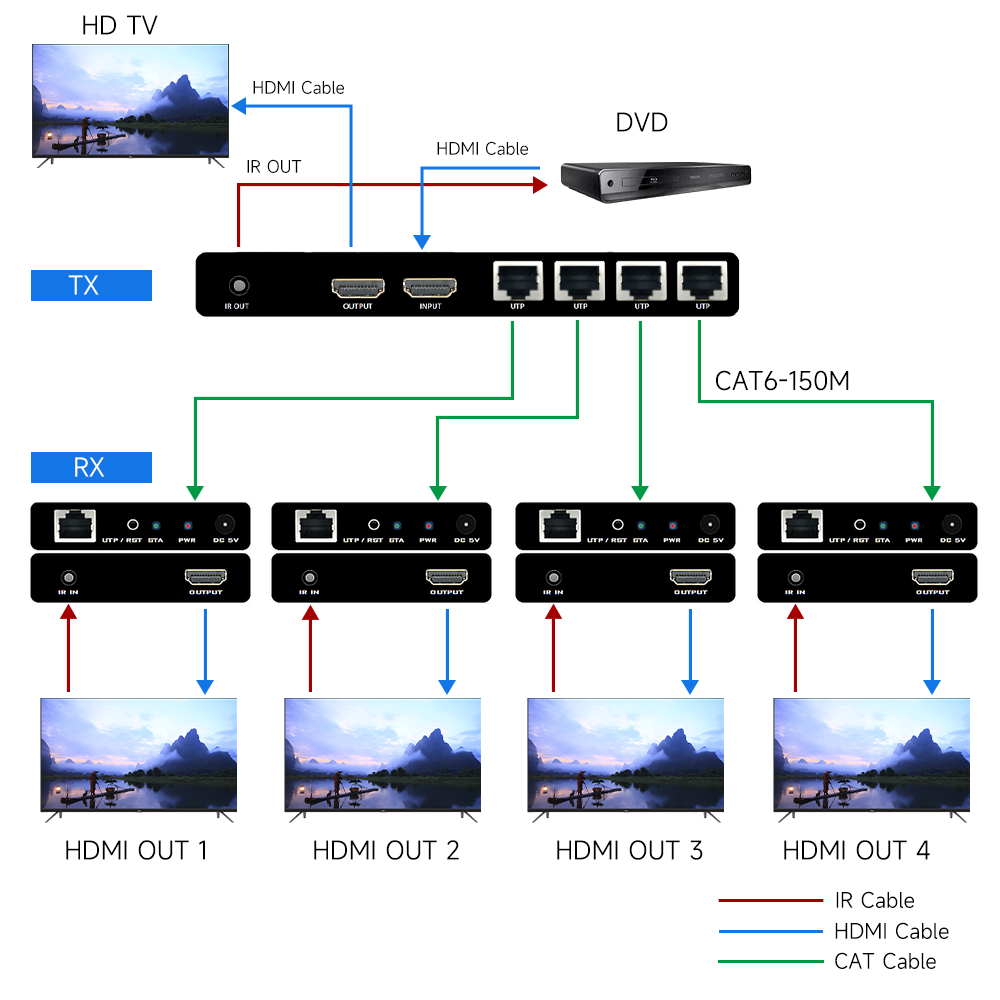

Diagram Of 150M 1080P60 HDMI 1x4 Splitter Extender
Apply to AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
