Brand: ORIVISION
Model: ZY-CH603
Transmitter Input: HDMI 2.0*1, IR in*1
Transmitter Output: RJ45*1, IR out*1, HDMI*1
Recevier Input: RJ45*1, IR in*1

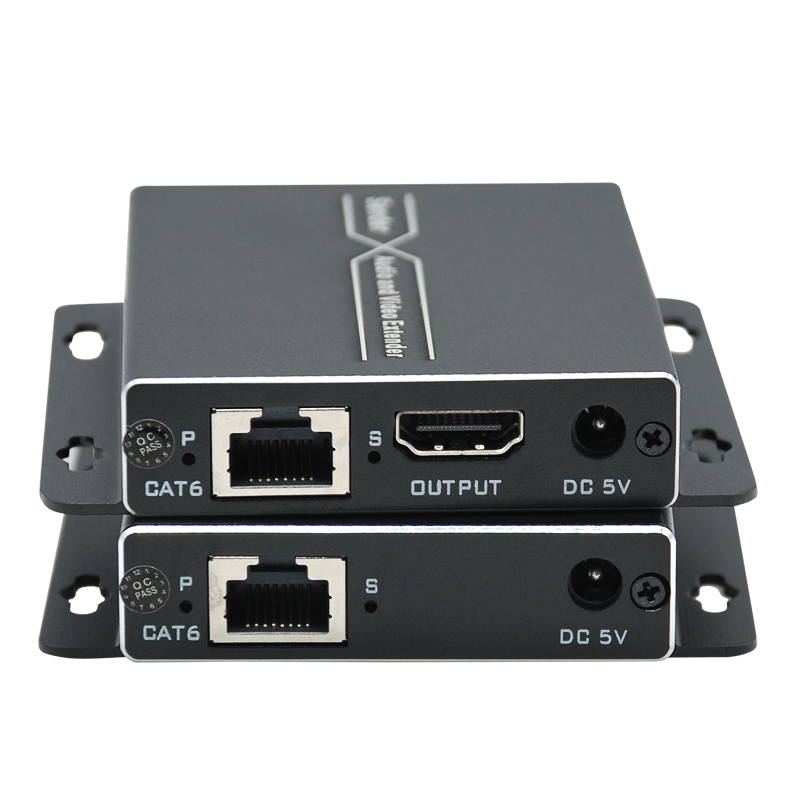

Recevier Output: HDMI2.0*1, IR out*1
Resolutuion: Max 3840*2160@60Hz
Transmission Distance: Point to point up to 60m
Power: 5V/DC 1A
High resolution up to 3840*2160@60hz, 3D
Point to point 196ft/60m over a single cat6
Local HDMI output on transmitter for preview

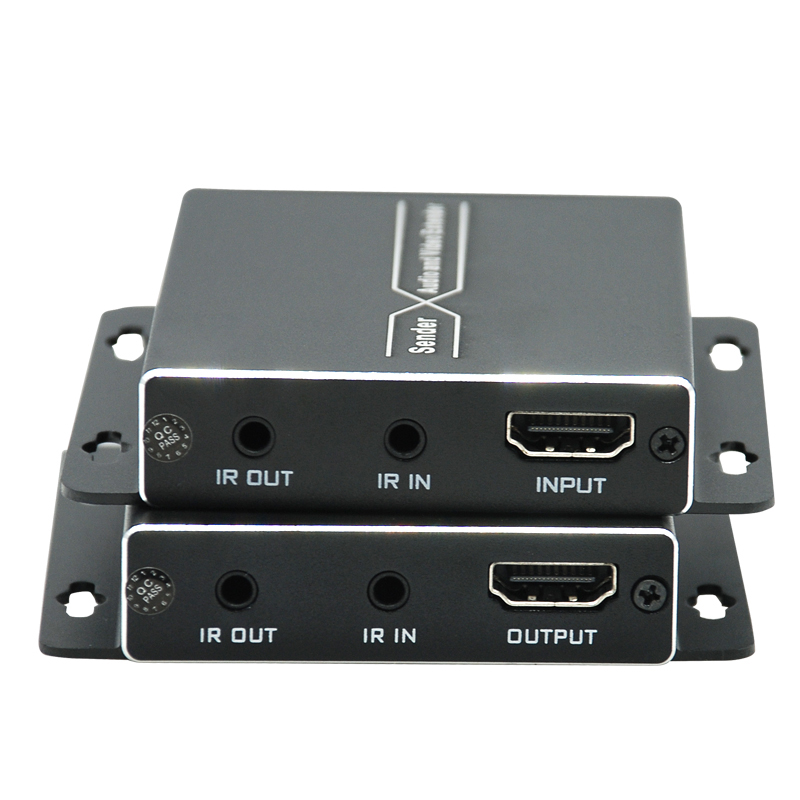

Bi-directional IR transmission
Build-in EDID, YUV4:4:4, HDMI 2.0 and HDCP 2.2 standard
No software required, plug and play

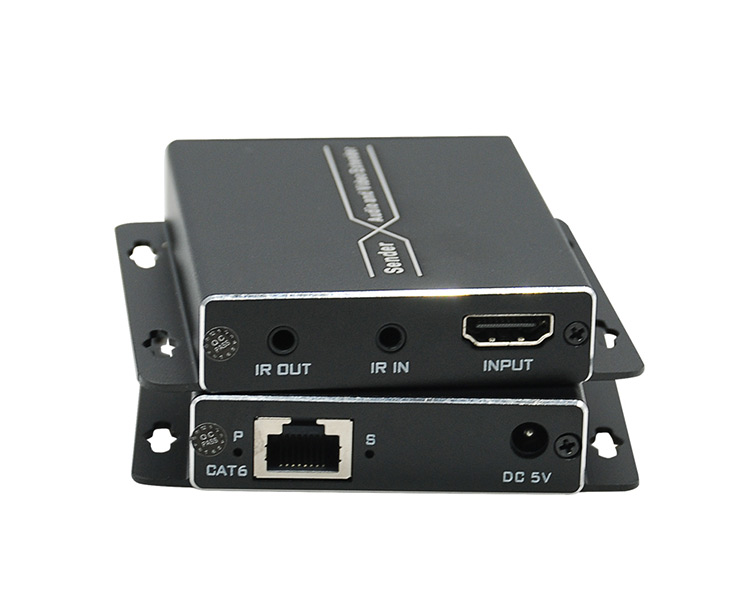

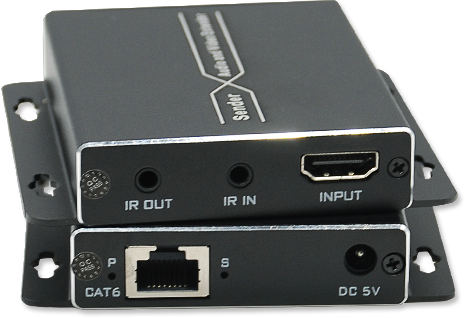

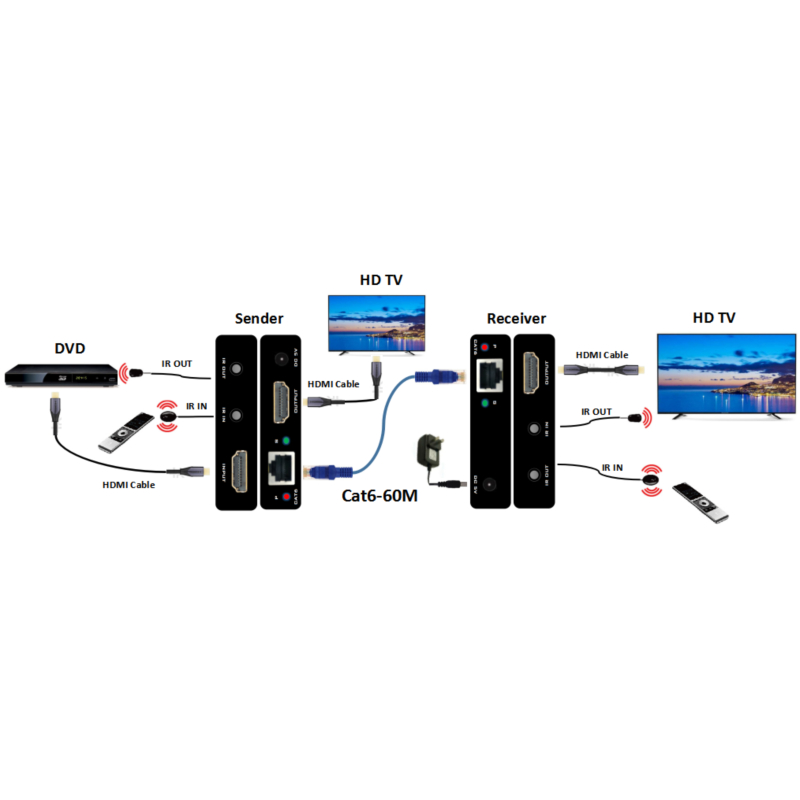

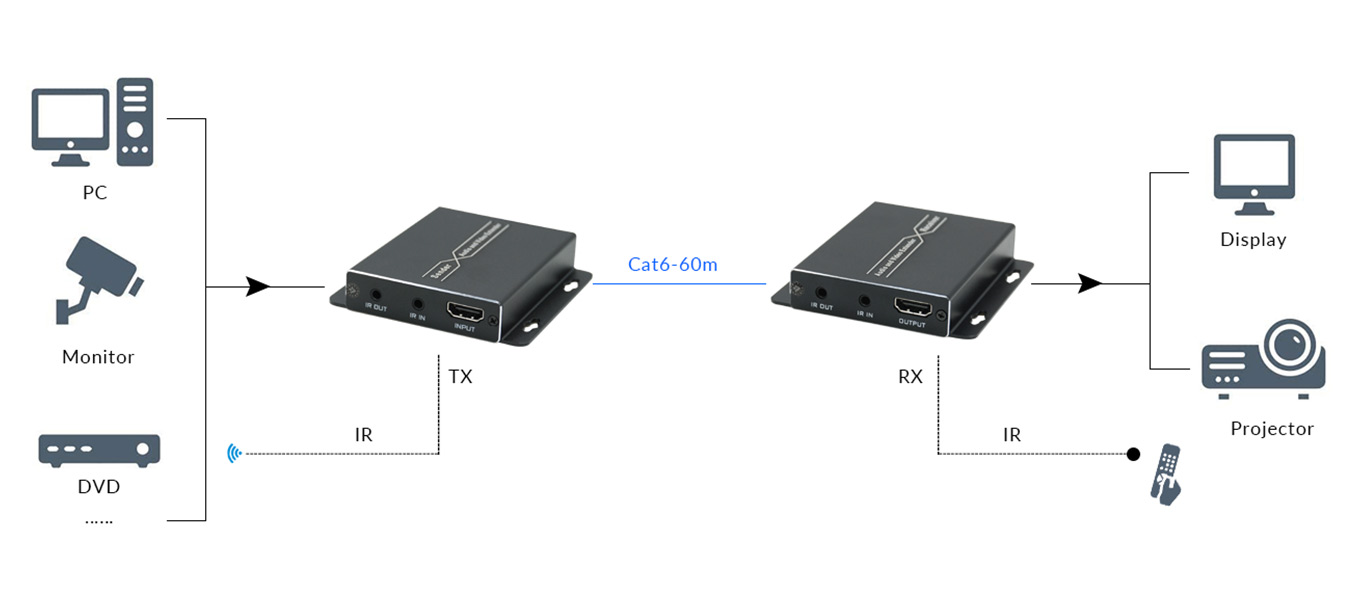

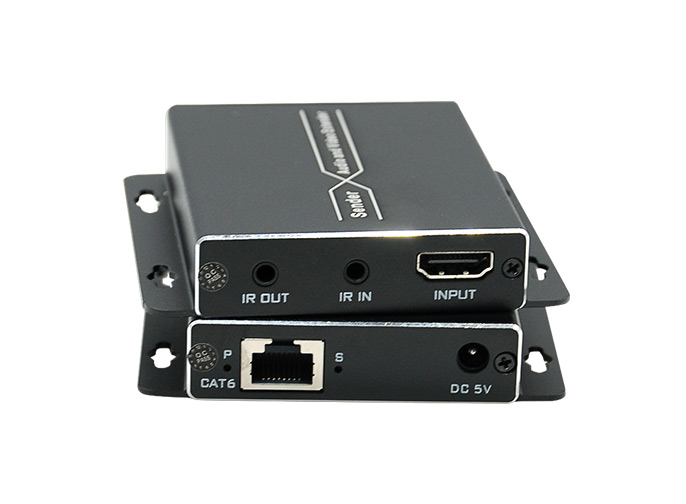

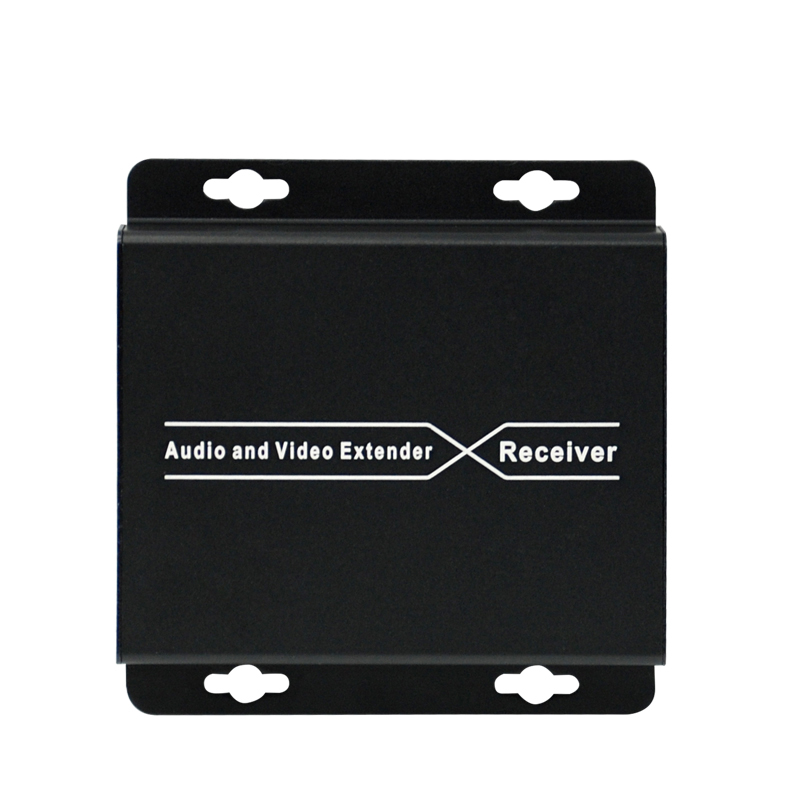

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 4K@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports two way IR remote control and local loopout .

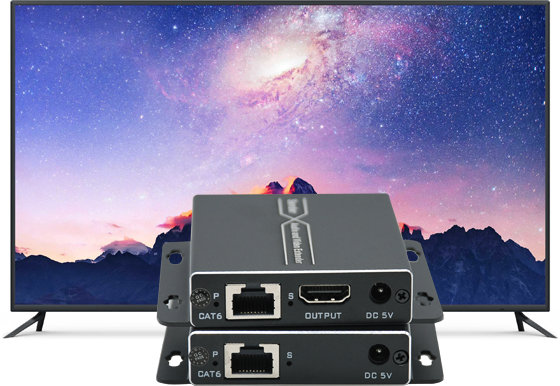

The metal case design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers HD picture quality at resolutions up to 3840*2160@30Hz, 3D signal
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
Transmits HD video and audio signals up to 60m over a single CAT6 cable.
Local HDMI output on transmitter for preview
Support IR (20-60Khz) signal bi-directional return control
Support copy EDID, can match many kinds of display device
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 60m 4K@60 HDMI Network Extender With IR |
| Model | ZY-CH603 |
| Standards | HDMI 2.0; HDCP 2.2 |
| Maximum pixel clock | 340MHz |
| Maximum data rate | 18Gbps |
| Resolution | 3840*2160@60Hz （backward-compatible） |
| HDMI Impedance | 100Ω |
| HDMI Connector | HDMI-A |
| IR Interface | 3.5mm earphone seat |
| IR Signal direction | Bi-directional |
| IR Signal type | Digital |
| IR frequency | 20-60kHz |
| RJ45 Interface | RJ45 (IEEE - 568b connection) |
| Transmission distance | CAT6 --- 60m |
| Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 4W |
| Temperature | Operating: -5℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 82*85*17mm |
| The warranty | 1 year free warranty |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
