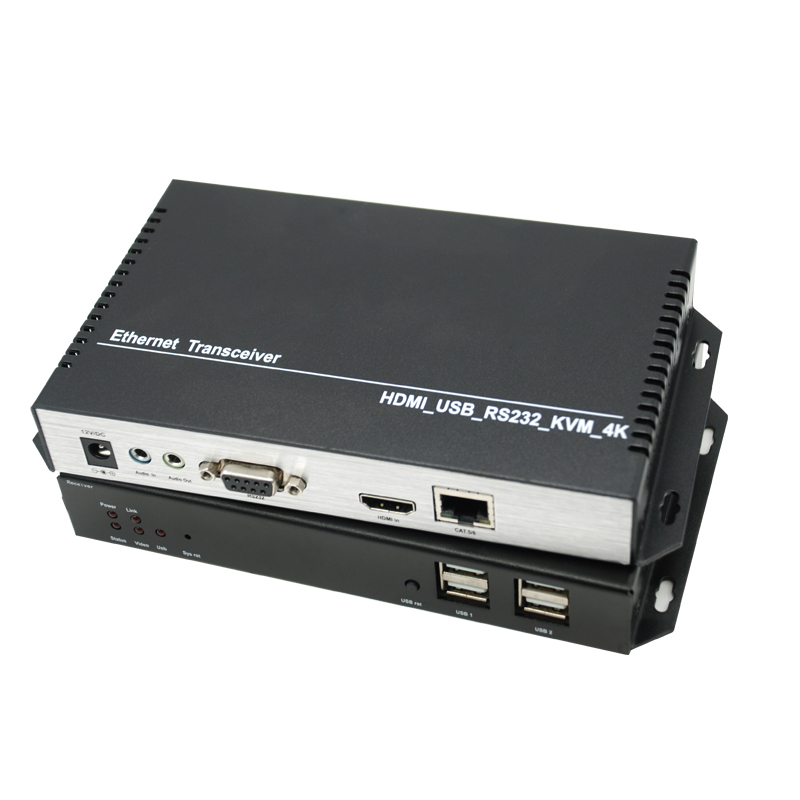

ckh501 hdmi kvm extender 03

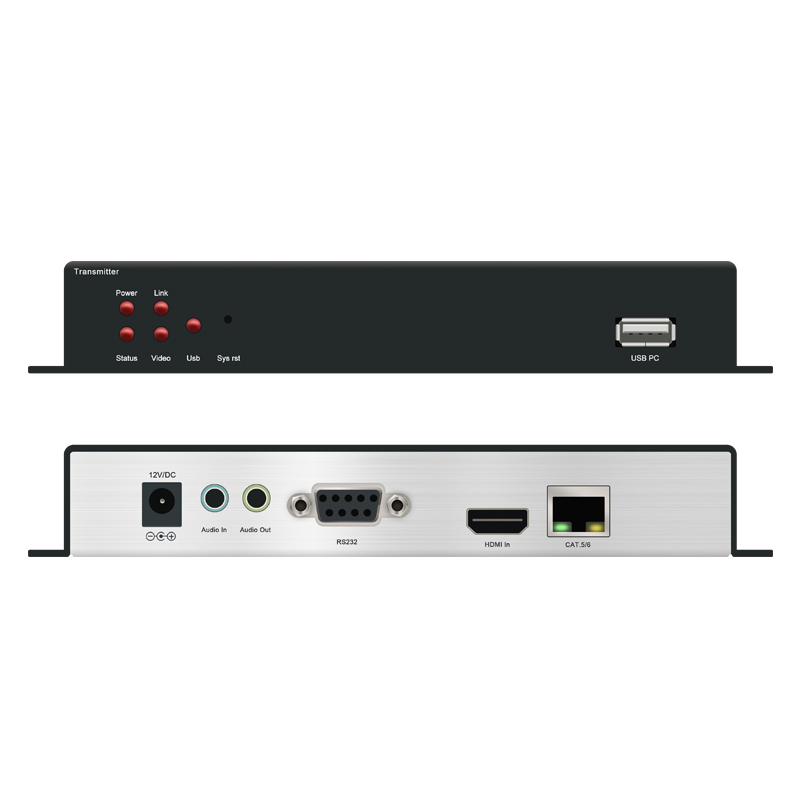

ckh501 hdmi kvm extender 04
ckh501 hdmi kvm extender 05
ofbox
honeyview

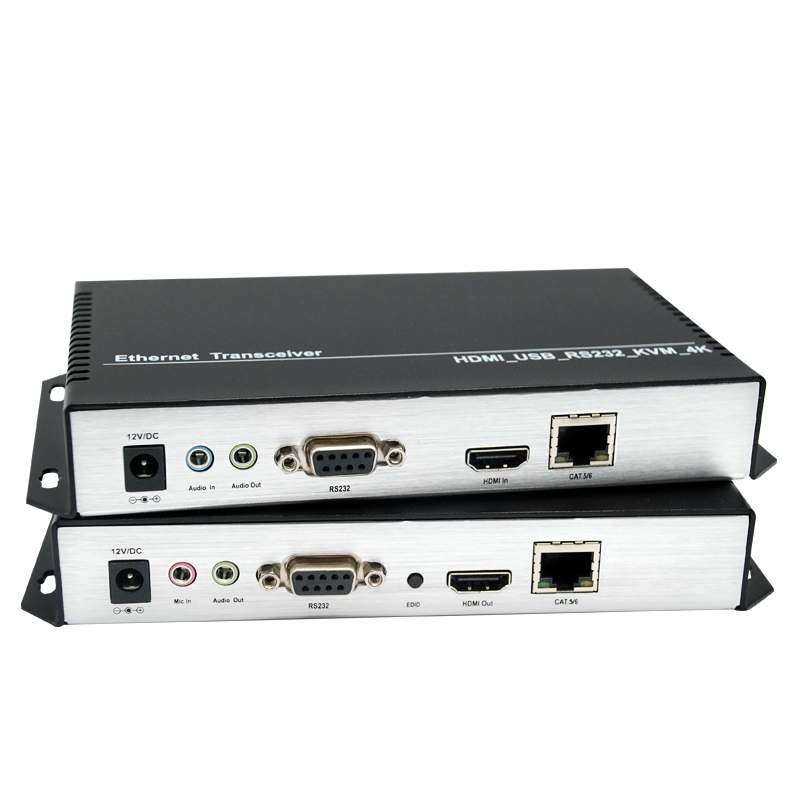

120m 4K@30 HDMI KVM Network Extender

Brand: ORIVISION

Model: ZY-CKH501

Transmitter Input: HDMI 1.4*1  Audio In*1

Transmitter Output: RS232 *1  RJ45*1 Audio out*1

Recevier Input: RS232 *1  RJ45*1 Mic In*1

Recevier Output: HDMI*1 Audio out*1

Resolutuion: Max 3840*2160@30Hz

Transmission Distance: Point to point up to 120m, support point to multi-point

KVM: All USB2.0 device

Power: 12V/DC 1A

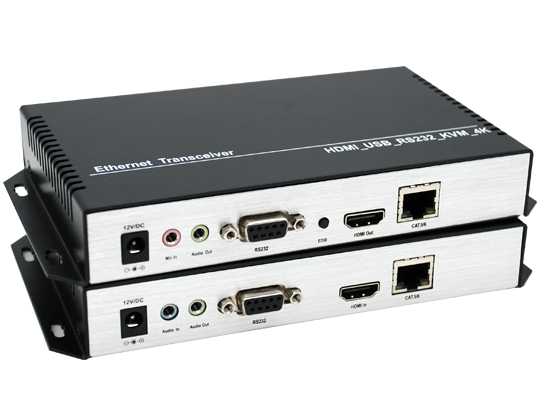

4K@30 HDMI KVM Extender Over Cat5/6
4K@30 HDMI KVM Extender Over Cat5/6
  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

  • Support point to point and point to multi point, up to 120m

  • Supports bi-directional audio signal transmission

  • Supports Keyboard & Mouse Signal Transmission

  • Support EDID mode and RS-232 control

  • Plug-and-play operation

4K@30 HDMI KVM Extender Over Cat5/6

This 4K/30HZ 120m HDMI KVM Extender uses one single cat-5 or cat-6(recommended) cable instead of HDMI cable, you can extend the 4K/30HZ signal to 120 meters.The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.

With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch. Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive, etc.

4K@30 HDMI KVM Extender Over Cat5/6

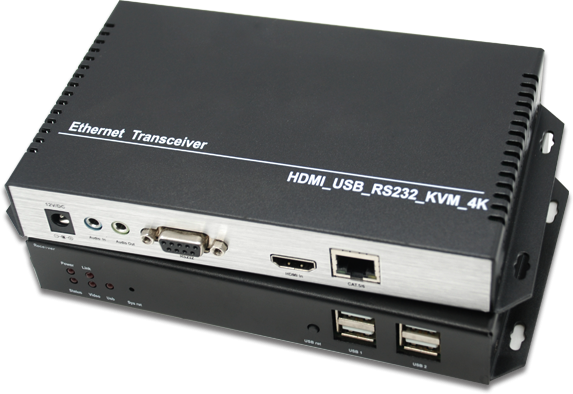

High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design
Professional for 4K HDMI HD Video Extender

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

Professional for 4K HDMI HD Video Extender

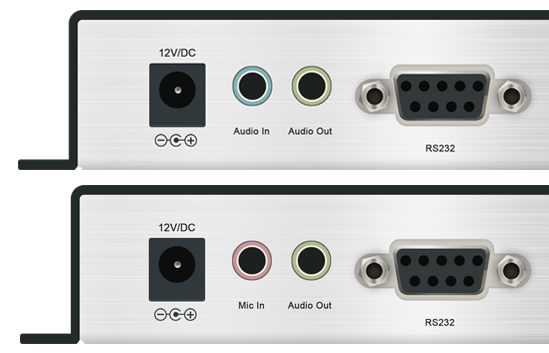

Bi-Directional Audio Signal Transmission

Format: 44.1K,48K,96K,176K,192K

Duplex audio Transmit

Bi-Directional Audio Signal Transmission
Powerful Compatibility Features

Support copy EDID, can match many kinds of display device

Powerful Compatibility Features

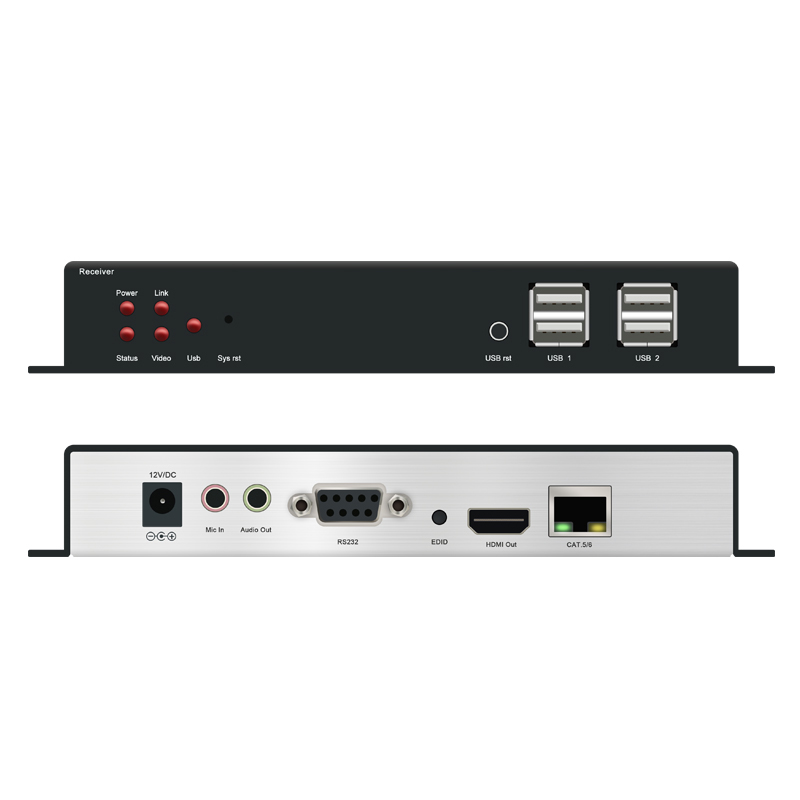

Support Keyboard & Mouse Signal Transmission

Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive,

Support Keyboard & Mouse Signal Transmission
120m Long Distance Transmission

Transmits HD video and audio signals up to 120m over a single CAT5/6 cable.

120m Long Distance Transmission
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)

Support OEM ODM

Parameters Of 120m 4K@30 HDMI KVM Network Extender

Name4K@30 HDMI KVM Extender over Cat5/6
ModelZY-CKH501
Transmitter InputHDMI 1.4 *1  Audio in*1
Transmitter OutputAudio out*1, RJ45*1  RS232*1
Recevier InputRJ45*1  Mic In*1
Recevier OutputHDMI 1.4 *1 RS232*1 Audio out*1
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
AudioFormat:44.1K,48K,96K,176K,192K
Duplex audio Transmit
Point to Poin Transmission Distanceup to 120m
Point to multi-point1000M Switch
RS232bidirectional transmission
Interface:DB9
Baudrate:11520
Data-Bits:8bit
Support EDID
Support HDCPHDCP1.4
Support IRx
Support KVMAll USB2.0 devices
CableCat5/Cat6
Temperature‘-5℃ to +60℃
Humidity≤90%
Power Consumption<5W
Power12V/DC 1A
POE√(Optional)
Size18.7*10.5*2.8CM
WeightTX:0.3KG   RX:0.3KG

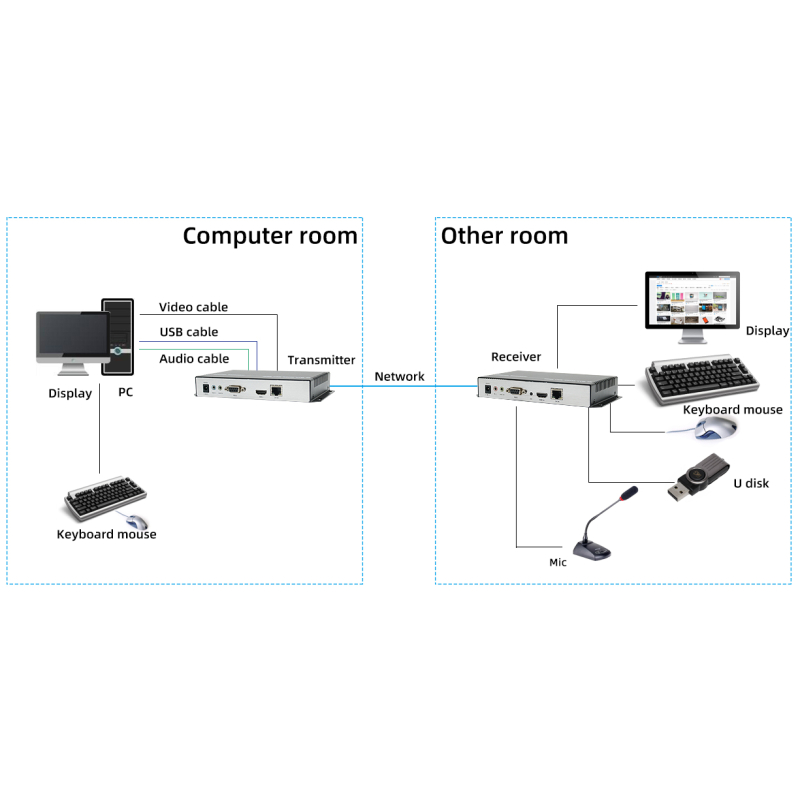

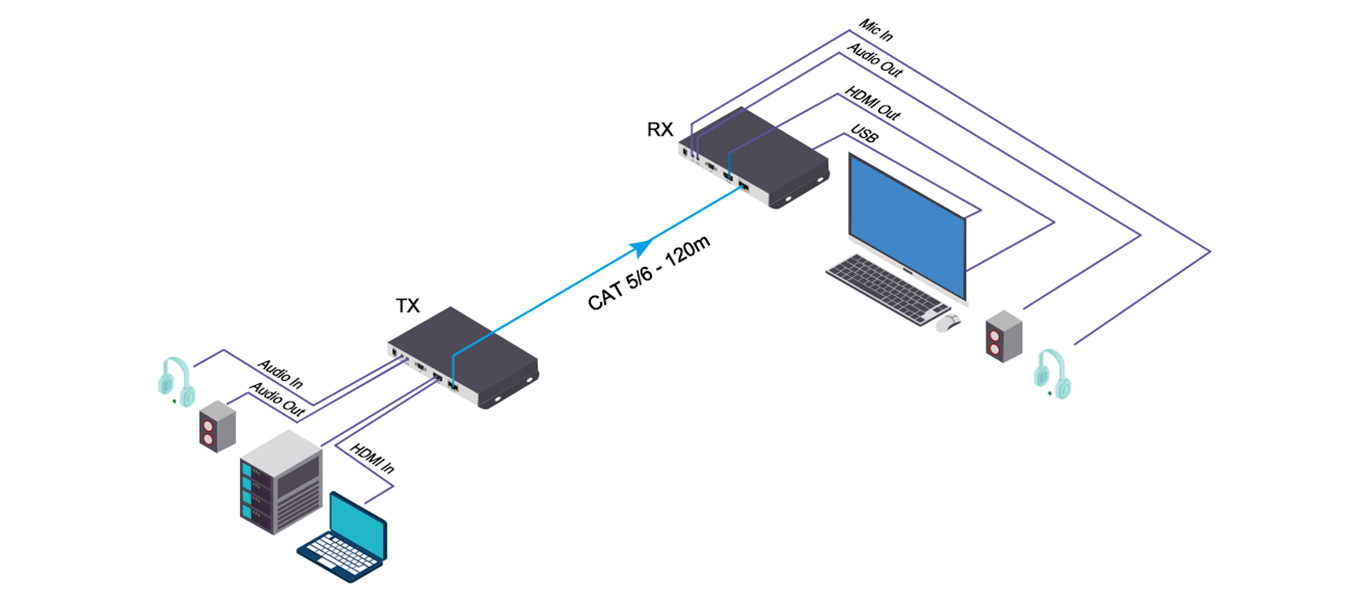

Diagram Of 120m 4K@30 HDMI KVM Network Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.


Diagram Of 120m 4K@30 HDMI KVM Network Extender

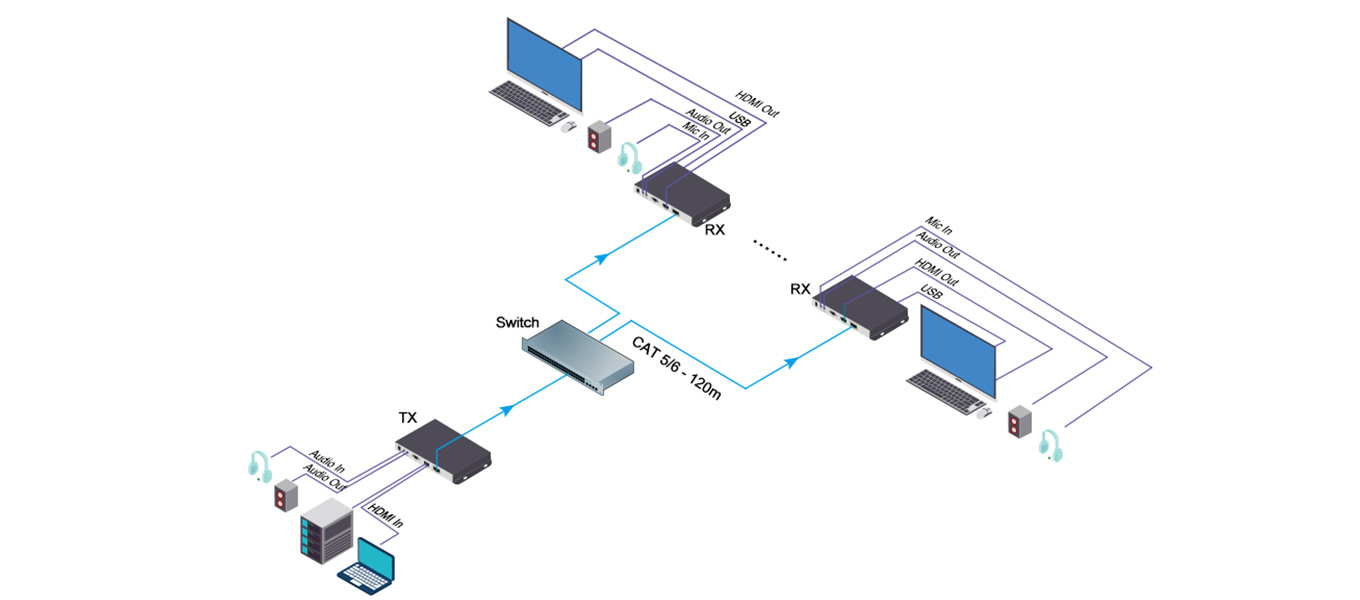

Point to Multi-point Transmission
