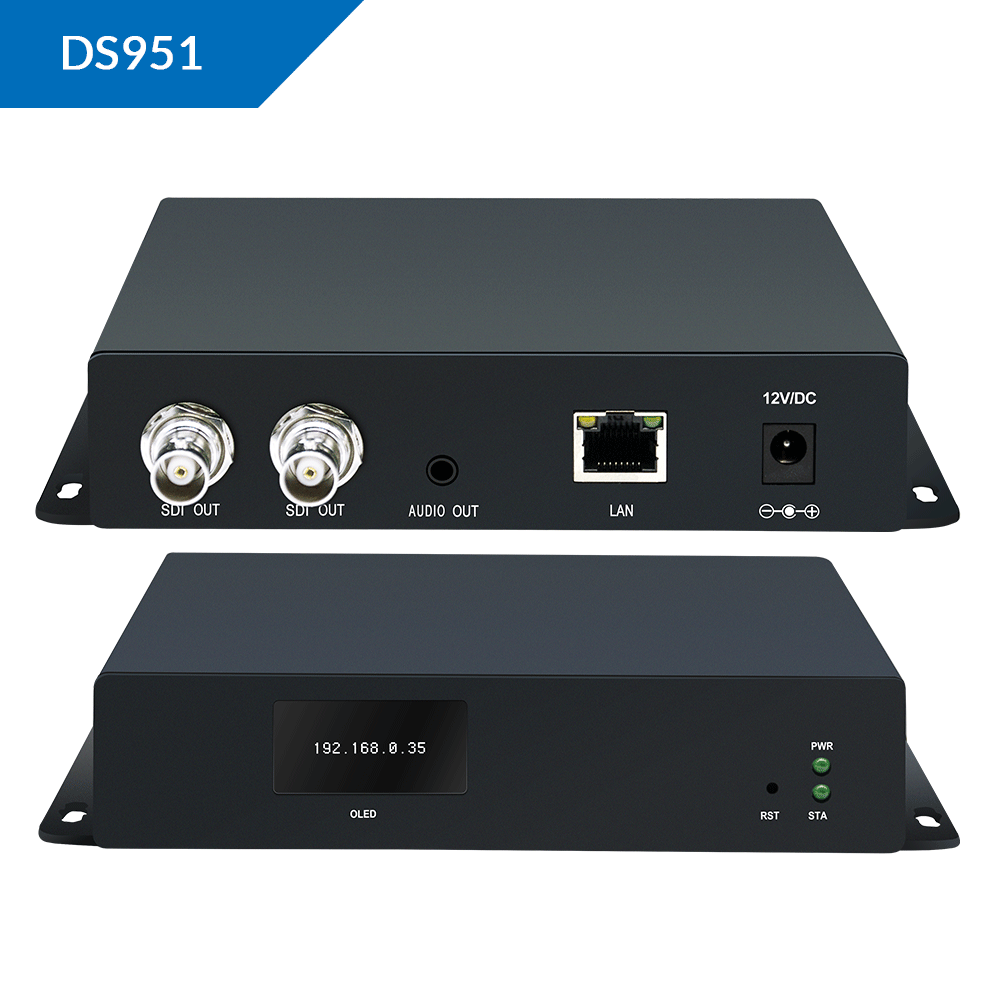

H.265 1080P@60 IP To SDI Video Decoder With Loop Out

Brand: ORIVISION

Model: ZY-DS951
Input Interface: LAN Port*1
Output Interface: SDI*2, Audio*1
Video Encoding: H.265/H.264
Protocol: HTTP, HTTPS, RTSP,SRT,UDP/RTP,RTMP protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs


Availability:



Inquire

Model:
DS951

Product Description

Introduction

Parameters

Diagram

FAQ

DS951-01

The DS901 H265 IP to SDI Video Decoder is a specialized solution for converting IP video streams to SDI output, tailored for broadcast, live production, and professional AV environments. It supports H.265/HEVC decoding at 1080p@60Hz, delivering broadcast-grade video quality with minimal latency . A key differentiator is its dual SDI output with loop-out functionality, enabling simultaneous display and signal retransmission—ideal for scenarios like studio monitoring, video wall feeding, and live event production. Its compact design, OLED status display, and support for SRT low-latency protocol further enhance its suitability for professional workflows.

Outstanding Advantages for H.265 1080P@60 IP To SDI Video Decoder With Loop Out

Advantage Category	Specific Benefits
Broadcast-Grade Output	1080p@60Hz SDI output compliant with SMPTE standards, suitable for professional production
Loop-Out Functionality	Dual SDI ports enable simultaneous display and signal distribution, eliminating the need for external splitters
Real-Time Monitoring	OLED screen displays IP status, resolution, and decoding parameters at a glance
Wide Protocol Compatibility	Works with HTTP, SRT, RTSP, RTMP, and UDP, integrating with diverse streaming systems

Introduction

SDI HEVC Hardware Decoder With OLED

DS951 sdi decoder is a professional HD H.265 (HEVC) hardware decoder that brings multiple video streams to SDI. Without relying on a computer, it decodes any IP streams including HTTP/SRT/RTSP/RTMP/UDP/RTP/UTP, etc, and outputs the video to the display wall in up to 9 grids or free layout, and dynamic switching is supported.
DS931 video decoder has high integration and low costs . It can be widely used in various HD video systems. It supports POE power supply, OLED real-time display to ensure uninterrupted video streaming. And also supports an RTMP server for direct connection with encoders.
Outstanding Decoding Performance

Supports decoding up to H.264/ H.265 IP streams and decode the streams to output 1080P dual SDI.
1/4 channels 1080P decoding.
9 channels 720P decoding.
This feature significantly enhances its compatibility with social media platforms. Whether it's a vertically oriented video suitable for mobile - centric social media feeds or a horizontally formatted one for more traditional widescreen displays on platforms like YouTube, this ability to manipulate the video's dimensions ensures that the content can be presented in the most optimal way. This not only makes it easier for users to prepare their videos for sharing but also increases the likelihood of better engagement on various social media platforms, as the videos can be tailored to fit the specific requirements and viewing habits of different social media audiences.
OLED real-time display

With a built-in OLED screen, users can monitor the IP status and encoding parameters in real-time. This feature allows them to have an immediate and up - to - date view of the IP - related information, such as whether the IP is properly connected, its assigned address, and any potential changes in its network state. Regarding the encoding parameters, they can observe details like the encoding format, bitrate, and resolution settings that are being used in real - time, enabling users to make informed decisions or adjustments if necessary for optimal performance or to meet specific requirements.
Multiple Protocols Supported to Meet All Your Demands

It's compatible with SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.
Decoding with the same or different protocol is available.
Dual SDI Interfaces, Customizable Outputs

SDI Decoder allows users to freely choose the output interface among dual sdi outputting the video sources in synchronization.
RTMP Server Supported

With RMTP server, the encoder can directly transmit the video to ORIVISION DS931 SDI decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
Protocol Conversion is Available

Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP.
This wide - ranging protocol compatibility allows for seamless integration and data transfer within various networking and streaming environments, facilitating efficient media distribution and real - time data sharing across different platforms and applications.
Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Audio Synchronization Decoding

Support AAC/G711 audio format; Audio can be coded separately.
Local and Remote Transmission

Support LAN, WAN
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS...
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit. This means that whether you need a small - scale production or a large - scale one, we can accommodate your needs with our laser - printing technology to showcase your company logo in a professional and high - quality manner.
ODM: Pls send your requirements to us. (info@orivision.cn).

Parameters

Name	H.265&H.264 IP to SDI Video Decoder
Model	ZY-DS951
Output
Video	SDI*2
Output Resolution	1080P@60hz, 1080P@50, 1080P@30, 1080P@25, 720P@60, 720P@50, 720P@59.94 1080I@60, 1080I@50, 1080I@59.94 576I 480I and so on.Please contact us for other resolutions
Decoding	H.265/H.264
Output	1 /4 channels 1080P decoding, 9 channels 720P decoding
Audio
Decoding format	AAC MP3
Stereo	Adjustable sound volume
System
OLED	IP address
RJ45	1000M internet access
Protocol	HTTP, HTTPS,RTSP, RTMP, SRT, UDP/RTP,SRT…
Interface	WEB operation interface
Upgrade	Software upgrading through the internet
General
Dimension	6.44.41.3in(16311132mm)
Weight	0.35kg
Temperature	0~45℃ (work)，-20~80℃ (storage)

Diagram

Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering.

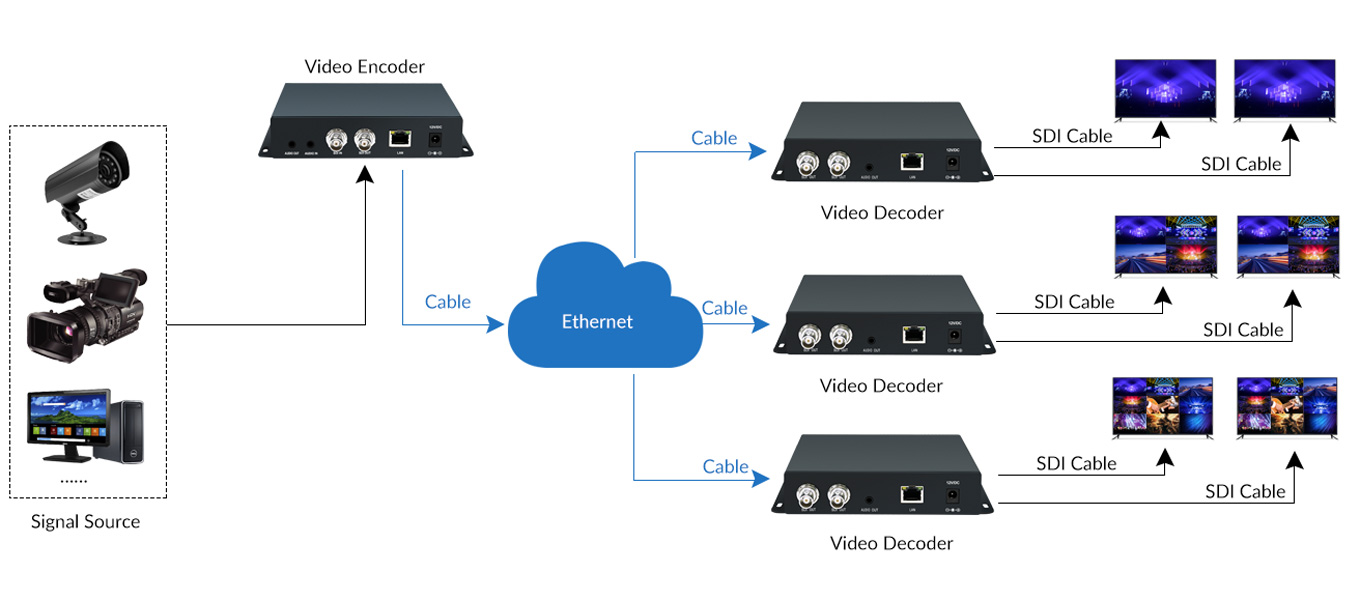

Diagram of SDI Video Decoder

DS931-02

Embedded RTMP server

DS931-04

Protocol Conversion

DS931-03

FAQs

Q: What is the default login IP of the decoder?

A: The default login IP address is 192.168.0.35.
Q: What is the login account and password of the decoder?

A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: How to get the newest firmware and update it?

A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
