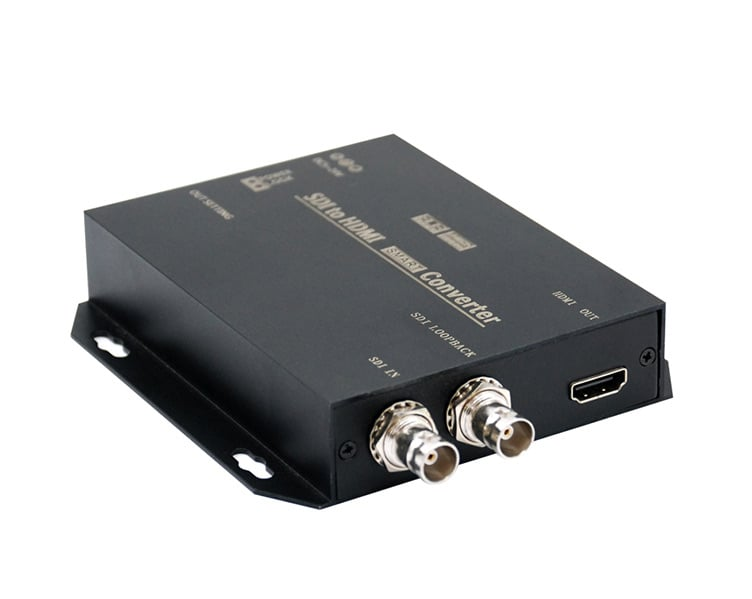

Frequency SDI to HDMI Video Converter

Rugged metal housing design, strong anti-interference ability

1 x SDI Input, 2 x HDMI Output

Supports up to 1080p60 Resolution

Audio and video synchronization output

Plug-and-play operation with no software required for easy, immediate installation

Description

Introduction

Parameters

Diagram

SC03-HDMI-SDI-Video-Converter-01

Introduction

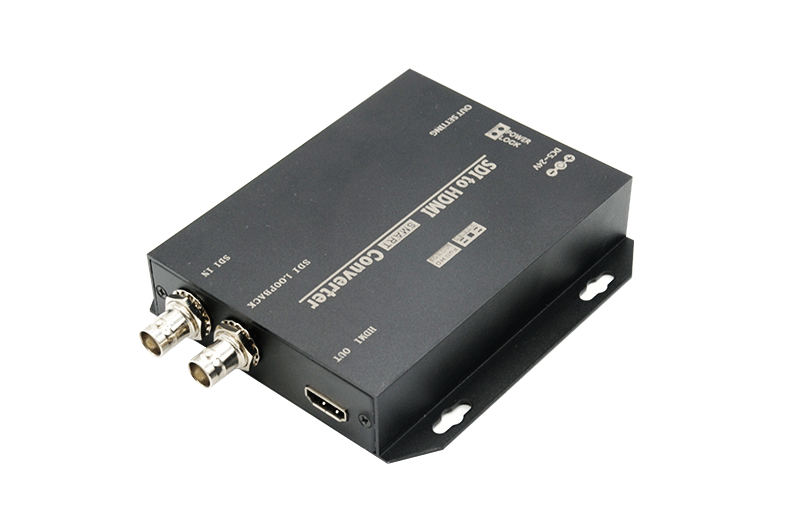

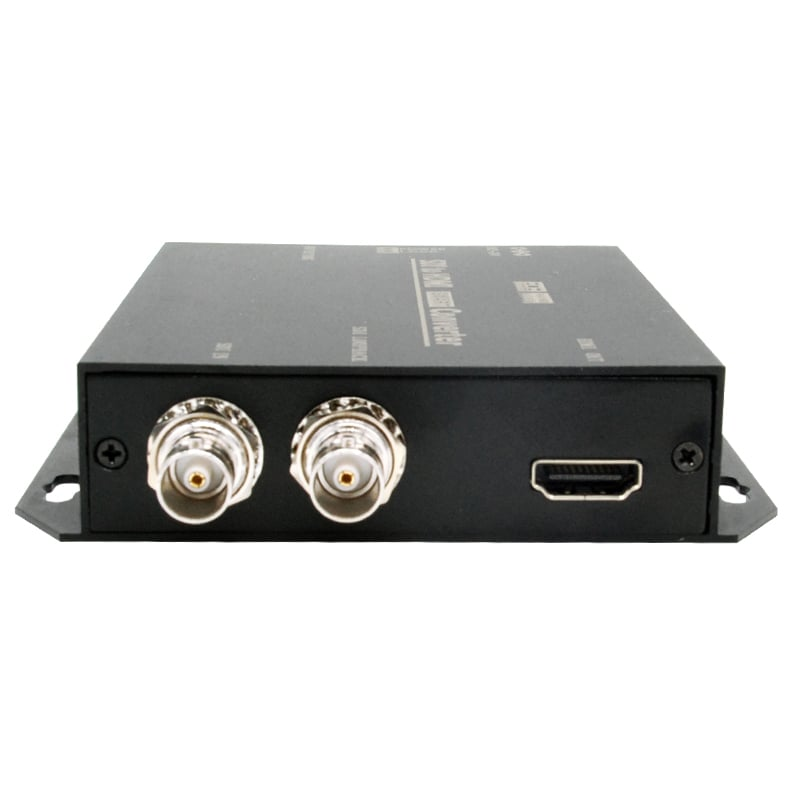

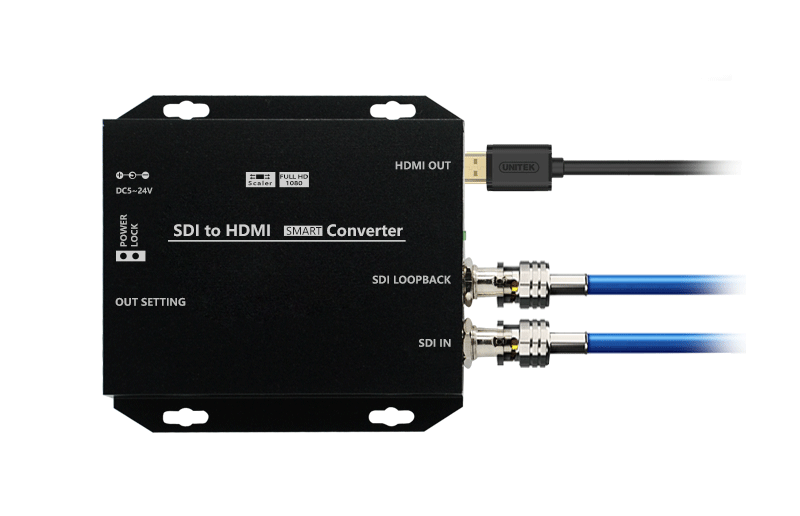

Frequency SDI to HDMI Video Converter

Ultra-compact and rugged, this adapter enables you to connect an SDI camera or computer to a professional-style HDMI monitor or component. Features one SDI input and one HDMI&SDI output. Strong anti-interference ability to ensure long-term stable operation of the equipment.
Equipped with Frequency Conversion Function

Support setting switch, Switching Resolution List Video Format, Perfectly compatible SDI display terminal equipment
Broadcast-grade SDI signal

Converts an 3G/HD/SD-SDI input signal to HDMI&SDI formats in real time while avoiding transformation loss for both audio and video signals
Wider Resolution Support

SD-SDI:480i@60Hz、576i@50Hz
HD-SDI: 720P@50/60Hz 1080i@25/30/50/60Hz 1080P@25/30Hz
3G-SDI:1080P@50/60Hz

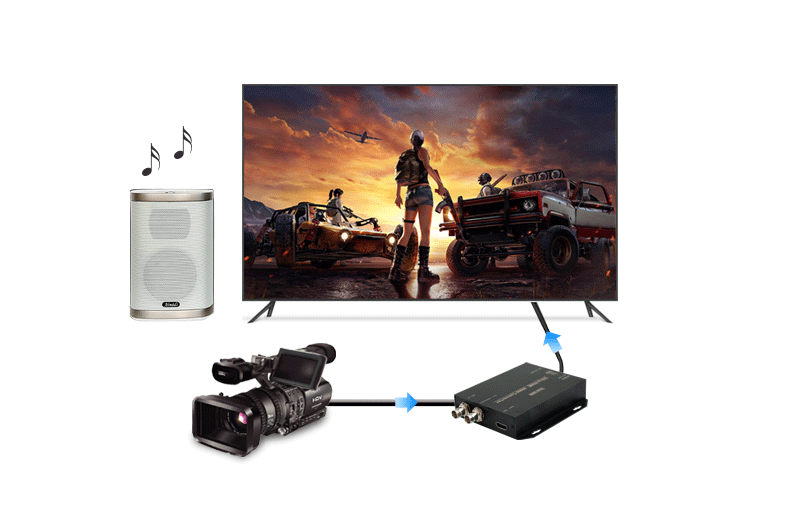

Audio and Video Synchronization Output

Convert and embed SDI audio into HDMI signal to achieve synchronous audio and video output
Long-distance Transmission, Clear and Stable

3G-SYWV 100m
HD-SYWV 160m
SD-SYWV 260m

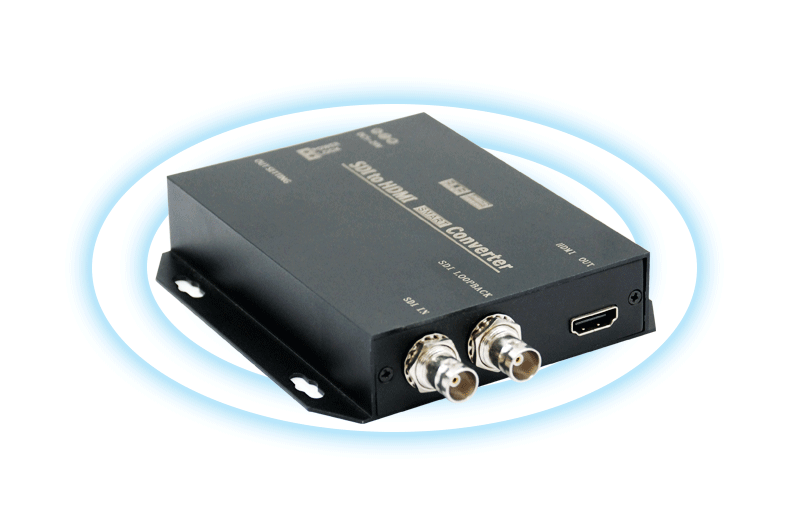

Metal Ahell, Strong Anti-interference Ability

Metal shell design, heat dissipation, strong anti-interference ability

Parameters Of SC03 | Frequency SDI to HDMI Video Converter

Name	Frequency SDI to HDMI Video Converter
Model	SC03
Working Temperature	-5 to +85°C
Working Humidity	5 to 90 % RH (no condensation)
Input video signal	SDI
Video Format Support	SD-SDI:480i@60Hz、576i@50Hz HD-SDI: 720P@50/60Hz 1080i@25/30/50/60Hz 1080P@25/30Hz 3G-SDI:1080P@50/60Hz
Video output	HDMI, SDI
Video output format	720P@60Hz、1080i50、1080P@25Hz、1080P@30Hz、1080P@60Hz
Input Audio	Support 32KHZ,44.1KHZ,48KHZ,88KHZ,96KHZ,192KHZ
SDI maximum transmission	3G SYWV 100 meters HD SYWV 160 meters SD SYWV 260 meters

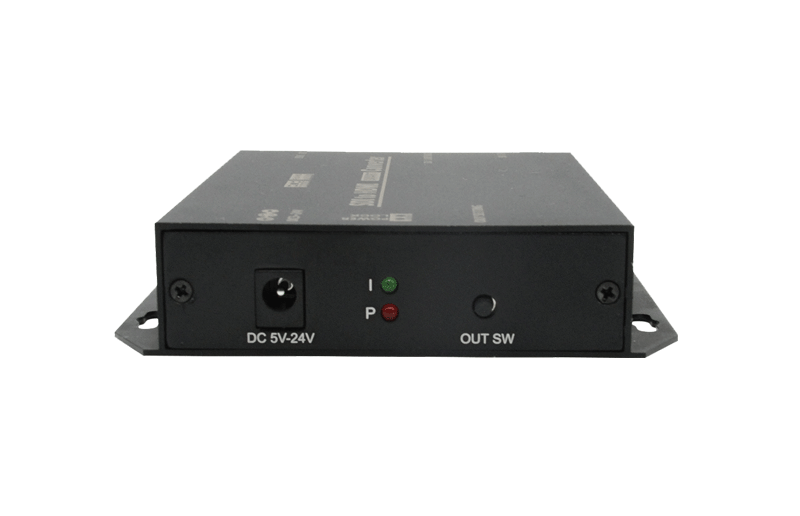

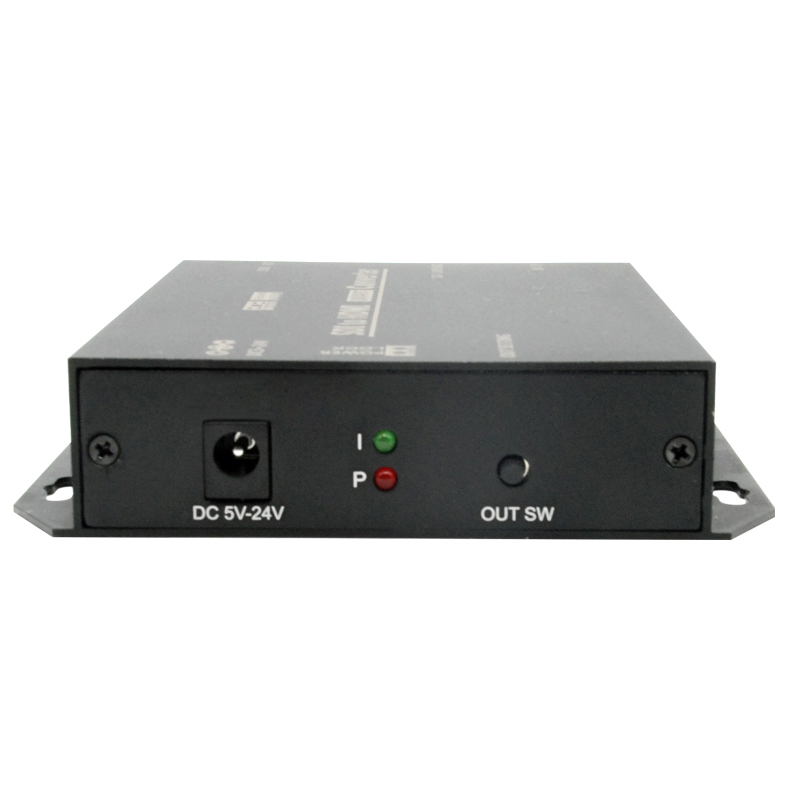

Power	DC 5V, positive with
Power consumption	2.5W
Dimensions	11.611.1(9.8)2.5cm
Package Size	22145cm
Weight	0.4kg

Suitable for security monitoring, radio and TV program production, remote conference, home theater, multimedia teaching, etc.

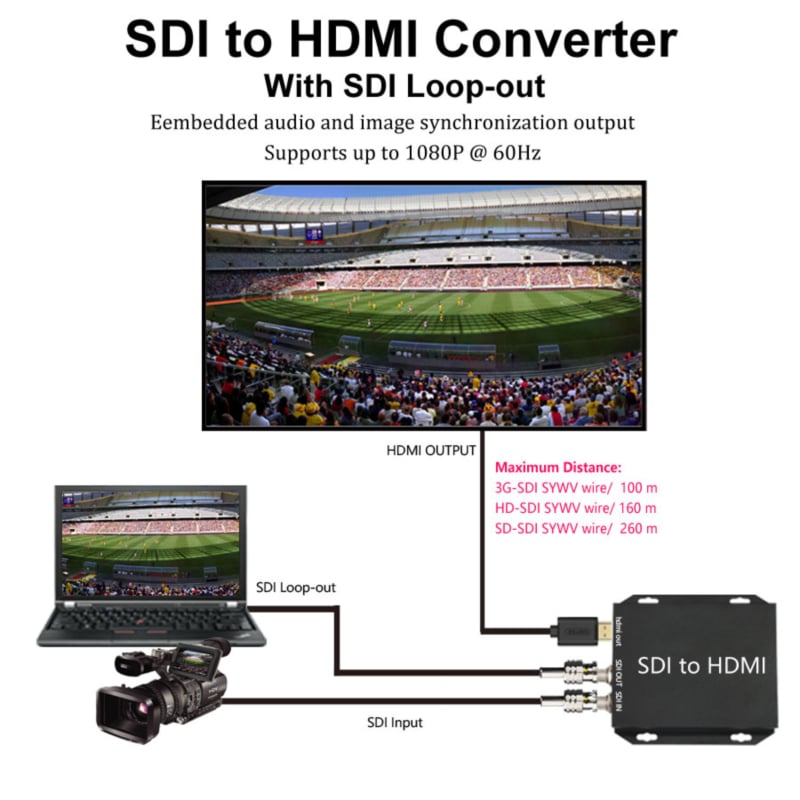

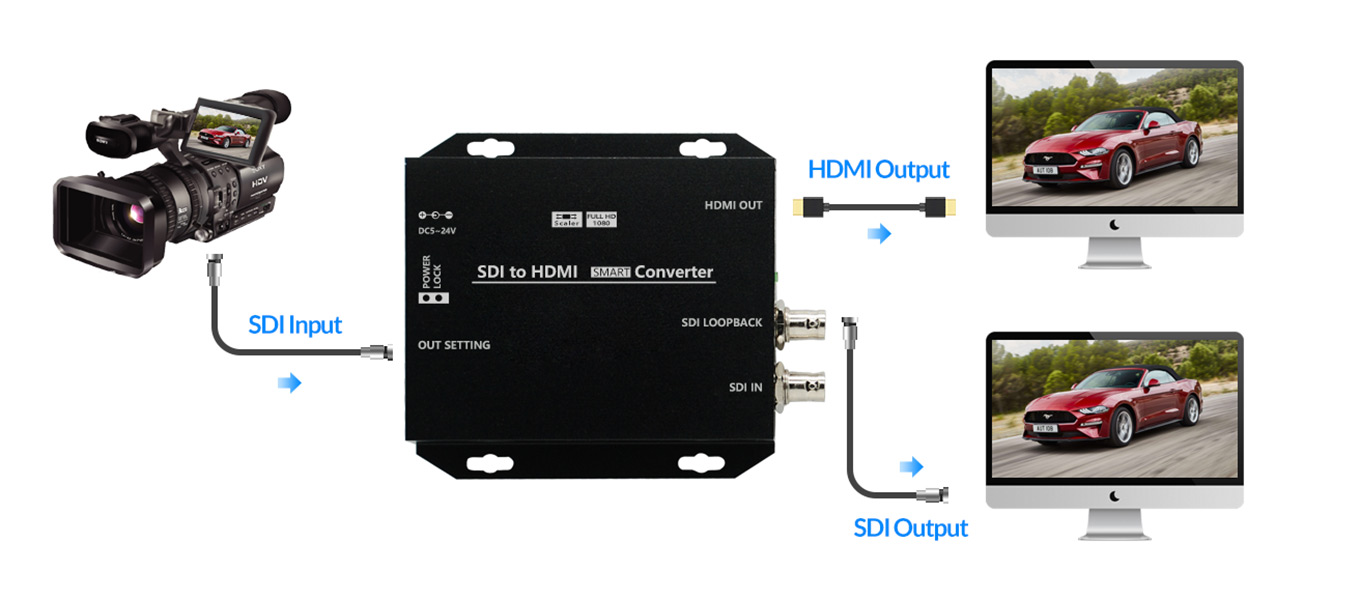

Diagrams Of SC03 | Frequency SDI to HDMI Video Converter
