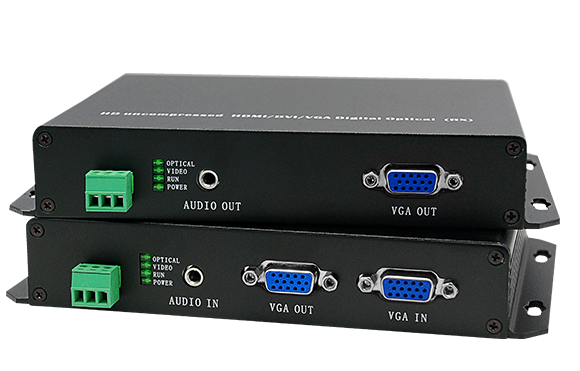

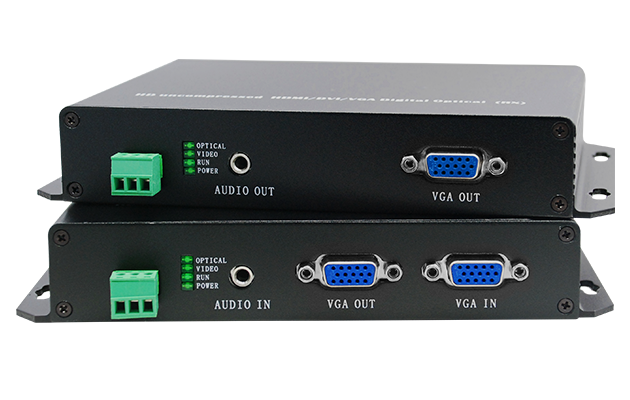

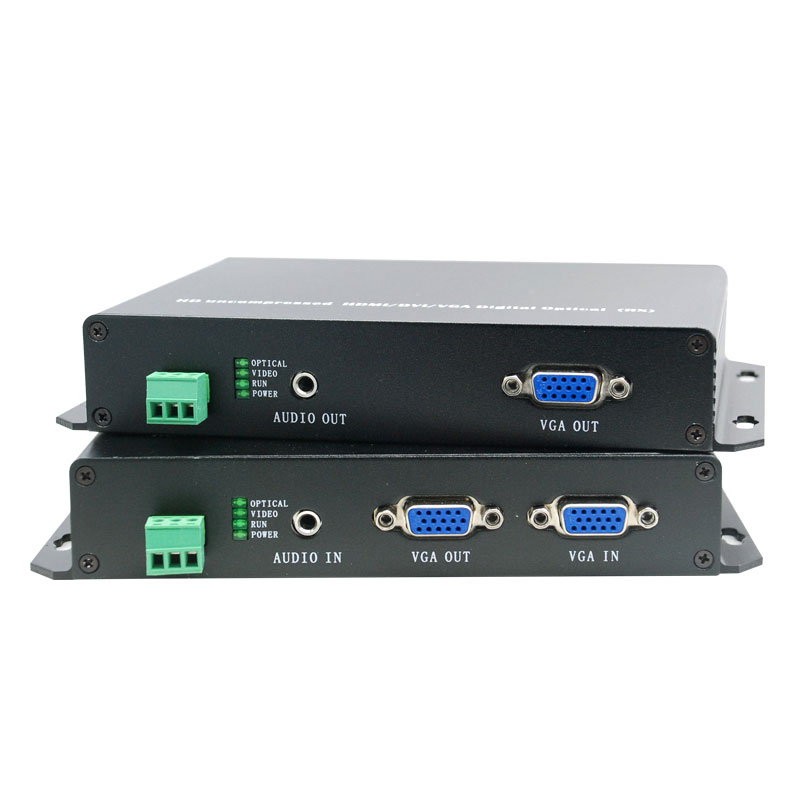

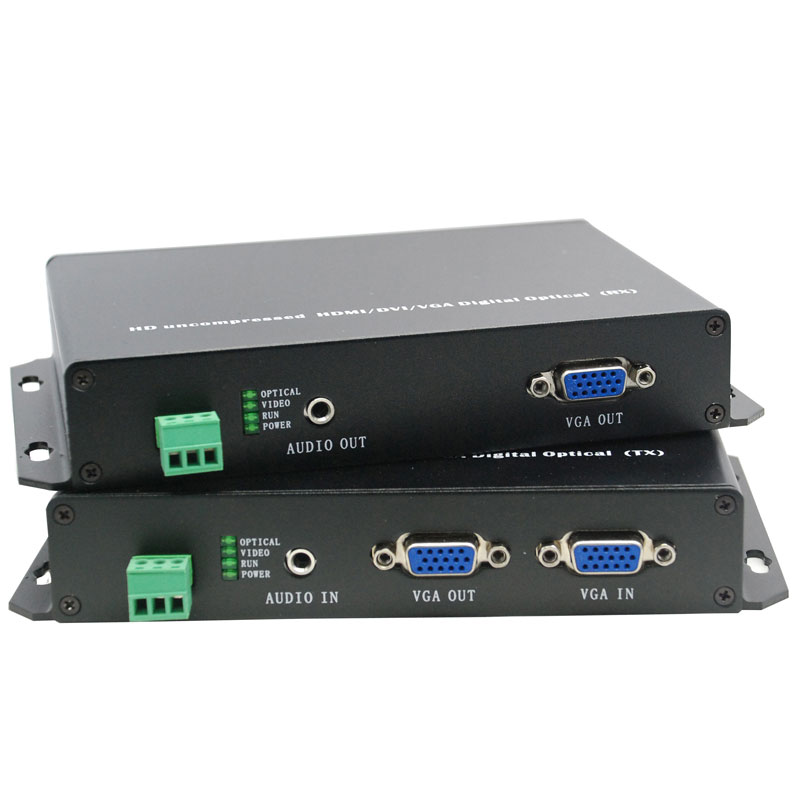

Uncompressed 1920x1200@60 VGA Extender with Fiber Optic

Uncompressed transmission

Full digital, Uncompressed HD optical fiber transmission

Support transmitter one VGA channel signal output

Support video resolution up to 1920*1200@60Hz

Support RS232 signal bidirectional transmission

Description

Introduction

Parameters

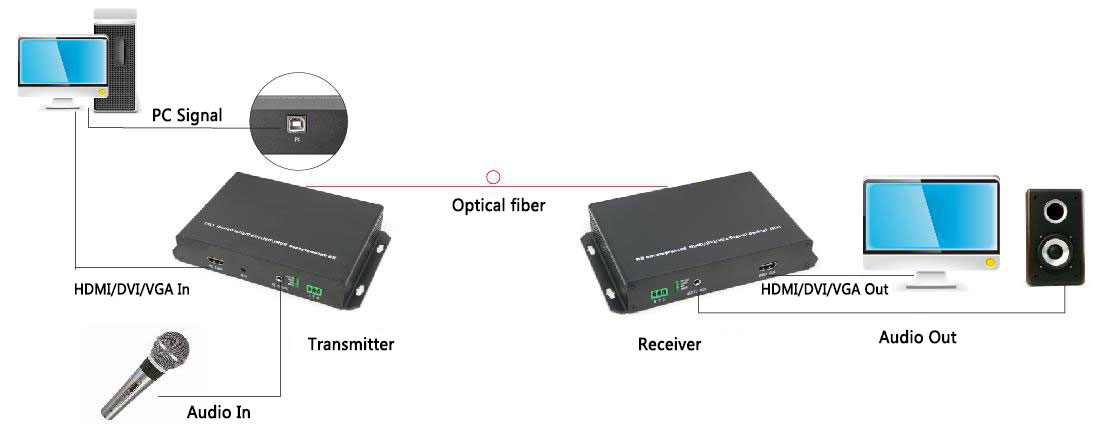

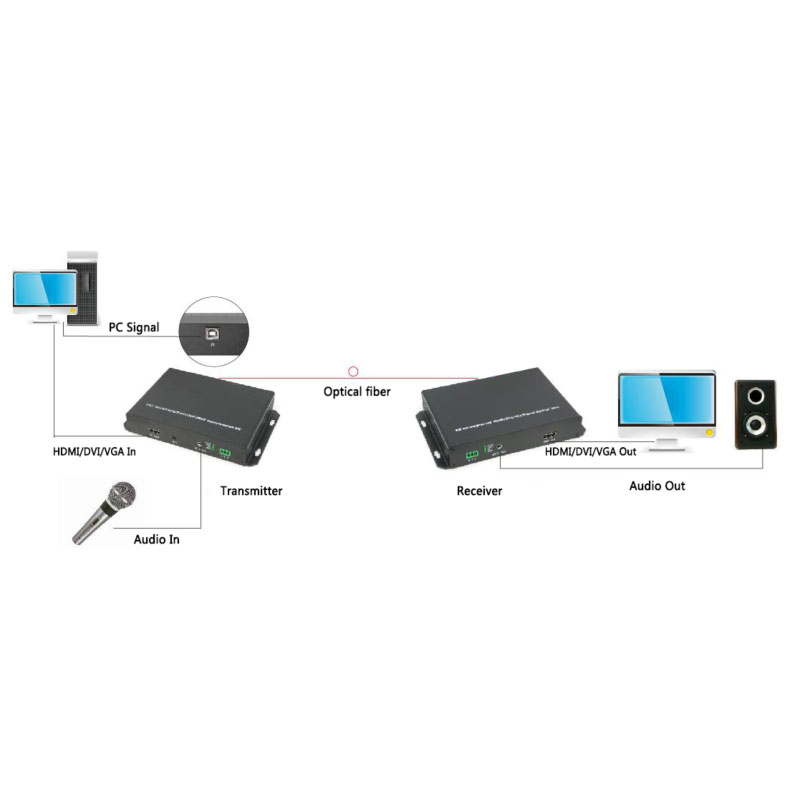

Diagram

VGA_HA-TR_BANNER

Introduction

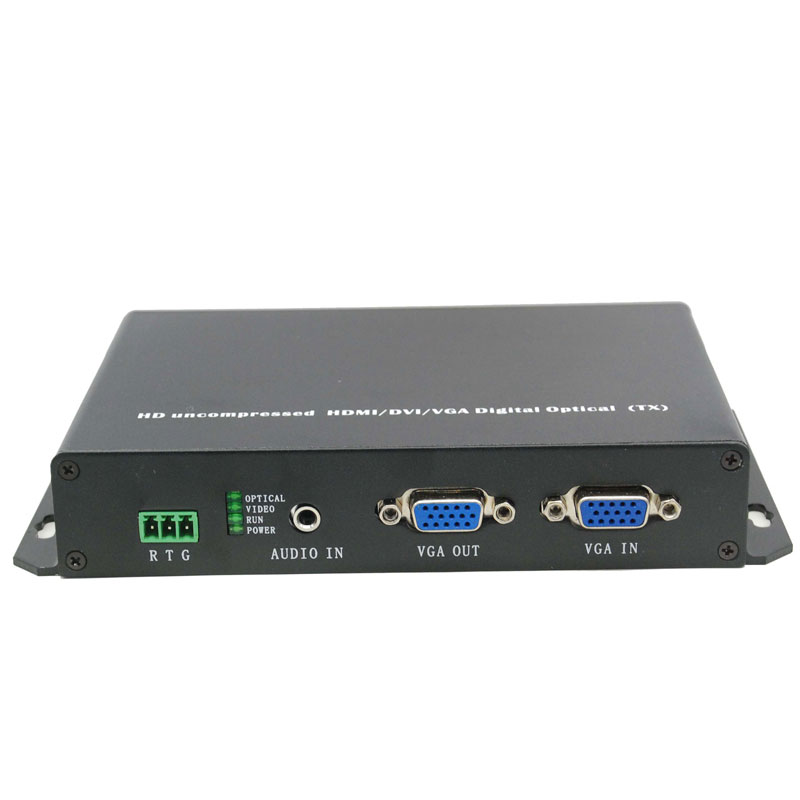

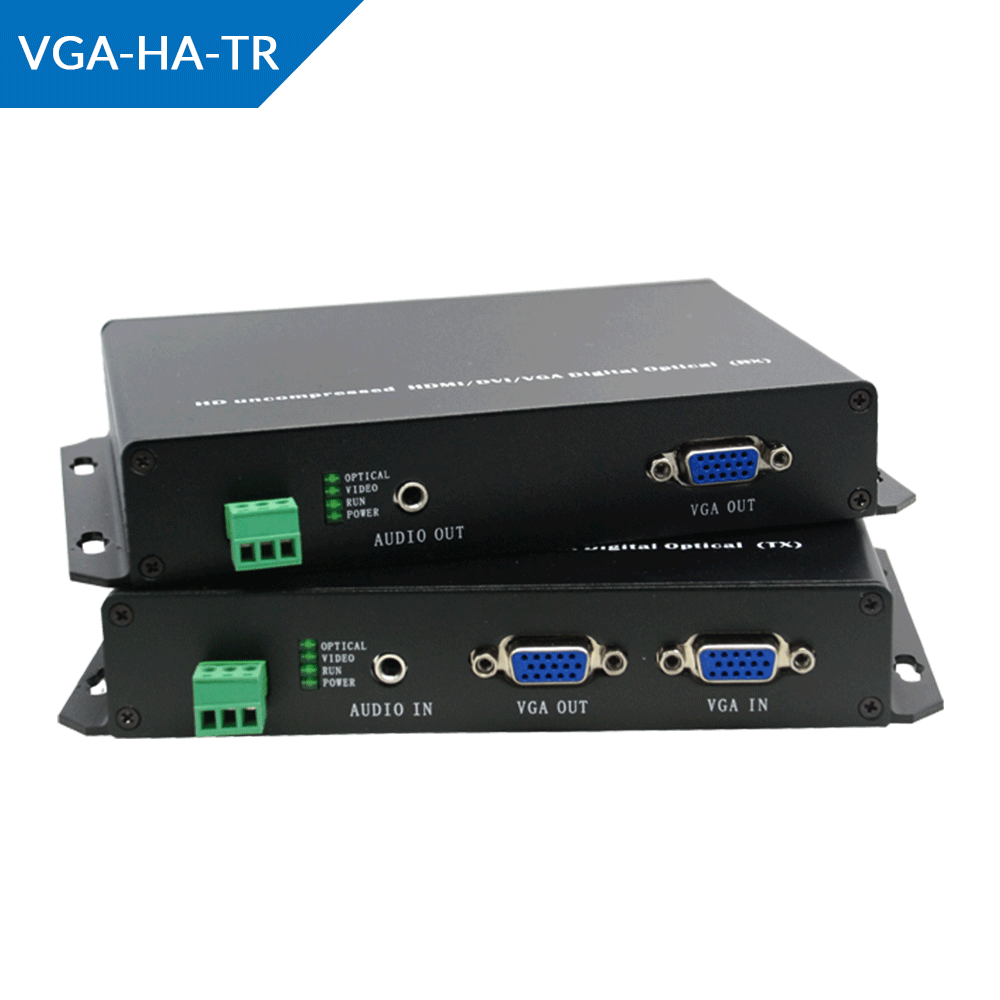

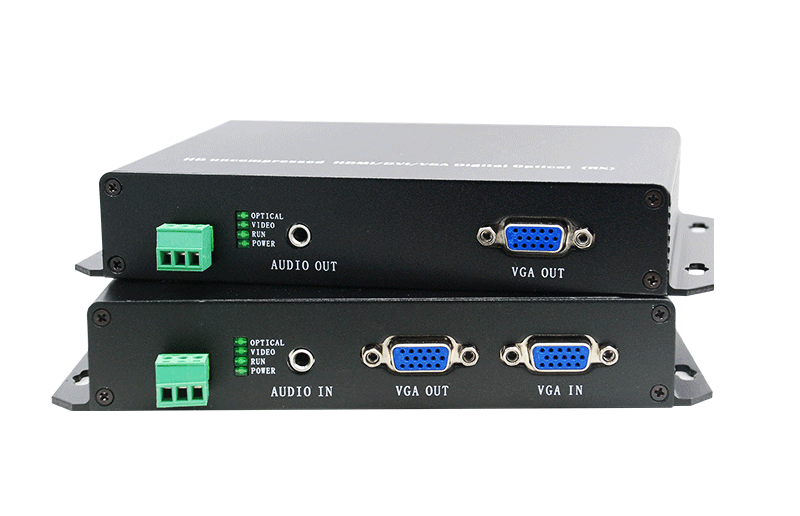

Uncompressed VGA Fiber Optical Extender

This VGA Fiber Extender (including VGA Optical Transmitter & Receiver) adopts the uncompressed digital HD video and high-speed digital optical fiber transmission advanced technology.The VGA Fiber Extender surpport 1ch VGA signal local ouput,surpport RS232 bidirectional transmission.
Professional for HD Video Extender

Delivers HD picture quality at resolutions up to 1920*1200@60Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
1-core single-mode

VGA, Audio and RS232 signals are transmitted through 1-core single-mode fiber.
RS-232 Control

Features RS-232 port for connecting peripherals.
Low energy consumption, long distance

VGA optical transceiver could transmission high-definition video long distance through fiber up to 10km.
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Parameters of Uncompressed 1920x1200@60 VGA Extender with Fiber Optic

Name	Uncompressed VGA Optical Fiber Extender
Model	ZY-VGA-HA-T/R
Transmitter Input	VGA In1, Audio In1, RS232*1

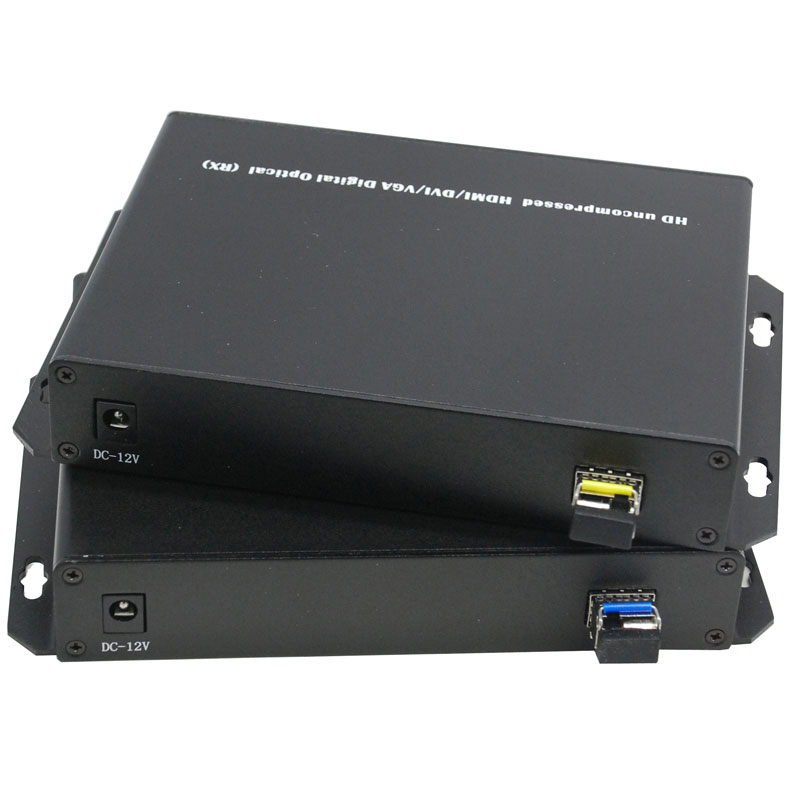

Transmitter Output	LC1, VGA Out1
Recevier Input	LC*1

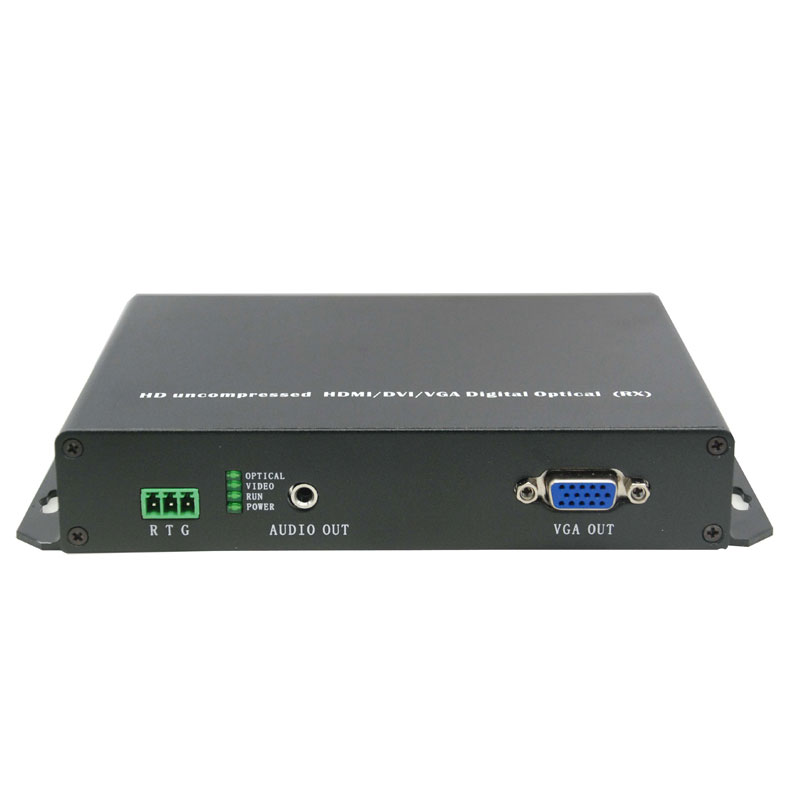

Recevier Output	VGA Out1, Audio Out1, RS232*1
Resolutuion	1920 x 1200P60/1920 x 1080I60/1920 x 1080I50 1920 x 1080P60/1920 x 1080P50/1920 x 1080P30 1920 x 1080P25/1920 x 1080P24/1280 x 720P60 1280 x 720P50/1680 x 1050P60/1600 x 1200P60 1600 x 900P60/1440 x 900P60/1400 x 1050P60 1366 x 768P60/1360 x 768P60/1280 x 1024P60 1280 x 800P60/1024 x 768P60/800 x 600P60
Cable	1-core fiber
Transmission distance	Single-mode fiber:10KM(standard),30KM 60KM Multi-mode fiber:300m
RS232	√
Support EDID	x
Support HDCP	x
Support KVM	x
Temperature	-20℃~＋60℃
Humidity	<90%, No condensation
Power Consumption	＜4W
Power	12V/DC 1A
Size	175mm×115mm×30mm
Weight	TX:0.4kg RX:0.4kg

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
