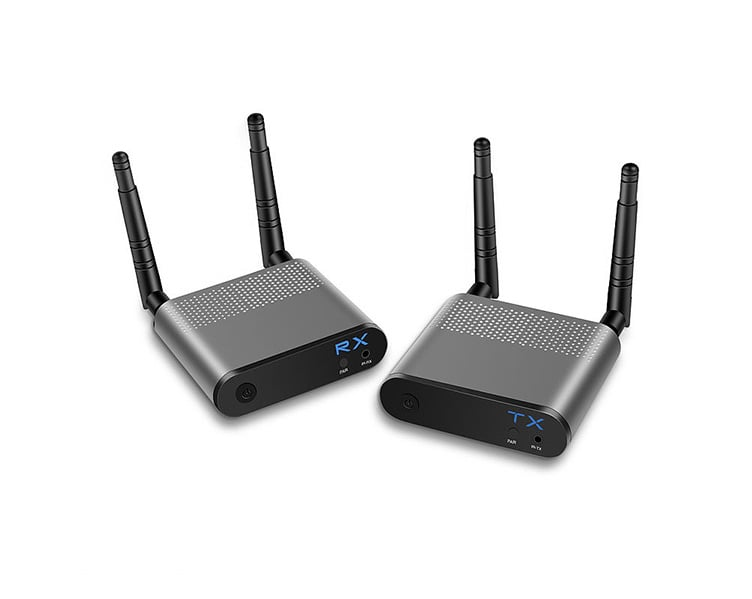

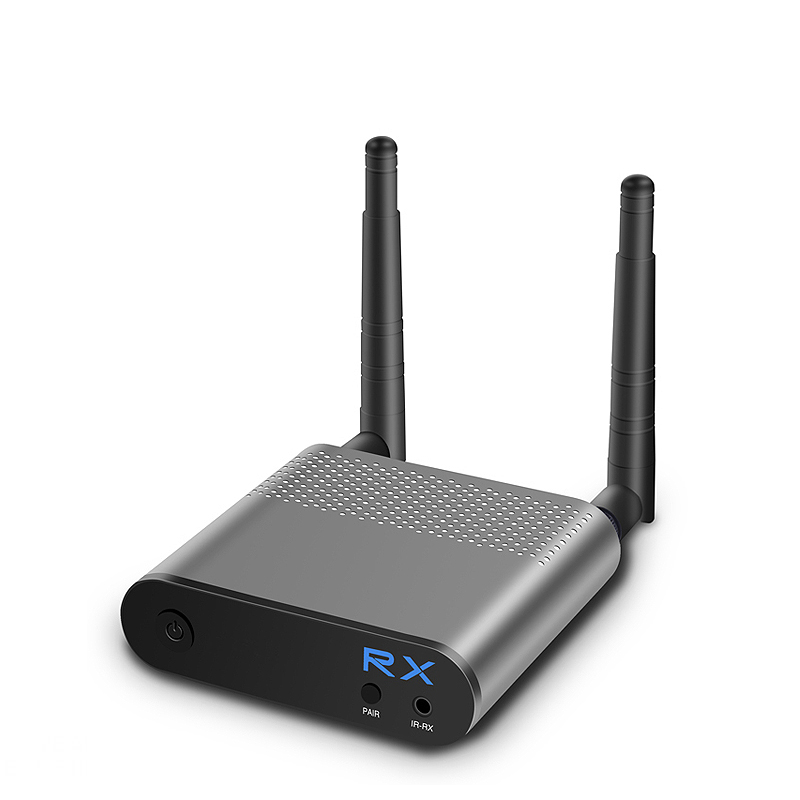

ORIVISION 100m 1080@60 Wireless Extender with IR

Frequency Range:2.4GHz / 5.8GHz

200m range of wireless transmission

Support 1080P@ 60Hz, 3D

Go through walls

IR return control

Not need any setting, no driver, plug and play

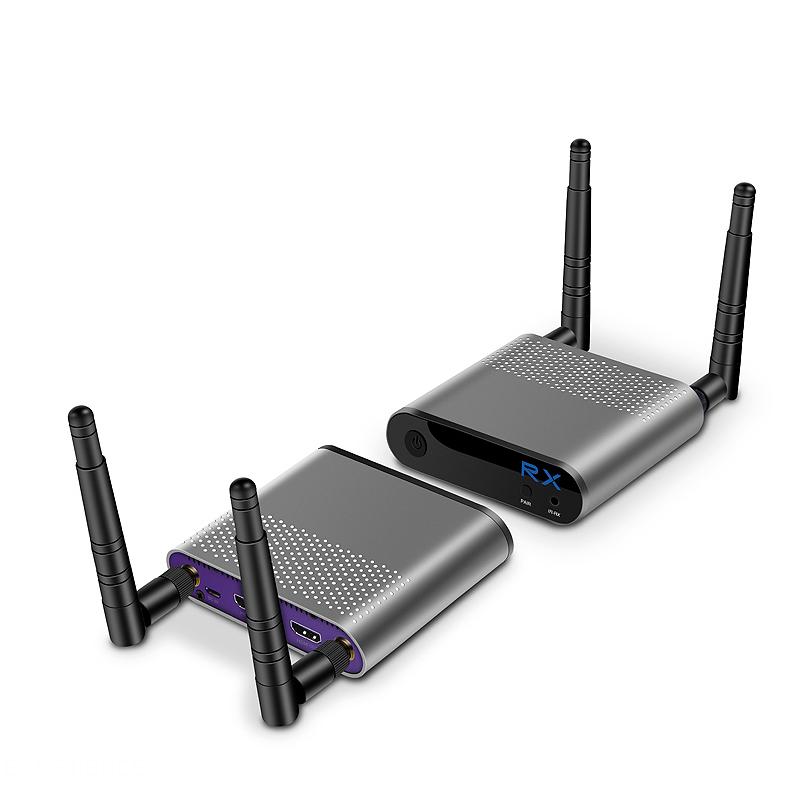

1 sender and 1 receiver, a pair used at the same time

Description

Introduction

Parameters

Diagram

Introduction

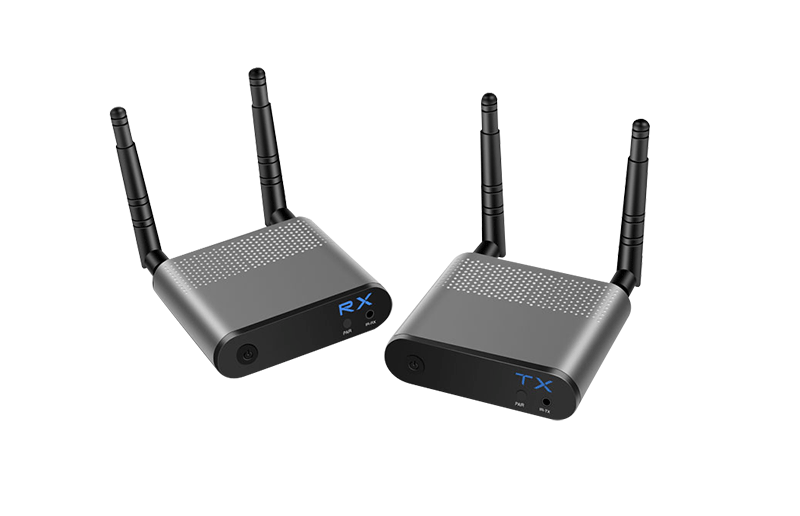

100m 1080@60 HDMI Wireless Extender

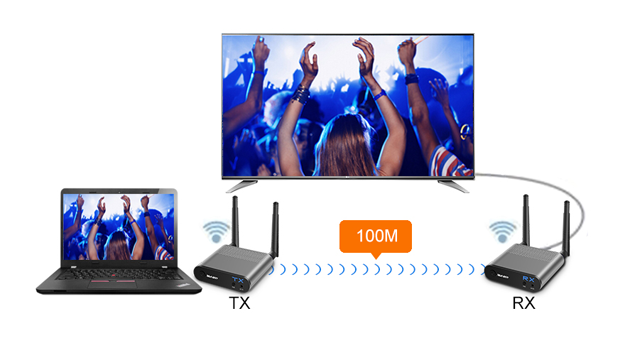

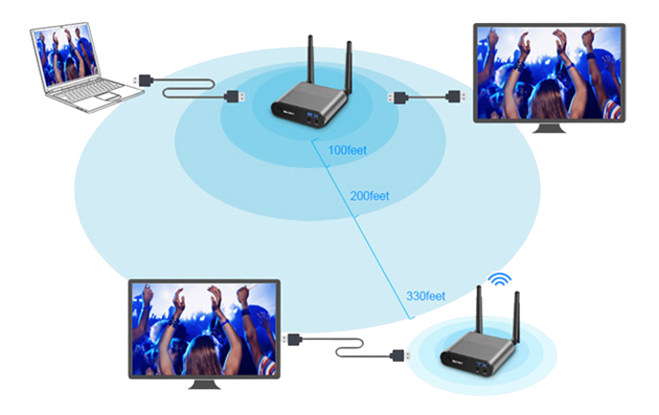

Transmit all your HDMI-compatible digital video signals wirelessly from one playback device (e.g. PC, DVD or Blu-ray player) to a receiver terminal (e.g. monitor , projector or TV). The range of transmittion is up to 330feet(100m). This HDMI transmission Kit offers maximum flexibility and comfort.

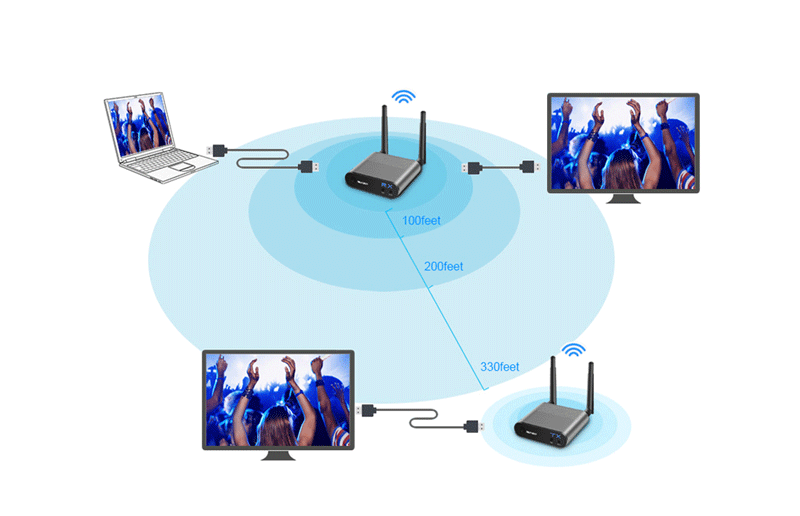

Giving You a Neat Home Without Cables

Put your device in the cabinet, away from the line of sight, without any wires exposed, neat and orderly, but the full performance of the HDMI extender is not affected.
High Performance And Full HD Streaming

Wireless HDMI extender delivers full HD audio and video at 1080p@60Hz for crisp, clear images.

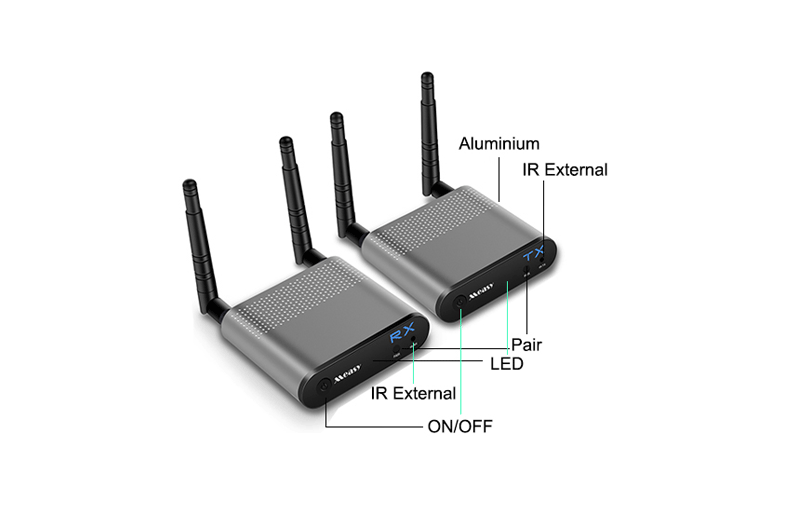

Support IR Control

On the remote TV side ,you can use the remote control to control the set-top box of the sender such as playback, pause or menu selection of the player.

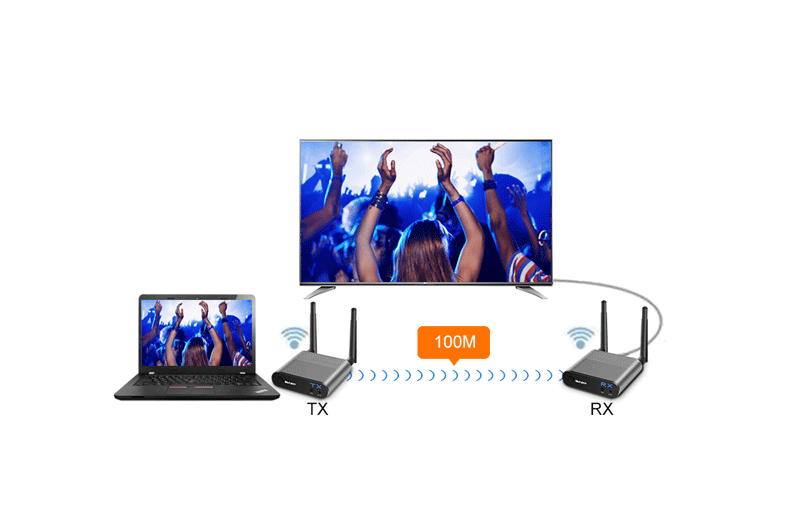

No Interference, No Latency

All transmitted signals are adaptive frequency hopping adaptive transmission in the 5/2.4 GHz dual band to achieve secure and interference-free wireless transmission of video streams.

Parameters Of 100m 1080@60 Wireless Extender with IR

Technical
HDMI Compliance	HDMI 1.4b
HDCP Compliance	HDCP 1.4
Video Bandwidth	6.75 Gbps
Video Resolutions	up to 1080P@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit
Audio Formats	LPCM 2CH
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Transmitter-Inputs	HDMI*1 Type A [19-pin female]
Transmitter-Outputs	HDMI*1 Type A [19-pin female]
	USB*1
	IR*1
Receiver-Inputs	IR*1
	USB*2 Type A [Propriety Data]
Receiver-Outputs	HDMI*1 Type A [19-pin female]
Mechanical
Housing	100mm [W] x 100mm [D] x 25mm [H]
Dimensions	100mm [W] x 100mm [D] x 25mm [H]
Net Weight	Transmitter:120g
	Receiver:120g
Power Supply	Inputs:AC100~240V 50/60HZ
	Outputs:DC 5V/1A
Power Consumption (Max)	3W
Operation Temperature	30 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)

Apply to Projector at home theater, Office meeting system, Educational audio-visual system, VR, game system, TV and movie live shooting scene, etc.

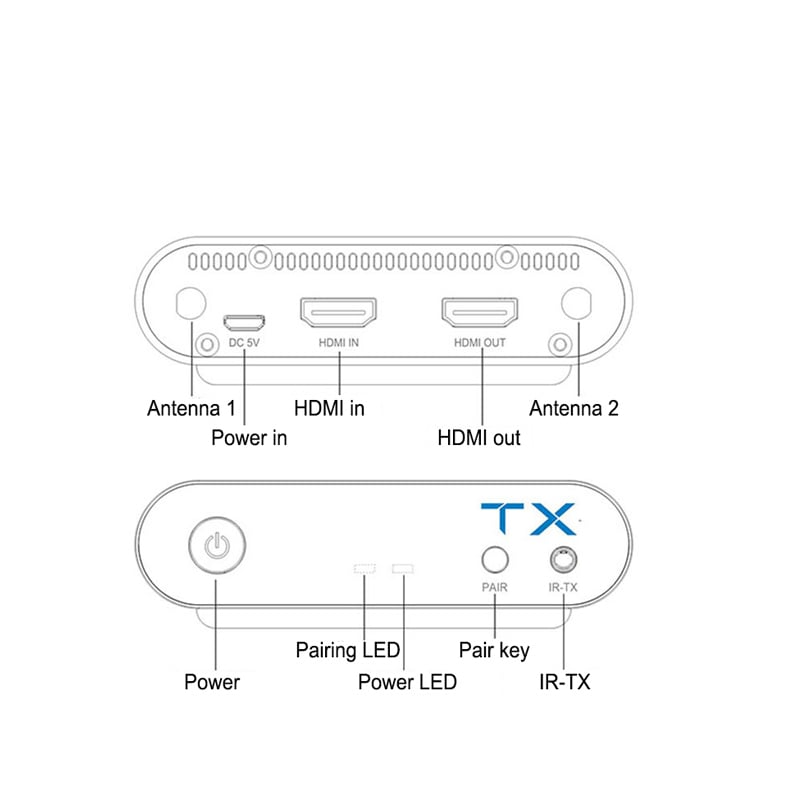

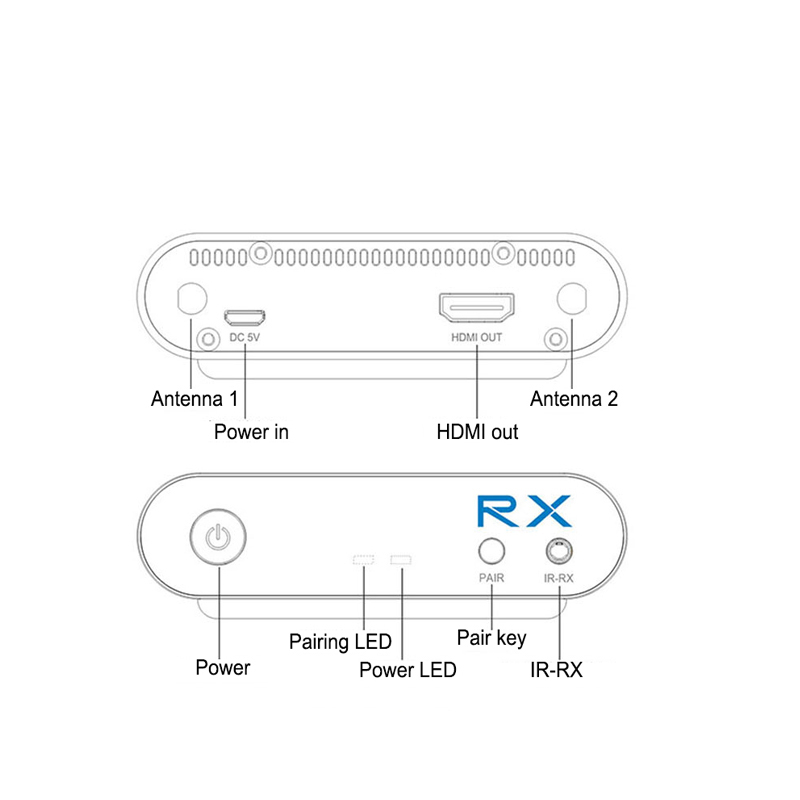

Diagram Of 100m 1080@60 Wireless Extender with IR
