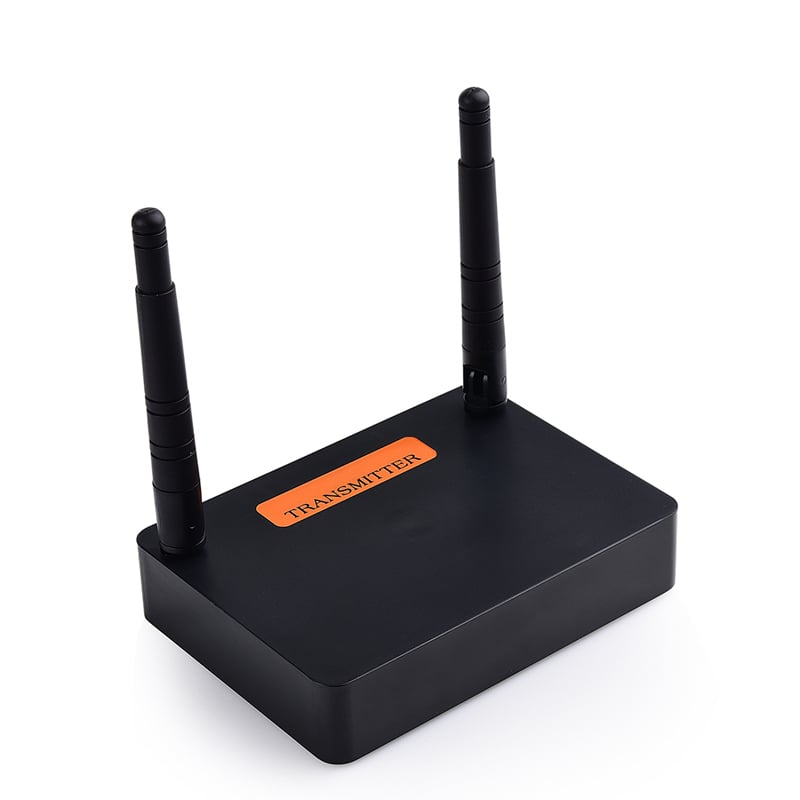

ORIVISION 200m 1080@60 Wireless Extender with IR

Frequency Range:2.4GHz / 5.8GHz

200m range of wireless transmission

Support 1080P@ 60Hz, 3D

Go through walls

IR return control

Not need any setting, no driver, plug and play

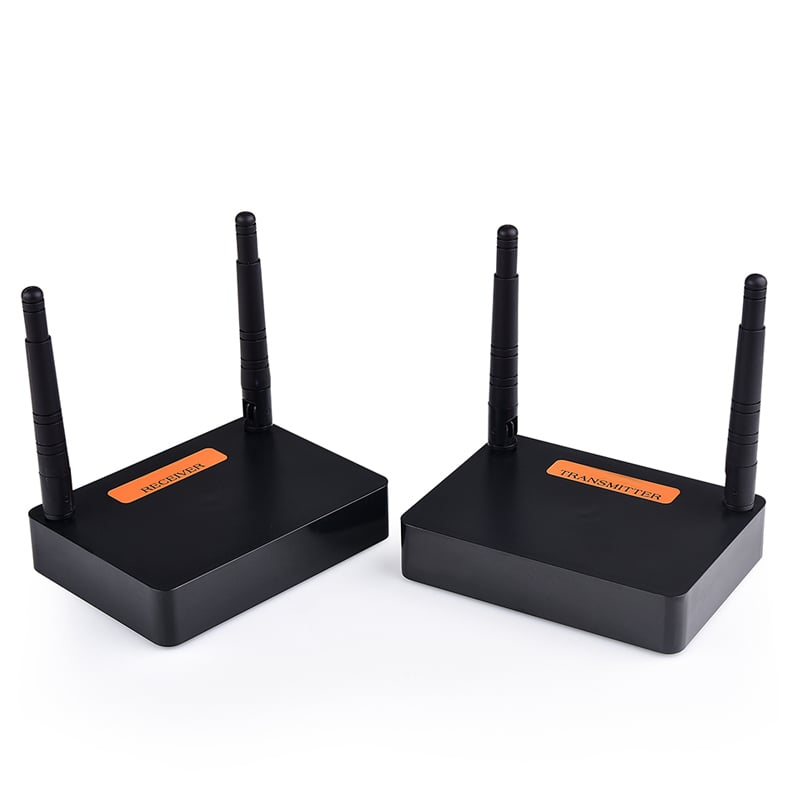

1 sender and 1 receiver, a pair used at the same time

Description

Introduction

Parameters

Diagram

WH100N-Wireless-Extender-01

Introduction

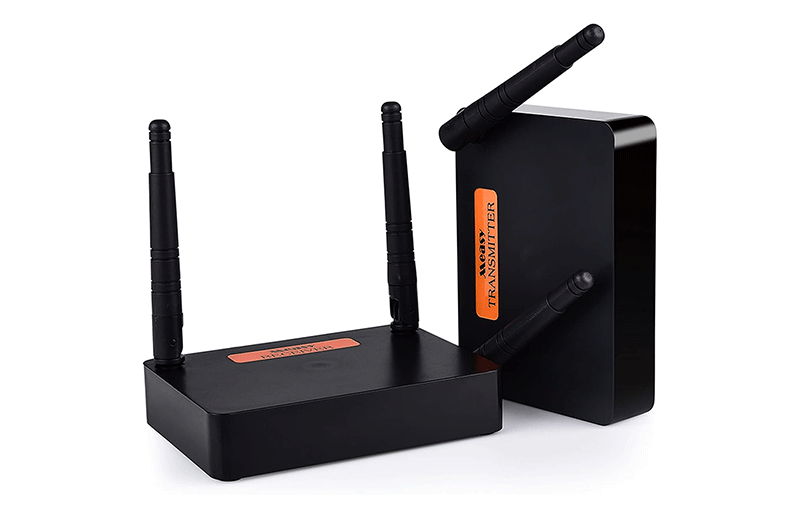

Furniture decoration

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

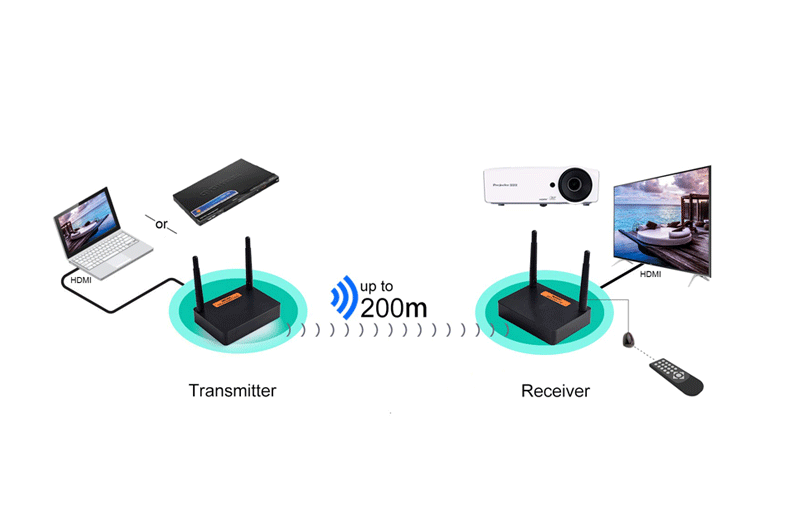

Giving You a Neat Home Without Cables

Put your device in the cabinet, away from the line of sight, without any wires exposed, neat and orderly, but the full performance of the HDMI extender is not affected.
High Performance And Full HD Streaming

Wireless HDMI extender delivers full HD audio and video at 1080p@60Hz for crisp, clear images.
Support IR Control

On the remote TV side ,you can use the remote control to control the set-top box of the sender such as playback, pause or menu selection of the player.

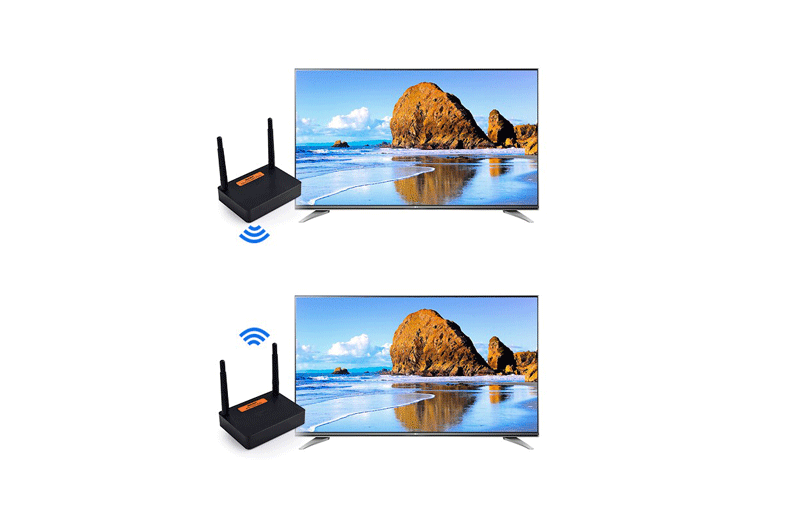

No Interference, No Latency

All transmitted signals are adaptive frequency hopping adaptive transmission in the 5.8/2.4 GHz dual band to achieve secure and interference-free wireless transmission of video streams.

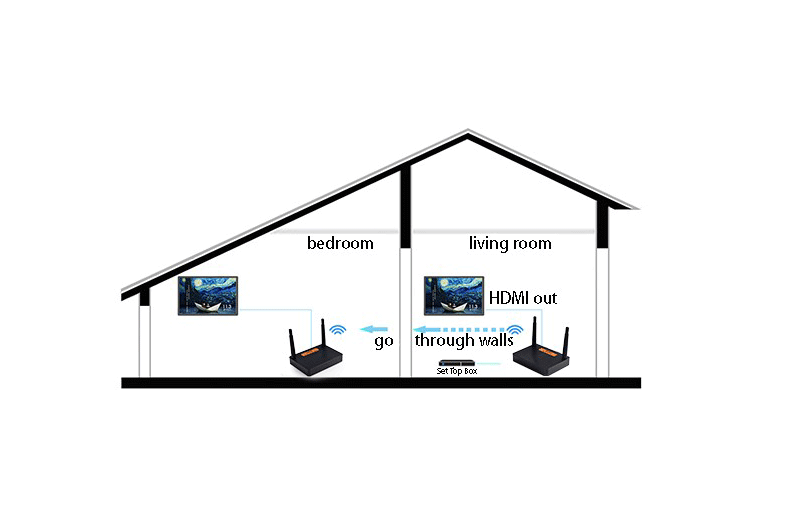

Easy to Install

The installation can be completed in minutes and can be used easily after connect the power.

Parameters Of 200m 1080@60 Wireless Extender with IR

HDMI standards	HDMI1.4，HDCP1.4
HDMI resolution	Upto 1080P@60HZ
AUDIO FORMAT	1080P high-end
Data max transmission rate	6.75Gbps
Wireless transmission satndards	IEEE802.11a/b/g/n
Operating frequency	2.4G 150Mbps, 5G 300Mbps
wireless transmission power	16+- 2dBm
transmission distance	200m（open space accessibility）
IR Frequency rate	38Khz
DC power input	AC 100V-240V 50/60HZ
DC power output	DC 5V/2A
Operating temperature	-5°C+70°C
Operating dimension	5%-90%

Apply to Projector at home theater, Office meeting system, Educational audio-visual system, VR, game system, TV and movie live shooting scene, etc.

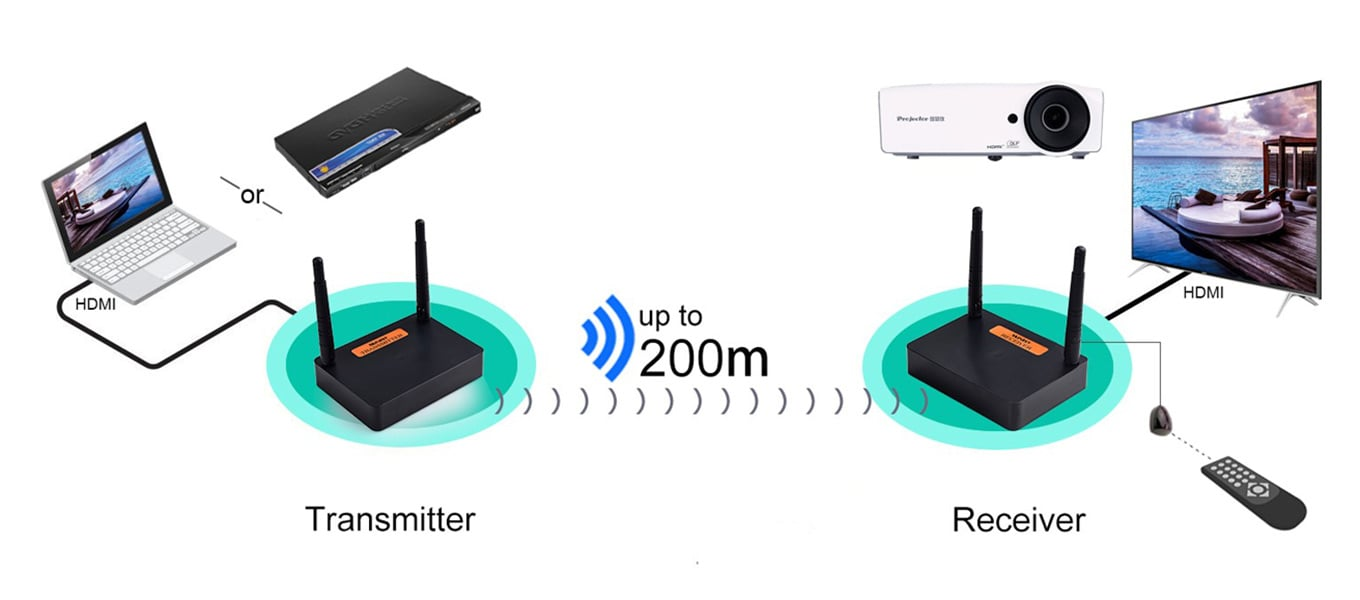

Diagram Of 200m 1080@60 Wireless Extender with IR
