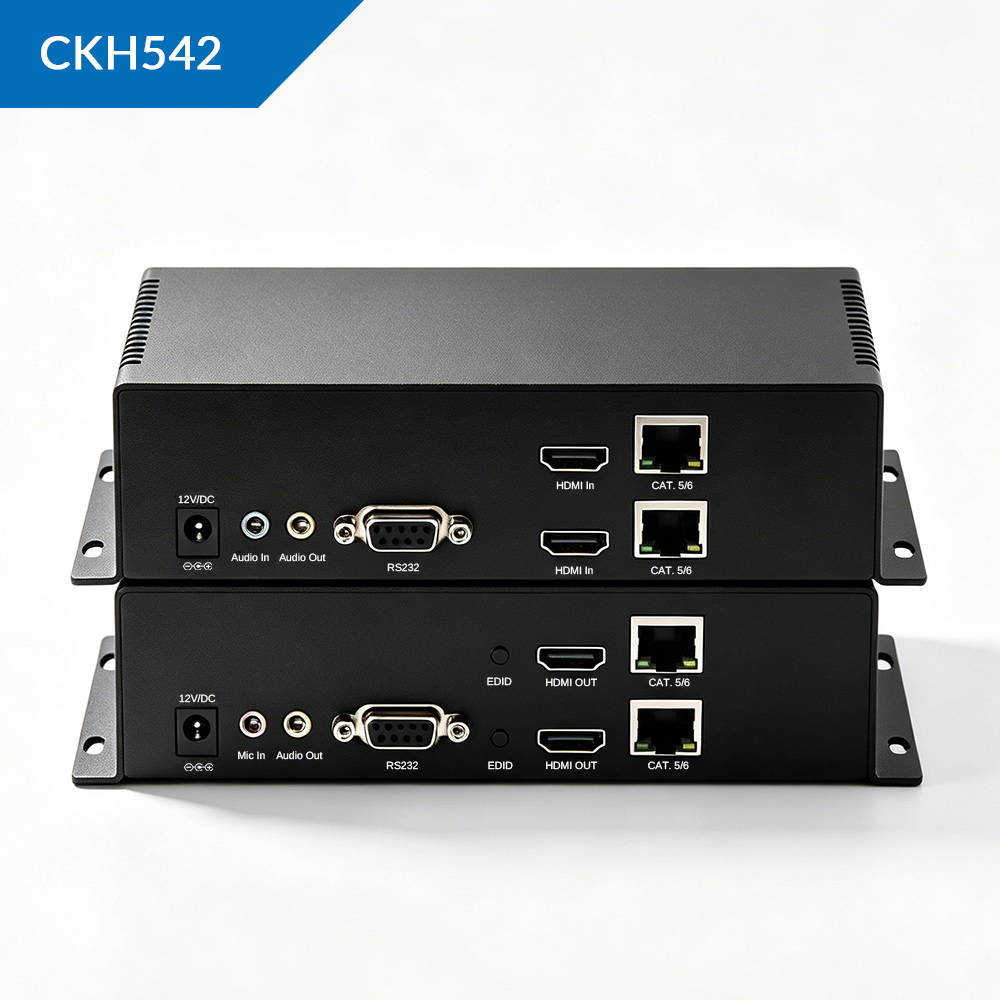

The ORIVISION ZY-CKH542 is a professional-grade, high-performance Dual HDMI KVM over IP Extender designed for reliable and seamless long-distance AV signal transmission. It allows you to extend dual Ultra HD 4K@30Hz HDMI video, bidirectional analog audio, RS232 control signals, and USB 2.0 peripheral devices up to 120 meters (394 feet) over a single standard Cat5e/6 cable.
Featuring advanced private visually lossless compression technology, the ZY-CKH542 delivers ultra-low latency (only 1 frame delay), making it an ideal solution for real-time control rooms, data centers, broadcasting, and collaborative office environments.

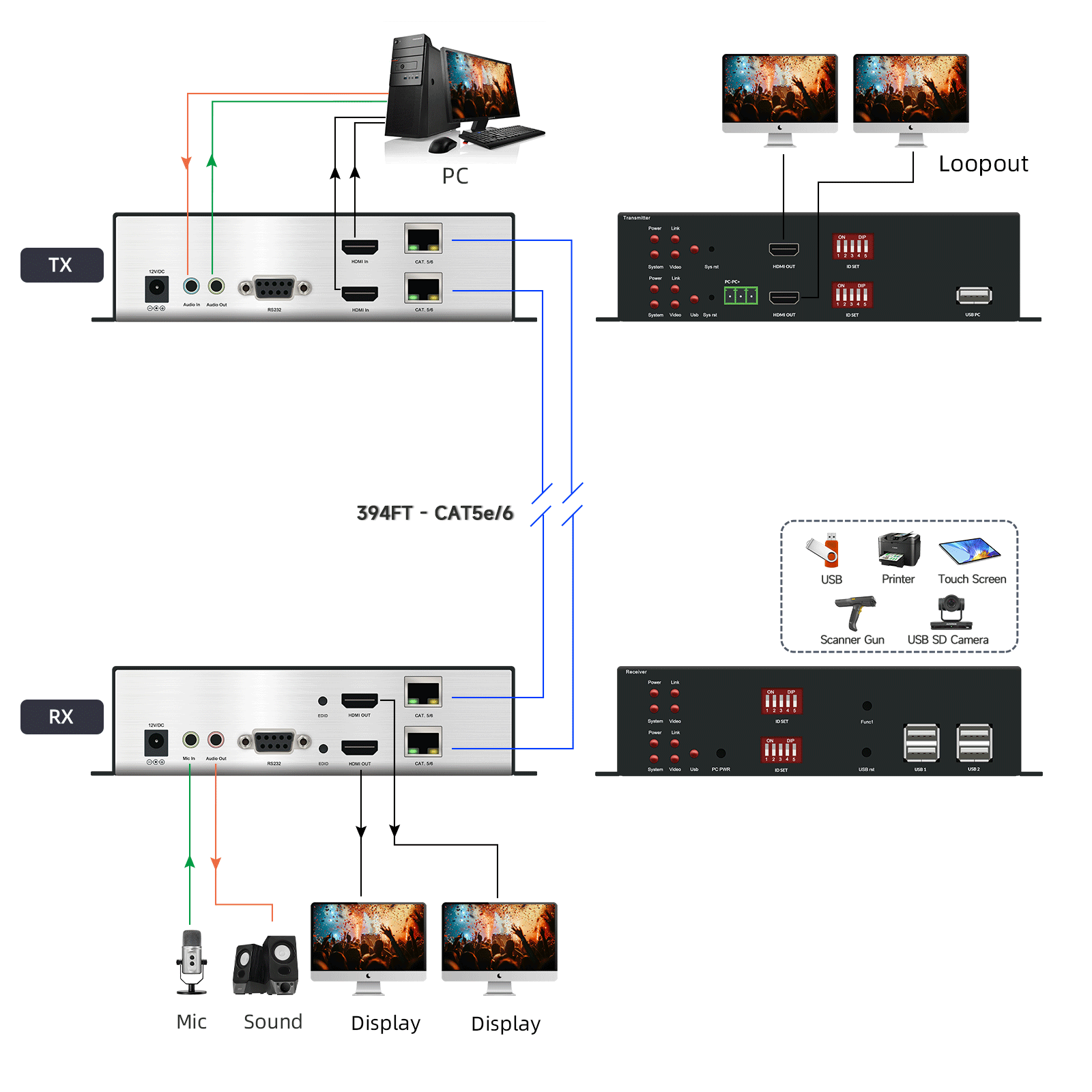

The system supports both straightforward Point-to-Point direct connection and flexible Many-to-Many matrix routing over a Gigabit Network Switch using simple DIP switch pairing.
Ultra HD 4K@30Hz Video Quality
Supports crisp resolutions up to 3840x2160@30Hz and 1080P@60Hz via HDMI 1.4. It utilizes a private visually lossless compression algorithm to ensure video signals do not degrade over long distances.
Dual HDMI KVM Extension
Simultaneously extends 2 channels of HDMI video signals along with USB and audio over a single cable network. This dual display KVM extender is perfect for operator workstations requiring dual monitors.
Long-Distance 120m/394FT Signal Transmission
Breaks HDMI distance limitations by extending AV and KVM signals up to 120 meters (394 feet) over a standard single Cat5e/6 cable. It provides a reliable Ethernet cable HDMI extension for remote server management.

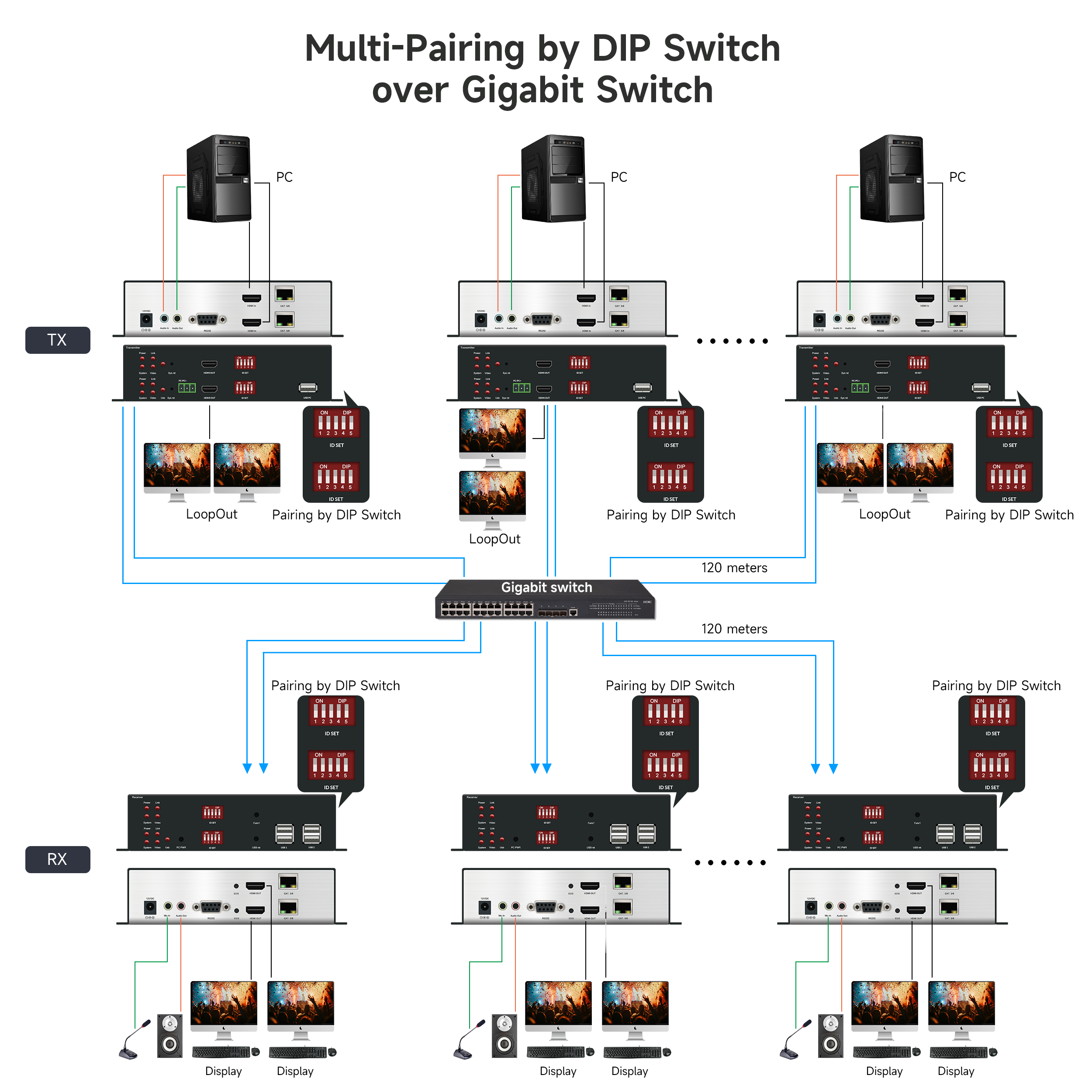

Scalable Matrix via DIP Switch Over IP
Supports both direct point-to-point transmission and flexible many-to-many matrix routing over standard Gigabit network switches. Easily switch channels using hardware DIP switch configuration without complex software.
High-Speed USB 2.0 Peripheral Support
Fully compatible with USB 2.0 devices, including keyboards, mice, USB flash drives, printers, scanners, and touch screens. This ensures seamless remote desktop control and high-speed data transfer for data-heavy peripherals.
Plug-and-Play & Hardware-Based Installation
A pure hardware solution featuring a plug-and-play design with zero software or drivers required. It includes a built-in ESD protection circuit to prevent electrostatic damage, making it highly reliable for 24/7 industrial use.
