984FT/300M 4K@30 Mini HDMI Fiber Optic Extender

Product Description

Introduction

Parameters

Diagram

详情1

Introduction

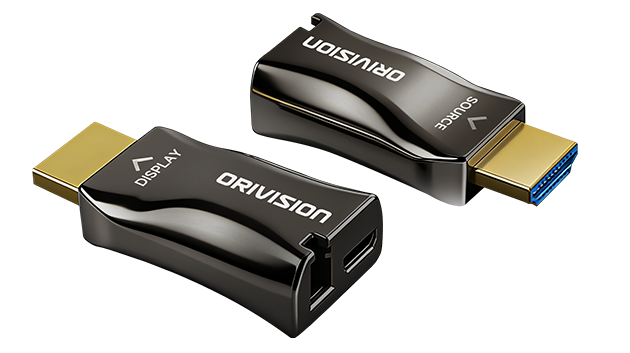

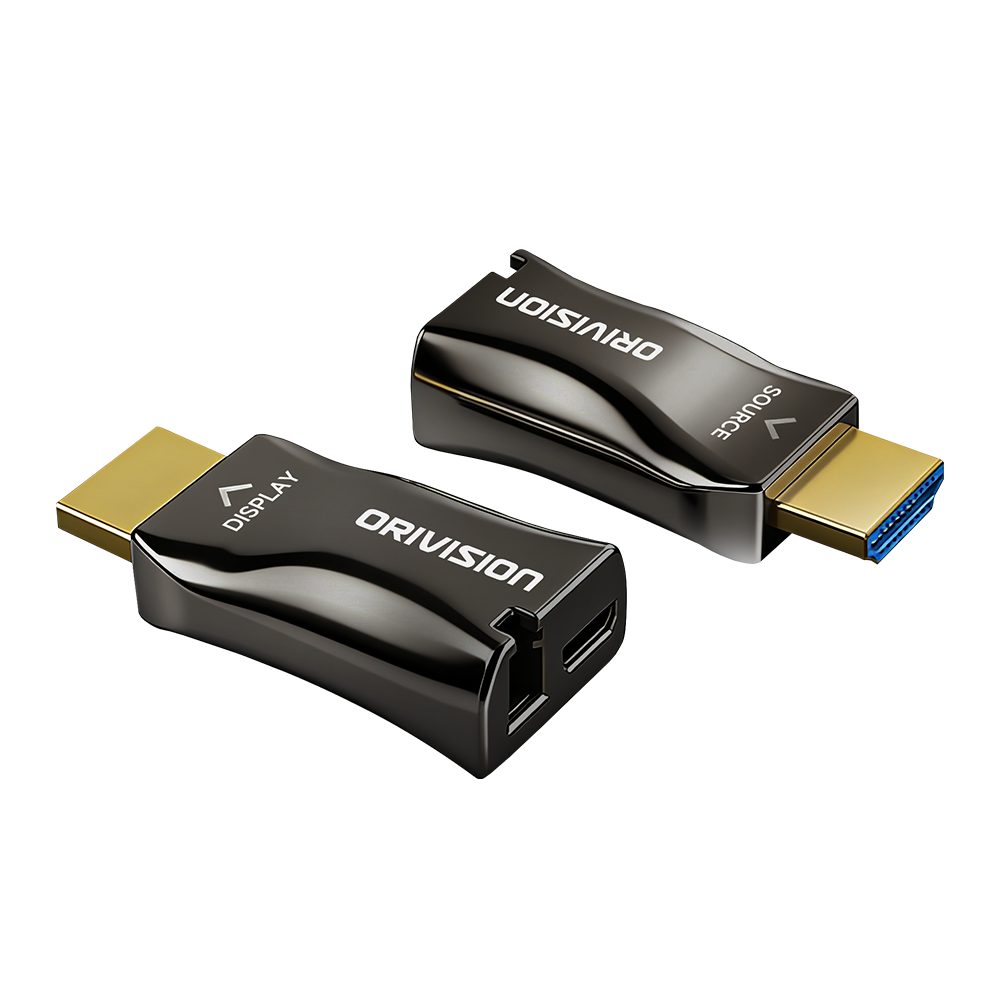

4K@30 Mini HDMI Fiber Optic Extender

The OH921 is an ultra mini 4K HDMI1.4 over single core OM3 multi-mode LC compact fiber extender that is pluggable directly into your device.
Extend your 4K30 video source over fiber up to 984ft/300m to your
desired display with this incredibly compact set, the transmission rate up to 10.2Gbps.

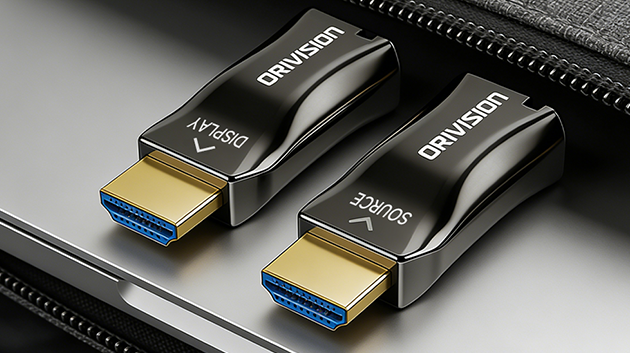

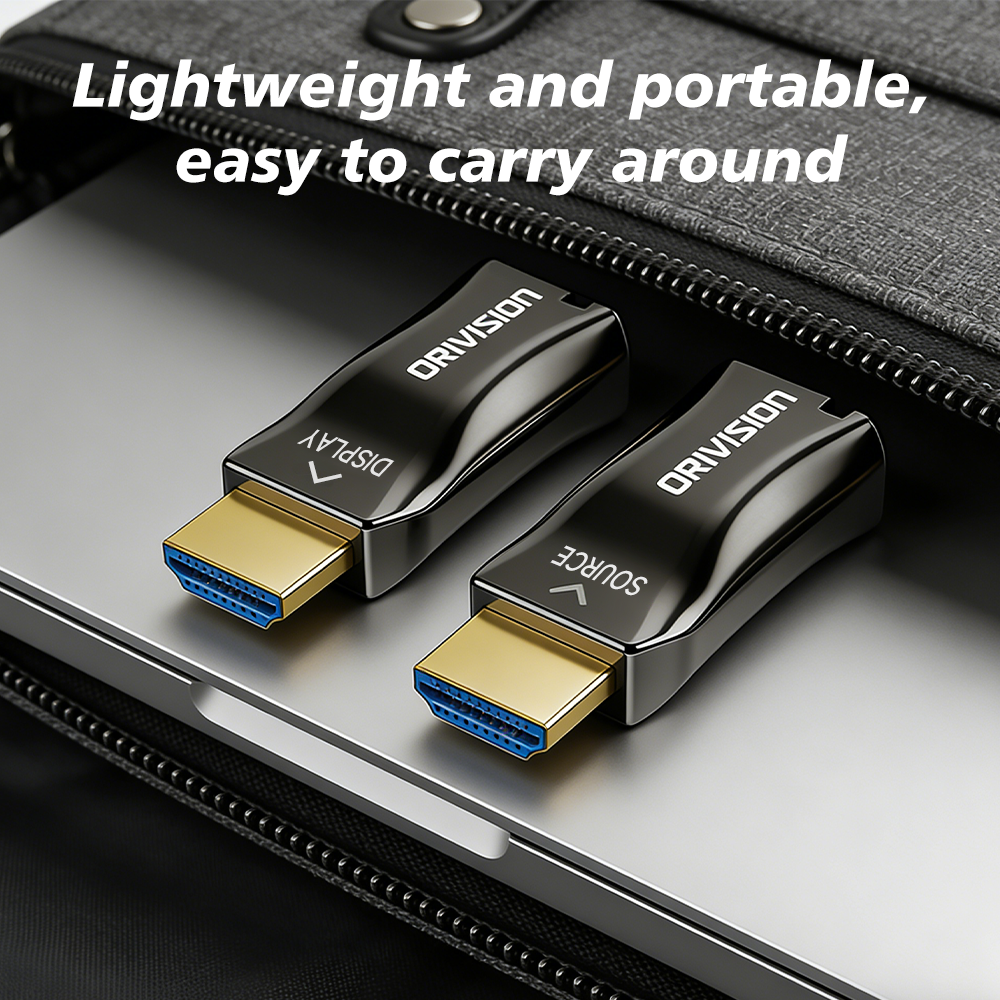

Lightweight and Portable

With dimensions of 57x16x14mm(2.24 x 0.6 x 0.55 in) and a weight of 0.1 kg (0.22 lb ), this hdmi video converter is very small and saves a lot of space, making it easy to carry around.
Professional for 4K Video Extender

Maximum supported resolution 4K30Hz backward compatible.
Supports synchronized audio and video transmission.

Fully digital, uncompressed fiber optic transmission.

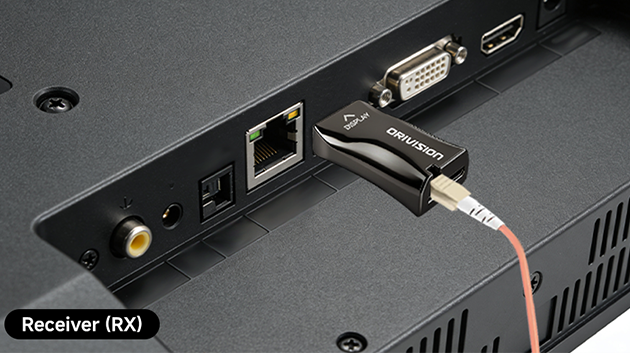

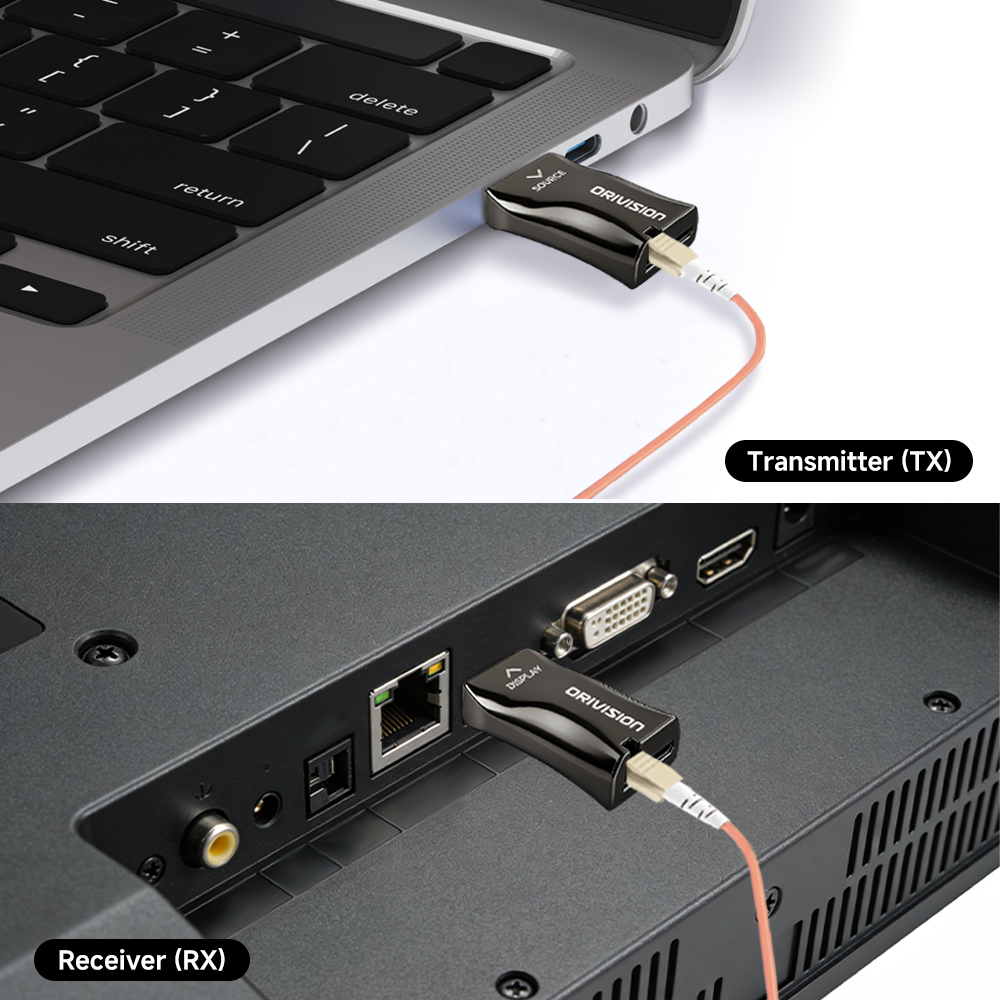

Simple and convenient, plug and play

Support HDMI 5V power supply, when the HDMI port of the signal source is not powered enough, it needs to be powered by a Micro USB cable.

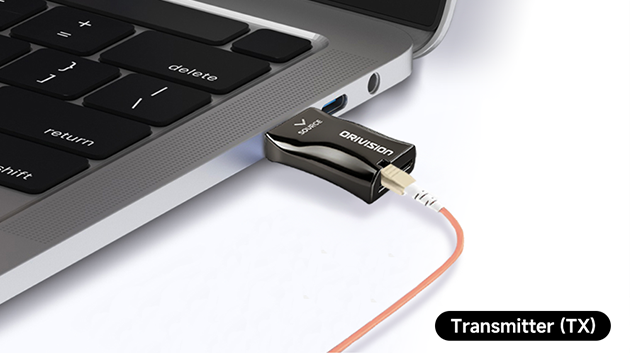

Simple and convenient, plug and play

Supports hot-pluggable, simple and convenient, plug and play.

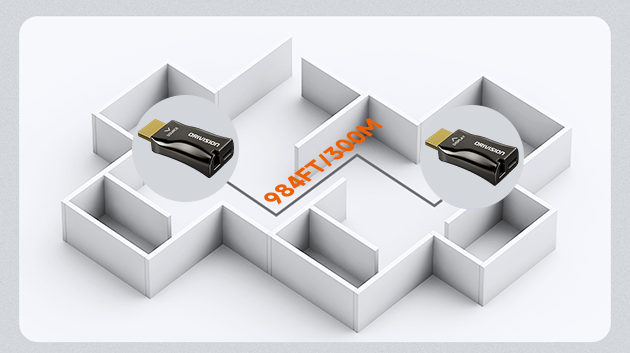

Up to 984FT/300M Range

Transmission distance up to 984ft/300m over OM3 multi-mode fiber optical cable；
The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit.
ODM: Pls send your requirements to us. (info@orivision.cn).

Parameters

Name	984FT/300M 4K30 Mini HDMI Fiber Optic Extender
Model	ZY-OH921
Interface Standard	HDMI1.4
Resolutions	4K30Hz/1080P/1080i/720P
Optical Fiber
Interface	LC
Types	OM3 multi mode
Bandwidth	10.2Gbps (3.4Gbps/CH)
Distance	984FT/300M
Other
Temperature	0 ~ +55° C(Work); -40℃ to 85℃(Storage)
Humidity	<90 % (no condensation)
Power supply	Micro-USB/HDMI 5V
Dimensions	571614mm (2.240.60.55in)
Weight	0.1 kg / 0.22 lb

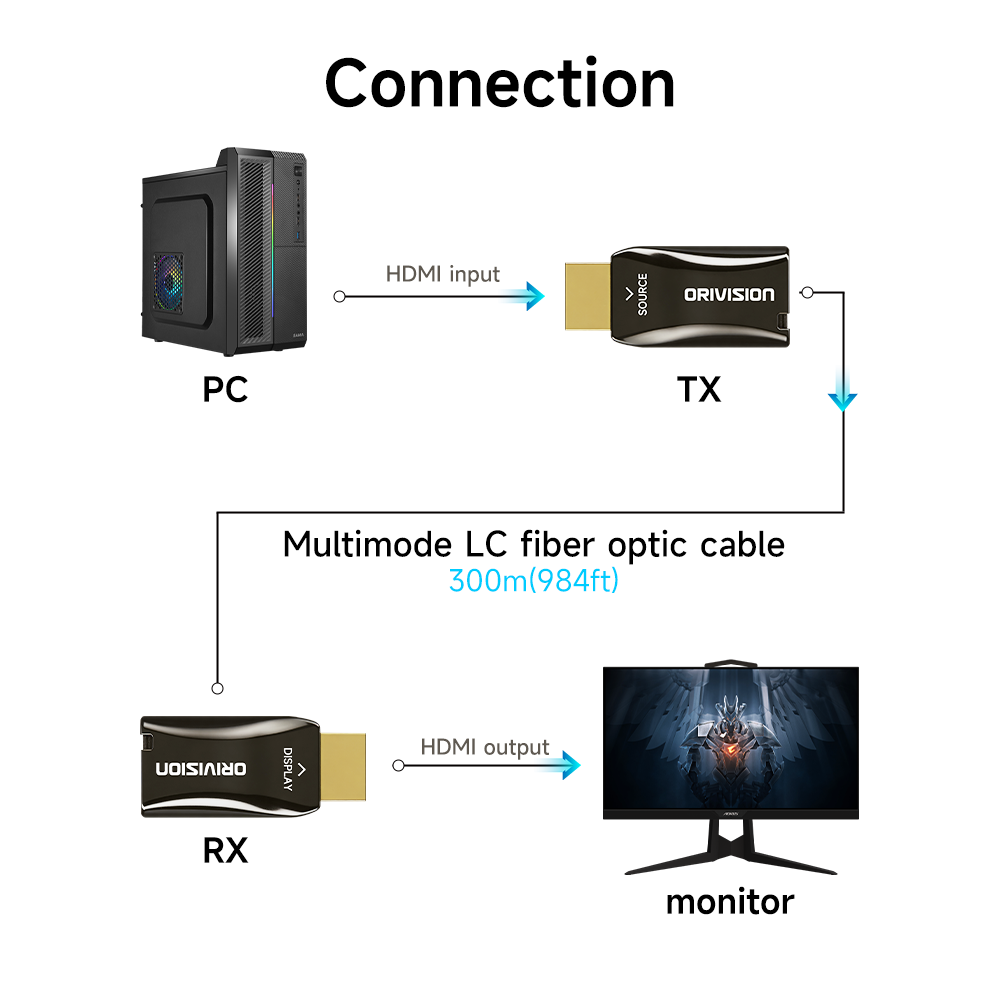

Diagram

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

主图7连接示意图1
