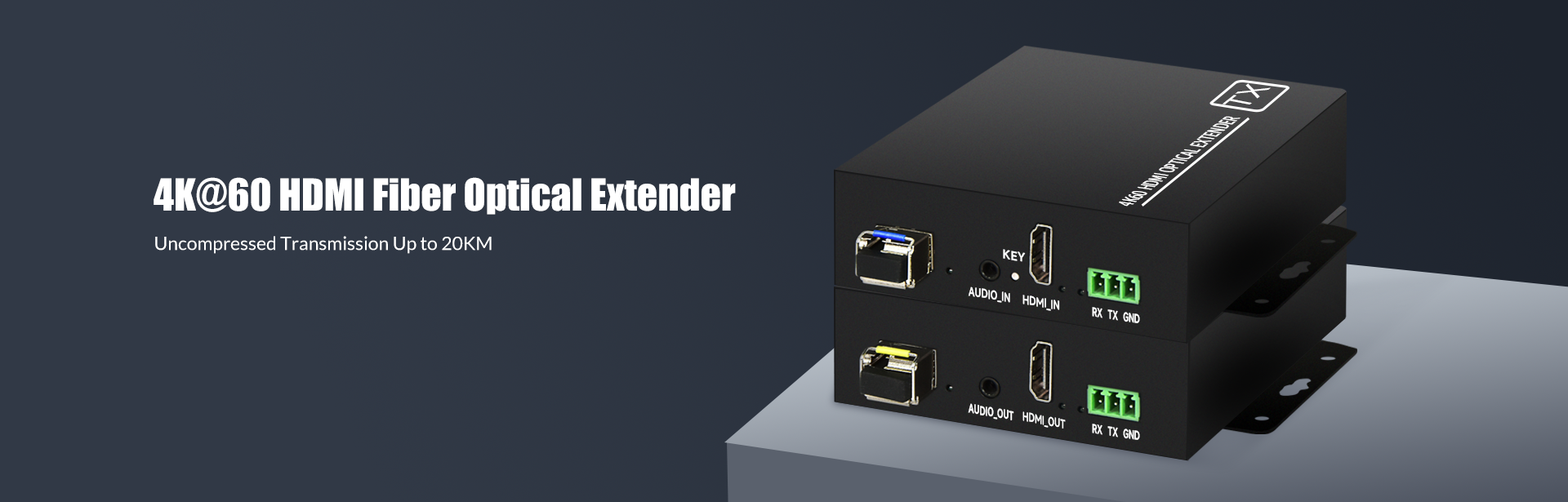

Uncompressed 4K@60 HDMI Fiber Optic Extender

【Uncompressed Transmission】HDMI to fiber extender can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission.

【UHD 4K Resolution】Support resolution up to 4096x2160@60fps, backwards is compatible, support 3D.
【20KM Extreme Long Transmission】Extend 4K HDMI signal up to 20KM over a single mode fiber one core cable.
【Excellent Quality】Support EDID, compatible HDMI 2.0.
【Support RS232/EDID】The HDMI Extender support serial RS232 signal, you can control the RS232 serial device from remote side.
【Plug and Play】Simple to install, plug and play, no setup or configuration needed.


Availability:



Inquire

Model:
OH1301

Product Description

Introduction

Parameters

Diagram

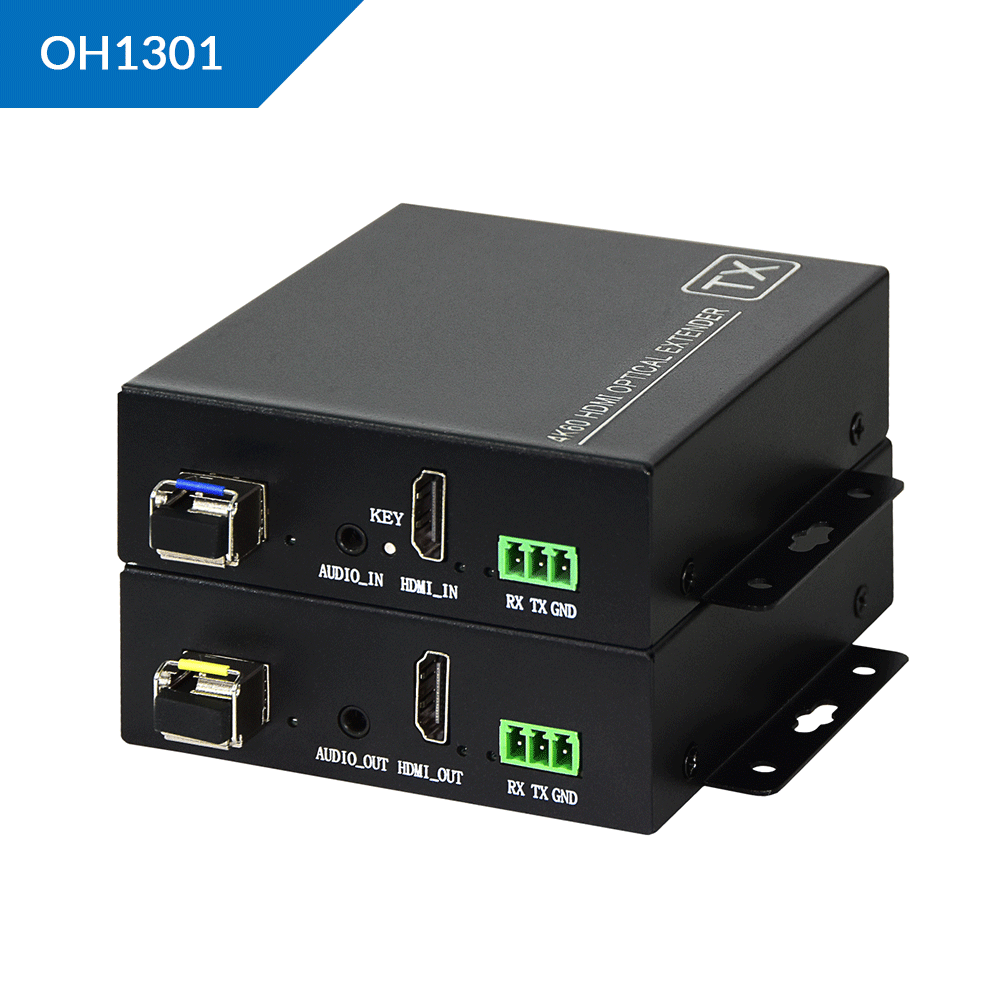

OH1301-01

Introduction

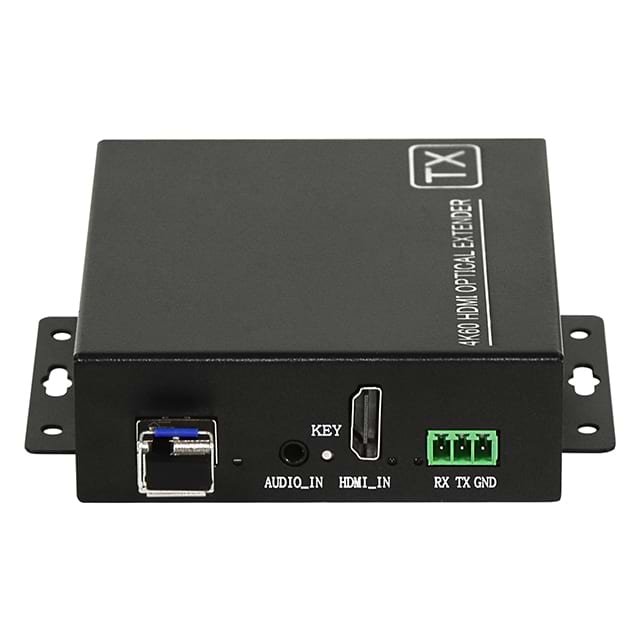

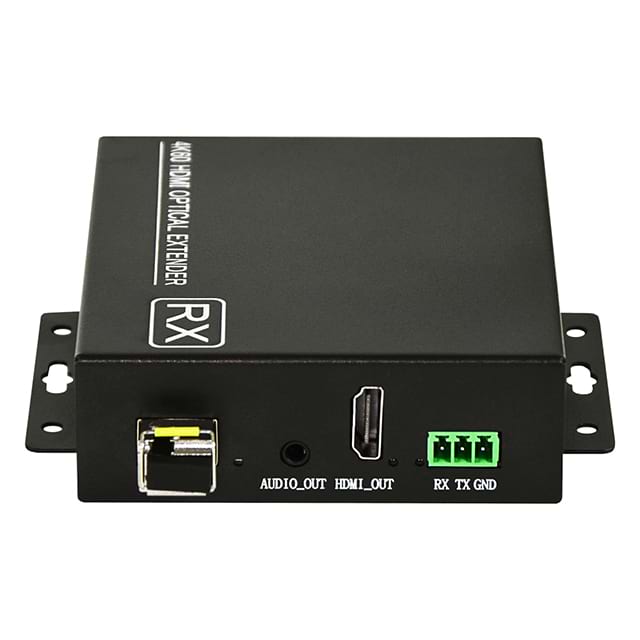

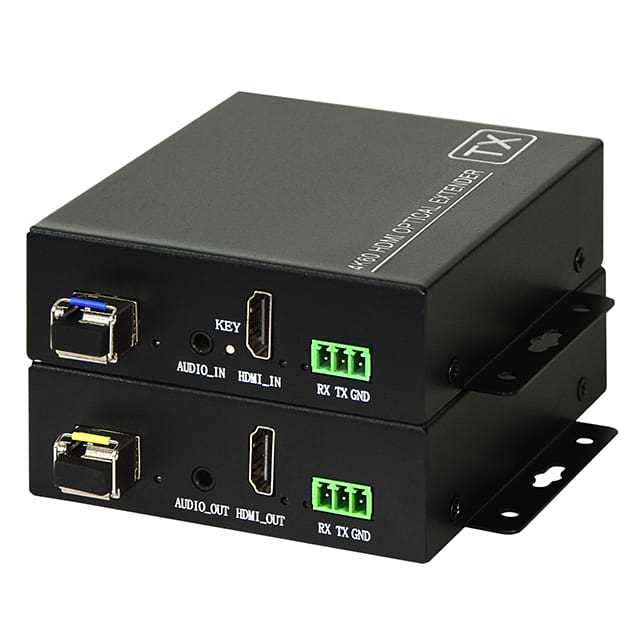

Uncompressed 4K@60 HDMI Fiber Optic Extender

4K60 HDMI fiber optical extender provides long distance transmission of HDMI, audio signals over a single fiber. Designed specifically for AV systems, the Extender includes many integrator-friendly features such as EDID mode. Low energy consumption, long distance, plug and play, compatible, can achieve more accurate display.

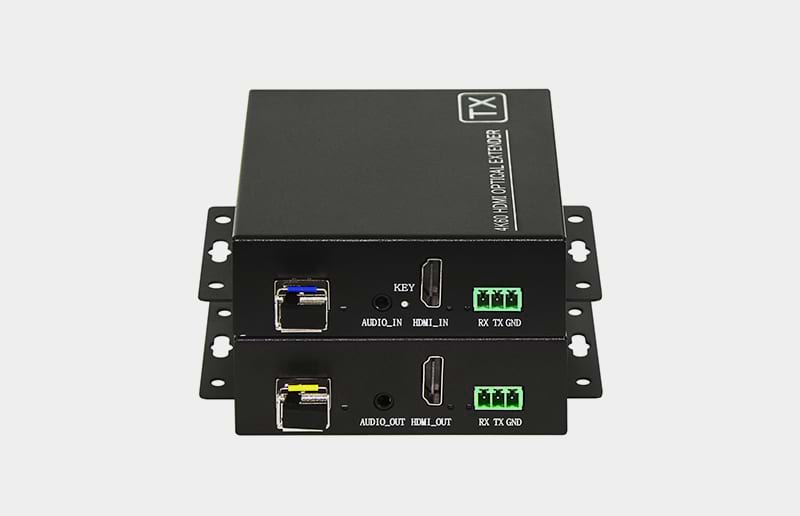

Uncompressed Transmission

HDMI to fiber converter can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission, data rates up to 10Gbps.
Uncompressed 4K UHD Transmission

Delivers UHD picture quality at resolutions up to 4096 x 2160@60Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

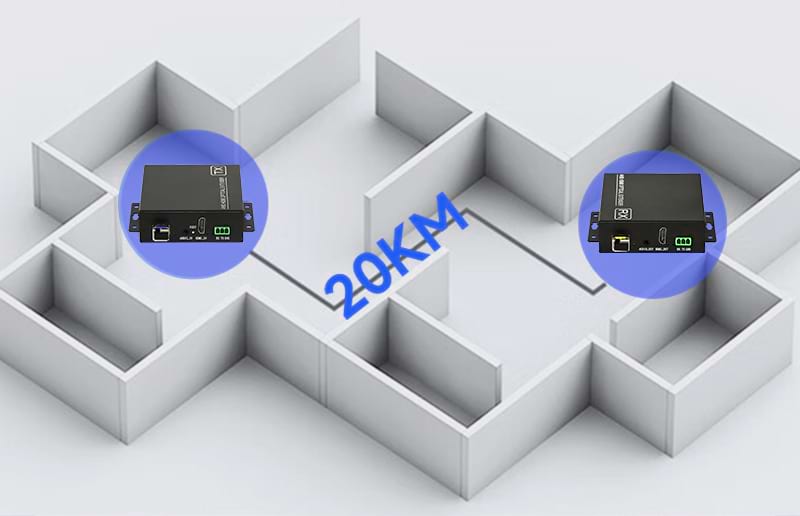

Point to Point Transimission, Up to 20KM

Extend 4K signals up to 20KM over a single mode one core fiber cable.
EDID Mode and HDCP

EDID can identify a variety of display attributes.
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation.
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit.
ODM: Pls send your requirements to us. (info@orivision.cn).

Parameters

Name	Uncompressed 4K@60 HDMI Fiber Optic Extender
Model	ZY-OH1301
Interface Standard	HDMI 2.0
Pixel bandwidth	18G
Resolutions	480I60, 480P60, 576I50, 576P50, 800x600P60, 1024x768P60, 1280x800P60, 1280x1024P60, 360x768P60, 1366x768P60, 1400x1050P60, 1440x900P60, 1600x900P60, 1600x1200P60, 1680x1050P60, 1280x720P50, 1280x720P60, 1920x1080P24, 1920x1080P25, 1920x1080P30, 1920x1080P50, 1920x1080P60, 1920x1080I60, 1920x1080I50, 1920x1200P60, 38402160P24, 38402160P25, 38402160P30, 38402160P60, 40962160P24, 40962160P25, 40962160P30, 40962160P60
RS232
Interface	DB9
Baud rate	115200
Data bit	8digits
Optical Fiber
Interface	LC
Types	SFP Single mode
Wavelength	1270/1330nm
Bandwidth	10Gbps
Distance	20KM (default)
Attenuation	-3db
Other
Temperature	-20 ~ +70° C
Humidity	5 ~ 90 %
Power Consumption	5W/Unit
Power supply	DC 12V1A
Dimensions	11011130mm (Length * width * height)
Weight	0.55KG/Unit

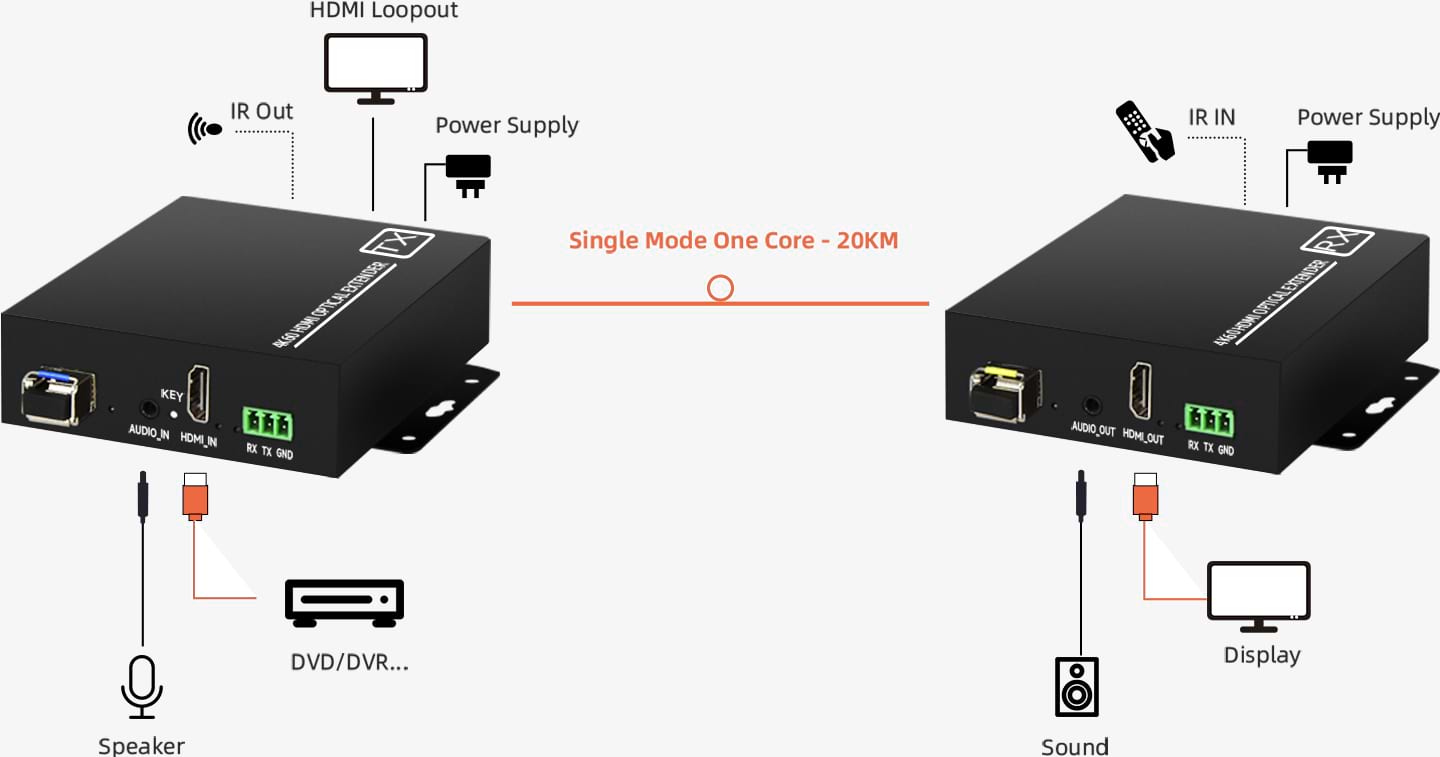

Diagram

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

OH1301-Diagram
