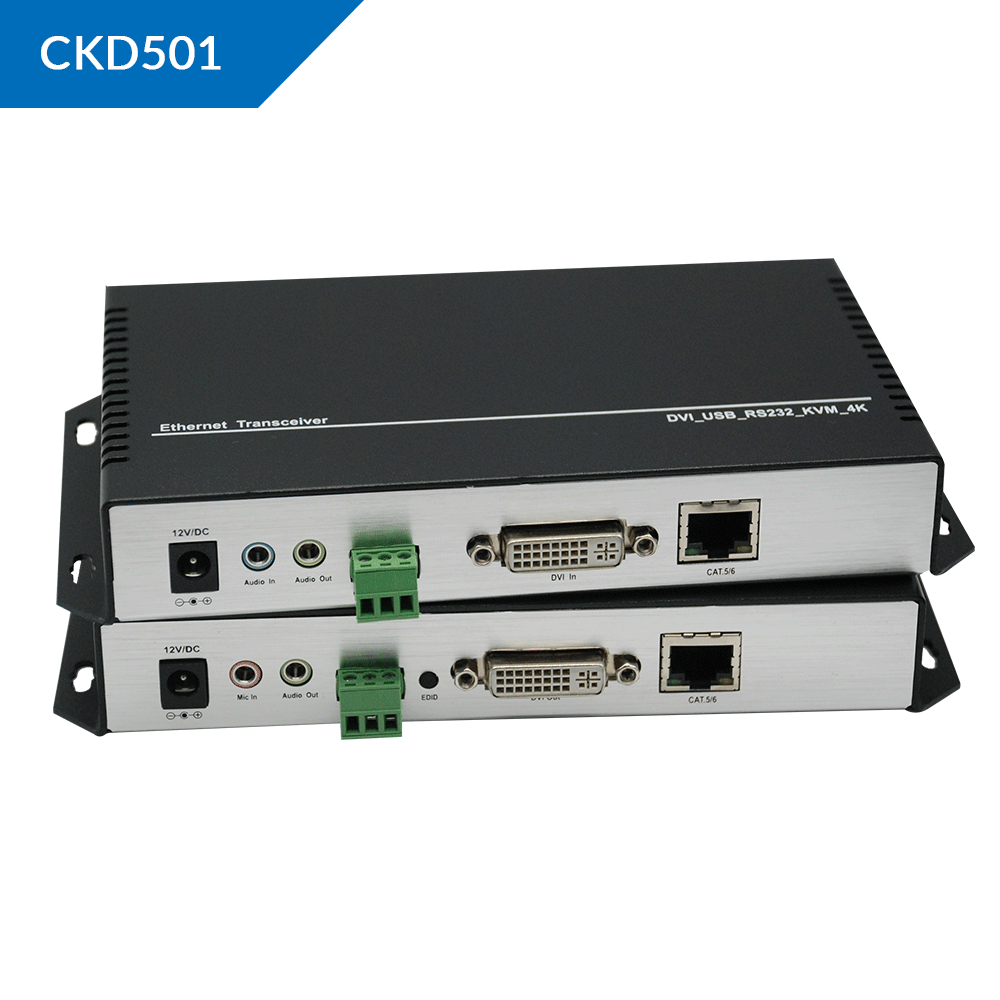

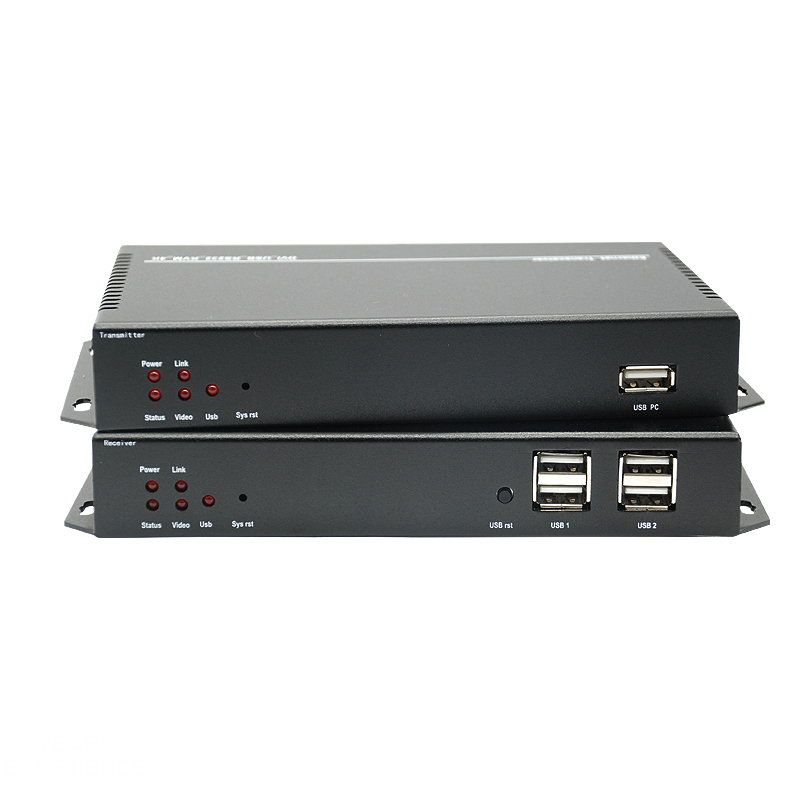

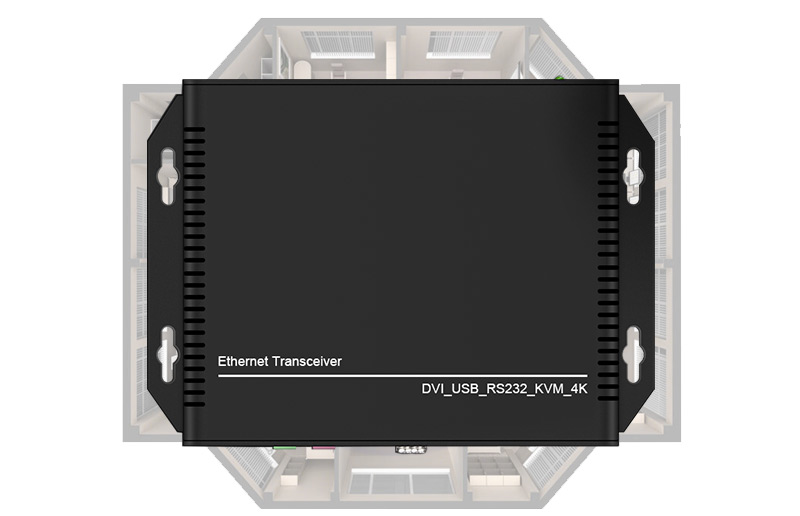

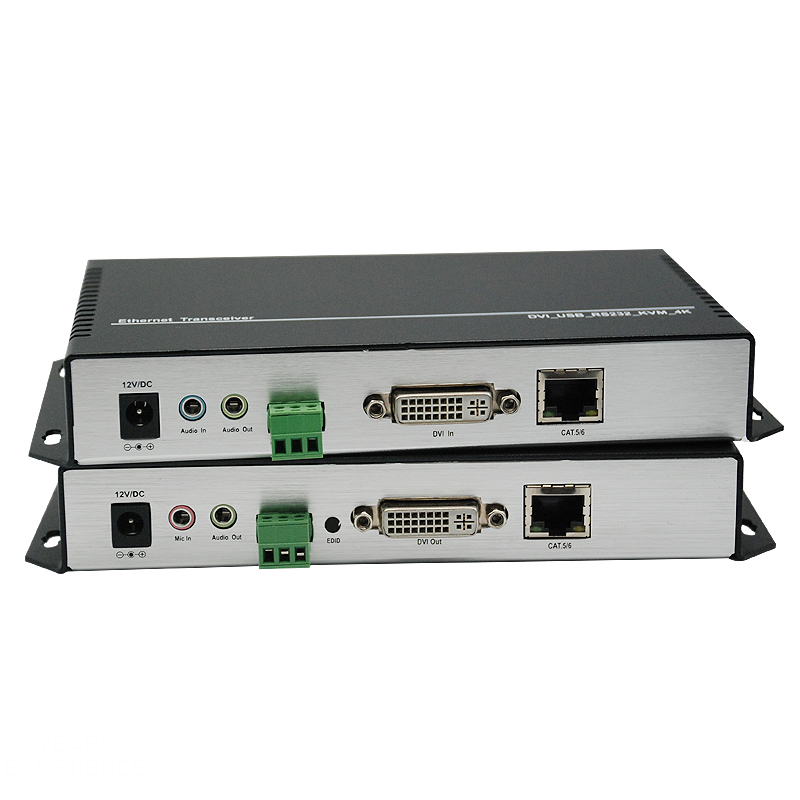

ORIVISION 120m 4K@30 DVI KVM Network Extender

120m 4K@30 DVI KVM Network Extender

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz
Support point to point and point to multi point, up to 120m
Supports bi-directional audio signal transmission
Support EDID mode and RS-232 control
Support keyboard & mouse signal transmission
Plug-and-play operation with no software required for easy, immediate installation


Availability:



Inquire

Model:
CKD501

Description

Introduction

Parameters

Diagram

Introduction

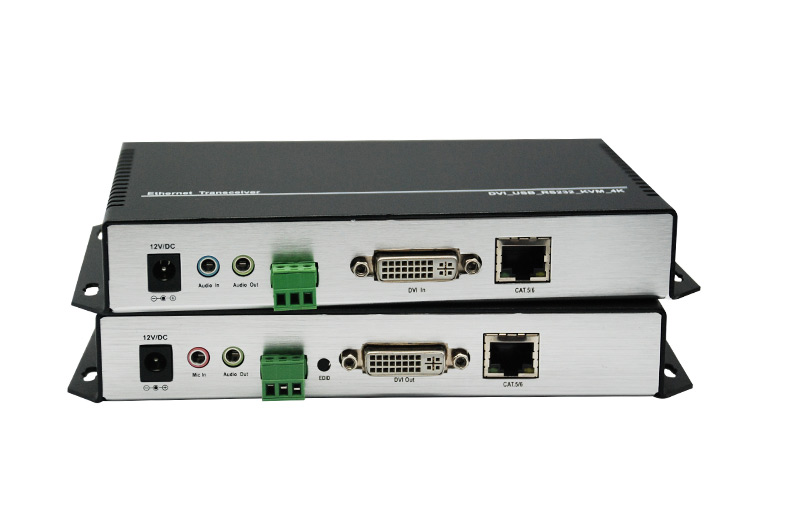

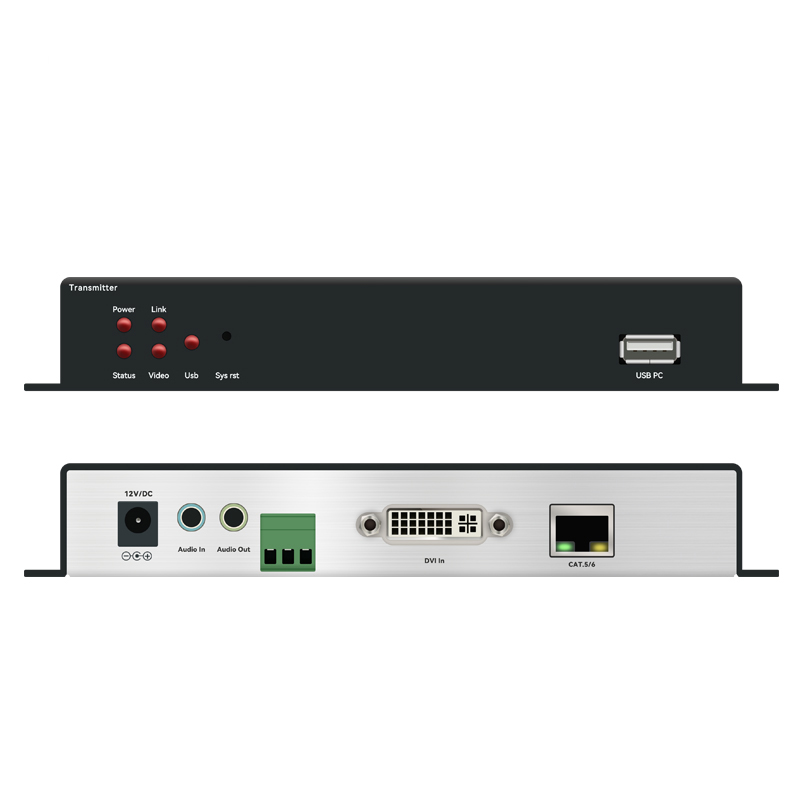

4K@30 DVI KVM Extender Over Cat5/6

This 4K/30HZ 120mDVI KVM Extender uses one single cat-5 or cat-6(recommended) cable instead of DVI cable, you can extend the 4K/30HZ signal to 120 meters.The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.

With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch. Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive, etc.
Professional for 4K HDMI HD Video Extender

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

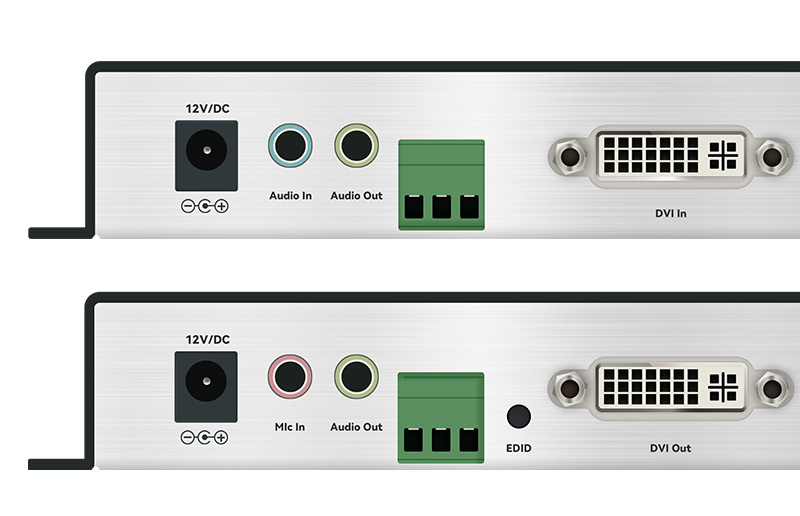

Bi-Directional Audio Signal Transmission

Format: 44.1K,48K,96K,176K,192K
Duplex audio Transmit

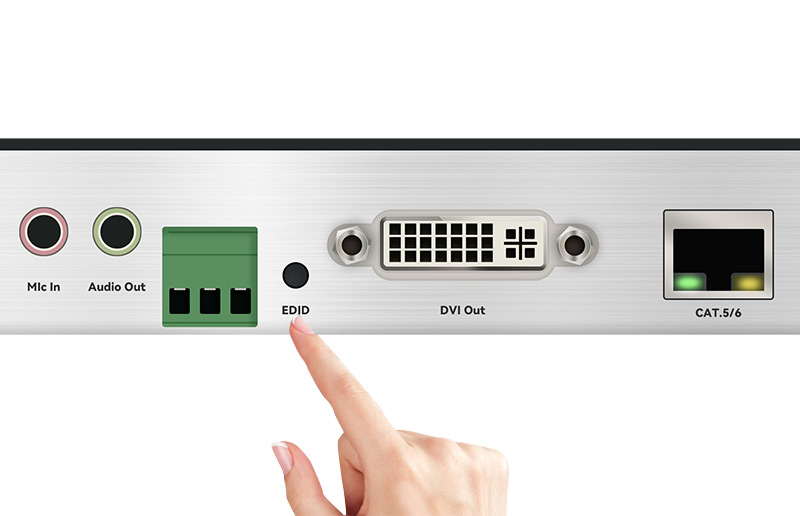

Powerful Compatibility Features

Support copy EDID, can match many kinds of display device

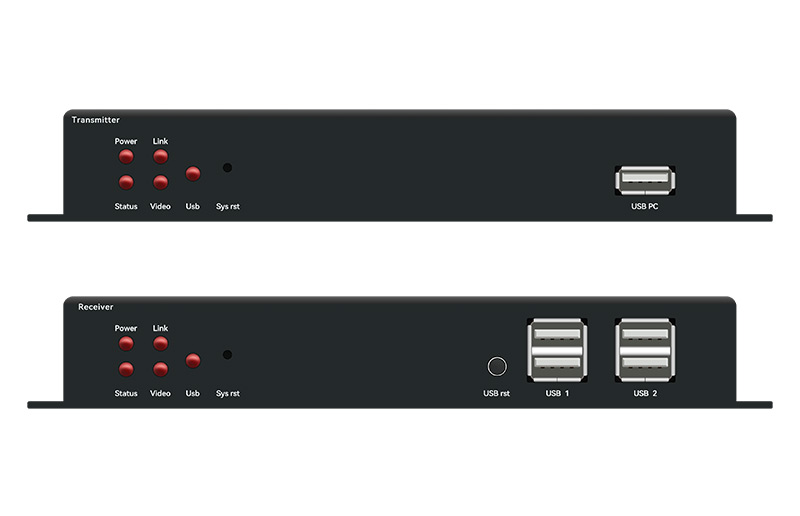

Support Keyboard & Mouse Signal Transmission

Remote USB supports USB2.0 external devices such as keyboard, mouse, USB flash drive, etc.
120m Long Distance Transmission

Transmits HD video and audio signals up to120m over a single CAT5/6 cable.
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)

Parameters Of 120m 4K@30 DVI KVM Network Extender

Name	4K@30 DVI KVM Extender over Cat5/6
Model	ZY-CKD501
Transmitter Input	DVI 1 RS2321 Audio in*1
Transmitter Output	Audio out1, RJ451 RS232*1

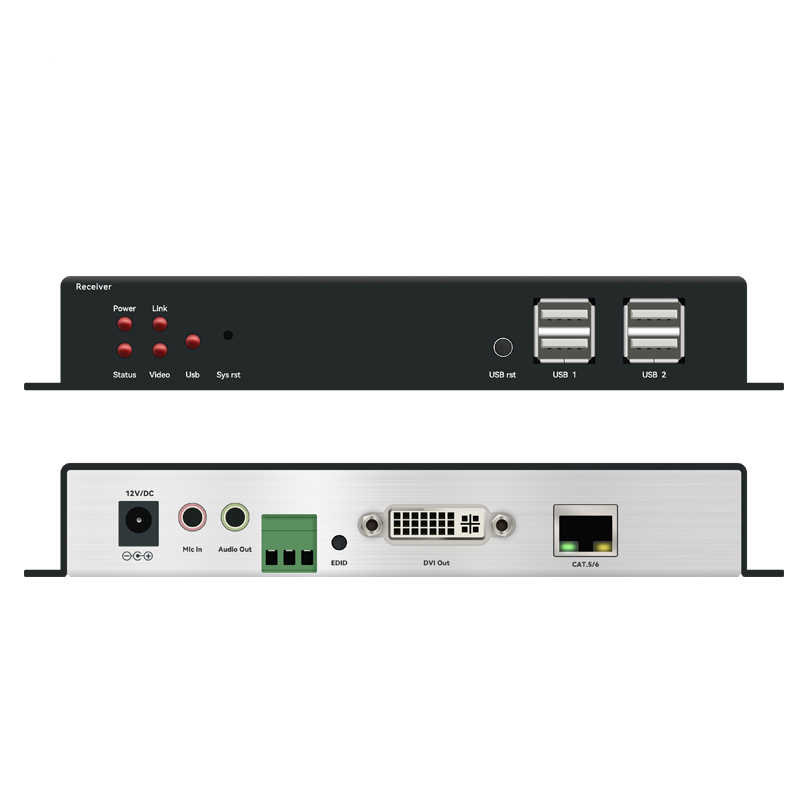

Recevier Input	RJ451 Mic In1
Recevier Output	DVI 1 RS2321 Audio out*1
Resolutuion	3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/ 1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/ 1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/ 1280x1024P60/1280x800P60/1024x768P60/800x600P60
Audio	Format:44.1K,48K,96K,176K,192K Duplex audio Transmit
Point to Poin Transmission Distance	up to 120m
Point to multi-point	1000M Switch
RS232	bidirectional transmission Interface: 3-core Phoenix terminal Baudrate:11520 Data-Bits:8bit
Support EDID	√
Support HDCP	HDCP1.4
Support IR	x
Support KVM	All USB2.0 devices
Cable	Cat5/Cat6
Temperature	‘-5℃ to +60℃
Humidity	≤90%
Power Consumption	＜5W
Power	12V/DC 1A
POE	√(Optional)
Size	18.710.52.8CM
Weight	TX:0.3KG RX:0.3KG

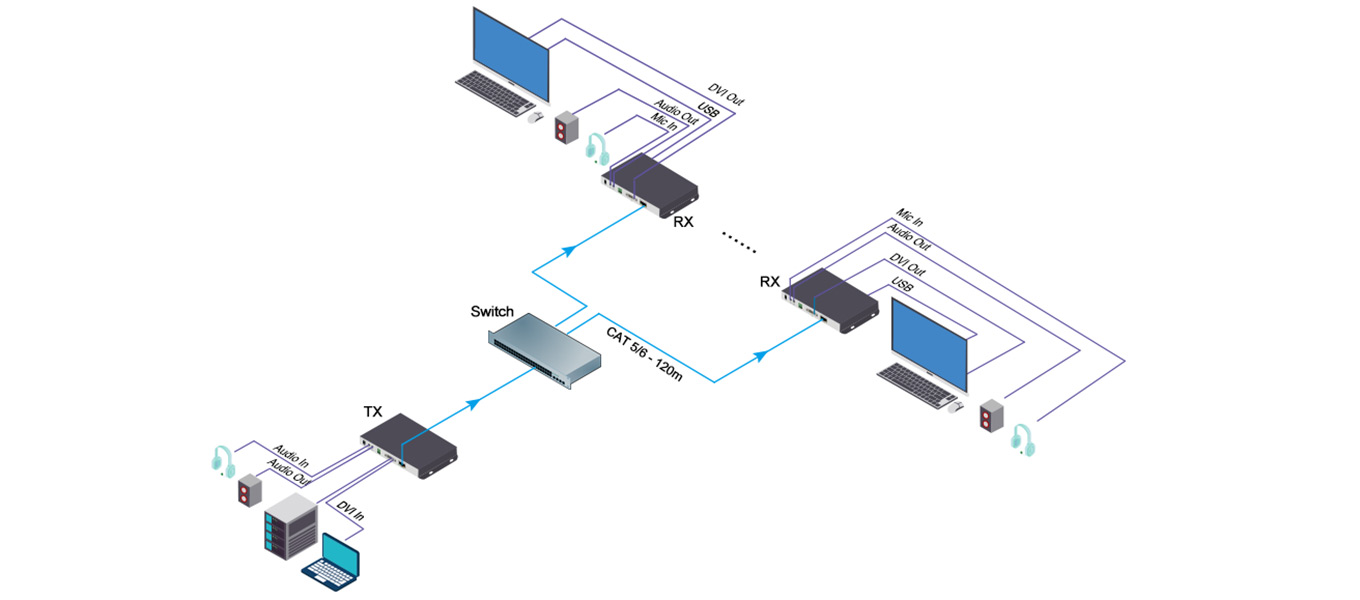

Diagram Of 120m 4K@30 DVI KVM Network Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

Diagram Of 120m 4K@30 DVI KVM Network Extender

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Point to Multi-point Transmission
