Freely Mixed of 1~4channels (1U）HDMI/SDI/VGA video encoder modules； Meet industrial application requirements, support 7*24h working； Supports the most protocols: SRT/RTMP/RTMPS/RTSP/UDP/HTTP/HLS； Easy to use, plug in card structure, easy to mix and replace the encoder modules.

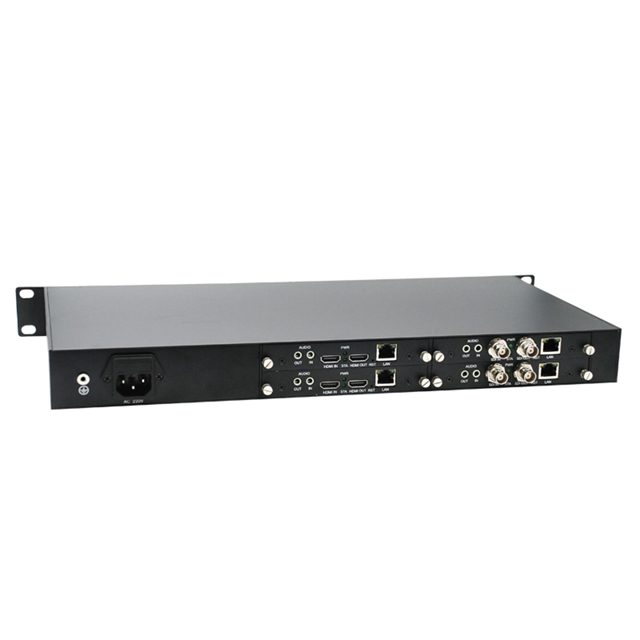

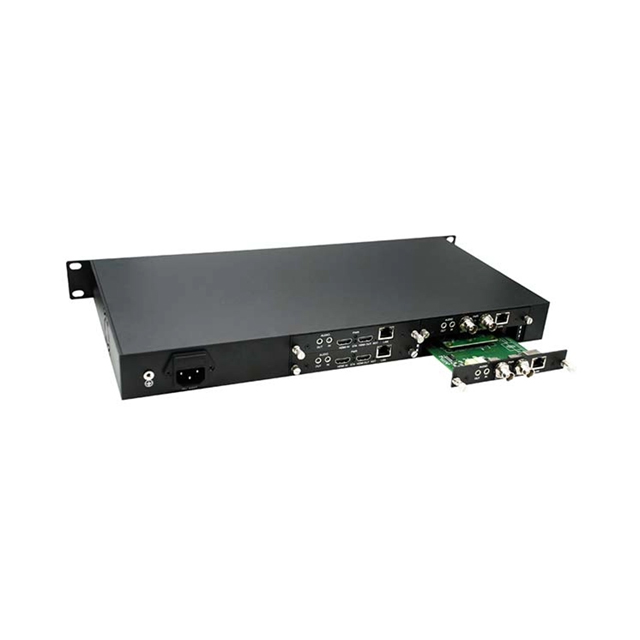

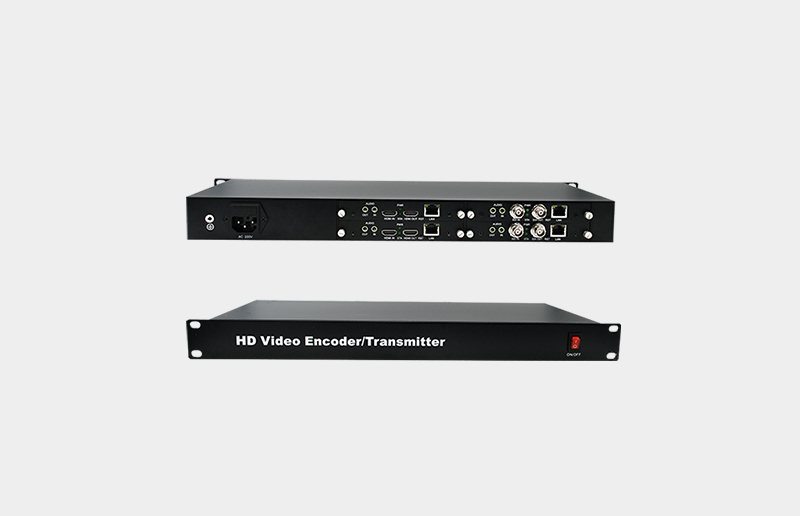

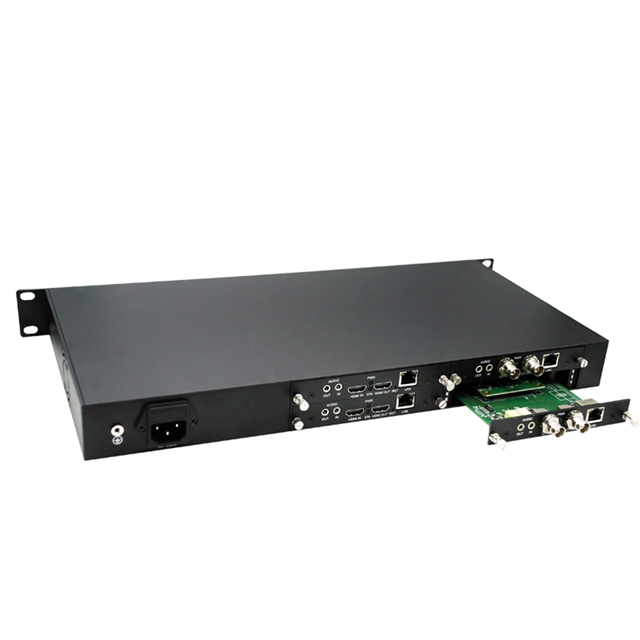

1U standard plug-in chassis can freely mix 1-4 SDI/HDMI encoding and decoding modules. The chassis can be used for all of our company's encoder and decoder cards, It's compatible with SDI, HDMI, and VGA of both input and output; freely insert encoding and decoding modules in a chassis. It supports most IP media protocols like SRT/RTMP/RTMPS/RTSP/UDP/UTP/HTTP/HLS /FLV optional. So, it can be applied to many business scenarios that need to collect high-definition video signals and highresolution and high frame rates and transmit them based on the IP network. The powerful scalability can easily cope with different industries and needs.

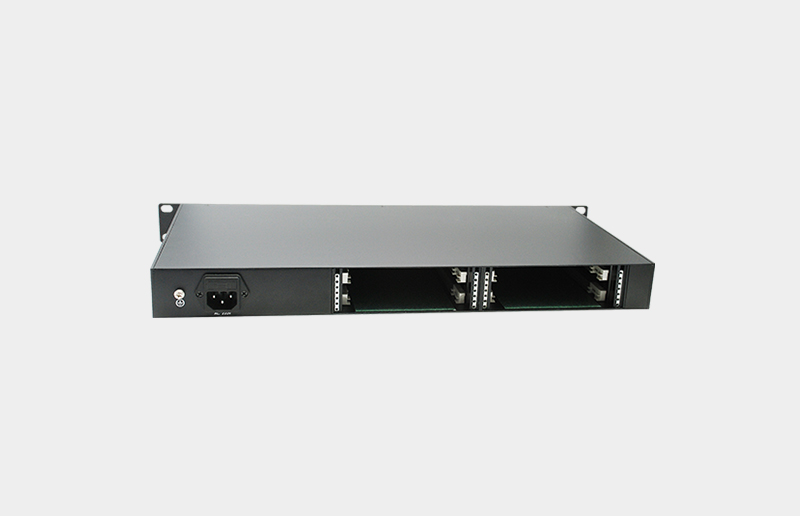

High Density

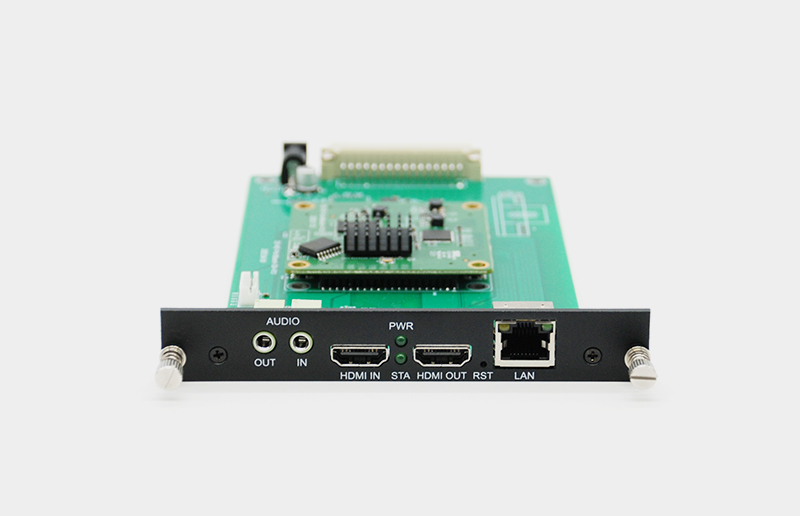

With rackmount, you can design 1-4 channels HDMI/SDI/CVBS/VGA encoder modules in a 1RU chassis. All inserted encoding and decoding module support HDMI/SDI/CVBS/VGA+3.5mm audio.
High Reliability
Equipped with 220V power as standard, effectively preventing power failure. At the same time, dual cooling fans for automatic heat dissipation, ensuring stable and 24h continuous operating.
Multiple Network Protocols
Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/ HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.
Resolution Setting
Maximum input resolution:1080P@60hz, Maximum output resolution :1080P@60hz Resolution can be set separately.

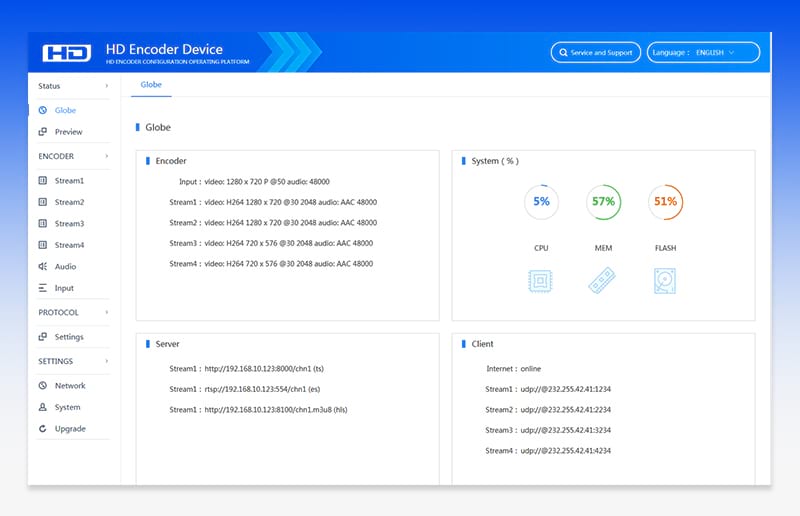

Web Control
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Audio Synchronization Encoding
Support AAC/G711 audio format; Support Digital /Analog audio loop out; Audio can be coded separately.
LOGO/ Image/ Text / Mosaic Overlay
Add any self-defined text, time and image overlay at any position to announce your copyrights. Support adjusts font size, scrolling subtitles and add mosaic watermark.
Local and Remote Transmission
Hardware video encoder converts HDMI/SDI/VGA base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.
Support OEM/ODM
OEM: Free print company logo by laser print; MOQ≥1 unit. ODM: Pls send your requirements to us. (info@orivision.cn).
Parameters
Model
HDMI Encoder
SDI Encoder
HDMI Decoder
SDI Decoder
Input
1~4* HDMI & Audio
1~4* SDI & Audio
1~4* LAN Ports
1~4* LAN Ports
Loop
1~4* HDMI
1~4* SDI
Output
1~4 * LAN Ports
1~4 * LAN Ports
1~4* HDMI+CVBS
8* SDI
Analog audio port
3.5mm
Video encoding
H.265, H264/AVC, MJPEG
H.265, H264/AVC, MJPEG
Video decoding
H.265/H264
H.265/H264
Protocols
HTTP/SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif
Resolution
Up to 1080P60Hz
Audio encoding
AACLC/EAAC/EAACPLUS/MP2/AC3
Network
1000M RJ45 Ethernet
Image and text overlay
User-defined text and image overlay
Management Portal
Web remote management
Input Voltages
100-240DV
Diagram
Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
FAQs
Q: What is the default login IP of the encoder?
A: The default login IP address is 192.168.0.31.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: What is the login account and password of the encoder?
A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?

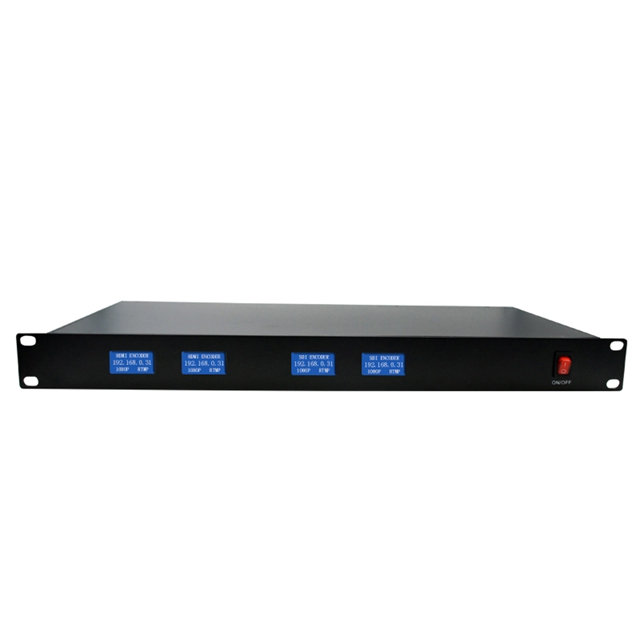

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: How to get the newest firmware and update it?
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware. After get the newest firmware, pls follow the steps as below: Step 1: Download the .rar file, do not unzip the file Step 2: Log in to your Encoder or decoder web user interface and click the System button. Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.) Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
