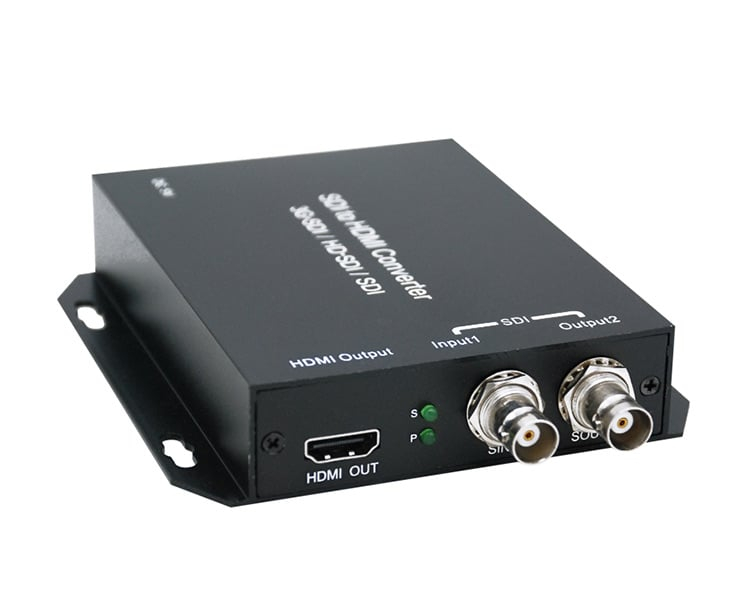

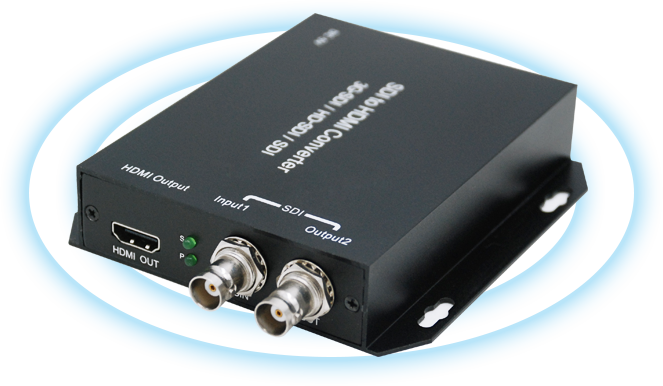

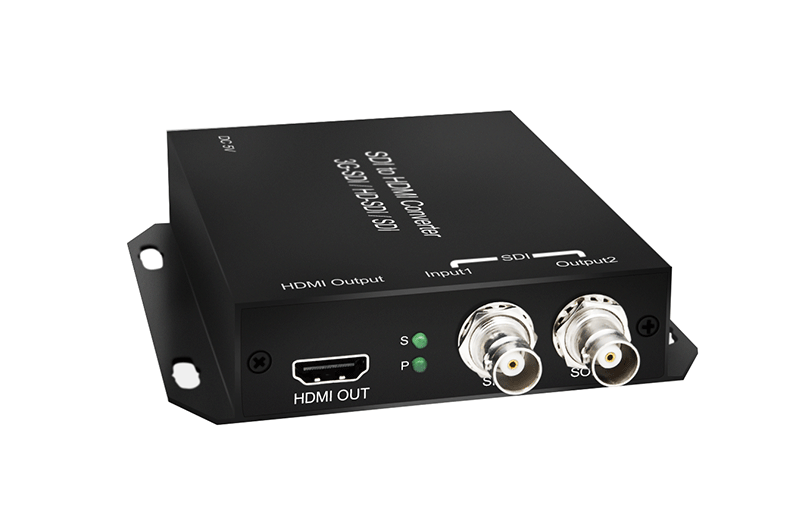

SDI to HDMI Video Converter With Loop Out

  • Rugged metal housing design, strong anti-interference ability

  • 1 x SDI Input, 1 x HDMI&SDI Output

  • Supports up to 1080p60 Resolution

  • Audio and video synchronization output

  • Plug-and-play operation with no software required for easy, immediate installation

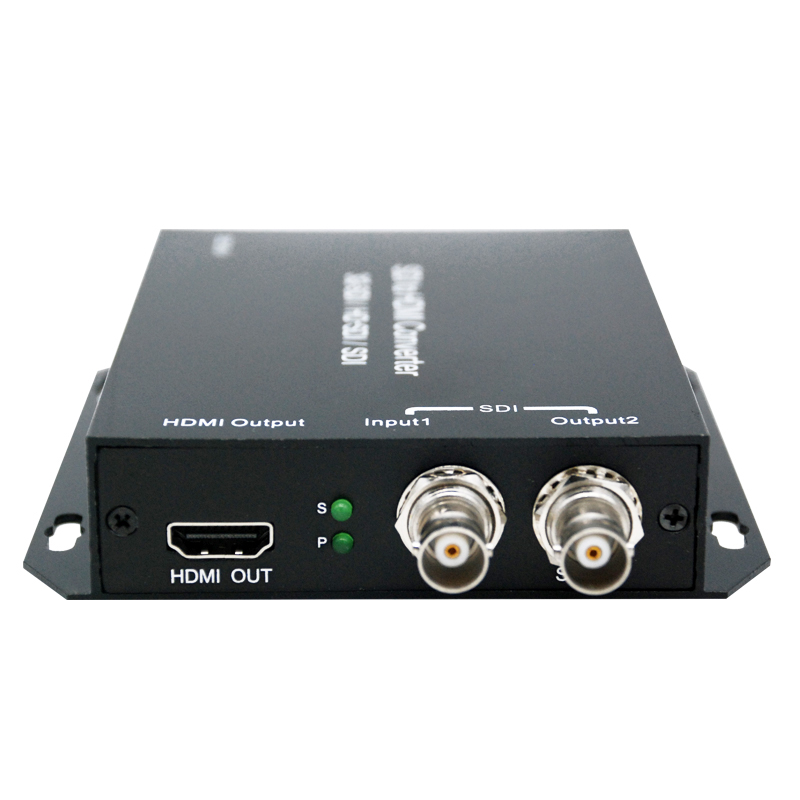

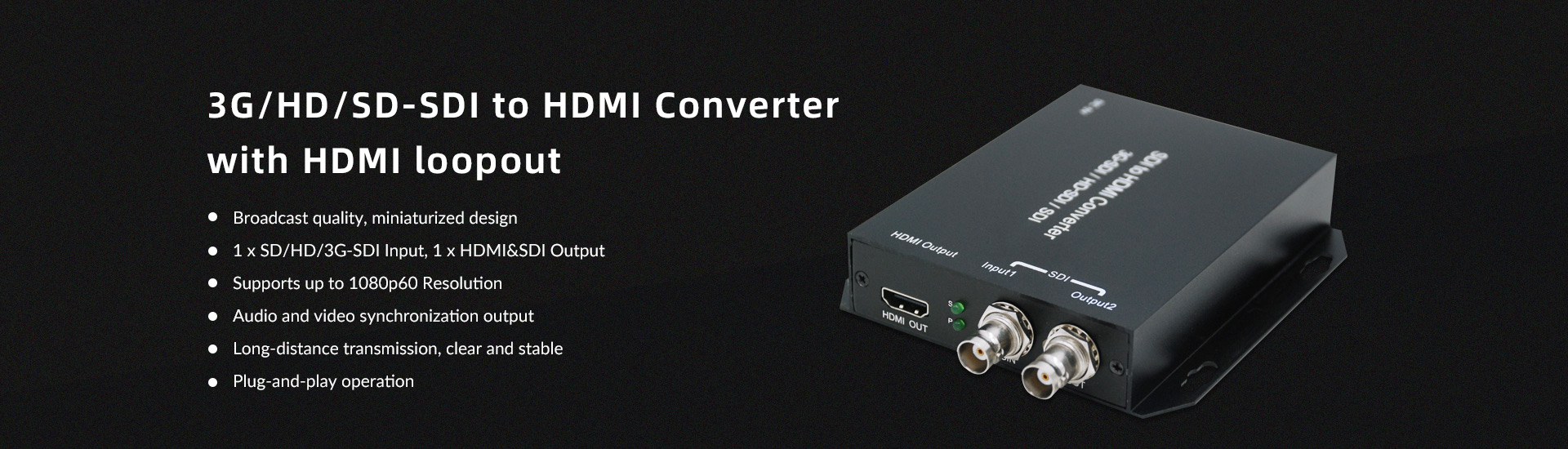

3G/HD/SD-SDI to HDMI Converter with HDMI loopout
3G/HD/SD-SDI to HDMI Converter with HDMI loopout
  • Broadcast quality, miniaturized design

  • 1 x SD/HD/3G-SDI Input, 1 x HDMI&SDI Output

  • Supports up to 1080p60 Resolution

  • Audio and video synchronization output

  • Long-distance transmission, clear and stable

  • Plug-and-play operation

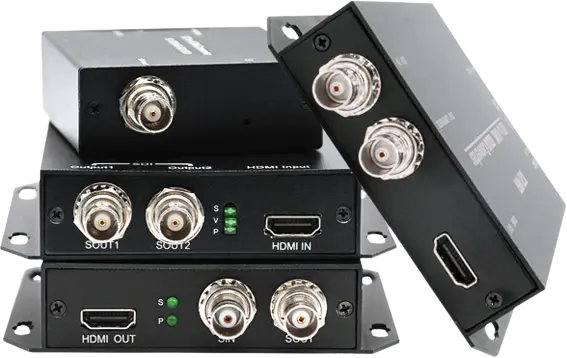

SDI to HDMI Video Converter

Ultra-compact and rugged, this adapter enables you to connect an SDI camera or computer to a professional-style HDMI monitor or component. Features one SDI input and one HDMI&SDI output. Strong anti-interference ability to ensure long-term stable operation of the equipment.

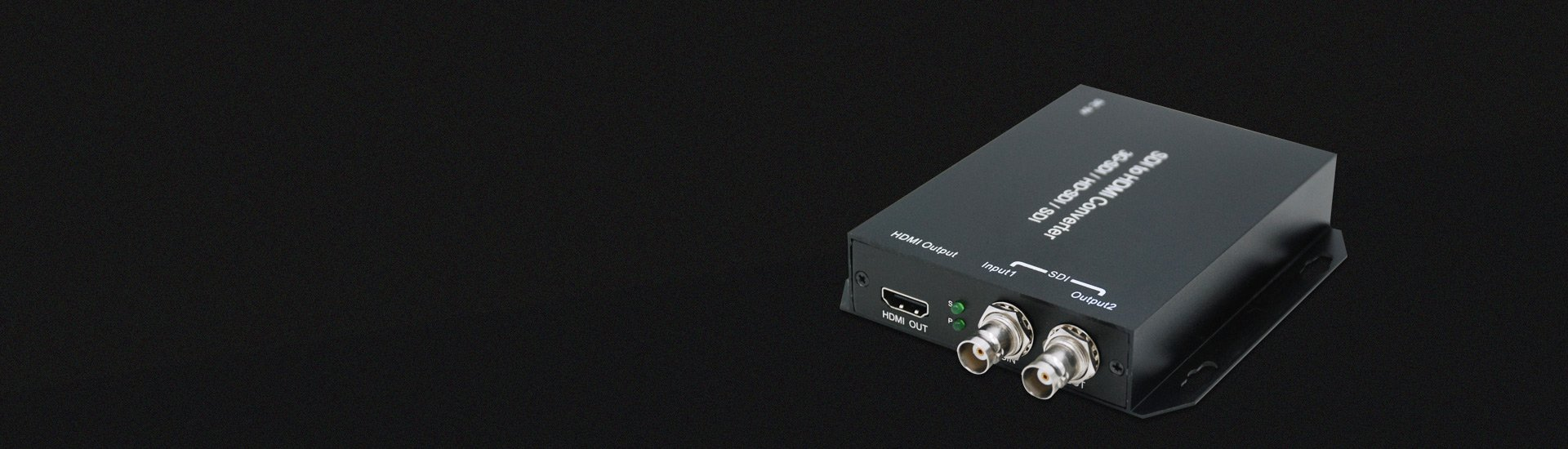

SDI to HDMI Video Converter

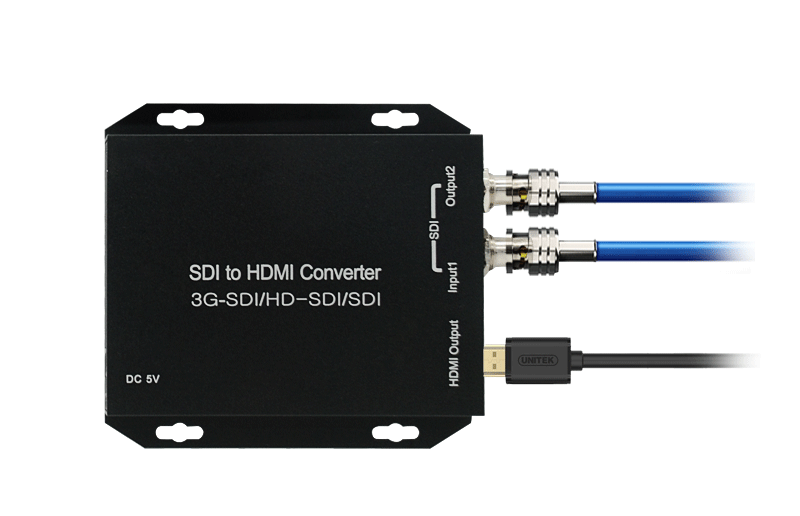

Broadcast-grade SDI signal

Converts an  3G/HD/SD-SDI input signal to HDMI&SDI formats in real time while avoiding transformation loss for both audio and video signals

Broadcast-grade SDI signal
Wider Resolution Support

1080P@23.97/24/25/29.97/30/50/59.94/60

1080i@50/59.94/60

720P@50/59.94/60

576i, 480i

Wider Resolution Support

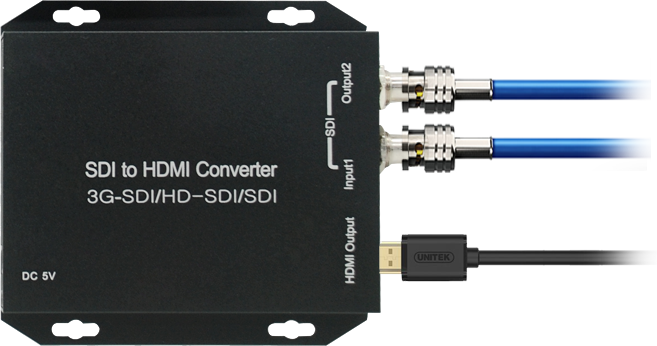

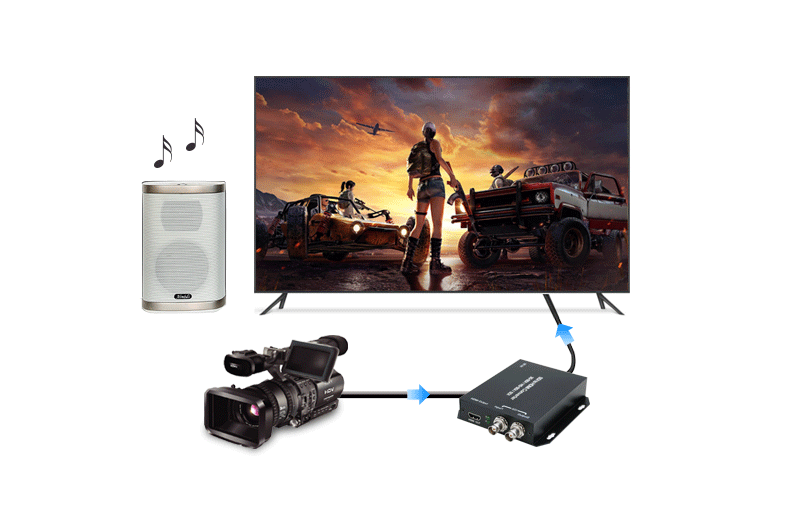

Audio and Video Synchronization Output

Convert and embed SDI audio into HDMI signal to achieve synchronous audio and video output

Audio and Video Synchronization Output

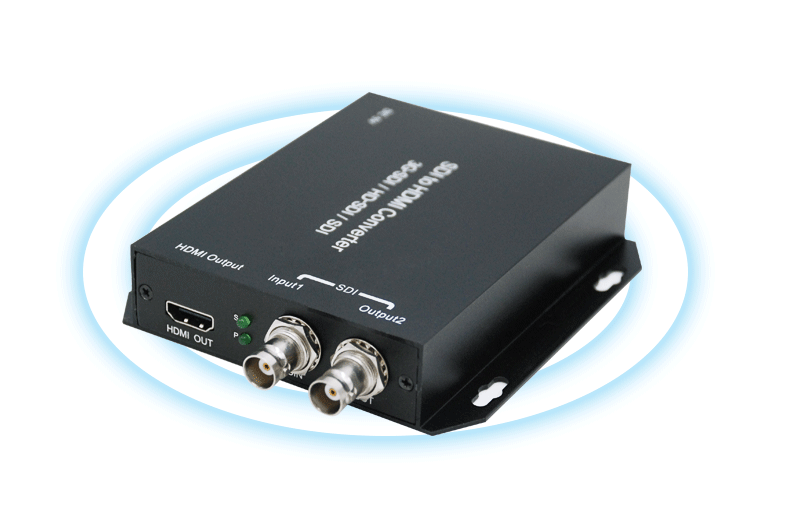

Long-distance Transmission, Clear and Stable

3G-SYWV 100m

HD-SYWV 160m

SD-SYWV 260m

Long-distance Transmission, Clear and Stable
Metal Ahell, Strong Anti-interference Ability

Metal shell design, heat dissipation, strong anti-interference ability

Metal Ahell, Strong Anti-interference Ability
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters Of SC02 | SDI to HDMI Video Converter With Loop Out

NameSDI to HDMI Video Converter
ModelSC02
Working Temperature-5 to +85°C
Working Humidity5 to 90 % RH (no condensation)
Input video signalSDI
Video Format Support1080P@23.97/24/25/29.97/30/50/59.94/60
1080i@50/59.94/60
720P@50/59.94/60
576i, 480i
Video outputHDMI, SDI
Input AudioSupport 32KHZ,44.1KHZ,48KHZ,88KHZ,96KHZ,192KHZ
SDI maximum transmission3G     SYWV  100 meters
HD     SYWV  160 meters
SD     SYWV  260 meters
PowerDC 5V, positive with
Power consumption2.5W
Dimensions11.6*11.1(9.8)*2.5cm
Package Size22*14*5cm
Weight0.4kg

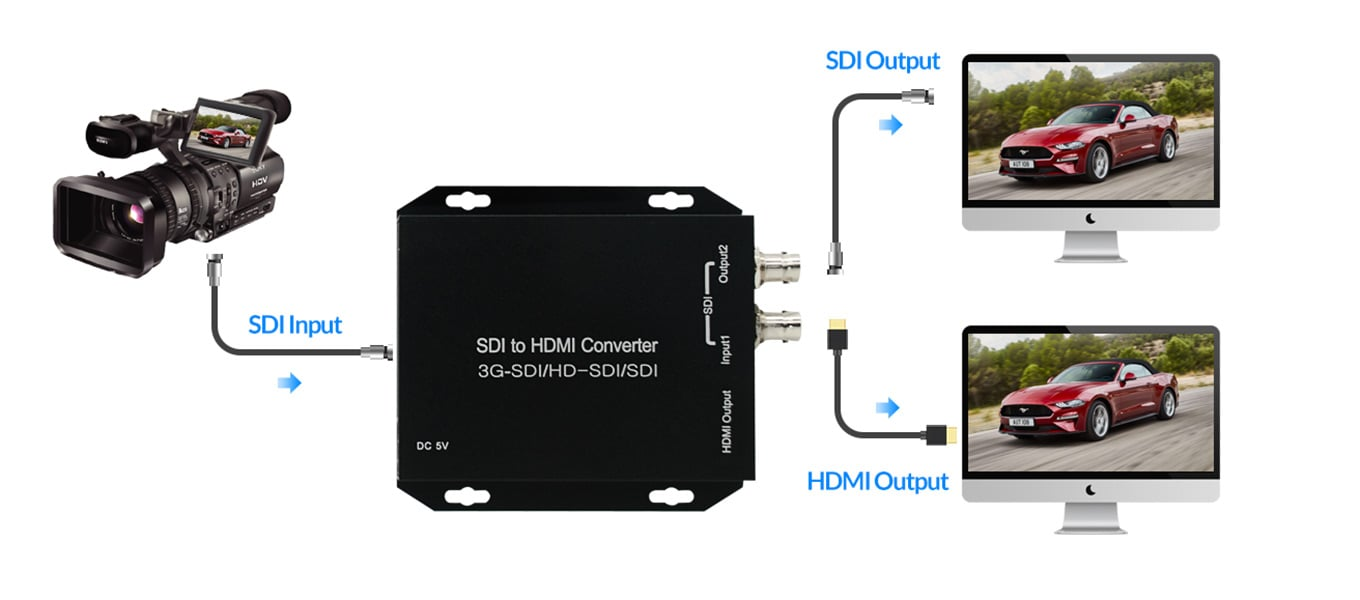

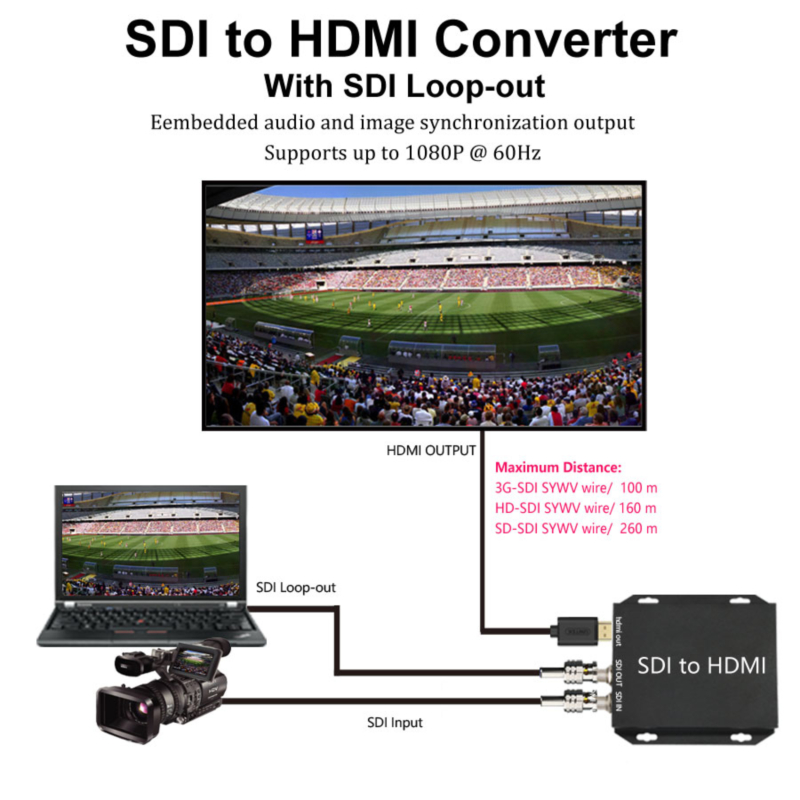

Diagram Of SC02 | SDI to HDMI Video Converter With Loop Out

Suitable for security monitoring, radio and TV program production, remote conference, home theater, multimedia teaching, etc.


Diagram Of SC02 | SDI to HDMI Video Converter With Loop Out
