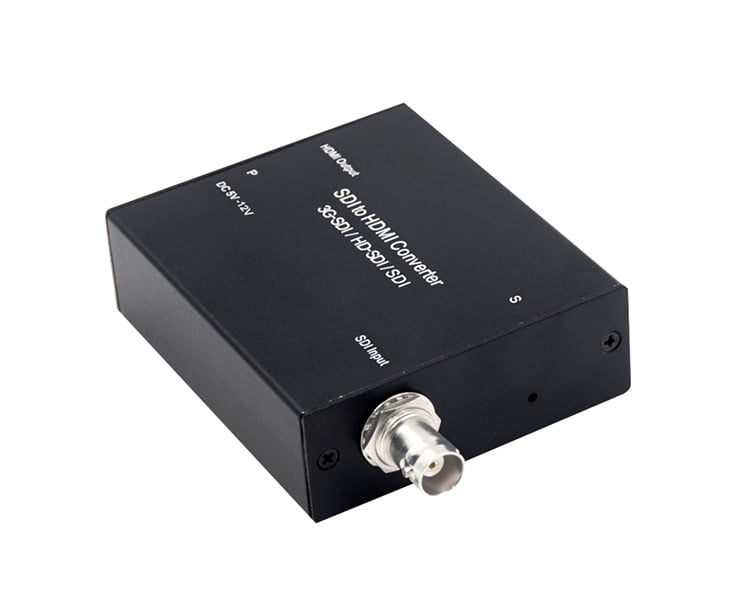

ORIVISION SDI to HDMI Video Converter

  • Rugged metal housing design, strong anti-interference ability

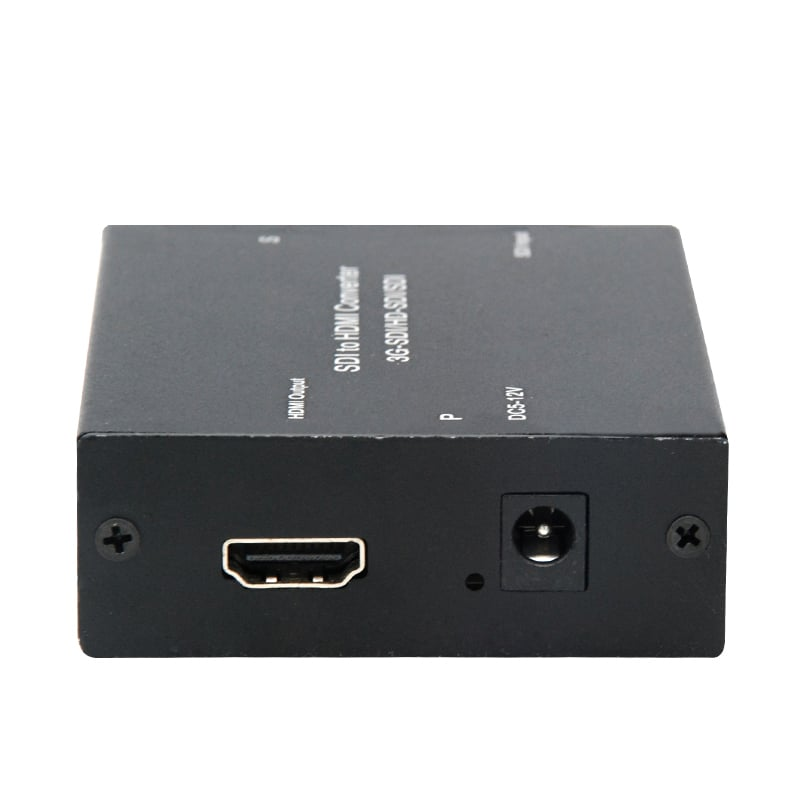

  • 1 x SDI Input, 1 x HDMI Output

  • Supports up to 1080p60 Resolution

  • Audio and video synchronization output

  • Plug-and-play operation with no software required for easy, immediate installation

3G/HD/SD-SDI to HDMI Converter
3G/HD/SD-SDI to HDMI Converter
  • Broadcast quality, miniaturized design

  • 1 x SD/HD/3G-SDI Input, 1 x HDMI Output

  • Supports up to 1080p60 Resolution

  • Audio and video synchronization output

  • Long-distance transmission, clear and stable

  • Plug-and-play operation

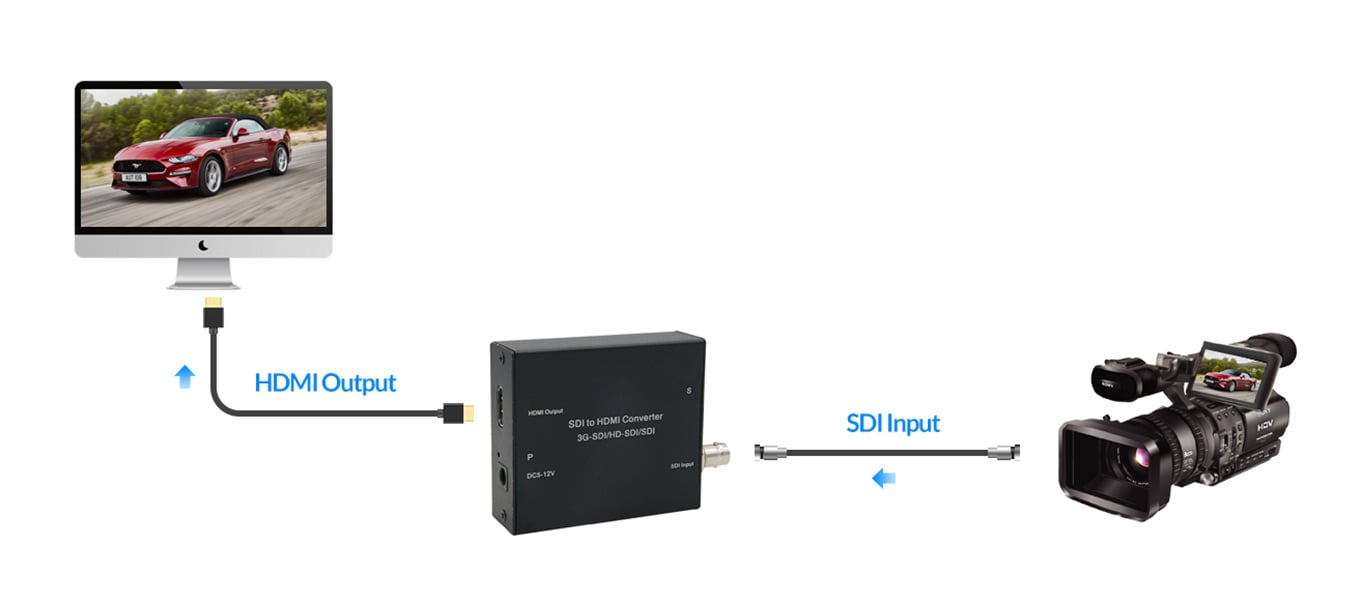

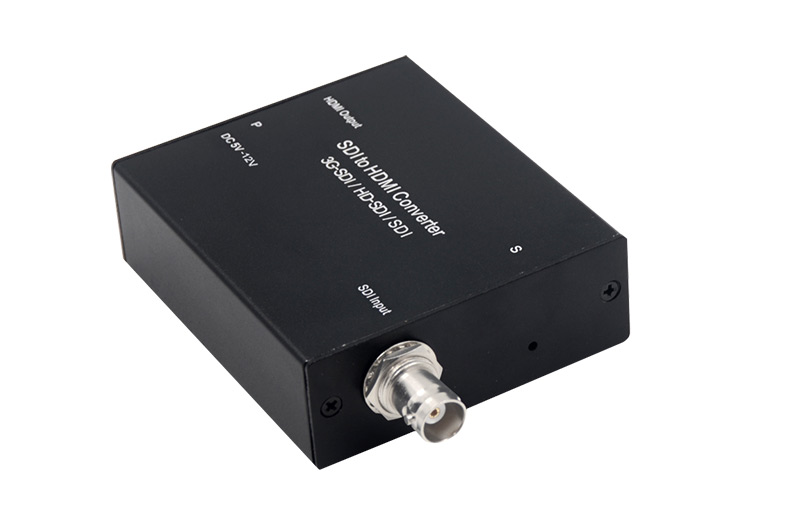

SDI to HDMI Video Converter

Ultra-compact and rugged, this adapter enables you to connect an SDI camera or computer to a professional-style HDMI monitor or component. Features one SDI input and one HDMI output. Strong anti-interference ability to ensure long-term stable operation of the equipment.

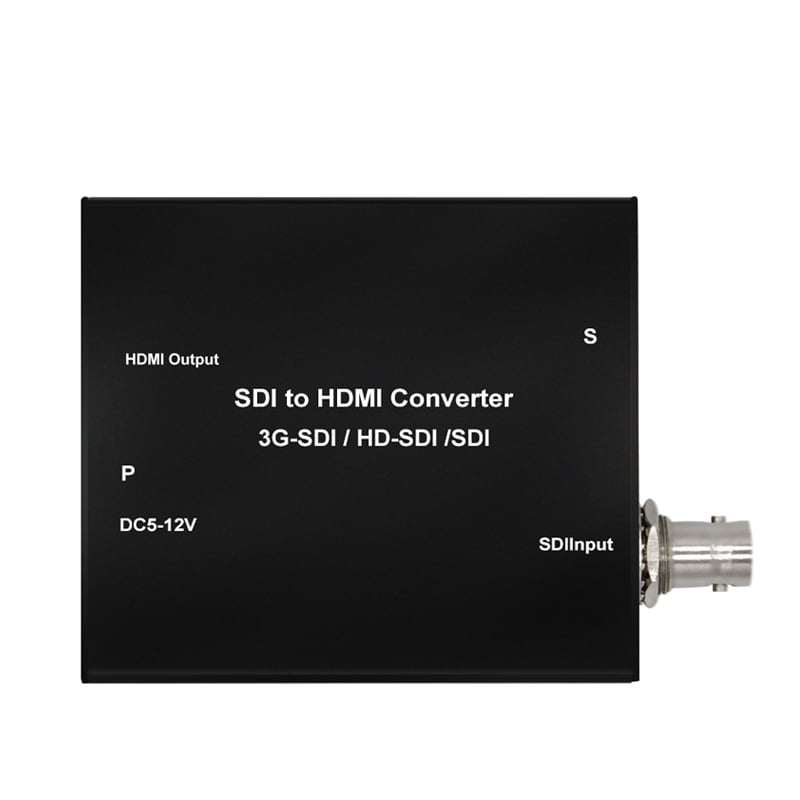

SDI to HDMI Video Converter

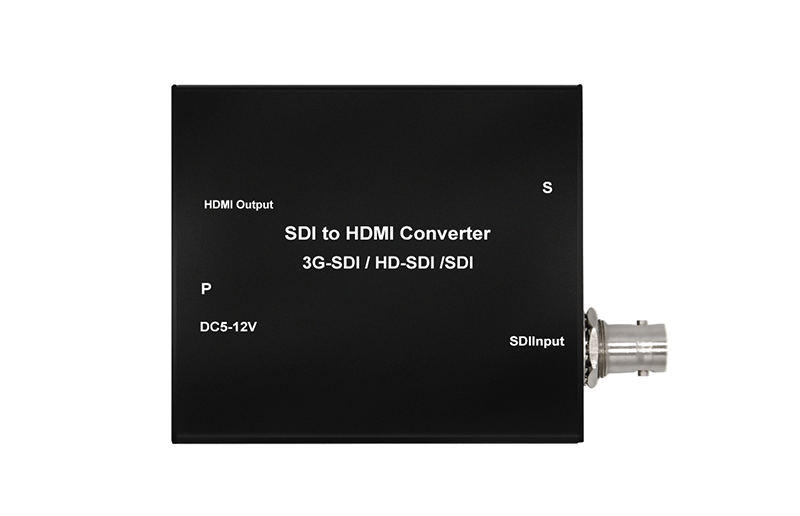

Broadcast-grade SDI signal

Converts an  3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals

Broadcast-grade SDI signal
Wider Resolution Support

1080P@23.97/24/25/29.97/30/50/59.94/60

1080i@50/59.94/60

720P@50/59.94/60

576i, 480i

Wider Resolution Support

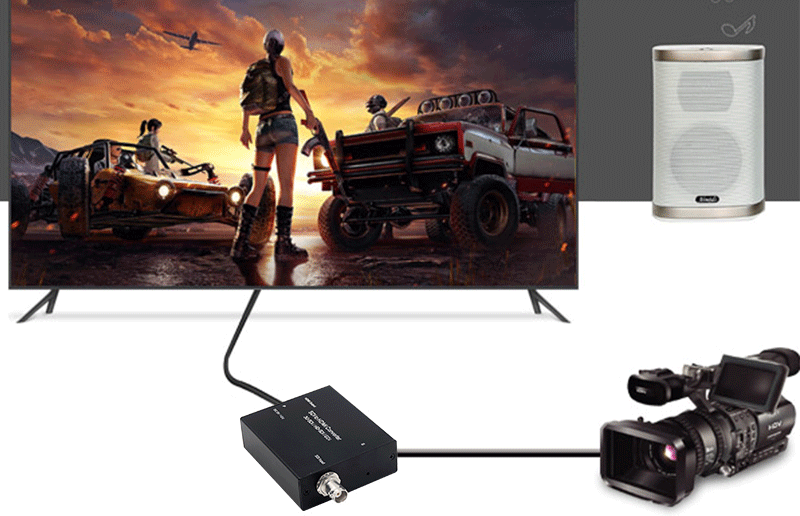

Audio and Video Synchronization Output

Convert and embed SDI audio into HDMI signal to achieve synchronous audio and video output

Audio and Video Synchronization Output

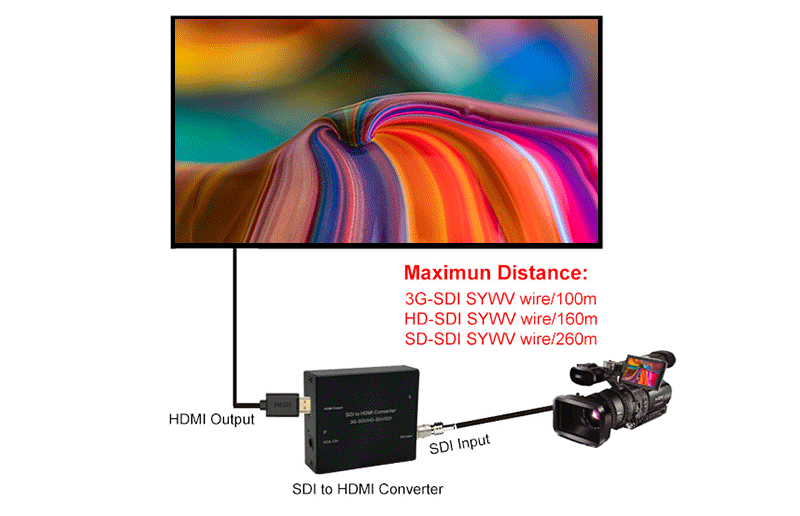

Long-distance Transmission, Clear and Stable

3G-SYWV 100m

HD-SYWV 160m

SD-SYWV 260m

Long-distance Transmission, Clear and Stable
Metal Ahell, Strong Anti-interference Ability

Metal shell design, heat dissipation, strong anti-interference ability

Metal Ahell, Strong Anti-interference Ability
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)

Support OEM ODM

Parameters Of SC01 | SDI to HDMI Video Converter

NameSDI to HDMI Video Converter
ModelSC01
Working Temperature-5 to +85°C
Working Humidity5 to 90 % RH (no condensation)
Input video signalSDI
Video Format Support1080P@23.97/24/25/29.97/30/50/59.94/60
1080i@50/59.94/60
720P@50/59.94/60
576i, 480i
Video outputHDMI
Input AudioSupport 32KHZ,44.1KHZ,48KHZ,88KHZ,96KHZ,192KHZ
SDI maximum transmission3G     SYWV  100 meters
HD     SYWV  160 meters
SD     SYWV  260 meters
PowerDC 5V, positive with
Power consumption2.5W
Dimensions8*7*2.5cm
Package Size16*9*4.5cm
Weight0.3kg

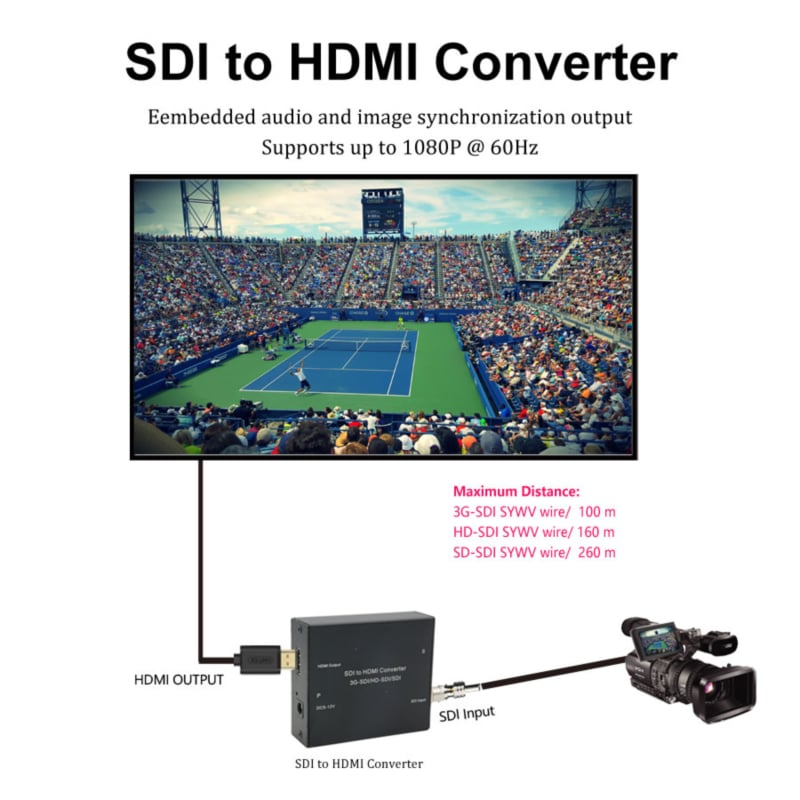

Diagram Of SC01 | SDI to HDMI Video Converter

Suitable for security monitoring, radio and TV program production, remote conference, home theater, multimedia teaching, etc.
