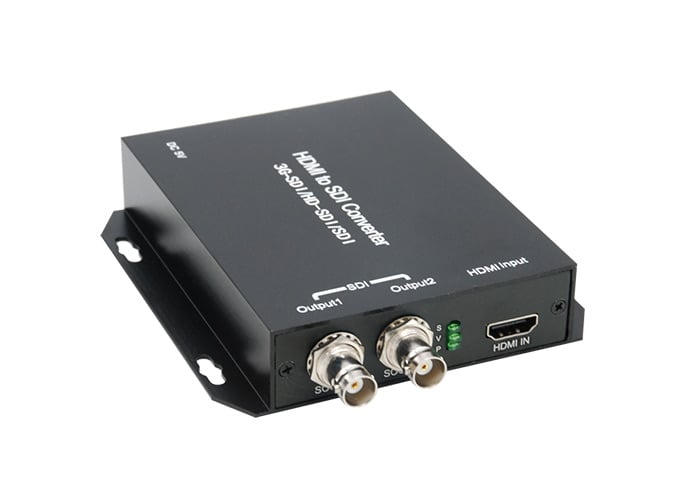

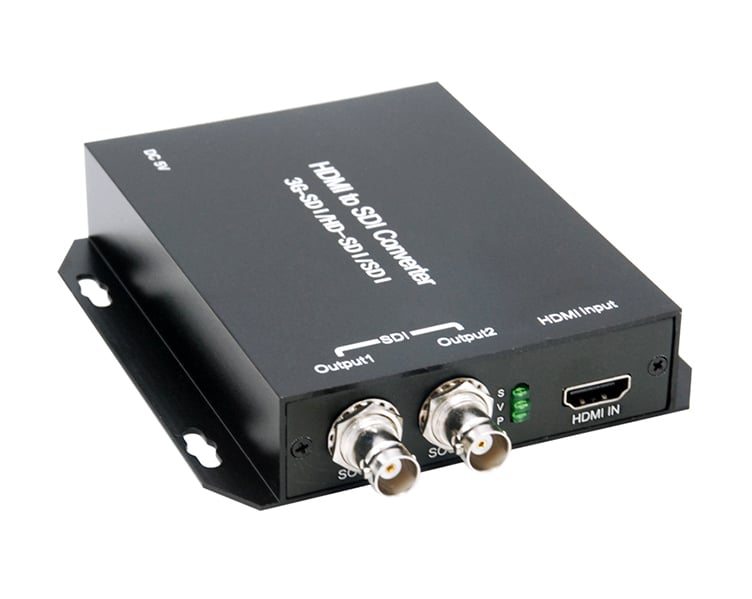

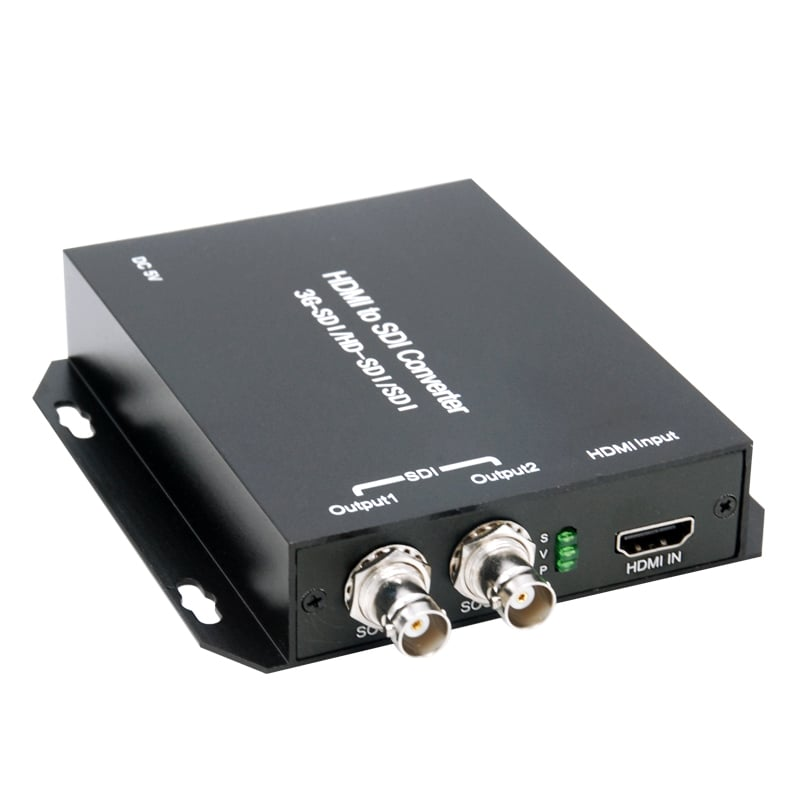

ORIVISION HDMI to SDI Video Converter

  • Rugged metal housing design, strong anti-interference ability

  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs

  • Supports up to 1080p60 Resolution

  • HDMI Input Resolution Adaptive

  • Plug-and-play operation with no software required for easy, immediate installation

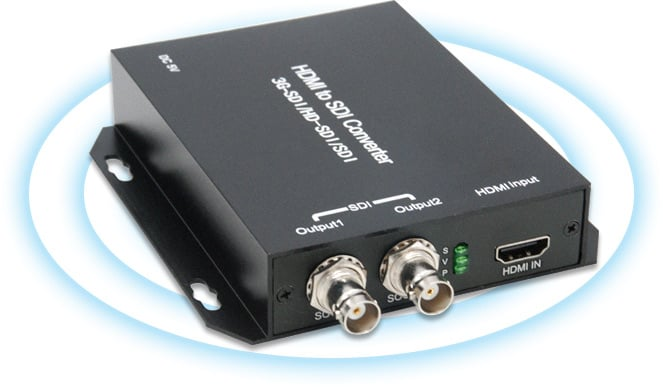

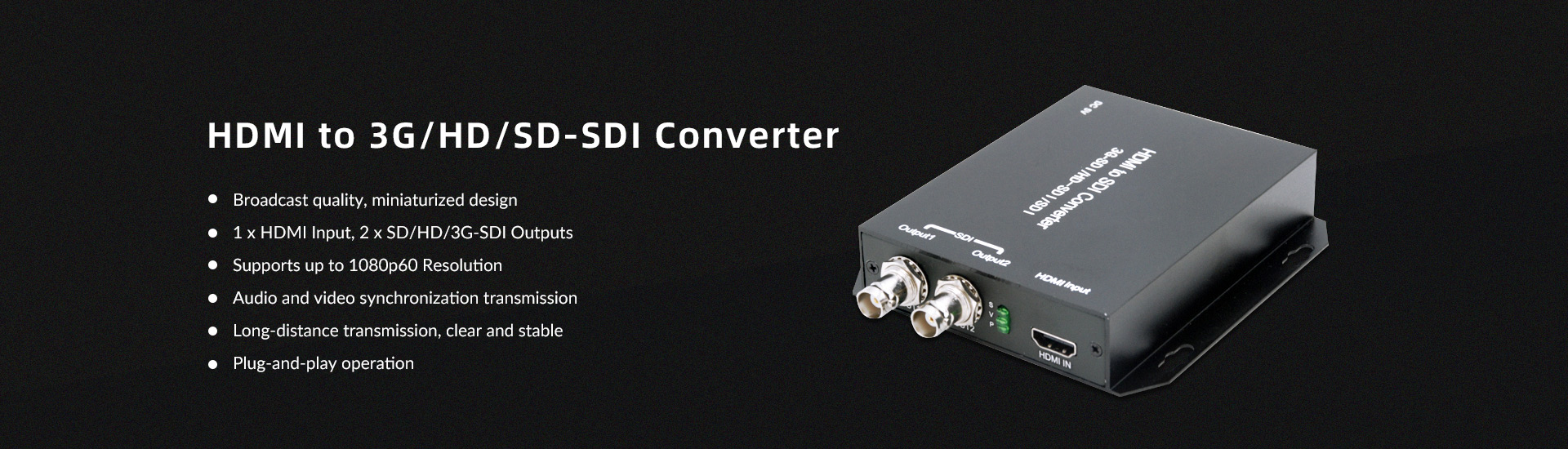

HDMI to 3G/HD/SD-SDI Converter
HDMI to 3G/HD/SD-SDI Converter
  • Broadcast quality, miniaturized design

  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs

  • Supports up to 1080p60 Resolution

  • Audio and video synchronization transmission

  • Long-distance transmission, clear and stable

  • Plug-and-play operation

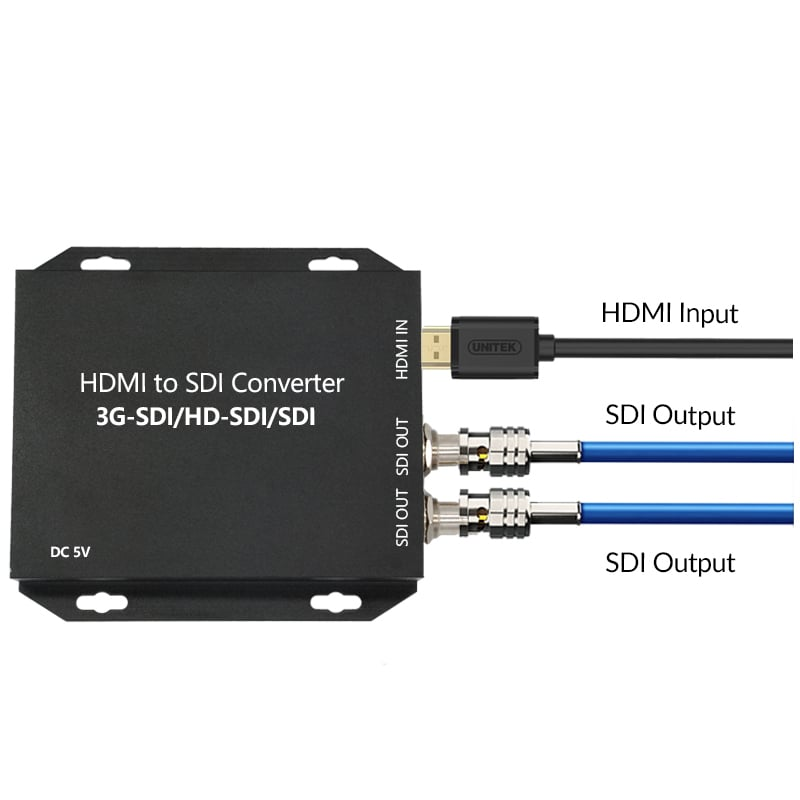

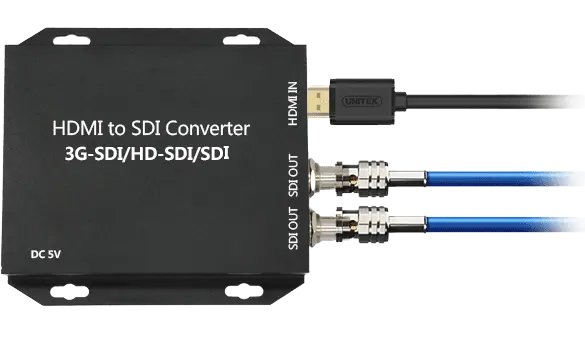

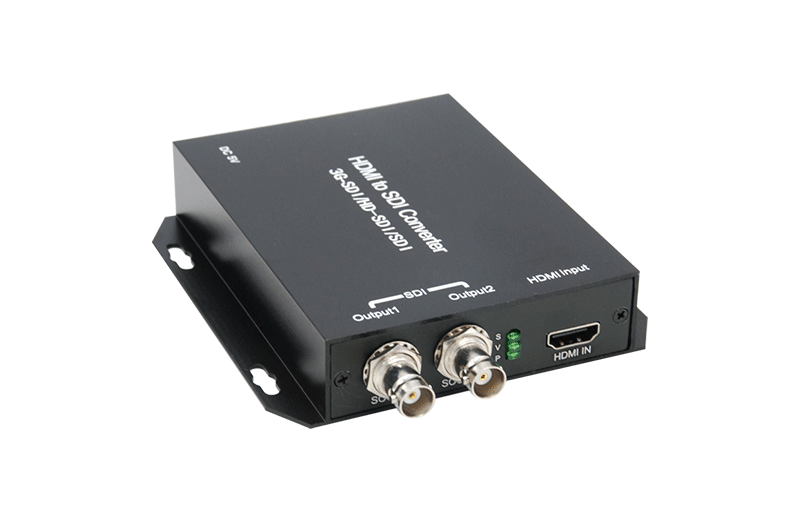

HDMI to 3G/HD/SD-SDI Video Converter

Ultra-compact and rugged, this adapter enables you to connect an HDMI camera or computer to a professional-style SDI (BNC) monitor or component. Features one HDMI input and two 3G/HD/SDI outputs. Strong anti-interference ability to ensure long-term stable operation of the equipment.

HDMI to 3G/HD/SD-SDI Video Converter

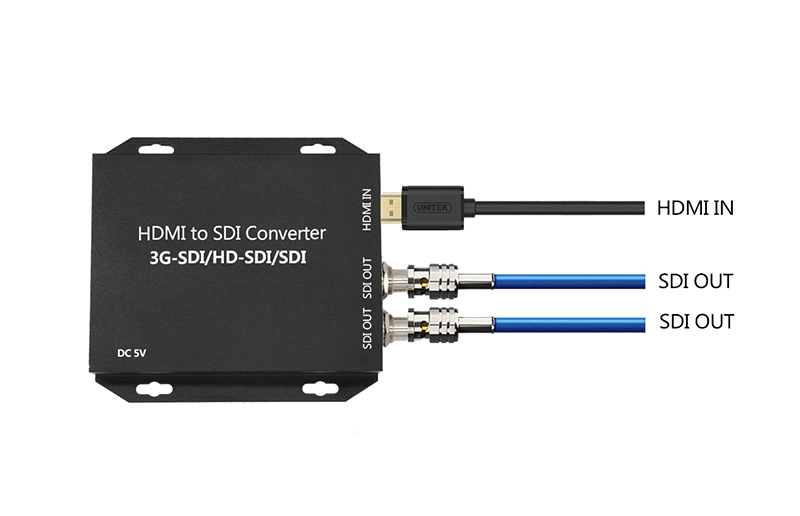

Broadcast-grade SDI signal

Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals

Broadcast-grade SDI signal
Wider Resolution Support

1080P@23.97/24/25/29.97/30/50/59.94/60

1080i@50/59.94/60

720P@50/59.94/60

576i, 480i

Wider Resolution Support

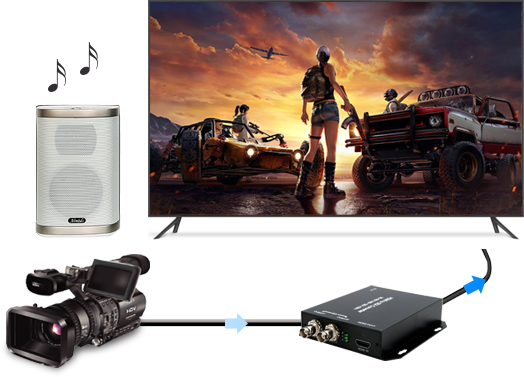

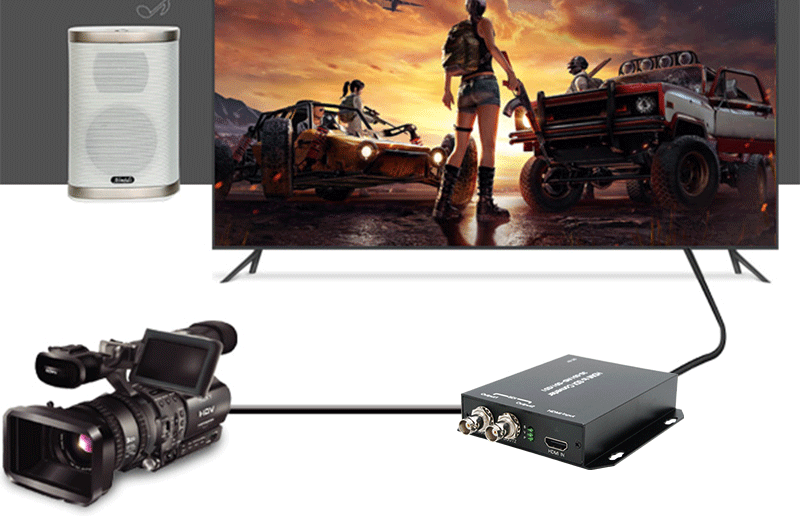

Audio and Video Synchronization Output

Convert and embed HDMI audio into SDI signal to achieve synchronous audio and video output

Audio and Video Synchronization Output
Long-distance Transmission, Clear and Stable

3G-SYWV 100m

HD-SYWV 160m

SD-SYWV 260m


Long-distance Transmission, Clear and Stable

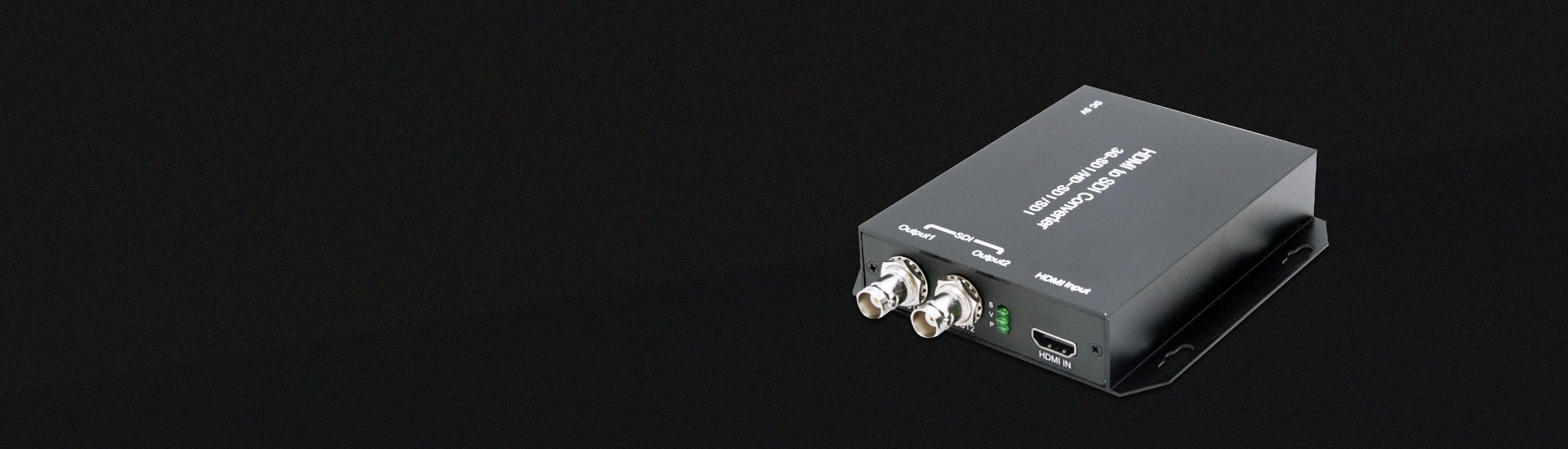

Metal Ahell, Strong Anti-interference Ability

Metal shell design, heat dissipation, strong anti-interference ability

Metal Ahell, Strong Anti-interference Ability
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters Of HC01 | HDMI to SDI Video Converter

NameHDMI to SDI Video Converter
ModelHC01
Working Temperature-5 to +85°C
Working Humidity5 to 90 % RH (no condensation)
Input video signal0.5-1.0 volts p-p
Video Format Support1080P@23.97/24/25/29.97/30/50/59.94/60
1080i@50/59.94/60
720P@50/59.94/60
576i, 480i
Video outputSDI
Input AudioSupport 32KHZ,44.1KHZ,48KHZ,88KHZ,96KHZ,192KHZ
SDI maximum transmission3G     SYWV  100 meters
HD     SYWV  160 meters
SD     SYWV  260 meters

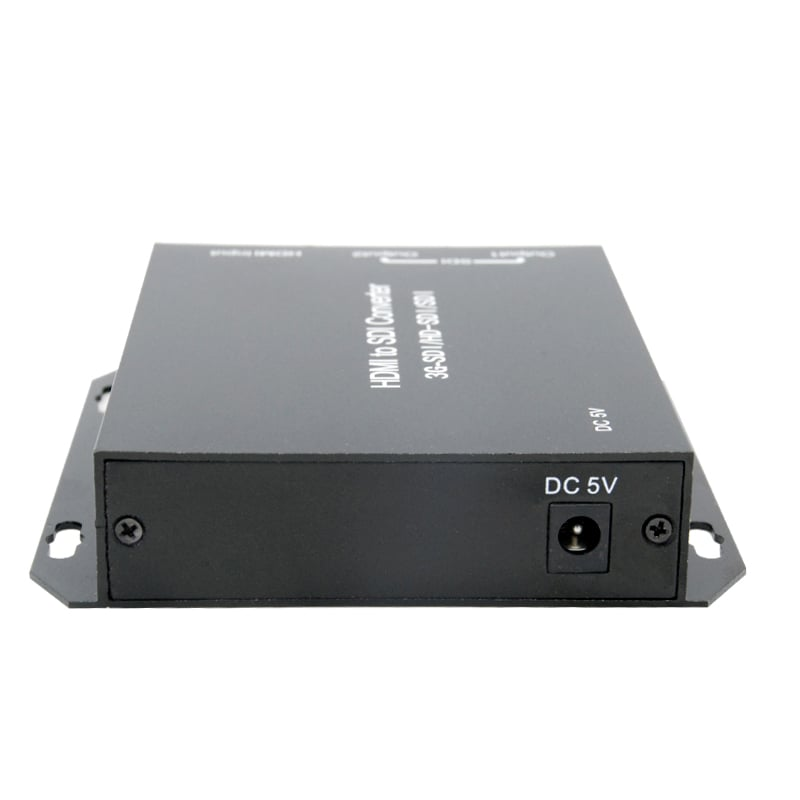

PowerDC 5V, positive with
Power consumption2.5W
Dimensions11.6*11.1(9.8)*2.5cm
Package Size22*14*5cm
Weight0.4kg

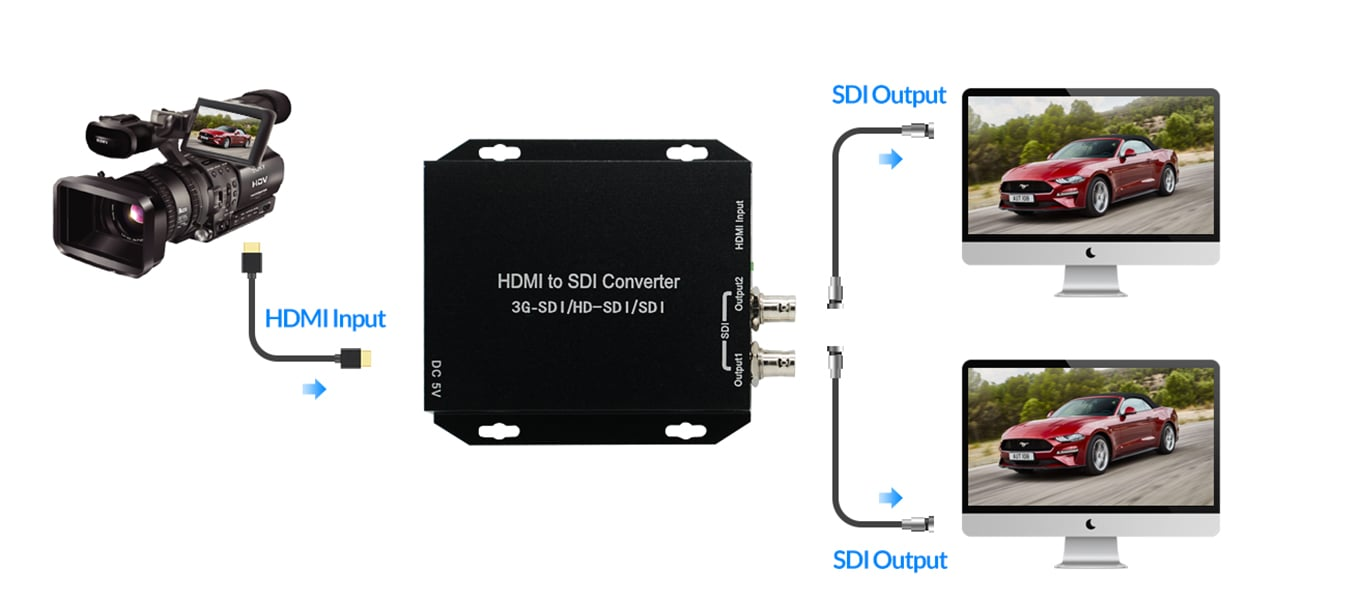

Diagram Of HC01 | HDMI to SDI Video Converter

Suitable for security monitoring/radio and TV program production, remote conference, home theater, multimedia teaching, etc.


Diagram Of HC01 | HDMI to SDI Video Converter
