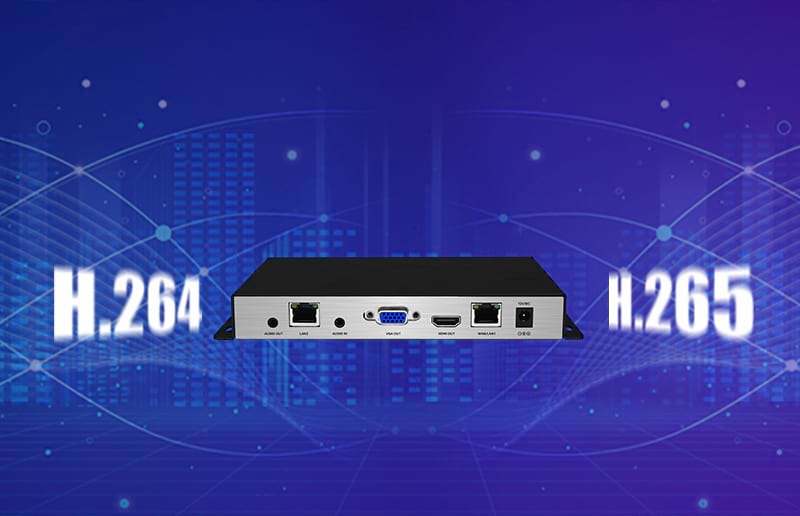

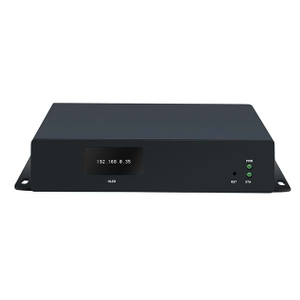

H.265 Dual Ethernet IP To IP Video Decoder And Video Media Gateway

Brand: ORIVISION

Model: ZY-DH941
Input Interface: LAN Port*2,Audio*1
Output Interface: HDMI*1,VGA*1,Audio*1
Video Encoding: H.265/H.264
Protocol: HTTP, HTTPS, RTSP,SRT,UDP/RTP,RTMP protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs


Availability:



Inquire

Product Description

Introduction

Parameters

Diagram

FAQ

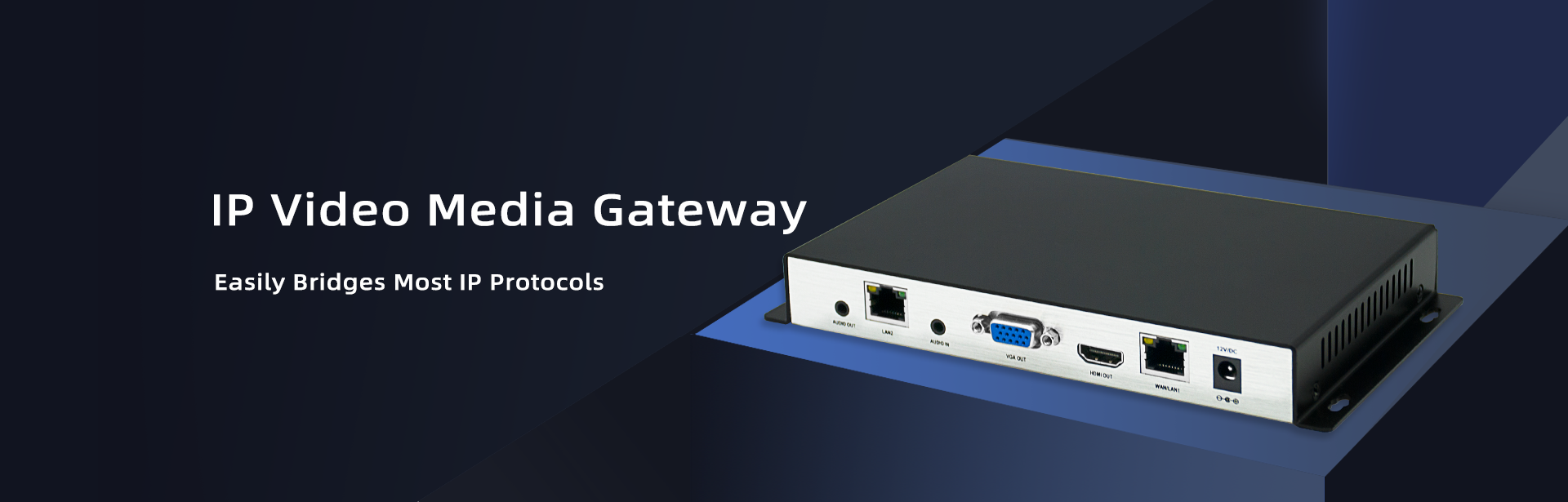

4K Media Gateway-01

Introduction

Brief Introduction

DH941 is a dual Ethernet IP to IP video decoder and media gateway. As a video media gateway, it has two network ports and it receives IP streaming from video encoders, IP cameras, and other devices through network port 1, then forwards them to network 2.
It supports up to 9 channels of protocols: RTSP/HTTP/UDP/HTTPS/SRT/RTMP to RTMP/RTMPS/UDP/RTP. Realize multicast forwarding in different network segments, and transfer from LAN to WLAN.
It also is a video decoder that supports decoding up to 4KP30 H.264/H.265 IP streams and decodes the streams to output HDMI/VGA. It supports decoding up to 9 channels of videos simultaneously. Note: 9 channels with 720P60, 4 channels with 1080P60, or 1 channel of 4KP30.
Powerful IP Stream Function

DH941 is compatible with HTTP, HTTPS, SRT, RTMP, RTSP, UDP/RTP, etc. Support 9 protocols to forwarding RTSP/HTTP/UDP/HTTPS/SRT/RTMP to RTMP/RTMPS/UDP/RTP.
It's a Media Server

It supports up to 250 concurrent access for streams distribution/live streaming;
(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors).

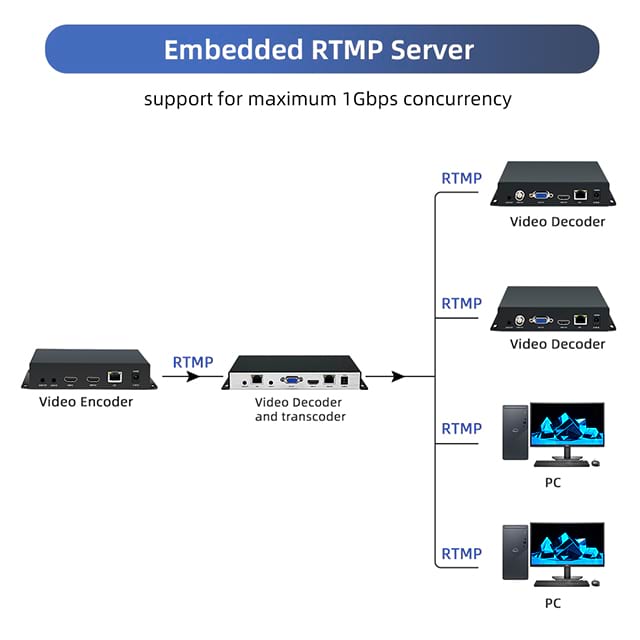

Embedded RTMP server, support for maximum 1Gbps concurrency

With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient with video decoder.
It's Also a Decoder

Supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output VGA and 4k HDMI.
Local Preview Output

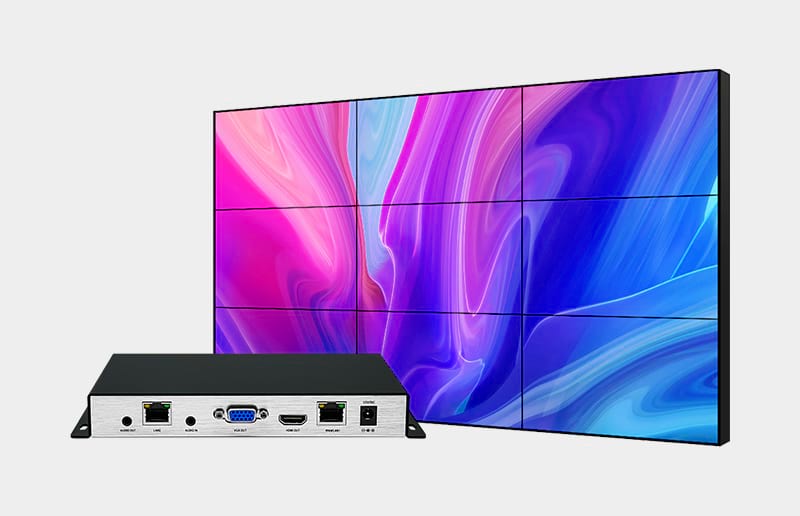

Hardware decoder supports decoding up to 9 channels of videos simultaneous.
⦁ Note: 9 channels with 720p, or 4 channels of 1080P, or 1 channels of 4K (HDMI interface).
Embedded Audio or 3.5mm Analog Audio Input/Output

Support AAC/G711 audio format; Audio can be coded separately.

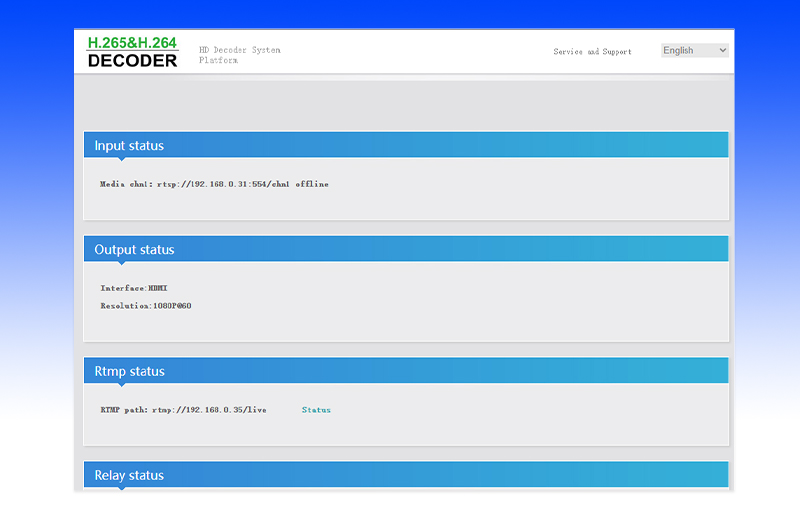

Web Control

Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Local and Remote Transmission

Support LAN, WAN
Multiple Signal Input Formats

Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS...
Support OEM/ODM

OEM: Free print company logo by laser print; MOQ≥1 unit.
ODM: Pls send your requirements to us. (info@orivision.cn).

Parameters

Name	H.265 /H.264 Dual Ethernet IP to IP Video Transcoder and Video Decoder
Model	ZY-DH941
Video
Output	1X HDMI, 1X VGA, 1X CVBS,1X Audio
Output Resolution	38402160@30hz; 1080P60,50,30,25; 1080I60,1080I30 720P60,50; 576P50,480P60; 12801024P60,1280800P60,102776 8P60; 800*600P60and so on. Please contact us for other resolutions.
Video Decoding	H.265/H.264
Max Input Resolution	4K@30HZ
Output	1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Audio
Decoding format	AAC MP3
Stereo	Adjustable sound volume
System
RJ45	1000M internet access
Protocol	HTTP, HTTPS,RTSP, RTMP, SRT, UDP/RTP,SRT…
Management	WEB UI
Upgrade	Software upgrading through the internet
General
Dimension	6.44.41.3in(16311132mm)
Weight	0.35kg
Temperature	0~45℃ (work)，-20~80℃ (storage)
Power Supply	12V/DC 1A
Power Dissipation	<5W

Diagram

Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering.

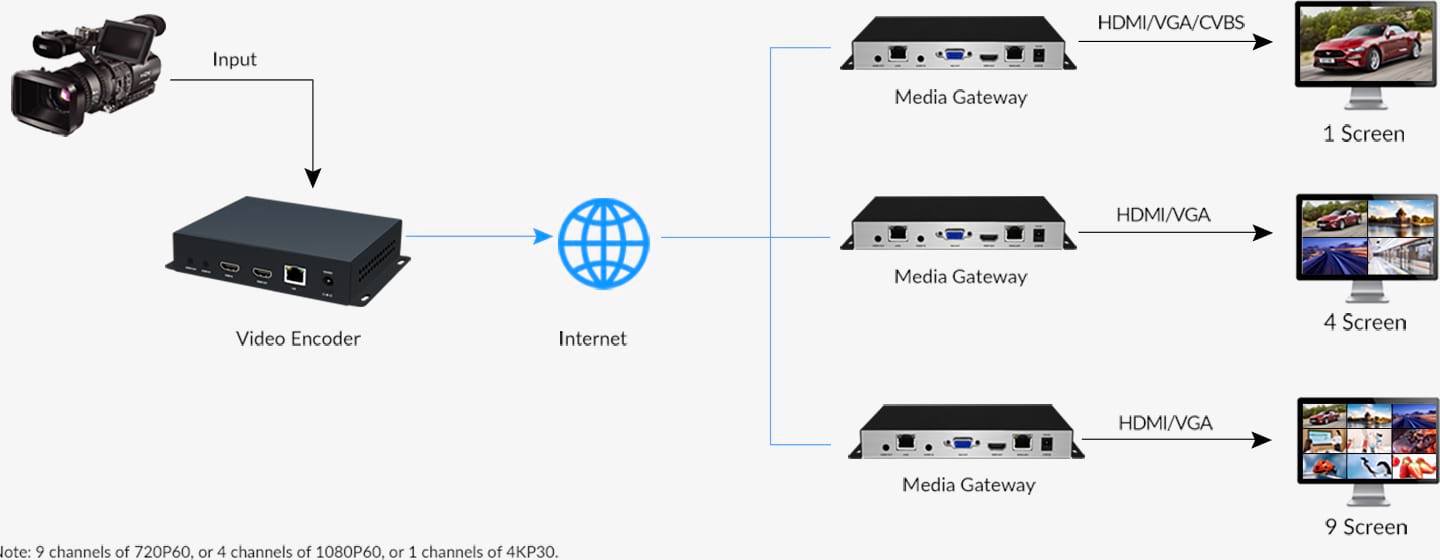

1. Video Decoder Diagram

Video-Decoder-diagram01

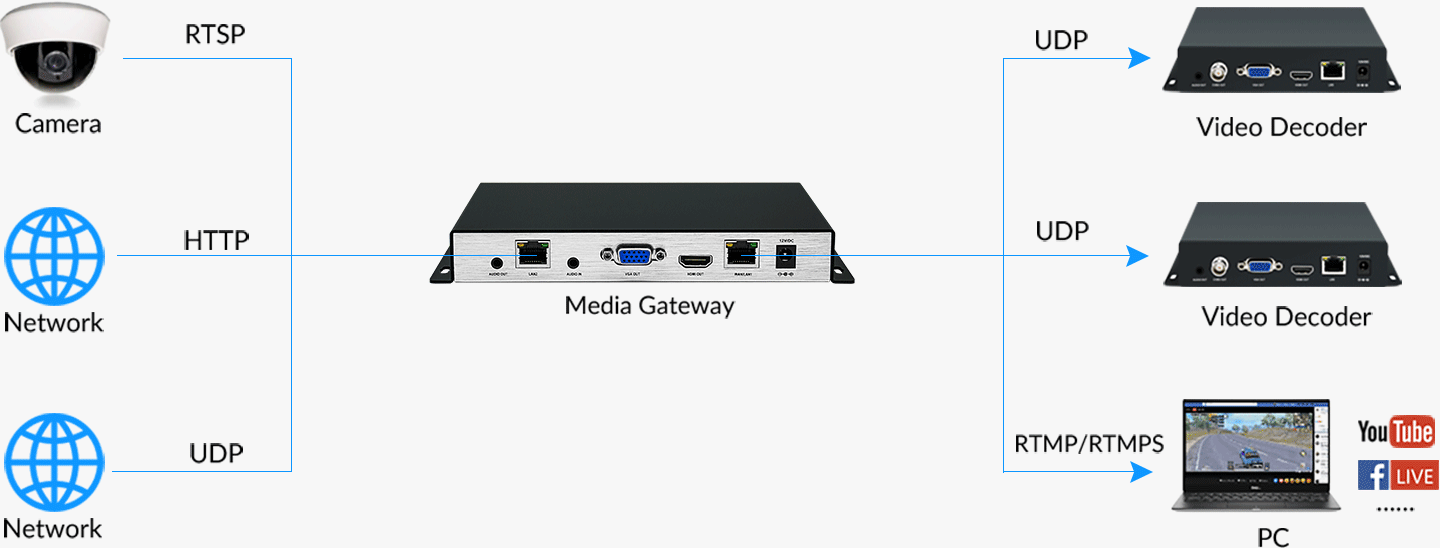

2. IP to IP Stream Forward Diagram

Video-Decoder-diagram02

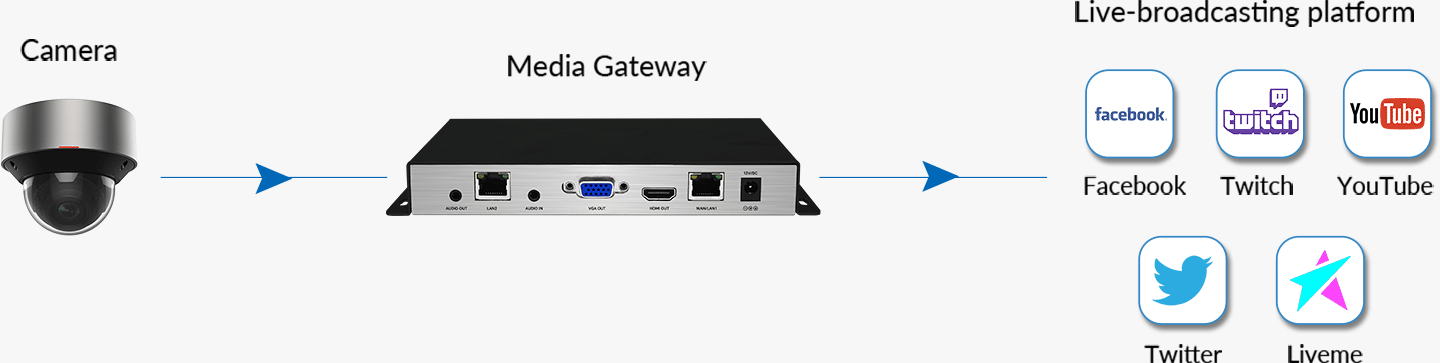

3. Slow Live Streaming(Intranet to Extranet) Application

Video-Decoder-diagram04

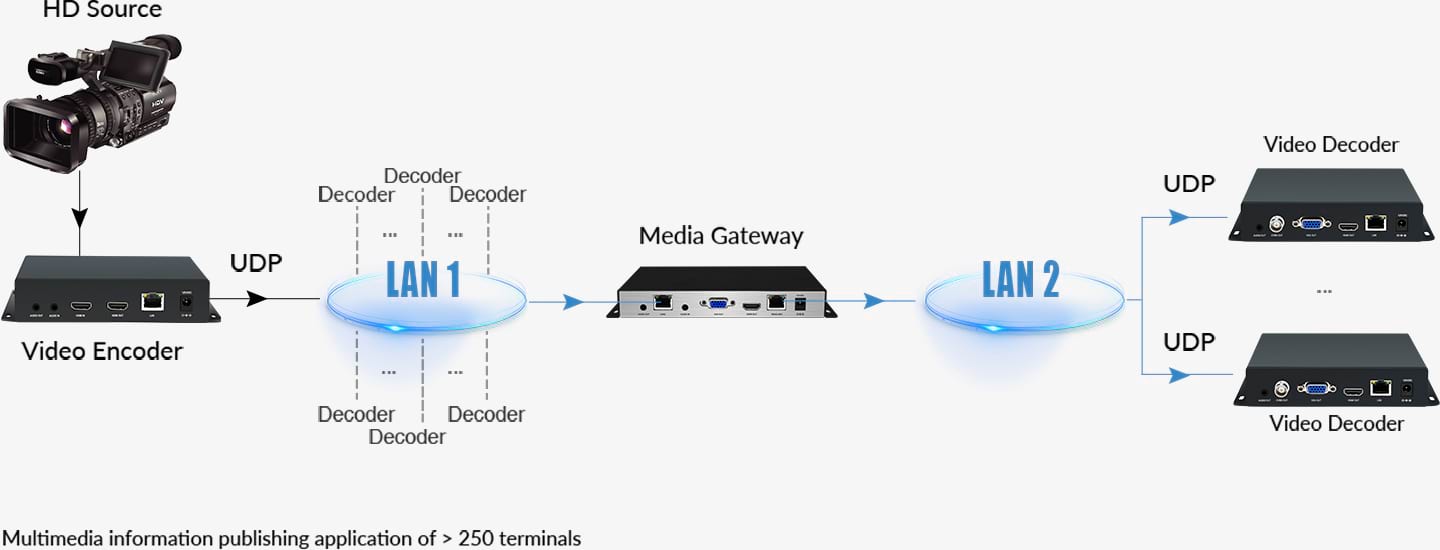

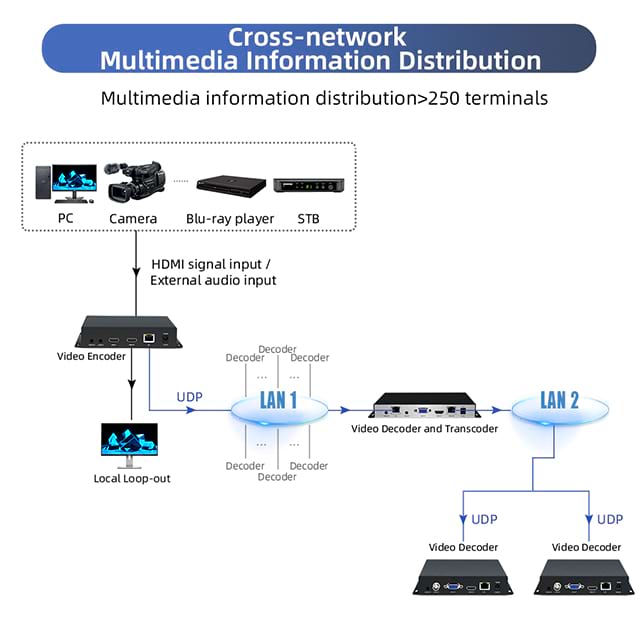

4. Cross-sectional Multimedia Information Distribution Application

Video-Decoder-diagram05

FAQs

Q: What is the default login IP of the decoder?

A: The default login IP address is 192.168.0.35.
Q: What is the login account and password of the decoder?

A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.

A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?

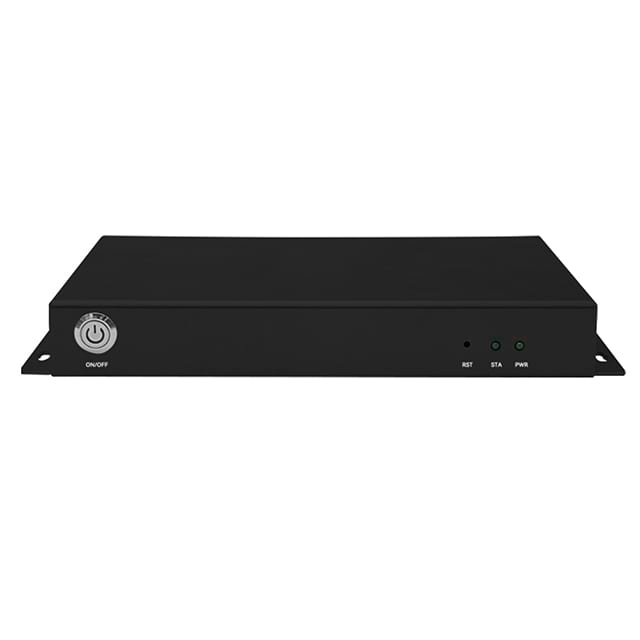

A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.

A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: How to get the newest firmware and update it?

A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
