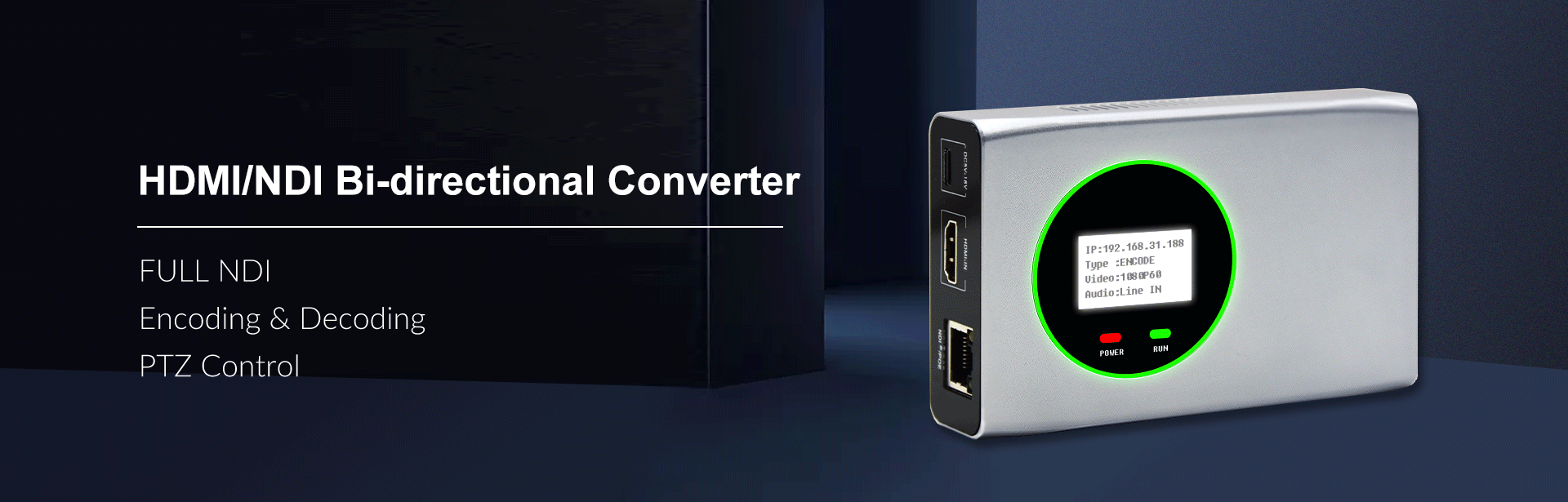

HDMI/NDI Bi-Directional Converter

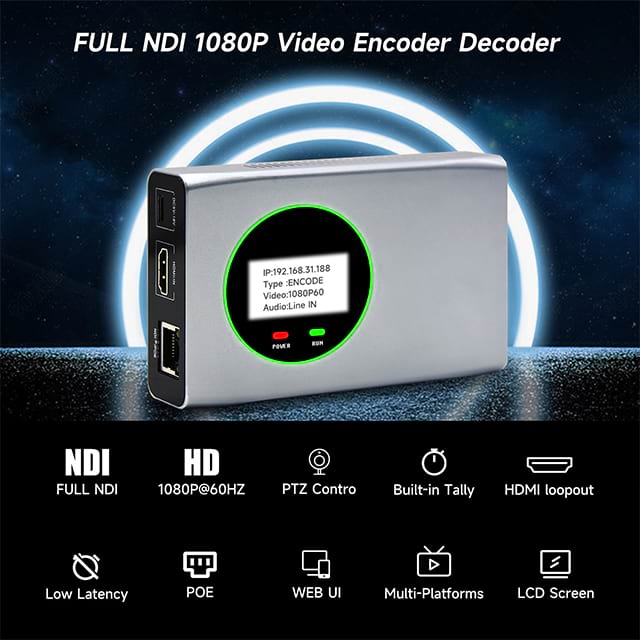

Full 1080P60 NDI Low Latency
Full NDI to HDMI Encoder or Decoder
Support for POE Power Supply
Support HDMI Loop Out
PTZ Control
Conspicuous Indicator Ligths
WEB UI Configuration


Availability:



Inquire

Product Description

Introduction

Parameters

Diagram

NDI-Converter-NH1000-01

Introduction

Professional NDI Video Converter

The NH1000 HDMI/NDI Bi-Directional Converter is a bi-directional HDMI converter that supports HDMI input (as NDI encoder) and HDMI loop output (also as NDI decoder output). It is capable of processing NDI sources from any camera, software or device.

Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, NH1000 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.
Perfect for Your Video Production

In the world of live streaming and audiovisual technology, Network Device Interface (NDI) has emerged as a groundbreaking solution for transmitting high-quality video and audio signals over networks.
It's an NDI encoder, it's also an NDI decoder

Both NDI encoding and decoding can work on this tiny device (132*75*26mm), you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
Audio adding and de-embedding

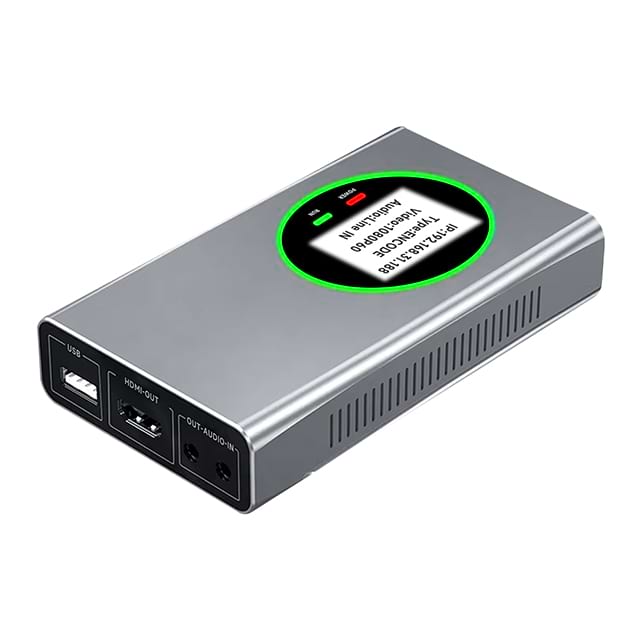

NH1000 supports 3.5mm analog audio line in/out or embedded audio.

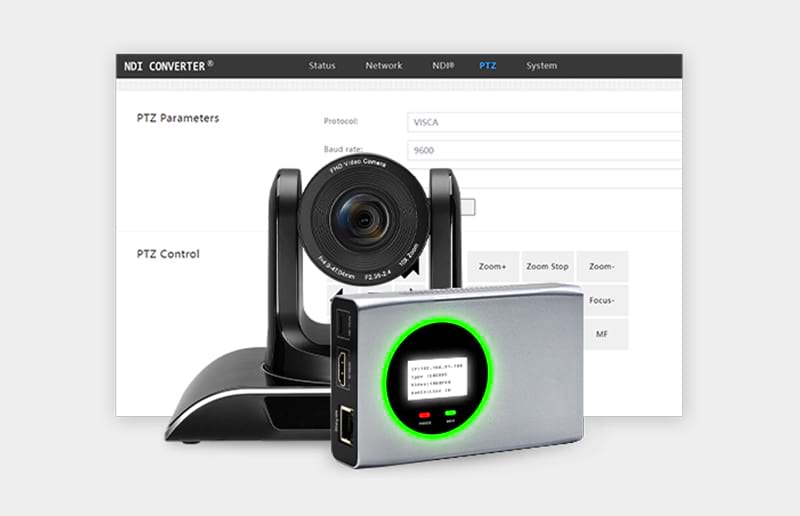

PTZ control

NH1000 supports PTZ control through USB to serial RS232. It also supports PTZ control over IP, no extra cable required.
Power it as you wish

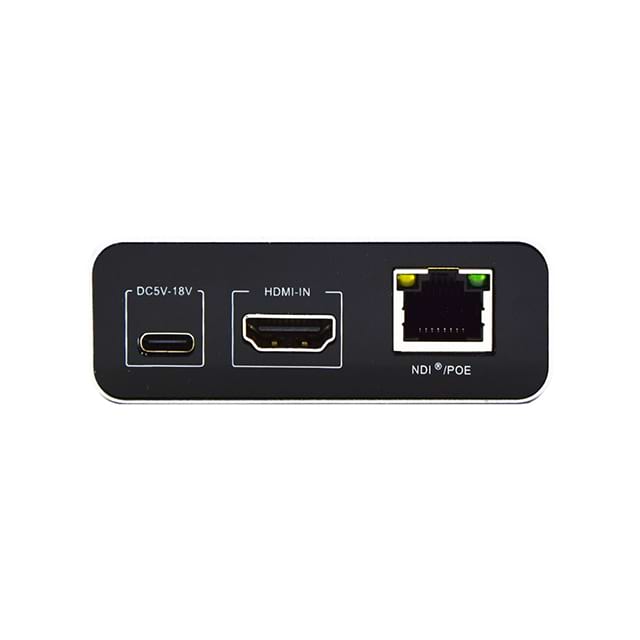

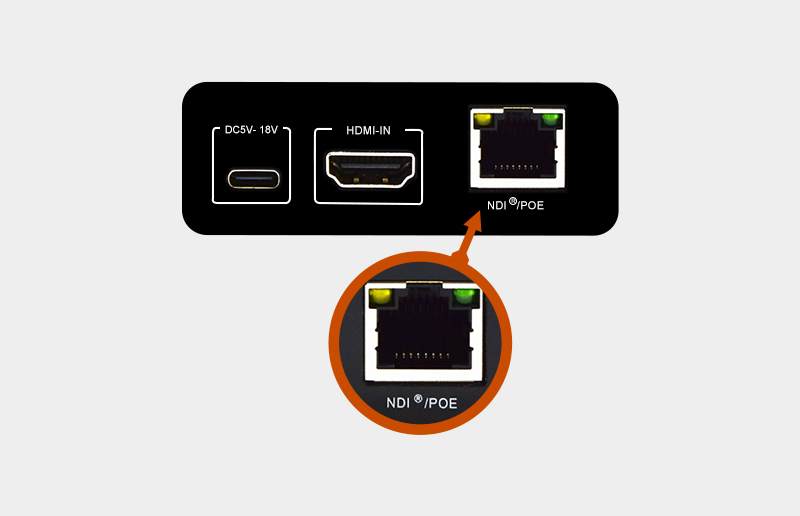

With PoE, the NH1000 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.

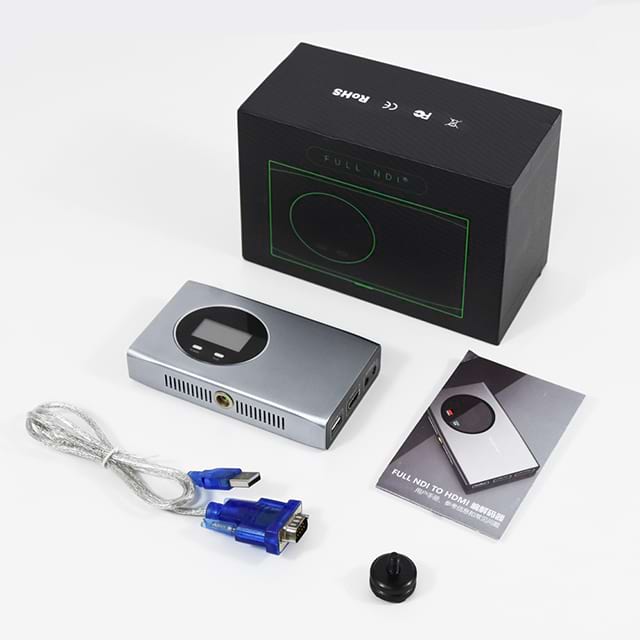

Various mounting methods

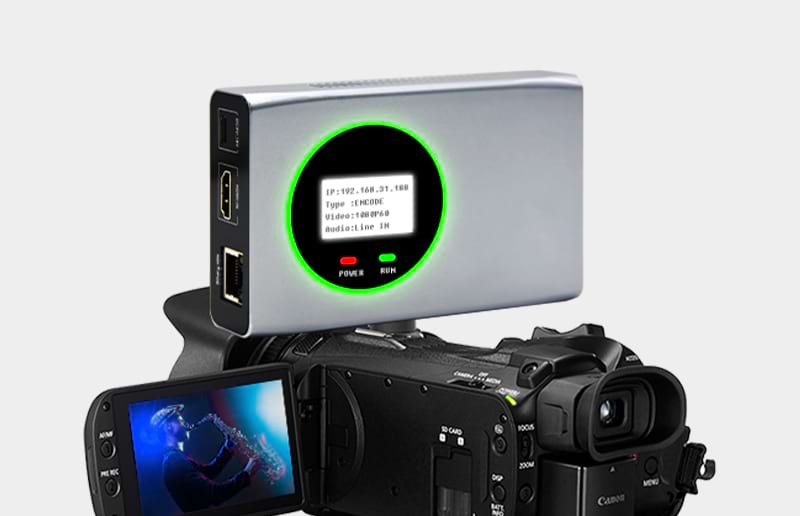

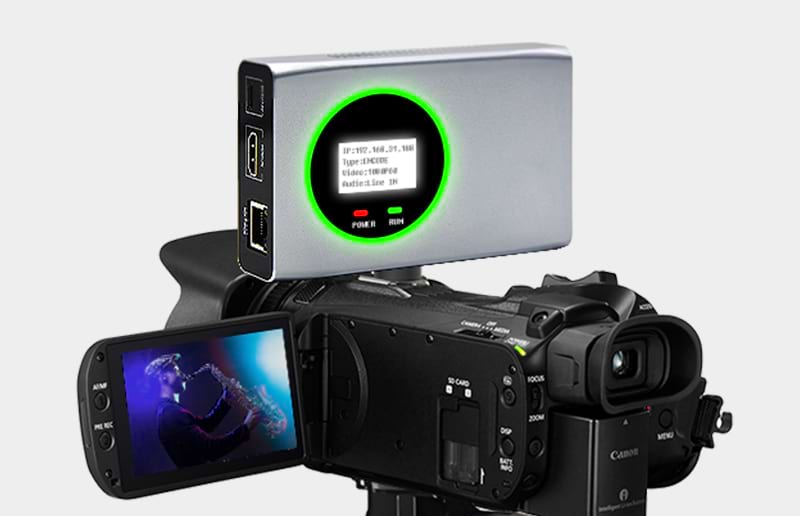

It has an exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.

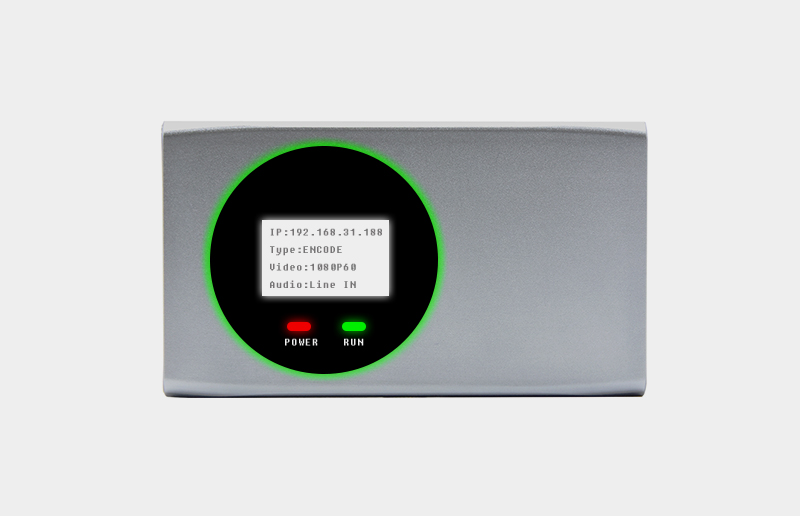

Built-in LCD Screen and Tally Light

Includes a large, easy-to-read LCD display that shows important information, including a tally light for on-air status.

Parameters

Model	NH1000
Video input	1*HDMI
Video output	1*HDMI(Loop or decoding output)
Audio port	1Audio inout, 1Audio output
Network	1*RJ45 1000Mbps Ethernet port (with PoE)
Video resolution	1080P60，1080P59.94，1080P50，1080P30，1080P29.97，1080P25， 1080P24，720P60，720P50
NDI® codec capacity	FULL NDI
Power	PoE, DC optional. 5-18V wide range supported
PTZ control	Network PTZ and Serial Port
Management	Web UI
TALLY light	RUN/Power
LED display	IP/Type/Video/Audio
Dimension	132x75x26mm(5.2'2.96'1.02'in)
Weight	0.25kg

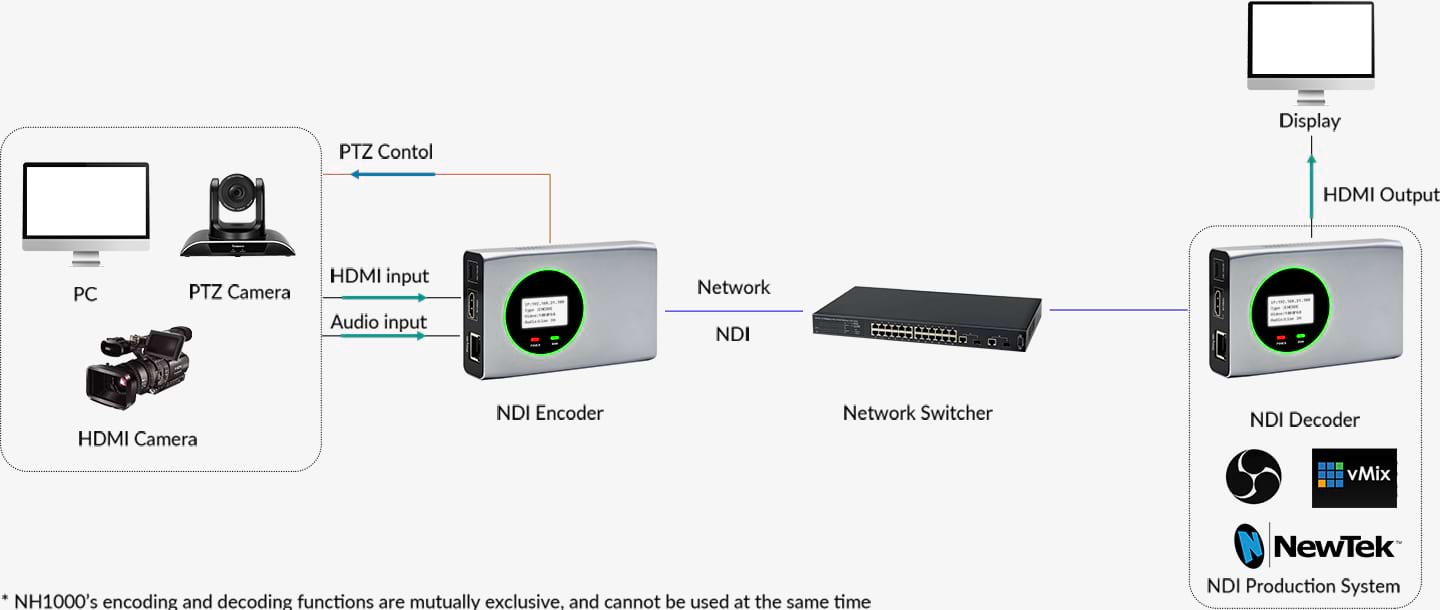

Diagram

Apply to IP-based post production, video output to screen, low latency transmission, video conferences, etc.
