Live streaming demands flexibility, scalability, and efficiency—qualities that NDI technology delivers. Have you ever wondered how to seamlessly integrate your HDMI cameras into a live production setup? With an HDMI to NDI encoder, transforming your HDMI signal into NDI sources is easier than ever. In this article, we’ll walk you through the simple steps to convert your HDMI cameras into NDI sources for a smooth, professional live streaming experience. By the end, you’ll understand how NDI enhances live video workflows and how to set it up efficiently.

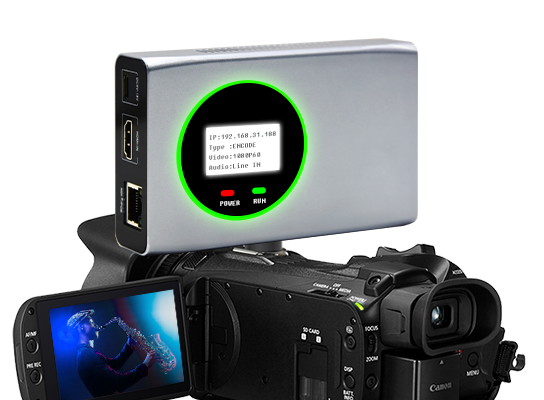

When considering the conversion of HDMI signals into NDI sources for live streaming, hardware encoders like the NH1000 HDMI/NDI Bi-directional Converter offer distinct advantages over software solutions.
The primary reason to opt for a hardware encoder is reliability. Hardware encoders are built to handle high-demand environments with low latency and consistent performance. This makes them ideal for professional live streaming, where interruptions or delays can significantly affect the quality of the broadcast. The NH1000, for example, supports FULL NDI codec capacity, which ensures high-quality video transmission with minimal latency—critical for live events where real-time video feed is necessary.
In addition to reliability, hardware encoders provide superior video quality. They are specifically designed to preserve the integrity of high-definition HDMI signals while converting them to NDI format. The encoder also maintains the signal's resolution and color accuracy, which is especially important when dealing with professional-level broadcasts or intricate production setups.
Lastly, hardware encoders, such as the NH1000, are often equipped with features like HDMI loop-out for monitoring purposes, and the capability to handle high resolutions like 1080p60 and more, making them well-suited for high-end live streaming setups.
Setting up a hardware encoder is a straightforward process, especially with a device like the NH1000 HDMI/NDI Bi-directional Converter. Here’s how you can quickly get started:
1. HDMI Camera to Encoder: Begin by plugging the HDMI output from your camera into the HDMI input port on the encoder. This will send the video feed directly to the encoder for conversion.
2. Monitor Output: If you need to monitor the signal simultaneously, connect a display to the HDMI loop-out port of the encoder. This allows you to keep an eye on the live feed without interrupting the conversion process.
The NH1000 encoder simplifies connections with Power over Ethernet (PoE). This feature allows both the power and data transmission to travel through a single Ethernet cable. This minimizes the need for additional power adapters, reducing cable clutter. Simply plug the encoder into your network switch with a PoE-supported Ethernet cable, and the device will be powered automatically.
If your network setup doesn’t support PoE, the NH1000 can also be powered via a USB cable or a DC power input (5V-18V), which offers additional flexibility for on-the-go live streaming setups or mobile environments where a PoE switch may not be available.
Once the physical setup is complete, it’s time to configure the encoder. The NH1000 has an intuitive web interface for easy configuration. After logging into the device through its IP address, you can select between Full NDI and NDI|HX modes. The former offers the highest video quality but requires more bandwidth, while NDI|HX provides efficient compression for low-bandwidth scenarios, making it perfect for networks with bandwidth limitations.
Depending on your production setup, adjusting these settings will ensure that your encoder meets the needs of your specific use case, whether it's a high-definition broadcast or a more bandwidth-efficient setup.
Software solutions are ideal for users who want a cost-effective way to convert HDMI signals to NDI without investing in hardware encoders. While hardware solutions like the NH1000 HDMI/NDI Bi-directional Converter provide higher reliability and better video quality, they come with a higher price tag. For smaller live productions, budget-conscious users, or individual streamers, software conversion using an HDMI capture card offers a viable alternative that balances affordability and performance.
The main appeal of using a capture card lies in its lower cost and flexibility. By utilizing an HDMI capture card in combination with NDI Tools software, users can convert HDMI signals to NDI without the need for a dedicated hardware encoder. This makes it easier to scale production, especially for those already working with a computer-based setup. Moreover, it doesn’t require a significant investment in hardware, making it suitable for smaller-scale productions or events.
To get started with software-based conversion, first, you need an HDMI capture card (such as an Elgato or Magewell card) that can capture the video signal from your camera. Here’s how you do it:
● Plug the HDMI output from your camera into the HDMI input of the capture card.
● Connect the capture card to your computer via USB (or another connection type depending on the card you are using). This allows the computer to receive the live video feed from the camera.
Once the hardware is set up, the next step is to install the NDI Tools suite on your computer. The NDI Tools include applications like NDI Scan Converter, which will allow your capture card's feed to be converted into an NDI source.
● After installing NDI Tools, launch the NDI Scan Converter app.
● In the app, select Webcam Video Source and choose your capture card from the available sources. This action converts the HDMI signal into an NDI stream, making it available to any device on the same network.
After converting your HDMI feed to NDI, you need to ensure that other devices in your network can access the NDI signal for production use. To do so:
● Make sure all devices, including production software like OBS Studio or vMix, are connected to the same local network.
● On your production software, select NDI Source and you should be able to see your newly created NDI source available for use.
Integrating NDI sources into popular production software like OBS Studio and vMix is a straightforward process, enhancing flexibility in live streaming and multi-camera management.
1. OBS Studio:
● Install the NDI plugin for OBS, which allows the software to recognize NDI sources.
● Once the plugin is installed, open OBS and click on the “+” button in the Sources section.
● Select NDI Source from the options. OBS will automatically detect all available NDI sources on the network, allowing you to select the appropriate video feed.
● The selected NDI source will then be added to your scene, ready for use in your live stream.
2. vMix:
● vMix has built-in support for NDI, making the integration process even easier.
● Simply click Add Input, select NDI / Desktop Capture, and choose the desired NDI source from the list.
● Once added, the NDI video feed can be manipulated just like any other input, with options for transitions, effects, and audio controls.
Both OBS Studio and vMix provide intuitive ways to integrate NDI sources, simplifying the workflow for producers managing multiple video feeds in real-time.
Efficient multi-camera setups require careful management of NDI streams to minimize latency and ensure synchronization of video and audio. Here’s how to optimize your NDI workflow in multi-camera environments:
1. Minimizing Latency:
● Ensure all NDI devices are connected to a high-speed network with adequate bandwidth. Gigabit Ethernet is recommended to reduce latency in real-time production.
● Limit the number of active video sources that are transmitting at once to avoid overloading the network.
2. Syncing Video and Audio:
● Audio and video sync issues can arise when working with multiple cameras. To address this, check that all NDI sources are configured with consistent frame rates and audio sample rates.
● In vMix, you can manually adjust audio delay settings to align with video sources, which helps maintain synchronization across all feeds.
3. Camera Switching and Transitions:
● Efficient camera switching can be automated using PTZ (pan-tilt-zoom) controls within NDI-enabled software. For a smoother experience, ensure that PTZ cameras are on the same network and have NDI support enabled.
● Use NDI Studio Monitor to preview multiple camera angles simultaneously, ensuring a smooth transition during live production.
By optimizing network configurations and synchronization settings, you can manage multiple NDI sources seamlessly, enhancing the quality and smoothness of your live streams.
To ensure a stable NDI workflow, it’s crucial to optimize your network and manage latency effectively, as network performance directly impacts the quality of your live streaming.
1. Network Configuration for NDI:
● Gigabit Ethernet: Use high-speed Ethernet connections, as NDI relies on large amounts of data transfer. Gigabit Ethernet ensures enough bandwidth to handle multiple high-definition video feeds.
● Dedicated Network: If possible, set up a dedicated network for NDI traffic. This reduces the chance of interference from other devices or applications using the same network.
2. Avoiding Network Bottlenecks:
● When working with multiple cameras, ensure that your network switch supports PoE (Power over Ethernet) if you’re using NDI-enabled encoders or cameras, to simplify power and data transmission through a single cable.
● Quality of Service (QoS) settings can prioritize NDI traffic over other types of data, minimizing delays and improving performance.
3. Minimizing Latency:
● To reduce latency, ensure all NDI devices are using compatible video resolutions and frame rates. Misalignments in these settings can lead to delay and performance issues.
1. Reducing Video Delay:
● Hardware Encoders: Use dedicated hardware encoders for faster and more reliable processing. Software-based solutions are more prone to delays due to the overhead on the computer’s resources.
● Set up buffering settings within production software like vMix or OBS Studio to adjust for minor video delay issues. Fine-tuning these settings can minimize noticeable lag.
2. Syncing Audio and Video:
● In multi-camera setups, ensure all cameras and devices use the same audio sample rate and frame rate. This prevents the mismatch between audio and video, which can disrupt the viewing experience.
● Use external hardware sync boxes if you’re working with large-scale productions to synchronize timecode across all cameras.
3. PTZ Camera Control:
● For smoother transitions between cameras, particularly when switching between PTZ cameras, ensure they are all connected via the same network and have NDI control enabled. This ensures consistent camera control and minimizes connection delays.
Converting HDMI cameras into NDI sources offers improved live streaming flexibility and video quality. By using an HDMI to NDI encoder, like the NH1000 HDMI/NDI Bi-directional Converter from ORIVISION Electronics Co., Ltd., users can seamlessly integrate HDMI signals into NDI workflows. Depending on your needs, both hardware and software solutions are available to ensure a reliable, high-performance streaming setup.
A: An HDMI to NDI encoder converts HDMI video signals into NDI format, enabling seamless integration into IP-based workflows for live streaming and production.
A: By converting HDMI sources to NDI, an HDMI to NDI encoder allows for high-quality, low-latency video transmission, enhancing flexibility and scalability in multi-camera live streaming.
A: Yes, an HDMI to NDI encoder works with most HDMI cameras, allowing businesses to easily incorporate NDI into their existing video production workflows without major upgrades.
