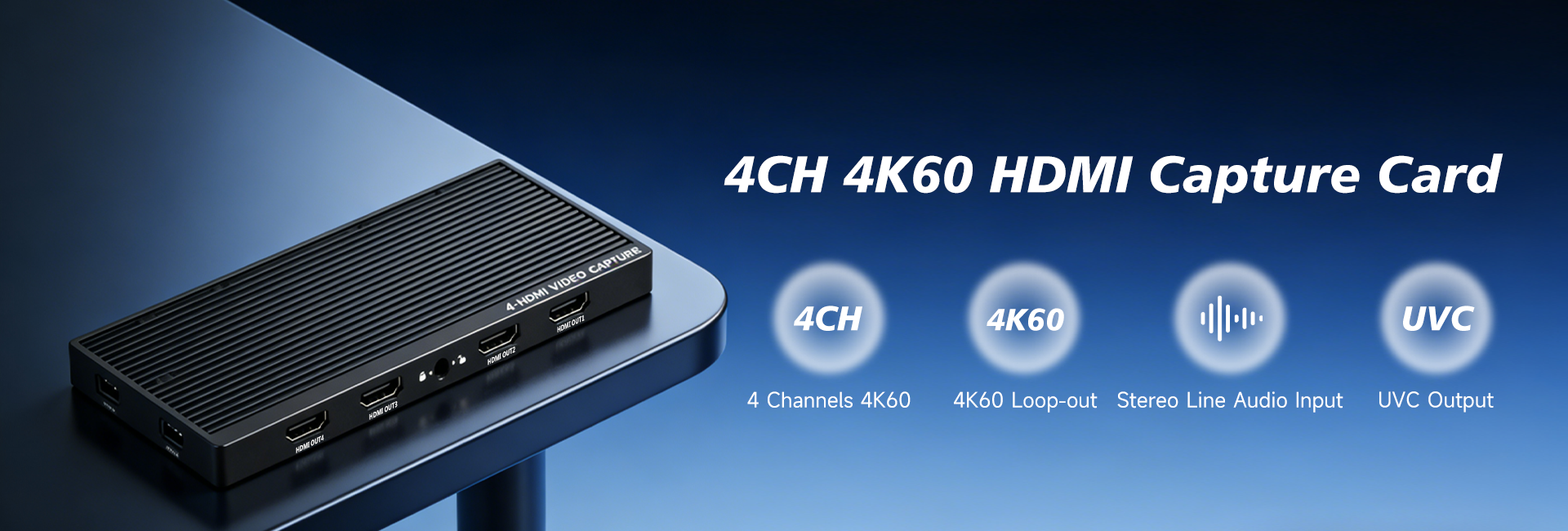

ORIVISION 4 in 1 HDMI Capture Card supports 4 channels 4K@60Hz HDMI capture simultaneously, no compression and ultra-low latency. Enjoy a smooth live gaming experience with 4 HDMI signal input and 4 HDMI loop out.
Real 4K@60HZ Input/Output & Support High Refresh Rate

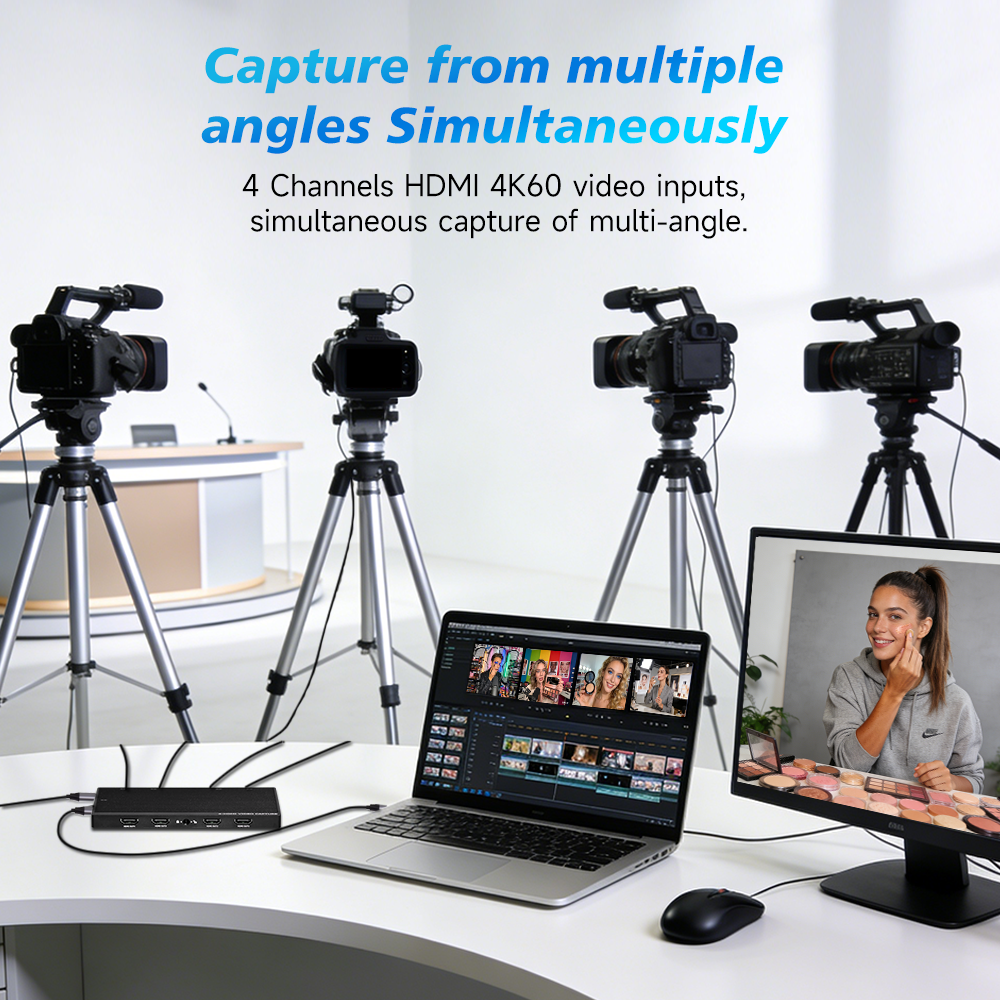

Capture and stream ultra-high-definition video with 4 HDMI inputs simultaneously. It creates four independent network cameras in OBS/VLC for multi-source live streaming and video production.

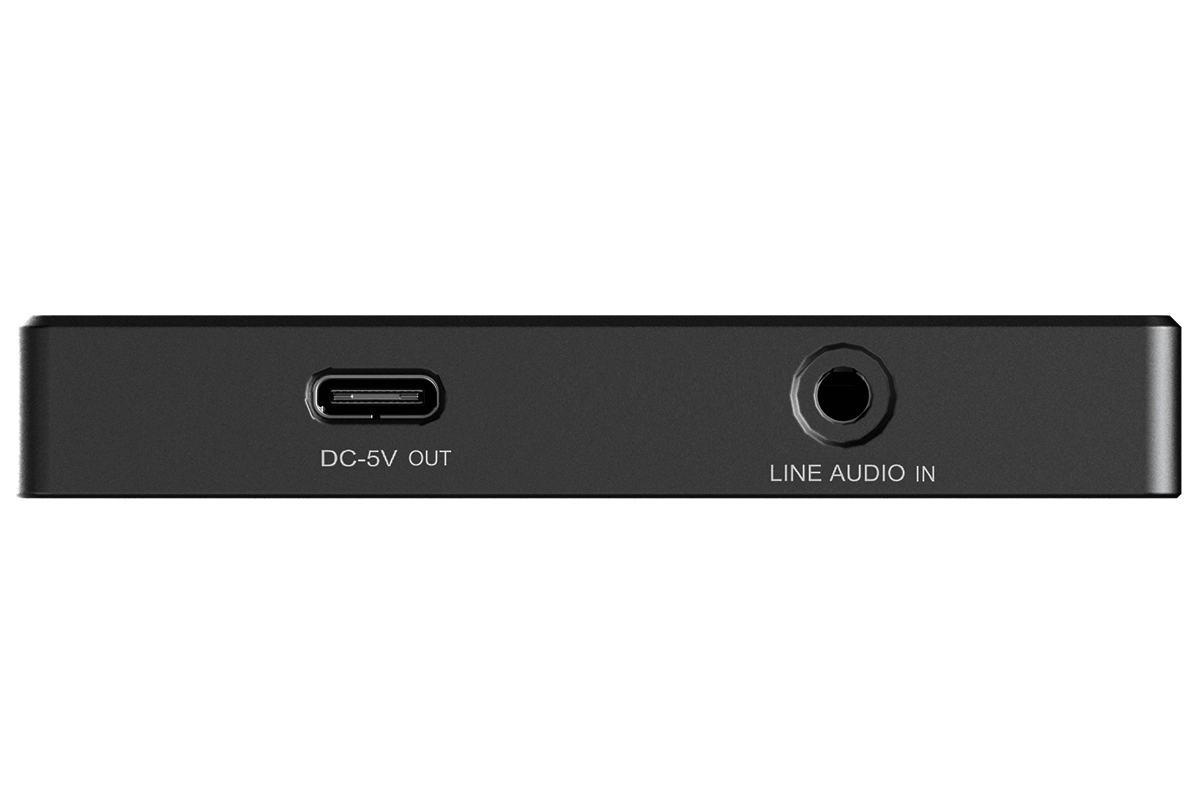

Line Audio IN
Stereo line audio input, can be connected to mixing consoles, etc. Easily connect a headset or mic to embed commentary or ambient sound into your stream without extra equipment

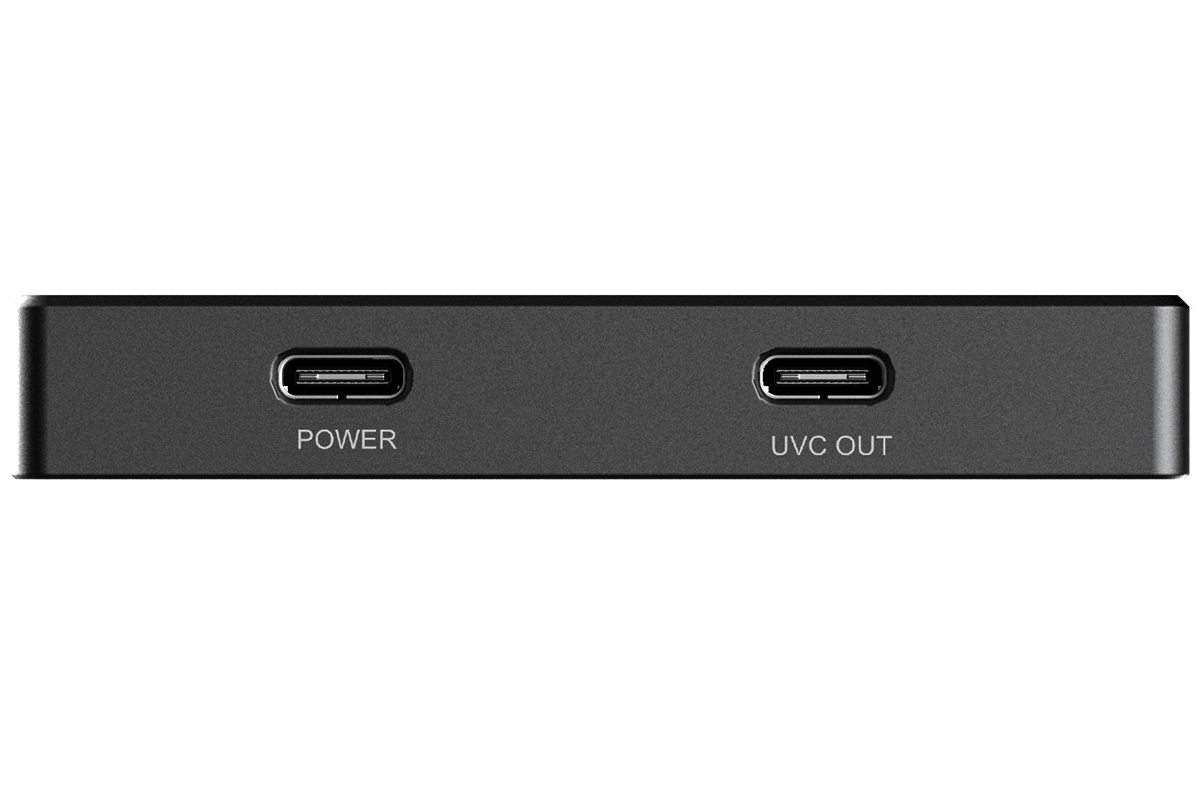

10Gbps USB 3.2 Type-C Transmission+100W PD Fast Charging
High-speed data transfer via USB 3.2 (10Gbps), enabling smooth 4K60 video streaming with minimal latency.
Features real-time signal indication & 100W PD fast charging for ultimate convenience and efficiency
UVC Plug-and-Play Compatibility
Support Windows XP/7/8/10/11, MacOS, Android 5.0+, compatible with software and platforms like OBS Studio, QuickTime Player, TikTok, Twitch, and YouTube, all without drivers
Wide Compatibility
No driver required, works with a variety of devices, including laptops, tablets, PS4&5, Switch, cameras, and TV boxes
Wide Applications
Suitable for high definition acquisition, live broadcasts, conference rooms, video recording, teaching recording, medical imaging, game entertainment live broadcasting, etc
Parameters of UCH904 | 4-in-1 HDMI 4K60hz Capture Card with Loopout
Product Name
4-in-1 HDMI 4K60hz capture card with Loopout
Model
UCH904
HDMI In
4096x2160@60Hz YUV420 4096x2160@30Hz YUV444
HDMI Out
4096x2160@60Hz YUV420 4096x2160@30Hz YUV444
Line Audio In
Analog Stereo to I2S Input (Connected to Channel 1)
UVC Out
4 Channels, USB Audio/Video compliant with UVC 1.0 protocol.
Audio: Default 48KHz/24bit Stereo, 5.1CH support.
Type-C USB 3.2 Gen 2x1 (10Gbps)
UVC OUT Video Formats
YUV422, MJPEG, RGB24, NV12
UVC OUT Resolutions
4096x2160@60Hz (MJPEG) 3840x2160@30Hz (YUV420)
Power
PD Fast-Charging Protocol (Max 100W)
DC-5V OUT
5V/2A
OS Support
Windows XP/7/8/10/11, Android 5.0+, macOS
Dimensions
165mm x 82mm x 13mm
(Includes mounting holes with hot-shoe design)
Weight
220g
Operating Temp
-20° C ~ 50° C (Operating), -20° C ~ 80° C (Storage)
Diagram of UCH904 | 4-in-1 HDMI 4K60hz Capture Card with Loopout
Apply to game live streaming, live broadcasting, online classes, video conference, etc.
