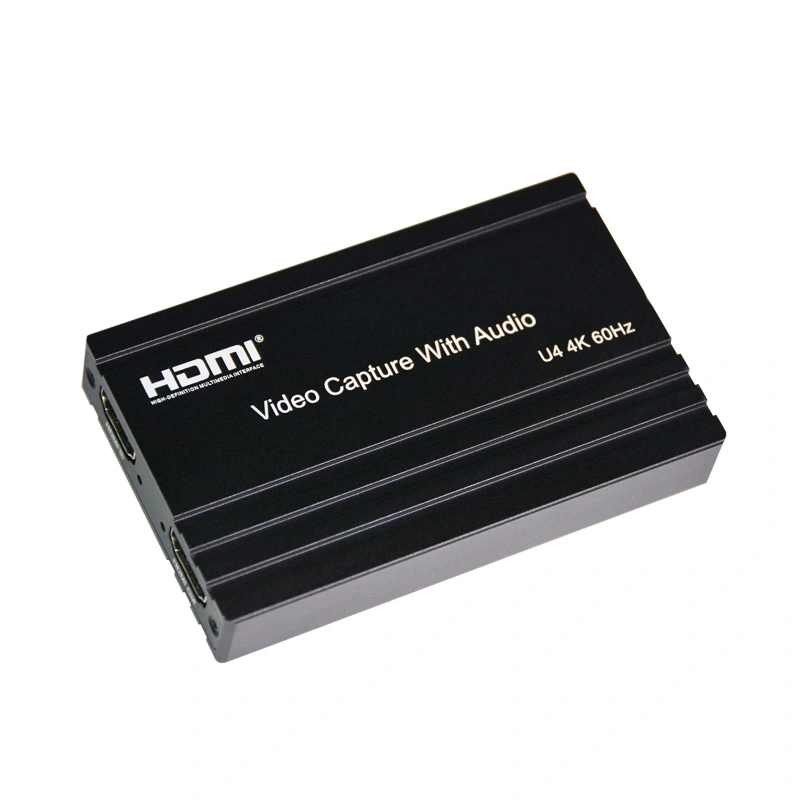

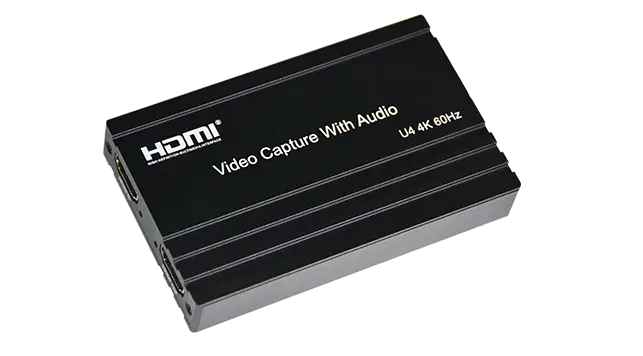

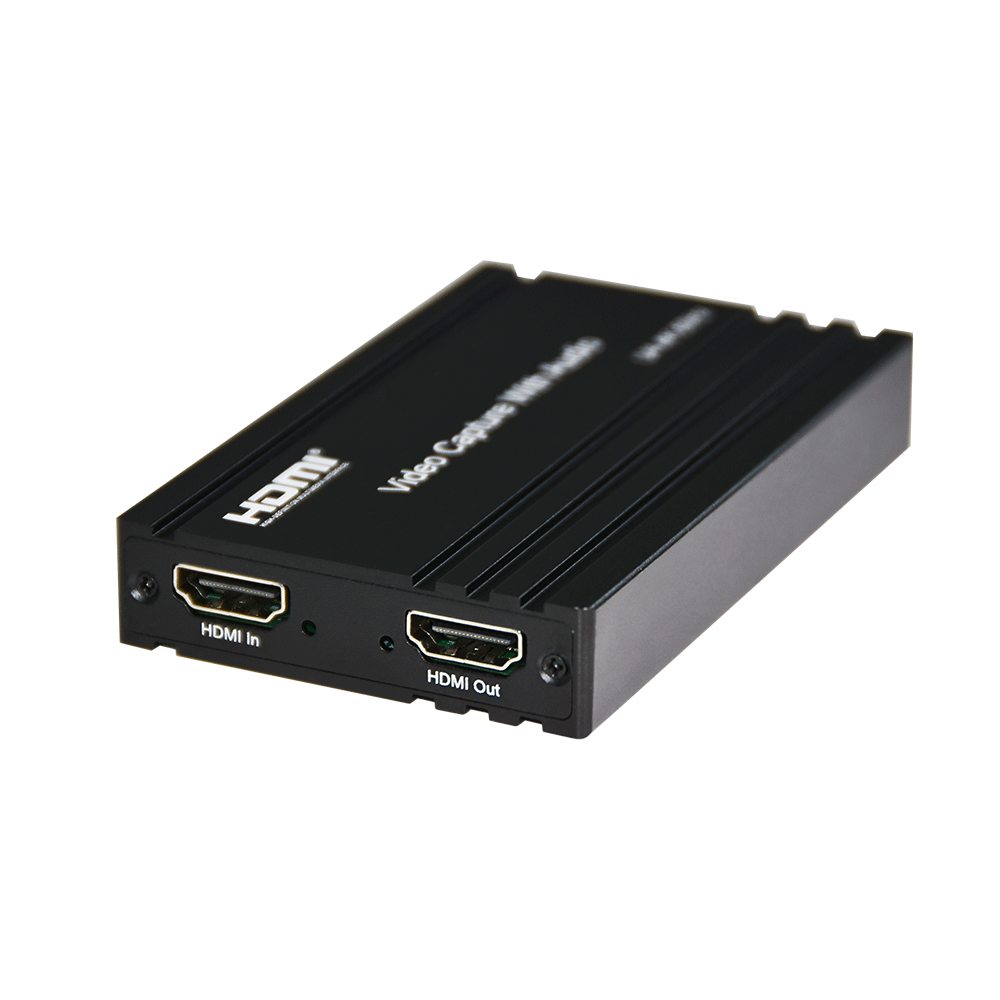

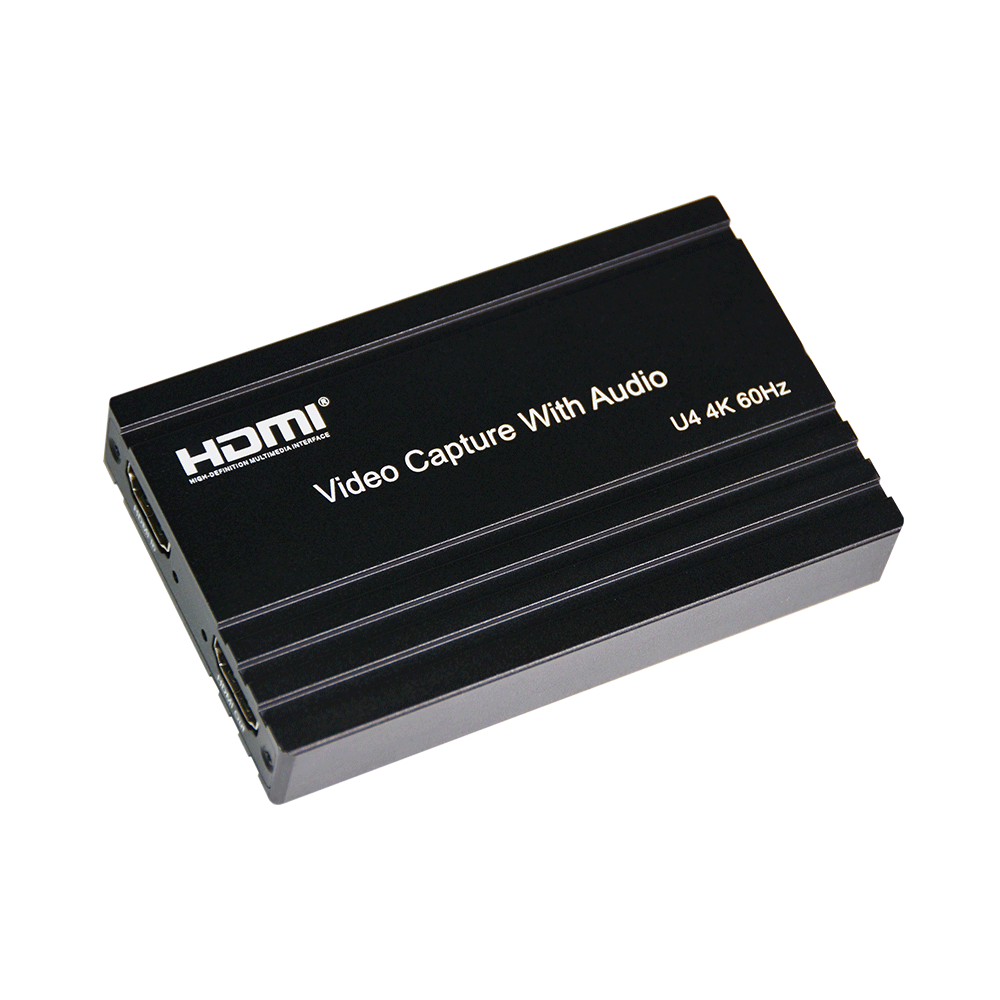

ORIVISION UCH801 | 4K@60 HDMI to Type-C Video Capture Card

4K@60 HDMI to Type-C Video Capture Card

Input: 4k HDMI2.0 input, microphone input

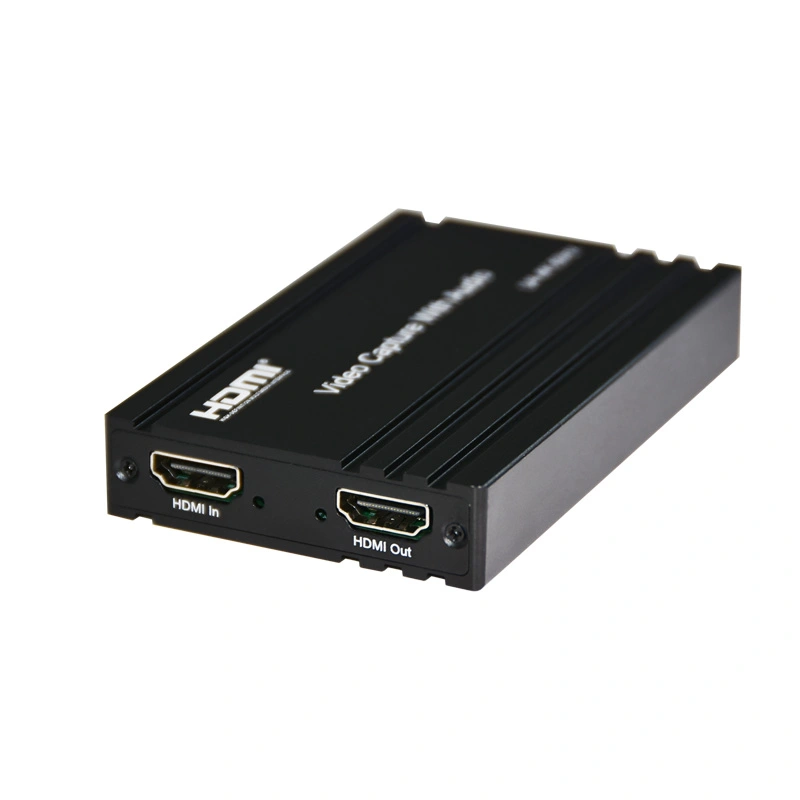

Output: 4k HDMI 2.0 loop out, Type-c (5Gbps) output, audio output

Automatic detection of the input signals, resolution up to 4K@60Hz

Support video format: MJPEG/YUY2/NV12/I420,etc

Uncompressed video and audio acquisition, meet the UVC and UAC standards

USB Type-c power supply, plug and play, no drive

Compatible with Windows, MacOS

Compatible OBS, Potplayer, VLC, Vmix and etc


Availability:



Inquire

Model:
UCH801

Description

Introduction

Parameters

Diagram

UCH801-HDMI-video-capture-01

Introduction

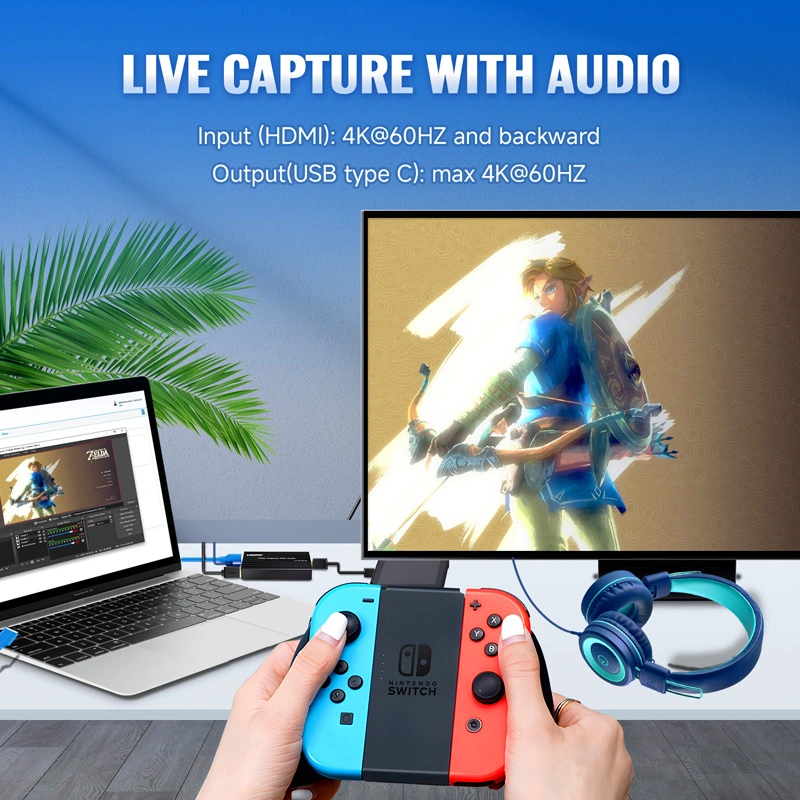

4K@60 HDMI to Type-c Capture Card With Audio

The HDMI video capture can capture HDMI video and HDMI audio with MIC audio mix. It can transmit audio signal to computer and smartphone to preview and storage, suitable for game live meetings, the HD recording supports the RGB format.

HDMI Input Resolution: Up to 4K@60hz 4:4:4
Type-c Out-put Resolution: Up to 4K@60hz
Real 4K@60HZ Input/Output & Support High Refresh Rate

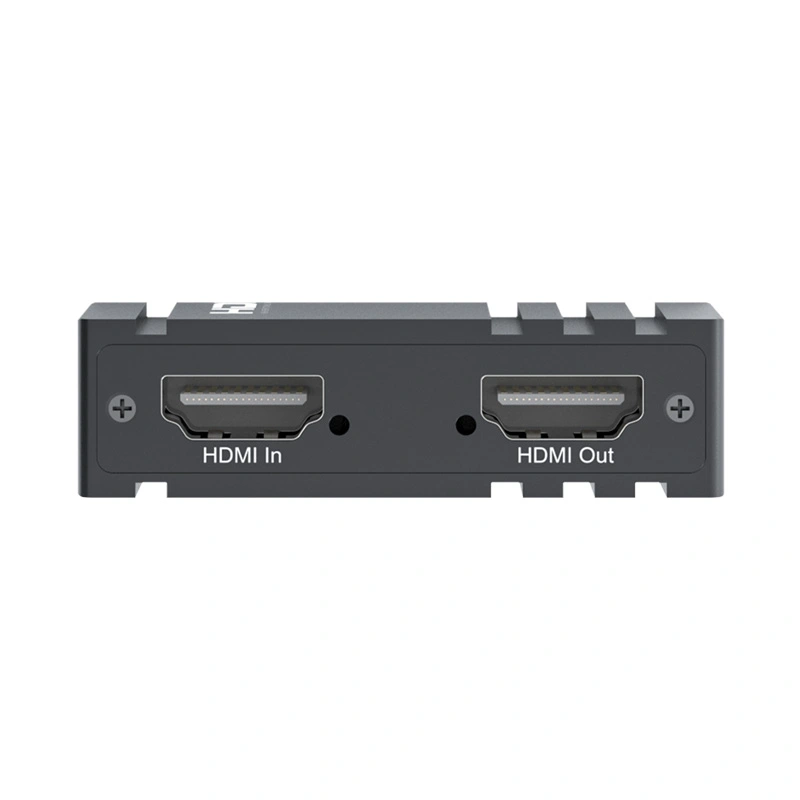

HDMI video capture card supports up to 4K@60HZ input and 4K@60HZ output. Video capture card supports 4K@60 passthrough HDMI loop-out. If need higher refresh rate in streaming and recording, it also supports up to 2560x1440@144FPS, 1920x1080@240FPS or 1280x720@120FPS.
Multiple Operating System

You may use it with OBS, Potplayer, VLC, Vmix, Amcap...etc. Also, cam link supports System of Windows, MacOS. Please be kindly noted that Windows need support UVC protocol. MacOS requires system software 10.12 or above.Record and stream your wonderful instant, enjoy the excellent experience.
Compatibility & Applications

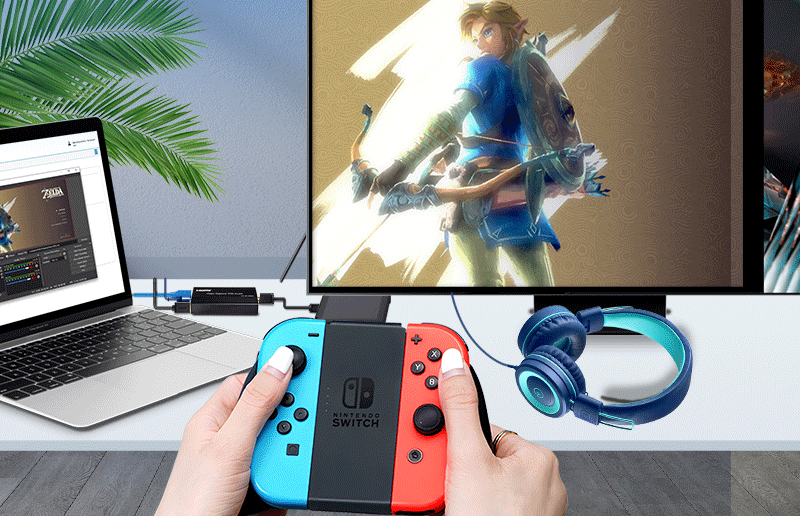

Game capture card can be easily connected to your DSLR,Camcorder, action Cam to your PC or Mac to do live streaming. Or you may connect it with your Nintendo Switch/PS4/PS5/Xbox game console to enjoy the recording and streaming of game. switch capture card can be widely used in game streaming, life streaming, online conference,online course, teaching recording,broadcasting ...etc.

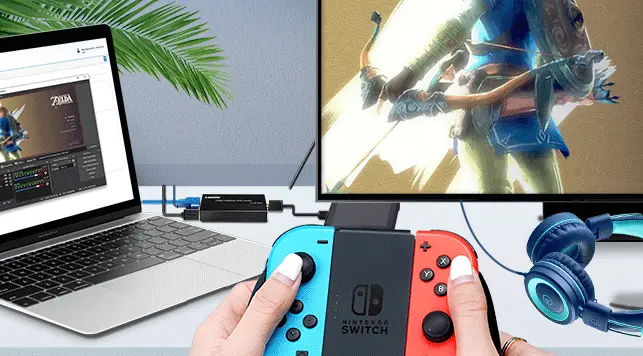

Real-time Preview & Screen Monitoring

Capture card can capture HDMI embed video and audio with Mic audio mix. And then transmit signals to your computer for preview or storage. Capture card nintendo switch can share video loop-out passthrough by the HDMI out port to screen or tv for checking/monitoring in real-time. The HD recording supports the RGB format. It supports HDR 10 which enrich more details and colors in game/screen to present excellent visual effects.

Parameters of UCH801 | 4K@60 HDMI to Type-C Video Capture Card

Product Name	4K60 HDMI to Type-c Video Capture Card With Audio
Model	UCH801
Input Interface	HDMI, 3.5mm Mic
Output Interface	HDMI, USB3.0(Gen 1) Type-C, 3.5mm earphone
Input Resolution	Maximum 4k@60Hz 4:4:4
Input Resolution	Maximum 4k@60Hz
Video Output Mode	MJPEG/YUY2/NV12/I420
Max Bandwidth	600MHz
Maximum Baud Rate	18Gbps
Support Audio Format	Meet the UVC and UAC standards
Cable Length	≤5m, AWG26 HDMI standard cable
Max Working Current	0.7A/5VDC
Operating Temperature Range	(-10 to +55℃)

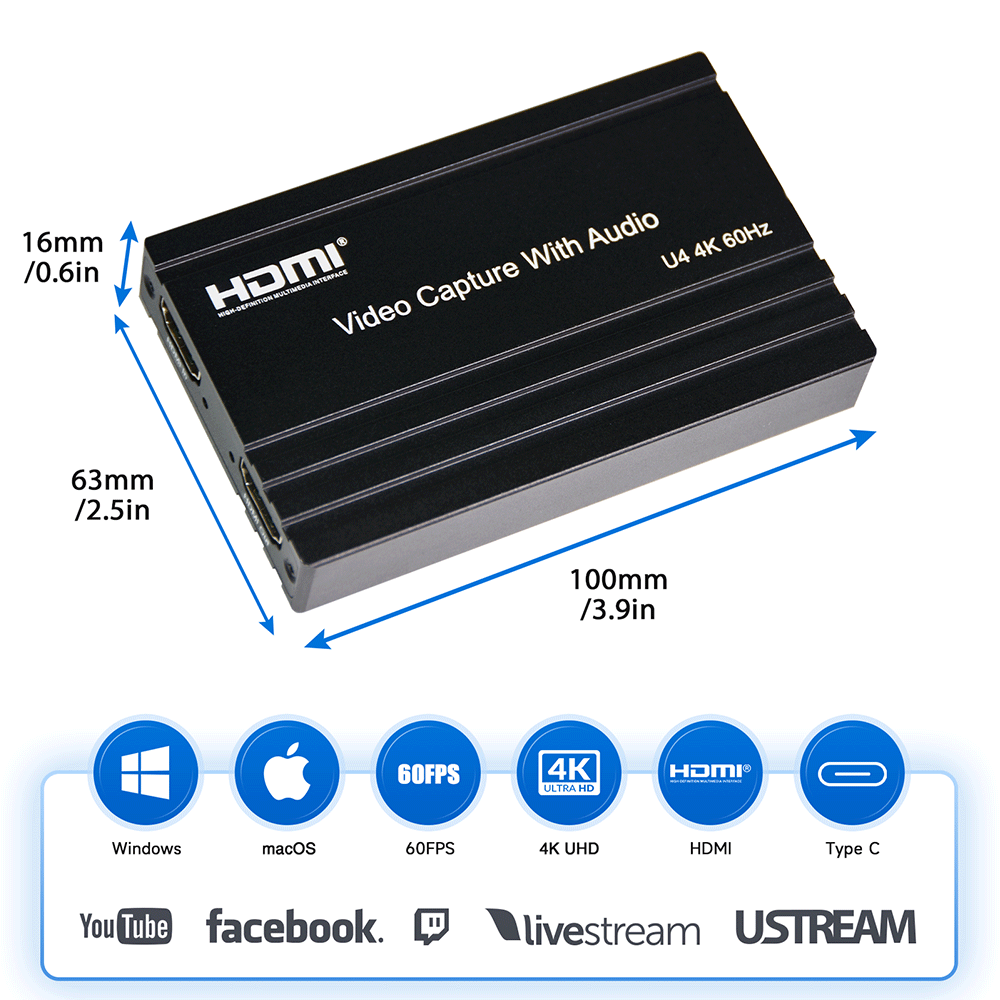

Dimension	100x63x16 (mm)
Weight	126g

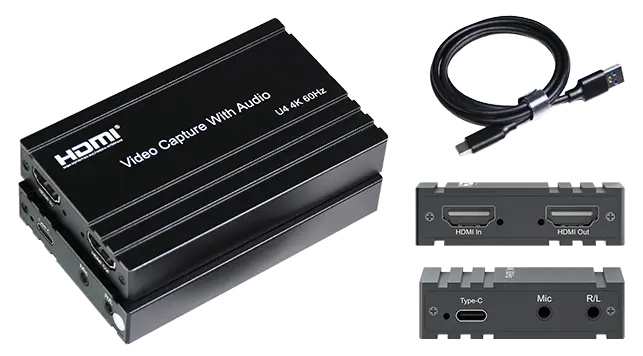

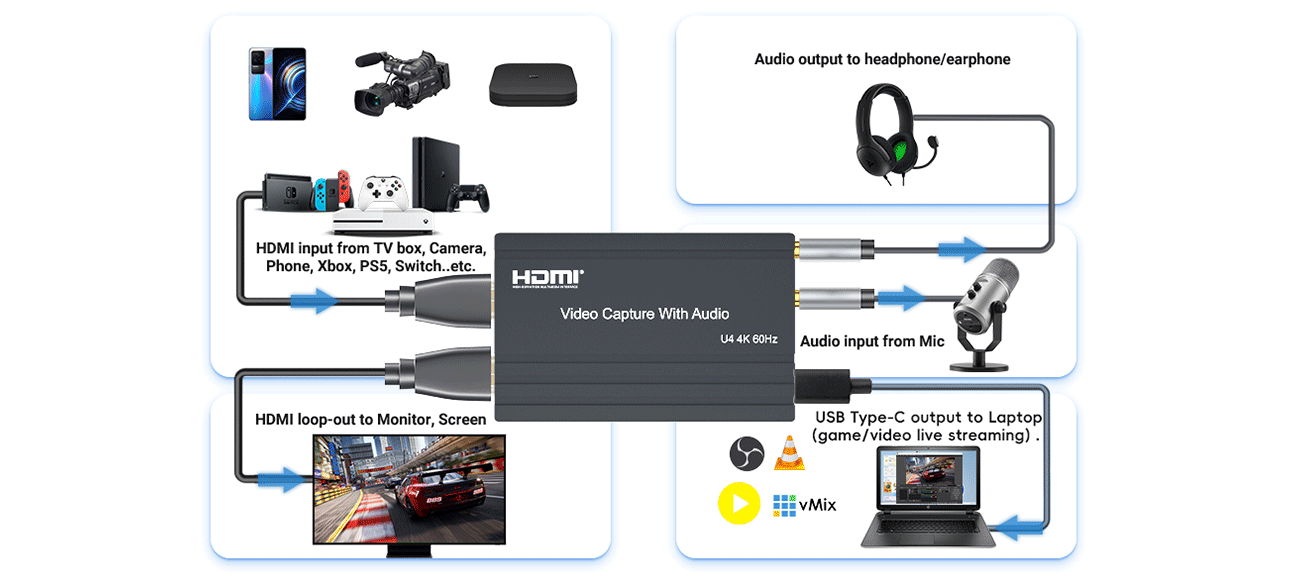

Diagram of UCH801 | 4K@60 HDMI to Type-C Video Capture Card

Apply to game live streaming, live broadcasting, online classes, video conference, etc.
