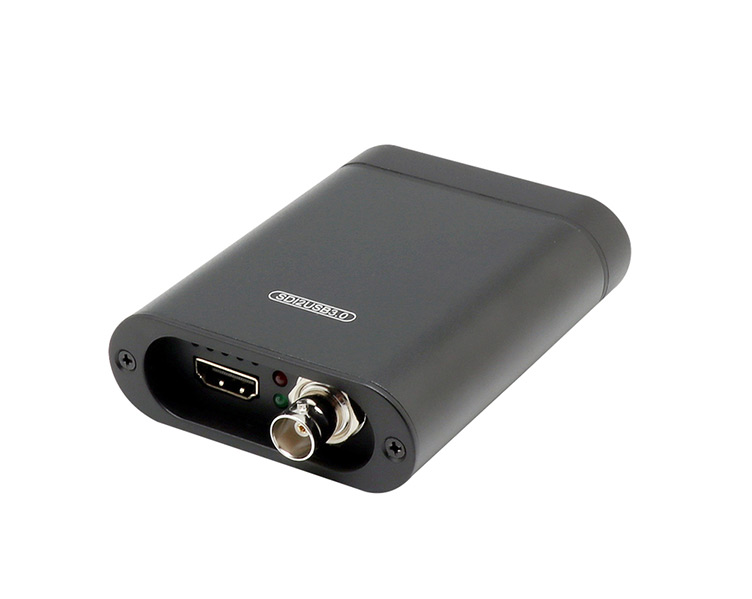

ORIVISION USB3.0 1080@60 HDMI/SDI Capture Card

Brand: ORIVISION

Model: ZY-UCH301

Input Interface: HDMI, SDI

Output Interface: USB3.0, HDMI

HDMI Input Resolution: Up to 1080@60hz

USB Out-put Resolution: Up to 1080P@60hz

Support System: Windows, Linux and Mac OS

Software Support: Most sofware: VLC,OBS,Amcap,etc.

Warranty: 1 Year

Description

Introduction

Parameters

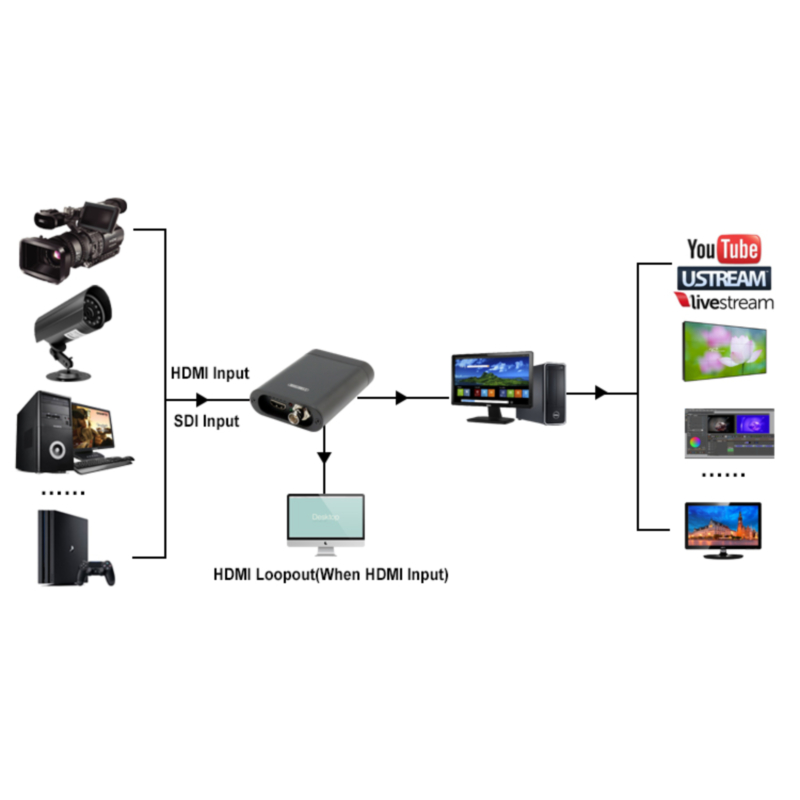

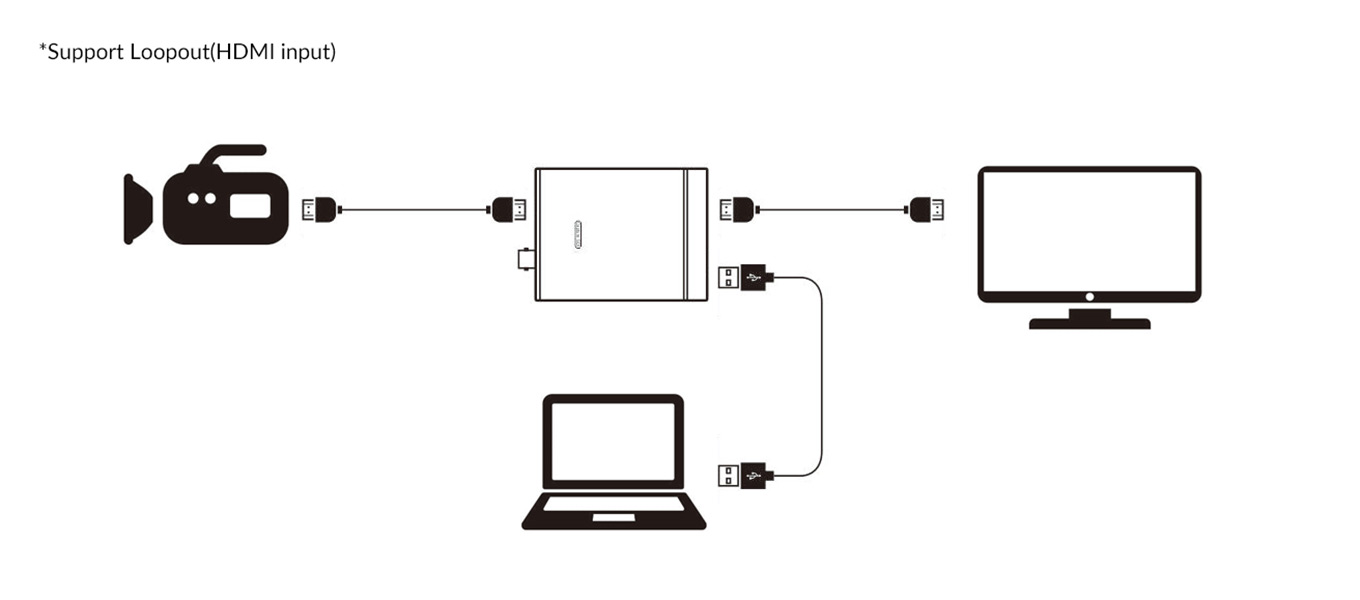

Diagram

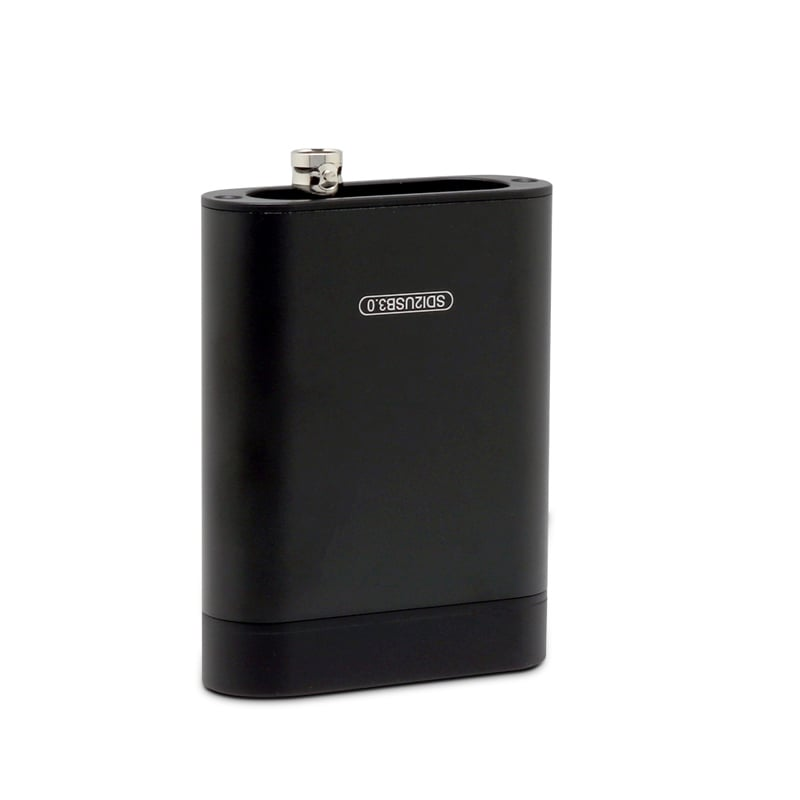

UCH301 HDMI video capture-01

Introduction

HDMI to USB 3.0 Capture Card

It is a PRO USB external HDMI video capture grabber card device for graphics capture,live streaming, recording on your laptop, PC. Free Driver, A driver included with system (Windows, Linux, OS X) ensures plug and play compatibility, Capture one single channel HDMI or SDI video signals.
1080p/60fps full HD & UAC and UVC ,The UAC is compatible with HDMI audio capture and audio output ,The converter Support HDMI input HDMI output(Loop Thru). Multiple Dongles Can be Used on One PC.

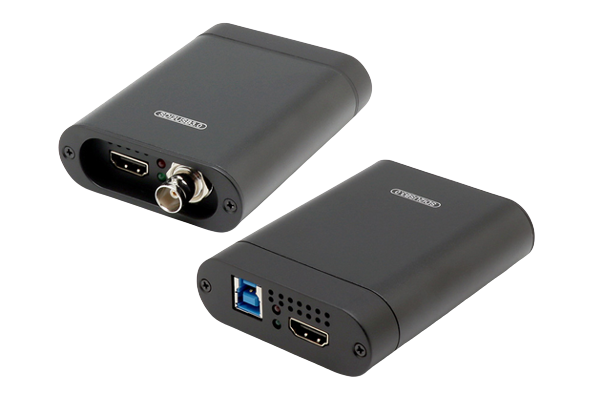

Dual Interface Input

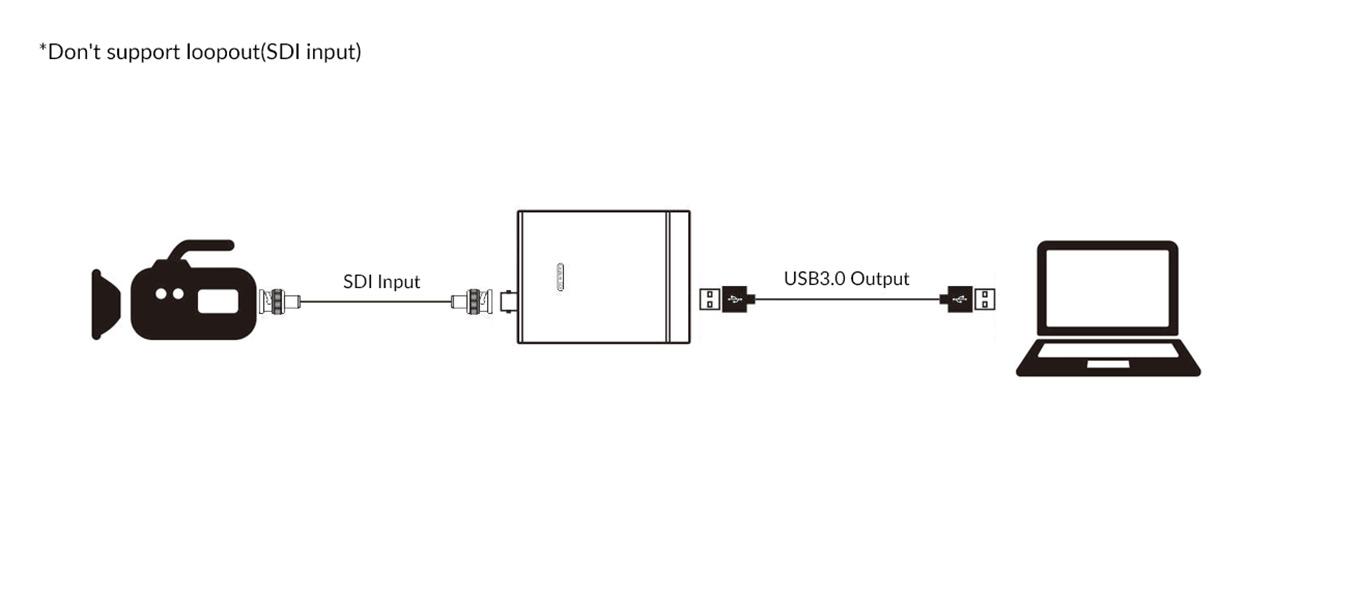

Capture one single channel HD or SDI video signals, support HDMI input HDMI output
Support Multiple Operating System

Support System: Windows, Linux and Mac OS
Broadly Compatibility

Support most acquisition software,
such as VLC/OBS/Amcap, etc
Compatible with Most Live Platform

Such as youtube/facebook/twitch/stream, etc
UHD HDMI Video Capture Card

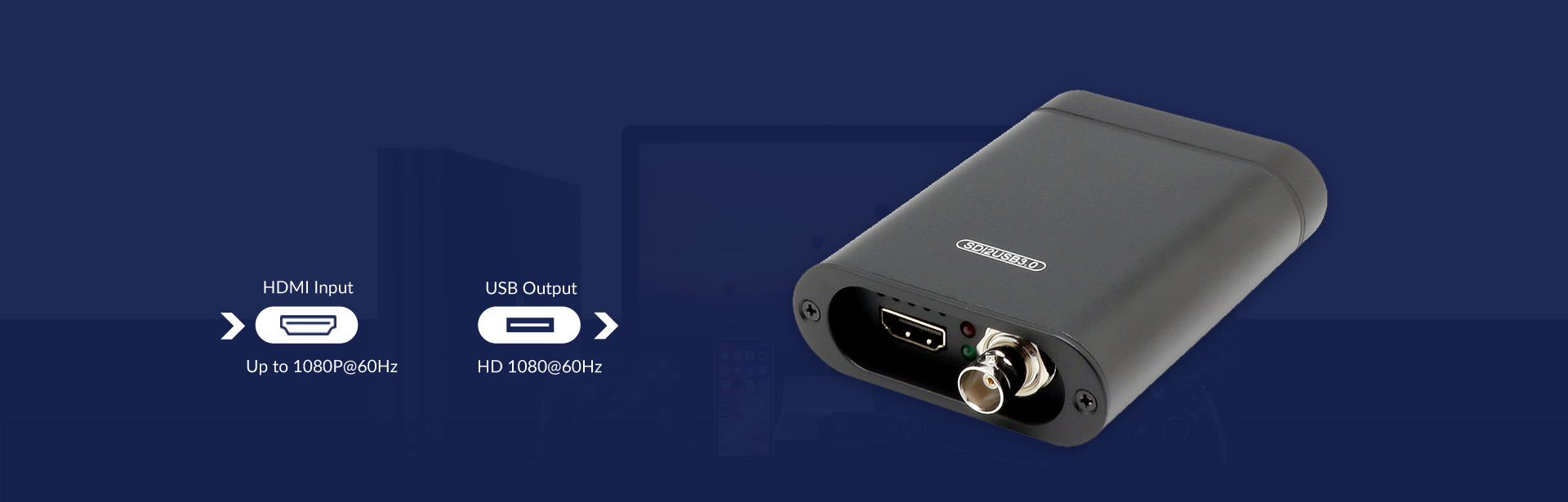

HDMI Input ResolHDMI Input Resolution: Up to 1080P@60hz
USB Out-put Resolution: Up to 1080P@60hz
Drive Free

Without external power supply, compact and portable.
USB3.0 Compatible with USB 2.0

With up to 360MB/s transfer speed, to meet your need from capture to display with low latency.
Powerful Application

Apply to game live streaming, live broadcasting, online classes, video conference, etc.

Parameters

Product Name	HDMI to USB3.0 Video Capture
Model	UCH301
Input Interface	HDMI, SDI
Out-put Interface	USB3.0, HDMI
Video Output	SDI signal corresponds to the output USB signal, HDMI signal corresponds to the output USB signal and HDMI ring signal
Video Output Frame	USB3.0 supports all 60 frames, while USB2.0 supports 1080P10, 720P24, 480P60, etc
SDI Input Format	SD/HD/3G-SDI， conform to SMPTE-259/274/296/372/424/425/292 Standard
HDMI Input Format	Conform to HDMI 1.4a Standard, Support 1080P/60HZ 8-bit,(RGB,YUV)
Transmission Rate	HDMI:165MHZ；SDI:1.485Gb/s，2.97Gb/s
Software Support	Most sofware: VLC,OBS,Amcap,etc
USB Support	Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;
Output Color Space	YUY2
Support System	Windows, Linux and Mac OS
Power	Without external power supply, compact and portable.
Operating temperature	0°C ~ 50°C
Size (LWH)	99x70x24(mm)
Weight	0.1kg

Orivision UCH301 SDI capture card apply to game live streaming, live broadcasting, online classes, video conference, etc.

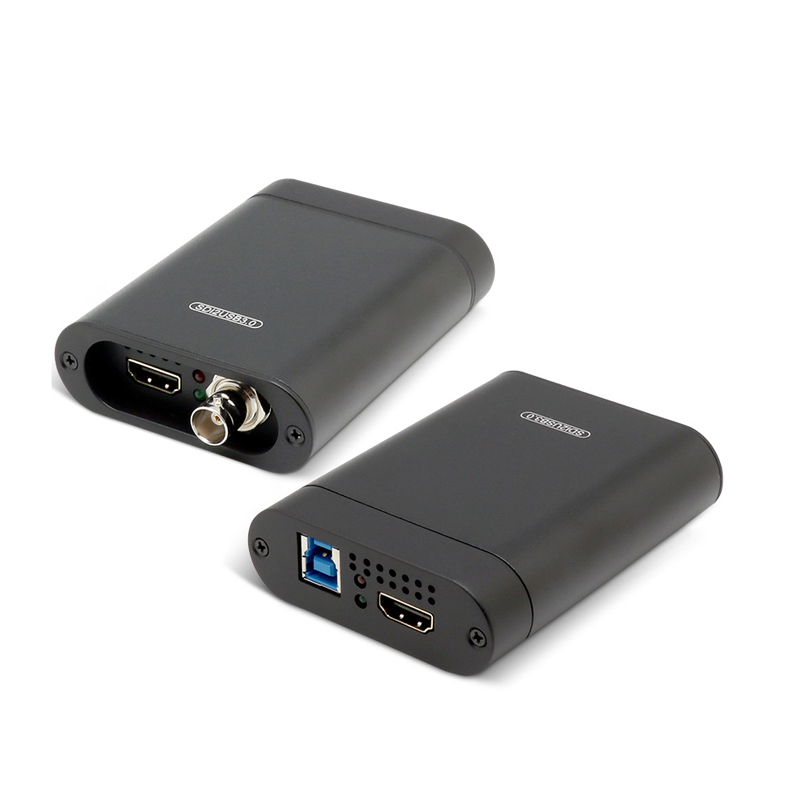

USB3.0 1080@60 HDMI/SDI Video Capture Card
