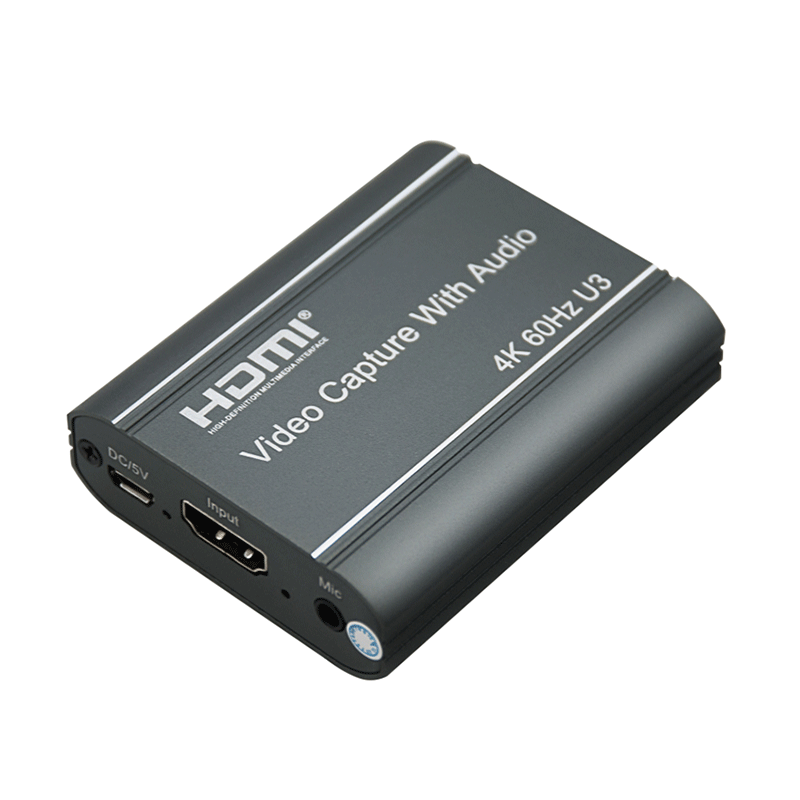

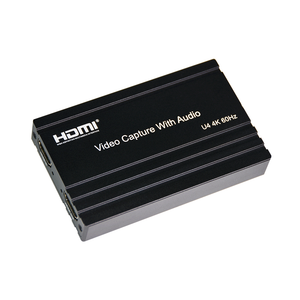

USB3.0 4K@60 HDMI Video Capture Card With Audio

Brand: ORIVISION

Model: ZY-UCH703

Input Interface: HDMI

Output Interface: USB3.0

HDMI Input Resolution: Up to 3840*2160@60hz

USB Out-put Resolution: Up to 3840*2160@60hz

Support System: Windows, Linux and Mac OS

Software Support: Most sofware: VLC,OBS,Amcap,etc.

Warranty: 1 Year

Certificate: CE & FCC & Rohs

Description

Introduction

Parameters

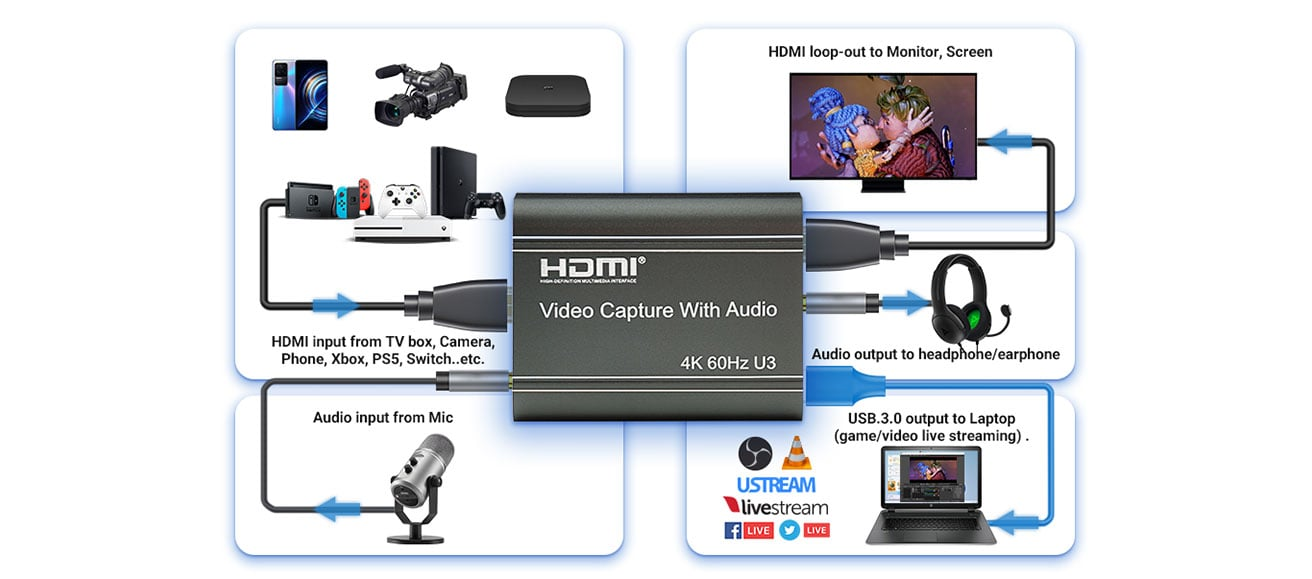

Diagram

UCH703-HDMI-video-capture-01

Introduction

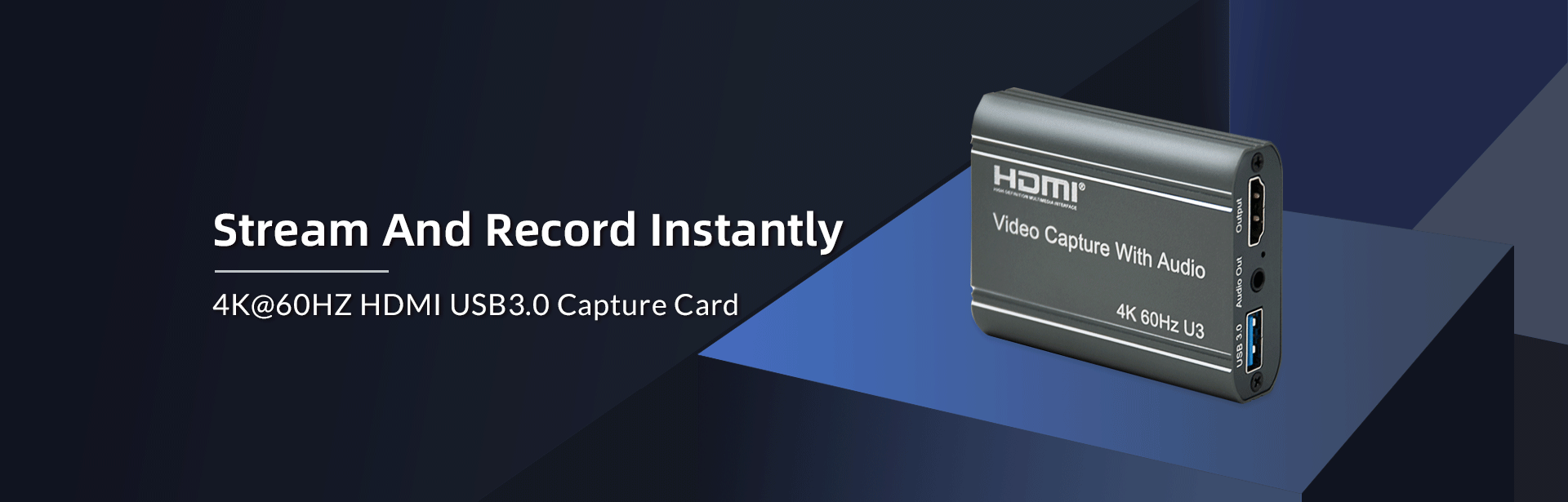

4K@60 HDMI to USB 3.0 Capture Card With Audio

This is a 4K@60 audio and video capture card that supports the conversion of HDMI audio and video signals to USB3.0 data output. Through third-party software, audio and video data collection and recording are completed. The collected audio and video is collected in the form of documents Save, also support upload to third-party software for video live broadcast. This product supports HDMI audio separation, and supports external microphone mixing input. No need to install driver software, you can directly use the video capture card to connect with the computer.

HDMI Input Resolution: Up to 4K@60hz
USB Out-put Resolution: Up to 1080P@60hz
Support Multiple Operating System

Support System: Windows, Linux and Mac OS
Broadly Compatibility

Support most acquisition software,
such as VLC/OBS/Amcap, etc
Compatible with Most Live Platform

Such as youtube/facebook/twitch/stream, etc
UHD HDMI Video Capture Card

HDMI Input ResolHDMI Input Resolution: Up to 3840*2160@60hz
USB Out-put Resolution: Up to 3840*2160@60hz
Drive Free

Without external power supply, compact and portable.

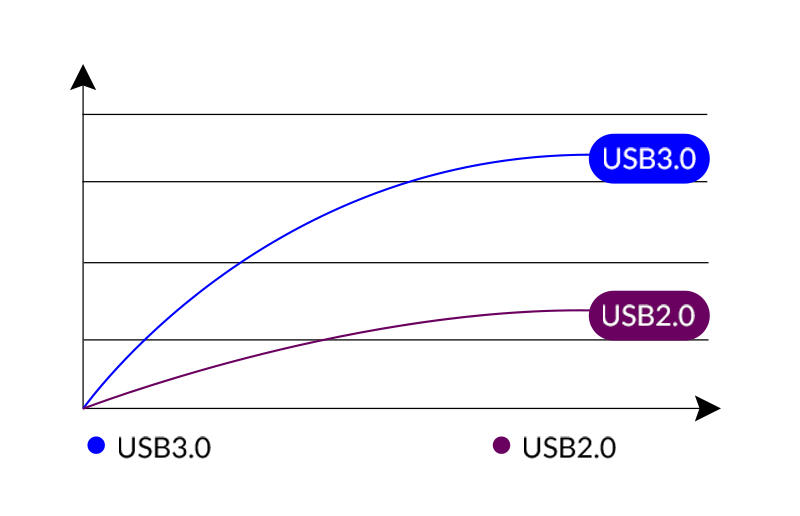

USB3.0 Compatible with USB 2.0

With up to 360MB/s transfer speed, to meet your need from capture to display with low latency.
Powerful Application

Apply to game live streaming, live broadcasting, online classes, video conference, etc.

Parameters of USB3.0 4K@60 HDMI Video Capture Card With Audio

Product Name	HDMI Video Capture Card With Audio
Model	UCH703

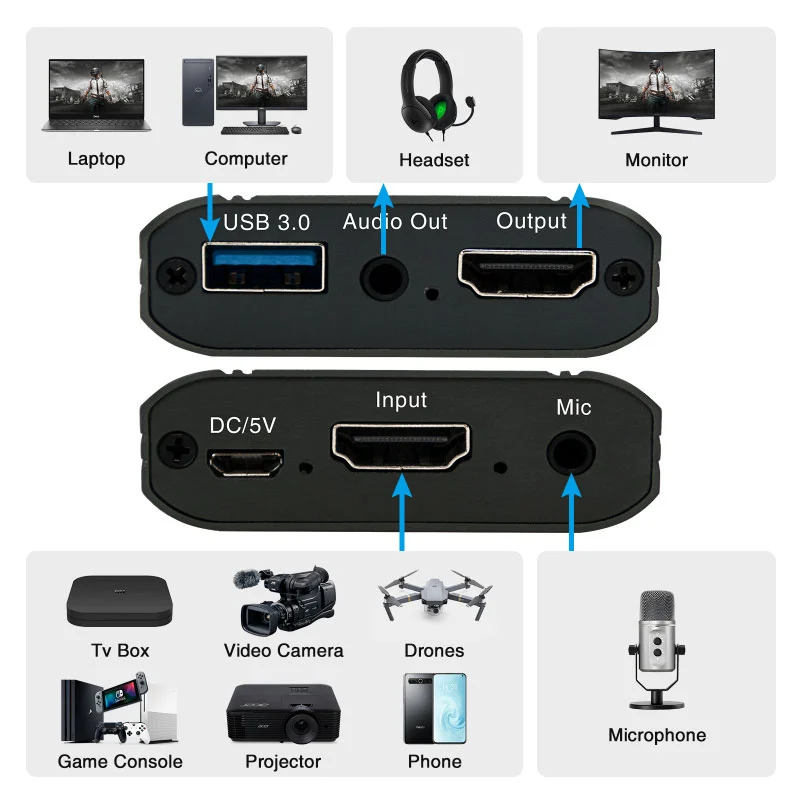

Input Interface	HDMI In, Mic In
Out-put Interface	HDMI Out, USB 3.0, Stereo Out
Video Input	1 channel HDMI video signal input
Video Output	1 channel HDMI video signal output
Support Color format	Deep color
Support Audio format	LPCM
Video Output resolution	Max output can be 4K/60Hz
Max Bandwidth	600MHz
Maximum Baud rate	18Gbps
Software Support	Most sofware: VLC,OBS,Amcap,etc
USB Support	Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;
Input Cable distance	(1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance	(1080p resolution) ≤8m AWG27 HDMI standard cable
Support System	Windows, Linux and Mac OS
Max working current	0.7A/5VDC
Operating temperature	-10 to +55℃

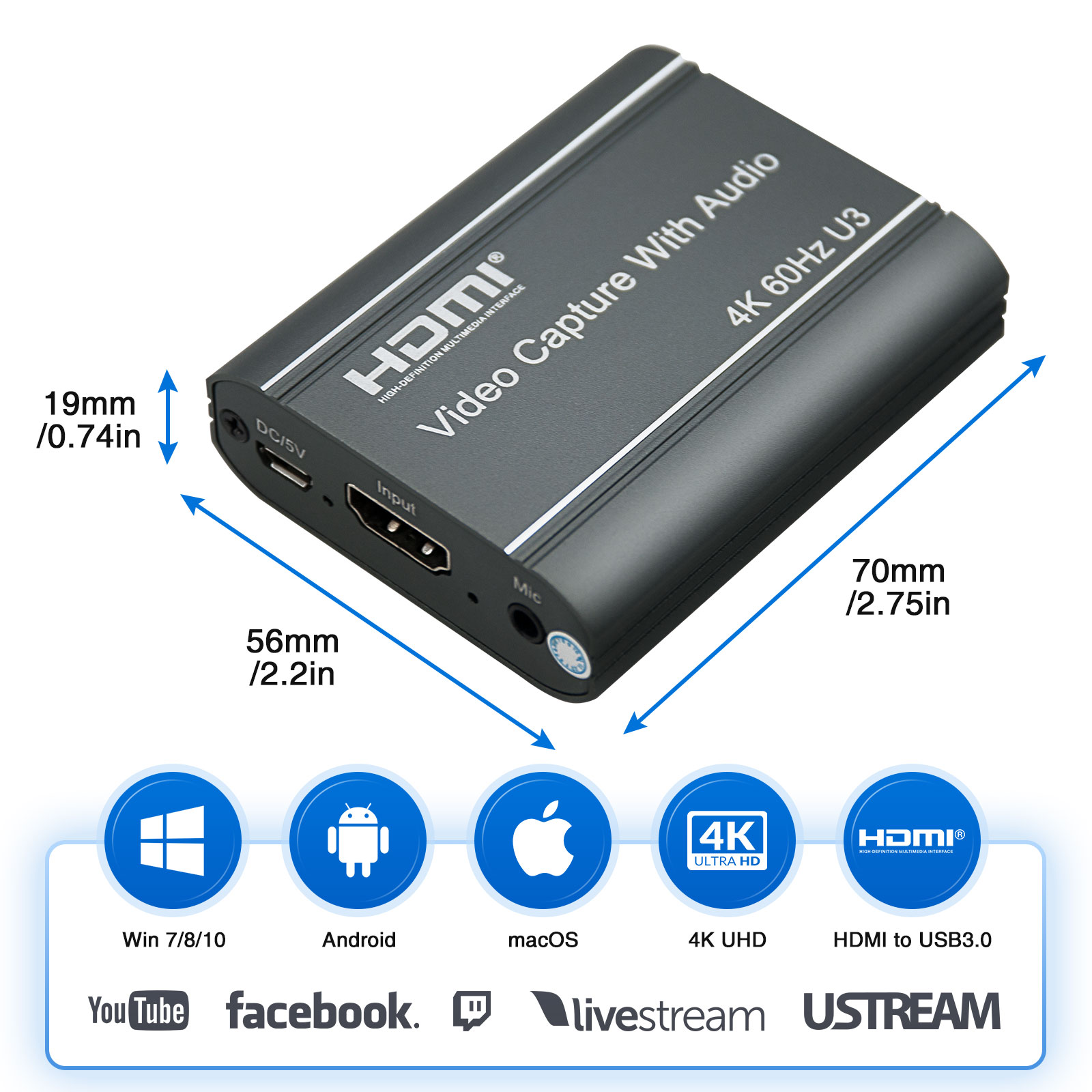

Size (LWH)	70x56x19(mm)
Weight	56g

Apply to game live streaming, live broadcasting, online classes, video conference, etc.
