Parameters

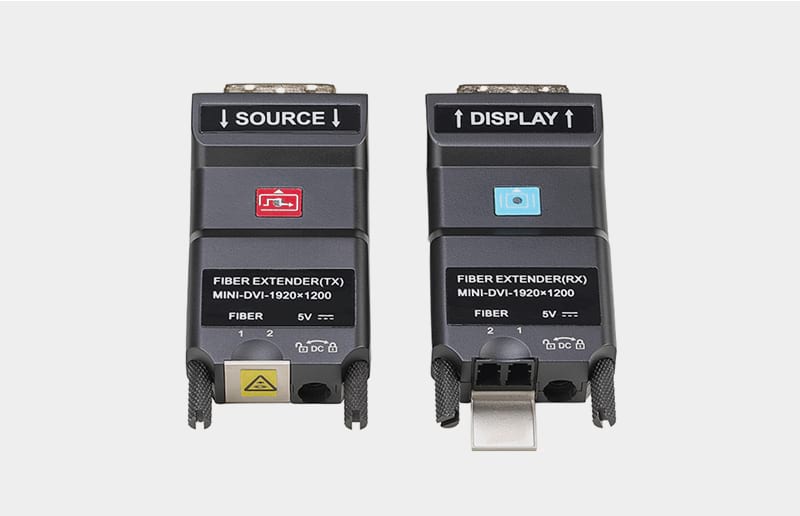

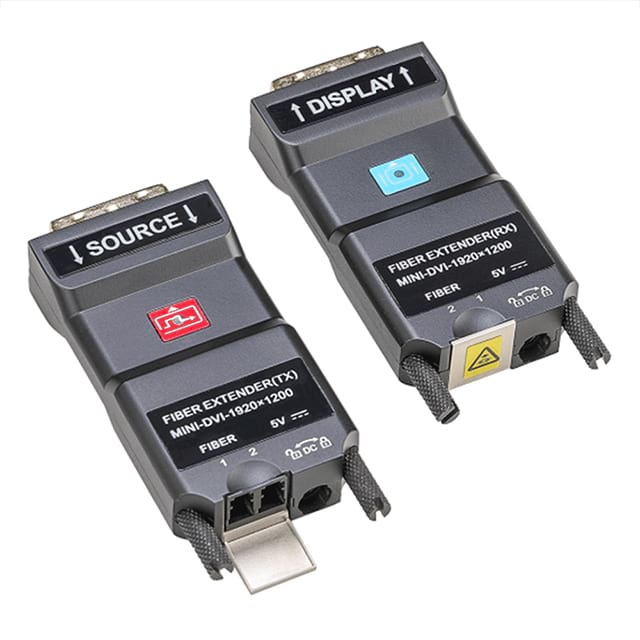

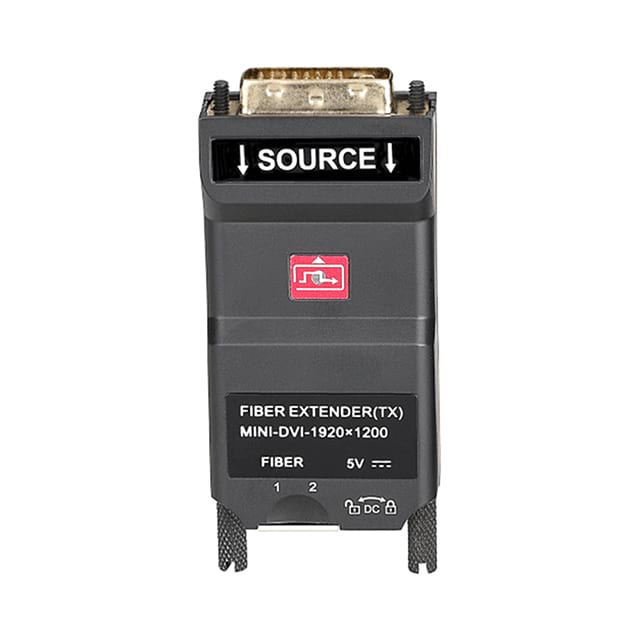

Name | Mini DVI Fiber Optical Extender |
Model | ZY-OD911 |

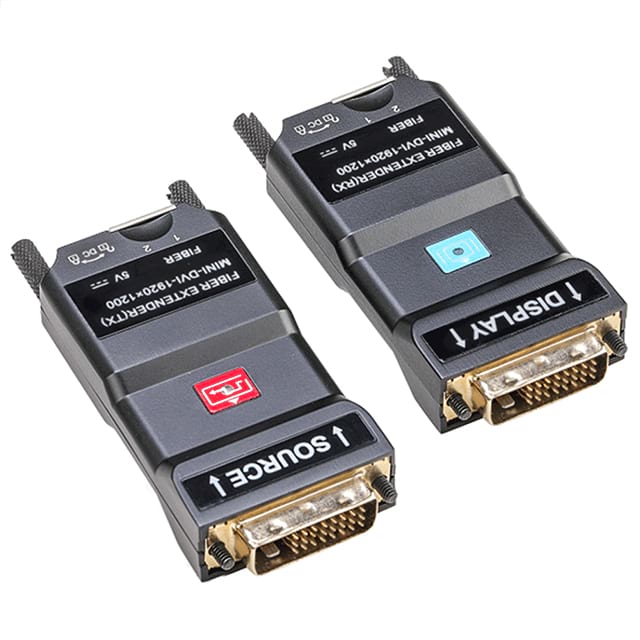

Interface Standard | DVI Male (24+1) |
Pixel bandwidth | 154MHZ |
Resolutions | 1920*1200*60Hz backward compatible |
Interface bandwidth | 6Gbps |
Optical Fiber | |

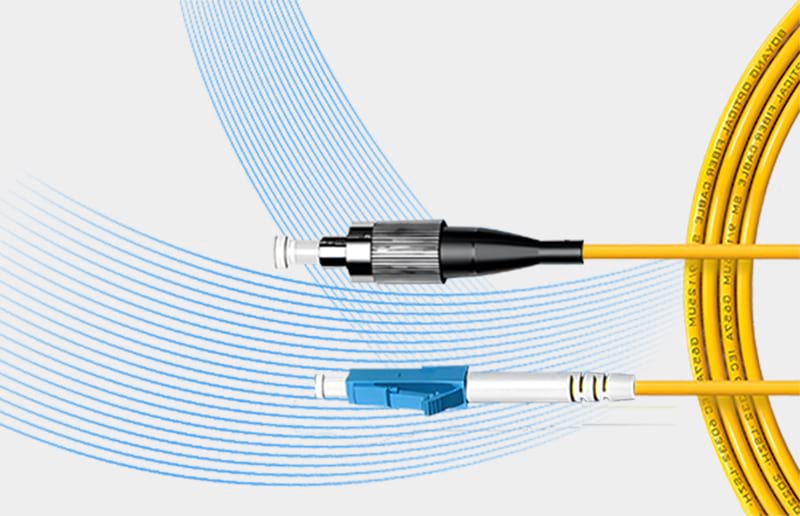

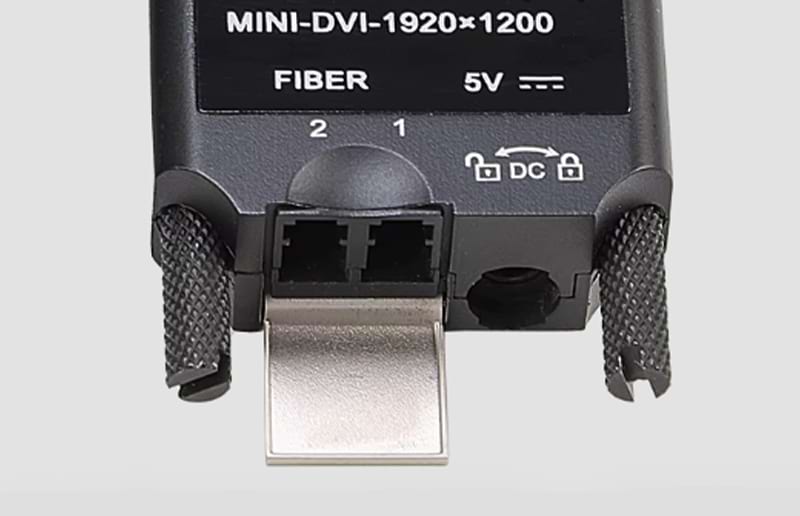

Interface | LC |
Types | SFP Single mode |
Distance | 2KM (default single mode dual core) 300M (default multi mode dual core) |
Other | |
Operating Temperature | -20 ~ +70° C |
Storage temperature | -40 ~ +80° C |
Humidity | 0~ 95 % (non-condensing) |
Power Consumption | 2W/Unit |

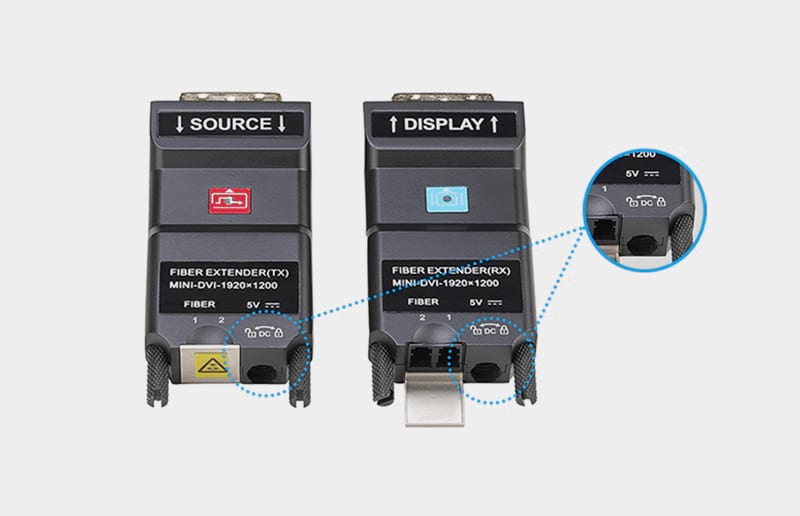

Power | DC 4.5~5.5V |
Dimensions | 88.7*39*15mm (Length * width * height) |
Weight | 0.1KG/Unit |

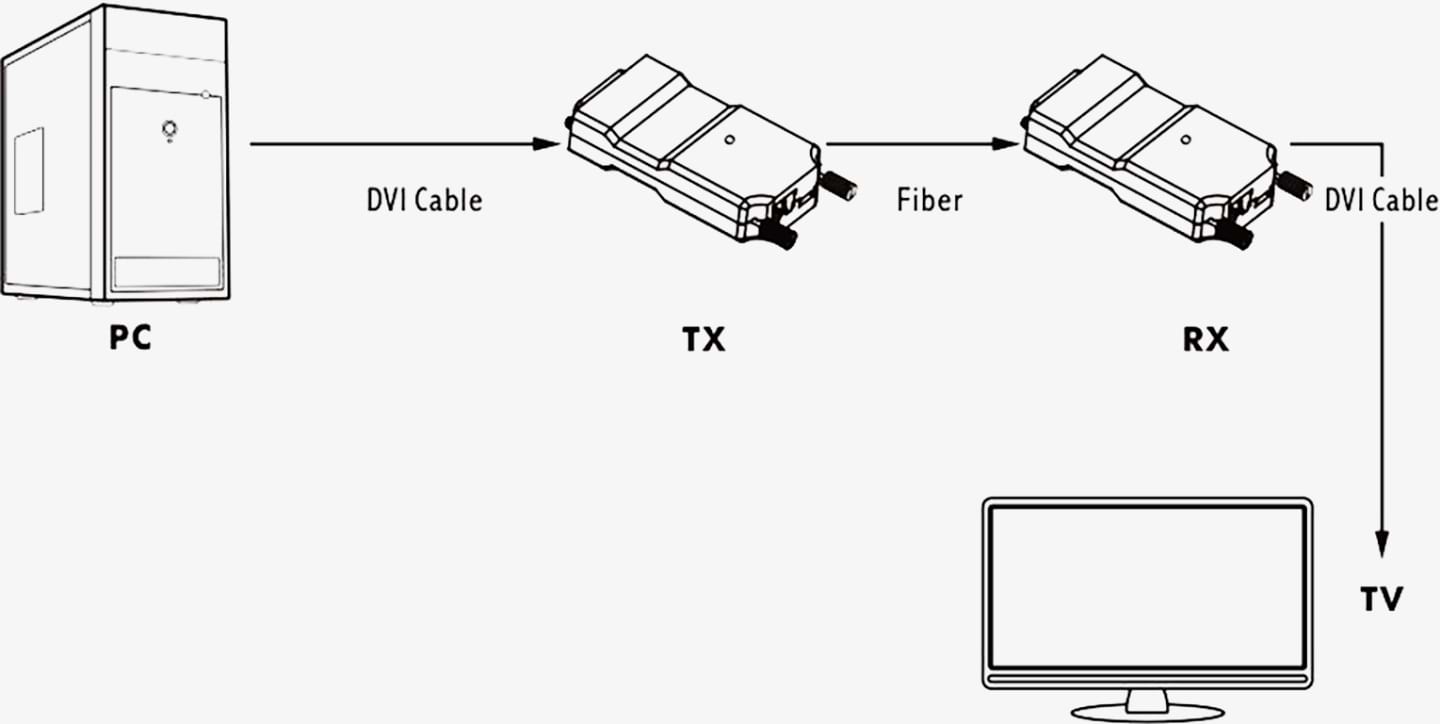

Diagram
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
