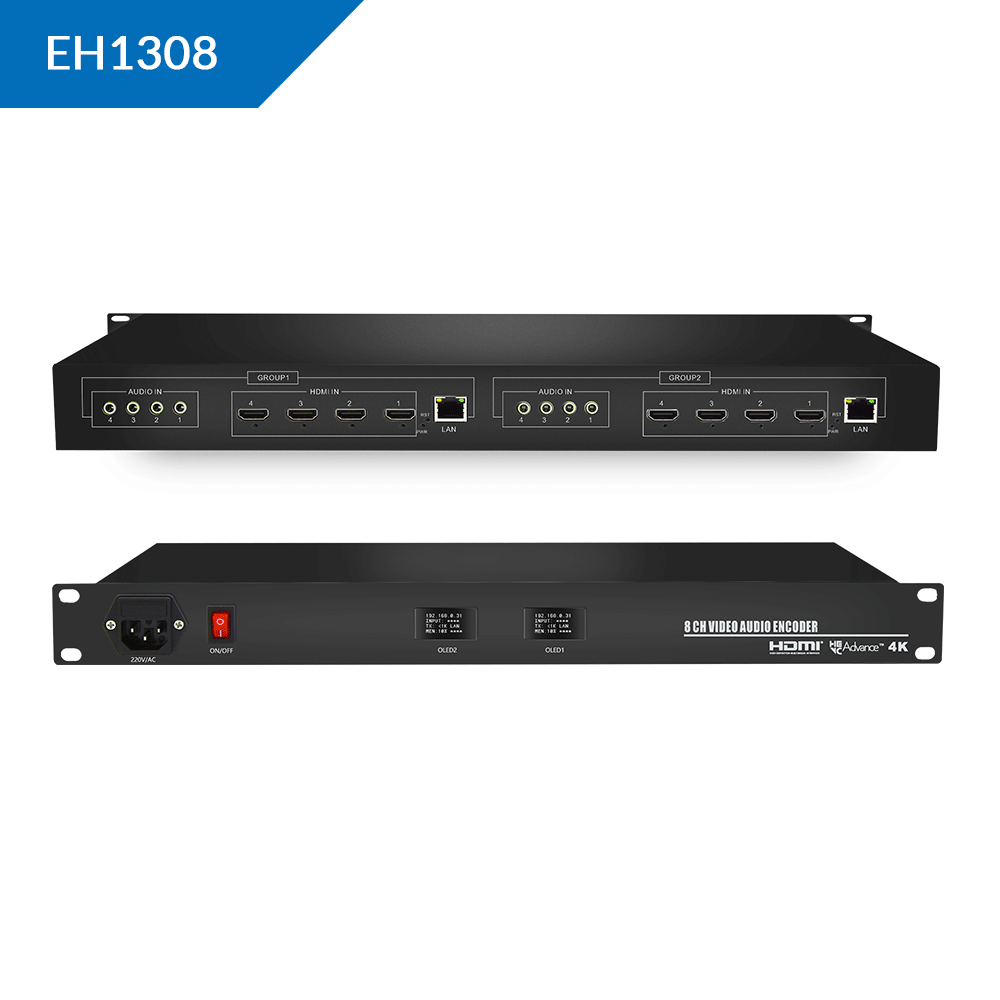

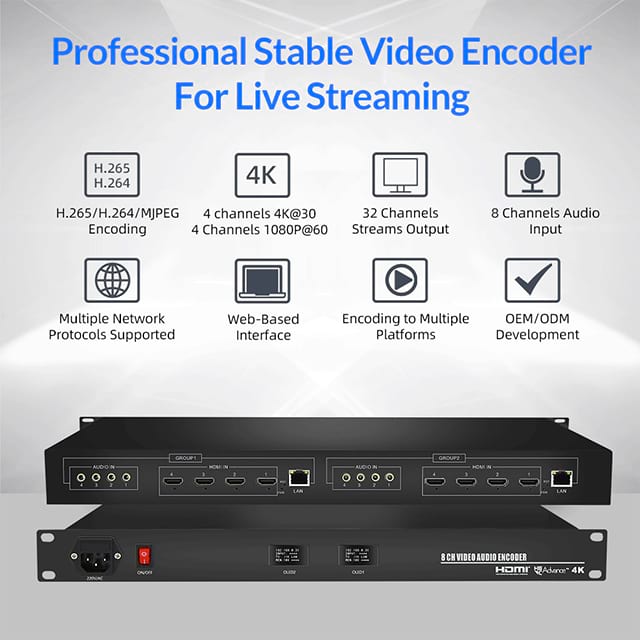

EH1308 is a professional hardware video and audio encoder designed to meet up to the 4CH 4K@30HZ and 4CH 1080P60 HDMI Video transmission applications simultaneously. It supports H.265&H.264 high performance encoding. Also, it supports most protocols including HTTPRTMP/RTMPS/HLS/UDP/RTSP, etc. It's high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.
Adopt H.265 to save over 50% bandwidth
With H.265 HEVC encoding, EH1308 realizes lower encoding bitrate and save more than 50% bandwidth with same image quality comparing with H.264.

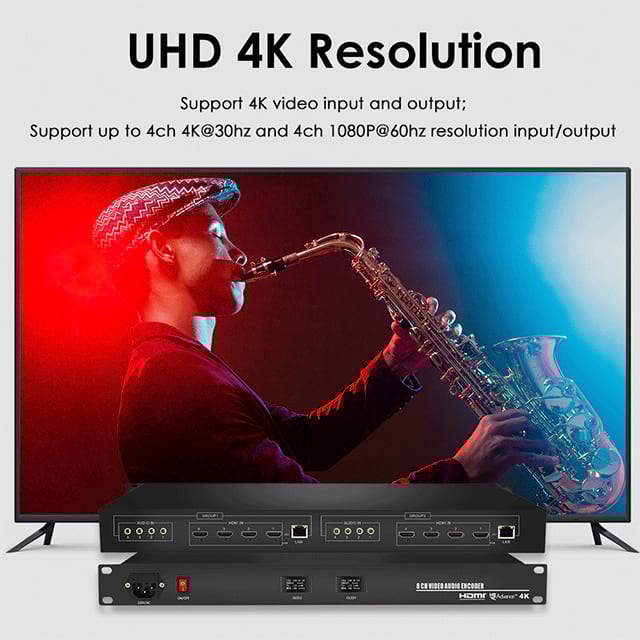

4K transmission to ensure better image quality
Supports real 4Kp30 HDMI input and encodes up to 4Kp30, meet your needs for a high-quality image, support up to 4CH 4K@30hz and 4CH 1080P60 resolution input and output.
Live streaming to multi-platforms Simultaneously
Support 8 channels HDMI output, each channel can be used to up to 4 platforms with the same or different protocols, altogether it can simultaneously live stream to up to 32 platforms.
Web Control
Friendly web UI, users can configure background subjects including LOGO, frame, and graphic overlay with the encoder.
More Protocols Supported
Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP, that means live stream with RTMP/RTMPS, while remote production with SRT.
Audio Synchronization Encoding
Support ACC, MP2, G711 audio format,support audio encoding without the video input.
LOGO/ Image/ Text Overlay
Add any self-defined text, time and image overlay at any position to announce your copyrights.

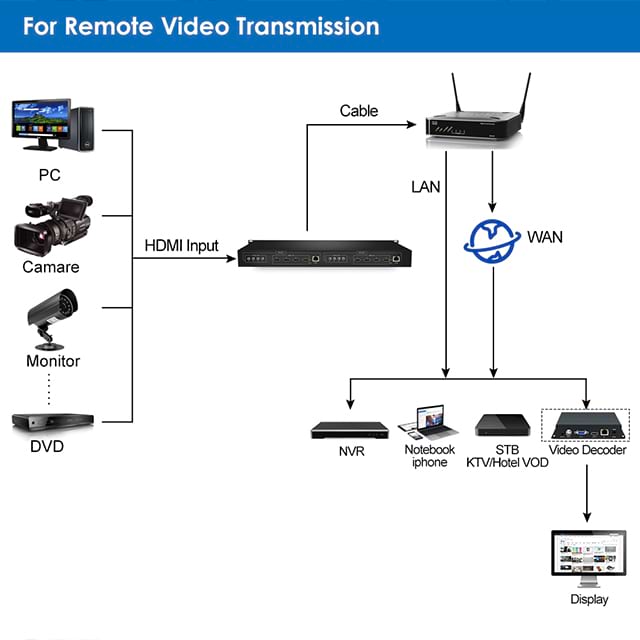

Local and Remote Transmission
Support LAN, WAN
Multiple Signal Input Formats
Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS...
Support OEM/ODM
OEM: Free print company logo by laser print; MOQ≥1 unit. ODM: Pls send your requirements to us. (info@orivision.cn).
Parameters
Model
ZY-EH1308
Video

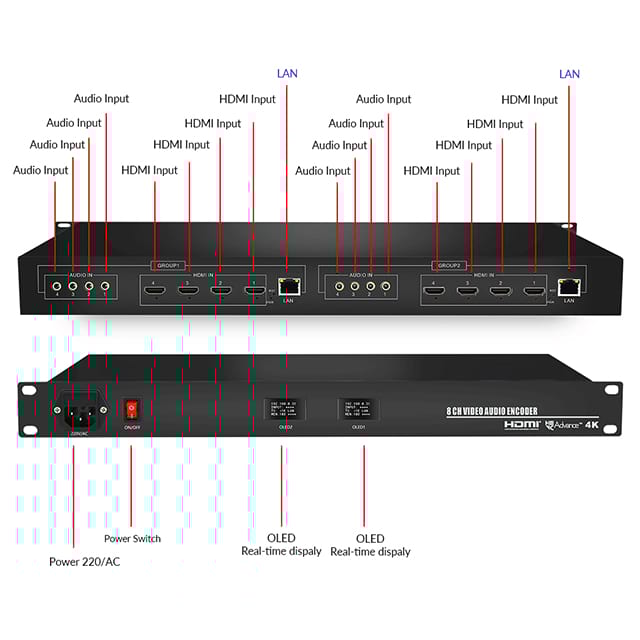

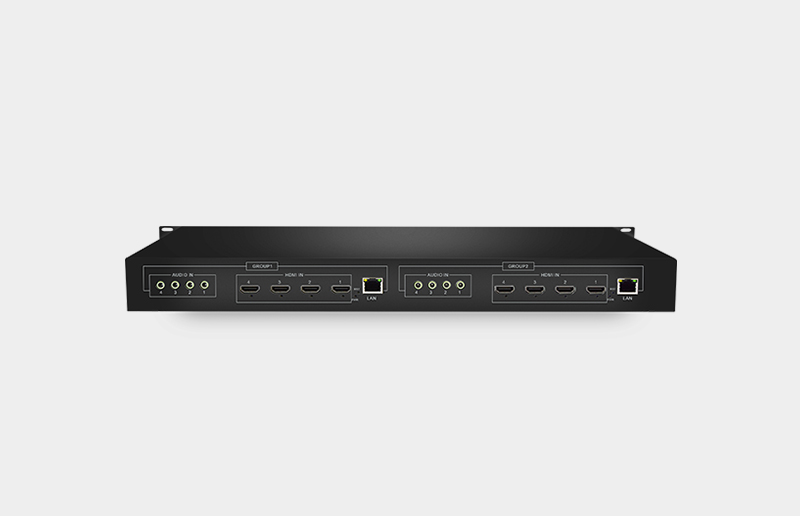

Input Interface
8×HDMI 1.4
Support resolution
Maximum 4 channels 3840*2160@30HZ and 4 channels 1920*1080@60HZ
Frame rate
5-60hz
HDCP
Support HDCP 1.4
Output Interface
LAN Port*2
Video Encoding
H.264/H.265/MJPEG
Max bitrate
16kbps- 12Mbps
Rate control
CBR/VBR
Audio
Input interface
8×External audio, HDMI built-in Audio
Audio Encoder type
MP3/MP2/AAC/G711/AC3/EAAC/EAACPLUS
Bit-rate Option
48K,64K,96K,128K,160K,192K,256K
Sampling Accuracy
24 Bit
Audio Data-rate
64Kb/s to 384Kb/s
Network
RJ45
1000M Ethernet port
Program streaming
SRT, HTTP, RTSP, RTMP/RTMPS, HLS, FLV,
Multicast: UDP/RTP
Control Panel
Web panel (Language is English), remote upgrade
Firmware Update
Enable by uploading files to the dashboard
General
Dimension(W*L*H)
48.5cm×21.5cm×4.5cm
Gross Weight
1.75kg
Temperature
-20~60℃（for storing/working)
Humidity
<90%, non-condensing
Input Voltage
220V/AC
Power Consumption
<40W

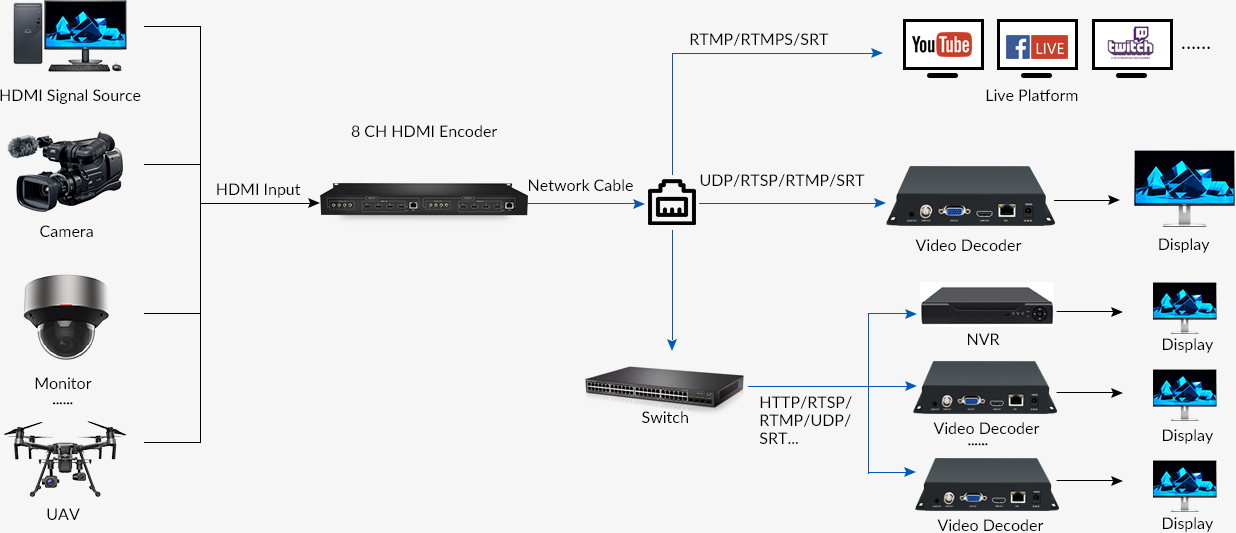

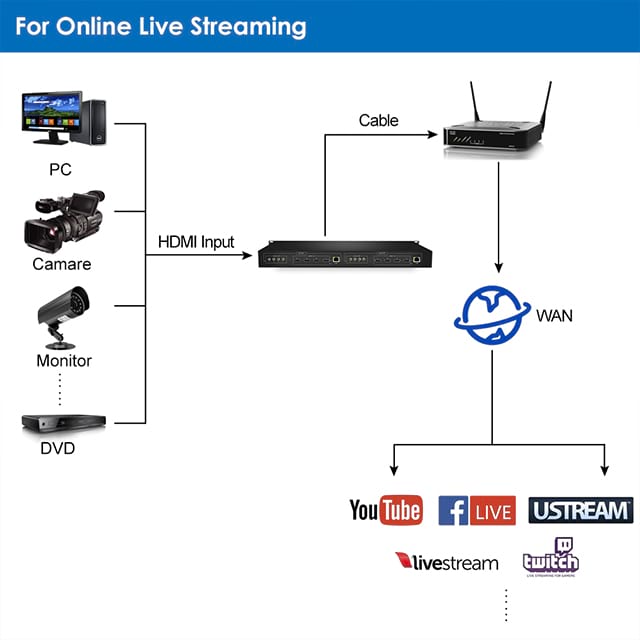

Diagram
Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
FAQs
Q: What is the default login IP of the encoder?
A: The default login IP address is 192.168.0.31.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: What is the login account and password of the encoder?
A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: How to get the newest firmware and update it?
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware. After get the newest firmware, pls follow the steps as below: Step 1: Download the .rar file, do not unzip the file Step 2: Log in to your Encoder or decoder web user interface and click the System button. Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.) Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
