H265 1080P60 VGA Video Encoder With VGA Loop Out

Brand: ORIVISION
Model: ZY-EV901
Input Interface: VGA*1, Audio*1
Output Interface: RJ45*1,VGA*1, Audio*1
Video Encoding: H.265/H.264/MJPEG
Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • EV901

Product Description
Introduction
Parameters
Diagram
FAQ

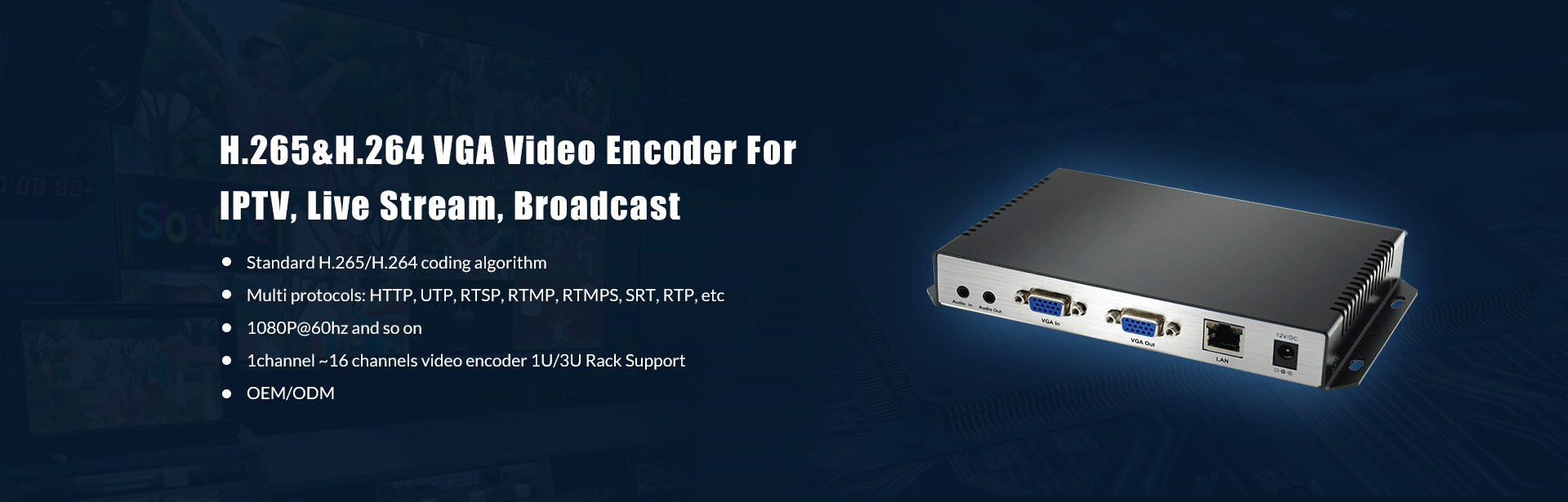

EV901-01



Introduction
  • <span style="color:#333333;"><strong>Stable Video Encoder for Live Streaming</strong></span>

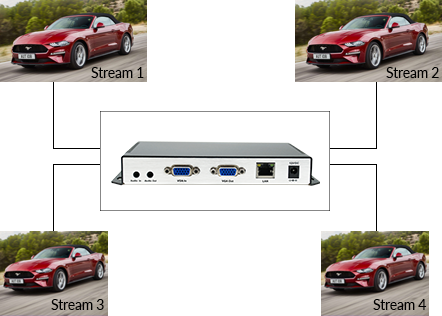

  • <span style="color:#333333;"><strong>4 channel streams output at the same time</strong></span>
  • <span style="color:#333333;"><strong>Multiple Network Protocols</strong></span>
  • <span style="color:#333333;"><strong>Good Compatibility</strong></span>
  • <span style="color:#333333;"><strong>Resolution Setting</strong></span>
  • <span style="color:#333333;"><strong>Web Control</strong></span>
  • <span style="color:#333333;"><strong>Obtain IP automatically</strong></span>
  • <span style="color:#333333;"><strong>Audio Synchronization Encoding</strong></span>
  • <span style="color:#333333;"><strong>LOGO/ Image/ Text / Mosaic Overlay</strong></span>
  • <span style="color:#333333;"><strong>Image Rotation and Mirror Flip</strong></span>
  • <span style="color:#333333;"><strong>Local and Remote Transmission</strong></span>
  • <span style="color:#333333;"><strong>Multiple Signal Input Formats</strong></span>
  • <span style="color:#333333;"><strong>Support OEM/ODM</strong></span>


Parameters


Product NameH.265/H.264 VGA Video Encoder with Loop OutH.265/H.264 VGA Video Encoder with Loop Out
ModelZY-EV901ZY-EV1201
Video

Input Interface1×VGA1×VGA
Maximum input resolution1920*1080@60Hz1920*1080@60Hz
Maximum output resolution1920*1080@60Hz1920*1080@30Hz
Frame rate5-60hz≤ 30Hz
Output interface1×Ethernet port (RJ45), 1×VGA Loop-out1×Ethernet port (RJ45), 1×VGA Loop-out
Video EncodingH.265&H.264/MJPEGH.265&H.264/MJPEG
Max bitrate16kbps- 12Mbps16kbps- 12Mbps
Rate controlCBR/VBRCBR/VBR
Simultaneous StreamsMaximum 4 channels streams at the same time
Stream 1 & Stream 2: up to 1080P@60hz
Stream 3 & Stream 4: up to 576P@60hz		Maximum 2 channels streams at the same time
Stream 1: up to 1080P@30hz
Stream 2: up to 720P@30hz
Audio

Input interface1×External audio, VGA built-in Audio1×External audio, VGA built-in Audio
Output interface1×External audio1×External audio
Audio EncodingAACLC, EAAC, EAACPLUS, MP2, AC3AACLC, EAAC, EAACPLUS, MP2, AC3
Bit-rate Option48K,64K,96K,128K,160K,192K,256K48K,64K,96K,128K,160K,192K,256K
Sampling Accuracy24 Bit24 Bit
Audio Data-rate64Kb/s to 384Kb/s64Kb/s to 384Kb/s
Network

RJ451000M Ethernet port100M Ethernet port
Program streamingHTTP, RTSP, RTMP/RTMPS, SRT, HLS, FLV,
Multicast: UDP/RTP		HTTP, RTSP, RTMP/RTMPS, SRT,HLS, FLV,
Multicast: UDP/RTP
Control PanelWeb panel (Language is English), remote upgradeWeb panel (Language is English), remote upgrade
Firmware UpdateEnable by uploading files to the dashboardEnable by uploading files to the dashboard
General

Dimension(W*L*H)6.4*4.4*1.3in(163*111*32mm)6.4*4.4*1.3in(163*111*32mm)
Gross Weight0.35kg0.35kg
Temperature-20~+60℃ (for working/storing)-20~+60℃ (for working/storing)
Humidity<90%, non-condensing<90%, non-condensing
Input VoltageDC 12V/1ADC 12V/1A
Power Consumption5W5W


Diagram


Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.


EV901-Diagram01


FAQs
  • Q: What is the default login IP of the encoder?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: The default login IP address is 192.168.0.31.
  • Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
  • Q: What is the login account and password of the encoder?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: The default login account and password are both admin.
  • Q: After entering the account password, the page cannot be displayed or the display is incomplete.
    加 Created with Sketch.
    形状 Created with Sketch.
    A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
  • Q: How to reset the encoder if you forgot the login IP or login account password?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
  • Q: How to get the newest firmware and update it?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
    After get the newest firmware, pls follow the steps as below:
    Step 1: Download the .rar file, do not unzip the file
    Step 2: Log in to your Encoder or decoder web user interface and click the System button.
    Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
    Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
