Brand: ORIVISION
Model: ZY-EH1211

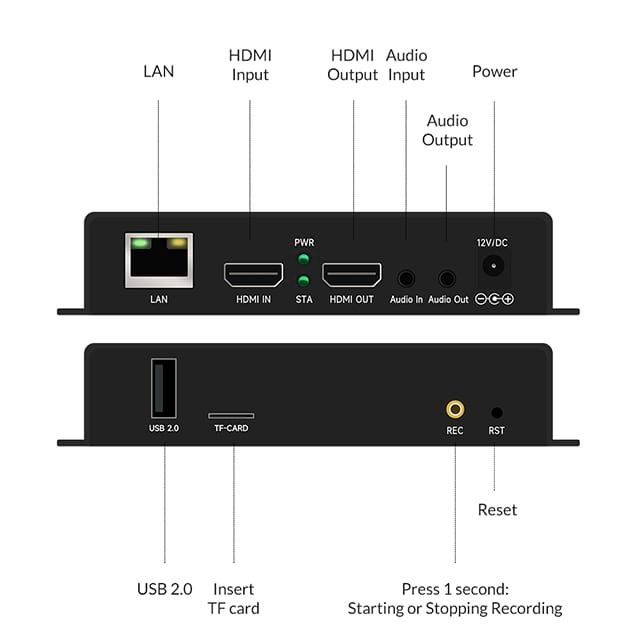

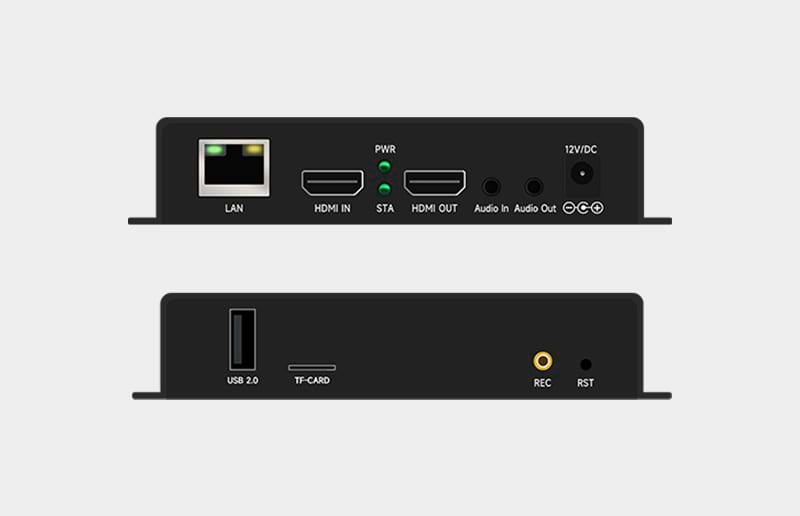

Input Interface: HDMI*1, Audio*1
Output Interface: RJ45*1, HDMI*1, Audio*1
Video Encoding: H.265/H.264/MJPEG
Protocol: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVIF protocol
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs
Ultra mini and ultra lightweight;
Record RTSP streaming video to USB disk or TF card;
Record HDMl video source to USB disk or TF card;
Customize cropping and encoding of input signal source video images
Support H.265/H.264 /MJPEG encoding;
Max resolution up to 1080P60hz;
Multi streaming protocols: HTTP, RTSP, RTMP, RTMPS, SRT, FLS, FLV, ONVIF, RTP, UDP;

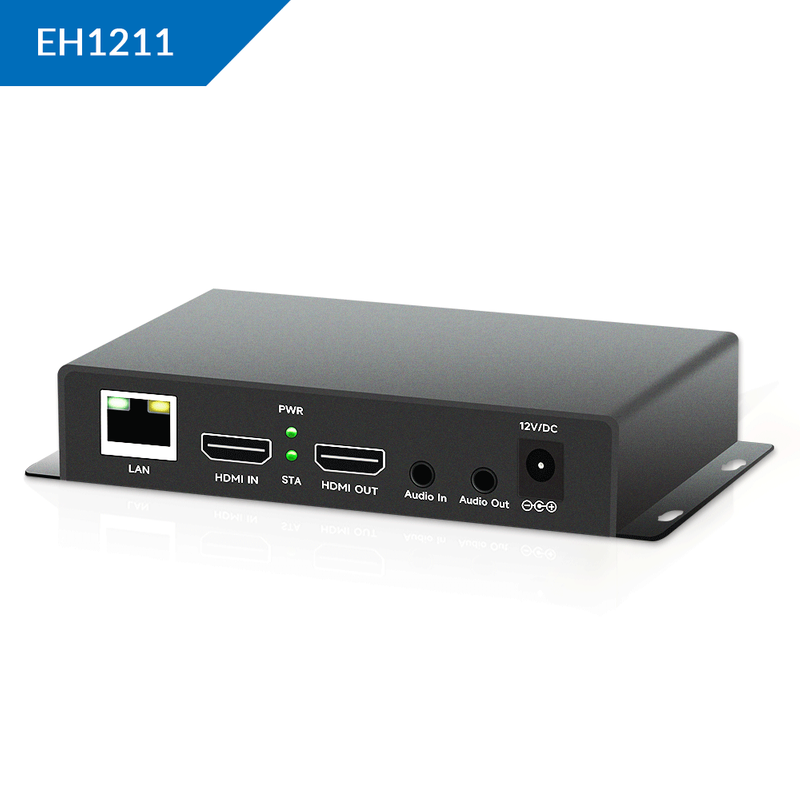

EH1211 is ORIVISION ultra mini HDMI video encoder with H.265/H.264/MJPEG compression, to achieve remote video transmission or live across internet WAN or over local network LAN. They support the most common protocols including SRT, RTMP, RTMPS, RTP, HLS, UDP, RTSP, Onvif, and are widely applied to professional Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting.

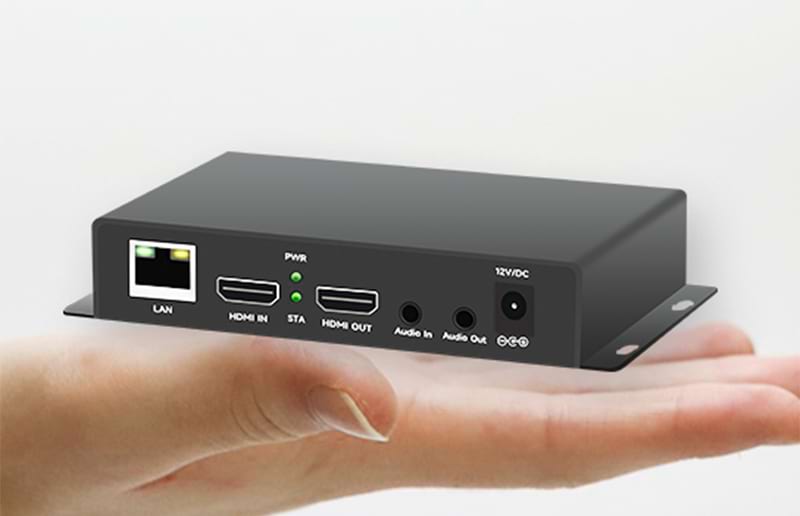

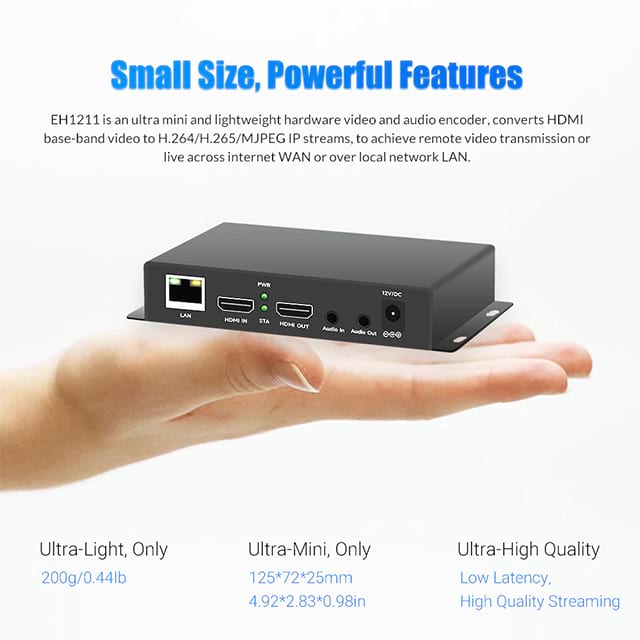

Ultra-mini size(125x72x25mm) and ultra-lightweight(200g); the live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space.

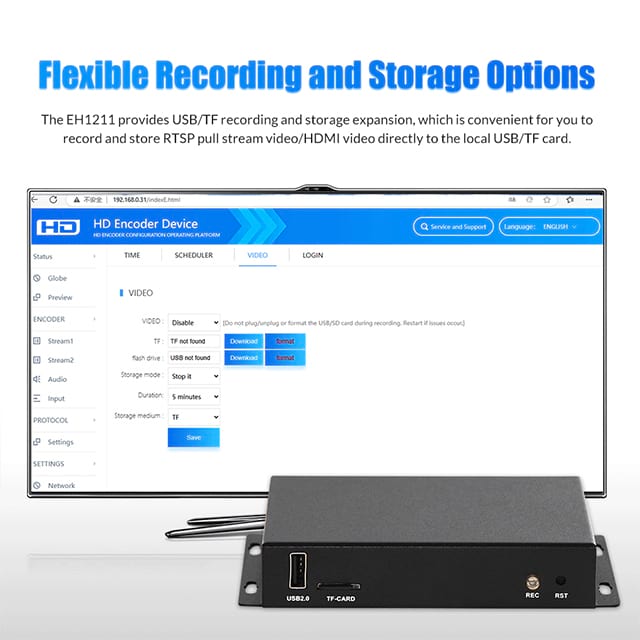

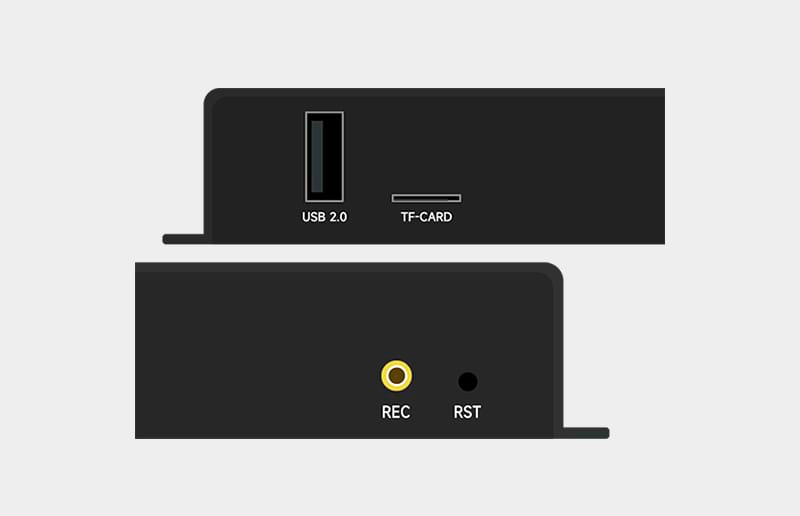

Record RTSP streaming video to USB disk or TF card
Record HDMl video source to USB disk or TF card

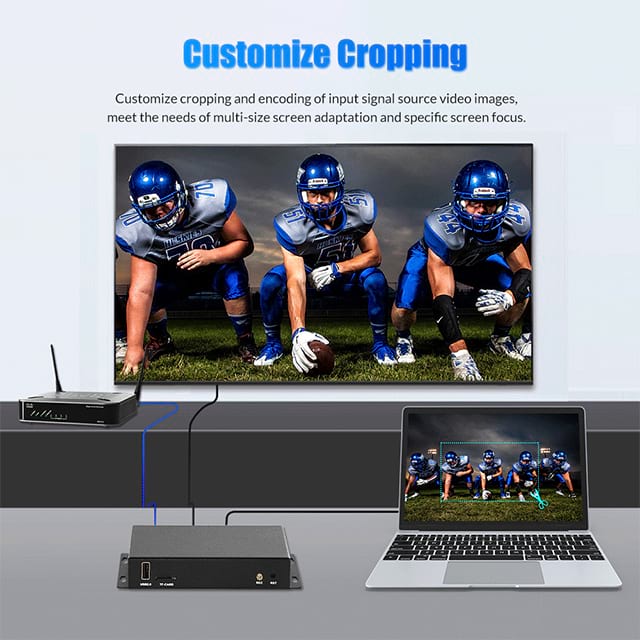

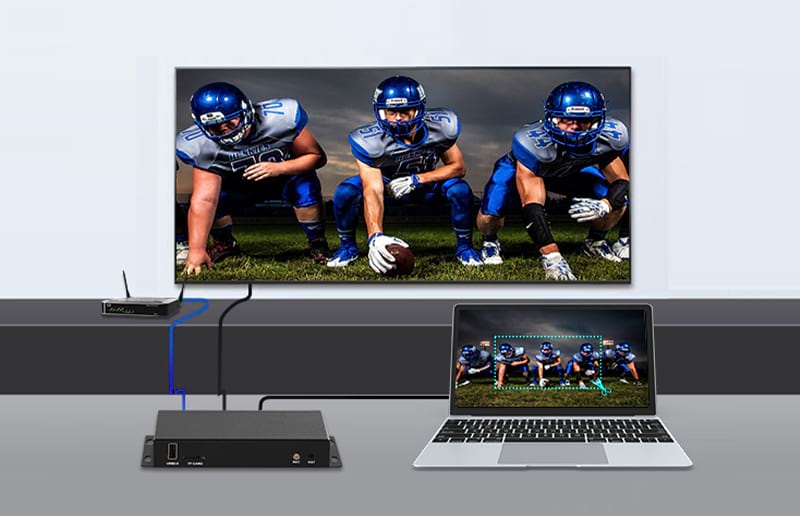

Customize cropping and encoding of input signal source video images
You can set 2 channles streams output in the built-in web console. Each stream can be used to up to different platforms with the same or different protocols, compatible with YouTube, Facebook, Twitch and more.
Supports full range of protocols including RTSP/RTMP/RTMPS/SRT/
HLS/TS-UDP/Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT.
It supports real HD video input with resolution up to 1920*1080P@30FPS to ensure that the image quality is perfect.
Support MP3/AAC/G.711 Advanced Audio Coding format quality;
Audio Encoder type: AACLC, EAAC, EAACPLUS, MP2, AC3
Support audio encoding without the video input
Add any self-defined text, time and image overlay at any position to announce your copyrights. Support adjusts font size, scrolling subtitles and add mosaic watermark
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

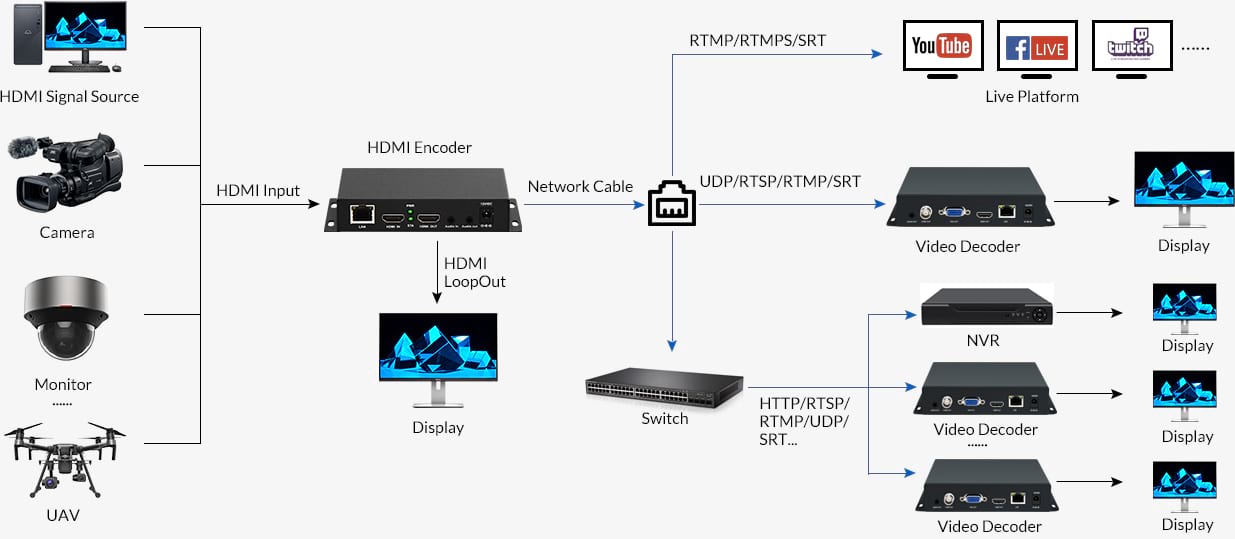

It converts HDMI base-band video to H.265/H.264/MJPEG IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Product Name | Mini H.265 1080P30 HDMI Video Encoder | |
| Model | ZY-EH1211 | |
| Video | ||
| Input Interface | 1×HDMI 1.4 | |
| Support resolution | 1920*1080, 1280*720, 1024*576, 960*540, 850*480,720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360, Auto | |
| Frame rate | ≤ 60hz | |
| HDCP | Support HDCP 1.4 | |
| Output Interface | HDMI1.4 loop-out *1; LAN port *1 | |
| Video Encoding | H.265&H.264/MJPEG | |
| Max Bitrate | 16kbps- 20Mbps | |
| Rate Control | CBR/VBR | |
| Audio | ||
| Audio Input Terminal | 1×External audio, HDMI built-in Audio | |
| Output interface | 1×audio output | |
| Audio Encoder type | MP3/MP2/AAC/G711/AC3/EAAC/EAACPLUS | |
| Bit-rate Option | 48K,64K,96K,128K,160K,192K,256K | |
| Sampling Accuracy | 24 Bit | |
| Audio Data-Rate | 64Kb/s to 384Kb/s | |
| Network | ||
| RJ45 | 100M Ethernet port | |
| Protocol Support | HTTP, RTSP, RTMP/RTMPS, SRT, HLS, FLV, ONVIF, Multicast: UDP/RTP | |
| OSD Setting | Txt/Picture | |
| Control Panel | Web panel (Language is English), remote upgrade | |
| Language | English/Chinese | |
| Firmware Update | Enable by uploading files to the dashboard | |
| General | ||
| Power | 12V/DC 1A | |
| Temperature | 3W | |
| Temperature | 0 ~ 45℃（for working）,-20~60℃（for storing) | |
| Humidity | <90%, non-condensing | |
| Size | 4.9*2.8*1in(125*72*25mm) | |
| Net Weight | 0.2kg | |
Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
The default login IP address is 192.168.0.31.
Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
A: The default login account and password are both admin.
It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX
The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
