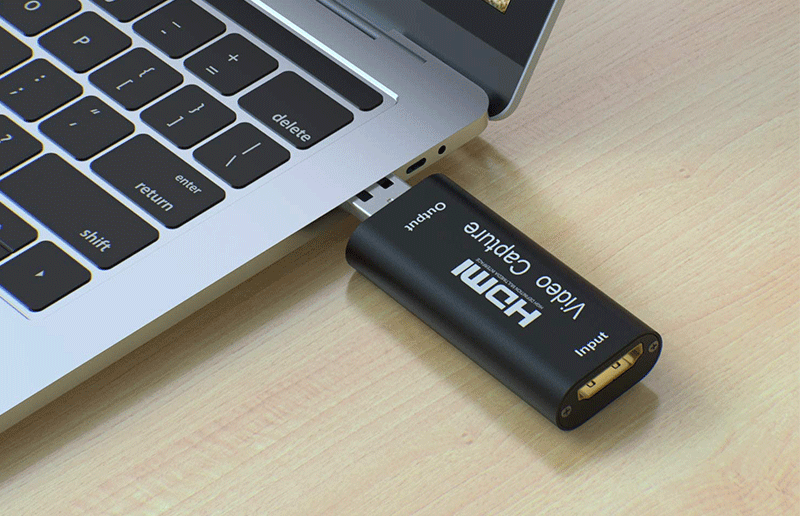

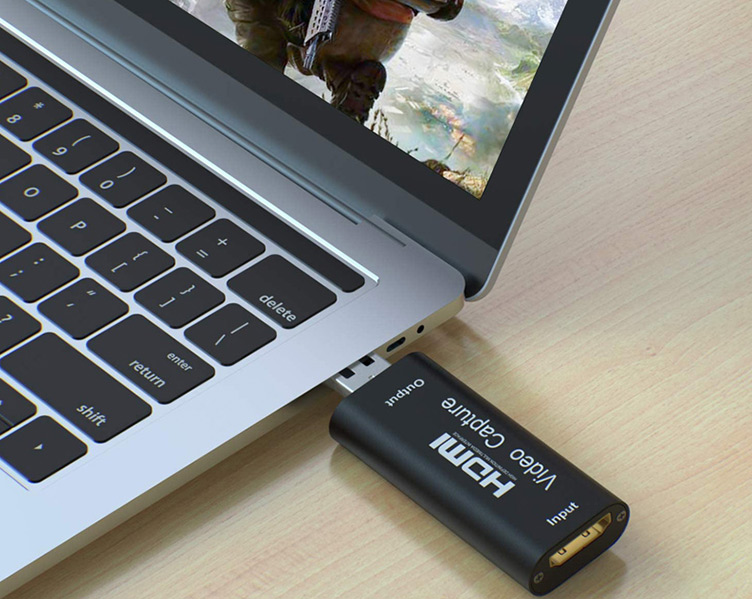

With a slim 12mm profile, which is small enough to connect directly to your laptop or computer. No drivers are required and no power supply either, meaning it really is a simple matter of connecting your HDMI device to your Mac or PC to start producing like a pro.
The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
HDMI Input Resolution: Up to 4K@60hz USB Out-put Resolution: Up to 1080P@30hz
Support Multiple Operating System
Support System: Windows, Android and Mac OS
Broadly Compatibility
Support most acquisition software, such as VLC/OBS/Amcap, etc
Compatible with Most Live Platform
Such as youtube/facebook/twitch/stream, etc

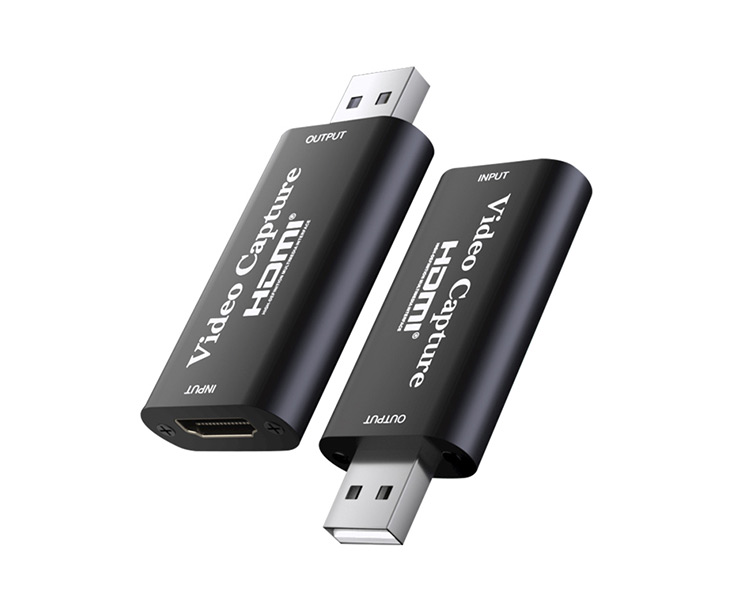

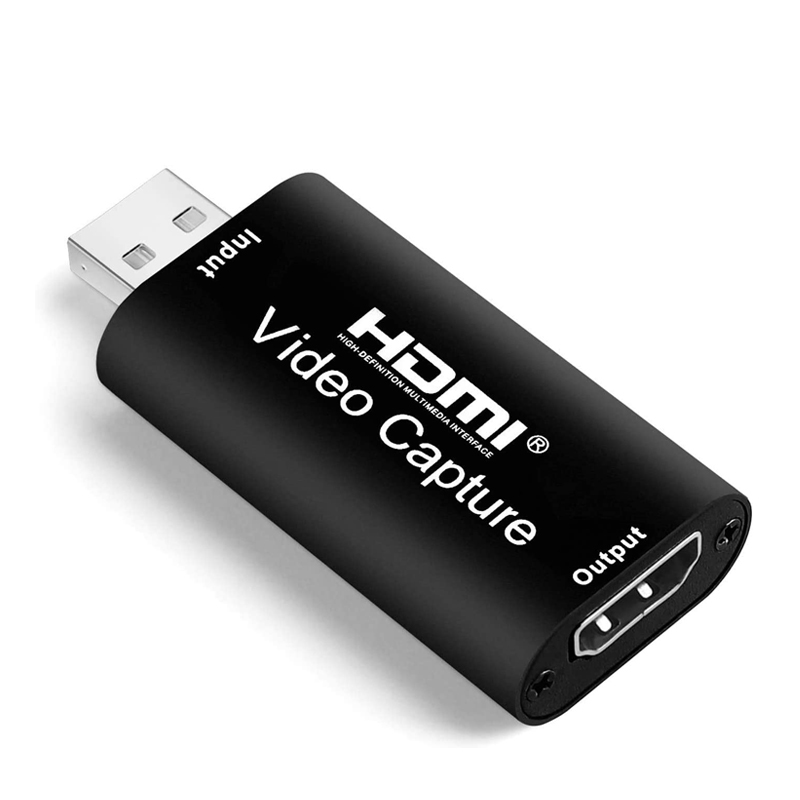

UHD HDMI Video Capture Card
HDMI Input ResolHDMI Input Resolution: Up to 4K@60hz USB Out-put Resolution: Up to 1080P@30hz
Drive Free
Without external power supply, compact and portable.
Powerful Application

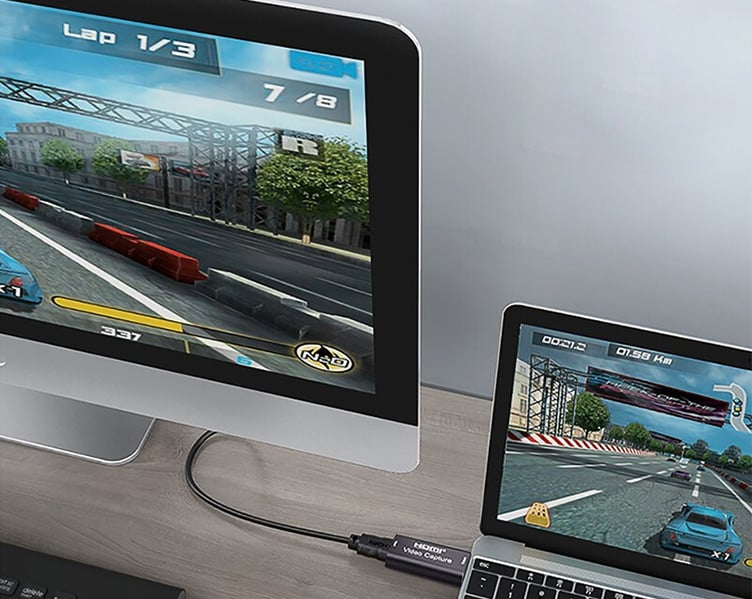

Apply to game live streaming, live broadcasting, online classes, video conference, etc.

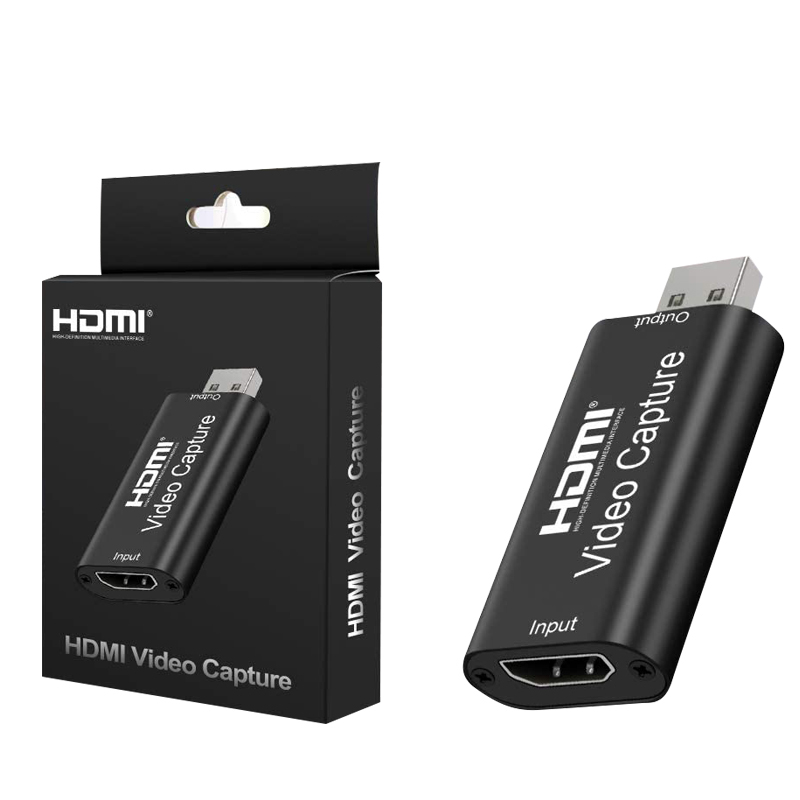

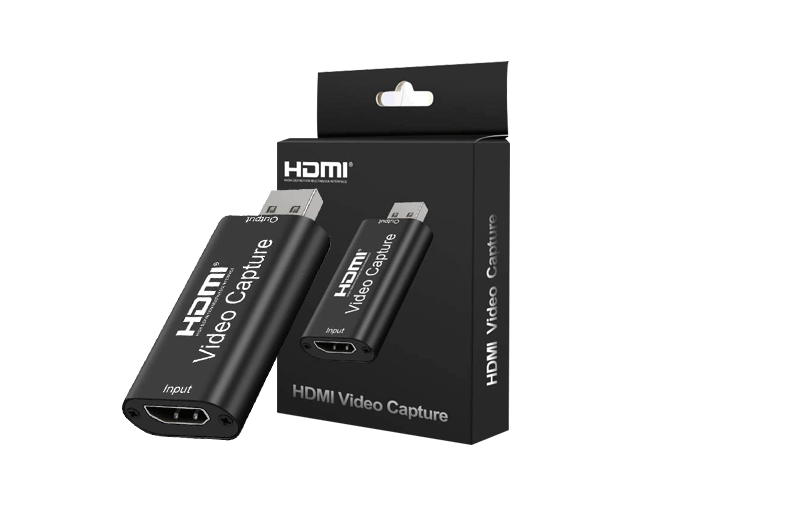

Package Include
1xAudio Video Capture Cards 1xUser Manual
Parameters Of UCH601 | 4K@60 USB2.0 HDMI Video Capture Card
Product Name
HDMI to USB2.0 Video Capture

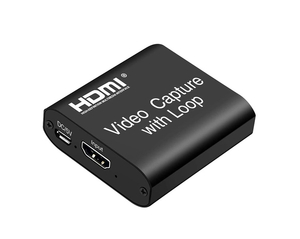

HDMI to USB2.0 Video Capture with Loop

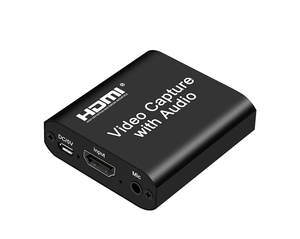

HDMI to USB2.0 Video Capture with Audio
Model
UCH601
UCH602
UCH603
Input Interface
HDMI
HDMI
HDMI, Mic audio input(L-PCM)
Out-put Interface
USB2.0
HDMI Loop-out, USB2.0
HDMI Loop-out, ,3.5 stereo output, USB2.0
HDMI Input Resolution
Up to 4K@60hz
Up to 4K@60hz
Up to 4K@60hz
USB Out-put Resolution
Up to 1080P@30hz
Up to 1080P@60hz
Up to 1080P@60hz
Color depth
8/10/12 bit deep Color
8/10/12 bit deep Color
8/10/12 bit deep Color
HDMI Support
AWG26 HDMI Standard cable (≤15m)
AWG26 HDMI Standard cable (≤15m)
AWG26 HDMI Standard cable (≤15m)
Software Support
Most sofware: VLC,OBS,Amcap,etc
Most sofware: VLC,OBS,Amcap,etc
Most sofware: VLC,OBS,Amcap,etc
USB Support
Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;
Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;
Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;
Support System
Windows, Android and Mac OS
Windows, Android and Mac OS
Windows, Android and Mac OS
Power
Without external power supply, compact and portable.
0.7A/5VDC
0.7A/5VDC
Operating temperature
(-10 to +55℃)
(-10 to +55℃)
(-10 to +55℃)
Size (L*W*H)
64x28x13 (mm)
59x56x19 (mm)
59x56x19 (mm)
Weight
21.4g
52g
56g

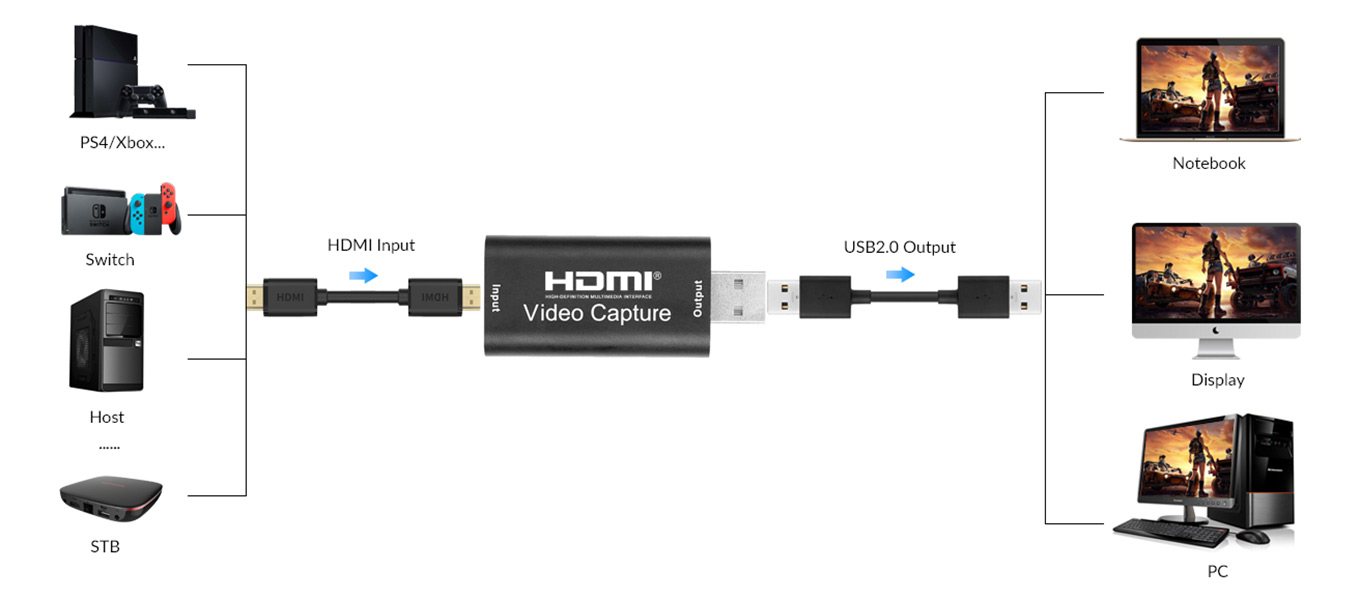

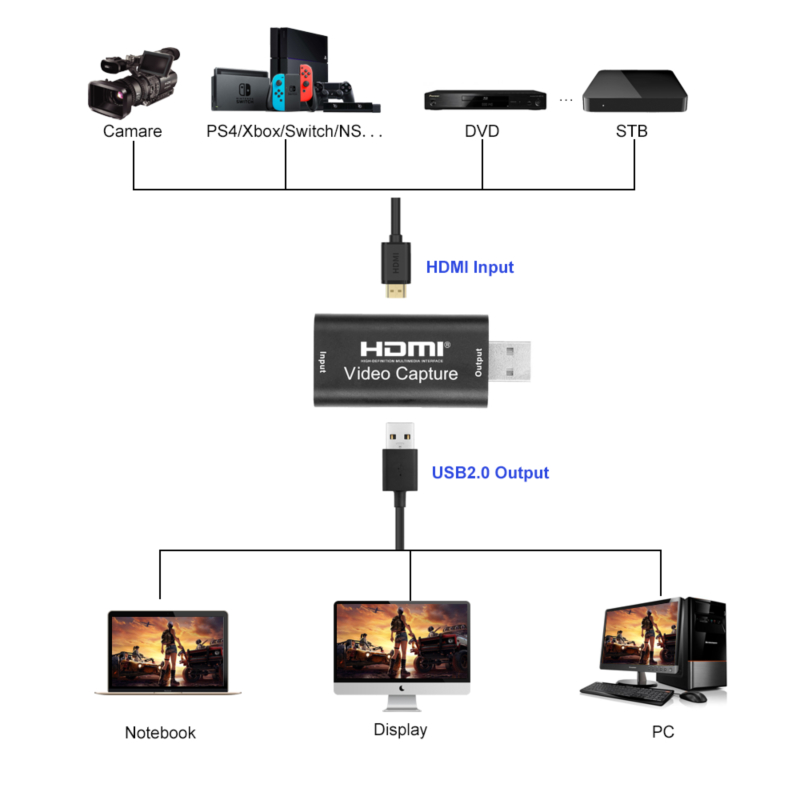

Diagram Of UCH601 | 4K@60 USB2.0 HDMI Video Capture Card
Apply to game live streaming, live broadcasting, online classes, video conference, etc.
