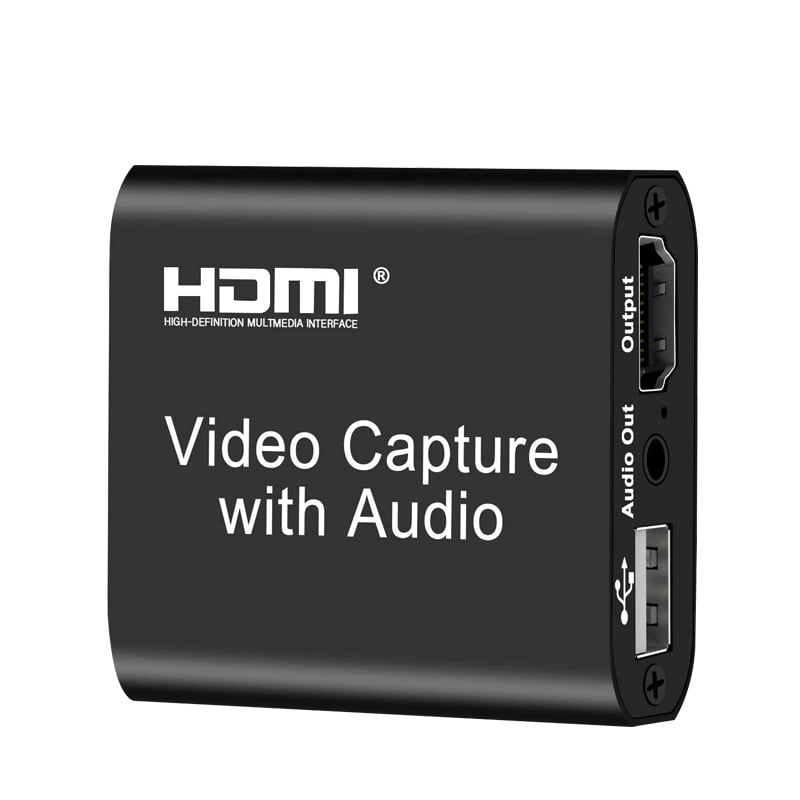

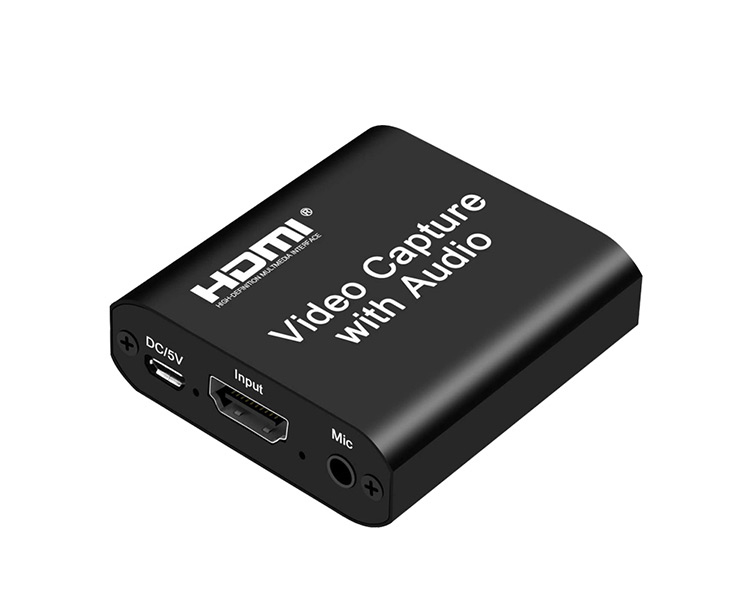

4K@60 USB2.0 HDMI Video Capture Card With Audio / Loop Out

Brand: ORIVISION

Model: ZY-UCH603

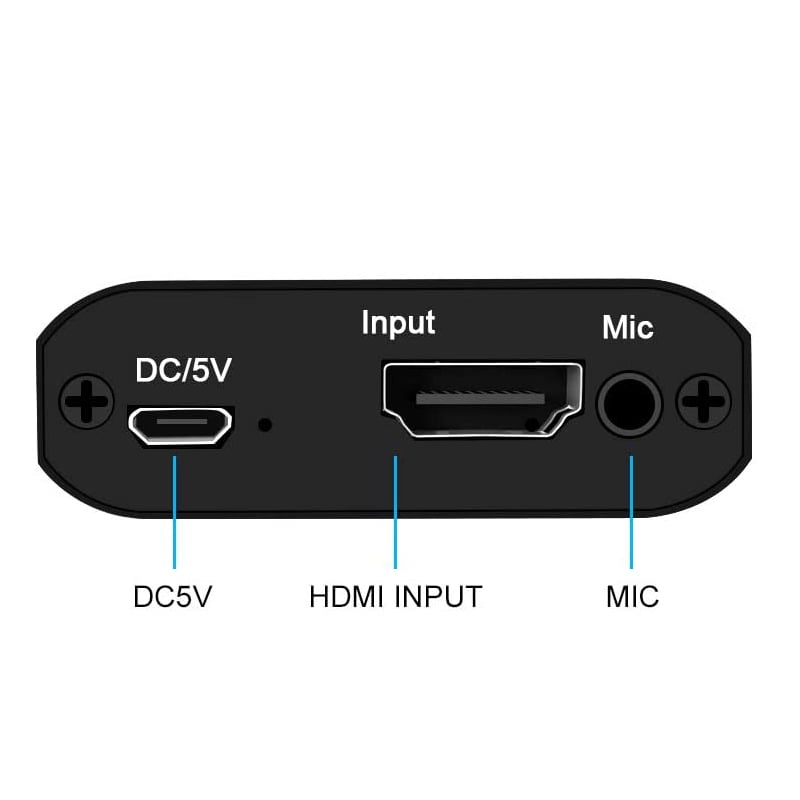

Input Interface: HDMI, Mic audio input(L-PCM)

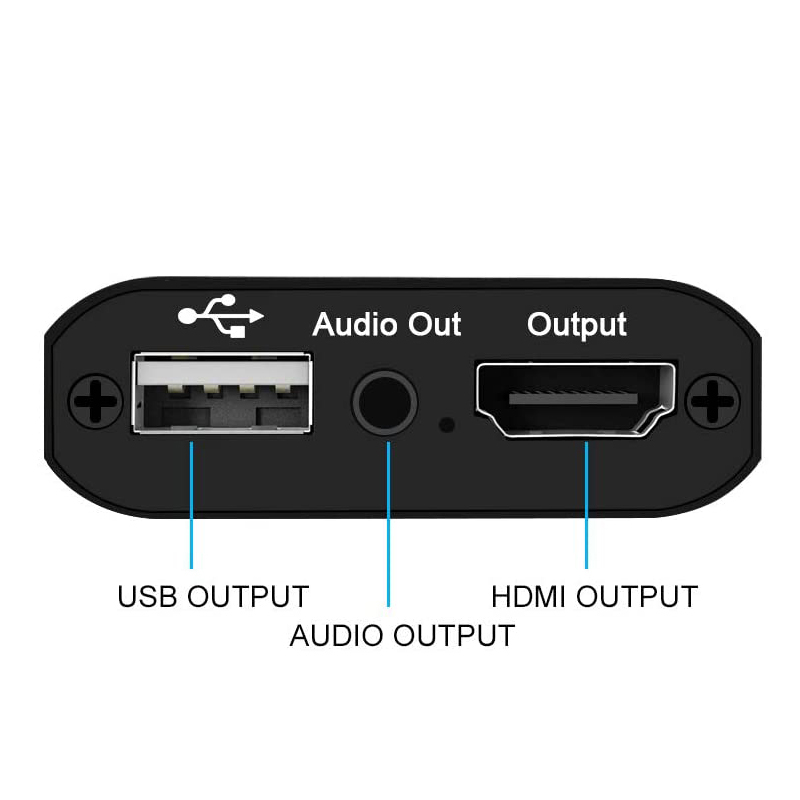

Output Interface: HDMI Loop-out, ,3.5 stereo output, USB2.0

HDMI Input Resolution: Up to 4K@60hz

USB Out-put Resolution: Up to 1080P@60hz

Support System: Windows, Android and Mac OS

Software Support: Most sofware: VLC,OBS,Amcap,etc.

Warranty: 1 Year

Certificate: CE & FCC & Rohs

Description

Introduction

Parameters

Diagram

Introduction

HDMI to USB 2.0 Capture Card With Loop Out

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.

HDMI Input Resolution: Up to 4K@60hz
USB Out-put Resolution: Up to 1080P@60hz
Support Multiple Operating System

Support System: Windows, Android and Mac OS
Broadly Compatibility

Support most acquisition software,
such as VLC/OBS/Amcap, etc
Compatible with Most Live Platform

Such as youtube/facebook/twitch/stream, etc
UHD HDMI Video Capture Card

HDMI Input ResolHDMI Input Resolution: Up to 4K@60hz
USB Out-put Resolution: Up to 1080P@60hz
Drive Free

Without external power supply, compact and portable.
Powerful Application

Apply to game live streaming, live broadcasting, online classes, video conference, etc.

Parameters Of 4K@60 USB2.0 HDMI Video Capture Card With Audio / Loop Out

Product Name	HDMI to USB2.0 Video Capture	HDMI to USB2.0 Video Capture with Loop	HDMI to USB2.0 Video Capture with Audio
Model	UCH601	UCH602	UCH603
Input Interface	HDMI	HDMI	HDMI, Mic audio input(L-PCM)
Out-put Interface	USB2.0	HDMI Loop-out, USB2.0	HDMI Loop-out, ,3.5 stereo output, USB2.0
HDMI Input Resolution	Up to 4K@60hz	Up to 4K@60hz	Up to 4K@60hz
USB Out-put Resolution	Up to 1080P@30hz	Up to 1080P@60hz	Up to 1080P@60hz
Color depth	8/10/12 bit deep Color	8/10/12 bit deep Color	8/10/12 bit deep Color
HDMI Support	AWG26 HDMI Standard cable (≤15m)	AWG26 HDMI Standard cable (≤15m)	AWG26 HDMI Standard cable (≤15m)
Software Support	Most sofware: VLC,OBS,Amcap,etc	Most sofware: VLC,OBS,Amcap,etc	Most sofware: VLC,OBS,Amcap,etc
USB Support	Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;	Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;	Conform to USB Video and UVC standard; Conform to USB Audio UAC standard;
Support System	Windows, Android and Mac OS	Windows, Android and Mac OS	Windows, Android and Mac OS
Power	Without external power supply, compact and portable.	0.7A/5VDC	0.7A/5VDC
Operating temperature	(-10 to +55℃)	(-10 to +55℃)	(-10 to +55℃)
Size (LWH)	64x28x13 (mm)	59x56x19 (mm)	59x56x19 (mm)
Weight	21.4g	52g	56g

Apply to game live streaming, live broadcasting, online classes, video conference, etc.
