Supports up to 3840*2160@30Hz resolution input and output； Adopt Linux operating system and plug-in card structure; Supports simultaneous decoding of network cameras from different IP subnet segments; Supports on-screen scrolling text display (e.g., welcome messages) with customizable font size and color; Compatible with standard ONVIF network cameras, video servers, and mainstream NVRs/DVR/XVR/AHD/CVI/TVI;

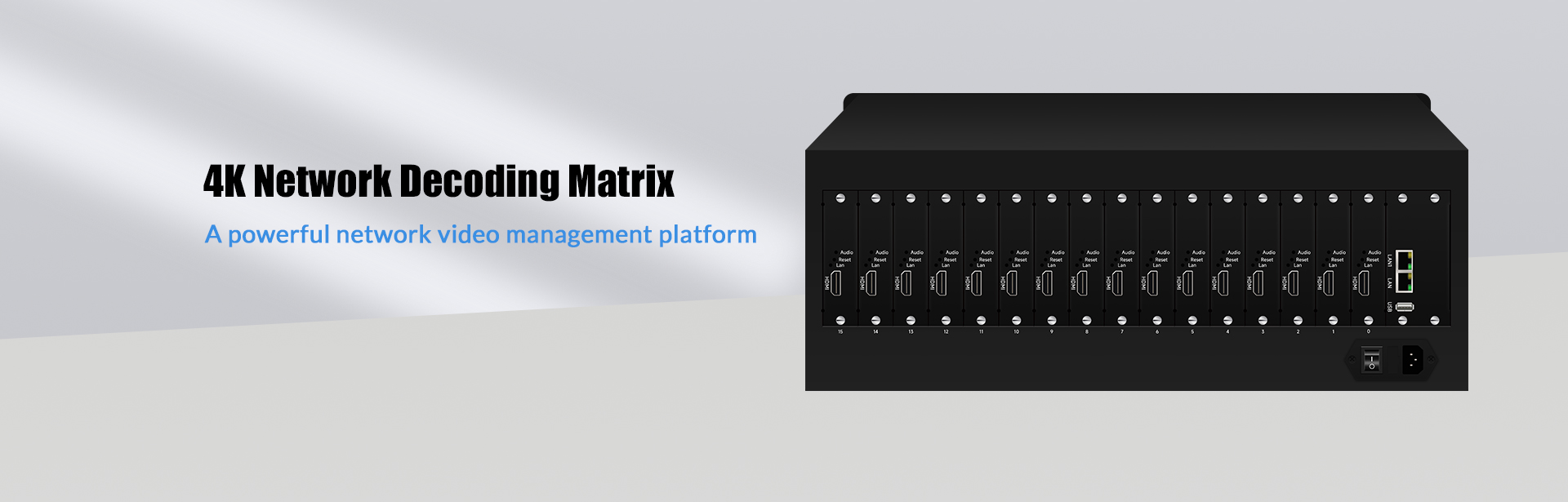

This device is a high-end embedded decoding matrix product specifically designed for the deployment and management of small, medium, and large-scale video wall systems. It integrates decoding and video wall display capabilities, running on the Linux operating system, and supports H.265/H.264 fully compatible decoding formats, ensuring stable and reliable performance. It is capable of decoding and outputting ultra-highdefinition network videos at resolutions including 800W/300W/200W/D1.

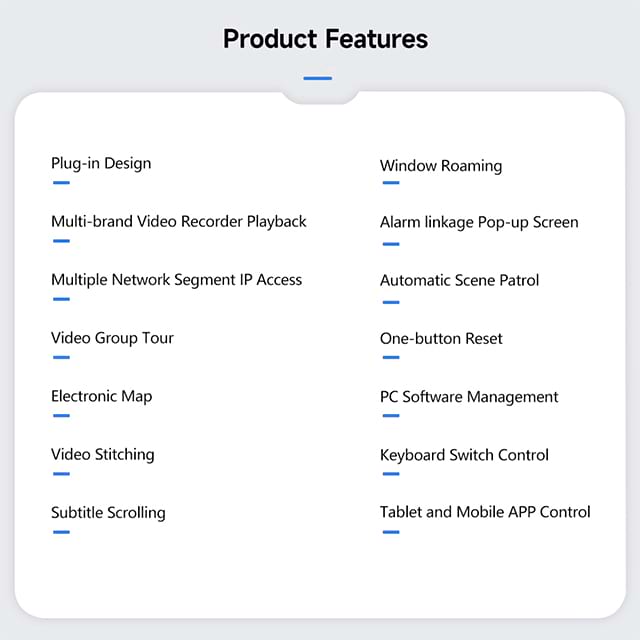

It supports multiple functions such as multi-subnet IP simultaneous access, multi-screen splicing, alarm-triggered pop-up display, playback from multi-brand NVRs, scrolling subtitles, and one-click reset. Compatible with ONVIF and various network transmission protocols, it also supports multi-stream decoding, providing robust support for decoding and switching services in small, medium, and large-scale video walls.
High Density

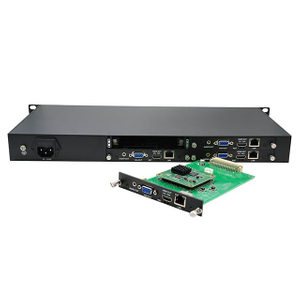

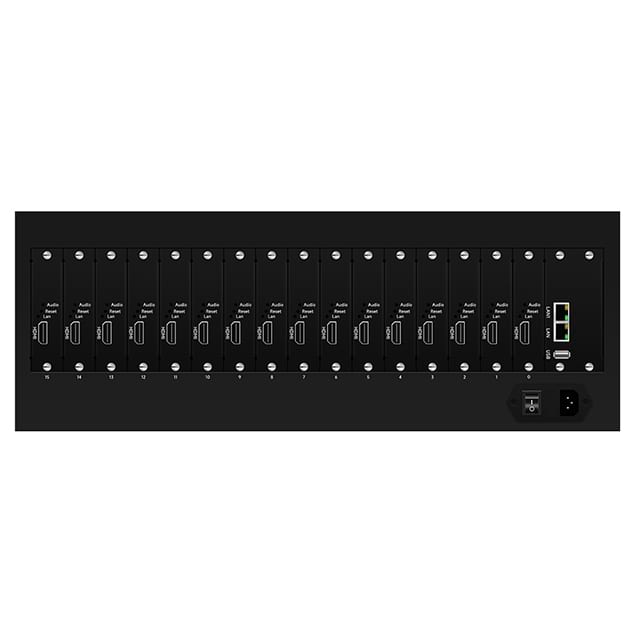

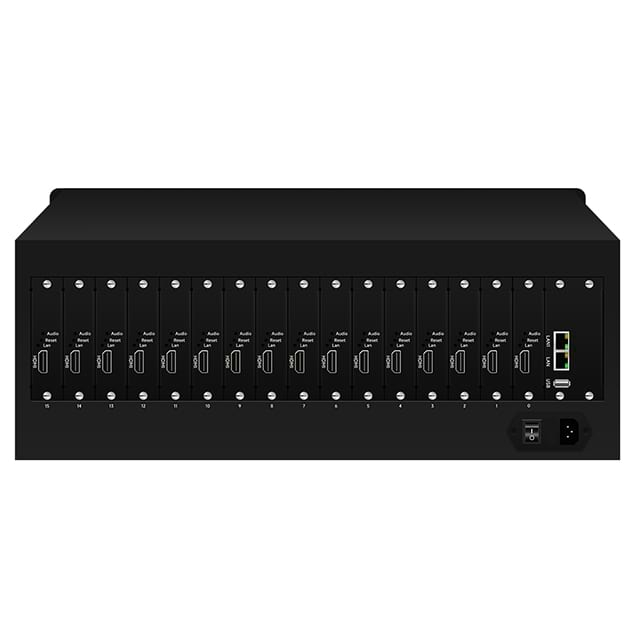

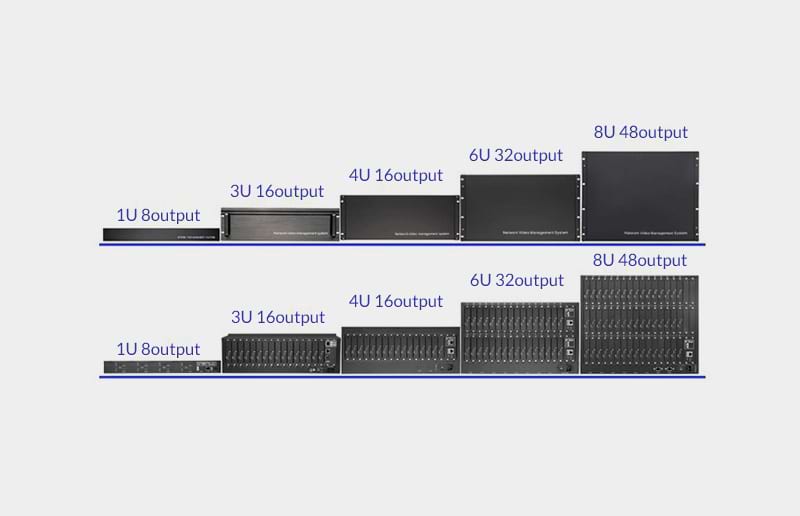

The standard rack-mounted design includes 1U, 4U, 6U, 8U chassis sizes to meet various surveillance, splicing, and control needs.
High Reliability
Single-IP address, significantly reduces IP conflict risks while enhancing operational stability.

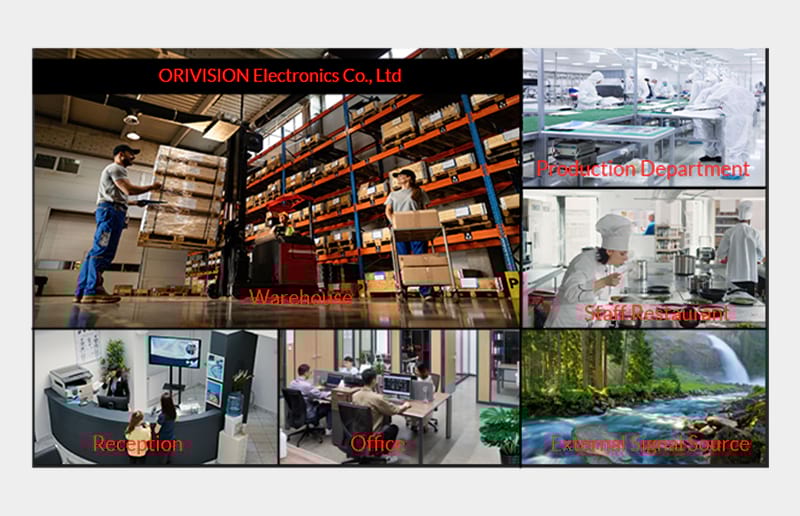

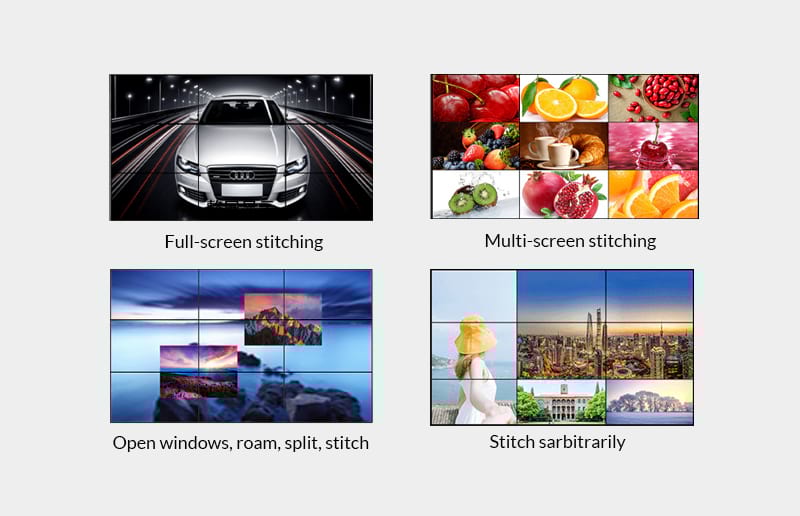

Arbitrary Stitching, Screen Splitting

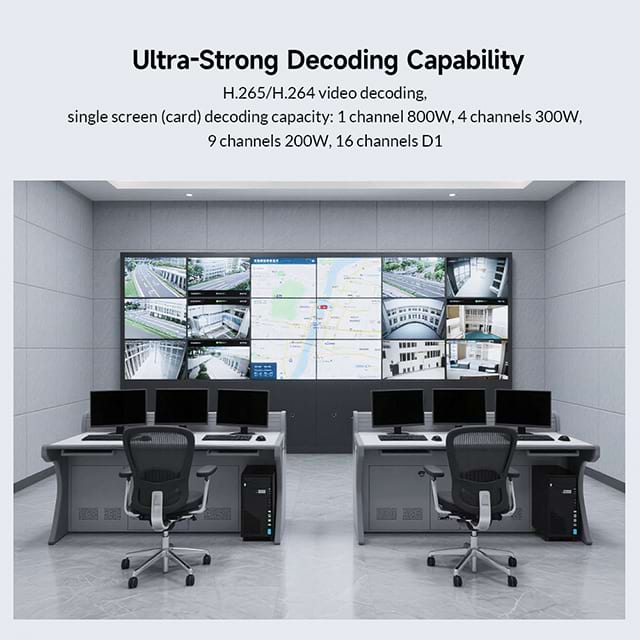

Supports comprehensive video processing operations including decoding the images on the wall, segmentation, switching, splicing, Single screen (card) decoding capacity: 1 channel 800W, 4 channels 300W, 9 channels 200W, 16 channels D1;
ONVIF Protocol
Compatible with standard ONVIF network cameras, video servers, and mainstream NVRs/DVR/XVR/AHD/CVI/TVI; Supports simultaneous decoding of network cameras from different IP subnet segments; Supports hybrid decoding of network cameras from different brands with varying resolutions simultaneously.
Support Virtual LED Subtitles
Supports on-screen scrolling text display (e.g., welcome messages) with customizable font size and color.

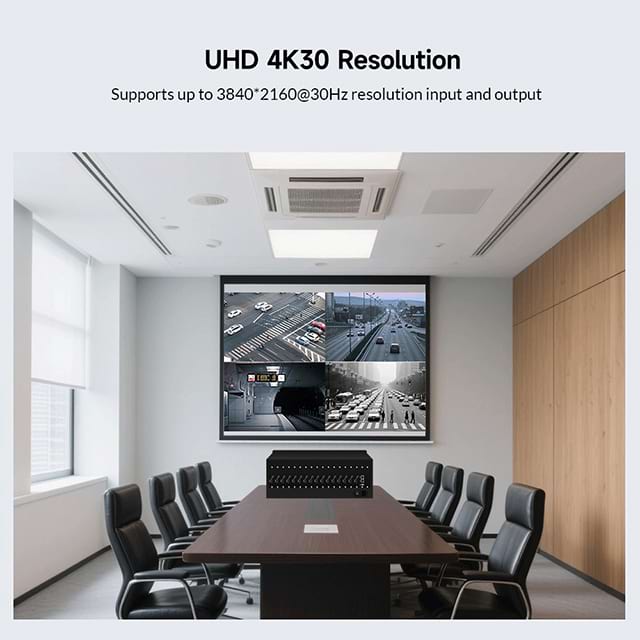

4K Input and Output
Input: Supports up to 3840x2160@30fps; Output: Supports up to 4096x2160@30fps.

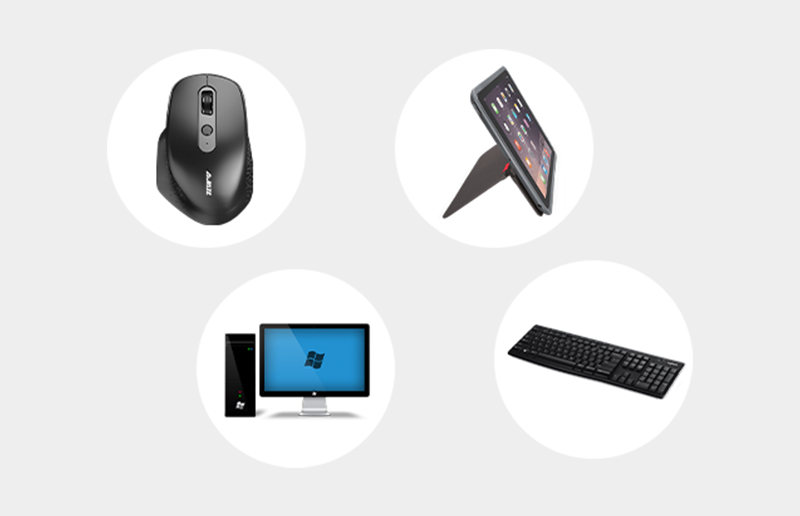

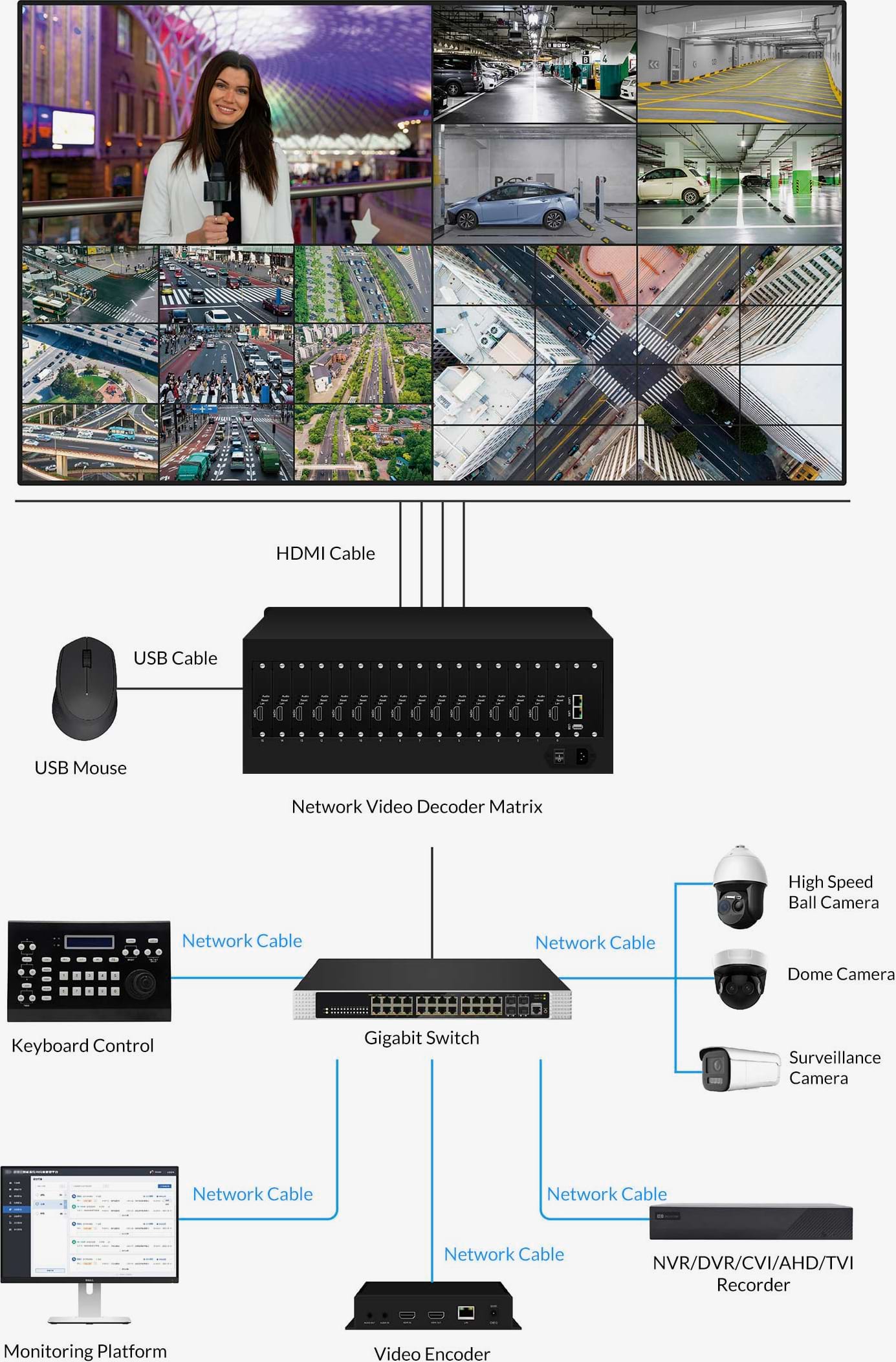

Flexible Control
Supports independent control methods: USB mouse/PC software/Network control keyboard platform; Supports tablet/APP control(optional).
