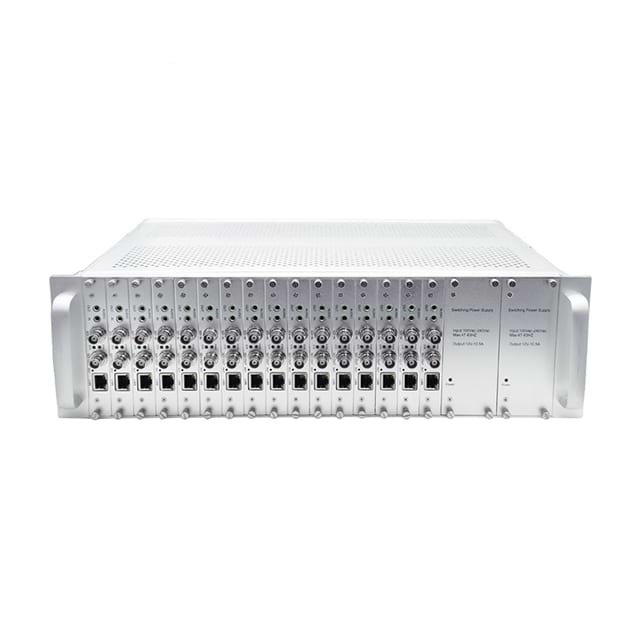

H.265 1-16 Channels HDMI/SDI/VGA Video Decoder 3RU
H.265/H.264 Decoding Freely mix 1-16 decoder modules in 3RU Rackmount Support 1ch, 4ch, 9ch decoding simultaneously Support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols 3U Standard Rack

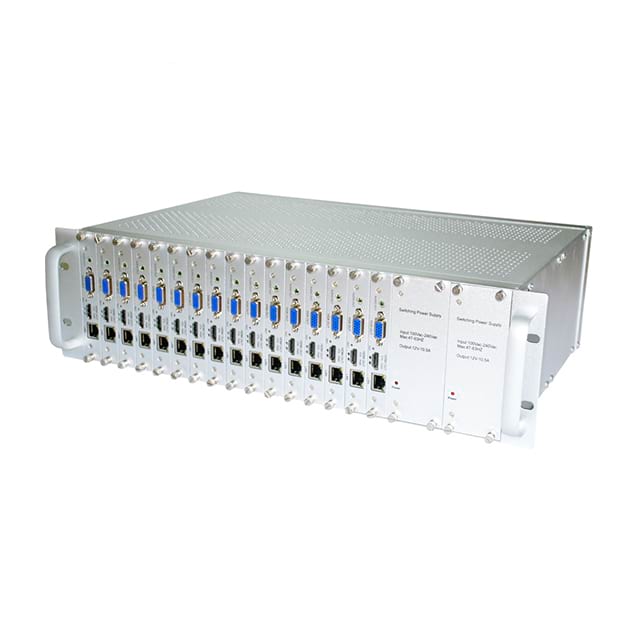

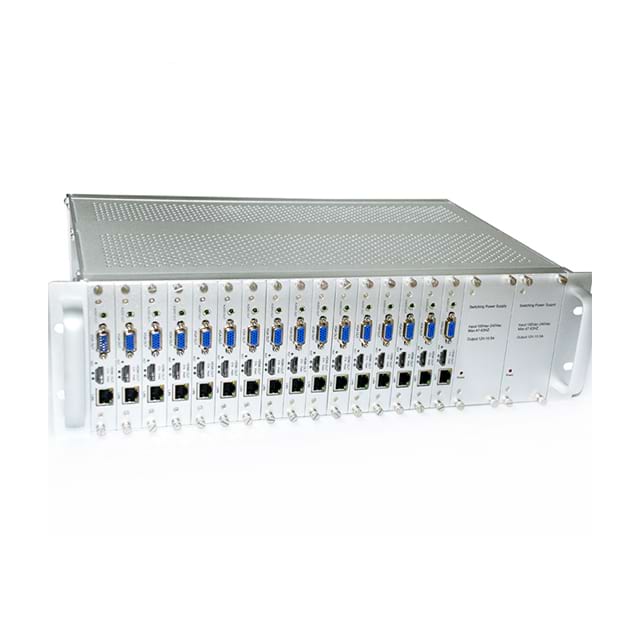

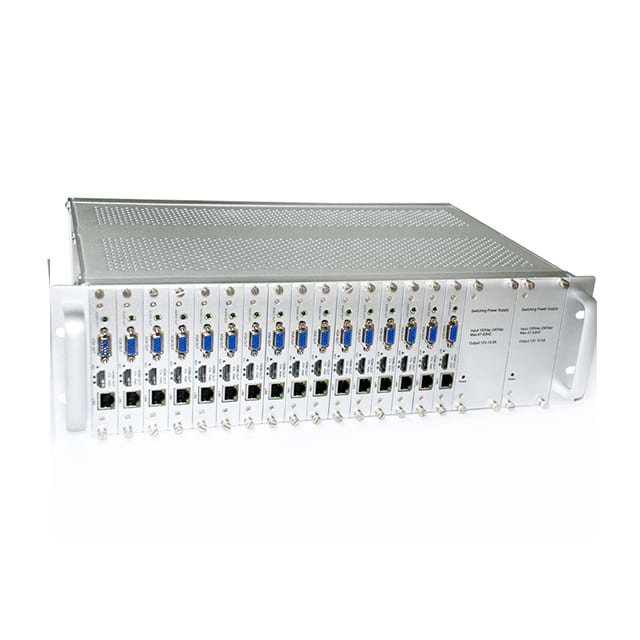

3RU rackmount video decoder freely mixed with 1-16 channels (3RU) decoder modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity. Support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols. Remote video transmission/live broadcast/interaction through wired network. The equipment is equipped with standard power modules for unified power supply, centralized heat dissipation, and stable operation for a long time.
High Density

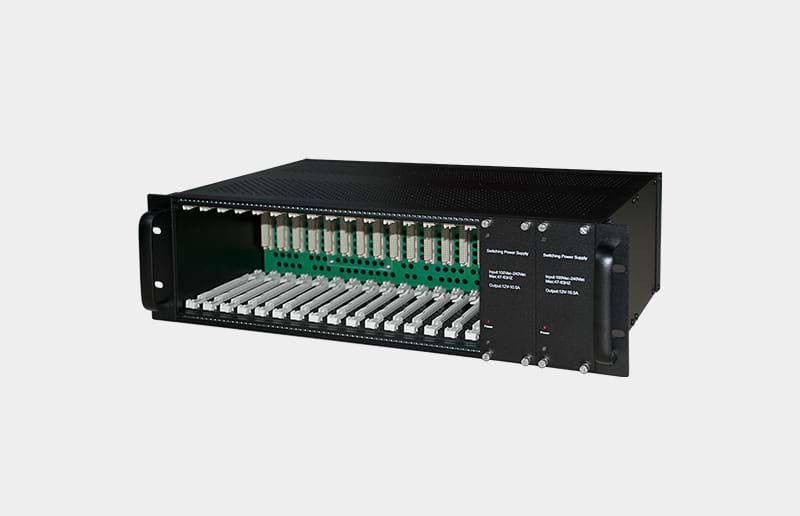

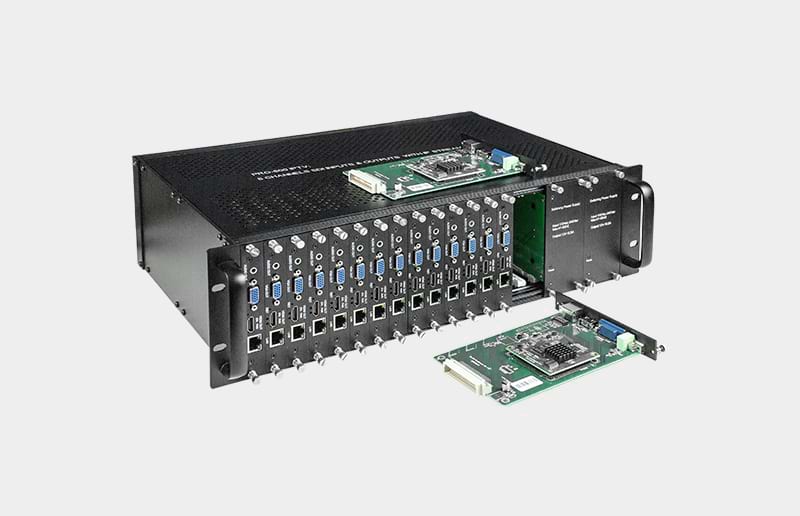

With rackmount, you can design 1-16 channels HDMI/SDI/VGA decoder modules in a 3RU chassis. All inserted decoding and decoding module support HDMI/SDI/VGA+3.5mm audio.
High Reliability

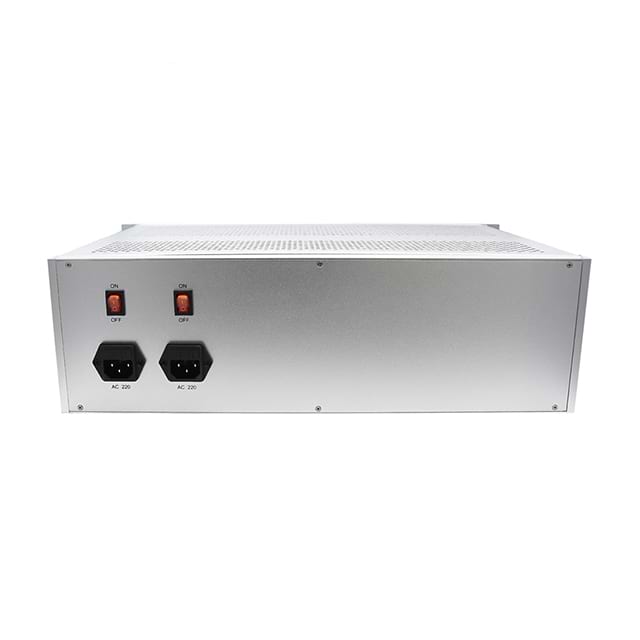

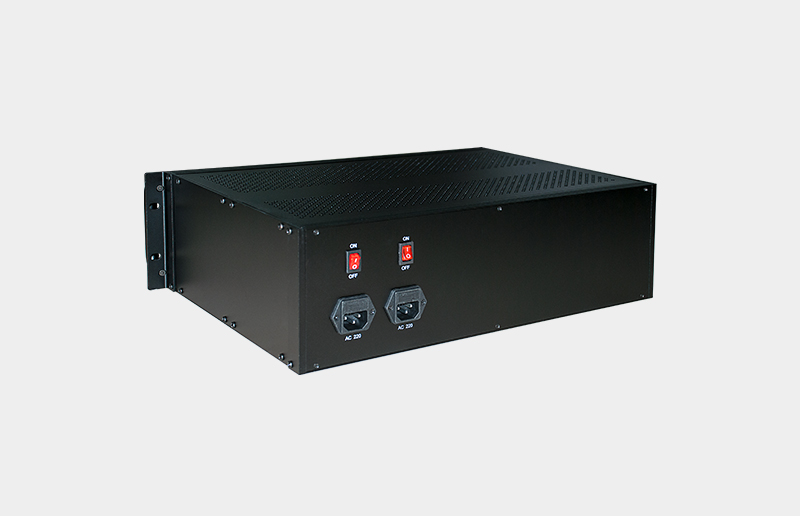

Equipped with redundant power as standard, effectively preventing power failure. At the same time, dual cooling fans for automatic heat dissipation, ensuring stable and 24h continuous operating.
Multiple Network Protocols
It's compatible with SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc. Decoding with the same or different protocol is available.
RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
Protocol Conversion is Available
Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP.
Web Control
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Audio Synchronization Decoding
Support AAC/G711 audio format; Audio can be coded separately.
Local and Remote Transmission
Support LAN, WAN
Multiple Signal Input Formats
Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS...
Support OEM/ODM
OEM: Free print company logo by laser print; MOQ≥1 unit. ODM: Pls send your requirements to us. (info@orivision.cn).
Parameters
Model
HDMI/VGA Video Decoder-3U
SDI Video Decoder-3U
Input
1~16 * LAN Ports
1~16 * LAN Ports
Output Interface
1~16*HDMI, VGA & Audio
1~16* SDI & Audio
Video Decoding
H.265/H.264
H.265/H.264
Max Input Resolution
4K@30HZ
1080P@60hz
Single Card Decoding
Support to decode 1 channel 4K@30hz streaming Support to decode 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming
Support to decode 1 channel & 4 channel(2*2) 1080P60hz streaming Support to decode 9 channel(3*3 )720P streaming
Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering.

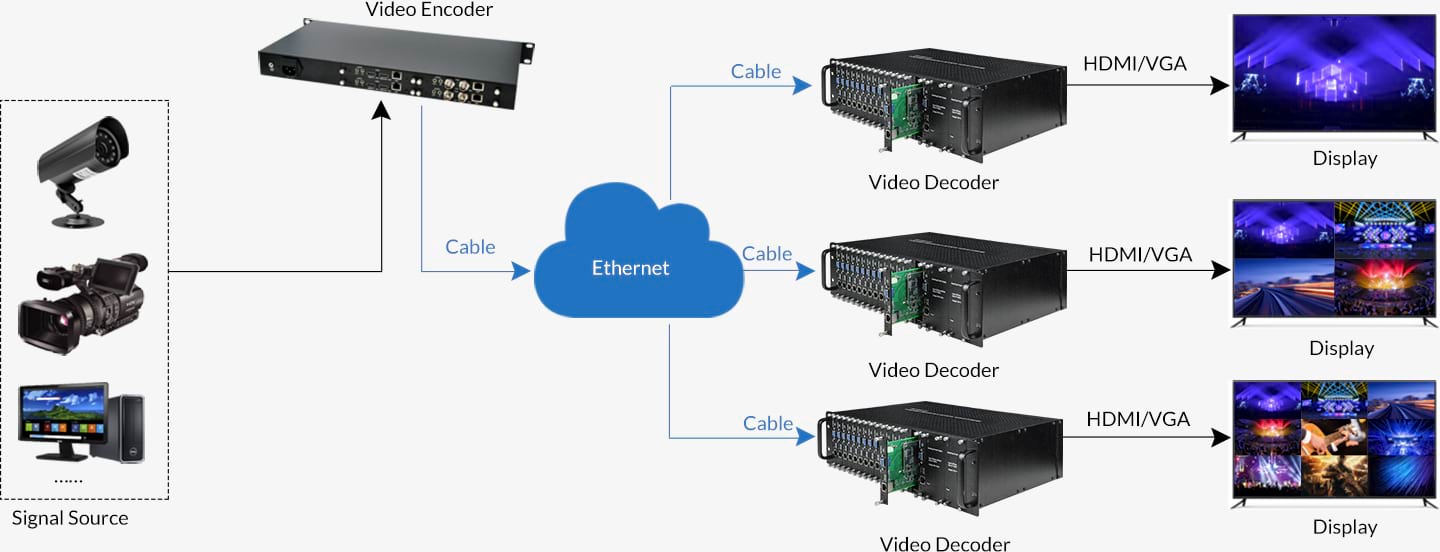

Diagram of 3RU Video Decoder

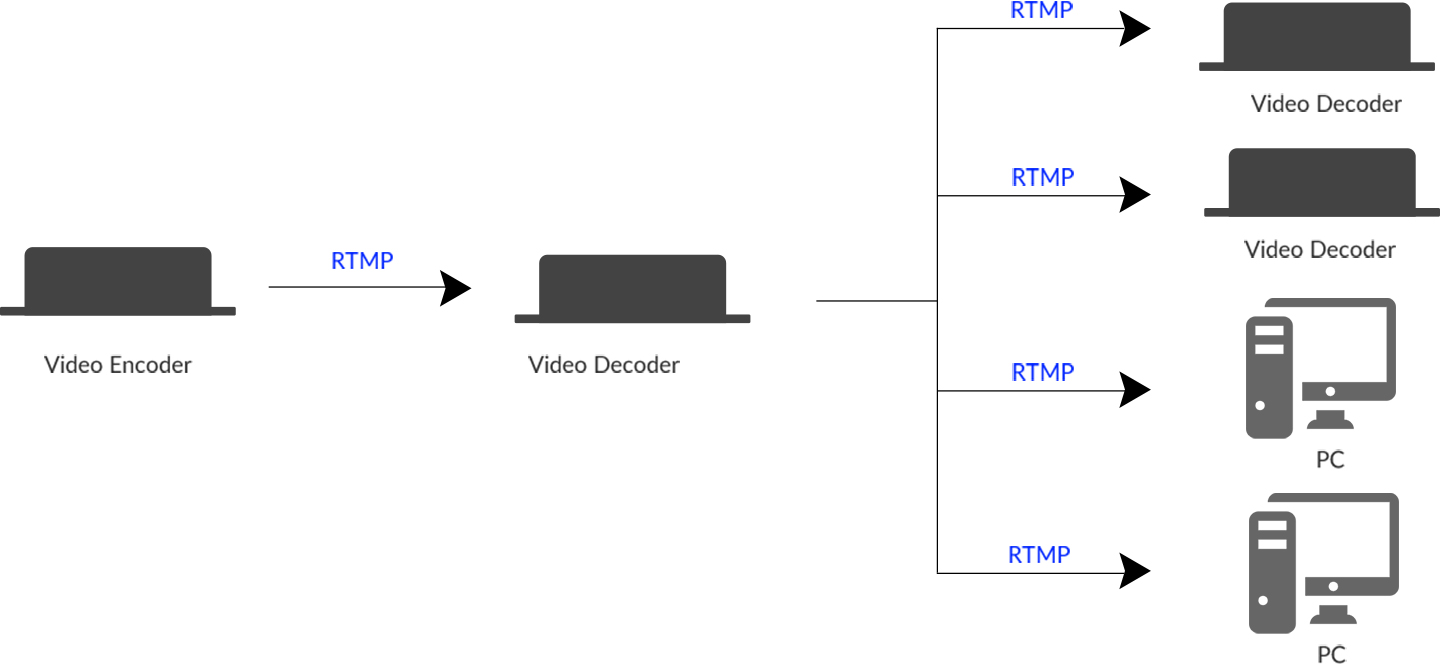

Embedded RTMP server

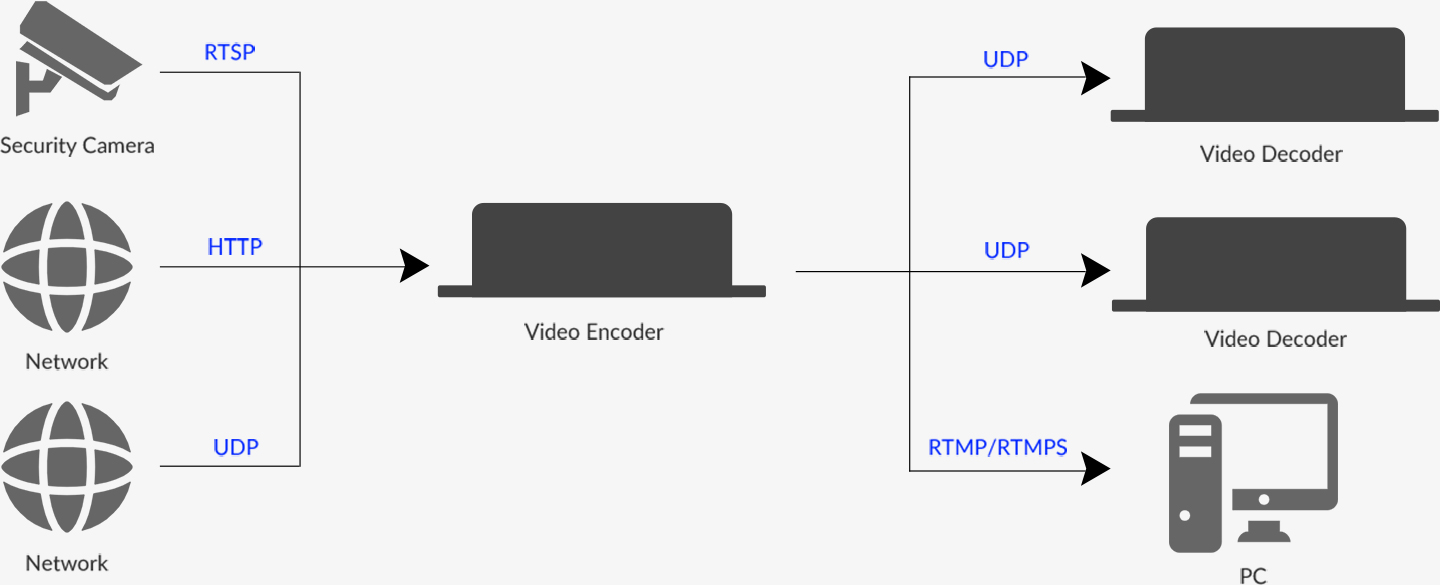

Protocol Conversion
FAQs
Q: What is the default login IP of the decoder?
A: The default login IP address is 192.168.0.35.
Q: What is the login account and password of the decoder?
A: The default login account and password are both admin.
Q: After entering the account password, the page cannot be displayed or the display is incomplete.
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX.
Q: How to reset the encoder if you forgot the login IP or login account password?
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully.
Q: The device cannot be turned on when connected to the power supply and the power light does not turn on.
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
Q: How to get the newest firmware and update it?
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware. After get the newest firmware, pls follow the steps as below: Step 1: Download the .rar file, do not unzip the file Step 2: Log in to your Encoder or decoder web user interface and click the System button. Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.) Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
