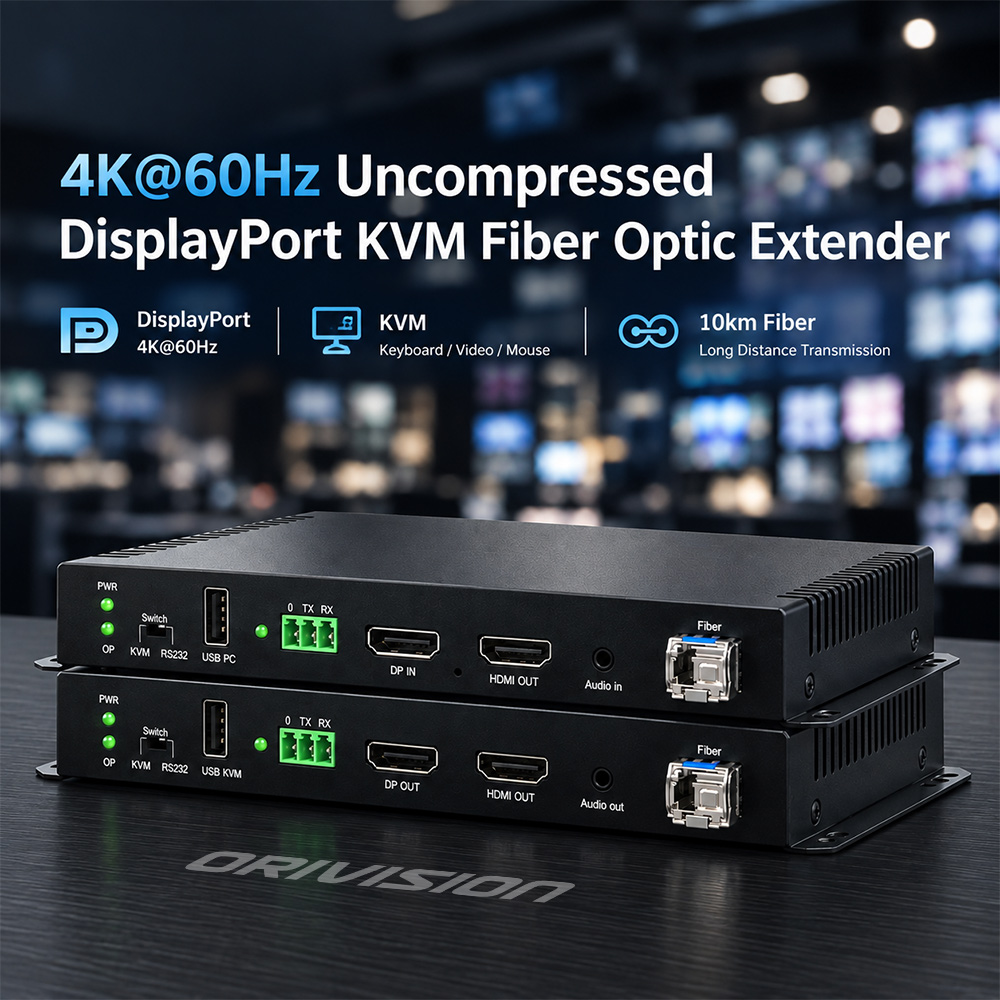

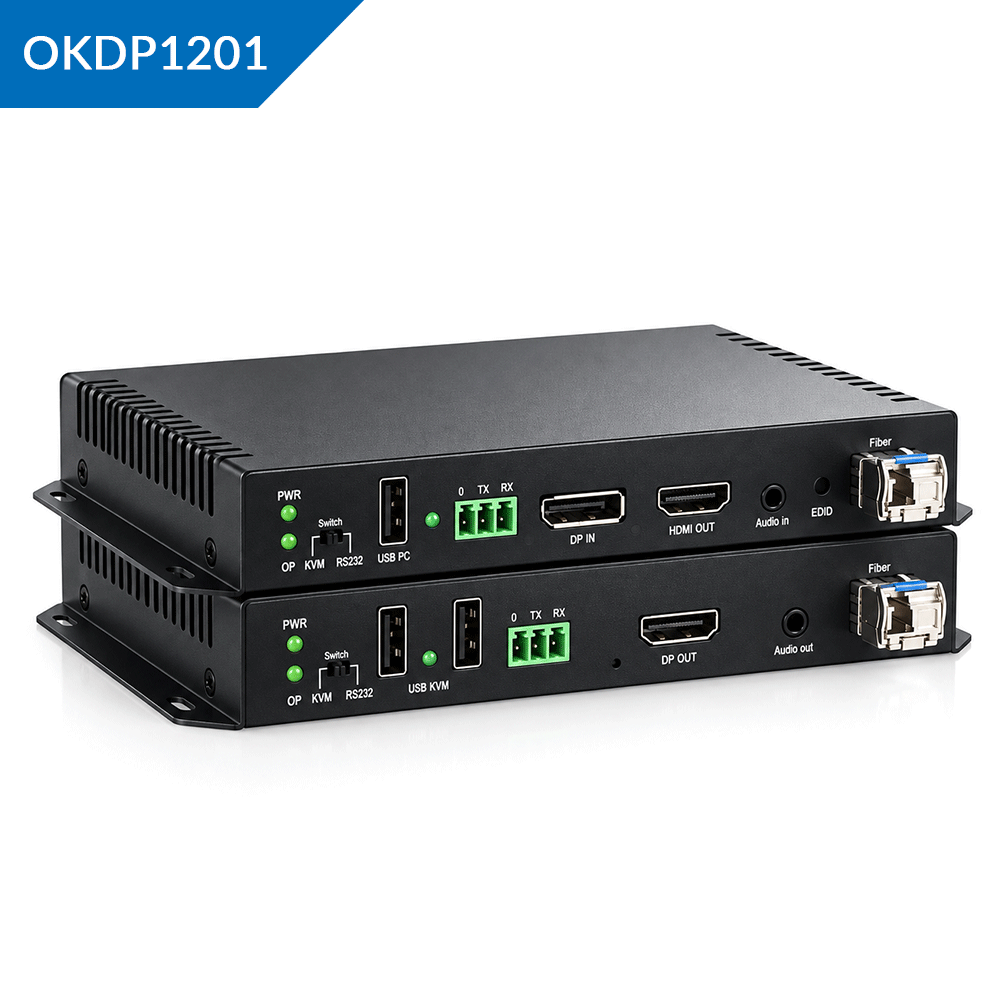

4K@60Hz Uncompressed DisplayPort KVM Fiber Optic Extender

Uncompressed Transmission — All digital, uncompressed, zero delay, strong compatibility with no delay and no loss, audio and video synchronous transmission

4K@60Hz Resolution — Resolution up to 3840×2160@60Hz, 3D, DisplayPort 1.2 and HDCP 2.2 compliant, 10-bit color depth

10KM Extreme Long Transmission — Extend 4K DisplayPort signal up to 10KM over a single-mode fiber one-core cable; or up to 300M over a multi-mode fiber cable; 20KM–80KM distance can be customised

KVM Extension — Supports keyboard and mouse extension via USB 2.0

Plug and Play — Simple to install, plug and play, no setup or configuration needed


Availability:



Inquire

Model:
ZY-OKDP1201

Description

Introduction

Parameters

Diagram

FAQs

The DisplayPort KVM fiber optic extender is designed for long-distance transmission of high-resolution DisplayPort video, USB KVM, audio and RS232 signals over fiber optic cable. It provides a reliable solution for extending digital video and control signals between devices located in different rooms or remote areas.

Supporting DisplayPort 1.2, 3D and HDCP 2.2, the extender delivers up to 3840×2160@60Hz resolution with fully digital, uncompressed and zero-latency transmission. This helps maintain the original quality of high-resolution DisplayPort video for professional AV and display applications.

Using a single-fiber LC connection, the 4K DisplayPort fiber optic extender supports a standard transmission distance of up to 10 km over single-mode fiber, while multi-mode fiber supports up to 300 m. USB KVM, RS232 and audio signals can be transmitted together with the video signal, providing an integrated long-distance connectivity solution.

The extender also supports EDID learning, DisplayPort hot-plugging, 7.1-channel PCM surround sound, compressed audio and independent analog stereo audio transmission. With its combination of 4K@60Hz DisplayPort extension, KVM control and fiber optic transmission, it is suitable for broadcasting, video conferencing, rail transit, exhibitions, education, medical training and projection systems.

Introduction

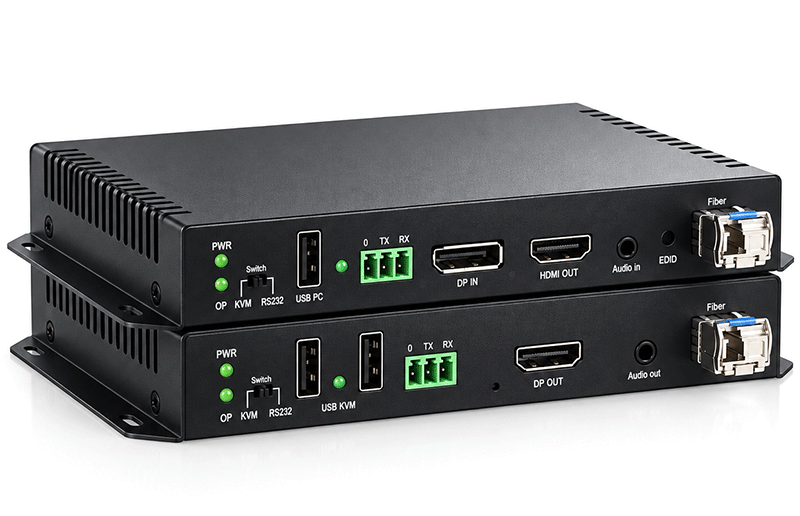

DisplayPort 1.2 Interface

Standard DisplayPort 1.2 interface, supports 3D and HDCP 2.2, compliant with DisplayPort hot-plugging
Uncompressed 4K@60Hz Transmission

All digital, uncompressed, zero delay, no loss; resolution up to 3840×2160@60Hz with 10-bit color depth.
Point to Point Transimission, Up to 10KM

Extend 4K signals up to 10KM over a single mode one core fiber cable, or extender 4K signals up to 300 meters over a multimode dual core fiber cable.
Transmission 20KM/40KM/60KM/80KM can be customised.
AUDIO CAPABILITIES

Supports 7.1-channel PCM surround sound and compressed audio, support analog stereo audio signal transmission

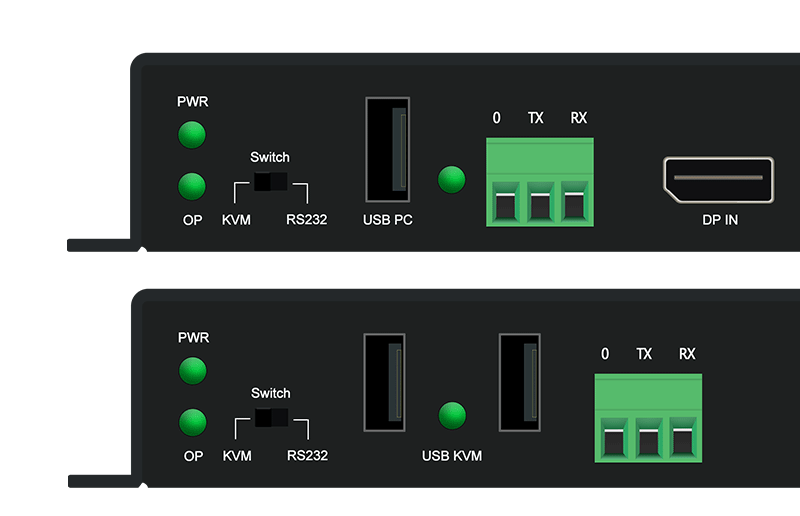

KVM Extension

Remote USB supports USB external devices such as keyboard, mouse.

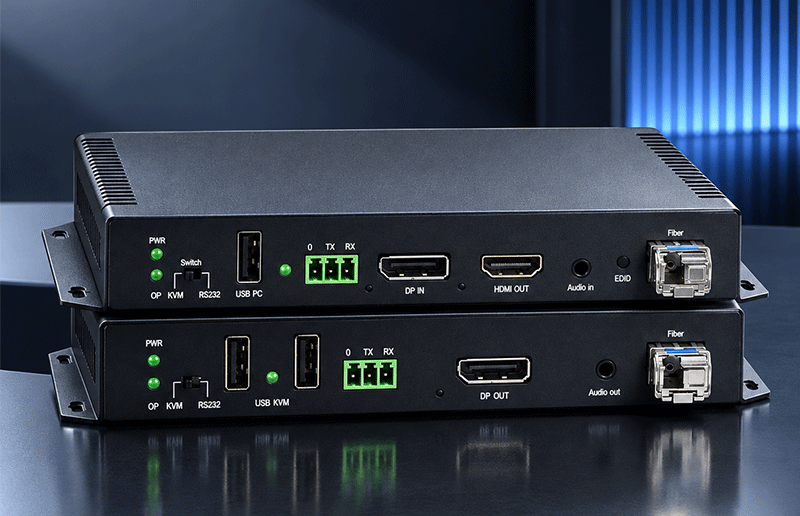

Plug and Play, Hassle-Free Installation

Plug-and-play operation with no software required for easy, immediate installation
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)

Parameters

Model	ZY-OKDP1201
Video
Interface Standard	DisplayPort 1.2
Pixel Bandwidth	600MHz, full digital
Interface Bandwidth	10Gbps
Resolutions	Maximum 3840×2160@60Hz, 3D, downward compatible
Input/Output Level	1 Vp-p
Supported Color Depth	10-bit
Video Interface	Standard DisplayPort interface
Impedance	100Ω
Recommended Maximum DP Cable Input/Output Distance	Less than 5M at the resolution of 3840×2160@60Hz
USB
Interface	USB-A
Version	USB 2.0
Audio
Audio Mode	Independent stereo
Interface	3.5 mm stereo audio jack
Signal Type	Forward-direction stereo
RS232
Interface	Phoenix terminal block
Signal Direction	Forward transmission (optional bidirectional transmission)
Baud Rate	Adaptive, 4800–115200
Fiber Optic
Interface	LC
Types	SFP Single mode
Wavelength	Single-mode: 1310 nm; Multi-mode: 850 nm
Bandwidth	10 Gbps
Distance	Single-mode: 10KM (default), 20KM/40KM/60KM/80KM (Optional) Multi-mode: 300 m
Attenuation	Transmitter: -5 dBm, typical; Receiver maximum sensitivity: -18 dBm, typical
Other
Operating Temperature	0°–40° C / 32°–104° F
Humidity	20–90% RH (non-condensing)
Power	DC 12V 1A
Dimension (W×L×H)	177×110×24mm
Weight	0.45kg/unit
Power Consumption	4W/Unit

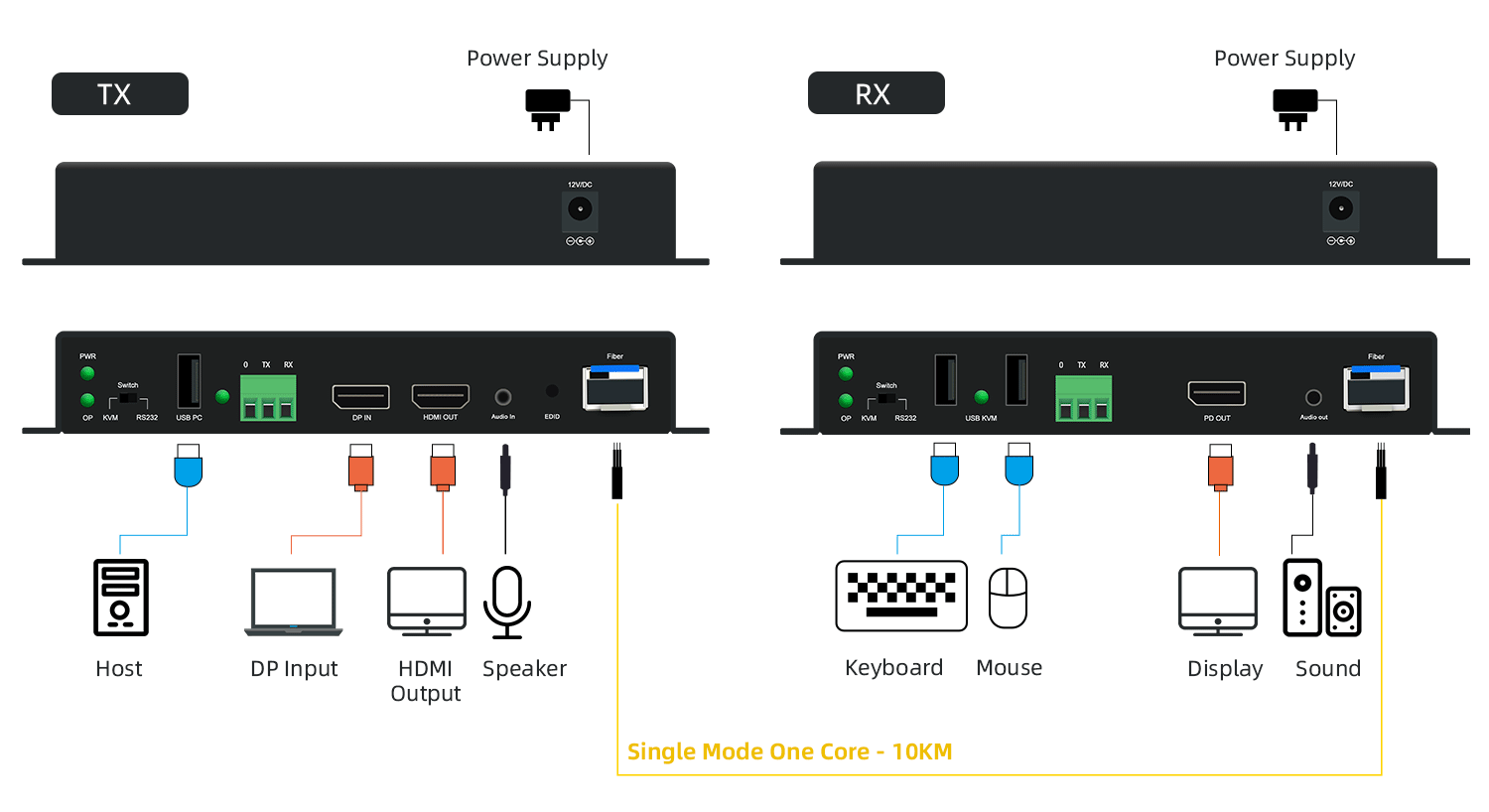

Diagram

Diagran-OKDP1201

What is a DisplayPort KVM fiber optic extender?

It is a device that transmits uncompressed DisplayPort video, USB KVM, RS232, and audio signals over a single fiber optic cable, allowing long-distance remote control of a computer without signal loss.

How far can 4K@60Hz DisplayPort signal be transmitted over fiber?

Up to 10km over single-mode fiber by default, with 20KM, 40KM, 60KM, and 80KM optional. Up to 300m over multi-mode fiber.

Does it support USB keyboard and mouse?

Yes, it supports USB 2.0 keyboard and mouse extension via USB-A interface.

What is the difference between single-mode and multi-mode fiber?

Single-mode fiber supports longer distances (up to 10km or more) with 1310nm wavelength, while multi-mode fiber supports shorter distances (up to 300m) with 850nm wavelength.

Does it support audio transmission?

Yes, it supports 7.1-channel PCM surround sound, compressed audio, and independent forward-direction stereo audio via 3.5mm jack.

Can the transmission distance be customised?

Yes, 20KM, 40KM, 60KM, and 80KM single-mode distances are available as options.
