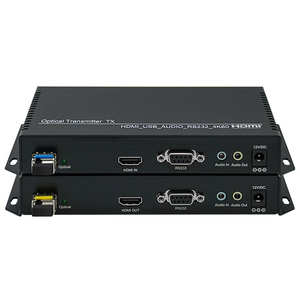

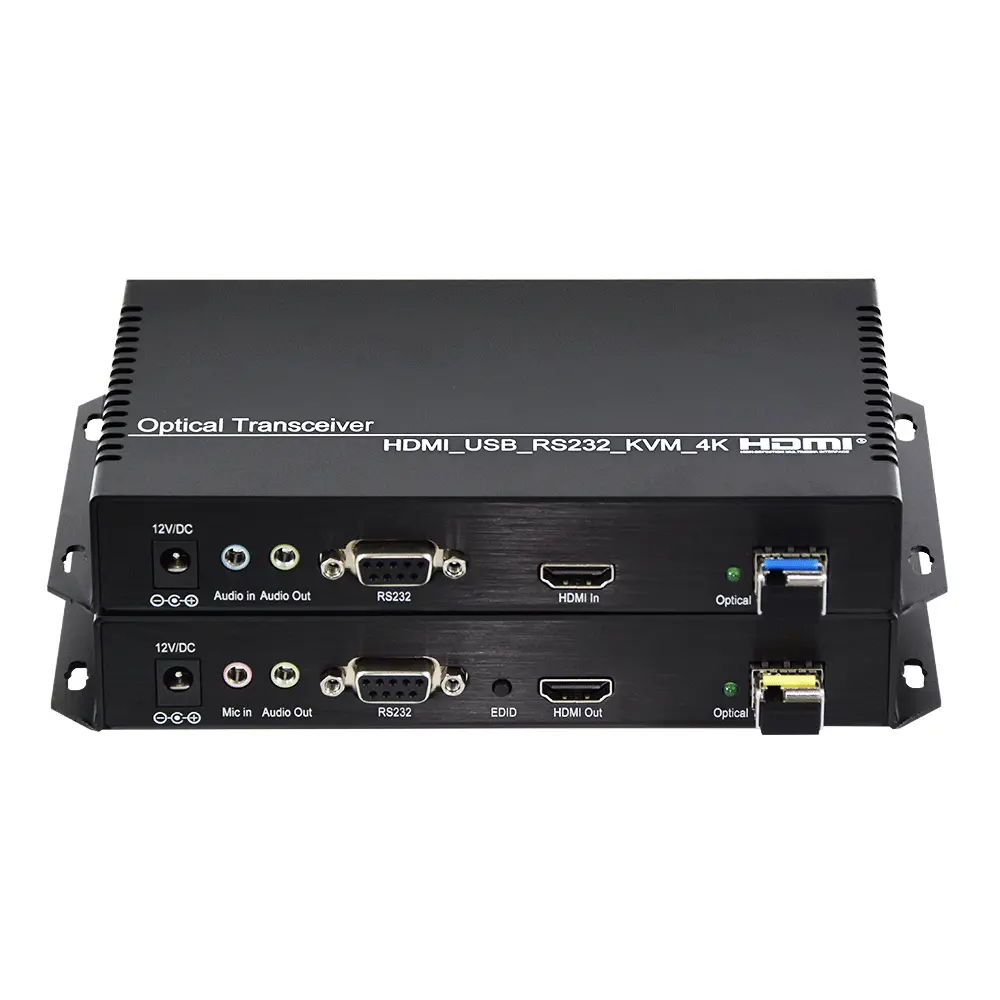

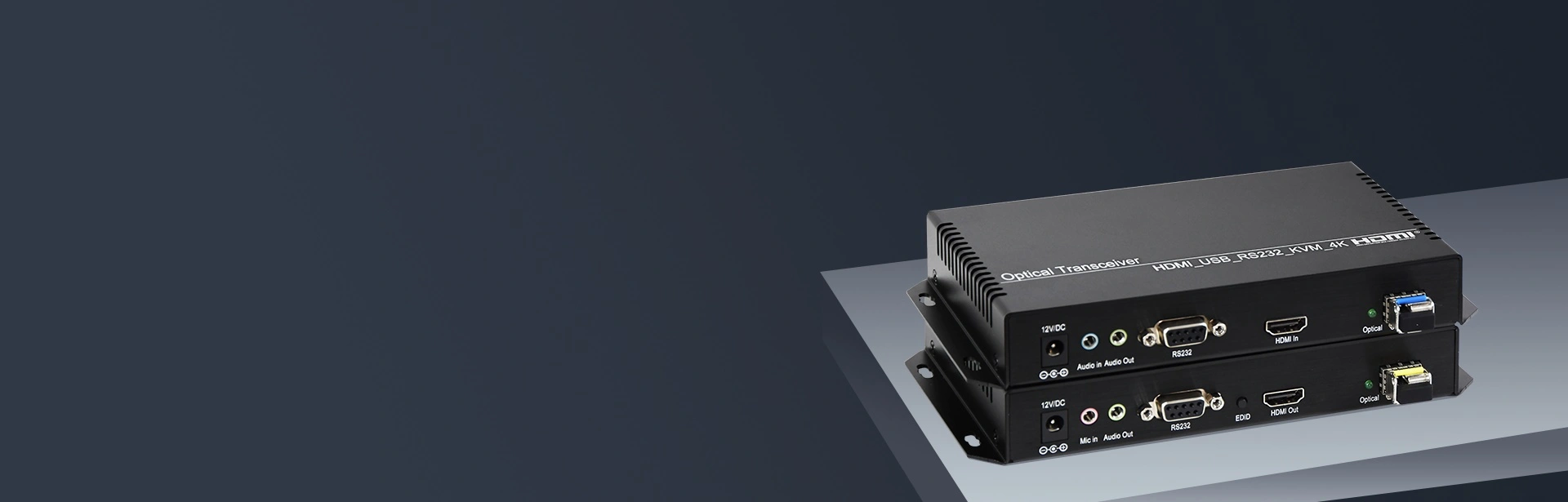

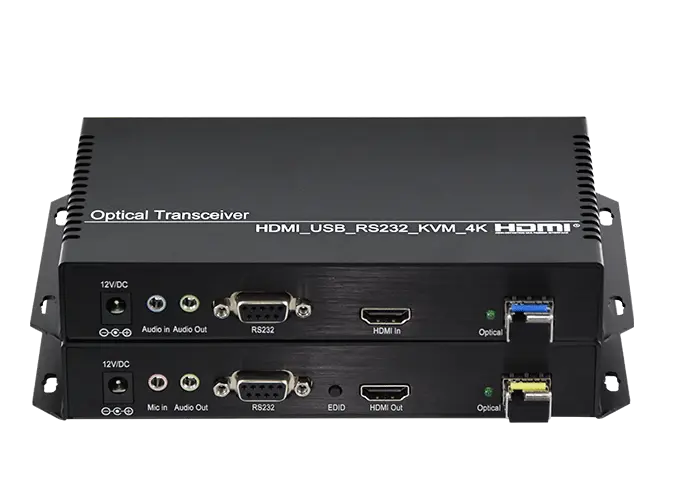

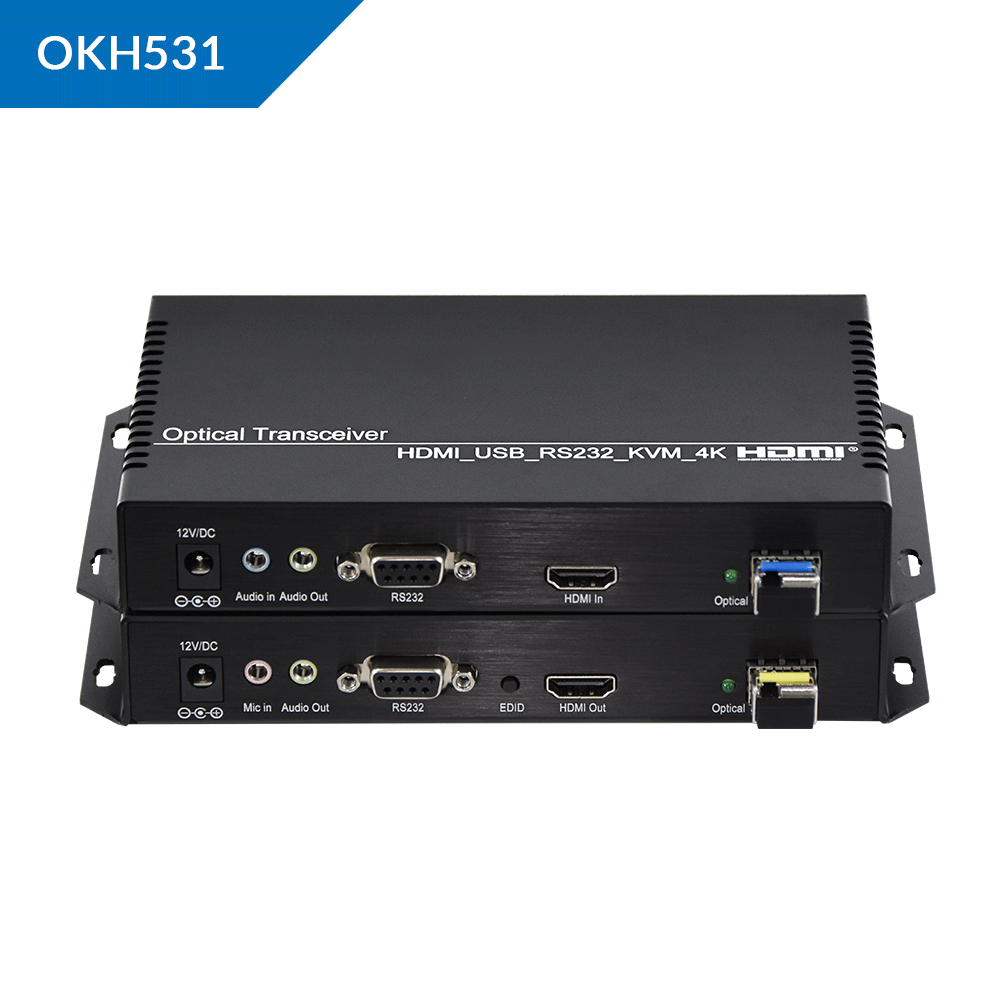

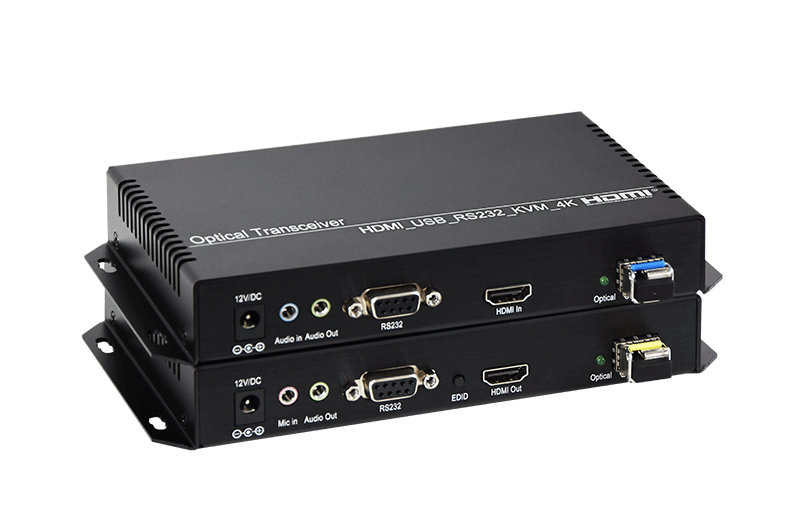

4K@30 HDMI USB2.0 Optical Fiber Extender

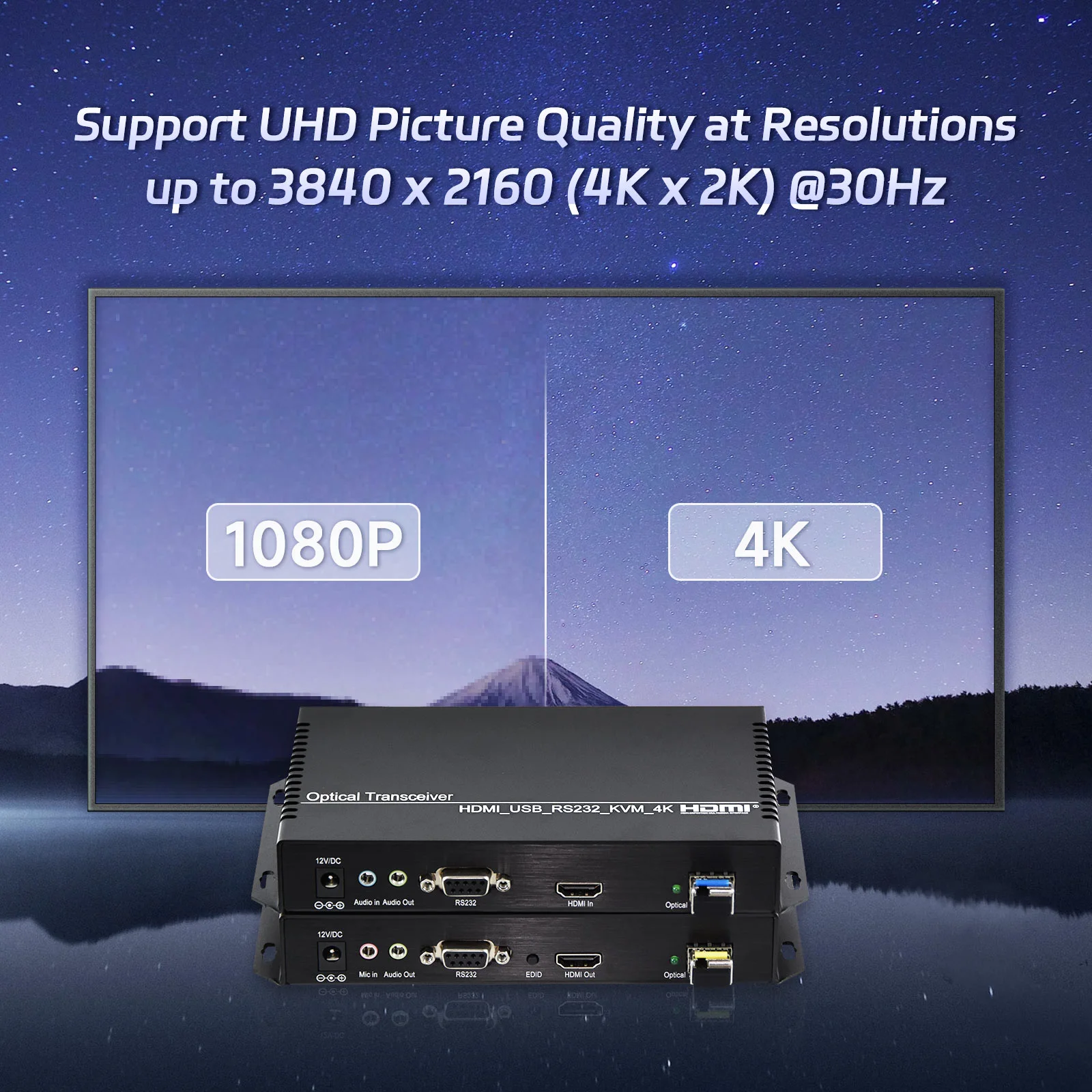

【UHD 4K30 Resolution】Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

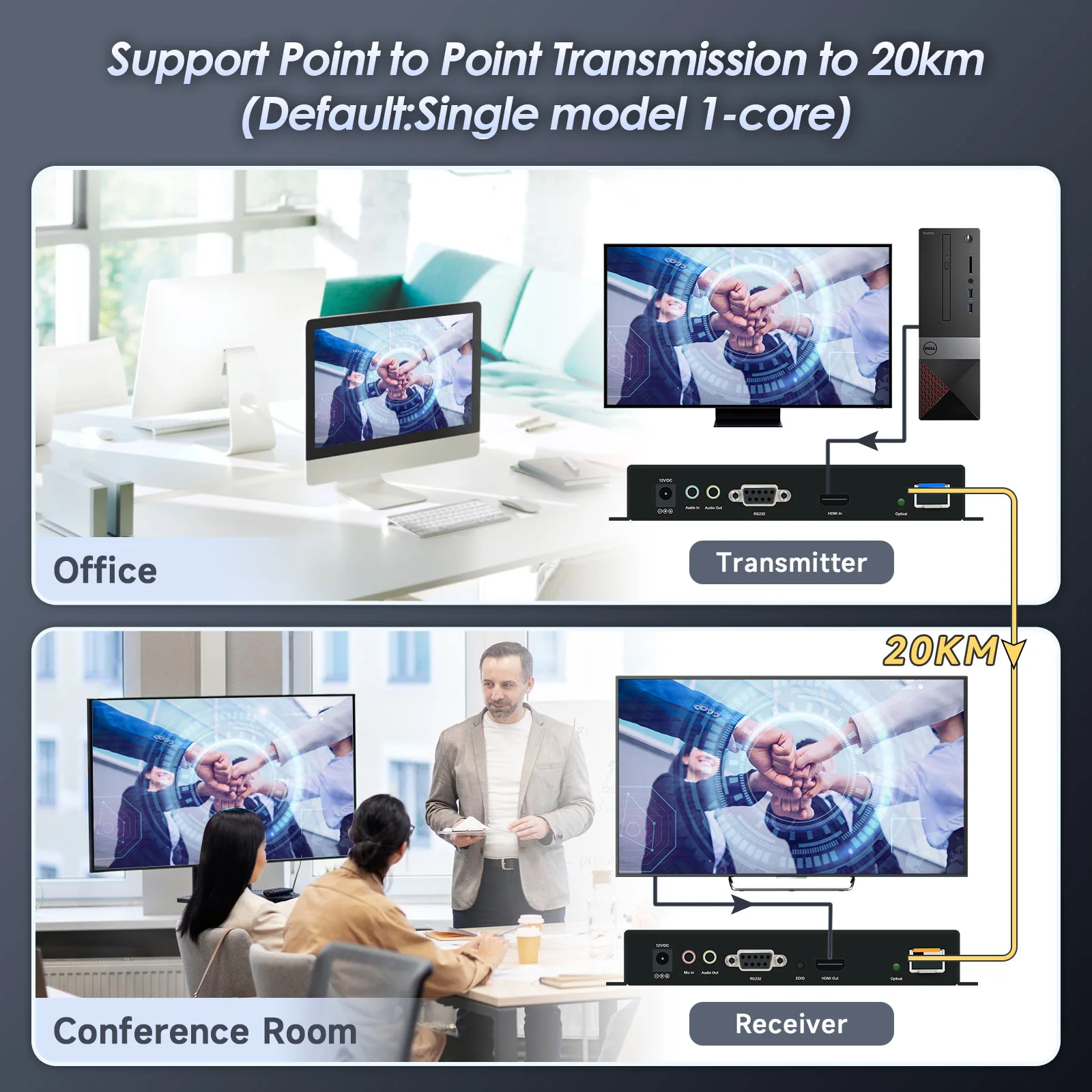

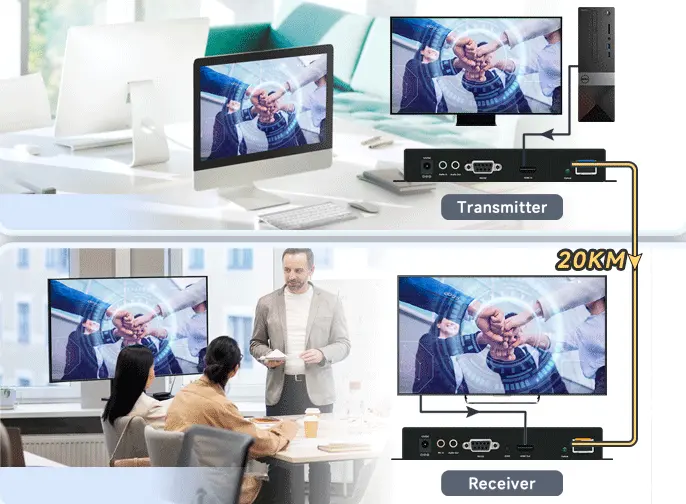

【Up to 20KM Transmission Range】Extend 4K HDMI signal up to 20KM over a single mode fiber one core cable; or extend 4K HDMI signal up to 300M over a multimode dual core cable; 40KM-80KM distance can be customised

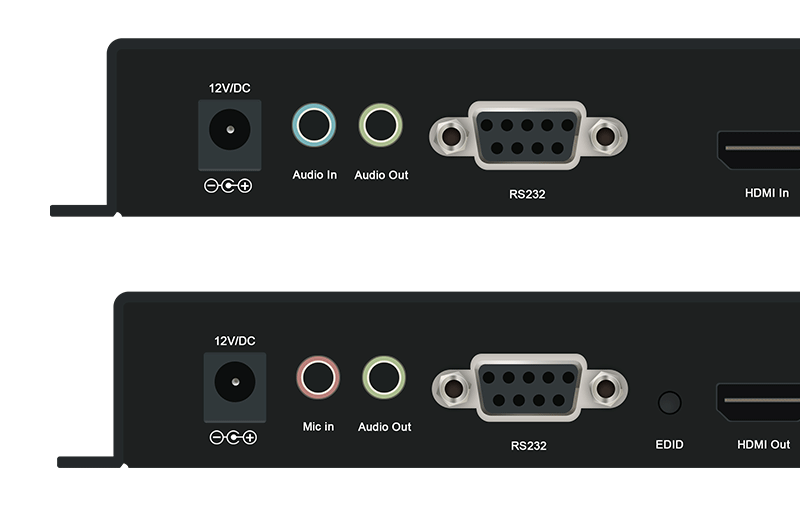

【Excellent Quality】Support bi-directional audio/mic signal transmission, Support EDID mode and RS232 control

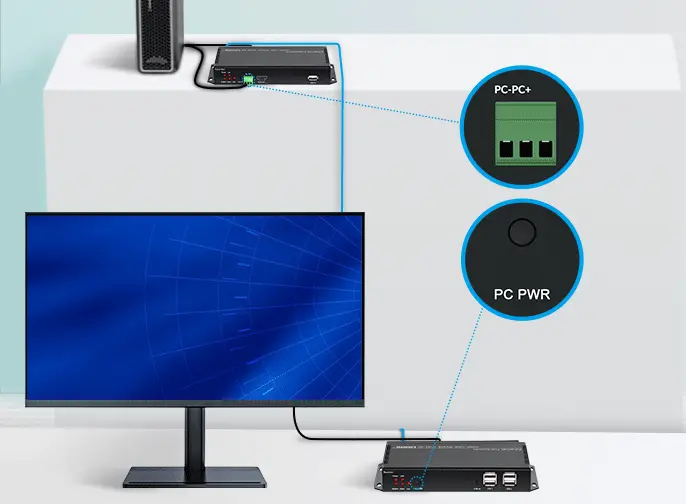

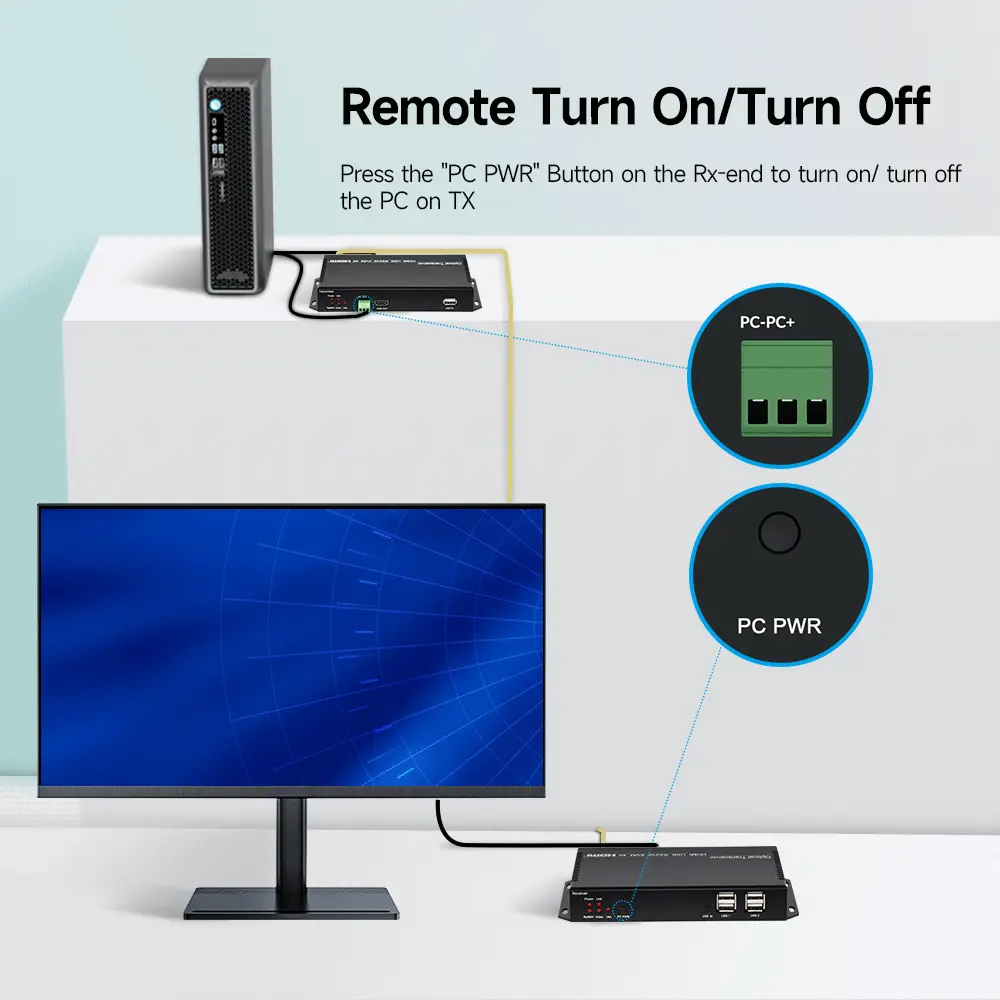

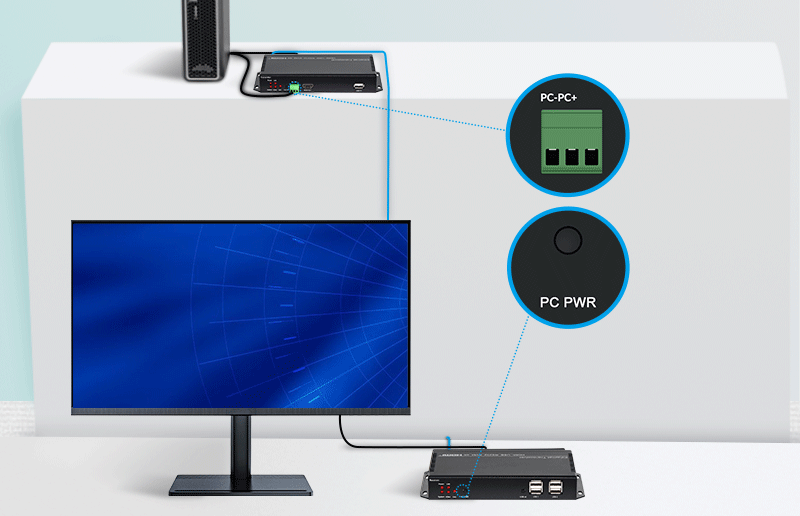

【Remote turn On/Turn Off】Press the "PC PWR" button on the Rx-end to turn on / turn off the PC on TX

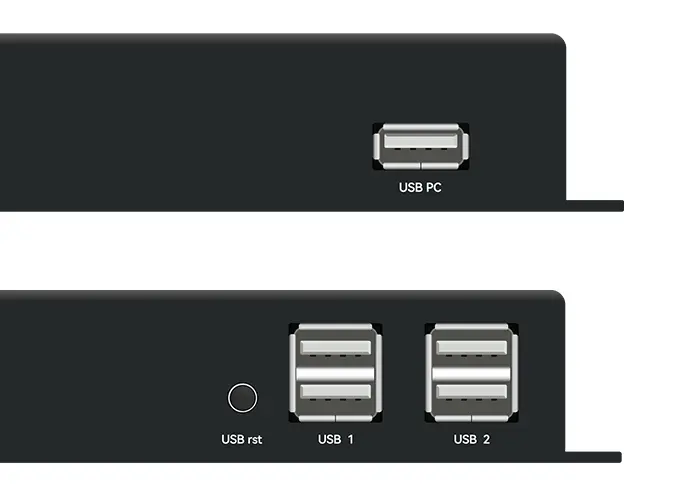

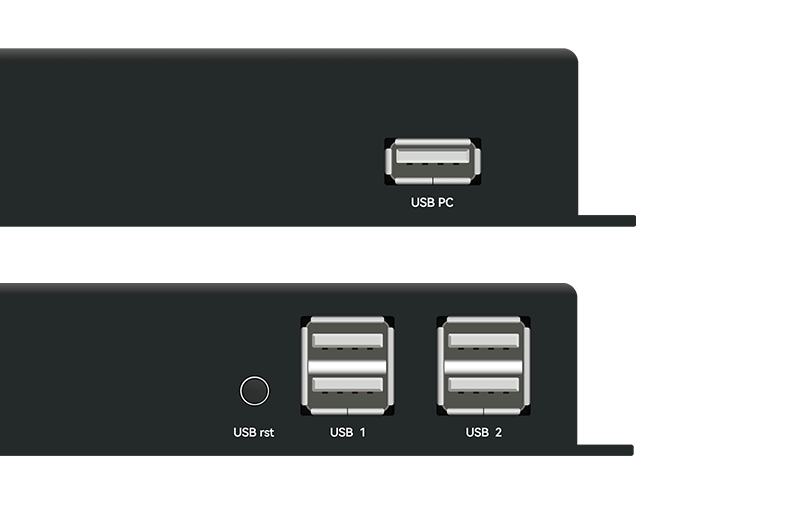

【KVM USB2.0 Supported】Support USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.

【Plug and Play】Simple to install, plug and play, no setup or configuration needed



Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • OKH531

Description
Introduction
Parameters
Diagram

4k30-hdmi-kvm-fiber-optical-extender-01


Introduction
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>4K@30 HDMI KVM Extender Over LC Fiber Optic Cable up to 20KM</strong></span></span><br />
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Ultra HD Resolution</strong></span></span>

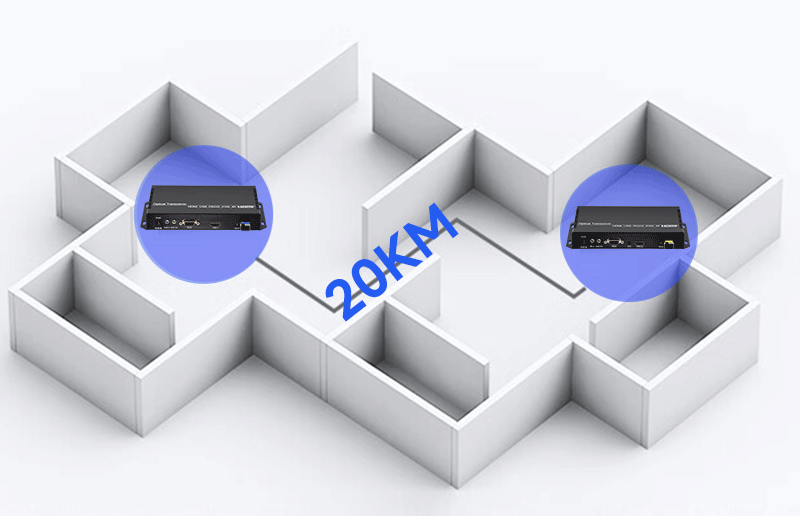

  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Transmission Distance up to 20KM over LC Fiber Optic Cable</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Bi-Directional Audio Signal Transmission</strong></span></span>

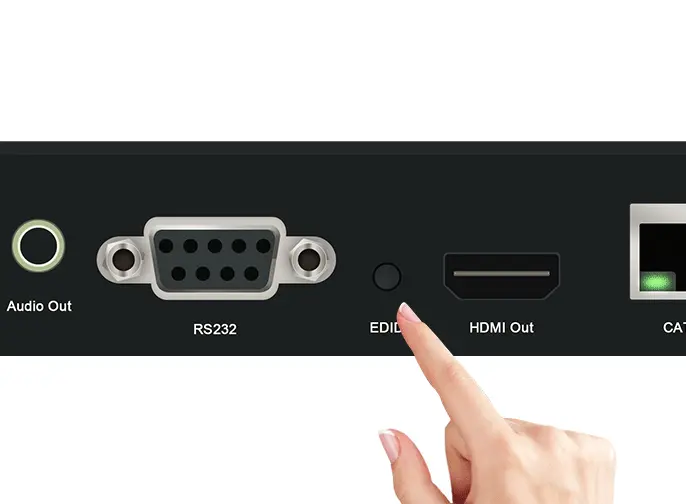

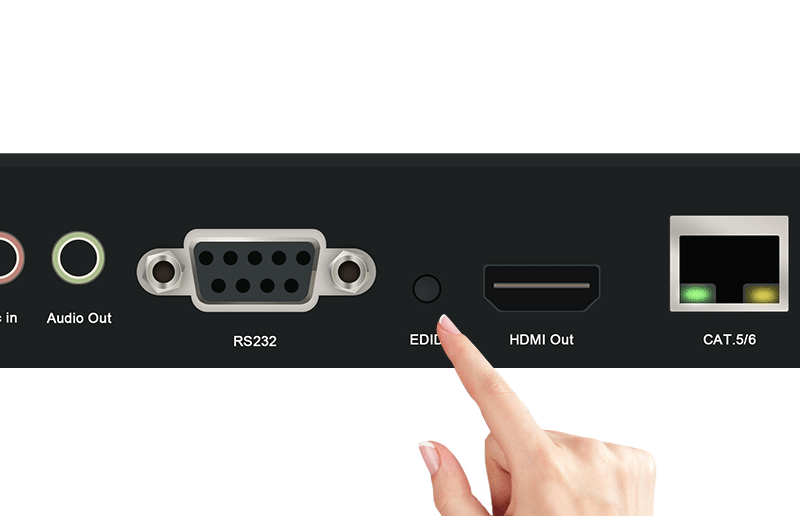

  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Exclusive EDID Function</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>KVM Support All USB2.0 External Devices</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Remote Turn On/Off The PC on TX</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Plug and Play</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Support OEM ODM</strong></span></span>

Parameters of 4K@30 HDMI USB2.0 Optical Fiber Extender

Name4K@30 HDMI KVM Optical Fiber Extender
ModelOKH531
Interface StandardHDMI 1.4 & HDCP1.4
Pixel bandwidth225MHz
Interface bandwidth5.97Gbps
Resolutions3840x2160@30Hz and backward compatible
Video interfaceHDMI-A
Interface Impedance100Ω
Audio
Interface3.5mm aduio input
format44.1K, 48K, 96K, 176K, 192K
Mic
Interface3.5mm aduio input
RS232
InterfaceDB9
Signal directionBi-directional
Baud rate9600bps (Other baud rate can be set)
Data bit8digits
Keyboard/Mouse
Transmitter interfaceType A USB interface
Receiver interfaceType B USB interface
VersionUSB2.0
Optical Fiber
InterfaceLC
TypesSFP Single mode
Wavelength1550/1310nm
Bandwidth1.25Gbps
Distance20KM (default single mode)
40KM 60KM 80KM (Optional)
300m (multimode)
Attenuation-3db
Other
Temperature-5 ~ +60° C
Humidity5 ~ 90 %
Power12V/DC 1A
Power Consumption2W/Unit
Dimensions187*105*28mm (Length * width * height)
Weight0.3KG/unit

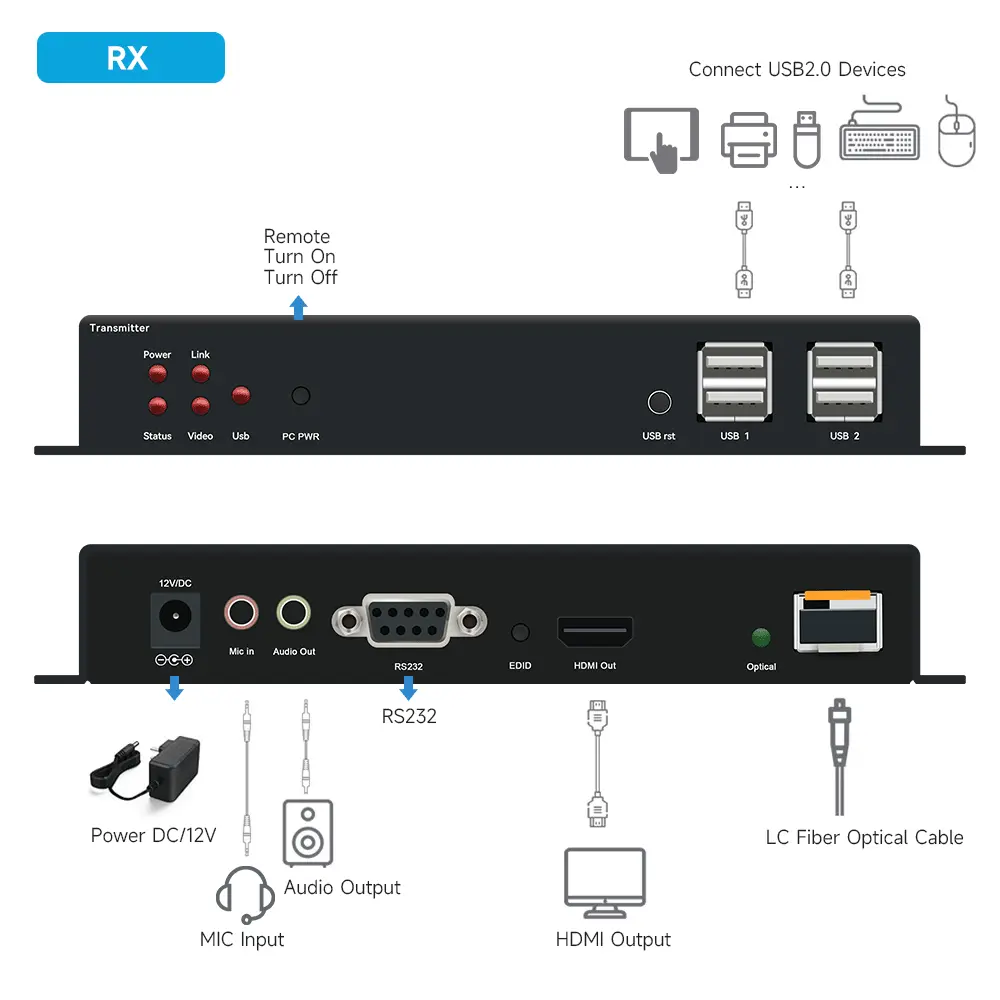

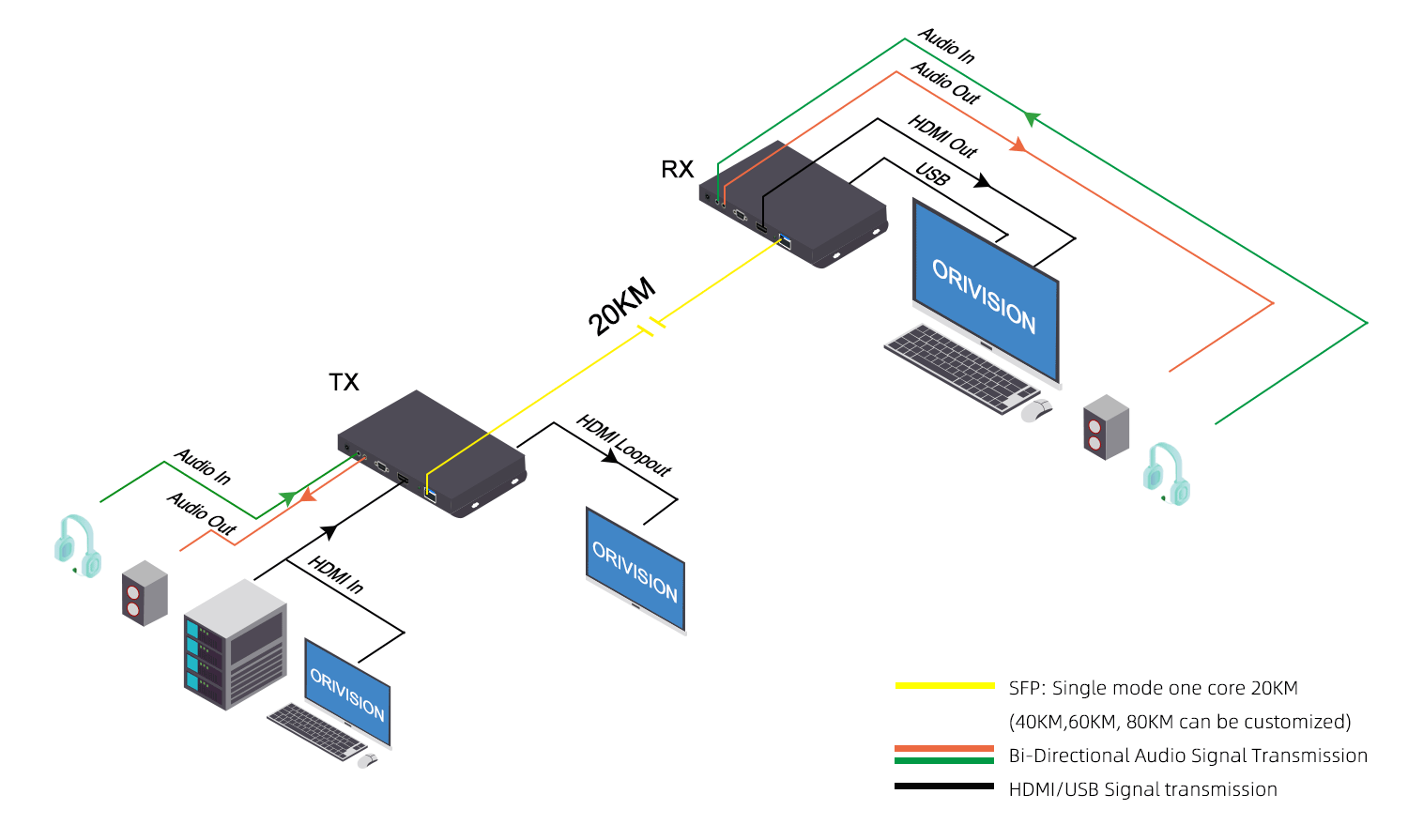

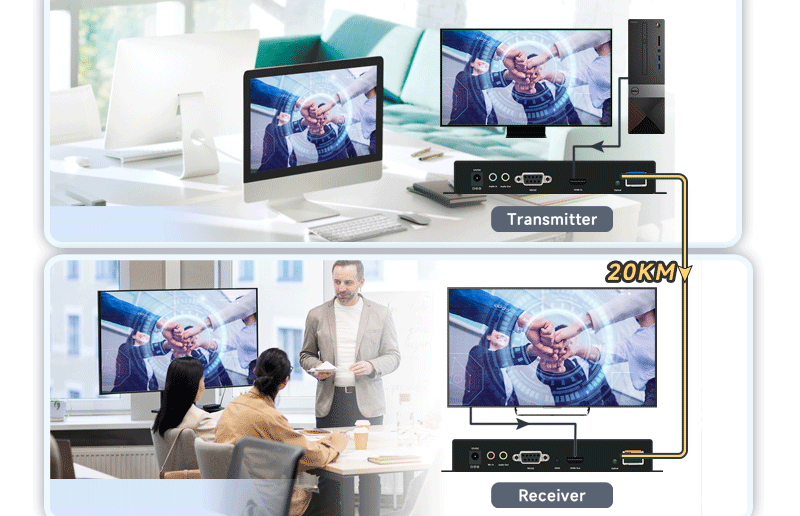

Diagram of 4K@30 HDMI USB2.0 Optical Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.





Need More Info About Our System?
Orivision Is Here To Help!
Get Touch With Us
Related Products
ORIVISION 4K@30 DVI KVM Optical Fiber Extender
ORIVISION 4K@30 DVI KVM Optical Fiber Extender
ORIVISION 4K@60 Uncompressed HDMI KVM Optical Firber Extender
4K@60 Uncompressed HDMI KVM Optical Firber Extender
ORIVISION 4K@60 HDMI KVM Optical Fiber Extender
4K@60 HDMI KVM Optical Fiber Extender

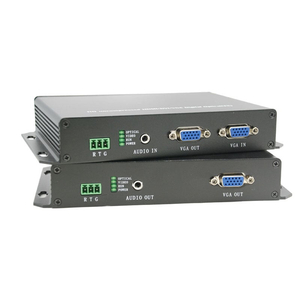

ORIVISION Uncompressed 1920x1200@60 VGA Fiber Optic Extender
Uncompressed 1920x1200@60 VGA Fiber Optic Extender

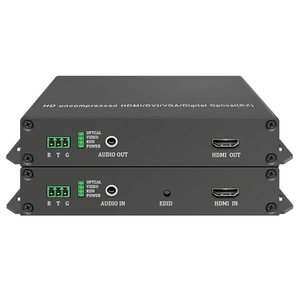

ORIVISION Uncompressed 1920x1200@60 HDMI KVM Fiber Optical Extender
