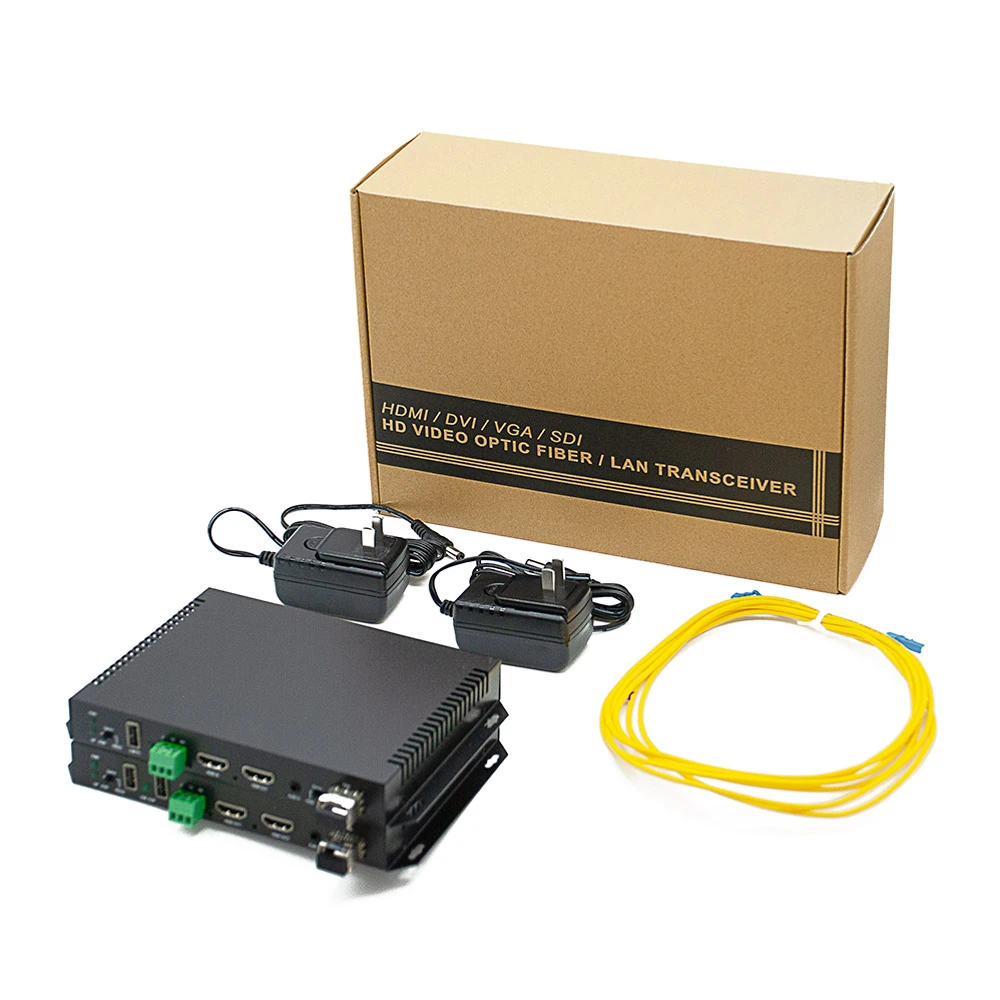

4K@60 Uncompressed HDMI KVM Optical Firber Extender

【Uncompressed Transmission】All digital, uncompression, zero delay, strong compatibility with no delay and no loss, audio and video synchronous transmission

【HD Resolution】Resolution up to 3840*2160@60, 3D, HDMI 2.0 and HDCP 2.2 Compliant

【10KM Extreme Long Transmission】Extend HD HDMI signal up to 10KM over a single mode fiber one core cable; or extend HD HDMI signal up to 300M over a multimode duanl core cable; 20KM-80KM distance can be customised

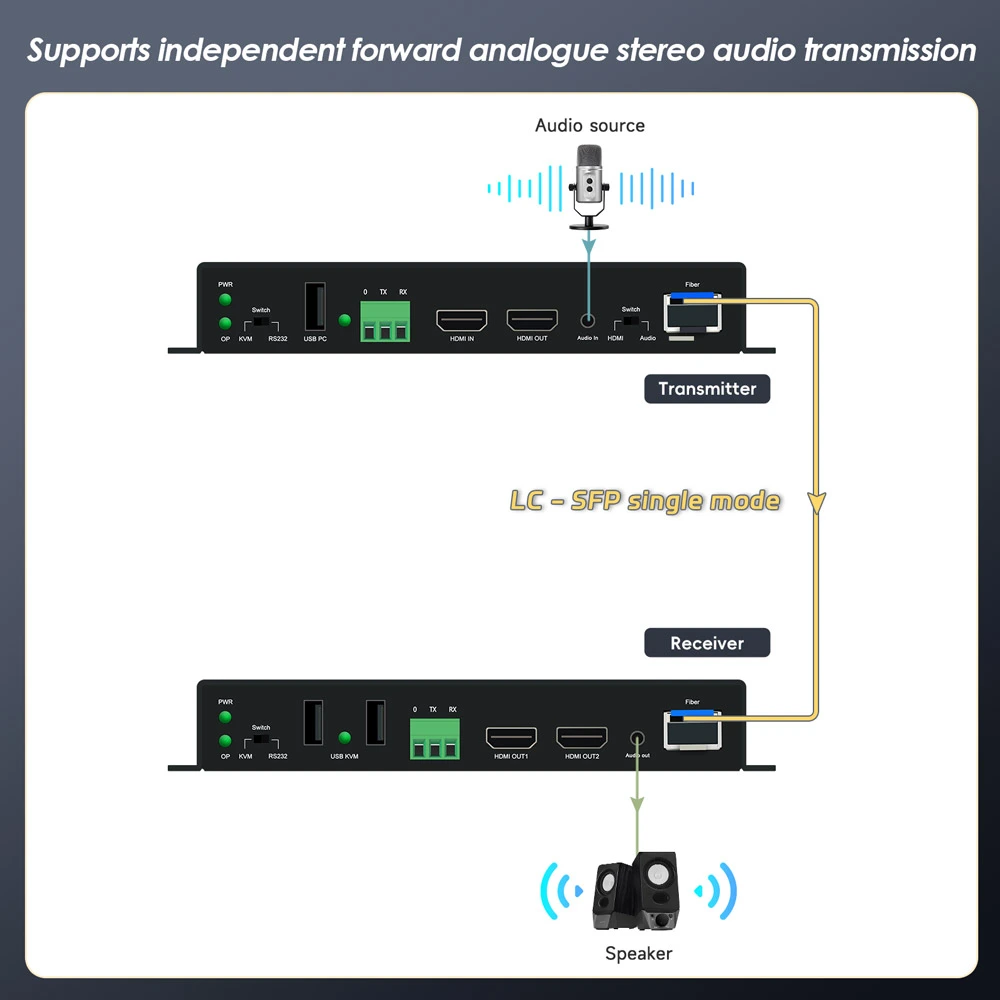

【Excellent Quality】Supports 7.1-channel PCM surround sound and compressed audio, support analog stereo audio signal transmission

【Support RS232】Support serial port data transmission, adaptive baud rate

【KVM Extension】Support Keyboard and mice extender

【Plug and Play】Simple to install, plug and play, no setup or configuration needed



Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

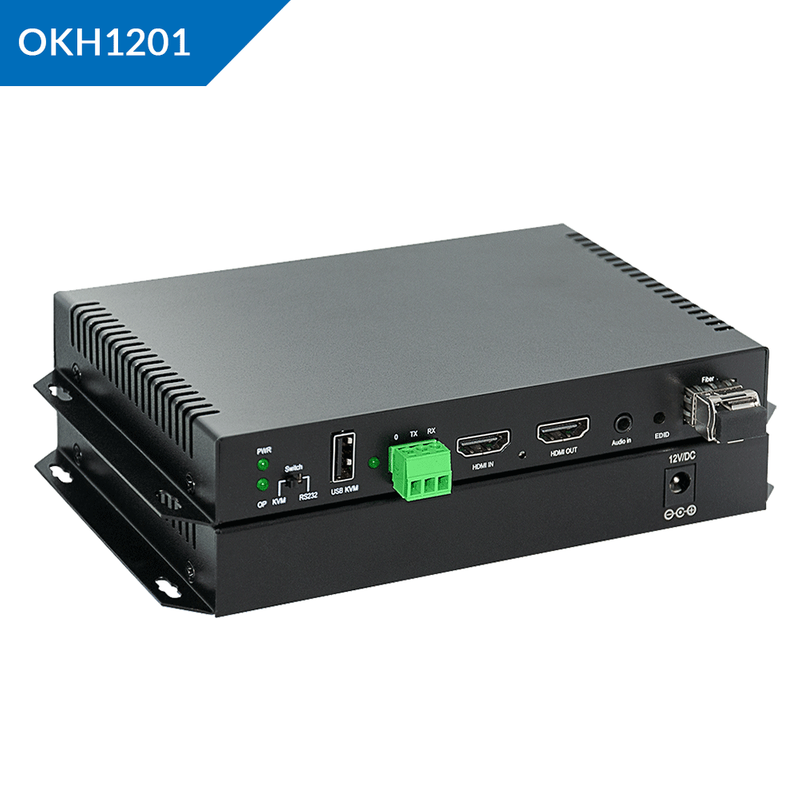

  • OKH1201

Description
Introduction
Parameters
Diagram

4k60-hdmi-kvm-optical-fiber-extender-01


Introduction

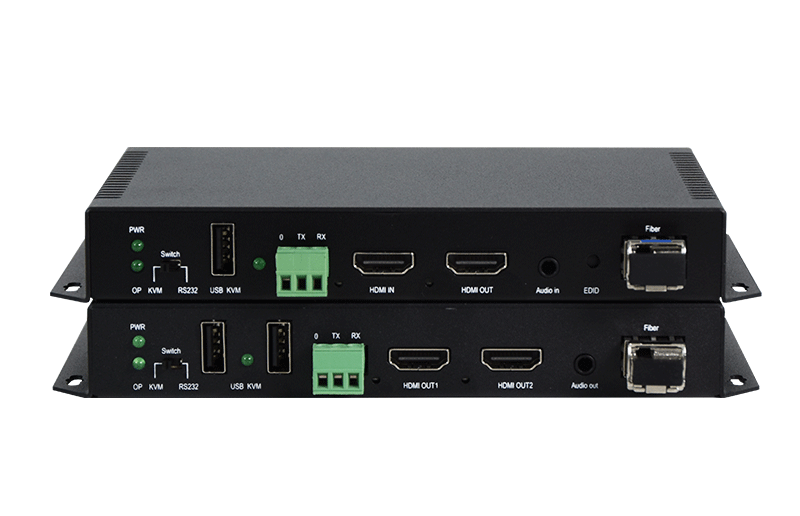

  • <span style="color:#333333;"><strong><span style="font-size:24px;">Uncompressed 4K@60 HDMI KVM Optical Fiber Extender</span></strong></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Uncompressed Transmission</strong></span></span>
  • <span style="color:#333333;"><strong><span style="font-size:24px;">Professional for 4K HDMI HD Video Extender</span></strong></span>

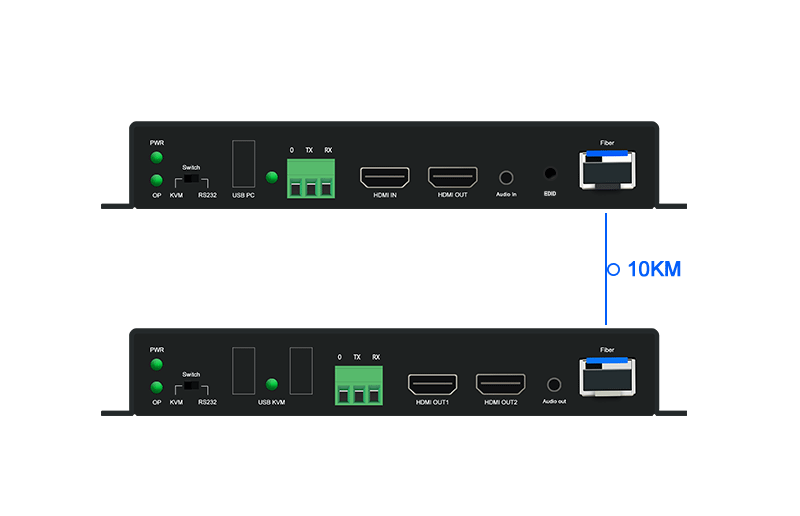

  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Point to Point Transimission, Up to 10KM</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>AUDIO CAPABILITIES</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>KVM Extension</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Plug and Play, Hassle-Free Installation</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Support OEM ODM</strong></span></span>

Parameters of Uncompressed HDMI KVM Optical Firber Extender


NameHDMI KVM Fiber Extender(uncompression)
ModelZY-OKH1201
Video
Interface StandardHDMI-A, HDMI 2.0
Pixel bandwidth600MHz
Interface bandwidth10Gbps
ResolutionsMaximum 3840X2160@60HZ, 3D
HDMI CableLess than 5M at the resolution of 1920X1080@60Hz
InterfaceHDMI-A
Impedance100Ω
USB
InterfaceUSB-A
VersionUSB 2.0
Audio
Interface3.5mm Stereo audio socket
formatindependent stereo,forward stereo
RS232
InterfacePhoenix terminal
Baud rate4800-115200
Signal directionForward transmission (Bidirectional transmission option)
Optical Fiber
InterfaceLC
TypesSFP Single mode
WavelengthSingle mode 1310nm, multimode:850m
Bandwidth10Gbps
Distance10KM (default single mode)
20KM 40KM 60KM 80KM (Optional)
300m (multimode)
Attenuation—5db
Other
Temperature0 ~ +40° C
Humidity20 ~ 90 %
Power Consumption4W/Unit
Power supplyDC 12V1A
Dimensions169*111*24mm (Length * width * height)
Weight0.45KG/unit




Diagram of Uncompressed HDMI KVM Optical Firber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
