【Uncompressed Transmission】 HDMI to fiber converter can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission

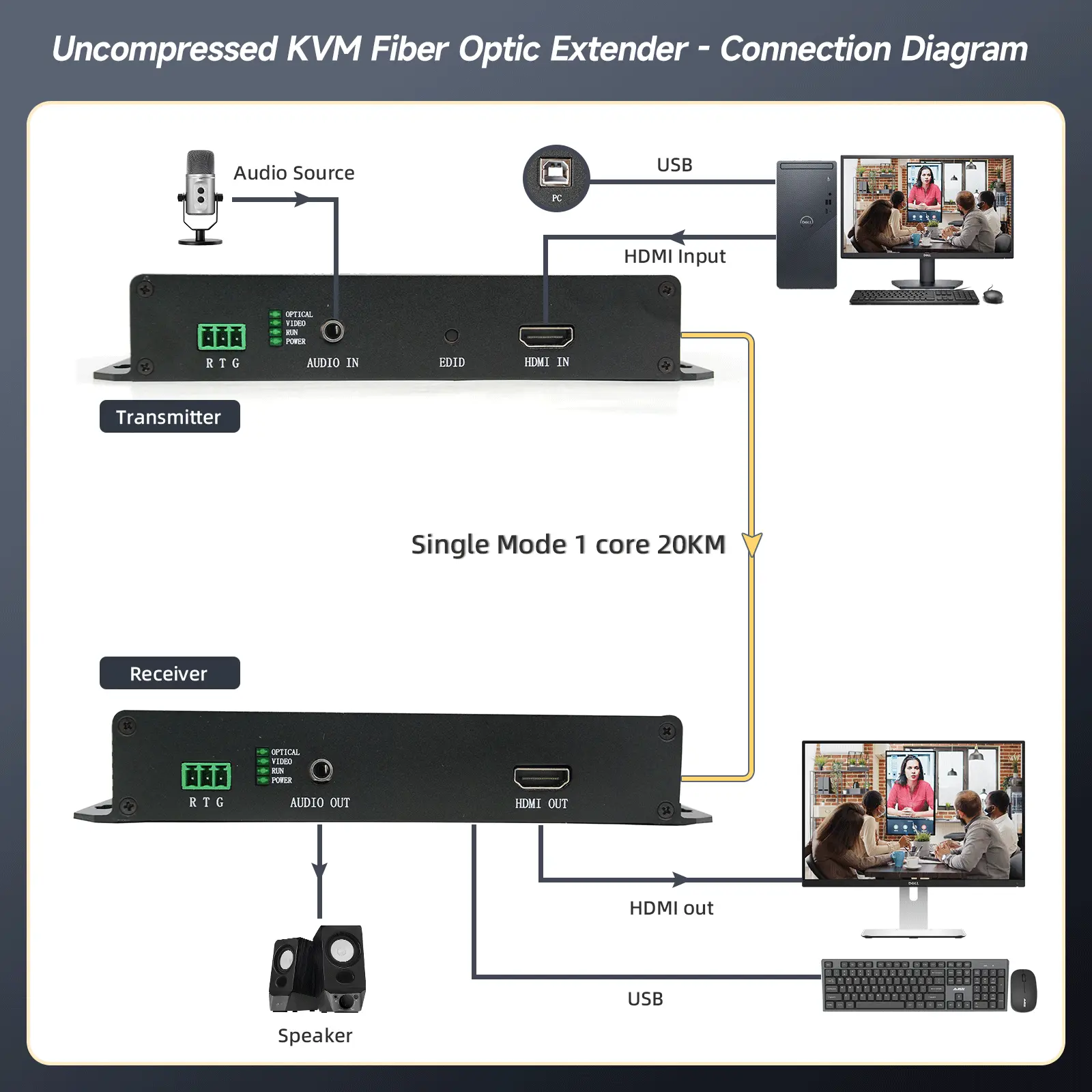

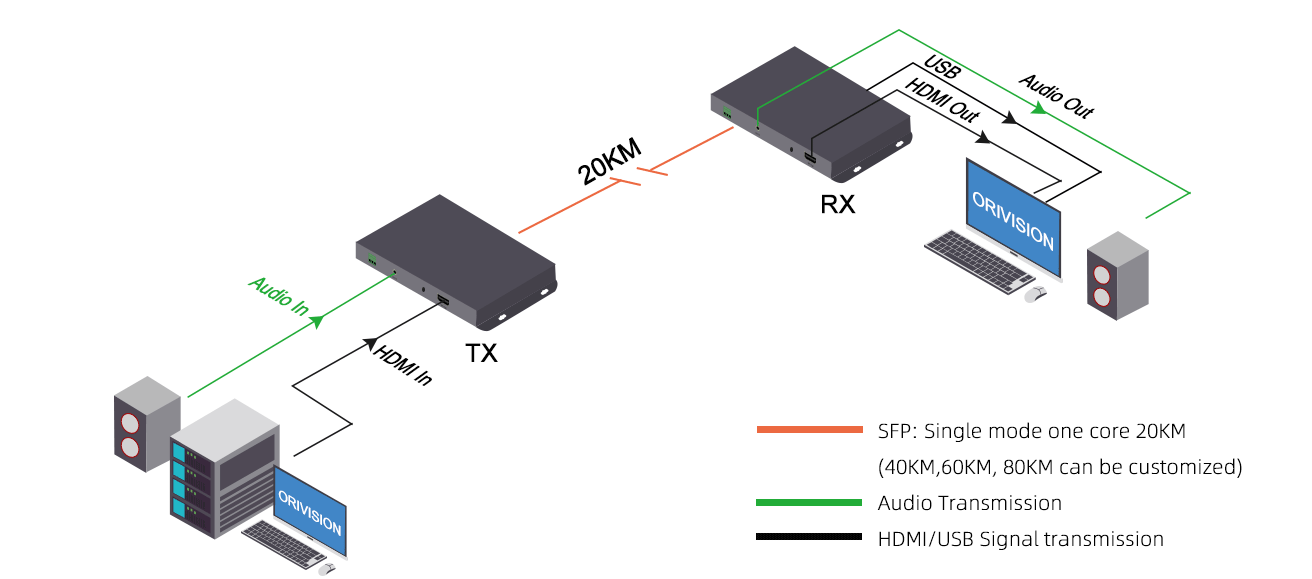

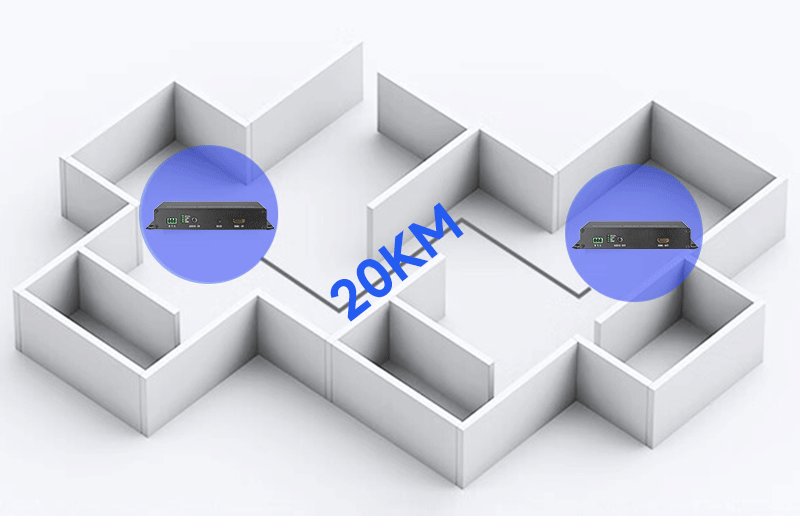

【Up to 20KM Extension】 This HDMI Fiber Extender over fiber sends HD HDMI signal to remote transmission through a single mode 1 core fiber optic cable with LC connector
【Full HD Resolution】HDMI fiber extender supports resolutions up to 1920*1200@60Hz, provide you a smooth, stable and high quality video experience, and compatible backwards with lower resolution

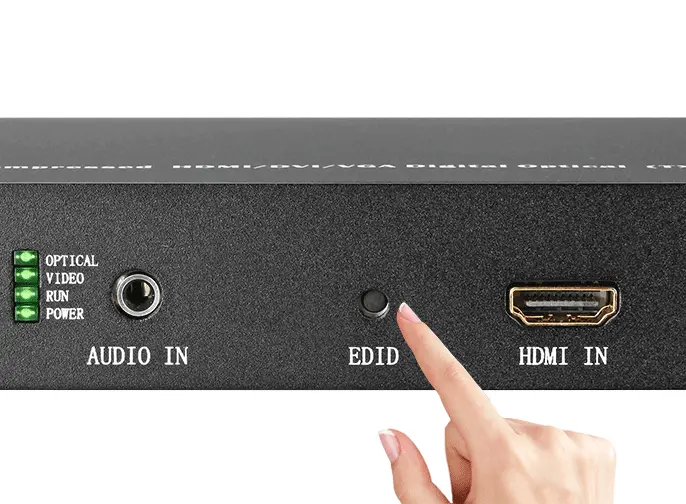

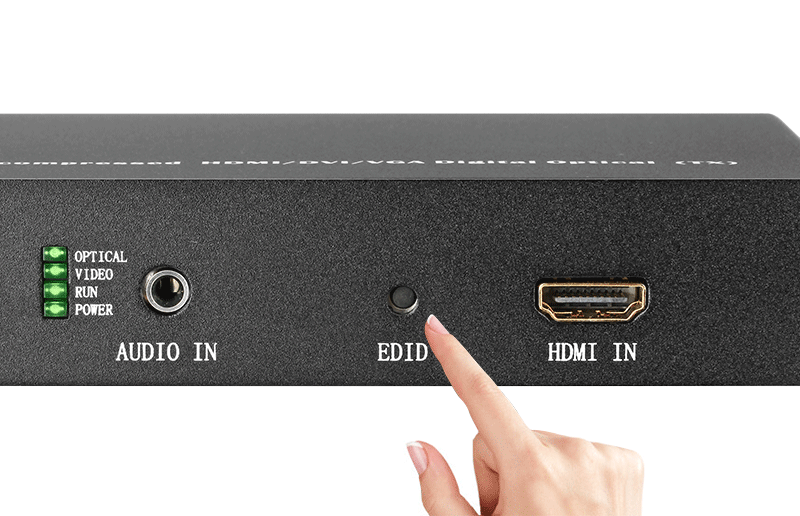

【Excellent Quality】 Compliant with HDMI 1.3b, support EDID and RS232 command control
【Multi-scene Application】 HDMI over fiber extenders is great ideal for applications such as security monitoring, broadcast, video conferencing, multimedia classrooms, high-end medical imaging, interactive digital signage, home theatres, education systems and even industrial automation

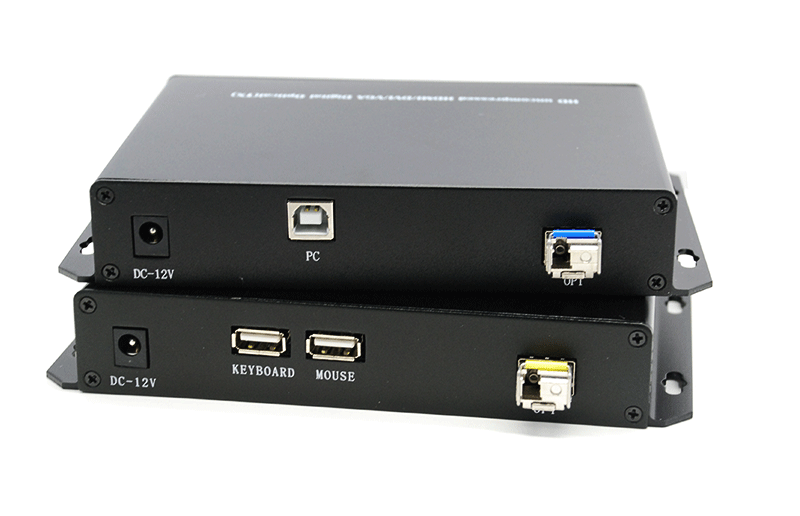

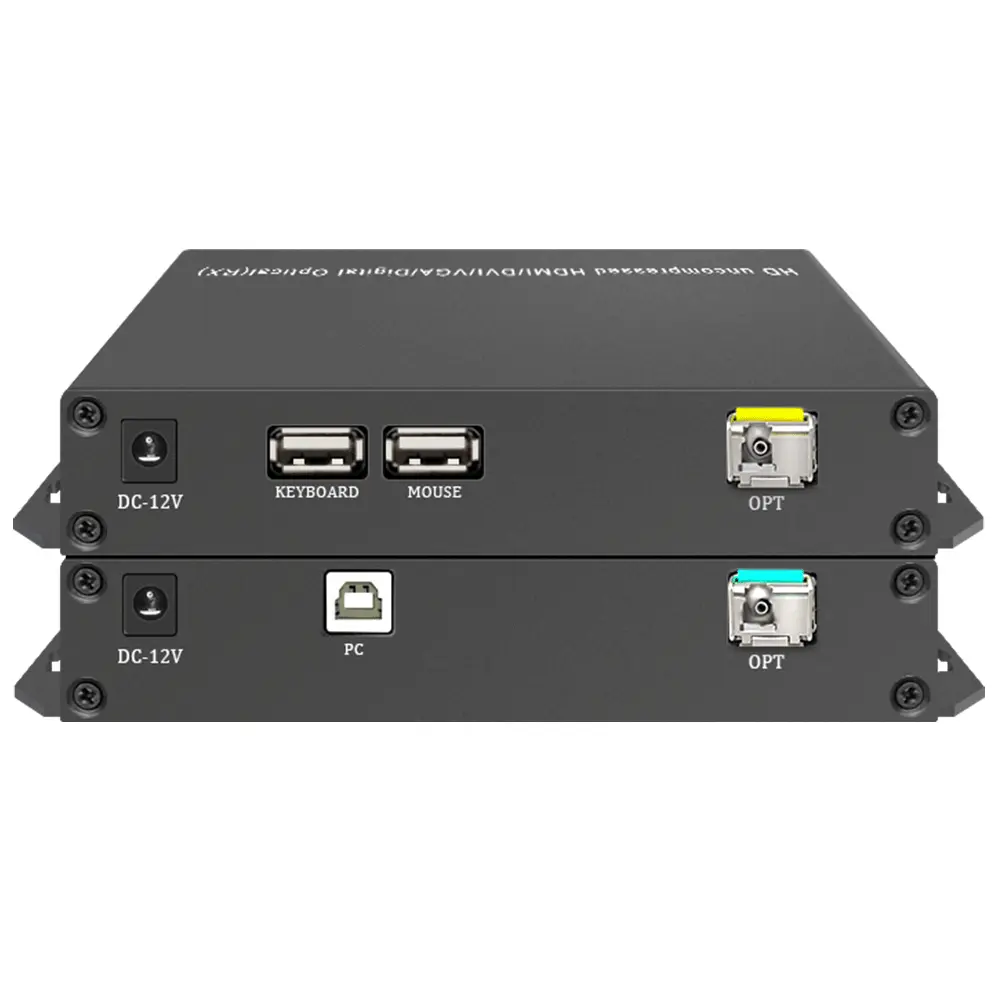

【USB KVM Extension】This HDMI Extender feature allows you to control your PC through Keyboard/Mouse remotely at the receiver end.

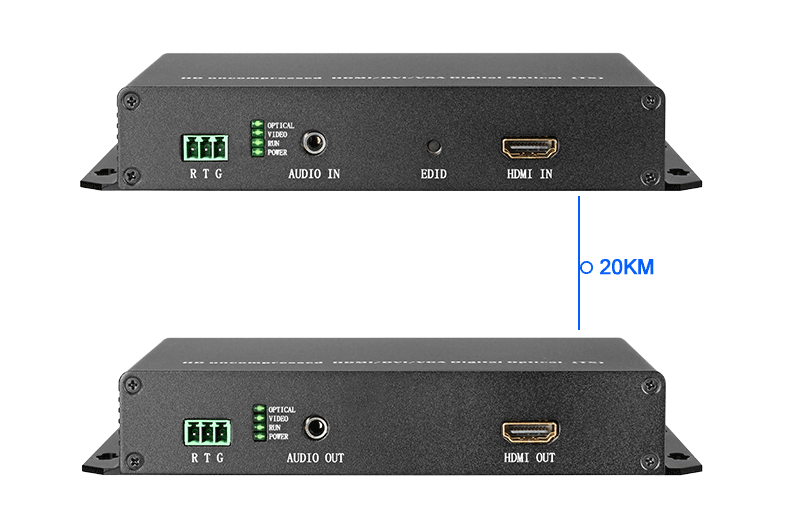

【Plug and Play】 Simple to install, plug and play, no setup or configuration needed
| Availability: | |
|---|---|

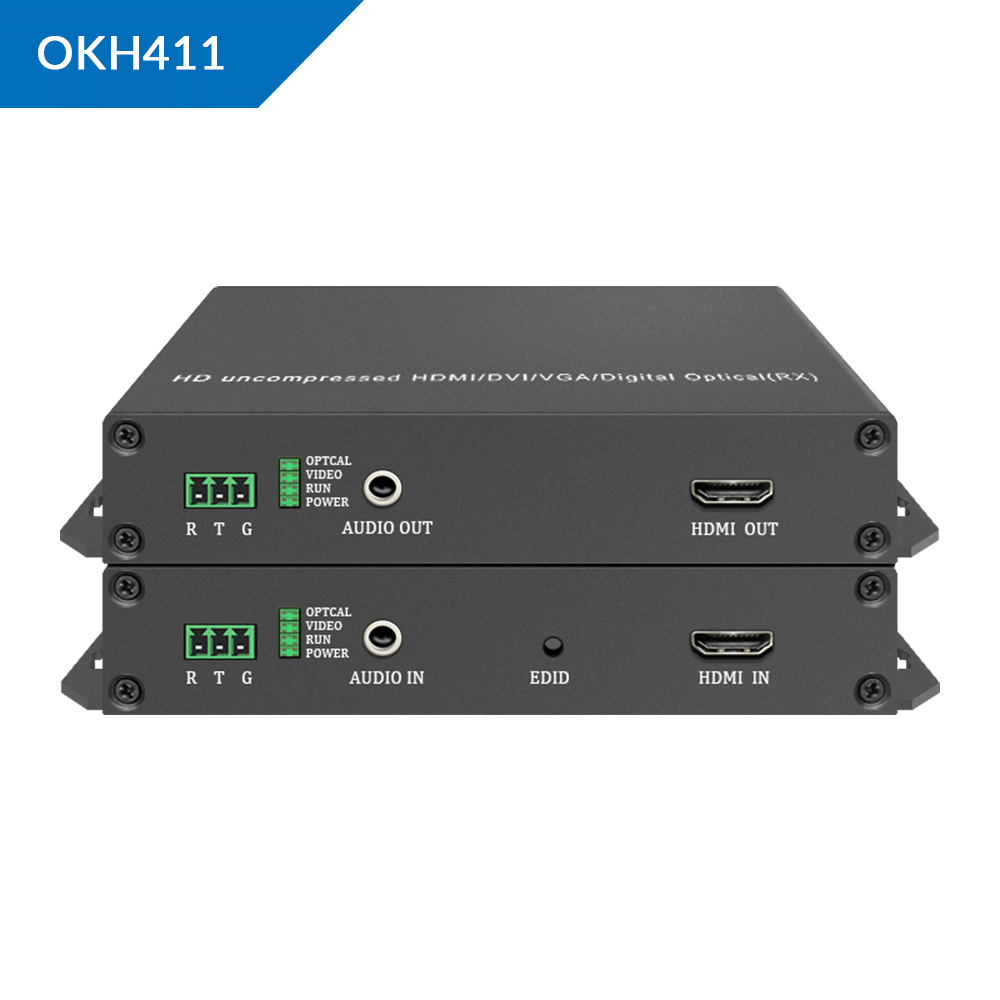

OKH411

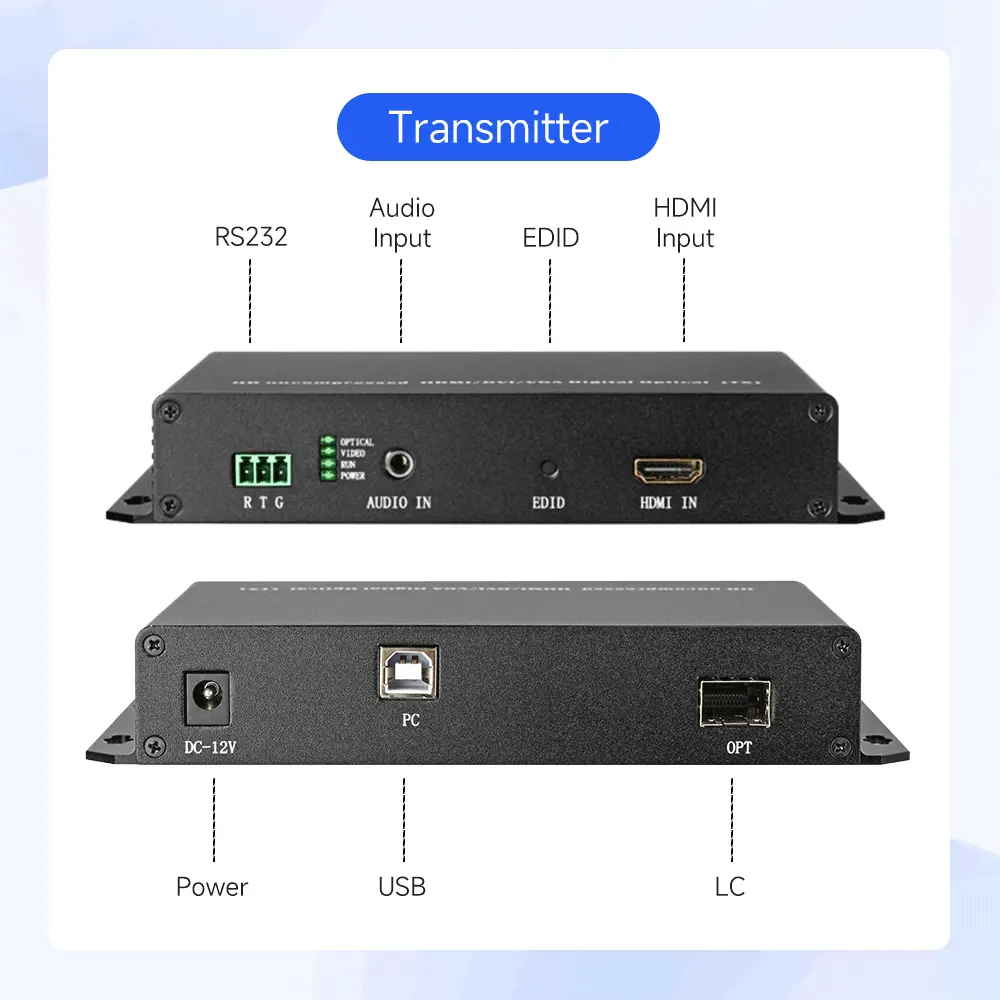

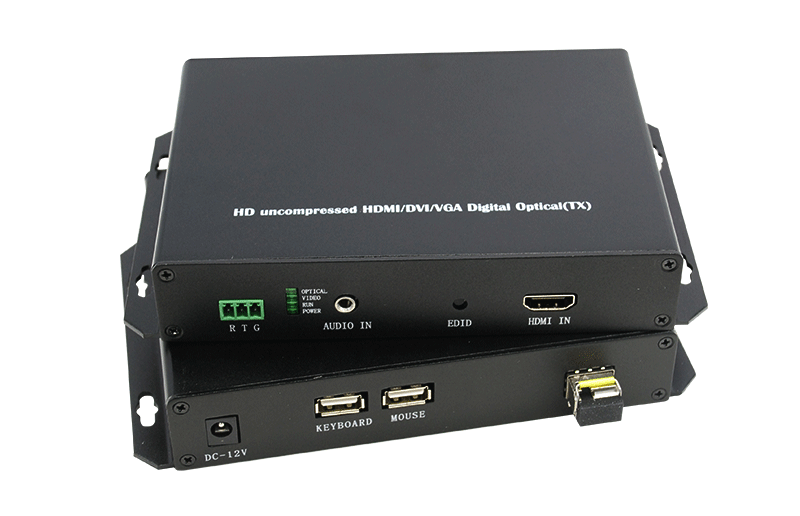

| Name | Uncompressed 1920x1200@60 HDMI KVM Fiber Optical Extender |
| Model | ZY-OKH411 |
| Video | |
| Interface Standard | HDMI 1.3b;HDCP 1.2 |
| Resolutions | 800x600P60; 1024x768P60; 1280x800P60; 1280x1024P60; 1360x768P60; 1366x768P60; 1400x1050P60; 1440x900P60; 1600x900P60; 1600x1200P60; 1680x1050P60 1280x720P50; 1280x720P60; 1920x1080P24; 1920x1080P25; 1920x1080P30; 1920x1080P50; 1920x1080P60; 1920x1080I60; 1920x1080I50; 1920x1200P60 |
| Pixel Bandwidth | 165MHz |
| Audio | |
| Interface | 3.5mm aduio |
| Format | 44.1K, 48K, 96K, 176K, 192K |

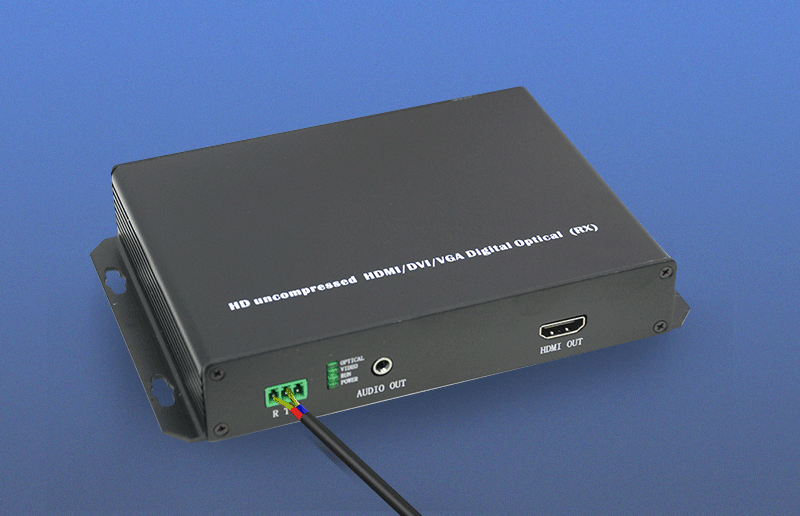

| RS232 | |
| Interface | DB9 |
| Baud rate | 115200 |
| Data bit | 8digits |
| Keyboard/Mouse | |
| Transmitter interface | Type A USB interface |

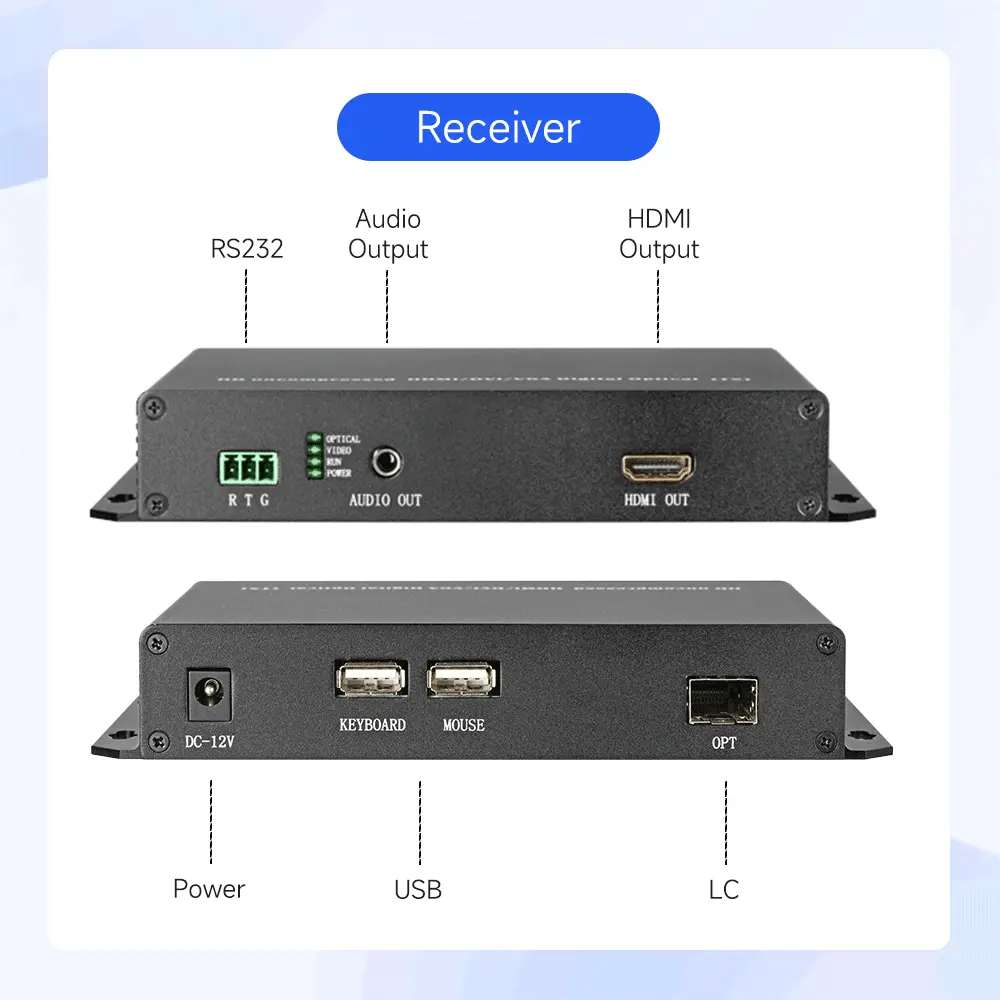

| Receiver interface | Type B USB interface |
| Cable | |
| Interface | LC |
| Wavelength | Single mode: 1310nm, multimode: 850m |
| Distance | 20KM(default single mode); 40KM 60KM 80KM (Optional) 300m (multimode) |
| Other | |
| Temperature | -5 ~ +70℃ |
| Humidity | 5~90 % |
| Power Consumption | 4W/Unit |
| Power supply | DC 12V1A |
| Dimensions(L*W*H) | 175×115×30mm(L*W*H) |
| Weight | 0.4KG/unit |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
