Standard copper cabling, such as HDMI, Ethernet, or USB, hits a physical wall known as the "copper ceiling." When you try to push high-bandwidth signals like 4K video beyond typical limits—often just 15 to 100 meters depending on the cable type—physics takes over. Signals degrade, screens flicker, and handshakes fail. For IT managers and AV integrators, this limitation is more than an inconvenience; it is a critical infrastructure failure.
The solution lies in shifting the medium entirely. A fiber optic extender is not merely a longer cable. It is an active transmission system that converts electrical data into light pulses, transmits them over glass or plastic strands, and decodes them back at the destination. This technology eliminates the resistance and attenuation inherent in copper wire.
For professionals managing sprawling campuses, industrial floors, or medical facilities, these devices solve three specific headaches: distance limitations, signal latency, and electromagnetic interference (EMI). Whether you are distributing digital signage across an airport or managing surgical feeds in an operating room, optical extension is often the only viable path for uncompressed, artifact-free distribution. In this guide, we will explore the architecture, use cases, and selection criteria for implementing fiber solutions in hostile or high-demand environments.
Distance Mastery: Fiber extenders bypass the 100m limitation of copper, reaching distances from 300m (Multimode) to 120km (Singlemode).
Signal Integrity: Unlike copper, optical fiber offers total immunity to EMI/RFI, making it essential for medical, industrial, and high-security sectors.
Uncompressed Performance: High-quality uncompressed optical fiber extenders deliver "pixel-for-pixel" accuracy with zero latency, critical for surgical and control room applications.
Scalability: Fiber infrastructure supports higher bandwidths (48Gbps+) for future 8K upgrades without re-cabling.
To understand why fiber succeeds where copper fails, you must look at the mechanics of transmission. A standard copper extender typically relies on electrical amplification. It boosts the voltage to push the signal further. Unfortunately, this also amplifies any noise or interference picked up along the line. An optical fiber extender operates differently, utilizing an O-E-O (Optical-Electrical-Optical) conversion process.
The process begins at the source. The system takes the electrical input—such as an HDMI signal from a media player or a USB signal from a computer—and converts it into light pulses using a laser or LED. These pulses travel down the fiber optic cable, which acts as a waveguide. Because light faces virtually no resistance compared to electricity flowing through metal, the signal maintains its integrity over massive distances.
This is a fundamental differentiator from HDBaseT or standard IP-based copper solutions. While HDBaseT is excellent for mid-range runs within a single room or building wing, it is still susceptible to external electrical noise. Fiber is non-conductive glass; it simply cannot carry electrical interference. Once the light reaches the destination, the receiver unit decodes the pulses back into the original electrical signal for your display or workstation.
Deploying a fiber solution requires three distinct components working in unison:
Transmitter (TX): This unit sits at the source. It handles the encoding of protocols like HDMI, DisplayPort, SDI, or USB. High-end transmitters also manage EDID (Extended Display Identification Data) handshakes to ensure the source recognizes the display effectively.
The Medium: The fiber cable itself. This can be a delicate, single strand for fixed installations or a ruggedized, armored cable for rental and staging events.
Receiver (RX): Located at the endpoint, this unit reconverts the signal. In many modern systems, the RX unit also sends data back to the TX (bi-directional communication), allowing for remote control commands via IR or RS-232.
You might ask why one should choose dedicated point-to-point fiber over an IP-based network solution. The answer often comes down to security and speed. IP systems packetize video, which introduces latency and compression. In high-stakes environments like eSports, surgical imaging, or military operations, even milliseconds of delay are unacceptable. A direct optical fiber extender provides a dedicated lane for data, ensuring zero-latency performance that network switches often cannot guarantee.
Fiber extension is an investment. It typically costs more upfront than copper alternatives. However, specific business problems demand the unique properties of light transmission. Understanding these scenarios helps justify the Return on Investment (ROI) to stakeholders.
The most obvious use case involves geography. Copper categories (Cat6/Cat7) generally max out at 100 meters (328 feet). If you need to connect a security control room in Building A to a server room in Building C, copper is impossible without multiple active repeater switches, which introduce points of failure. Fiber extenders bridge these gaps effortlessly. We see this frequently in transportation hubs, such as airports, where flight information displays are located kilometers away from the central media servers.
In industrial settings, large motors, welders, and generators create massive electromagnetic fields. These fields induce currents in copper cables, resulting in signal dropouts or video artifacts. Similarly, in medical environments, MRI machines generate immense magnetic interference.
Fiber optics are immune to this. Because glass is a dielectric (non-conductive) material, it provides galvanic isolation. This means the fiber extender electrically isolates the sensitive medical equipment from the display. If a power surge hits the display side, it cannot travel up the fiber cable to fry the expensive MRI machine. This safety feature alone makes fiber the standard for operating rooms.
Copper cables act like antennas; they emit faint electromagnetic signals that can technically be intercepted by sophisticated surveillance equipment. For government agencies, military command centers, and banks, this "leakage" is a vulnerability. Fiber optic cables emit no electromagnetic signature. It is physically impossible to "snoop" on the data without physically cutting into the cable, which would immediately break the connection and alert administrators.
Post-production studios and geospatial analysis labs work with massive raw files. They require absolute color accuracy and pixel precision. Compression artifacts—the blockiness or blurring seen in streaming video—are unacceptable here. An Uncompressed Fiber Extender ensures that what leaves the workstation is exactly what appears on the projector, bit for bit, supporting the massive bandwidth requirements of 4K/60Hz 4:4:4 or 8K HDR content.
Not all fiber solutions are interchangeable. The choice of cable mode and form factor significantly impacts the range and cost of the project.
The primary technical decision is between Single-mode and Multimode fiber. This choice dictates the internal laser type and the diameter of the glass core.
| Feature | Multimode (OM3/OM4) | Single-mode (OS2) |
|---|---|---|
| Core Diameter | Larger (50 microns) | Tiny (9 microns) |
| Light Source | LED or VSCEL | Laser |
| Typical Distance | 300m - 500m | 1km - 10km (up to 120km specialized) |
| Cost | Lower hardware cost | Higher hardware cost, cheaper cable |
| Best Use Case | Intra-building AV distribution | Inter-building or city-wide transmission |
Multimode is generally sufficient for AV integration within a single facility, such as a conference center or a university lecture hall. Single-mode is the heavy lifter, capable of carrying signals across entire campuses or cities. While Single-mode cable itself is inexpensive, the laser electronics required to drive it are typically pricier.
Hardware design varies based on the installation environment:
Standalone Box: These are rugged, brick-sized units with their own power supplies. They are preferred for permanent rack installations because they often include advanced features like local loop-outs (to see the video at the source side) and comprehensive LED status indicators.

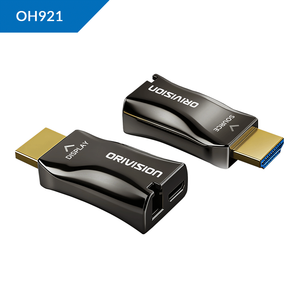

Pigtail/Dongle Modules: These compact units look like oversized connectors. They plug directly into the HDMI or DisplayPort source, eliminating the need for a patch cable. They are ideal for tight spaces, such as behind a wall-mounted TV or inside a plenum space where bulky boxes won't fit.
Beyond video, modern workflows need data. A Fiber Optical Extender for KVM (Keyboard, Video, Mouse) applications must handle USB signals alongside video. In industrial automation, we see specialized extenders for Machine Vision protocols like CoaXPress, which allow high-speed cameras to inspect products on assembly lines while the processing computer sits safely in a server room away from dust and vibration.
Selecting the correct device requires balancing three main factors: latency, connectivity, and compliance.
Marketing terms can be deceptive. Many extenders claim to be "latency-free" but actually use light compression (like DSC) to fit bandwidth-heavy signals into the fiber pipeline. While this "visually lossless" quality is fine for digital signage, it can be disastrous for live events or interactive desktops.
If your application involves real-time interaction—such as a surgeon moving a robotic instrument or an editor scrubbing through a timeline—you must specify an Uncompressed Optical Fiber Extender. These units serialize the video data directly onto the fiber without processing or buffering, resulting in true zero-latency performance.
The video signal is rarely the only thing traveling down the line. Consider what else needs to accompany the picture:
Bi-directional Control: Does the extender support IR (Infrared) or RS-232 pass-through? This allows a control system processor at the rack to turn on the TV at the far end using the same fiber cable.
Audio De-embedding: In many auditoriums, the video goes to the projector, but the audio needs to go to a separate amplifier. An extender with audio extraction saves you from buying a separate audio stripper.
Connector Types: The most common fiber connector for AV is the LC connector due to its small form factor and secure "click" latch mechanism. However, for 8K applications requiring massive bandwidth, we are seeing MPO (Multi-fiber Push On) connectors that bundle multiple fibers into a single block.
Never overlook HDCP (High-bandwidth Digital Content Protection). If your extender is not HDCP 2.2 or 2.3 compliant, it will refuse to pass signals from Blu-ray players, streaming boxes, or modern cable boxes. Additionally, EDID management is critical. The extender should be able to learn the EDID of the remote display and present it to the source, preventing resolution conflicts.
For industrial clients, check the environmental rating. Standard IT gear works between 0°C and 40°C. Industrial-grade units often support -40°C to +75°C, necessary for outdoor LED walls or unconditioned factory floors.
Adopting fiber involves a shift in mindset regarding handling and budget. The Total Cost of Ownership (TCO) discussion is nuanced. Yes, a fiber extender system has a higher initial hardware cost compared to a generic copper balun. However, the maintenance costs are often lower. Fiber does not corrode. It does not suffer from ground loops. It essentially "future-proofs" the infrastructure; when you upgrade from 4K to 8K, you likely only need to swap the electronic endpoints, not the cabling in the walls.
The physical installation presents unique challenges. Glass cores are fragile regarding bend radius. A sharp 90-degree turn that would be harmless to a Cat6 cable can snap the glass core of a fiber cable or cause light leakage (macro-bending loss). Installers must respect the minimum bend radius specified by the manufacturer.
Furthermore, connector hygiene is non-negotiable. A microscopic speck of dust on the tip of a fiber connector can block the laser light entirely, causing signal failure. Installers must carry specialized cleaning pens and caps to protect the terminations until the moment of connection.
Unlike copper Ethernet, which can carry power (PoE) easily, glass cannot conduct electricity. Most standard fiber systems require power adapters at both the Transmitter and Receiver ends. This can be a logistical challenge if the receiver is placed behind a display with limited power outlets. However, "hybrid" cables are emerging that include copper wires alongside the optical strands specifically to carry power, offering a cleaner installation for difficult locations.
The transition from copper to optical transmission is not just an upgrade; it is a change in infrastructure philosophy. Uncompressed Fiber Extender solutions effectively dismantle the three primary barriers of signal distribution: Distance, Bandwidth, and Interference. By converting electrons to photons, these systems allow AV and IT professionals to push high-bandwidth content kilometers away without dropping a single pixel.
While the initial investment is higher than copper, the stability provided for mission-critical applications—from life-saving medical imaging to high-security government data—is unmatched. Copper has served us well, but for the future of 4K, 8K, and beyond, light is the only medium that can keep up. We encourage you to audit your current signal environment. If you are battling recurring handshake issues, flickering screens, or limited range, it is time to evaluate an optical solution for your next project.
A: A media converter typically translates generic Ethernet data (IP traffic) from copper to fiber for networking. A fiber optic extender is designed specifically for video protocols (HDMI, DP, SDI). It manages AV-specific requirements like EDID handshakes, HDCP copyright protection, and audio embedding, which generic media converters often fail to handle correctly.
A: Standard fiber optic cables are made of glass or plastic and cannot conduct electricity. Therefore, most fiber extenders need a power supply at both the transmitter and receiver. However, hybrid cables exist that combine optical strands for data and copper wires for power in a single jacket.
A: Use the distance as your rule of thumb. If the distance is under 300 meters (roughly 1000 feet), Multimode (OM3/OM4) is usually sufficient and cost-effective. For distances exceeding 300 meters, or for campus-wide connectivity up to several kilometers, Single-mode (OS2) is required.
A: It depends on the model. High-quality uncompressed extenders deliver a pixel-for-pixel image with no loss of quality. Cheaper models may use compression to fit the signal into a lower bandwidth, which can introduce minor artifacts or latency.
A: Generally, yes. A fiber extender supporting HDMI 2.0 or 2.1 will handle older HDMI 1.4 signals. However, you must ensure the connectors (HDMI Type A) are compatible and that the unit supports the specific HDCP version required by your source device.
