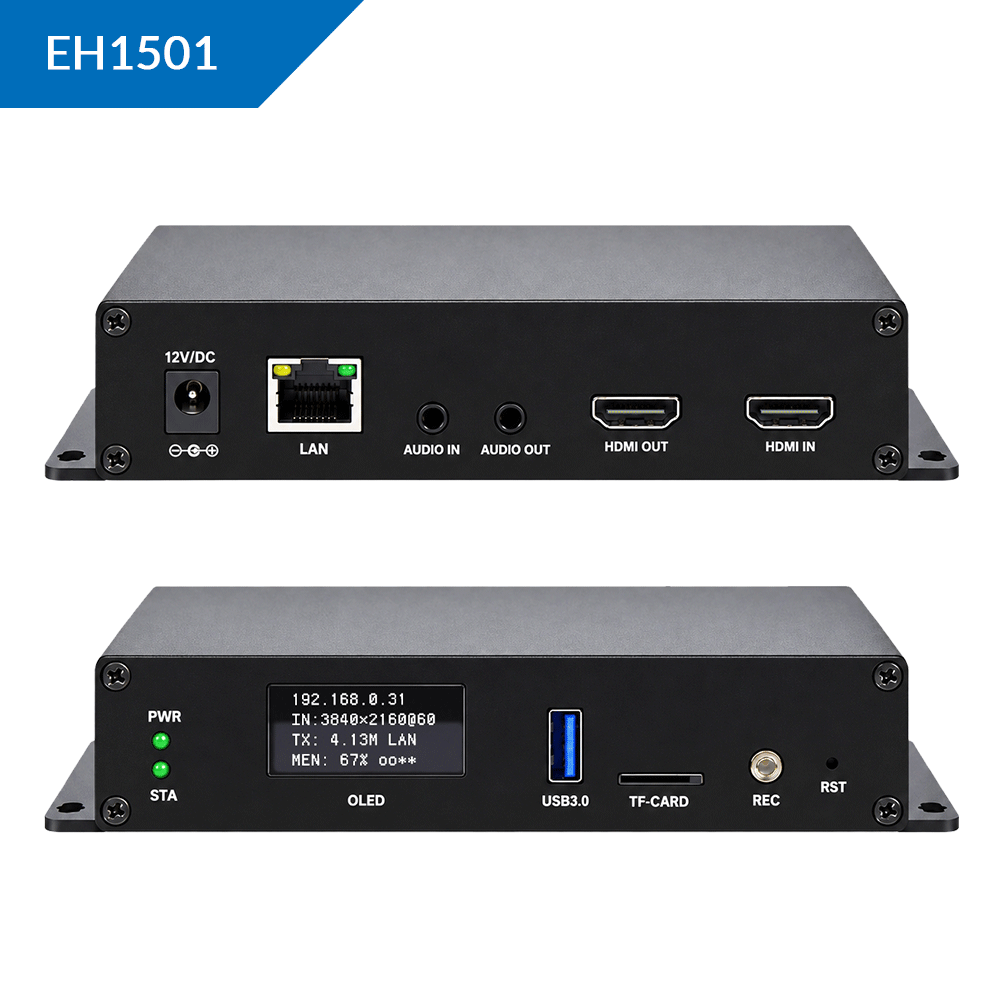

H.265/H.264 4K60 HDMI Video Encoder

Brand: ORIVISION
Model: ZY-EH1501
Video Input: 1× HDMI Input
Video Output: 1× Ethernet Port (RJ45), 1× HDMI Loopout
Video Encoding: H.265/H.264/MJPEG
Max Resolution:  3840×2160@60Hz
Display: Integrated OLED Screen
Protocol: HTTP, HTTPS, RTSP, RTMP/RTMPS, SRT, HLS, FLV, UDP, RTP, ONVIF, etc
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE, FCC, Rohs, Reach
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • EH1501

  • ORIVISION

Overview
Specification
Diagram
FAQ

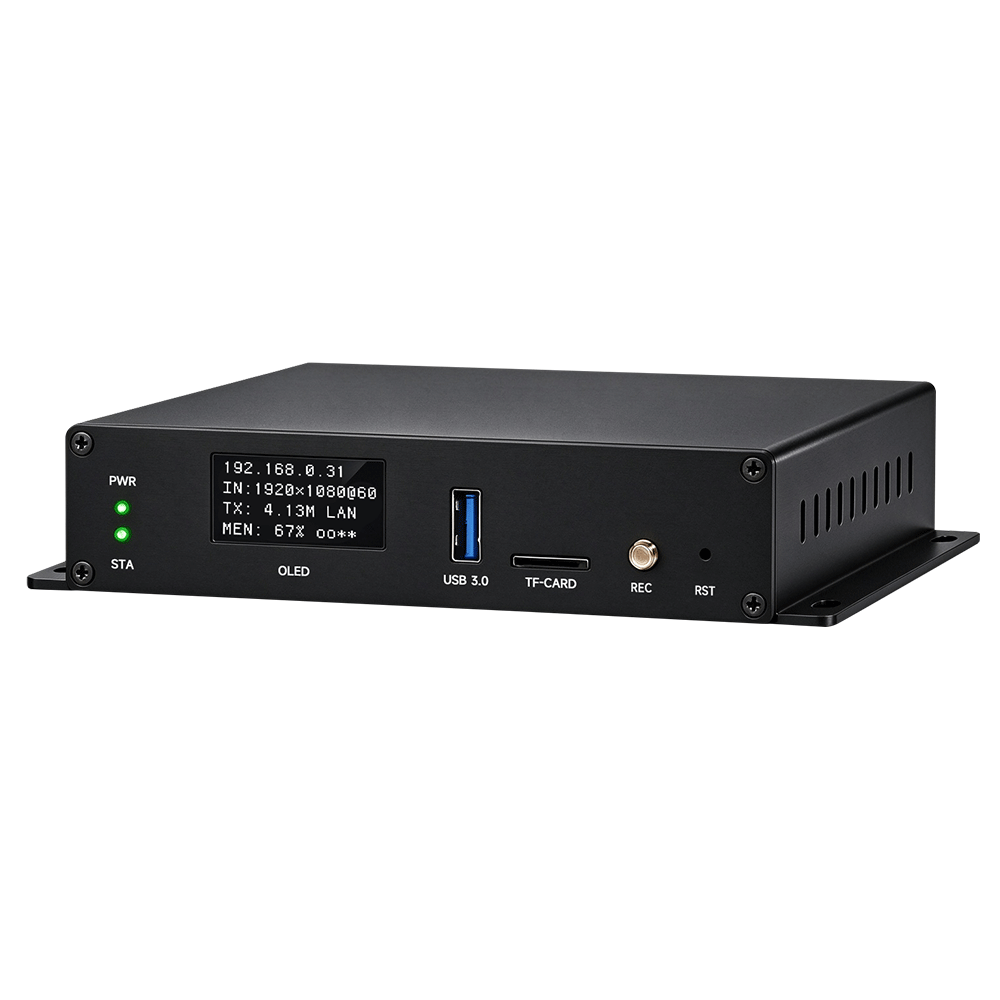

ORIVISION ZY-EH1501 is a professional, broadcast-grade H.265/H.264 hardware video encoder engineered for ultra-smooth 4K@60Hz and 1080P@60Hz live streaming, commercial IPTV headend systems, and multi-platform video distribution. Featuring an integrated real-time OLED status display, it allows network engineers to monitor device IP address, video resolution, and streaming status instantly without local PC access.

With native support for HTTP, HTTPS, RTSP, RTMP/RTMPS, SRT, HLS, FLV, ONVIF, and RTP/UDP (Unicast/Multicast) protocols, this high-efficiency HDMI video encoder ensures low-latency, bandwidth-saving transmission across multi-platform workflows. It supports up to 4 simultaneous streams (1× 4K60 + 3× 1080P60), HDMI loop-out, USB/TF card recording, and audio encoding. Suitable for system integrators, sports broadcasting, house of worship streaming, corporate AV systems, digital signage, and IPTV encoder deployments.

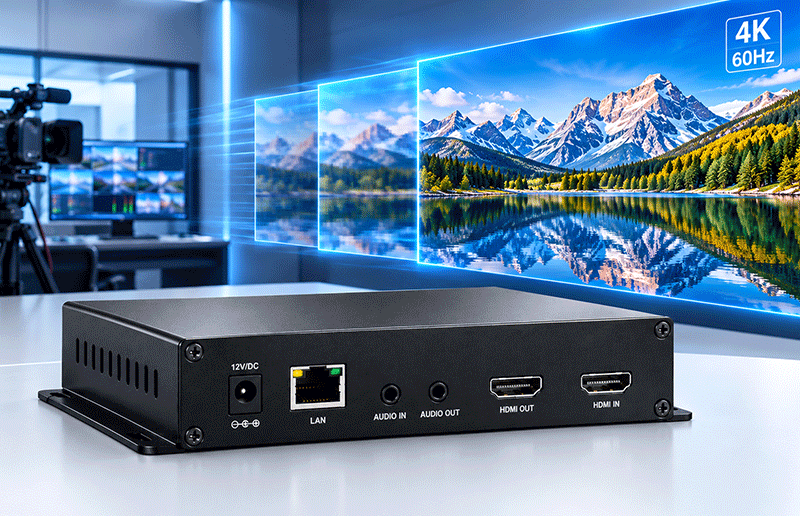

  • <span style="font-size:26px;"><span style="color:#333333;"><strong>4K60 Ultra HD Encoding</strong></span></span>

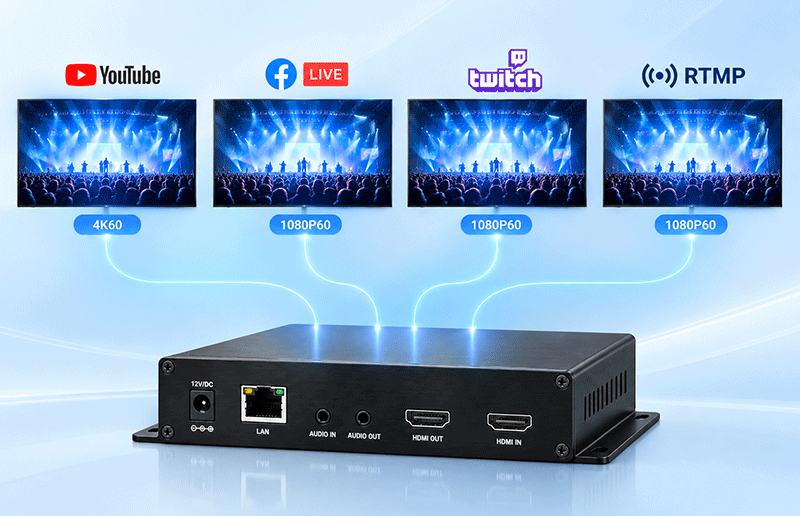

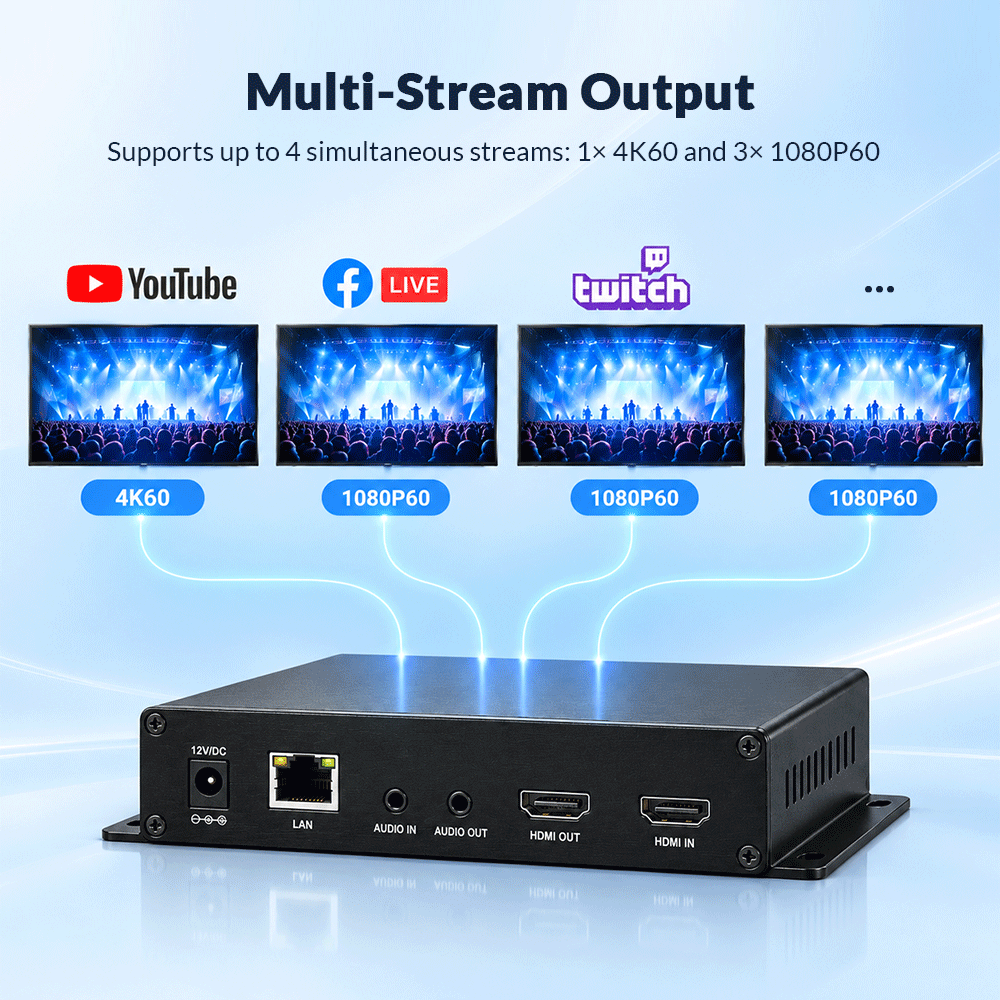

  • <span style="font-size:26px;"><span style="color:#333333;"><strong>Multi-Stream Output</strong></span></span>

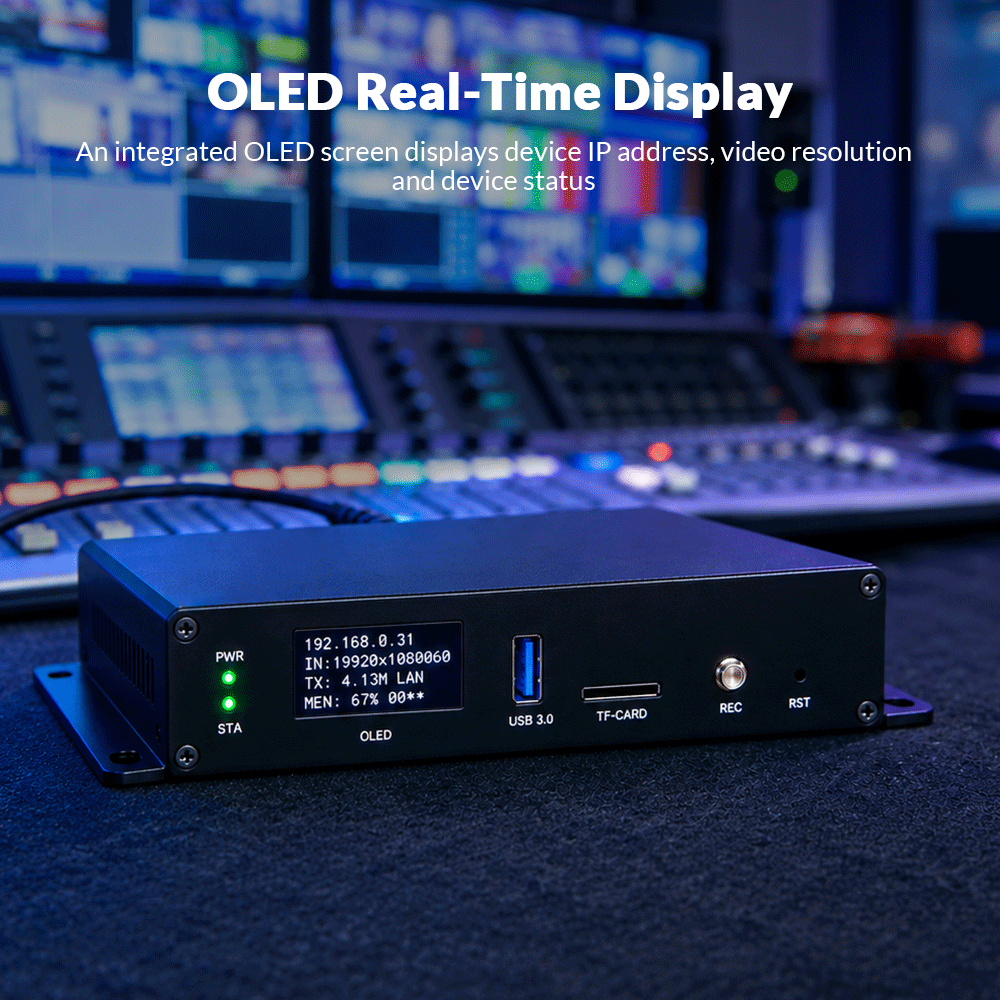

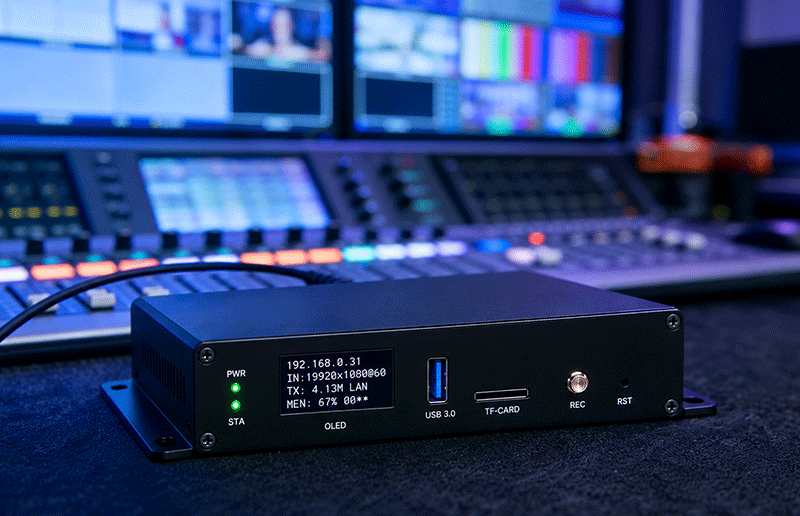

  • <span style="font-size:26px;"><span style="color:#333333;"><strong>OLED Status Display</strong></span></span>
  • <span style="font-size:26px;"><span style="color:#333333;"><strong>Multi-Protocol Streaming</strong></span></span>

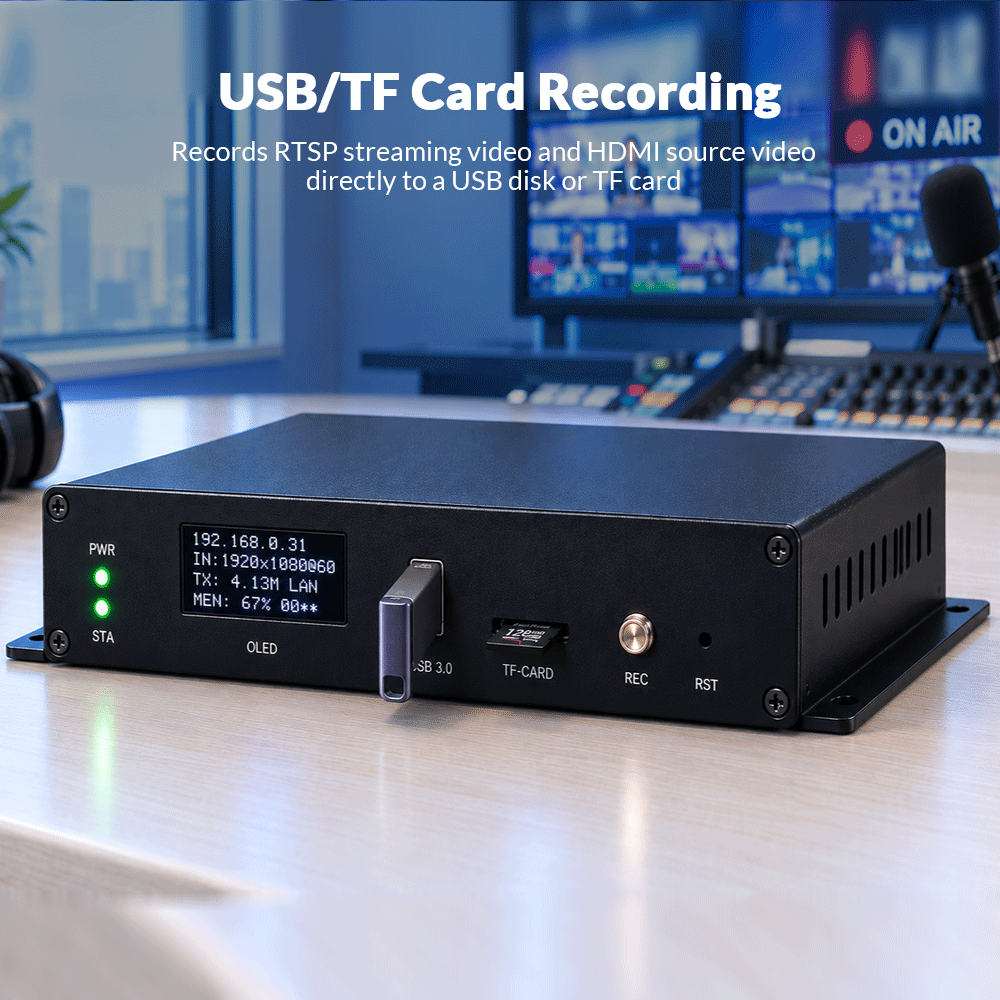

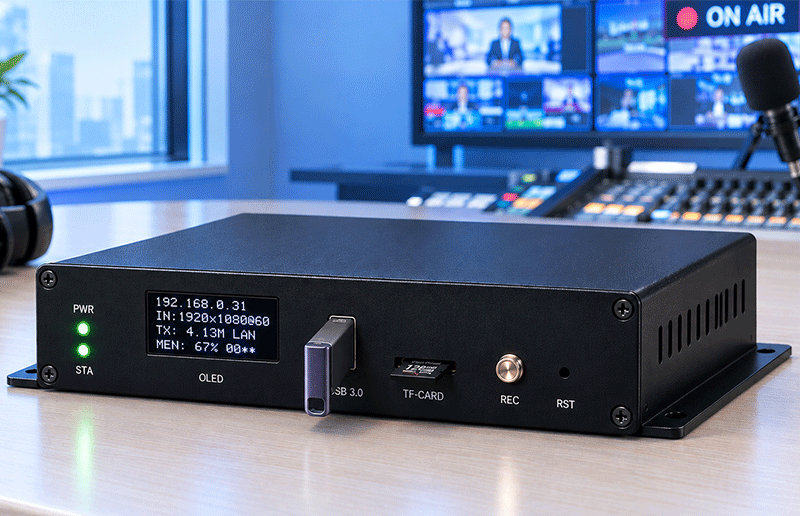

  • <span style="color:#333333;"><span style="font-size:26px;"><strong>USB/TF Card Recording</strong></span></span>

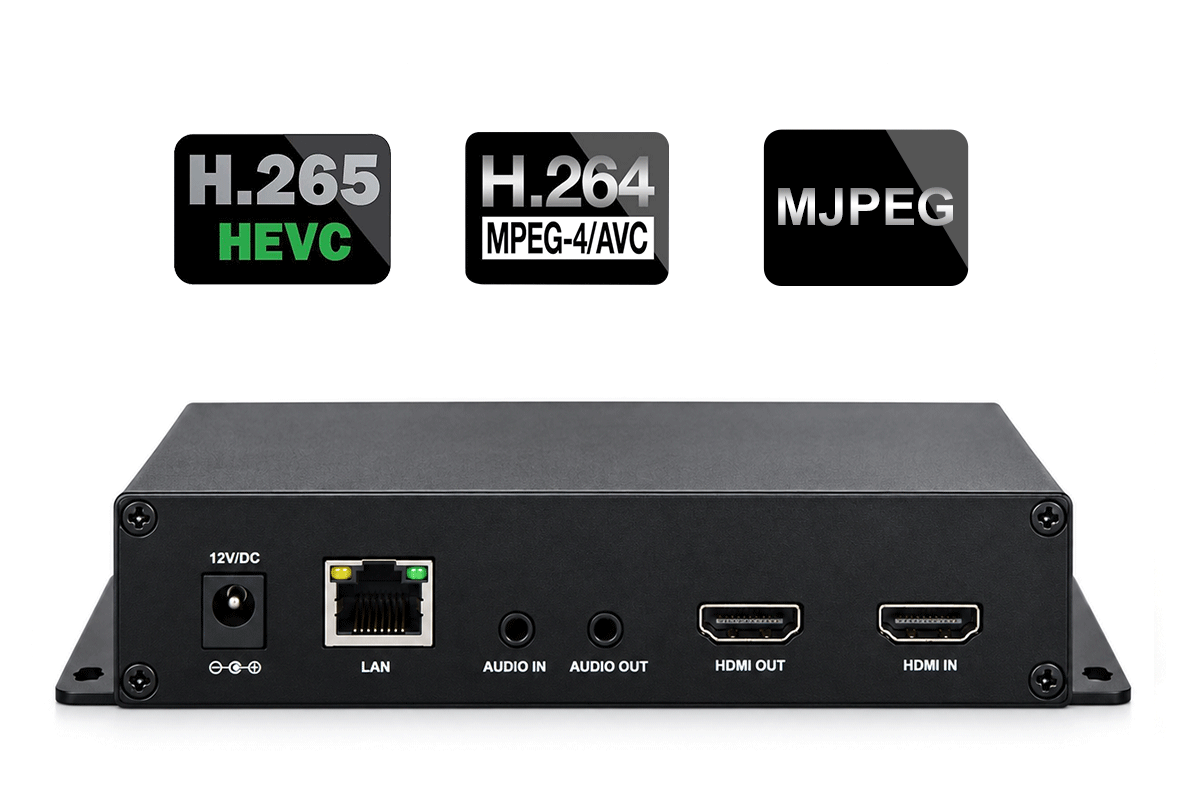

  • <span style="font-size:26px;"><span style="color:#333333;"><strong>Hardware H.265/H.264/MJPEG Encoding</strong></span></span>
  • <span style="font-size:26px;"><span style="color:#333333;"><strong>Audio Encoding</strong></span></span>
  • <span style="color:#333333;"><strong>Professional Video Pre-Processing, Logo Overlay &amp; Image&nbsp;Rotation</strong></span>
  • <span style="color:#333333;"><strong>Intuitive Web-Based Web UI Management</strong></span>
  • <span style="color:#333333;"><strong>Wide Industry Applications</strong></span>
  • <span style="color:#333333;"><strong>Flexible OEM/ODM Customization Services</strong></span>

Technical Specification

Model
EH1501
Video
Input Interface
1× HDMI 2.0
Output Interface
1× RJ45 Ethernet Port, 1× HDMI 2.0 Loop-out
Supported Input Resolution
3840×2160@60Hz, 2560×2048, 2560×1920, 2560×1600, 2560×1440, 2048×1536, 2048×1152, 2048×1080, 1920×1400, 1920×1200, 1920×1080, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 704×576, 640×480, 640×360, default input resolution
Frame Rate
4K≤60Hz, 1080≤60Hz
HDCP
Support HDCP 1.4
Video Encoding
H.265 (HEVC) & H.264 / MJPEG
Max Bitrate
16Kbps - 12Mbps
Rate Control
CBR / VBR
Audio
Input Interface
1× External 3.5mm Audio, HDMI Built-in Audio
Output Interface
1× External 3.5mm Audio
Audio Encoding
MP3/MP2/AAC/G711/AC3/EAAC/EAACPLUS
Audio Data-rate
64Kb/s to 384Kb/s
Bitrate
48K, 64K, 96K, 128K, 160K, 192K, 256K
Network

RJ45
1000M Ethernet port
Program Streaming Protocols
HTTP / HTTPS, RTSP, RTMP / RTMPS, SRT, HLS, FLV, ONVIF,
RTP/UDP (Unicast/Multicast)
Management

Control Panel
Web Panel (Language: English)
Firmware Update
Software remote upgrade (enabled by uploading files to the dashboard)
General

Dimensions (W×L×H)
6.4 × 4.4 × 1.3 in (163 × 111 × 32 mm)
Gross Weight
0.37 kg
Temperature
0~ 45℃(for working), -20~60℃(for storing)
Humidity
< 90%, non-condensing
Input Voltage
DC 12V / 1A
Power Consumption
5W

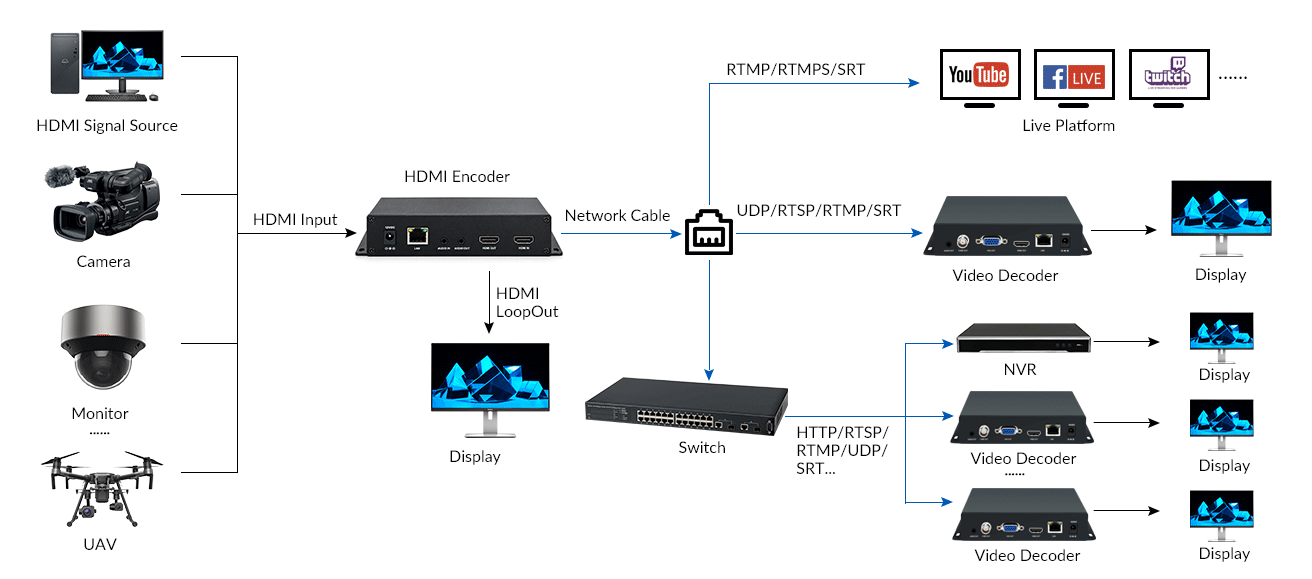

Application Diagram

diagram-of-4k60-hdmi-video-encoder




FAQs
  • Q: What is the maximum resolution?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Up to 3840×2160@60Hz, with downward compatibility for 1080P and lower resolutions.
  • Q: What video encoding formats and streaming protocols are supported?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Supports H.265/HEVC, H.264/AVC, and MJPEG encoding, along with HTTP, HTTPS, RTSP, RTMP/RTMPS, SRT, HLS, FLV, ONVIF, and RTP/UDP (Unicast/Multicast) protocols.
  • Q: How many streams can it output at the same time?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Up to 4 simultaneous streams: 1× 4K60 and 3× 1080P60.
  • Q: Does it support HDMI loop-out and USB/TF card recording?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Yes. It features 1× HDMI 2.0 input and 1× HDMI 2.0 loop-out for local monitoring, and supports recording RTSP streams and HDMI source video to a USB disk or TF card.
  • Q: Does it support PoE?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: PoE power supply is optional. The device is powered via DC 12V input by default. Please specify when placing your order.
  • Q: How to get the newest firmware and update it?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
    After get the newest firmware, pls follow the steps as below:
    Step 1: Download the .rar file, do not unzip the file
    Step 2: Log in to your Encoder or decoder web user interface and click the System button.
    Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
    Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
