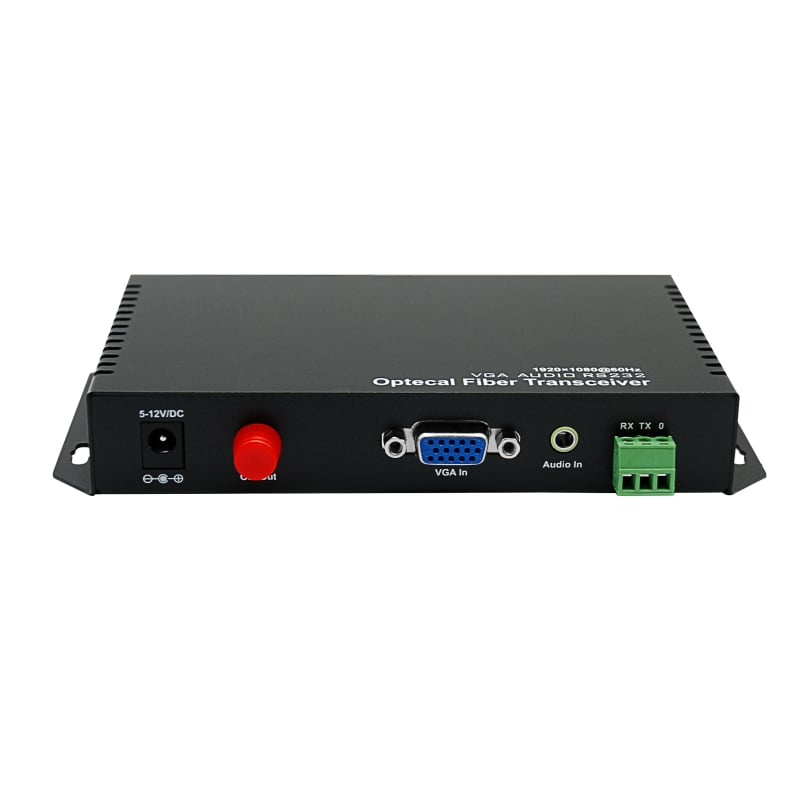

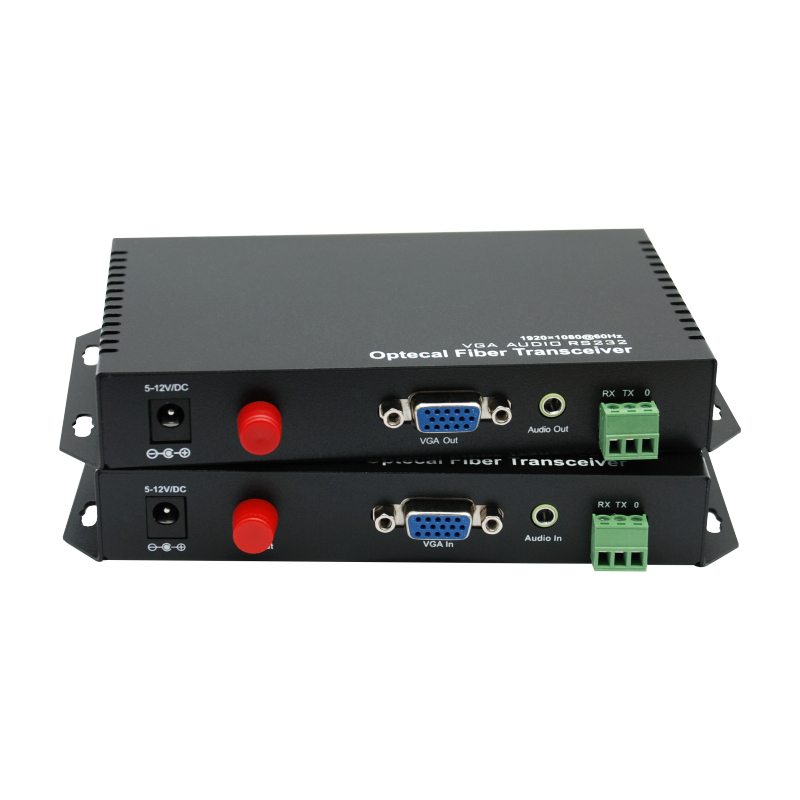

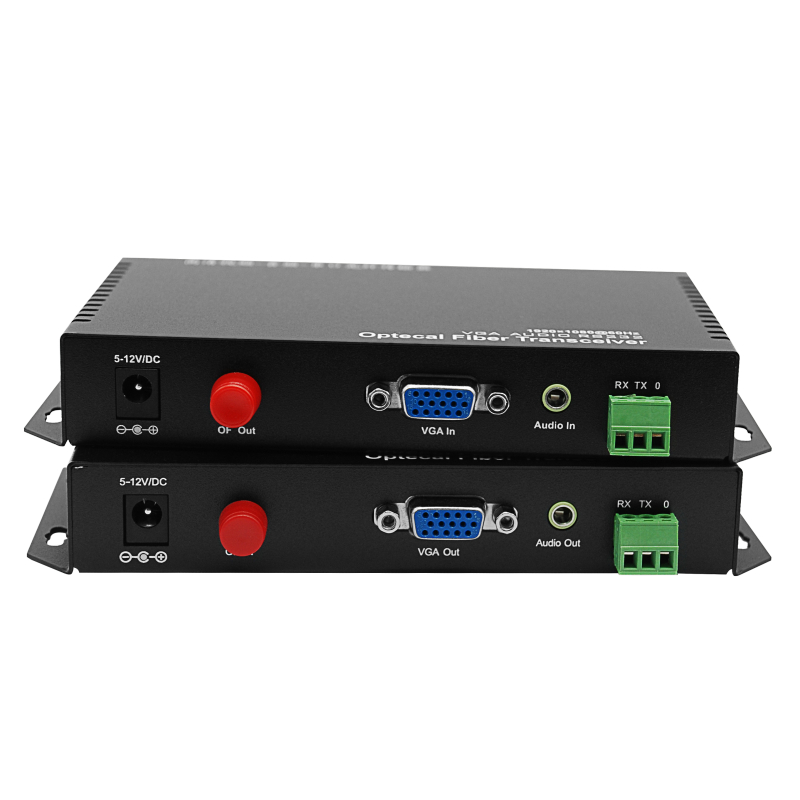

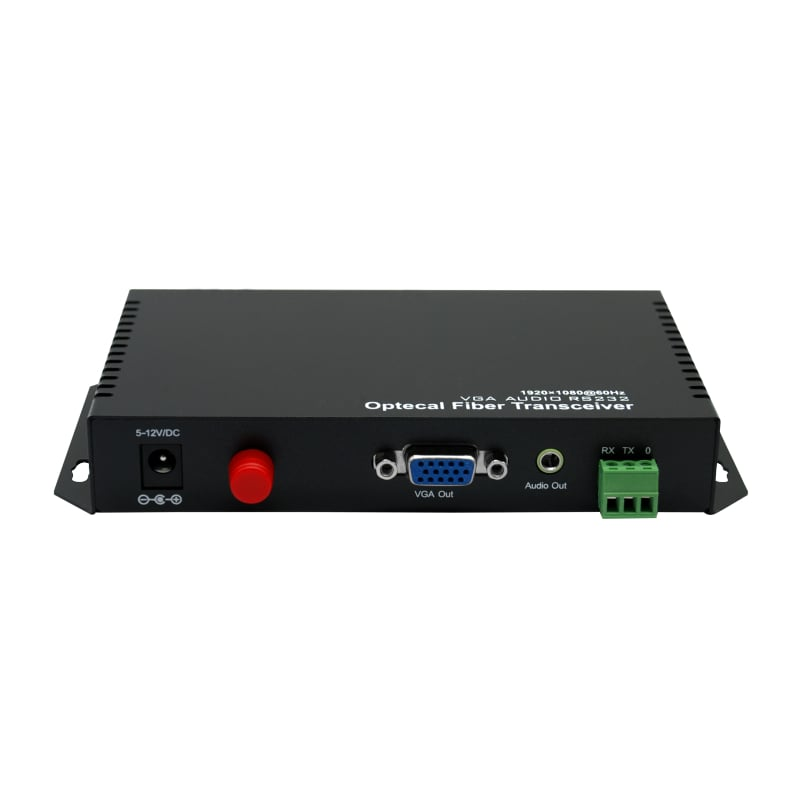

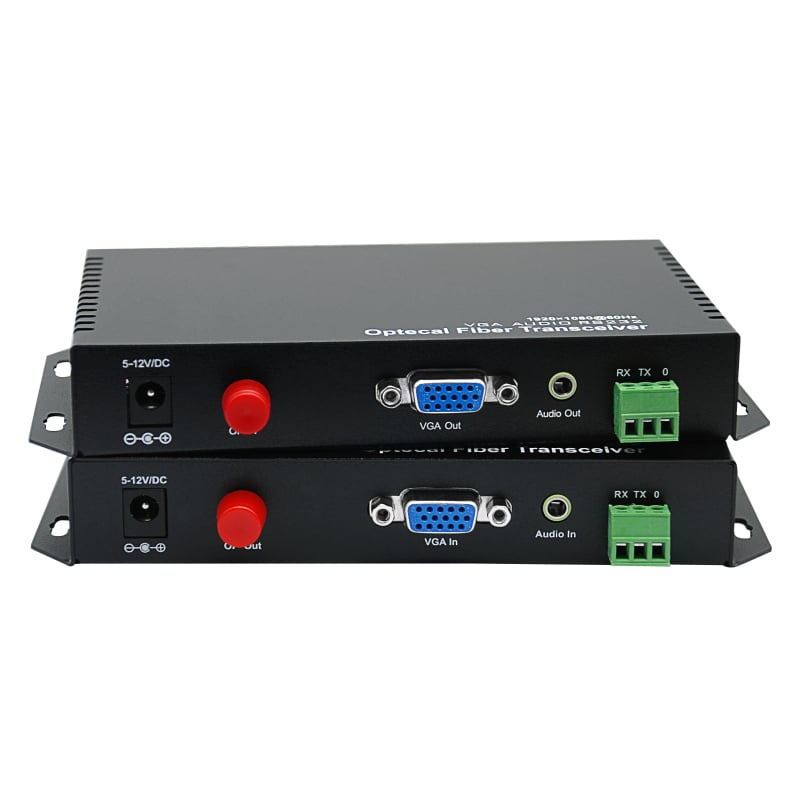

ORIVISION 1920x1200@60 VGA Extender with Fiber Optic

Low energy consumption, long distance

Support transmission VGA, audio signal,

Support RS232

Support video resolution up to 1920*1200@60Hz

Support input, output signal indication


1920x1200@60Hz VGA Optic Fiber Extender
1920x1200@60Hz VGA Optic Fiber Extender
  • Low energy consumption, long distance

  • Support transmission VGA audio signal,

  • Support RS232

  • Support video resolution up to 1920*1200@60Hz

  • Support input, output signal indication

  • Simple to install, plug and play

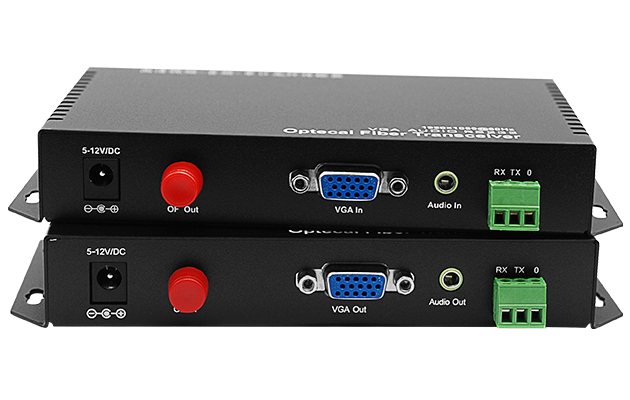

VGA Optical Fiber Extender

VGA-T/R optical fiber extender is composed of VGA transmitter (VGA-T) and VGA receiver (VGA-R). VGA, Audio and RS232 signals are transmitted through 1-core single-mode fiber. Low energy consumption, long distance, plug and play, compatible, can achieve more accurate display.

VGA Optical Fiber Extender

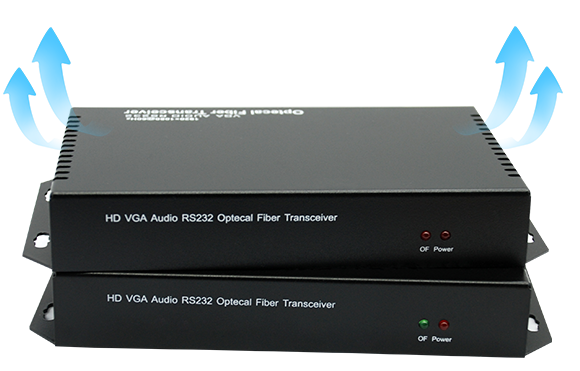

High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design

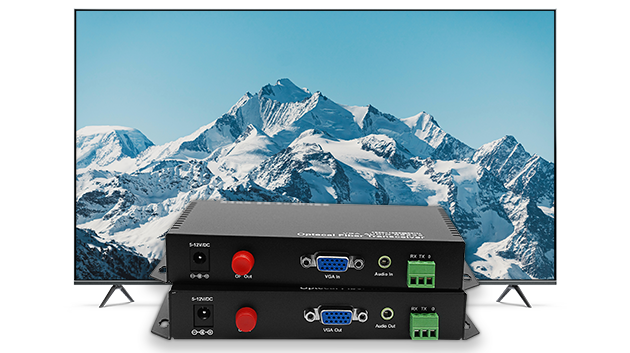

Professional for HD Video Extender

Delivers HD picture quality at resolutions up to 1920*1200@60Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.


Professional for HD Video Extender

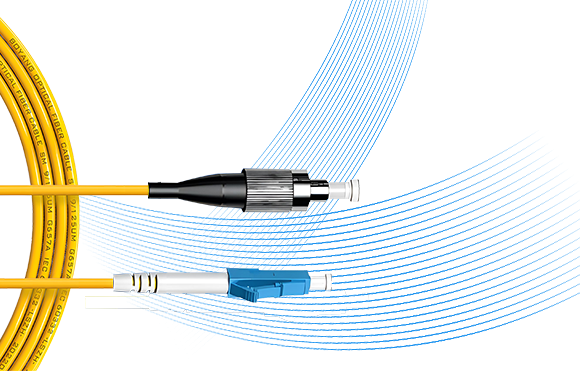

1-core single-mode

VGA, Audio and RS232 signals are transmitted through 1-core single-mode fiber.

1-core single-mode

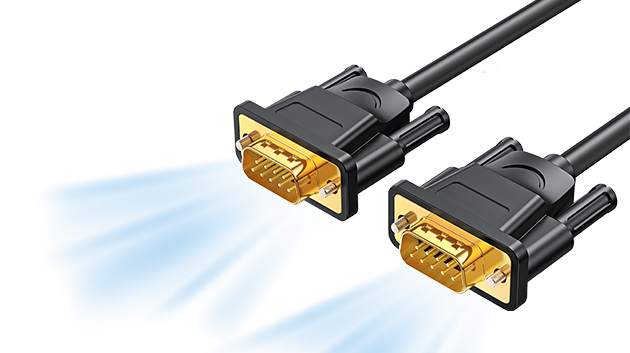

RS-232 Control

Features RS-232 port for connecting peripherals.

RS-232 Control
Low energy consumption, long distance

VGA optical transceiver could transmission high-definition video long distance through fiber up to 20km.

Low energy consumption, long distance
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters of 1920x1200@60 VGA Extender with Fiber Optic

NameVGA Optical Fiber Extender
ModelZY-VGA-T/R
Transmitter InputVGA In*1, Audio In*1, RS232*1
Transmitter OutputFC*1
Recevier InputFC*1
Recevier OutputVGA Out*1, Audio Out*1, RS232*1
Resolutuion1920 x 1200P60/1920 x 1080I60/1920 x 1080I50
1920 x 1080P60/1920 x 1080P50/1920 x 1080P30
1920 x 1080P25/1920 x 1080P24/1280 x 720P60
1280 x 720P50/1680 x 1050P60/1600 x 1200P60
1600 x 900P60/1440 x 900P60/1400 x 1050P60
1366 x 768P60/1360 x 768P60/1280 x 1024P60
1280 x 800P60/1024 x 768P60/800 x 600P60
Cable1-core fiber
Transmission distance1m ~ 20km single mode fiber
RS232
Support EDIDx
Support HDCPx
Support KVMx
Temperature-40°C to +70°C
Humidity<90%, No condensation
Power Consumption<4W
Power12V/DC 1A
Size134mm×87mm×25mm
WeightTX:0.32kg   RX:0.32kg

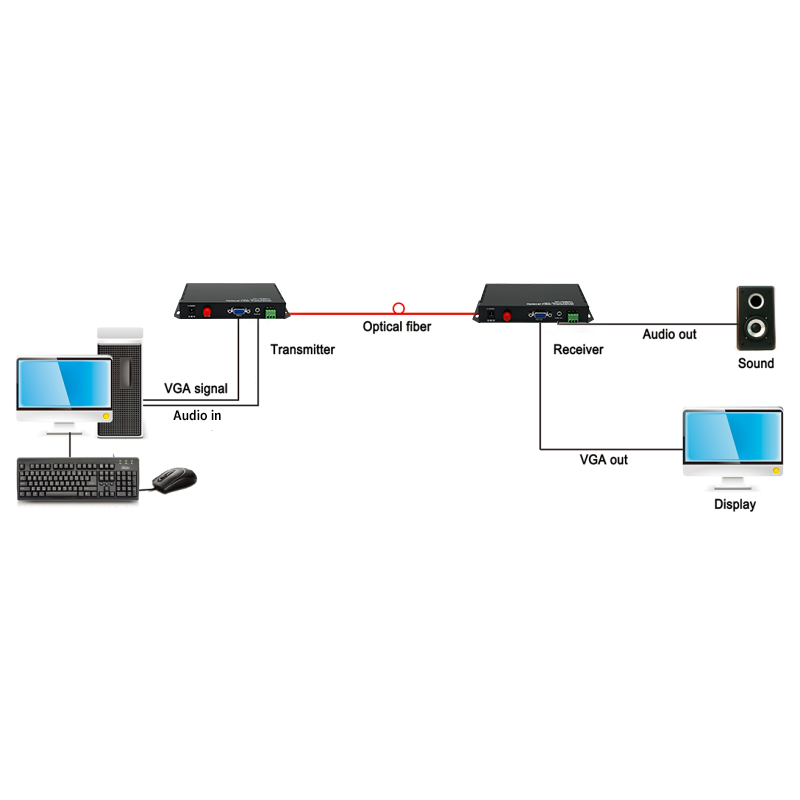

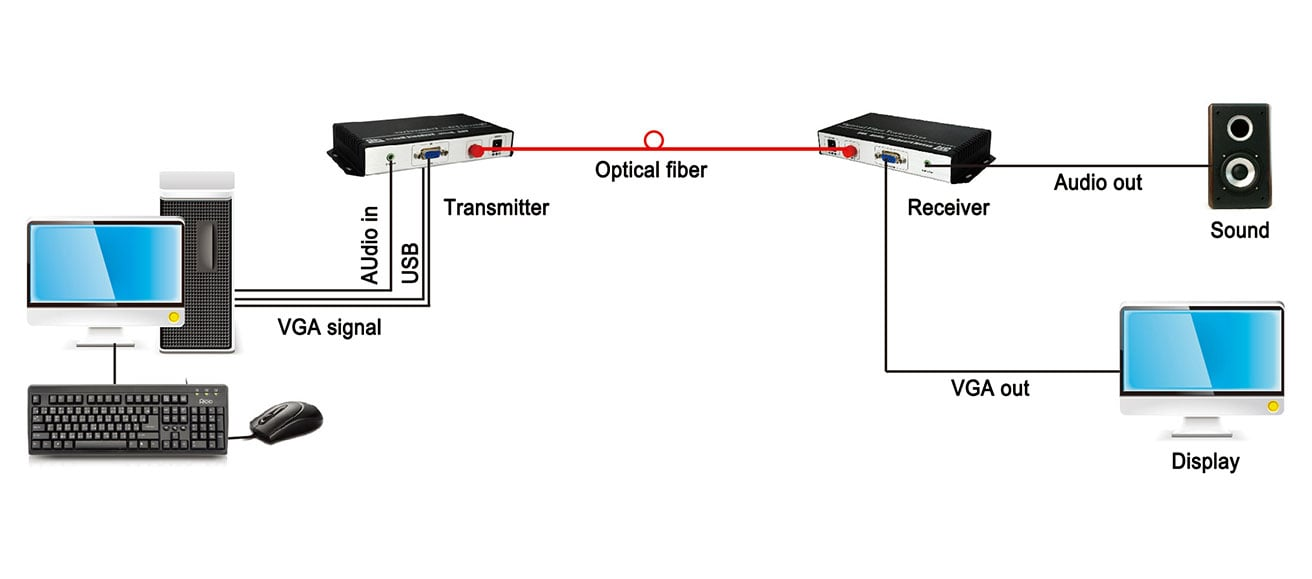

Diagram of 1920x1200@60 VGA Extender with Fiber Optic

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
