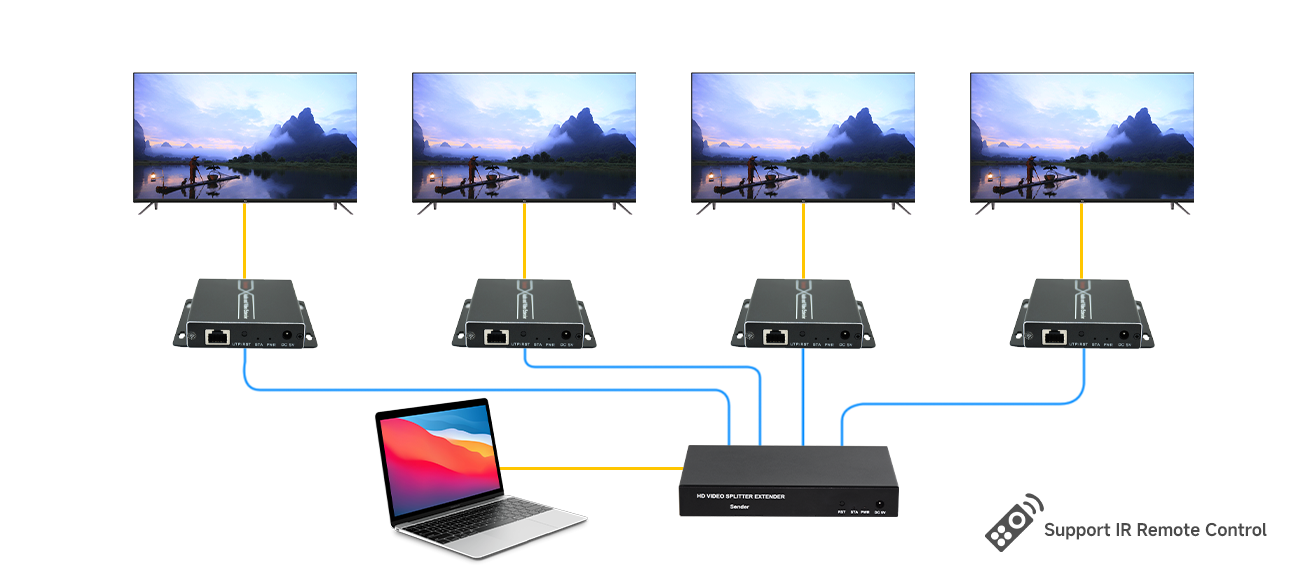

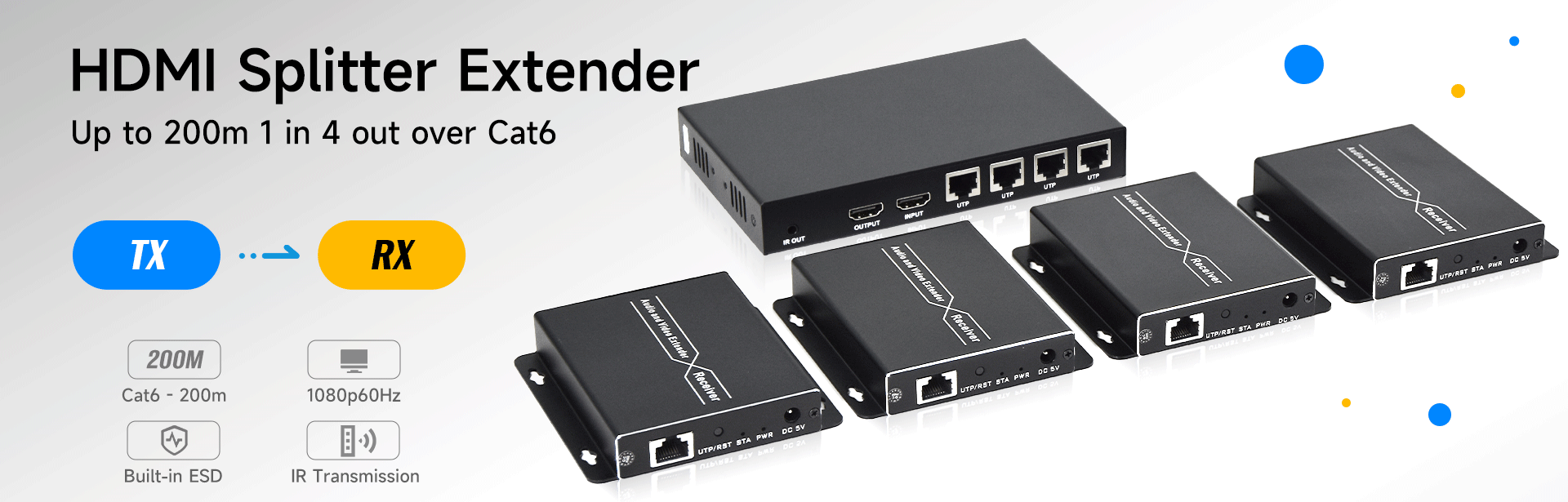

● Distribute 1 HDMI Source to 4 HDMI displays over cat6 network cable simultaneously

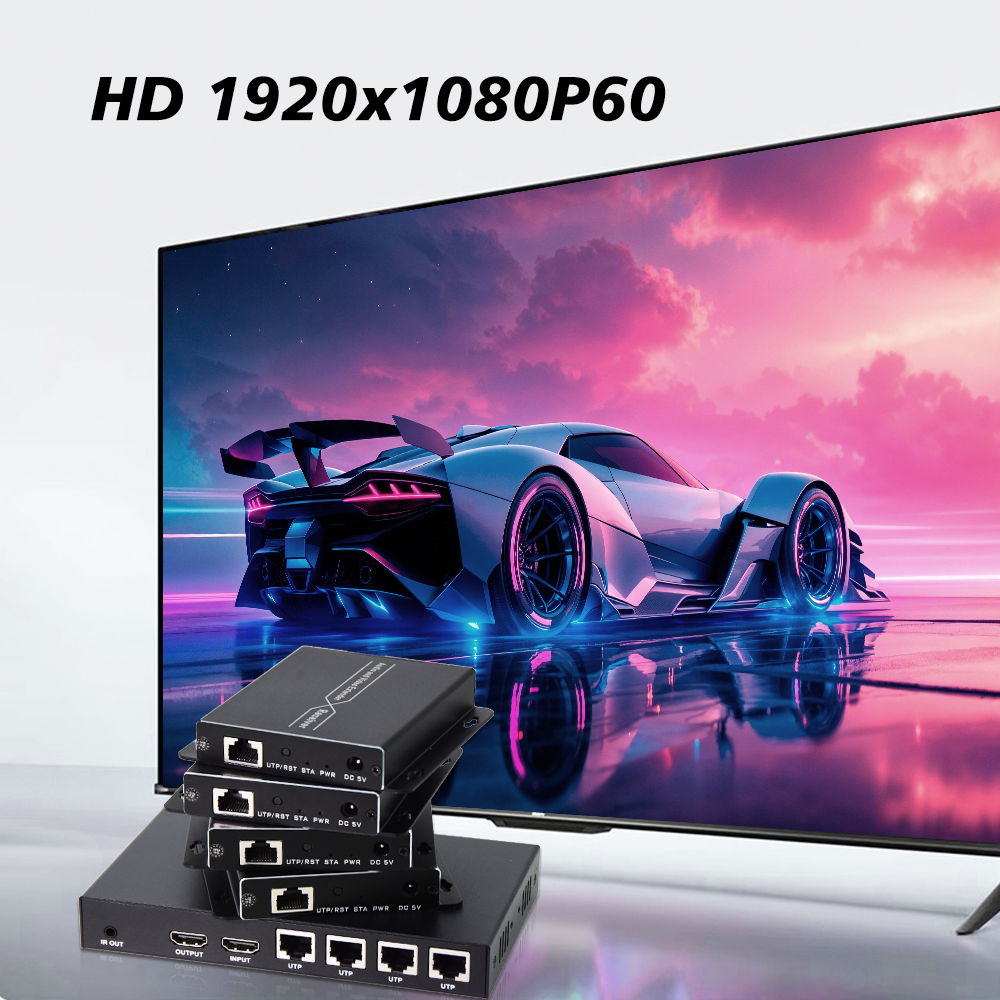

● Maximum resolution up to 1920*1080@60Hz
● Transmission distance up to 200m over cat6 cable
● Support one to multi receiver transmission via Ethernet switch (up to 253 points)
● Support IR(38khz) signal pass back transmission
● HDMI 1.3 and HDCP 1.2 standard
● Plug and play without any settings11

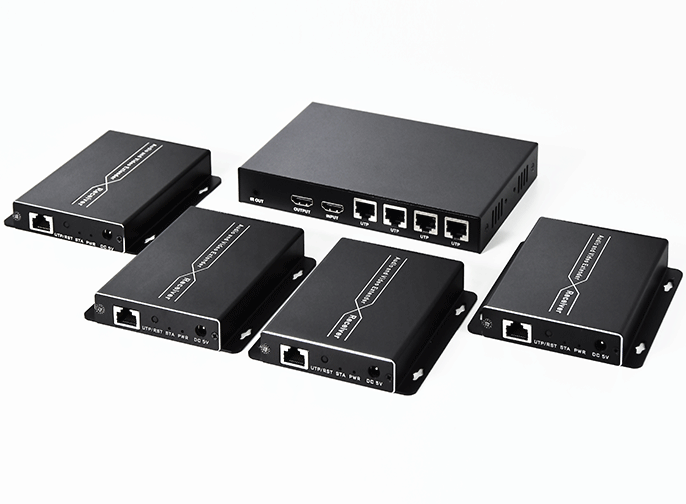

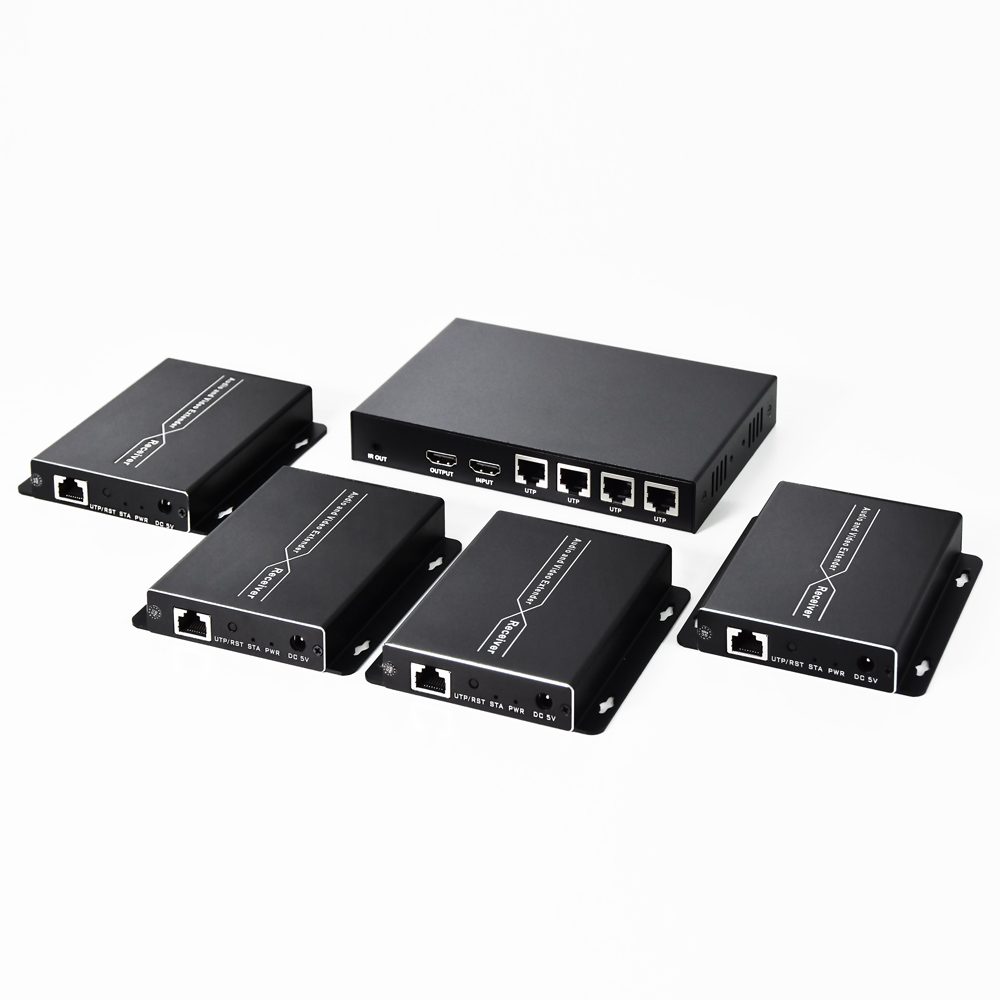

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support Keyboard and mouse control and IR pass back transmission , have a local HDMI output.

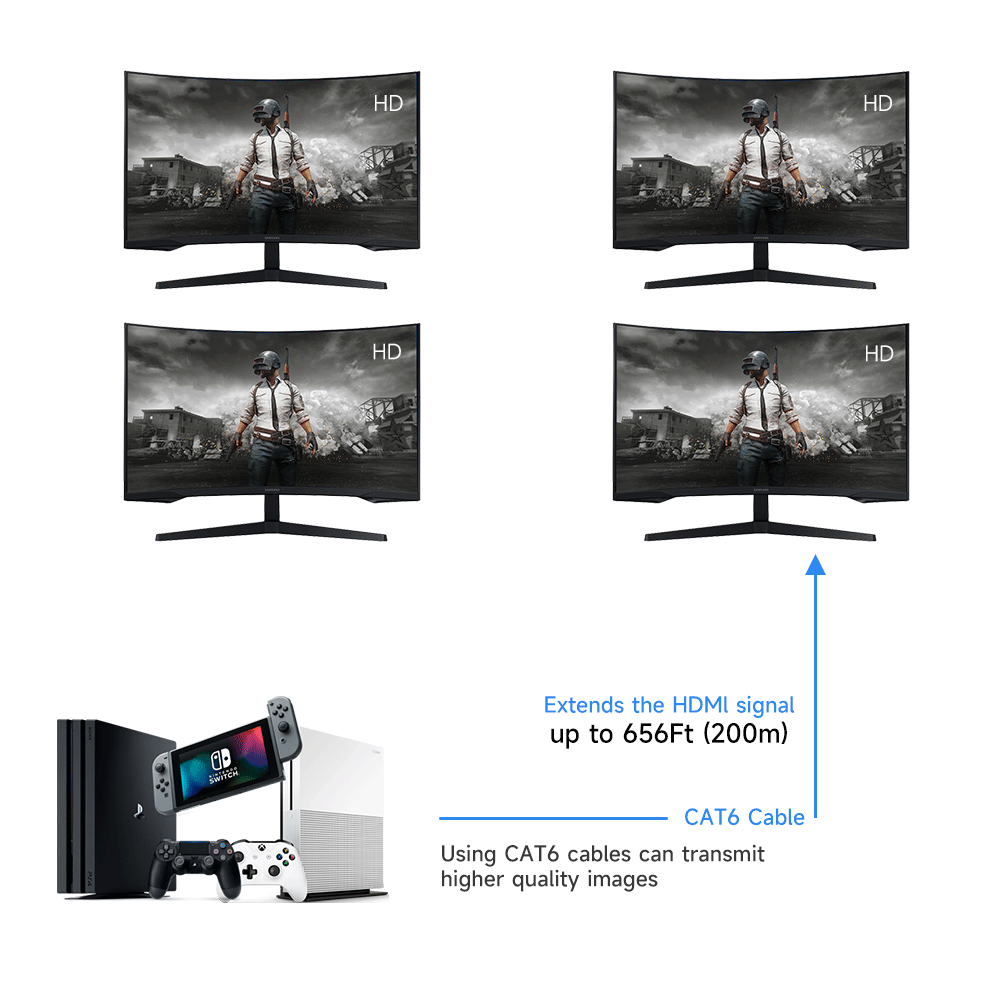

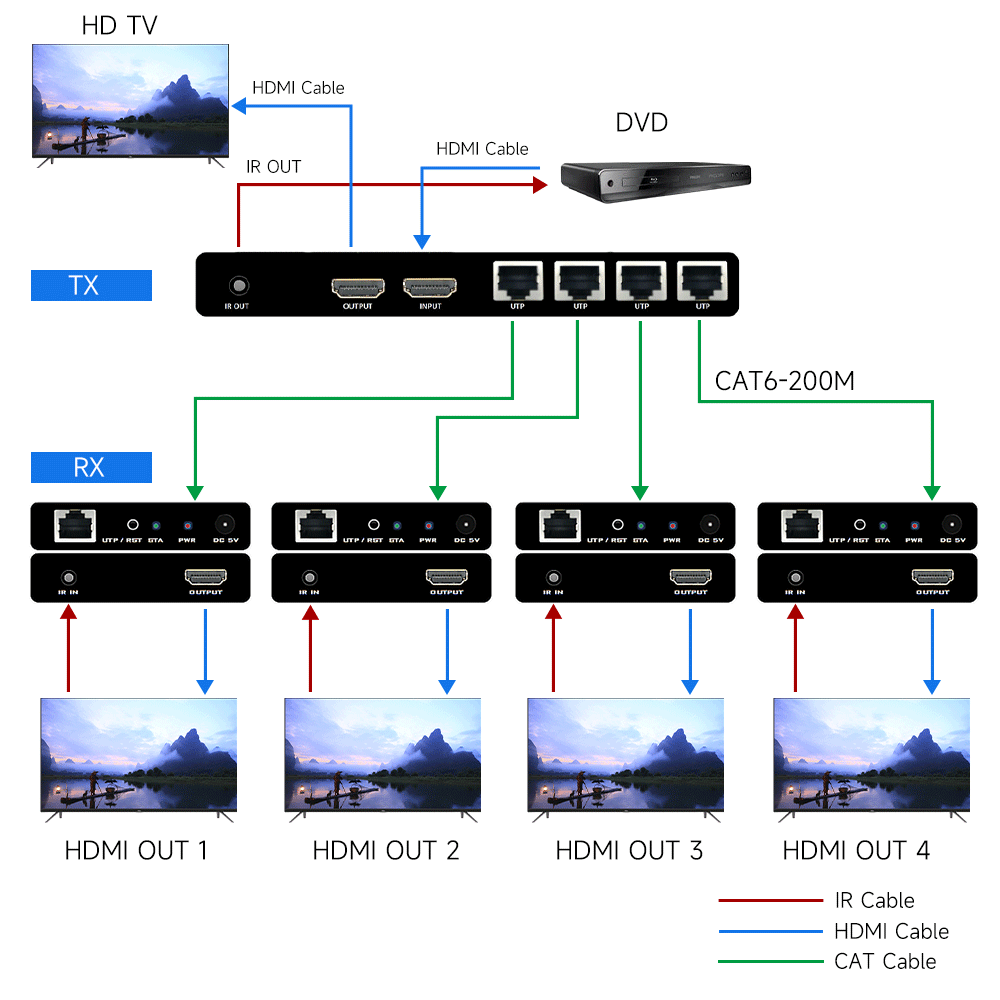

Send a video signal from an HDMI source, such as a Blu-ray player, PS4/Xbox One, or cable box to 4 HDMI displays simultaneously, up to 656 feet (200 meters) away.

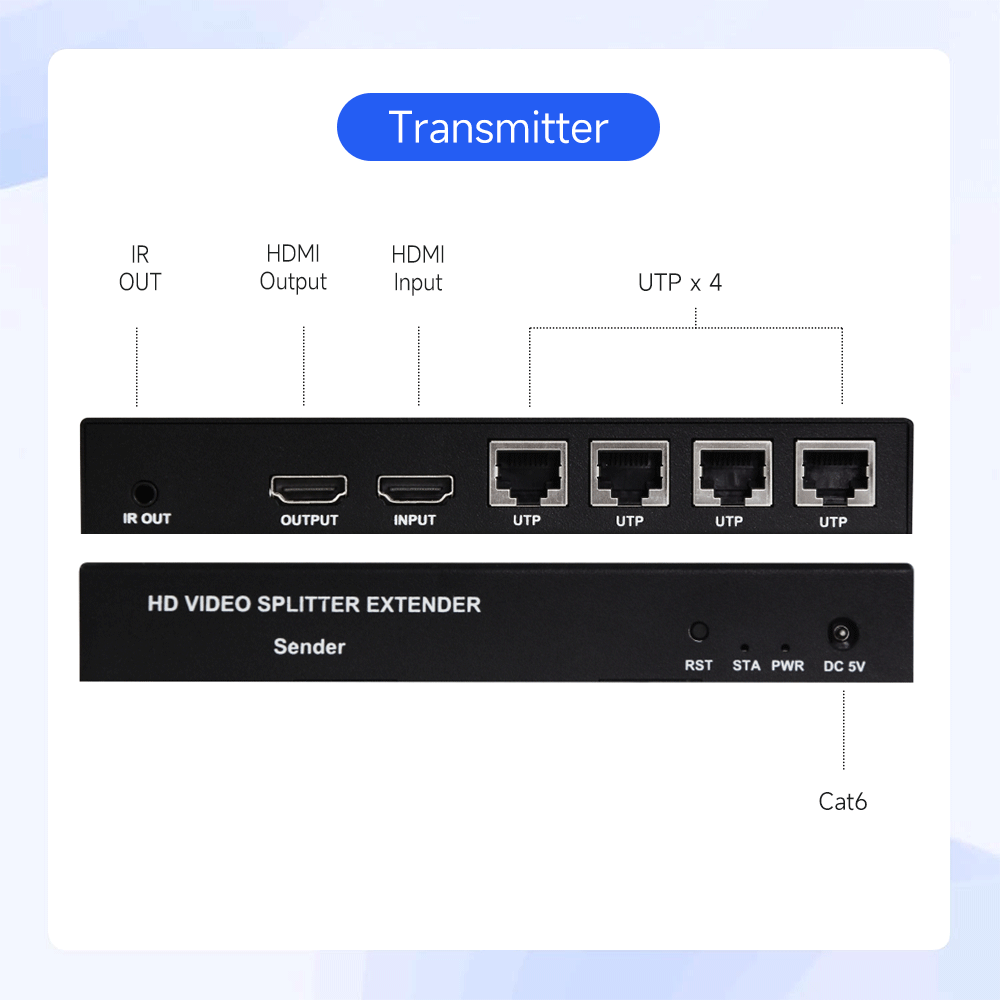

Split your signal directly from the location of your source using the local HDMI loop out port on the Transmitter unit, allowing you to connect a 5th display for monitoring purposes with this system.
Transmits HD video and audio signals up to 196ft/60m over a single CAT6/6a/7 cable.

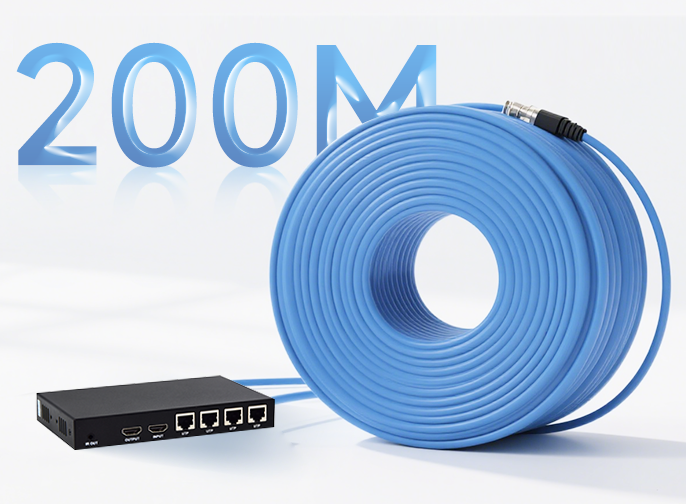

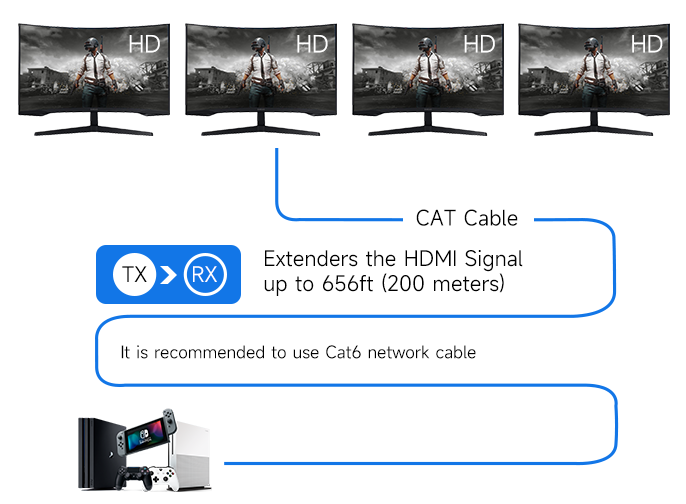

Transmit your 1080P60Hz signal up to 656 feet away to your display over a single CAT6 cable.
Support one to multi receiver transmission via Ethernet switch (up to 253 points)
Support IR(38khz) signal pass back transmission, control a DVD player or other HDMI video source from a remote location with the IR cables

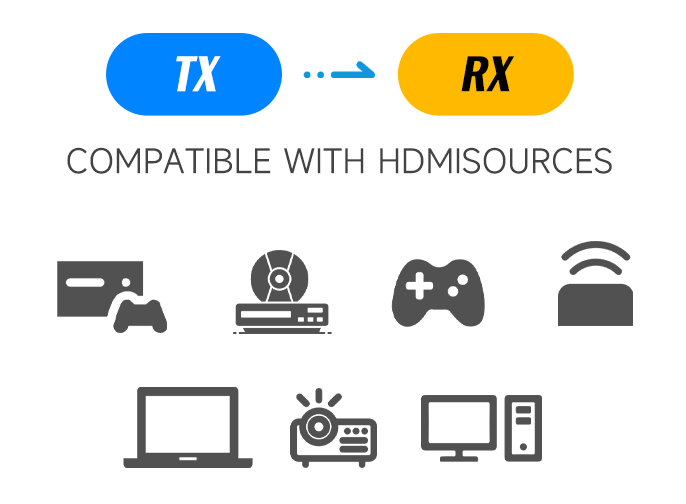

Perfect for gaming consoles like Playstation and XBOX, BluRay players, set-top boxes and streaming devices like AppleTV, ROKU and FireTV.
No driver required; Surface mountable metal housing allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference.
| Name | HDMI 1x4 Splitter Extender over Cat6 |
| Model | TX-CH701 / RX-CH701R |
| Video | |
| Interface Standard | HDMI 1.3; HDCP 1.2 |
| Pixel bandwidth | 165MHz |
| Interface bandwidth | 6.75Gbps |
| Resolution | 1920*1080@60Hz （backward-compatible） |
| Video interface | HDMI-A |
| Impedance | 100Ω |
| HDMI cable length | Recommended <5m (1920x1080@60Hz) |
| IR | |
| Interface | 3.5mm aduio input |
| Frequency | Standard 38KHz (upgradeable to 20-60KHz) |
| Signal type | Digital Signal |
| Transmission direction | Reverse transmission |
| RJ45 | |
| Interface | RJ45/568B |
| Transmission distance | 200M over Cat6 cable |
| Other | |
| Power supply | DC 5V/1A |
| Power dissipation | 5W/Unit |
| Temperature | Operating: -5℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | TX: 164*102*24mm RX: 100*97.5*18.6mm |
Apply to AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
