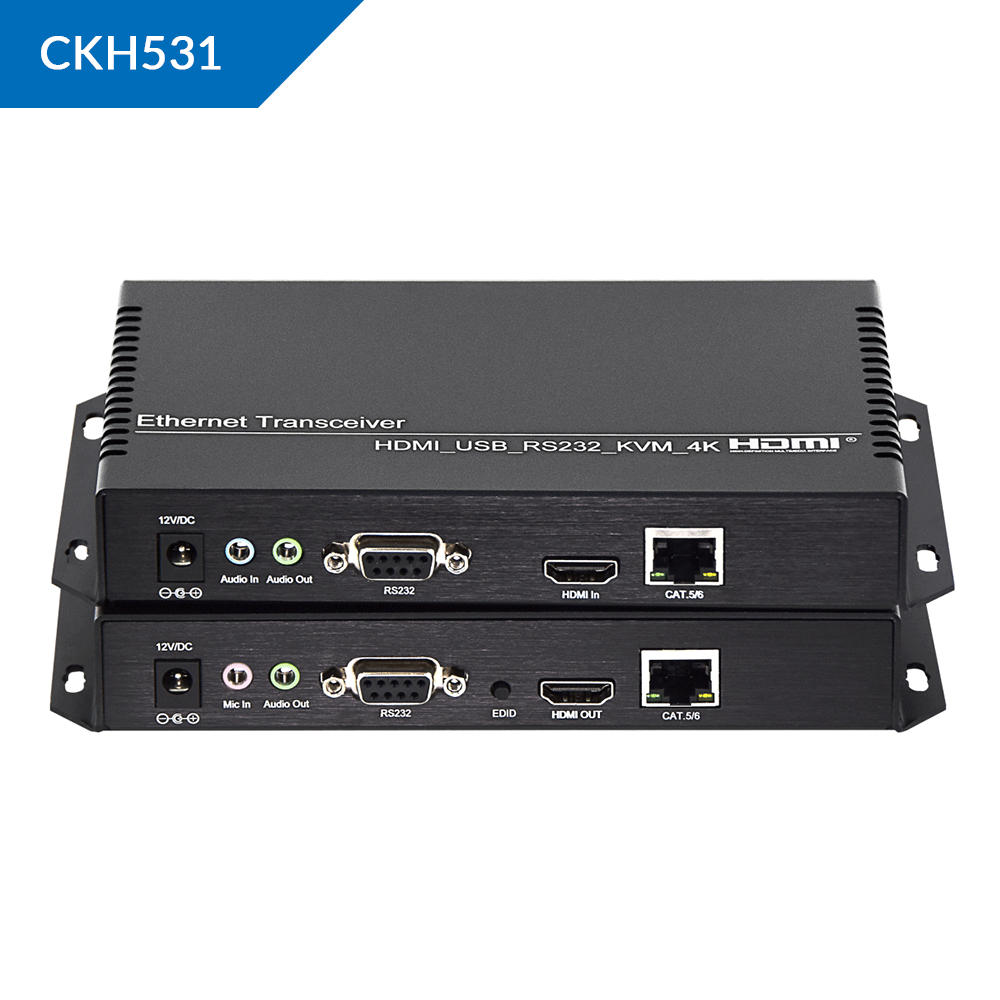

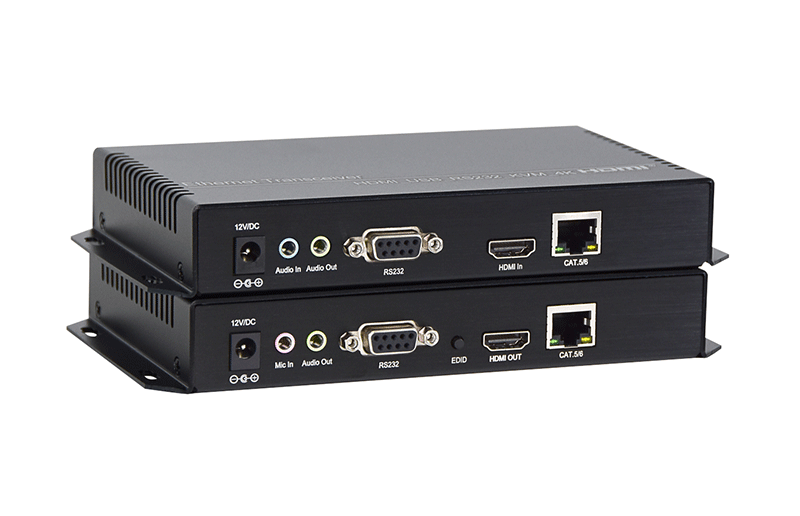

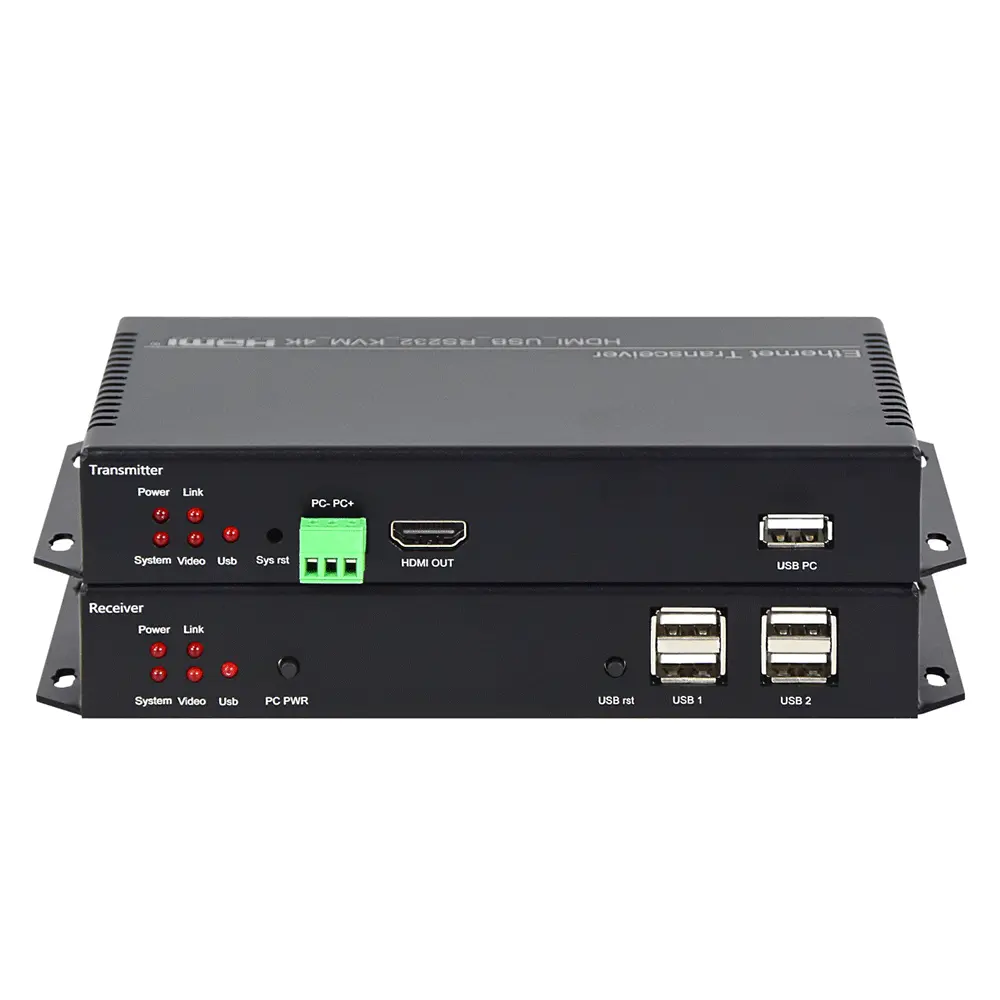

4K@30HZ HDMI/USB2.0 KVM Extender over Cat5e Cable

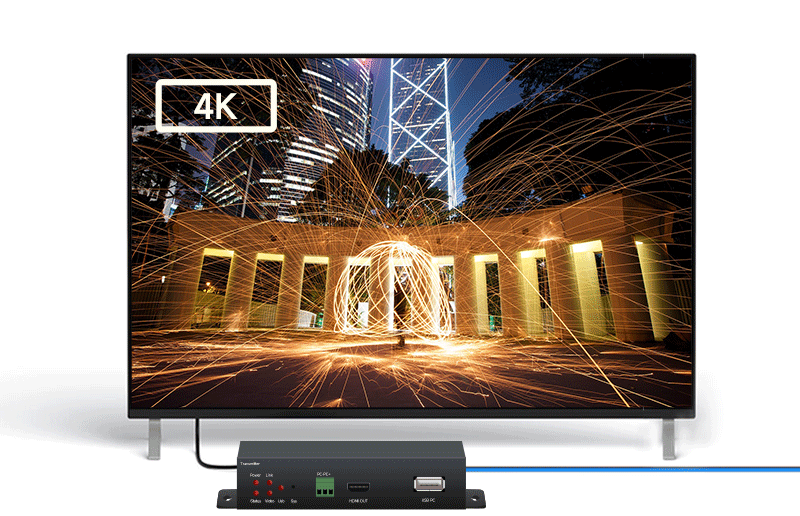

【UHD 4K30 Resolution】Delivers UHD picture quality at resolutions up to 4096 x 2160 (4K x 2K) @30Hz

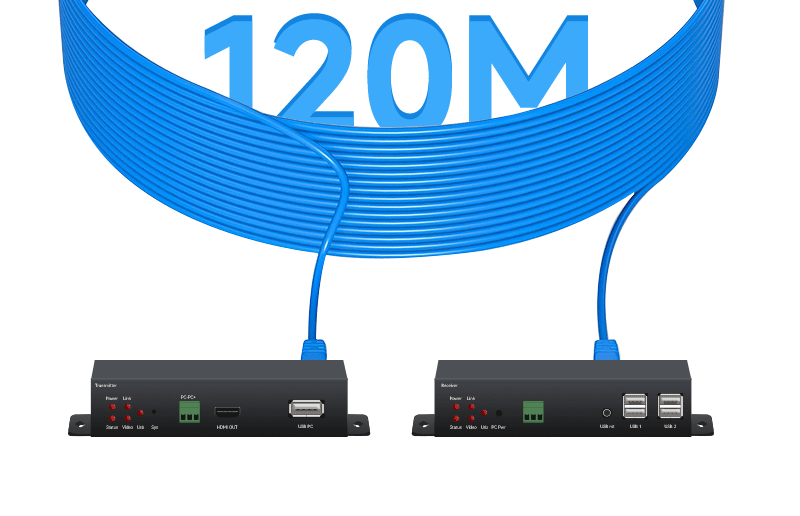

【Up to 120m Extension】Support point to point transmission and point to multi-point transmission over gigabit switches

【Excellent Quality】Support bi-directional audio/mic signal transmission, Support EDID mode and RS232 control

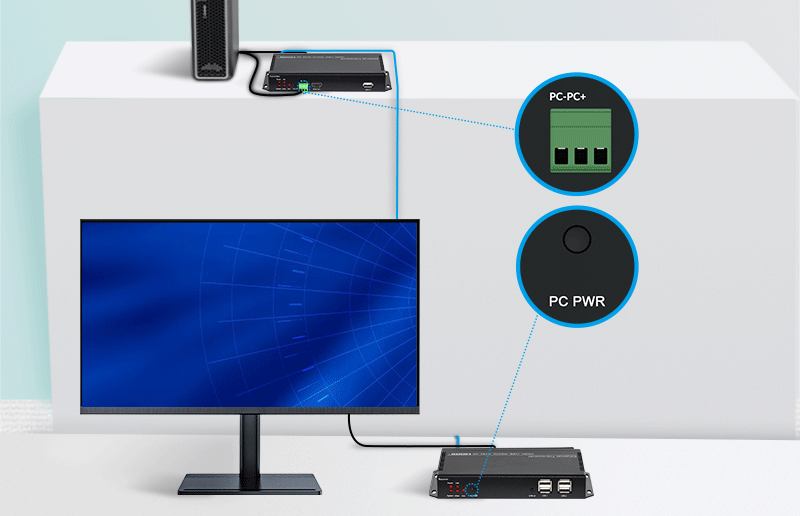

【Remote turn On/Turn Off】Press the "PC PWR" button on the Rx-end to turn on / turn off the PC on TX

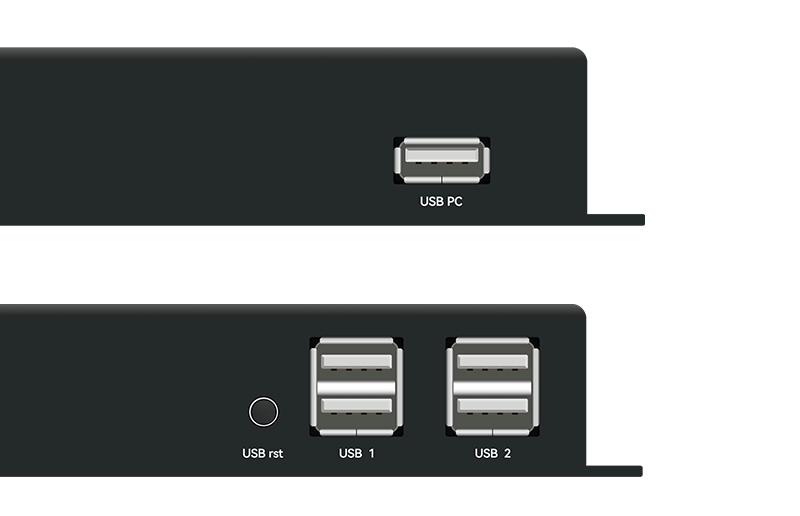

【KVM USB2.0 Supported】Support USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.

【Plug and Play】Simple to install, plug and play, no setup or configuration needed



Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • CKH531

Description
Introduction
Parameters
Diagram

4k30-hdmi-kvm-extender-01

Introduction
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>4K@30 HDMI KVM Extender Over Cat5/6 Cable up to 120M</strong></span></span>
  • <span style="color:#333333;"><strong><span style="font-size:24px;">Ultra HD Resolution</span></strong></span>
  • <span style="color:#333333;"><span style="font-size:38px;"><strong>Transmission Distance up to 394ft over Cat5e Cable</strong></span></span>

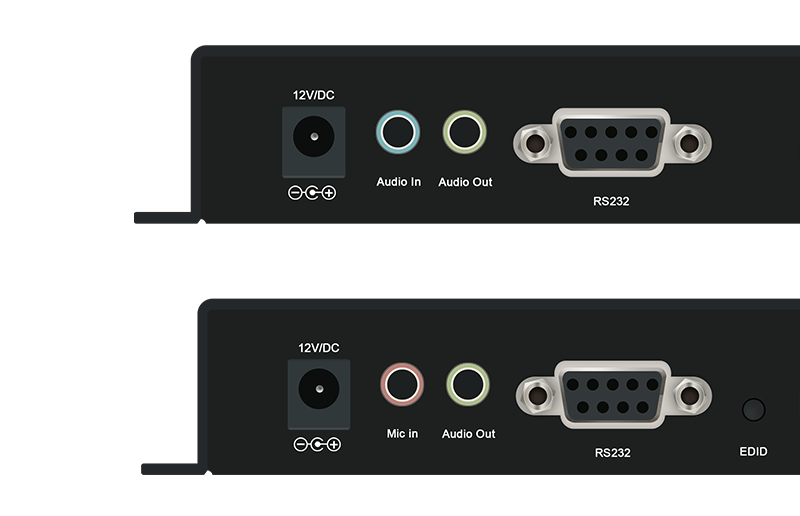

  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Bi-Directional Audio Signal Transmission</strong></span></span>

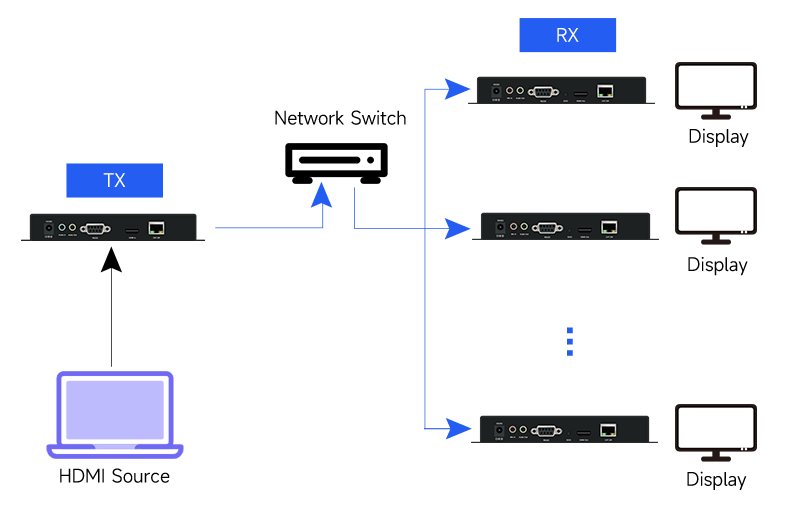

  • <span style="color:#333333;"><strong><span style="font-size:24px;">Point to Multi-point over Gigabit Switches</span></strong></span>

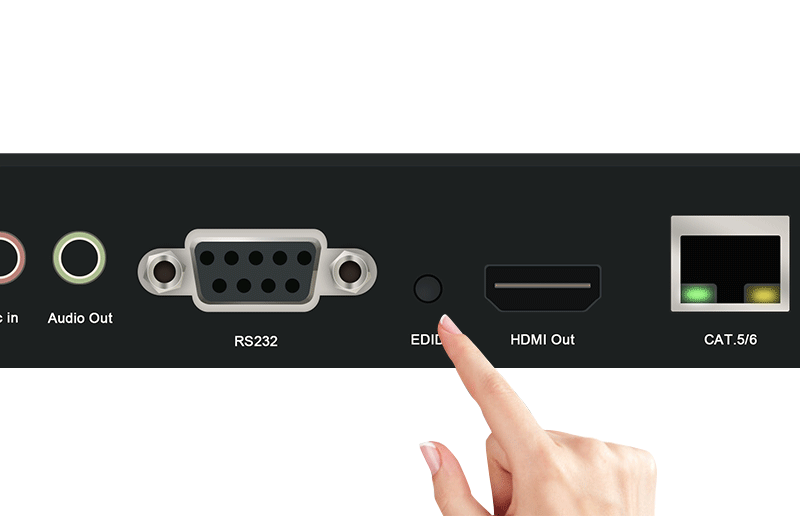

  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Exclusive EDID Function</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>KVM Support All USB2.0 External Devices</strong></span></span>
  • <span style="color:#333333;"><strong><span style="font-size:24px;">Remote Turn On/Off The PC on TX</span></strong></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Plug and Play</strong></span></span>
  • <span style="color:#333333;"><span style="font-size:24px;"><strong>Support OEM ODM</strong></span></span>

Parameters Of 4K@30HZ HDMI/USB2.0 KVM Extender over Cat5e Cable


Name4K@30 HDMI KVM Extender over Cat5e Cable
ModelCKH531
Interface StandardHDMI 1.4 & HDCP1.4
Pixel bandwidth225MHz
Interface bandwidth5.97Gbps
Resolutions3840x2160@30Hz and backward compatible
Video interfaceHDMI-A
Interface Impedance100Ω
Audio
Interface3.5mm aduio input
format44.1K, 48K, 96K, 176K, 192K
Mic
Interface3.5mm aduio input
RS232
InterfaceDB9
Signal directionBi-directional
Baud rate9600bps (Other baud rate can be set)
Data bit8digits
Keyboard/Mouse

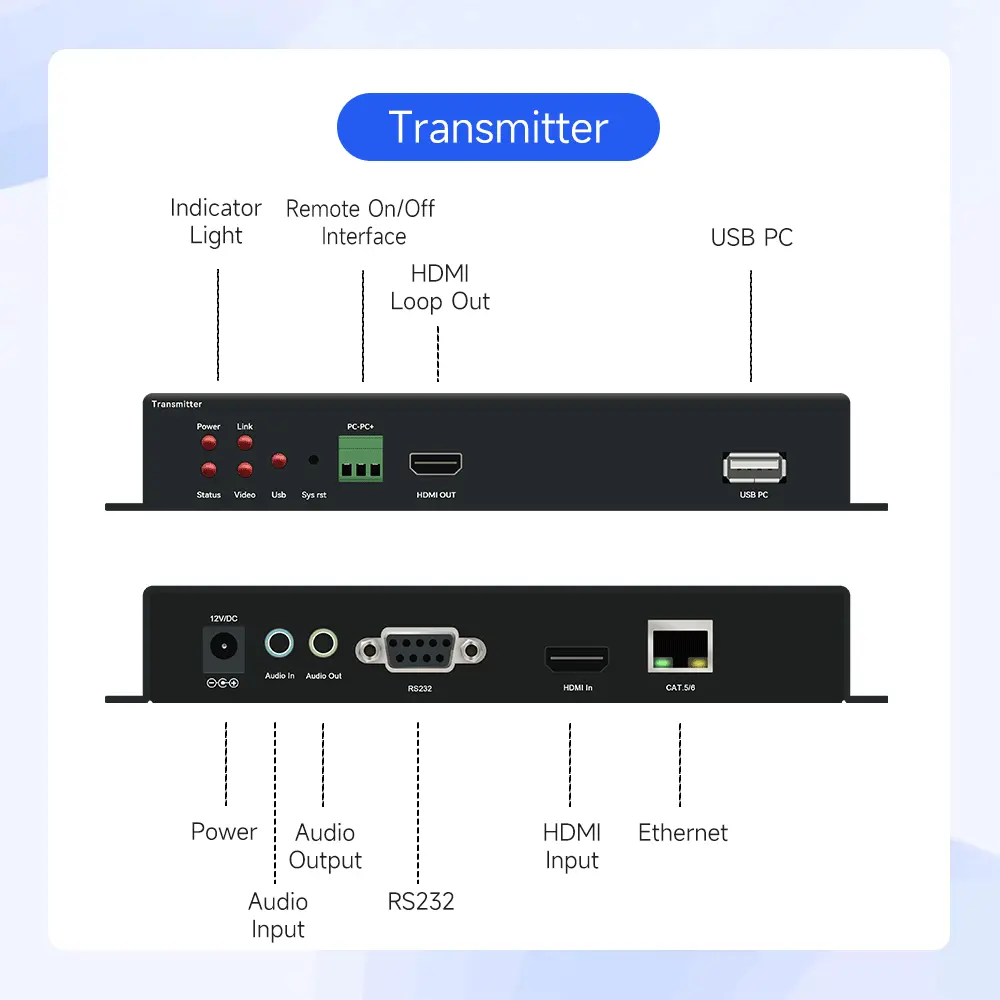

Transmitter interfaceType A USB interface

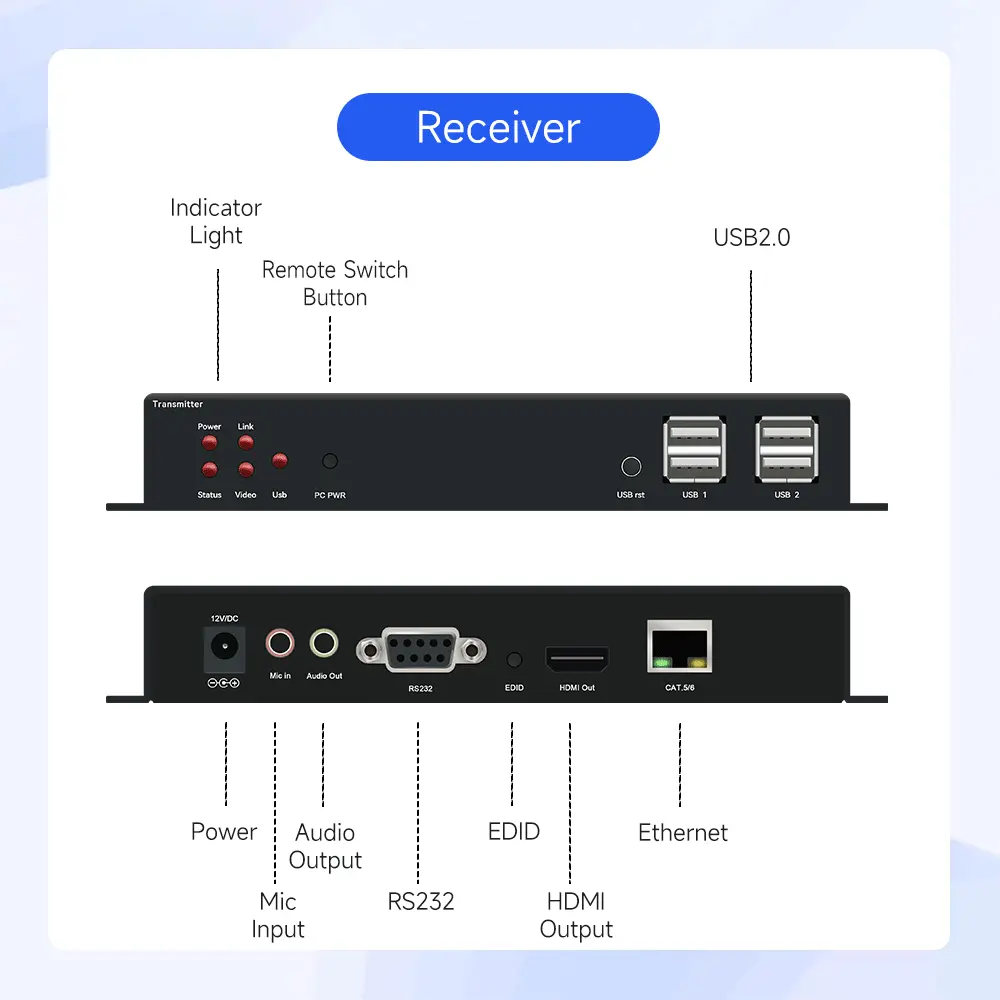

Receiver interfaceType B USB interface
VersionUSB2.0
Cable
InterfaceRJ45/568B
CableCat5e and above
Distance120m (point to point)
Other
Temperature-5 ~ +60° C
Humidity5 ~ 90 %
Power12V/DC 1A
Power Consumption2W/Unit
Dimensions187*105*28mm (Length * width * height)
Weight0.3KG/unit

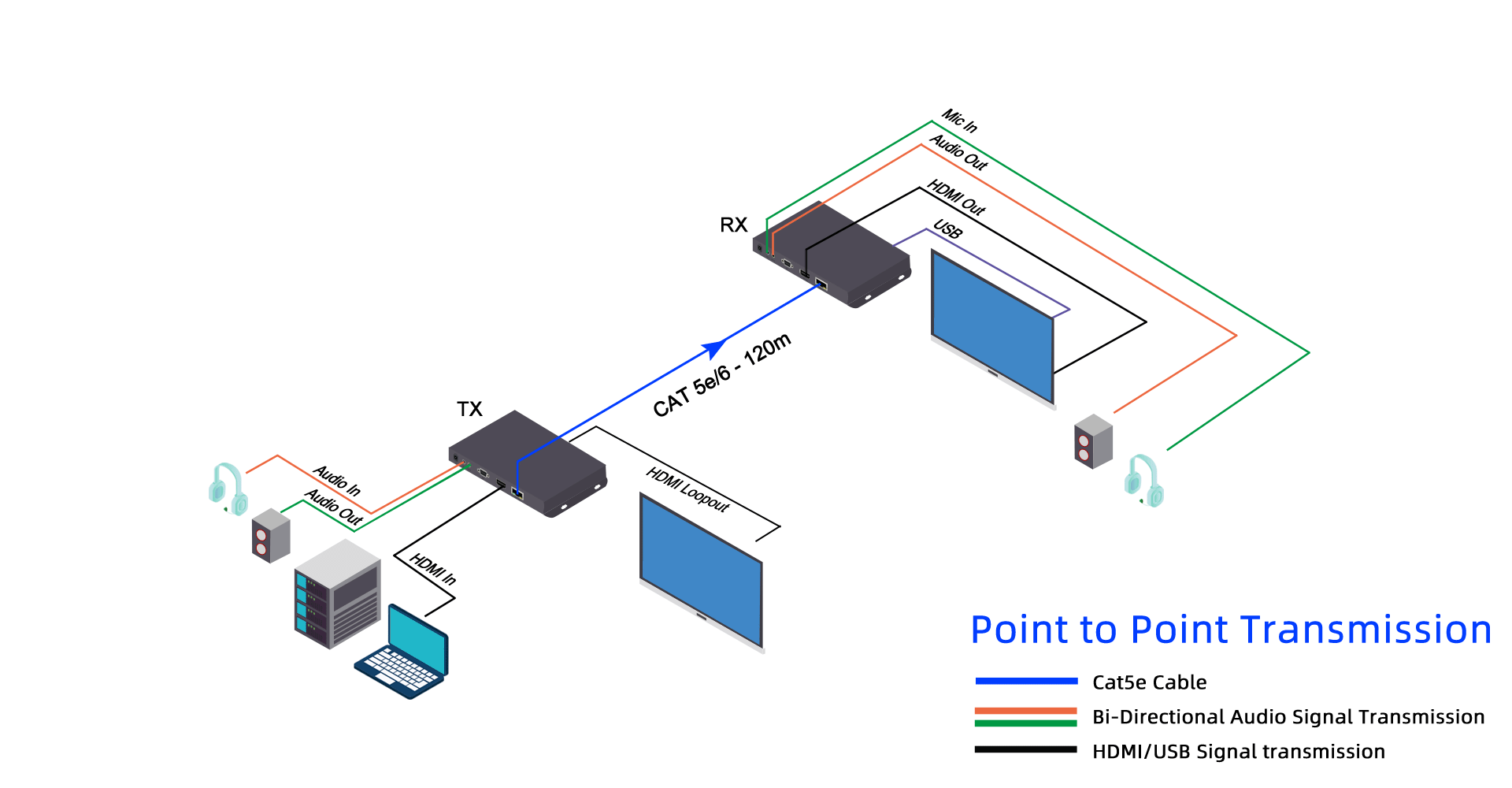

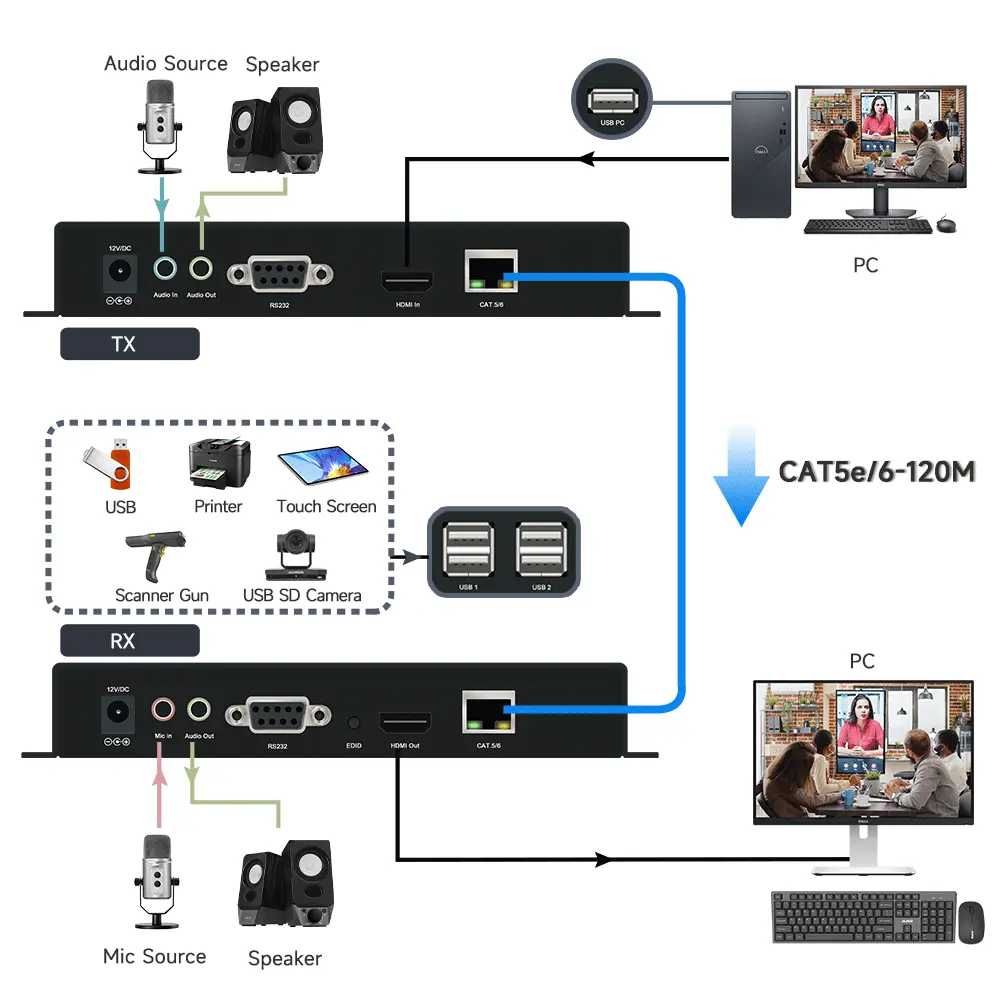

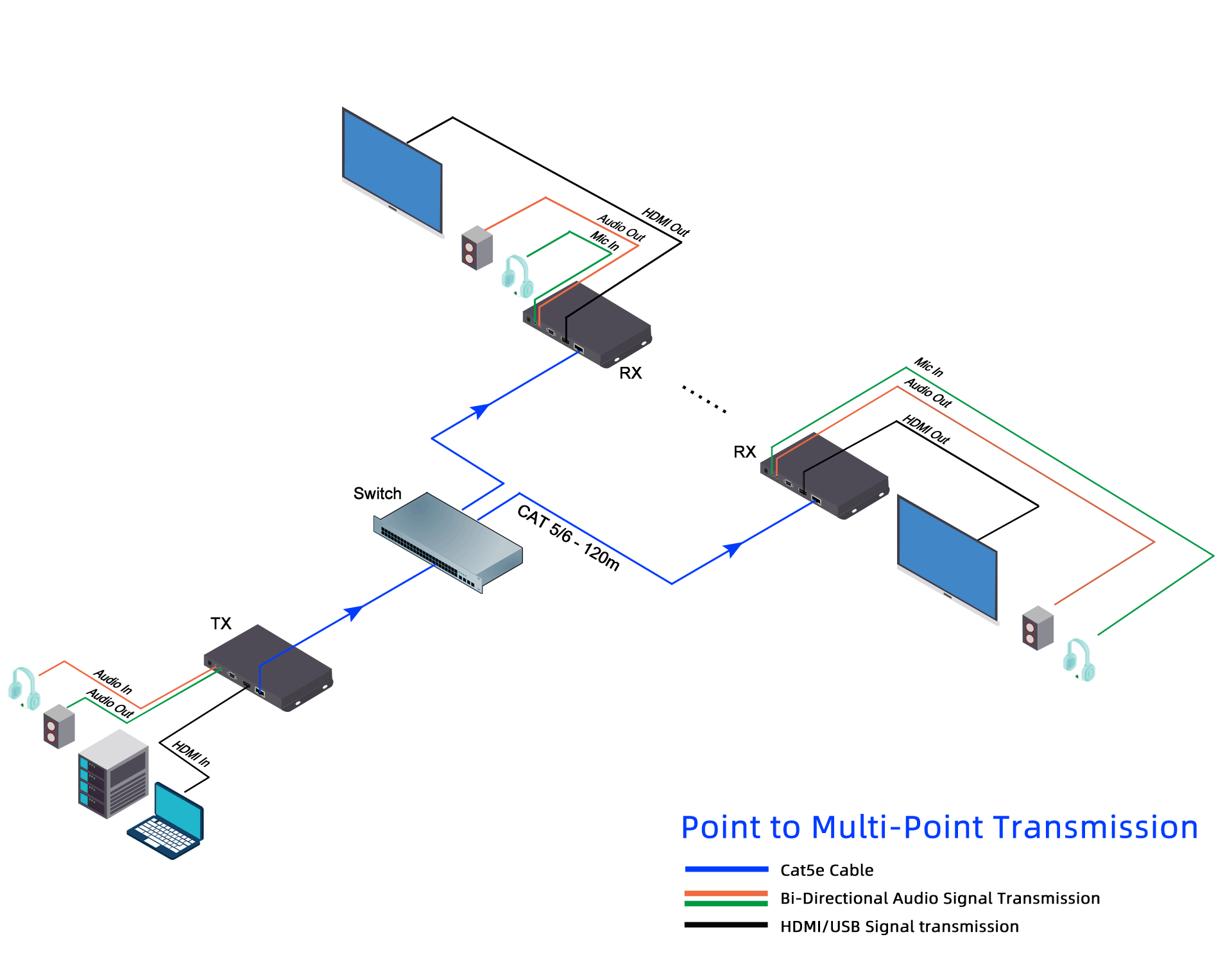

Diagram Of 4K@30HZ HDMI/USB2.0 KVM Extender over Cat5e Cable

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.


4k30-hdmi-kvm-extender-11-01

4k30-hdmi-kvm-extender-11-02



Need More Info About Our System?
Orivision Is Here To Help!
Get Touch With Us
Related Products
ORIVISION 4K@60HZ HDMI/USB2.0 KVM Extender over Cat 5e/6
4K@60HZ HDMI/USB2.0 KVM Extender over Cat 5e/6

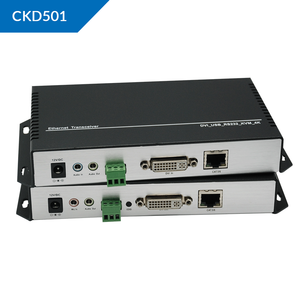

ORIVISION 120m 4K@30 DVI KVM Network Extender
