Brand: ORIVISION
Model: ZY-CKH601
Transmitter Input: HDMI 1.3*1
Transmitter Output: RJ45*1
Recevier Input: RJ45*1
Recevier Output: HDMI1.3*1
Resolutuion: Max 1920*1080@60Hz
Transmission Distance: Point to point up to 60m
KVM: keyboard and mouse
Power: 5V/DC 1A
High resolution up to 1080P@60hz, 3D
Point to point 196ft/60m over a single cat6
Local HDMI output on transmitter for preview
Support keyboard and mouse remoter control
Support EDID and POC function
No software required, plug and play

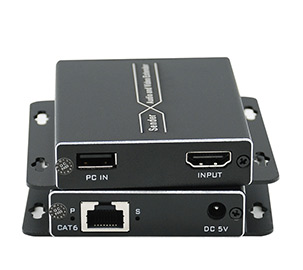

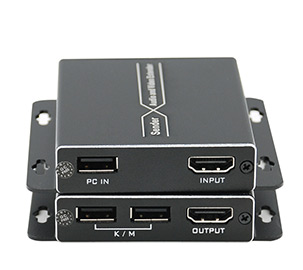

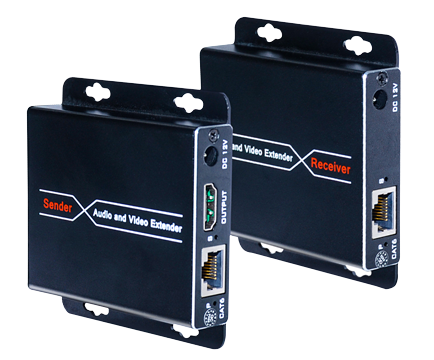

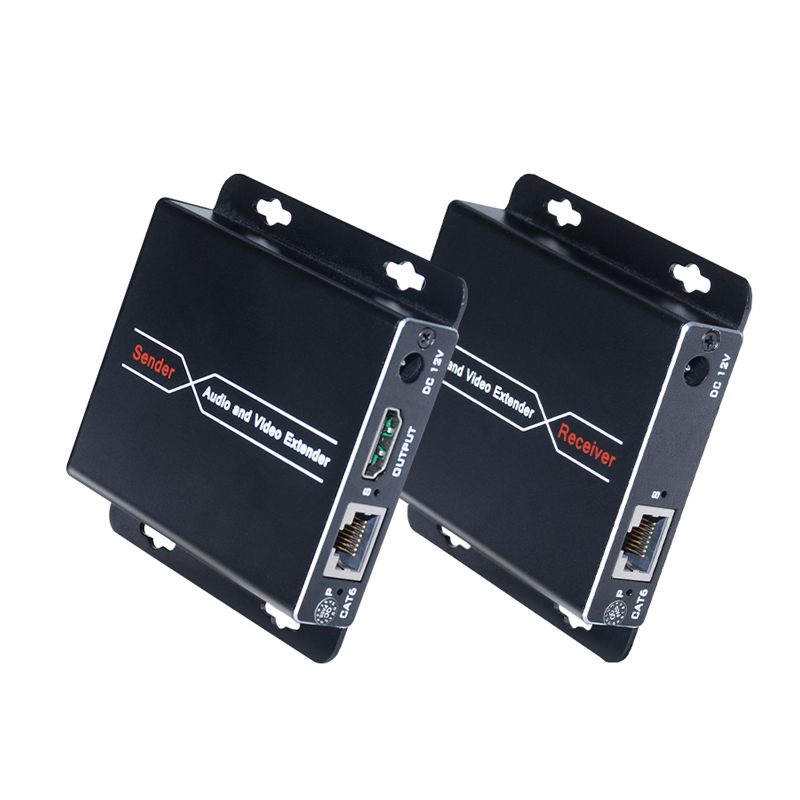

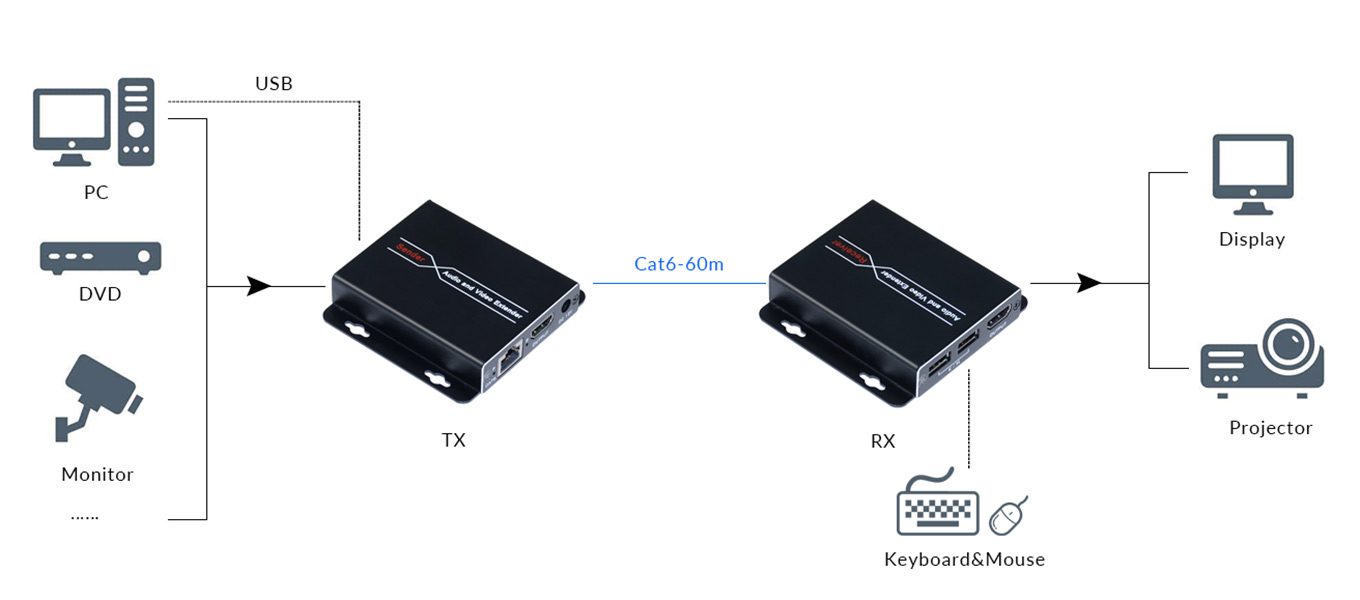

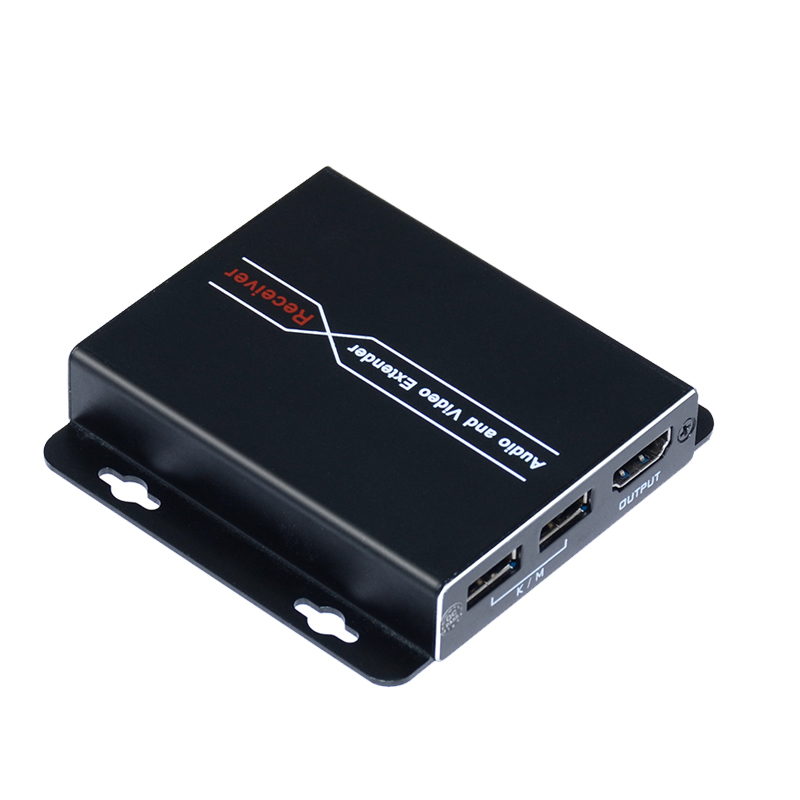

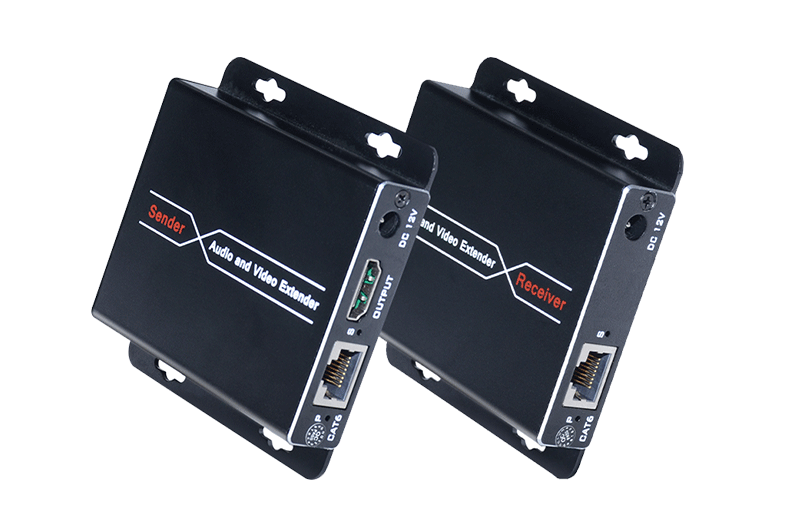

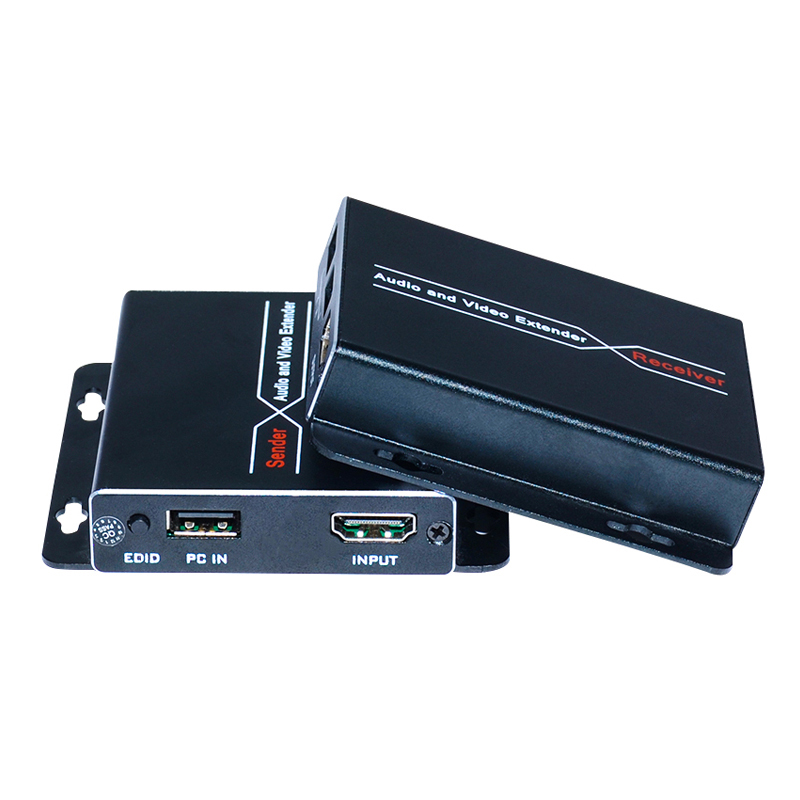

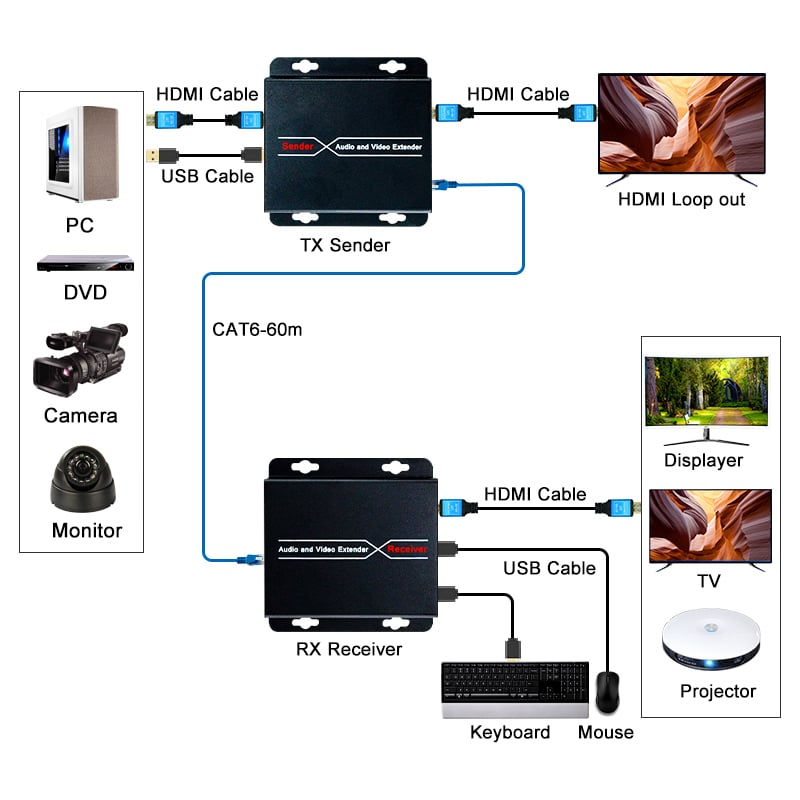

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard&mouse remote control and local loop-out , also it supports PoC to power the sender/receiver.

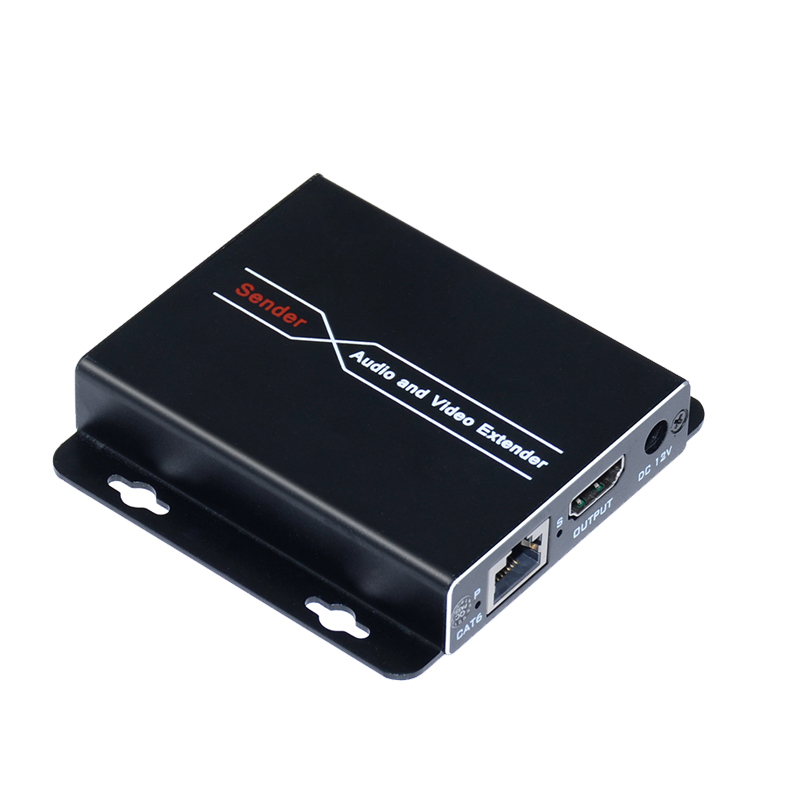

The metal case design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers HD picture quality at resolutions up to 1920*1080 @60Hz, 3D signal
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

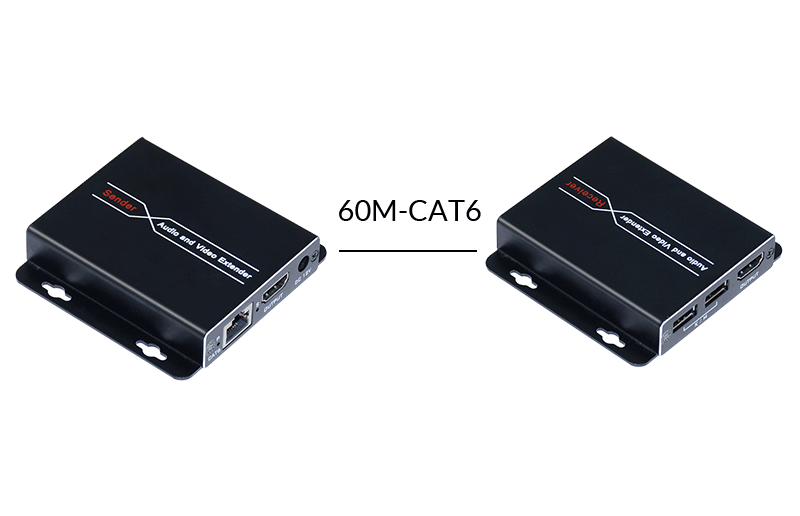

Transmits HD video and audio signals up to 196ft/60m over a single CAT6/6a/7 cable.

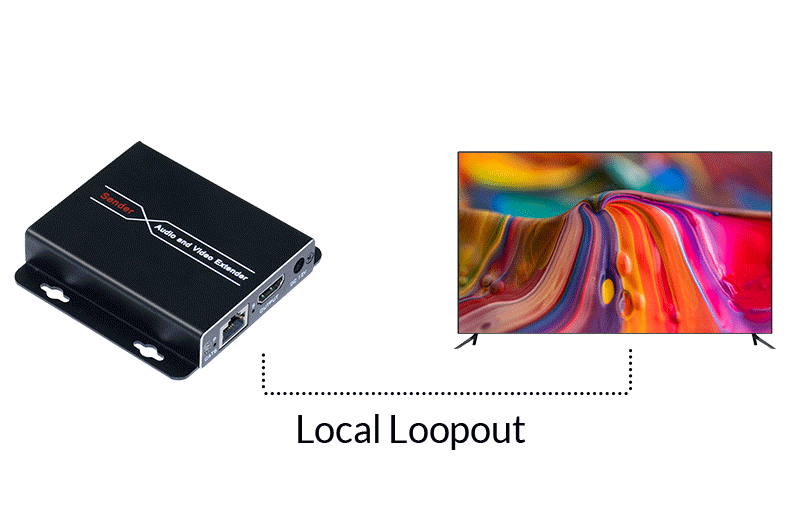

Local HDMI output on transmitter for preview

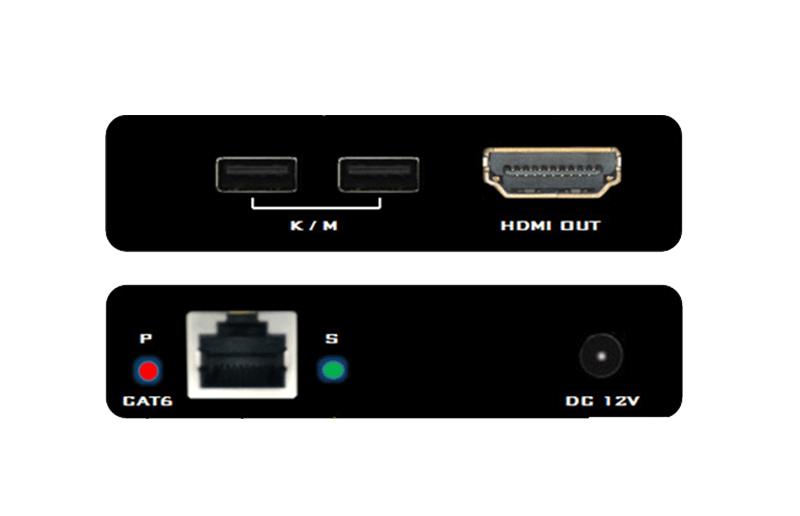

Support keyboard and mouse control, real-time remote control of computer equipment.

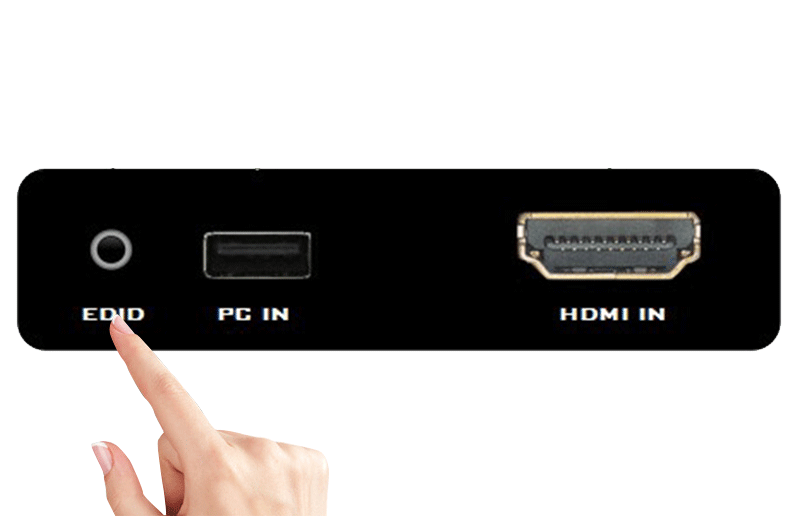

Support copy EDID, can match many kinds of display device
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)

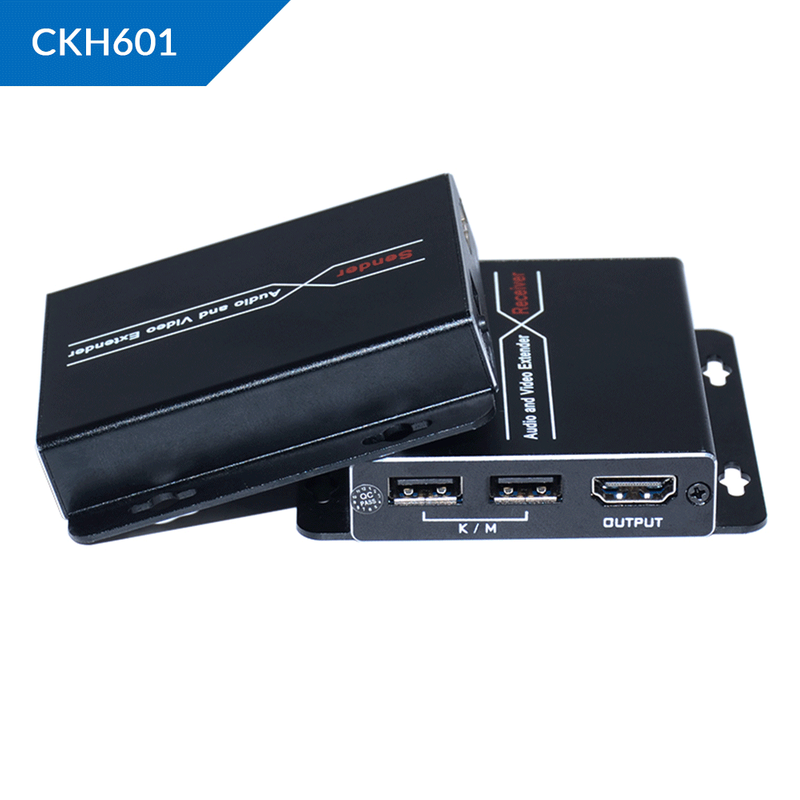

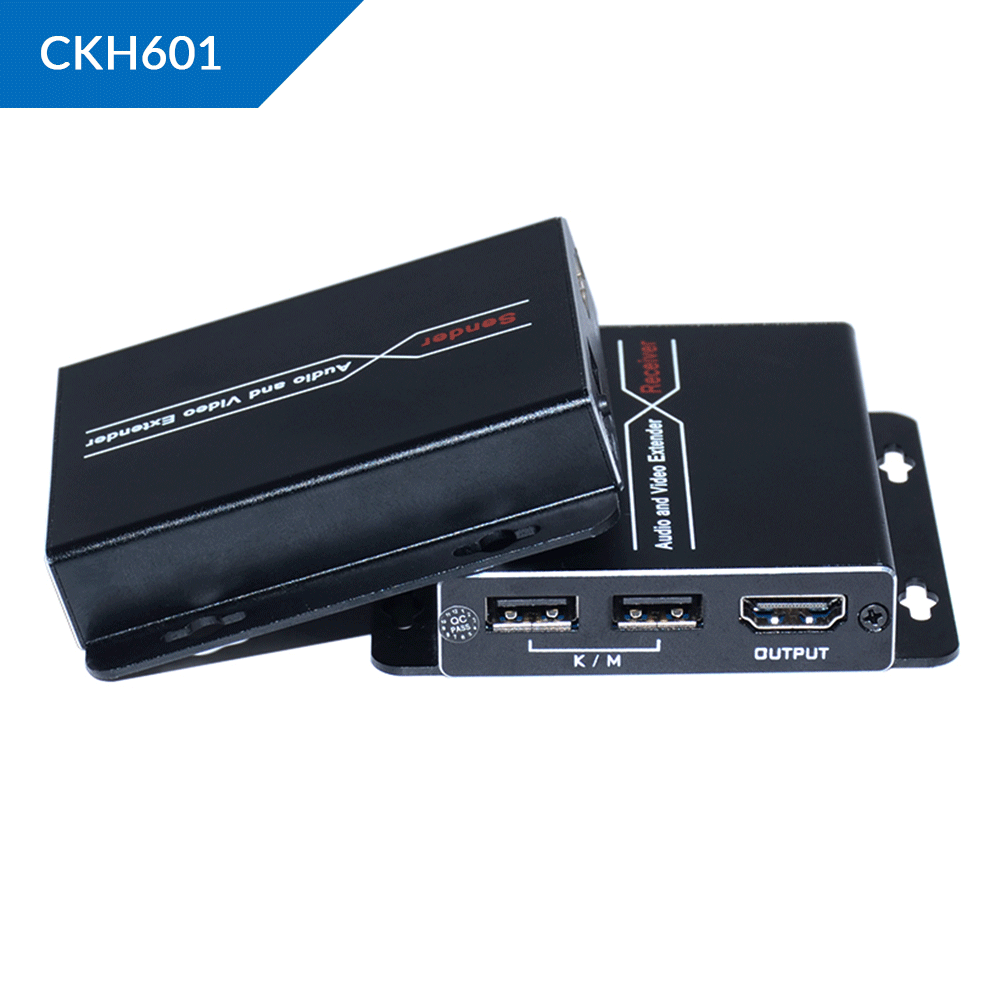

| Name | 60m 1080P60 HDMI KVM Network Extender |
| Model | ZY-CKH601 |
| Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Resolution | 1920*1080@60Hz （backward-compatible） |
| HDMI Impedance | 100Ω |
| HDMI Connector | HDMI-A |
| USB Interface | PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
| USB Signal | HID Signal |
| Transmission distance | CAT6 --- 60m |
| Interface | RJ45 |
| Power supply | The power adapter: DC 12V |
| Power dissipation | MAX 4W |
| Temperature | Operating: -5℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 82*85*17mm |
| The warranty | 1 year free warranty |
Apply to AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
