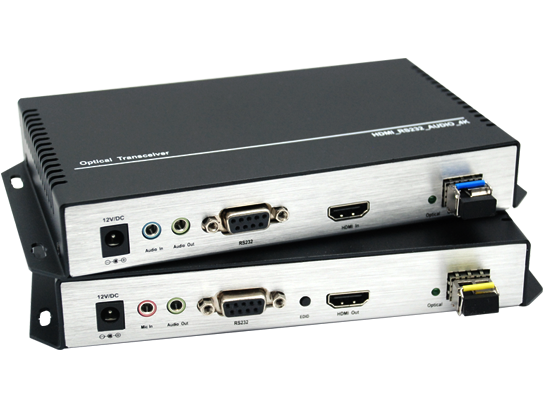

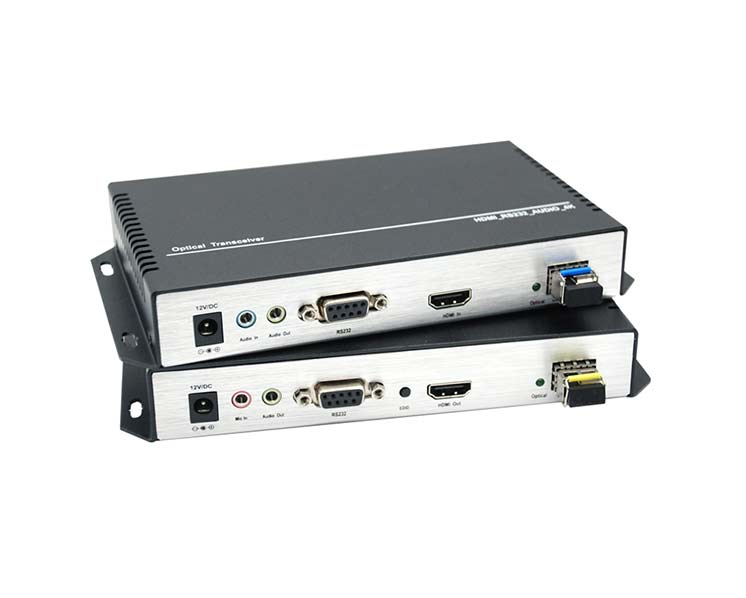

Orivision 4K@30 HDMI Optical Fiber Extender

【UHD 4K Resolution】Support resolution up to 3840x2160@30fps, backwards is compatible

【20KM Extreme Long Transmission】Extend 4K HDMI signal up to 20KM over a single mode fiber  one core cable; or extend 4K HDMI signal up to 300M over a multimode duanl core cable; 40KM-80KM distance can be customised

【Bi-direction Audio Transmission】Support bi-direction audio (microphone)  transmission, support EDID, RS232, compatible HDMI1.4, HDCP1.4

【Support Backward RS232】The HDMI Extender support serial RS232 signal, you can control the RS232 serial device from remote side

【Plug and Play】Simple to install, plug and play, no setup or configuration needed


4K@30 HDMI Optical Fiber Extender
4K@30 HDMI Optical Fiber Extender
  • Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

  • Standard distance transmission 20KM, distance can be customized

  • Supports bi-directional audio signal transmission

  • Support EDID mode and RS-232 control

  • Plug-and-play operation


4K@30 HDMI Optical Fiber Extender

OH511 is a fiber-based extender designed to extend uncompressed 4K@30hz signal up to 300m(Using Multimode Dual Core SFP) or 20km(Using Single model one core SFP) over duplex fiber cables.

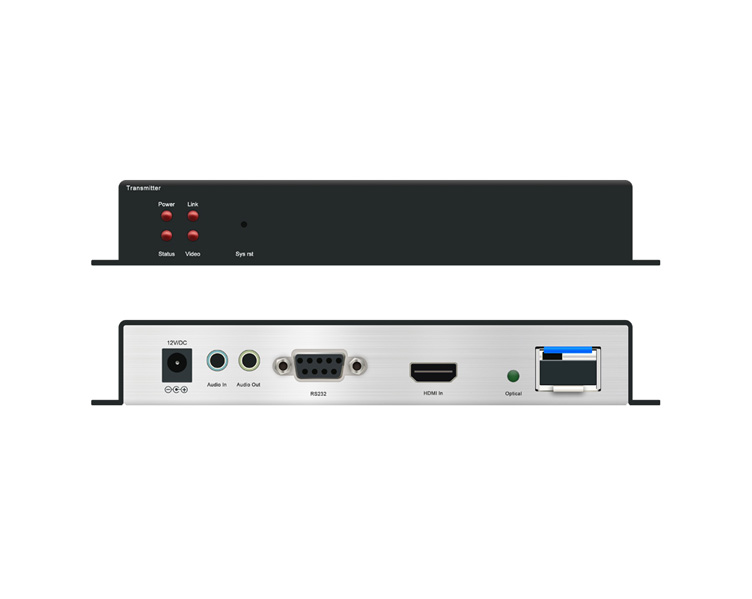

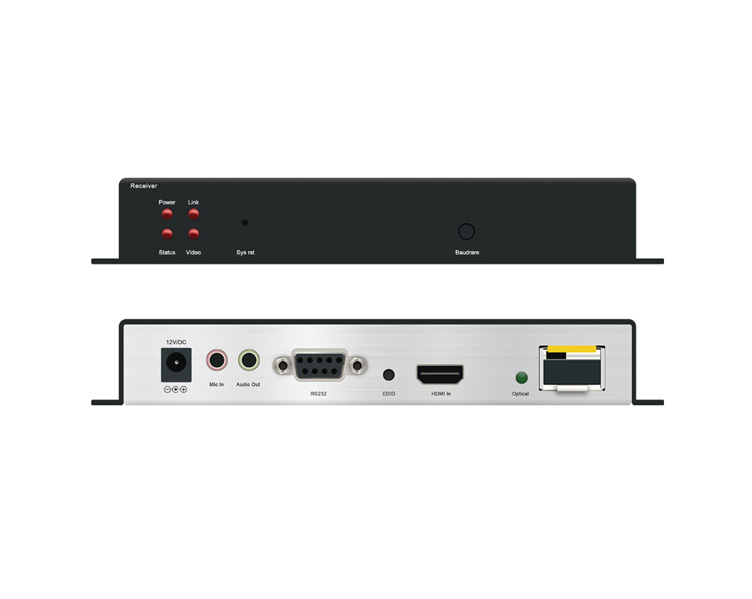

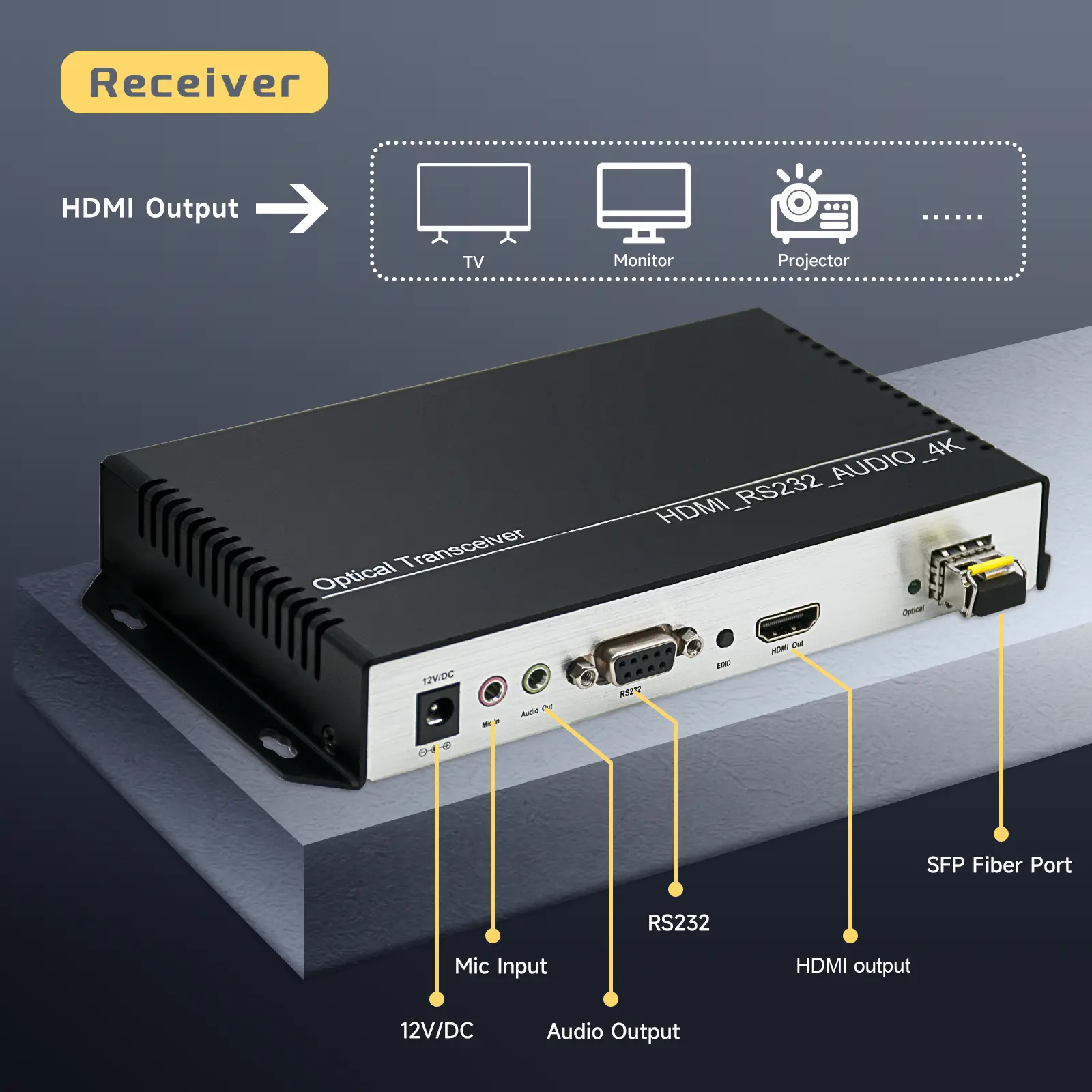

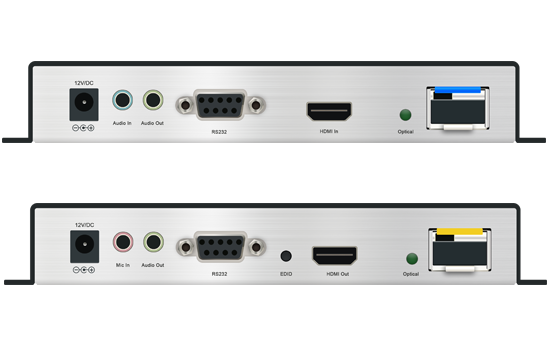

The OH511 features an HDMI input and output, analog audio input and output, and an RS-232 control port. For point-to-point transmission.


4K@30 HDMI Optical Fiber Extender

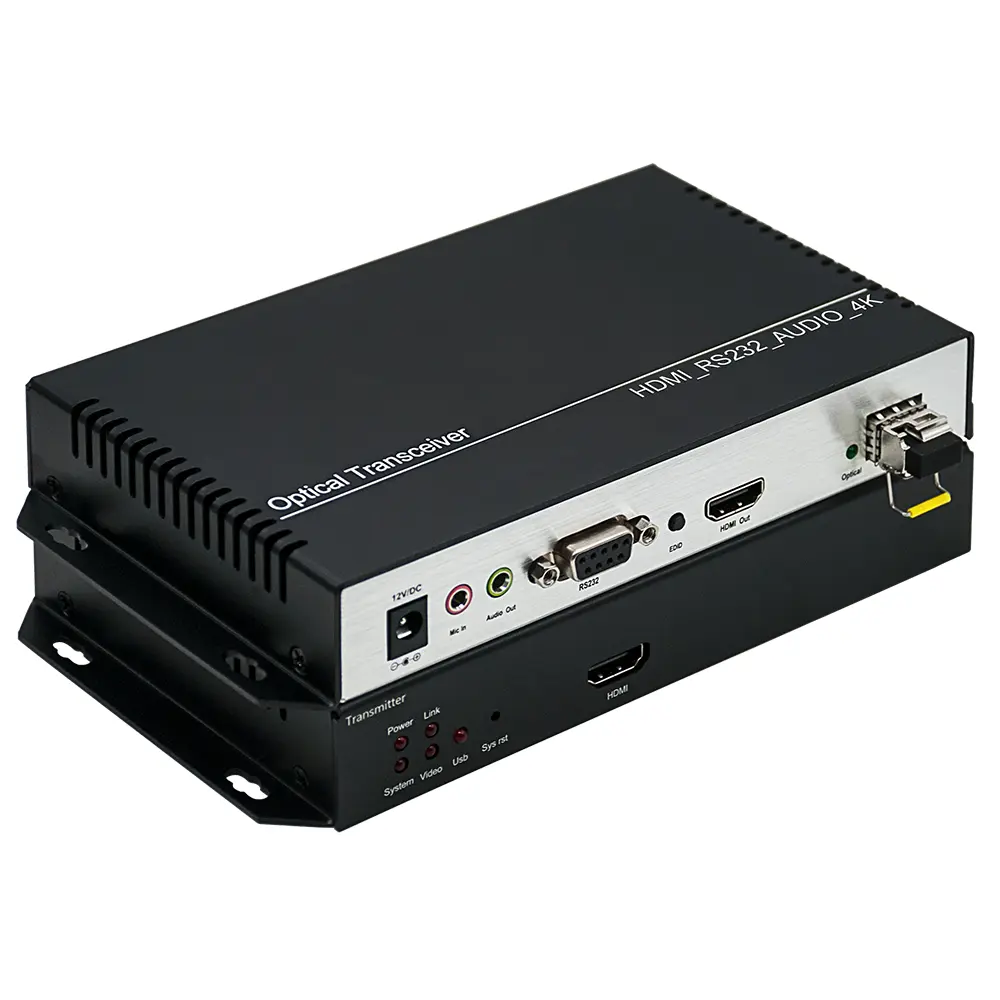

High Availability and Friendly Design

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design
Professional for 4K HDMI Video Extender

Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.


Professional for 4K HDMI Video Extender

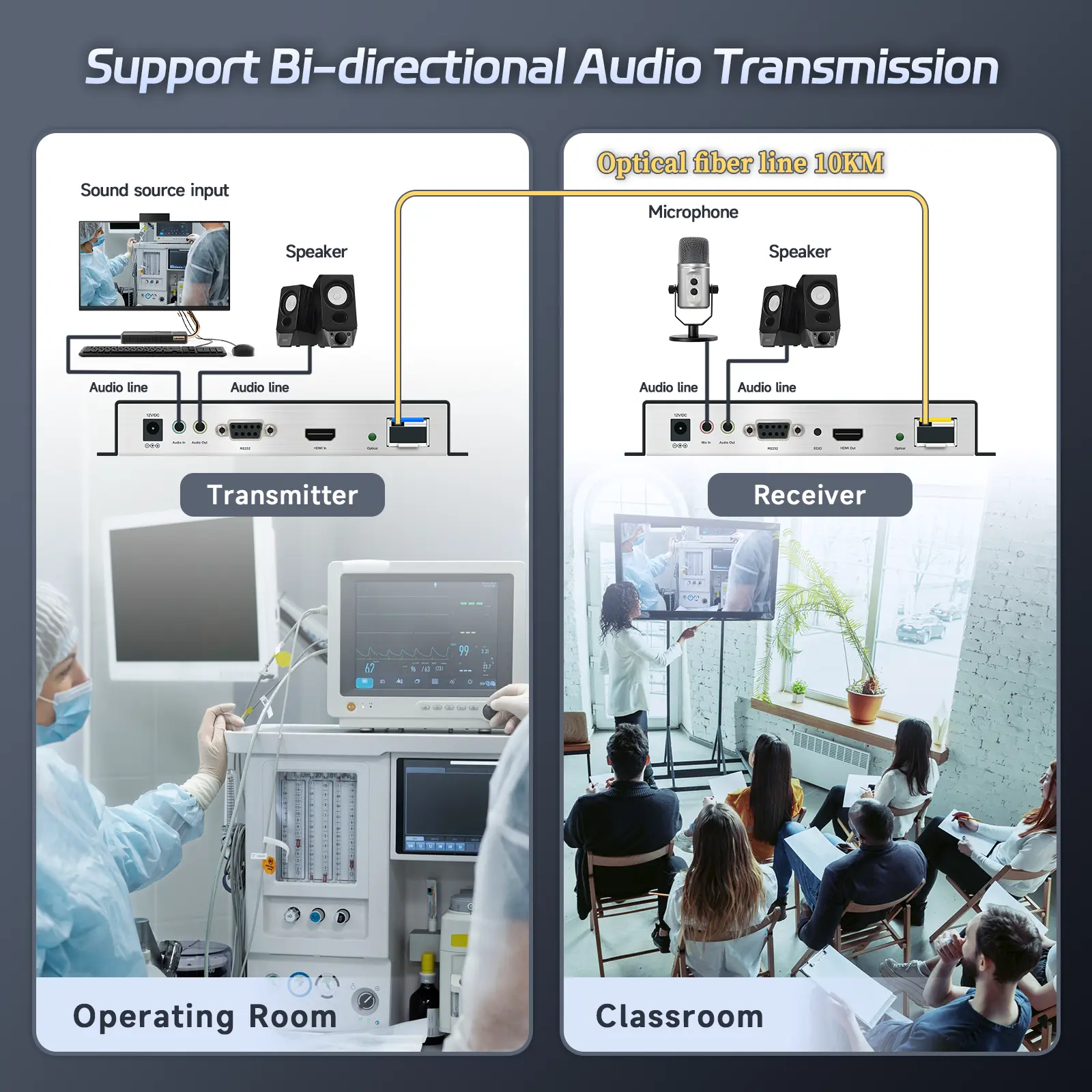

Bi-Directional Audio Signal Transmission

Format: 44.1K, 48K, 96K, 176K, 192K

Duplex audio Transmit


Bi-Directional Audio Signal Transmission
EDID Mode and RS-232 Control

Support EDID, RS232, compatible HDMI1.4, HDCP1.4

EDID Mode and RS-232 Control

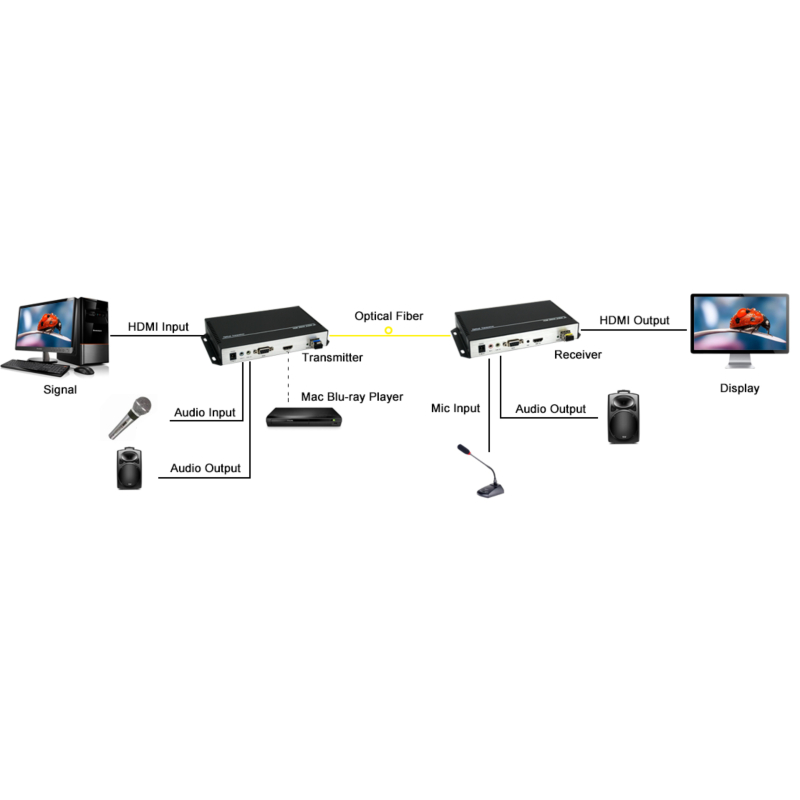

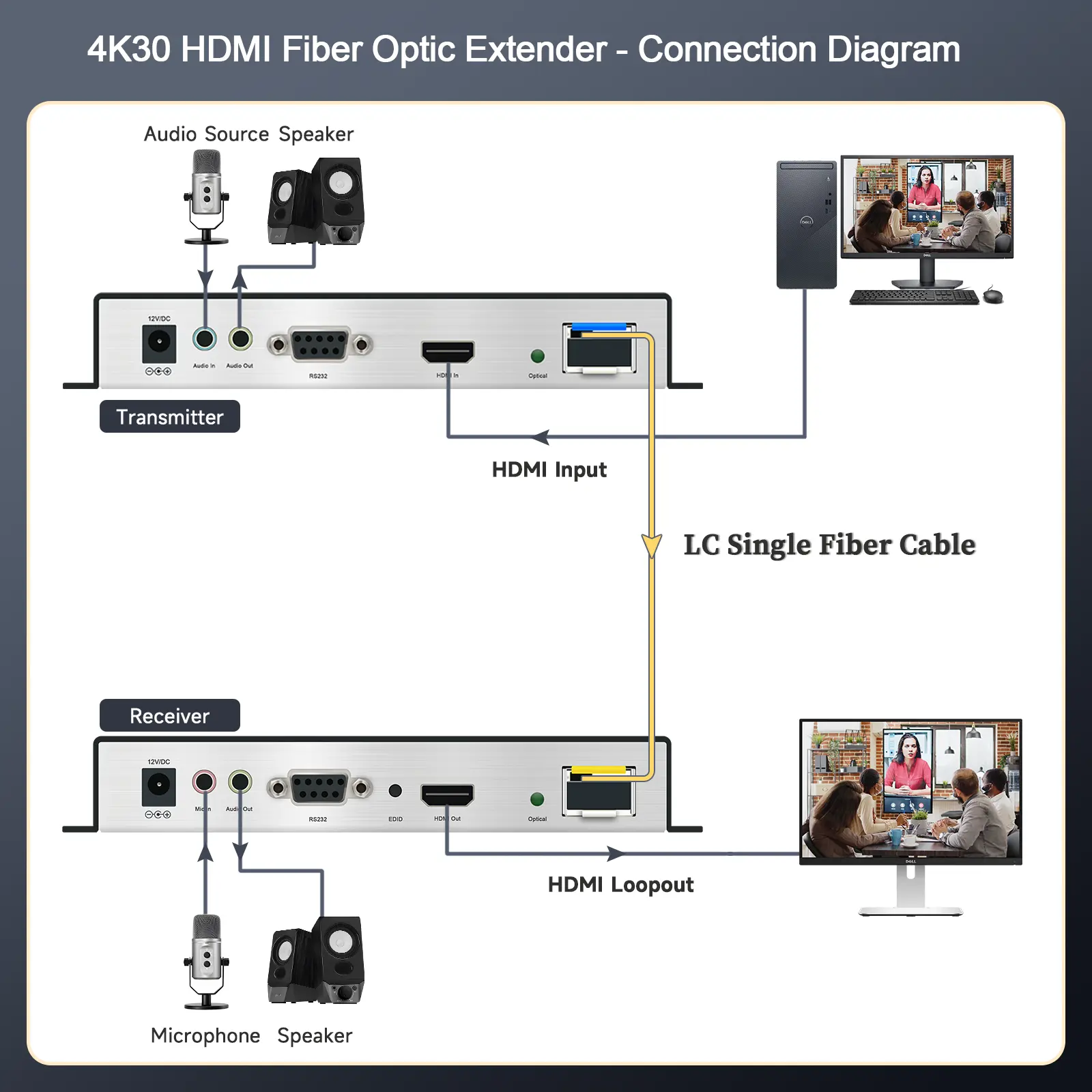

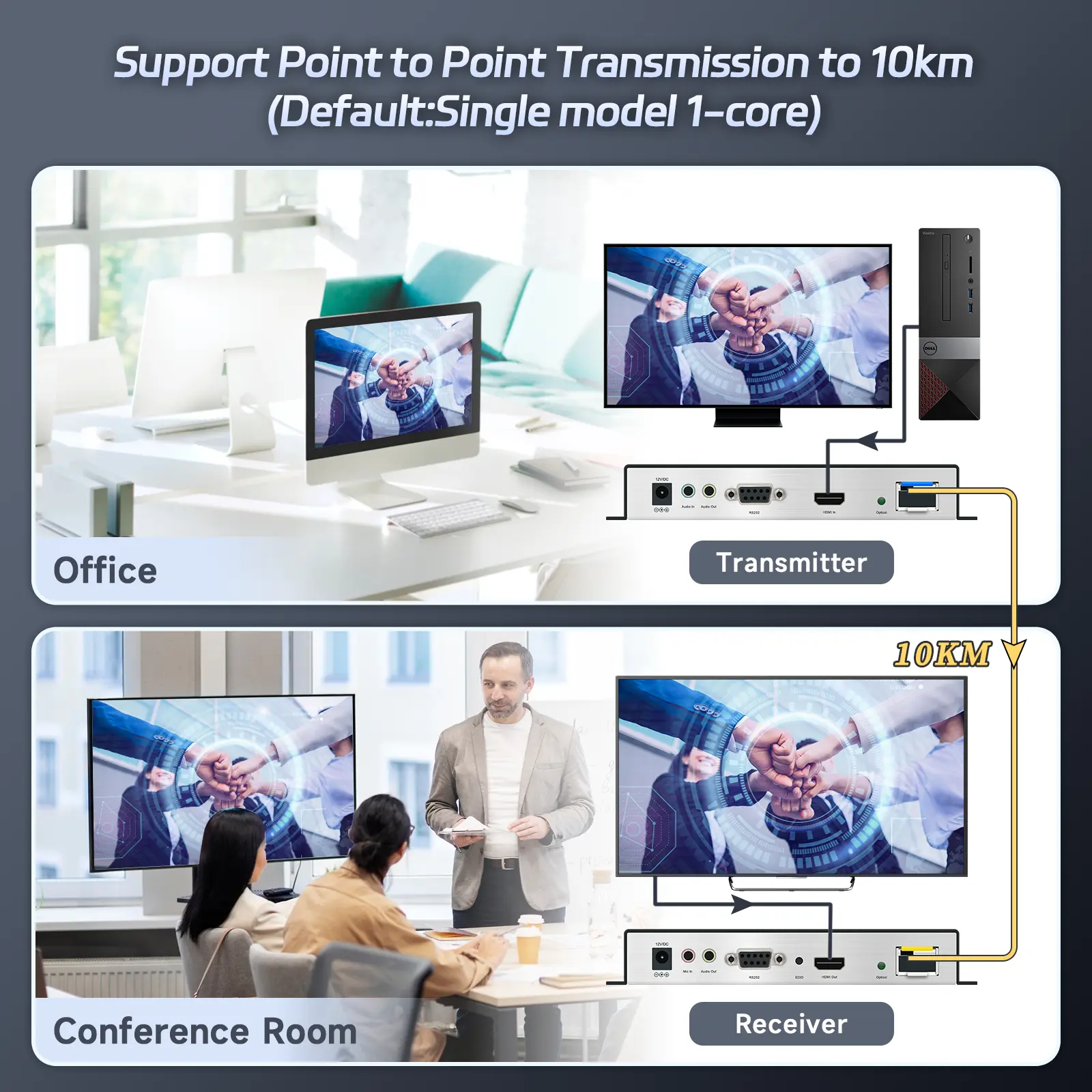

Point to Point Transmission

Extend 4K signals up to 20KM over a single mode one core fiber cable,

or extender 4K signals up to 300 meters over a multimode dual core fiber cable.

Transmission 40KM/60KM/80KM can be customised.

Support a Local loop out on transmitter.


Point to Point Transmission
Plug and Play

Plug-and-play operation with no software required for easy, immediate installation.

Plug and Play

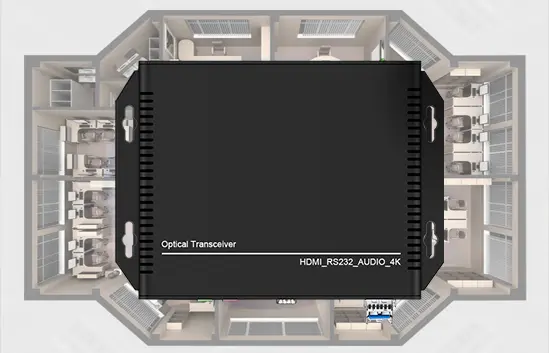

Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)


Support OEM ODM

Parameters of 4K@30 HDMI Optical Fiber Extender

Name4K@30 HDMI Optical Extender
ModelZY-OH511
Interface StandardHDMI1.4, HDCP1.4
Pixel bandwidth165MHz
Resolutuion3840x2160P30/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/1920x1080P50/
1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/1280x720P50/1680x1050P60/
1600x1200P60/1600x900P60/1440x900P60/1400x1050P60/1366x768P60/1360x768P60/
1280x1024P60/1280x800P60/1024x768P60/800x600P60
Audio

Interface: 3.5mm aduio input

Format: 44.1K,48K,96K,176K,192K Duplex audio Transmit

RS232

Interface: DB9

Baud rate: 115200

Data bit: 8digits

Optical Fiber

Interface: LC

Types: SFP Single mode

Wavelength: 1550/1310nm

Bandwidth: 3Gbps

Distance20KM (default)

40KM 60KM 80KM (Optional)

Attenuation-3db
Support EDID
Temperature-5℃ to +60℃
Humidity5 ~ 90 %
Power Consumption4W/Unit
PowerDC 12V1A
Size187*105*28mm
WeightTX:0.3KG   RX:0.3KG

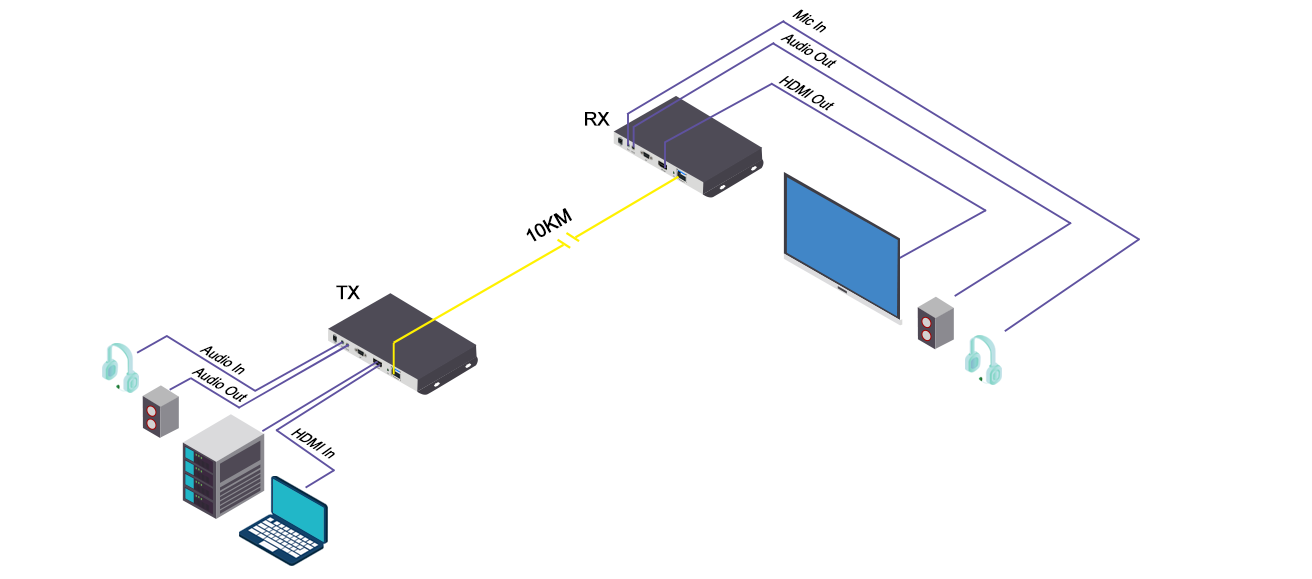

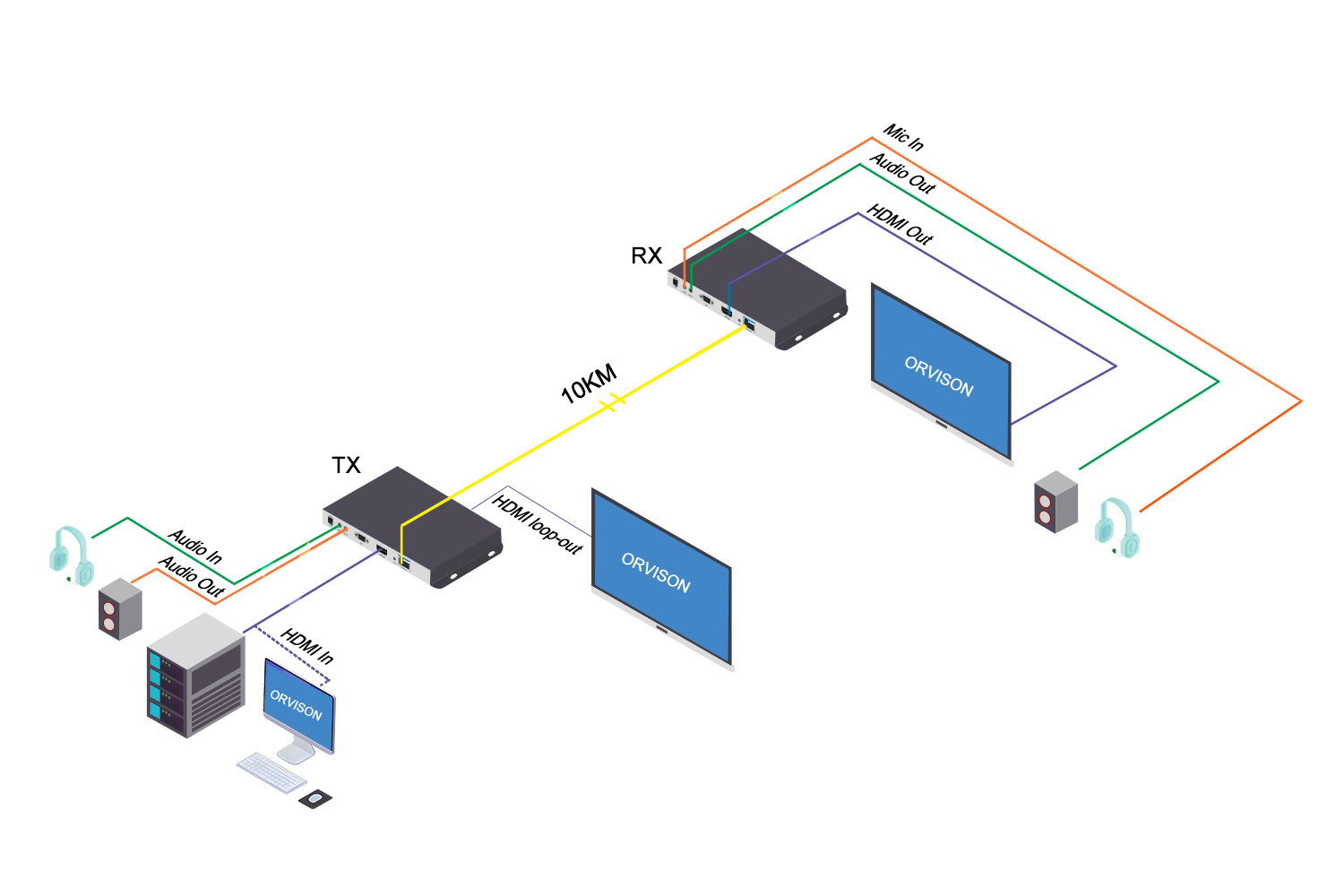

Diagram of 4K@30 HDMI Optical Fiber Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
