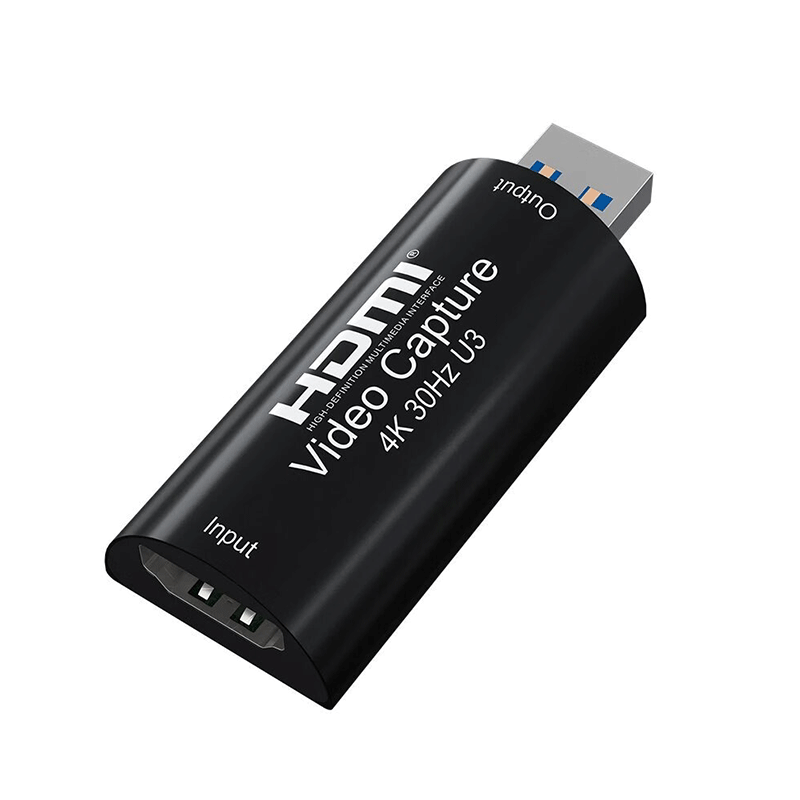

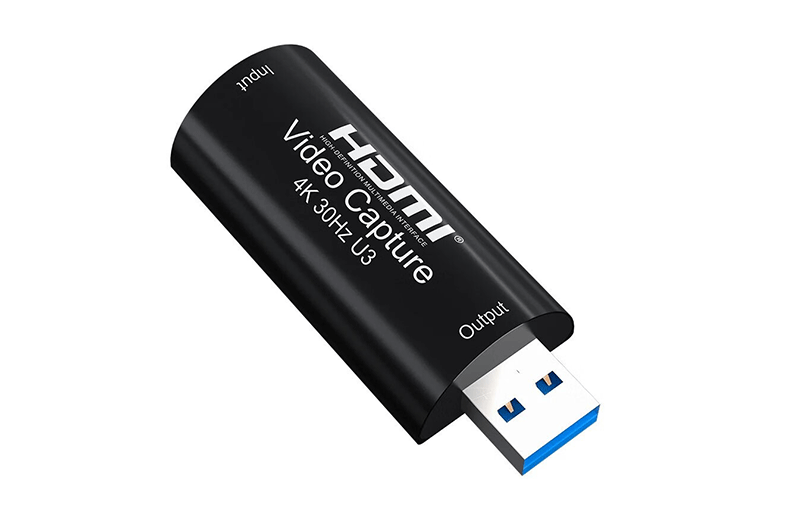

ORIVISION USB3.0 4K@30 HDMI Video Capture Card

Brand: ORIVISION

Model: ZY-UCH701

Input Interface: HDMI

Output Interface: USB3.0

HDMI Input Resolution: Up to 3840*2160@30hz

USB Out-put Resolution: Up to 1080P@60Hz

Support System: Windows, Linux and Mac OS

Software Support: Most sofware: VLC,OBS,Amcap,etc.

Warranty: 1 Year

Certificate: CE & FCC & Rohs


4K@30 HDMI to USB 3.0 Capture Card

This is a 4K@30Hz audio and video capture card that supports the conversion of HDMI audio and video signals to USB3.0 data output. Through third-party software, audio and video data collection and recording are completed. The collected audio and video is collected in the form of documents Save, also support upload to third-party software for video live broadcast. No need to install driver software, you can directly use the video capture card to connect with the computer.


HDMI Input Resolution: Up to 4K@30hz

USB Out-put Resolution: Up to 1080P@60hz


4K@30 HDMI to USB 3.0 Capture Card
Support Multiple Operating System

Support System: Windows, Linux and Mac OS

Support Multiple Operating System
Broadly Compatibility

Support most acquisition software,

such as VLC/OBS/Amcap, etc


Broadly Compatibility
Compatible with Most Live Platform

Such as youtube/facebook/twitch/stream, etc

Compatible with Most Live Platform
UHD HDMI Video Capture Card

HDMI Input ResolHDMI Input Resolution: Up to 3840*2160@30hz

USB Out-put Resolution: Up to 1080P@


UHD HDMI Video Capture Card
Drive Free

Without external power supply, compact and portable.

Drive Free
USB3.0 Compatible with USB 2.0

Powerful upgraded USB 3.0 port of the capture card ensures higher transmission speed.

USB3.0 Compatible with USB 2.0
Powerful Application

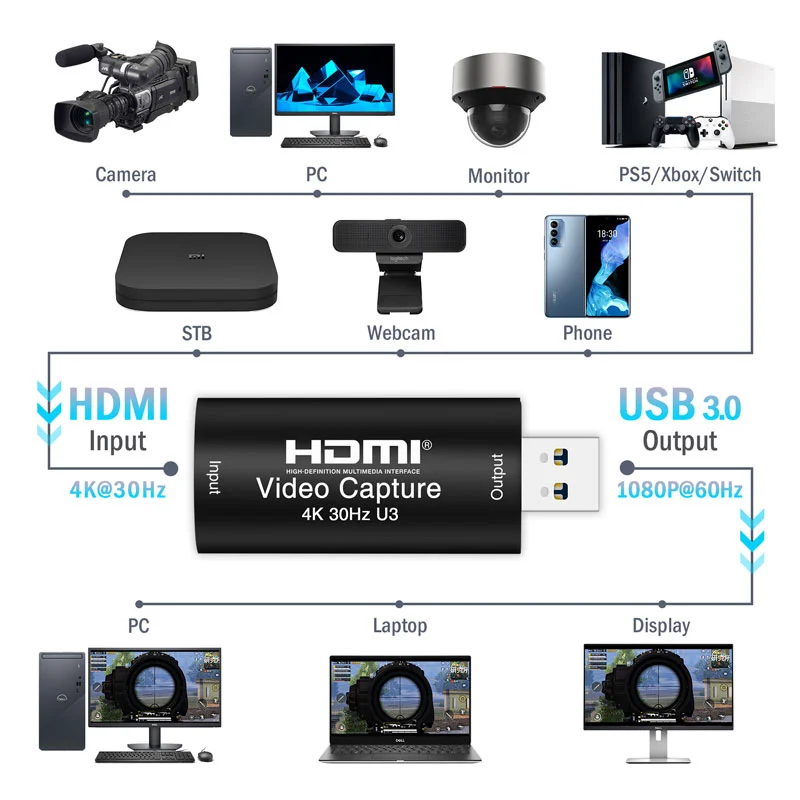

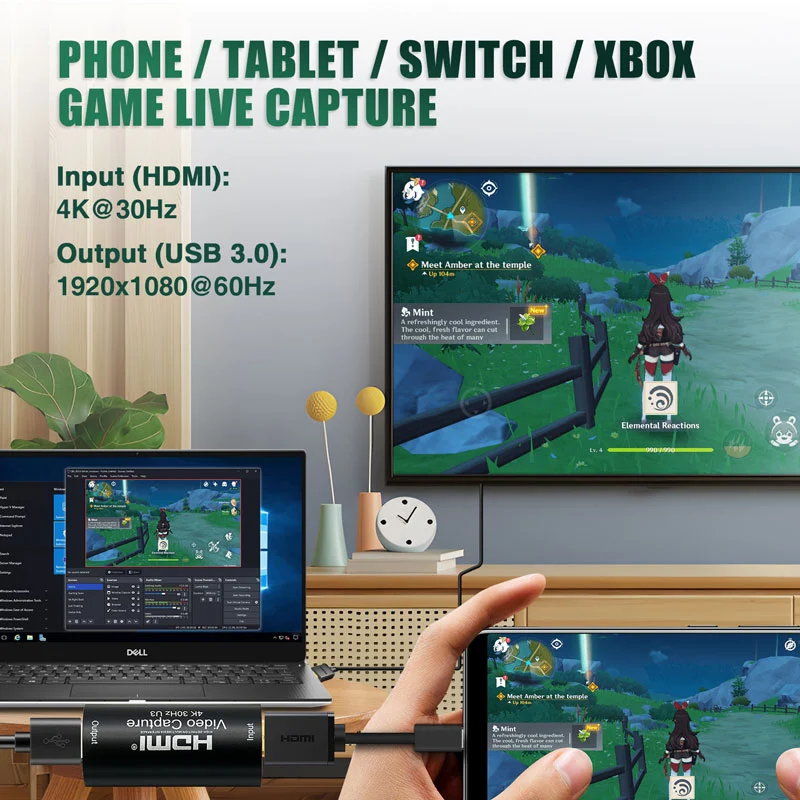

Apply to game live streaming, live broadcasting, online classes, video conference, etc.

Powerful Application

Parameters Of USB3.0 4K@30 HDMI Video Capture Card

Product NameHDMI Video Capture Card
ModelUCH701
Input InterfaceHDMI
Out-put InterfaceUSB 3.0
Video Input1 channel HDMI video signal input
Video Output1 channel HDMI video signal output
HDMI Output FormatYUV、JPEG
Video Output resolutionMax output can be 1080P
Software SupportMost sofware: VLC,OBS,Amcap,etc
USB SupportConform to USB Video and UVC standard;
Conform to USB Audio UAC standard;
Input Cable distance≤15m, AWG26 HDMI standard cable
Support SystemWindows, Linux and Mac OS
PowerWithout external power supply, compact and portable.
Operating temperature-10 to +55℃

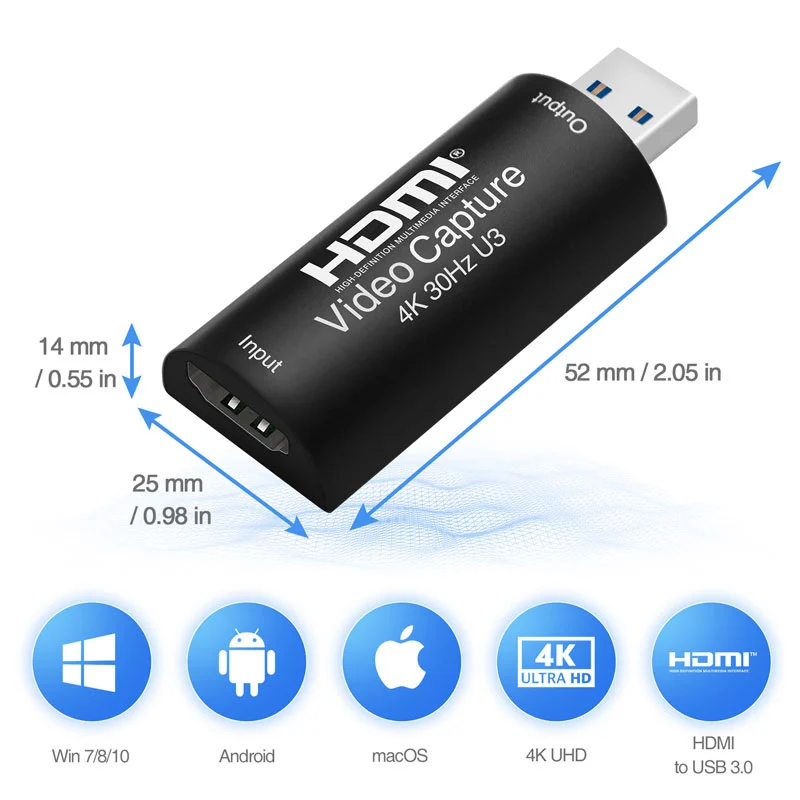

Size (L*W*H)52x25x14 (mm)
Weight15.6g

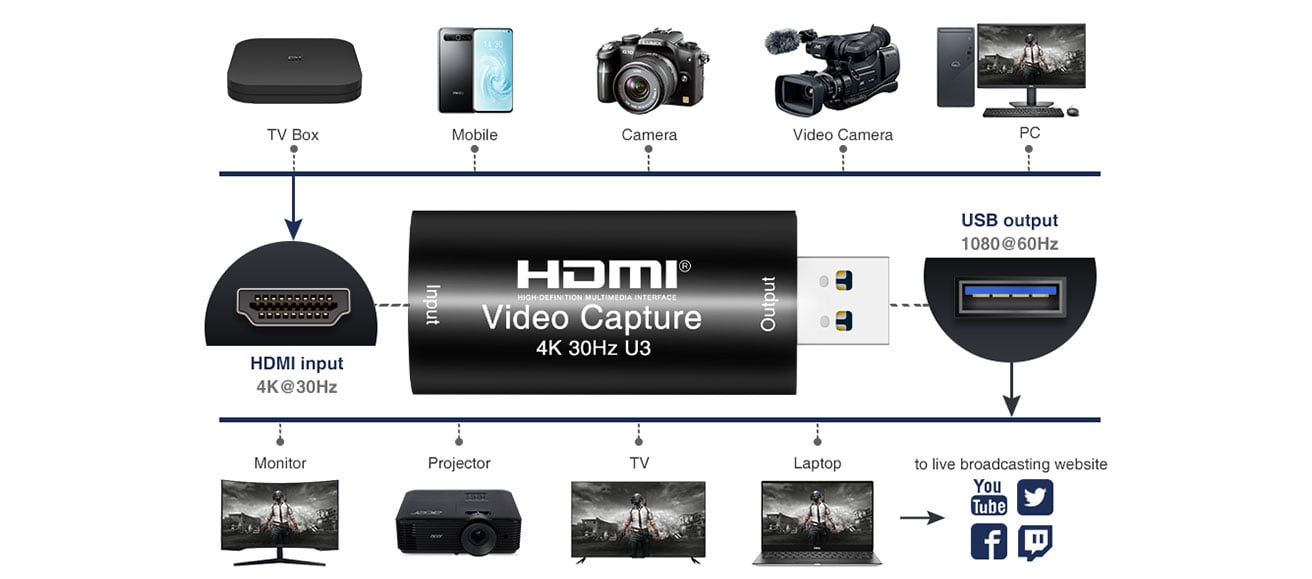

Diagram of USB3.0 4K@30 HDMI Video Capture Card

Apply to game live streaming, live broadcasting, online classes, video conference, etc.
