4K@60Hz & 1080P@60Hz Transmission — Extends uncompressed HDMI signals up to 30m at 4K@60Hz or 70m at 1080P@60Hz over a single CAT6 cable, with 18Gbps total bandwidth and 600MHz pixel clock.
HDMI 2.0 & HDCP 2.2 Compliant — Supports HDMI 2.0 and HDCP 2.2 standards, delivering smooth 4K video and compatibility with modern source devices and displays.
Bi-directional IR Return (20-60KHz) — Enables remote control of source devices from the display end, with IR signals transmitted in both directions.
POC Single-Side Power Supply — Power over Cable technology allows the entire extender system to operate with just one power adapter connected to either the transmitter or receiver (receiver recommended), simplifying installation and reducing wiring complexity.
Plug and Play with Built-in ESD Protection — Compact metal casing with wall-mountable design. Built-in ESD protection circuit and automatic adjustment system ensure stable, smooth performance. No software or drivers required.
ORIVISION HDMI2.0 HDBaseT Extender extends uncompressed HDMI audio and video signals up to 70m at 1080P@60Hz or 30m at 4K@60Hz over a single CAT6 cable. It supports HDMI 2.0 and HDCP 2.2, with 18Gbps total bandwidth and 600MHz pixel clock, delivering stable 4K transmission for conference rooms, teaching systems, and digital signage.
The extender features bi-directional IR return (20-60KHz), RS232 pass-through up to 115200bps, independent 3.5mm audio transmission, and POC single-side power supply — power can be connected to either the transmitter or receiver. Additional functions include EDID learning, HDMI loop output, and built-in ESD protection. The compact metal casing is wall-mountable and supports plug-and-play installation with no software required.
Features

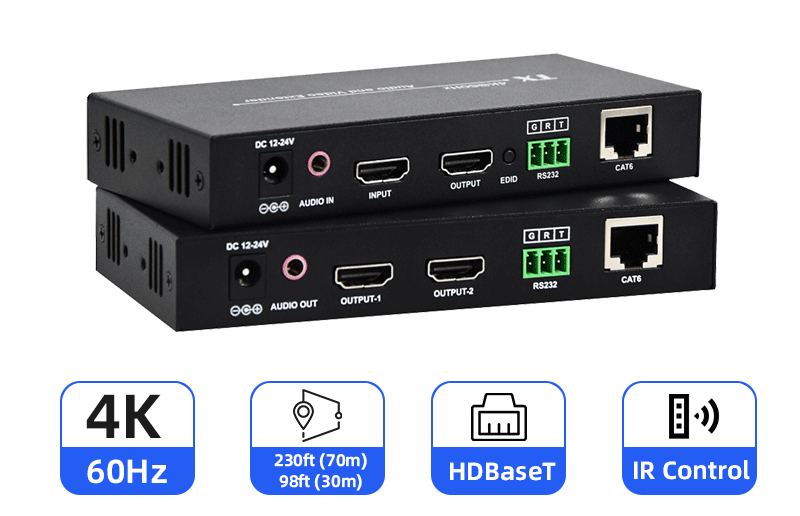

HDBaseT—Professional AV, Not Basic Balun
Built on HDBaseT for reliable HDMI extension over Cat6, unlike basic balun-based extenders. Ideal for home theaters and professional AV.
True 4K@60Hz
Delivers 4K@60Hz ultra-high-definition video output, ideal for scenarios that demand sharp and detailed visuals such as conference presentations, teaching content, and digital signage. Downward compatible with 1080P and other resolutions for flexible deployment.
HDCP 2.2—Modern 4K Content vs HDCP 1.4
Supports HDCP 2.2 for modern streaming devices, media players, and displays. Compared with HDCP 1.4 extenders, HDCP 2.2 supports newer protected 4K content when source and display are compatible.

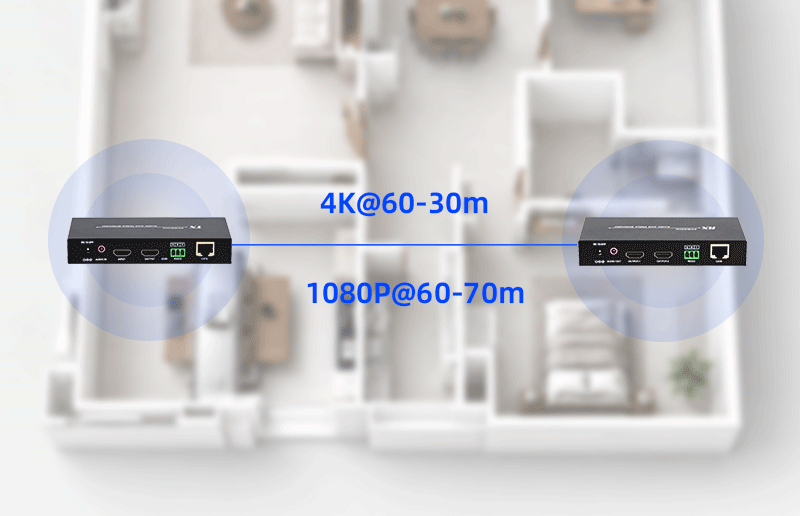

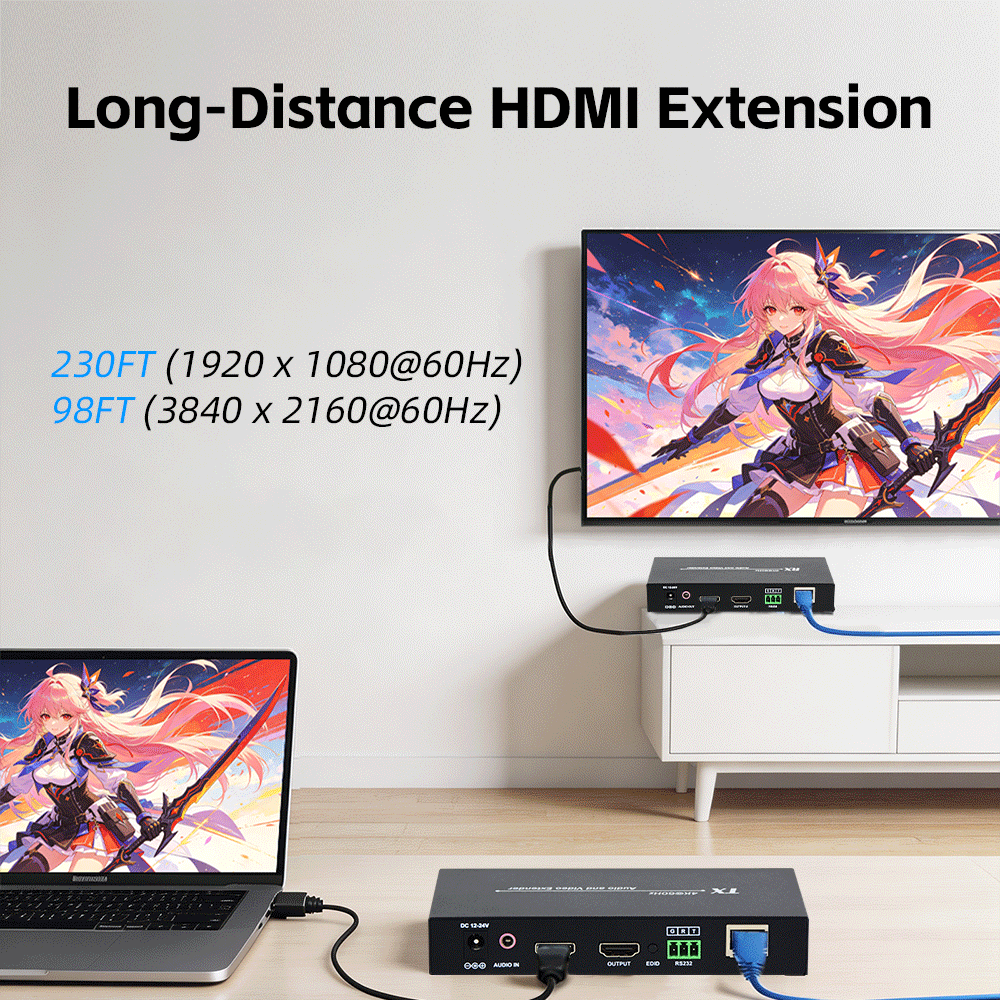

Long-Distance Extension
Extends uncompressed HDMI signals up to 30m at 4K@60Hz or 70m at 1080P@60Hz over a single CAT6 cable, with 18Gbps total bandwidth and 600MHz pixel clock

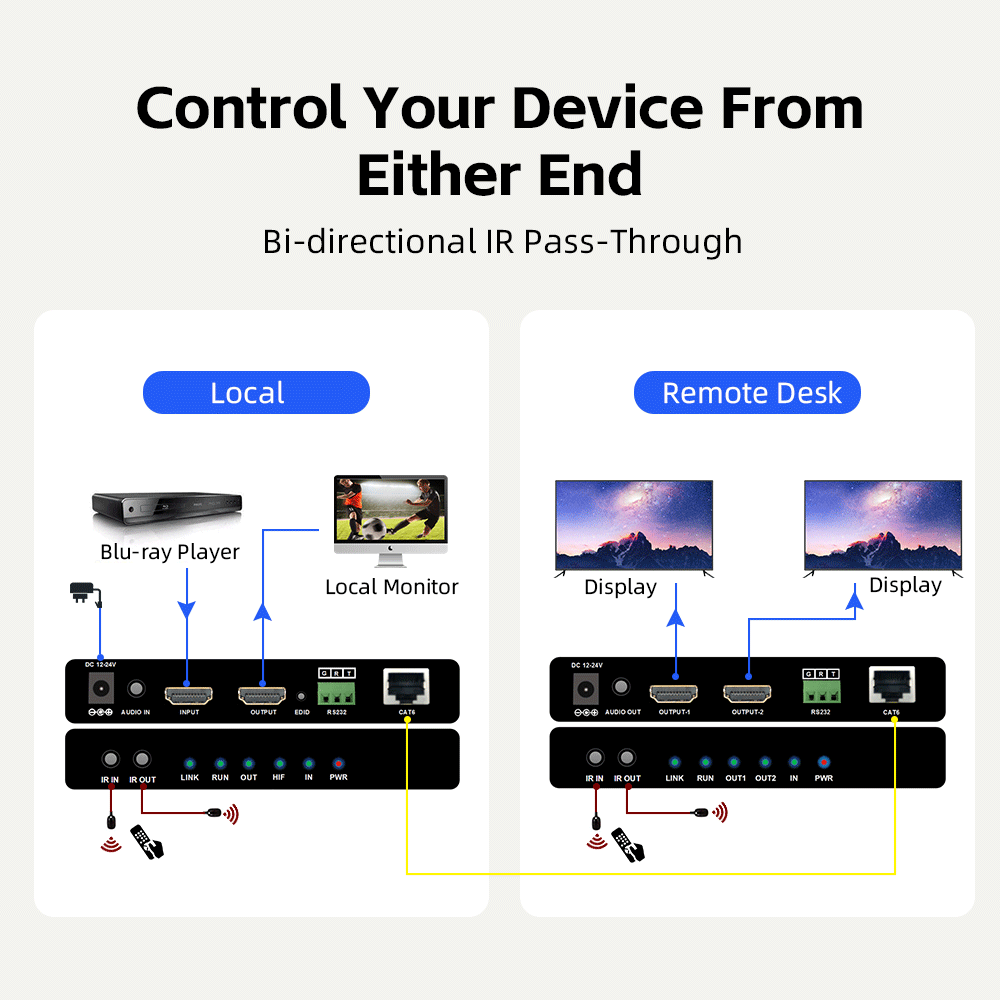

Bi-Directional IR—Control from Either Location
Control the source from the display side or the display from the source side. Unlike one-way IR extenders, bi-directional IR offers flexible remote control for Blu-ray, streaming devices, and displays.

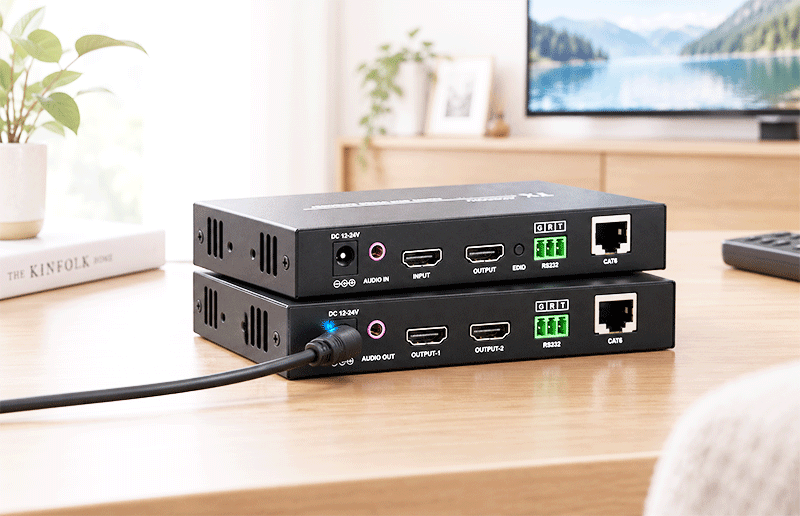

POC Power Supply
Supports POC (Power over Cable) single-side power supply. The entire extender system can be powered by connecting one power adapter to either the transmitter or the receiver, eliminating the need for separate power sources at both ends. It is recommended to connect the power adapter to the receiver for more convenient installation.
Wide Applications
This extender is suitable for UHD conference systems, UHD teaching systems, UHD video shooting, UHD digital advertising, UHD conference room integration, and UHD home theater setups. It connects computers, media players, cameras, or video conferencing terminals to displays, projectors, or monitors over a single CAT6 cable.
Parameters

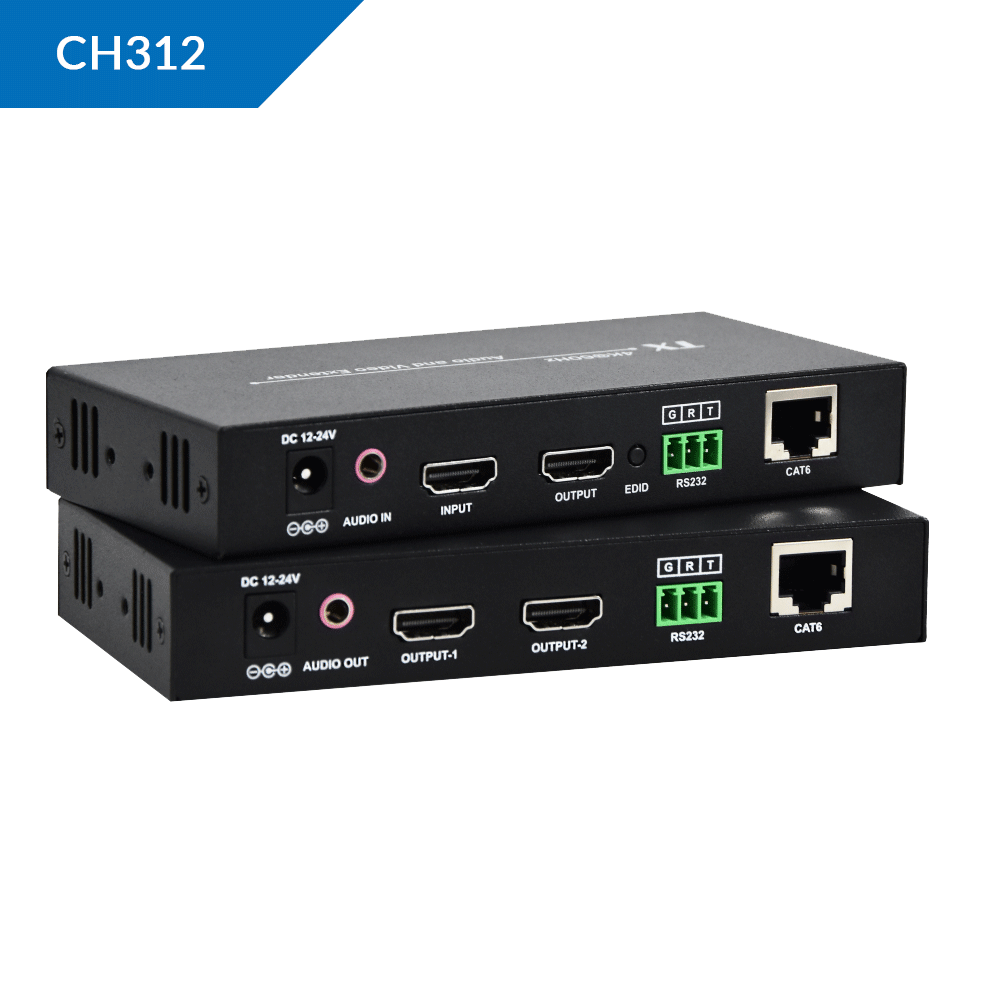

Model
ZY-CH312
Video
Interface Standard
HDMI 2.0; HDCP 2.2
Pixel Bandwidth
600MHz, full digital
Interface Bandwidth
18Gbps
Resolutions
3840x2160@60Hz and downward compatible
Video Interface
HDMI-A
Impedance
100Ω
Recommended Maximum DP Cable Input/Output Distance
Less than 5m at 1920x1080@60Hz
Audio
Audio Format
44.1K, 48K, 96K, 176K, 192K
Interface
3.5 mm stereo audio jack
Signal Type
Stereo
IR
IR Interface
Standard 3.5mm audio interface
IR Frequency
20-60KHz
IR Signal Type
Digital signal
IR Transmission Direction
Bi-directional
RS232
Interface
Industrial terminal block
Signal Direction
Bi-directional pass-through
Baud Rate
Adaptive, up to 115200bps
Data Bits
8 bits
Network
Interface
Standard RJ45 (568B)
Distance
Cat6: 1080P@60Hz up to 70m; 4K@60Hz up to 30m
Other
Operating Temperature
-5℃ ~ +70℃
Operating Humidity
5% ~ 90%
Power
DC 12V/2A
Dimension (W×L×H)
142*67*23mm
Weight
0.25kg/unit
Power Consumption
MAX 10W

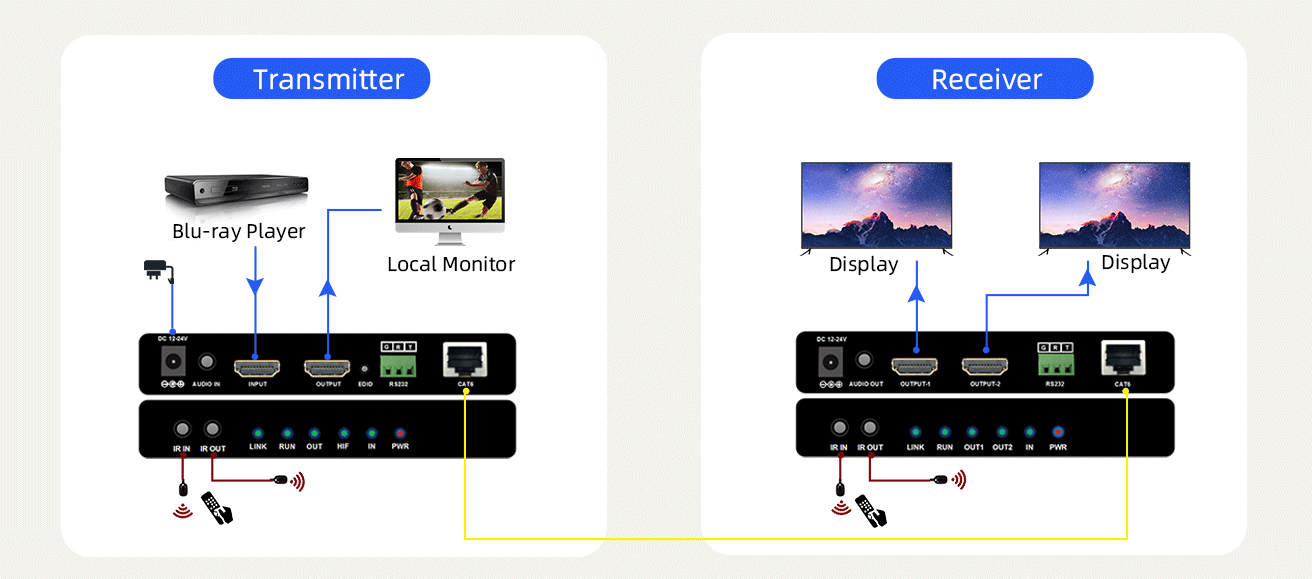

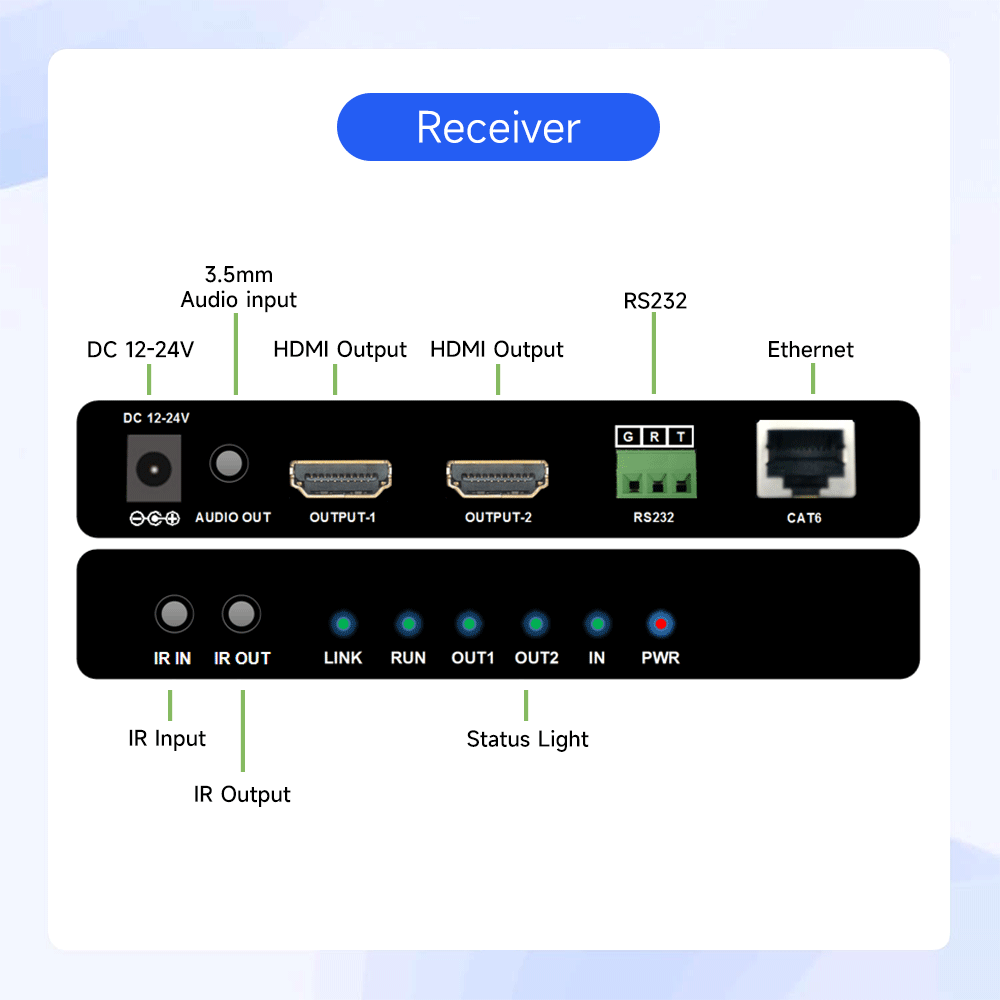

Diagram
FAQ
What is the maximum transmission distance?
Up to 70m at 1080P@60Hz or 30m at 4K@60Hz over a single CAT6 cable. Using pure copper CAT6 or higher specification cable is recommended for stable performance.
Does it support 4K@60Hz?
Yes. It supports up to 3840x2160@60Hz with 18Gbps bandwidth and 600MHz pixel clock, and is downward compatible with 1080P and lower resolutions.
What cable should I use?
A single CAT6 or higher specification network cable (RJ45, 568B wiring). Pure copper cable is recommended for maximum distance and signal stability.
Does it support HDCP?
Yes. It complies with HDCP 2.2 and HDMI 2.0, compatible with protected content from sources such as Blu-ray players, streaming devices, and computers.
How does POC single-side power work?
The entire system can be powered by connecting one power adapter to either the transmitter or the receiver. Connecting the power adapter to the receiver is recommended for more convenient installation.
