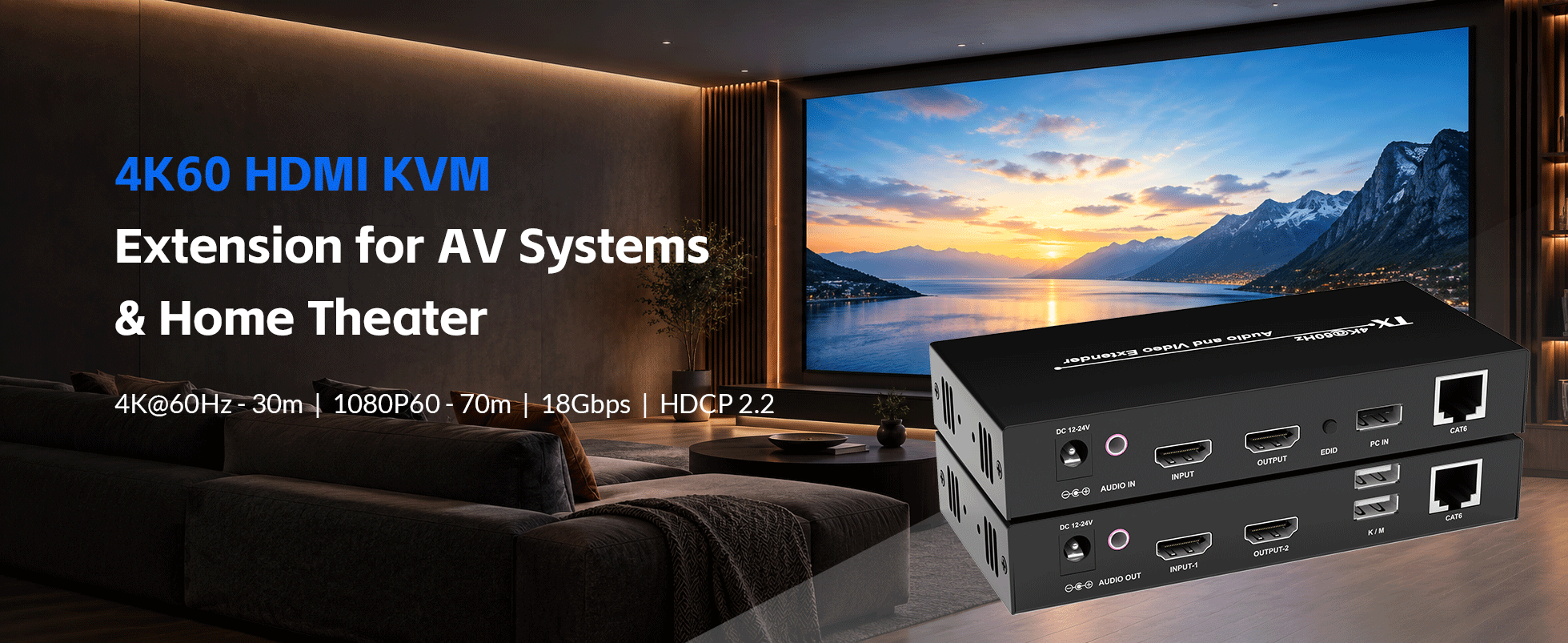

ORIVISION HDMI 2.0 HDBaseT KVM Extender extends uncompressed HDMI audio and video signals up to 70m at 1080P@60Hz or 30m at 4K@60Hz over a single CAT6 cable. It supports HDMI 2.0 and HDCP 2.2, with 18Gbps total bandwidth and 600MHz pixel clock, delivering stable 4K transmission for conference rooms, teaching systems, and digital signage.
The extender features USB HID keyboard and mouse pass-through (KVM), bi-directional IR return (20-60KHz), and independent 3.5mm audio transmission. Additional functions include EDID learning, HDMI local loop-out, and built-in ESD protection. The compact metal casing is wall-mountable and supports plug-and-play installation with no software required.
Features

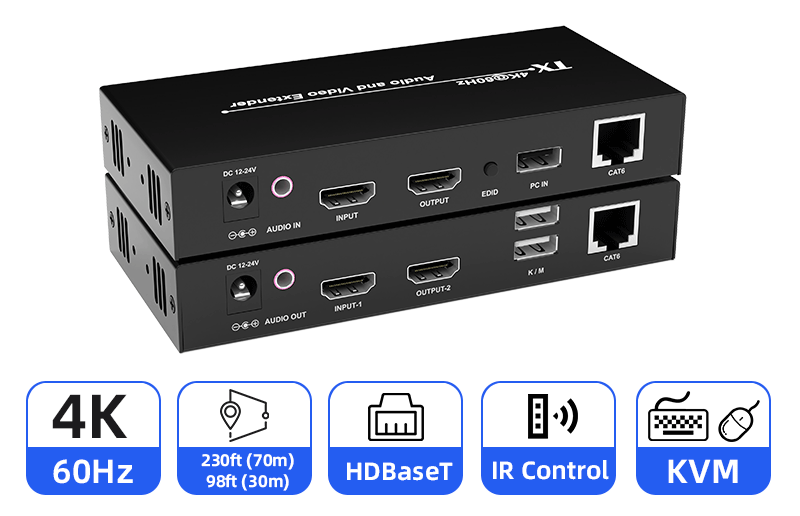

HDBaseT — Professional AV & KVM Extension
Built on advanced HDBaseT technology, this extender delivers reliable, uncompressed HDMI extension over a single Cat6 cable. Unlike basic extenders, it features USB HID pass-through, allowing you to seamlessly control the source PC with a keyboard and mouse from the remote display end. Ideal for professional AV, conference rooms, and remote workstation setups.
True 4K@60Hz Ultra-HD
Delivers uncompressed 4K@60Hz ultra-high-definition video output up to 30m (98ft), or 1080P@60Hz up to 70m (230ft). Ideal for scenarios that demand sharp and detailed visuals such as conference presentations, control rooms, and digital signage. Downward compatible with 1080P and other resolutions for flexible deployment.
HDCP 2.2 Compliance — Compatibility for Modern 4K Content
Fully compliant with the HDCP 2.2 standard, ensuring seamless compatibility with modern 4K streaming devices, media players, gaming consoles, and displays. Unlike older HDCP 1.4 extenders, it allows the transmission of newer protected 4K content when both the source and display support HDCP 2.2.

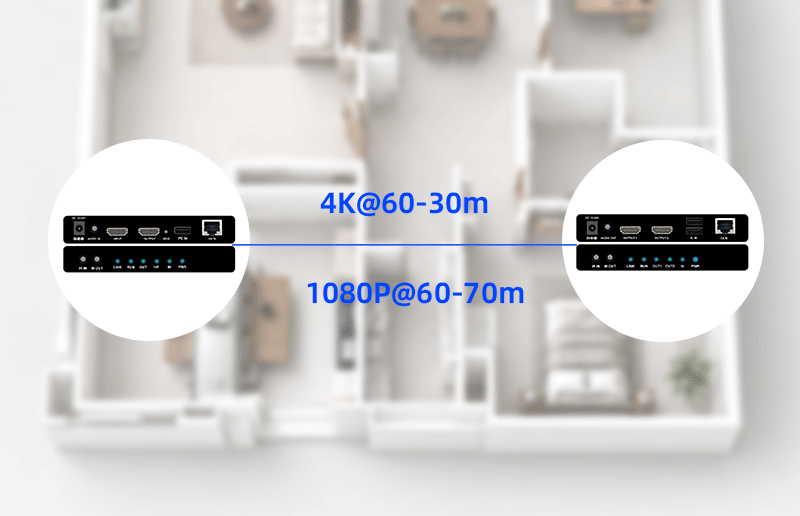

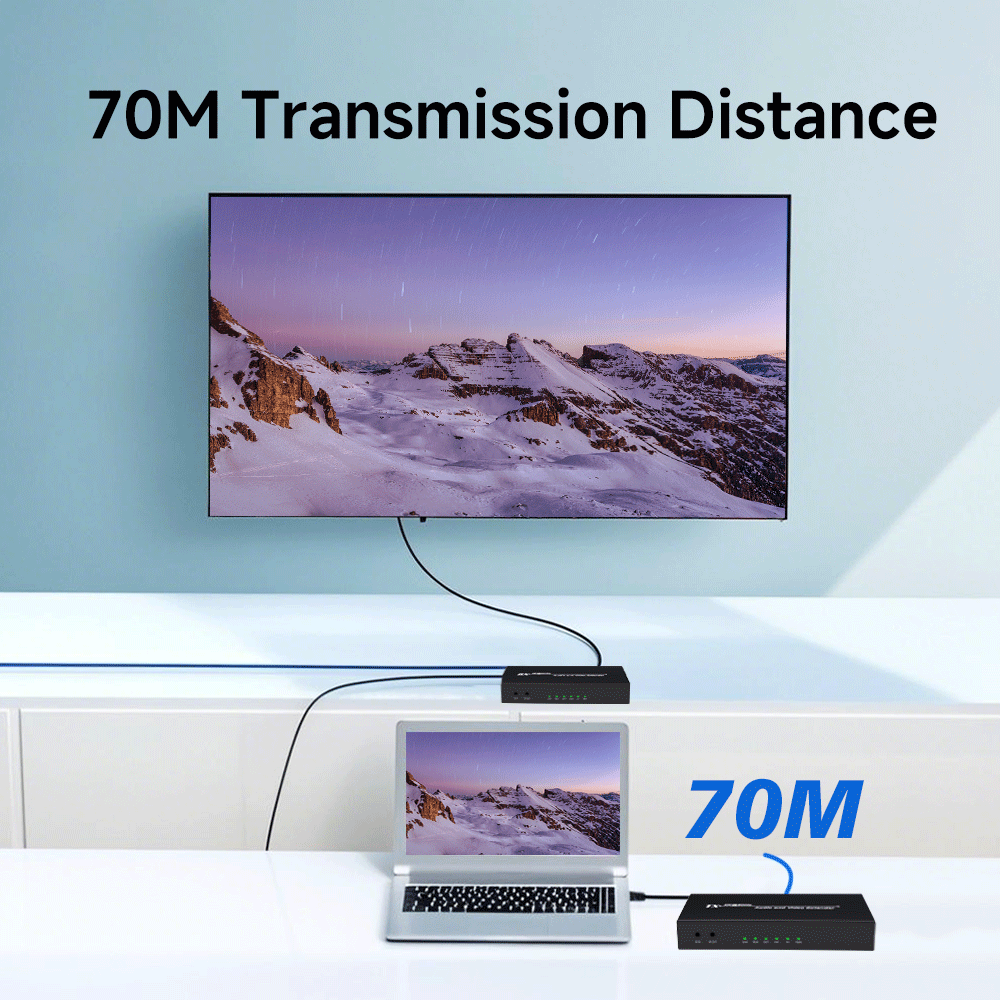

Long-Distance Extension & KVM Control
Extends uncompressed HDMI signals up to 30m (98ft) at 4K@60Hz or 70m (230ft) at 1080P@60Hz over a single CAT6 cable, with 18Gbps total bandwidth and 600MHz pixel clock. It also supports USB HID pass-through, allowing remote control of the source PC from the display location.
Bi-Directional IR—Control from Either Location
Control the source from the display side or the display from the source side. Unlike one-way IR extenders, this bi-directional IR (20-60KHz) feature offers flexible remote control for connected Blu-ray players, streaming devices, and displays.
Dual Power Supply for Continuous Operation
This extender is powered by dual independent power adapters (one for the transmitter and one for the receiver). Unlike POC (Power over Cable) solutions, this dual-power design ensures maximum signal stability and continuous operation, making it highly reliable for demanding 4K@60Hz and KVM applications.
Wide Applications
This HDBaseT KVM extender is ideal for a wide range of UHD applications, including corporate meeting rooms, control rooms, education and training, live events, house of worship, and digital signage. It connects computers, media players, and cameras to remote displays or projectors over a single CAT6 cable, while allowing operators to control the source PC with a keyboard and mouse from the display end.

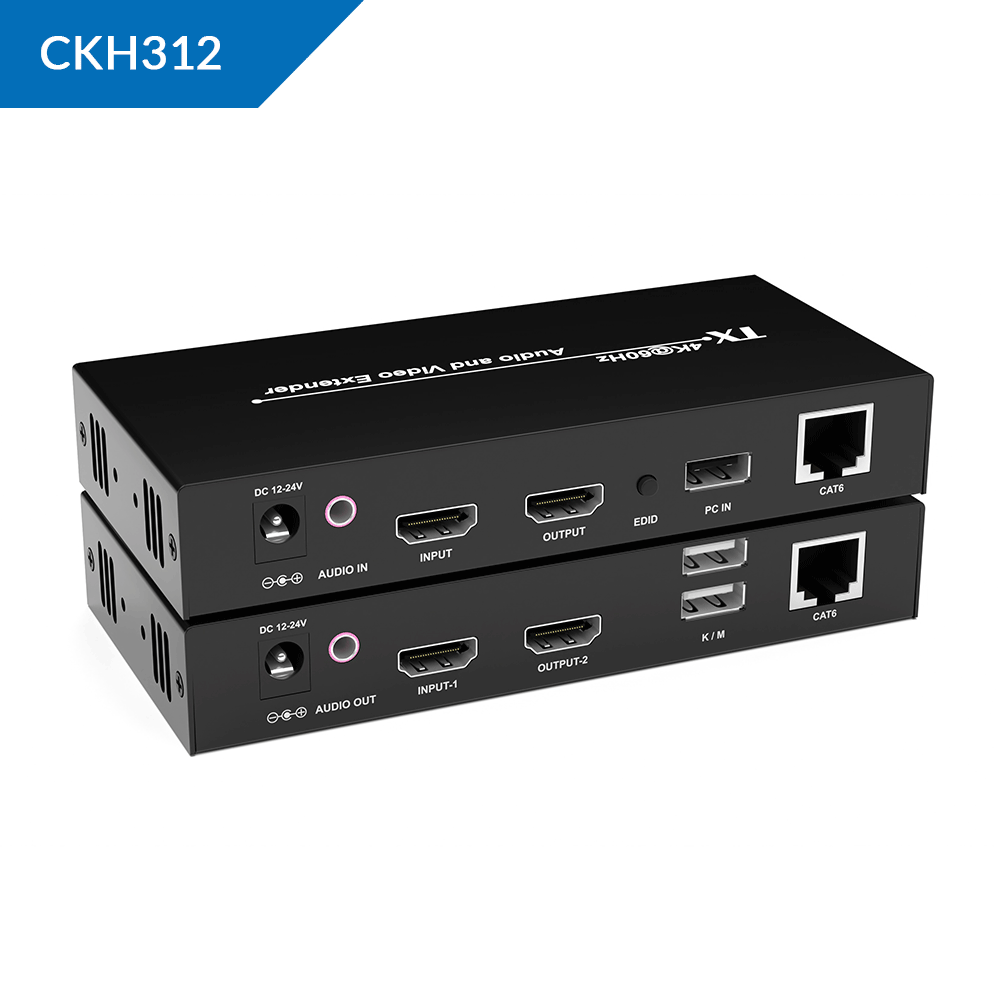

Parameters
Model
ZY-CKH312
Video
Interface Standard
HDMI 2.0; HDCP 2.2
Pixel Bandwidth
600MHz, full digital
Interface Bandwidth
18Gbps
Resolutions
3840x2160@60Hz and downward compatible
Video Interface
HDMI-A
Impedance
100Ω
Recommended Maximum DP Cable Input/Output Distance
Less than 5m at 1920x1080@60Hz
Audio
Audio Format
44.1K, 48K, 96K, 176K, 192K
Interface
3.5 mm stereo audio jack
Signal Type
Stereo
IR
IR Interface
Standard 3.5mm audio interface
IR Frequency
20-60KHz
IR Signal Type
Digital signal
IR Transmission Direction
Bi-directional
USB
KVM Interface Type
USB-A
USB Interface Protocol
USB HID
Network
Interface
Standard RJ45 (568B)
Distance
Cat6: 1080P@60Hz up to 70m; 4K@60Hz up to 30m
Other
Operating Temperature
-5℃ ~ +70℃
Operating Humidity
5% ~ 90%
Power
DC 12V/2A
Dimension (W×L×H)
142*67*23mm
Weight
0.25kg/unit
Power Consumption
MAX 12W

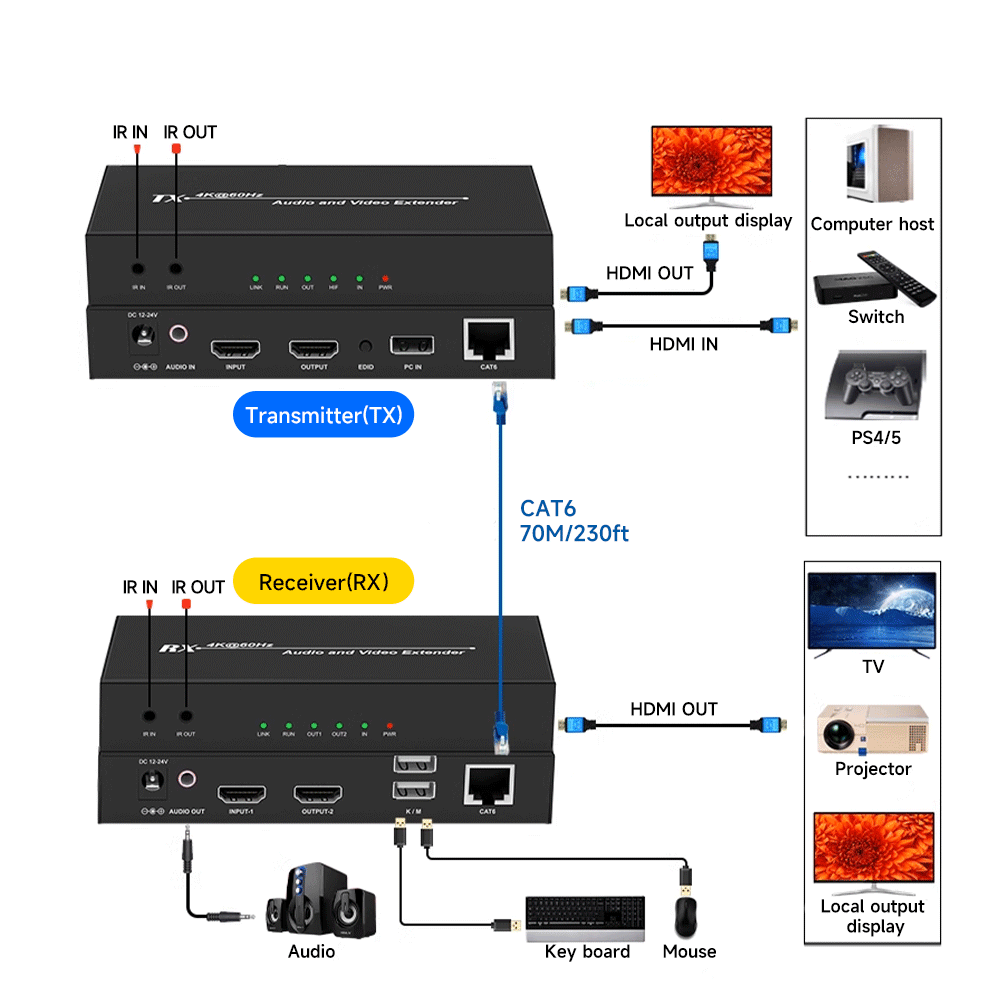

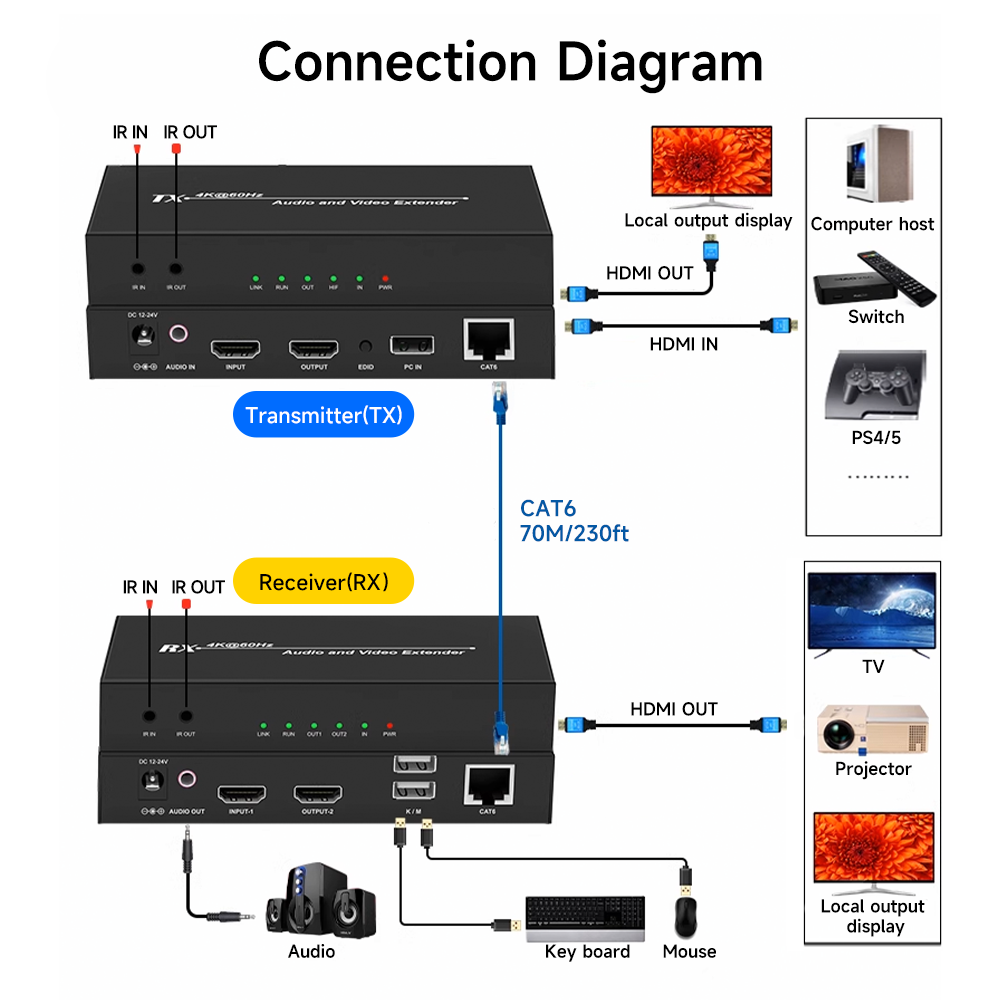

Diagram
FAQ
Does this extender support keyboard and mouse control (KVM)?
Yes. It features USB HID pass-through. You can connect your keyboard and mouse to the receiver (RX) and control the source PC connected to the transmitter (TX) via the included USB-A cable.
What is the maximum transmission distance?
Over a single CAT6 cable, it supports up to 70m (230ft) at 1080P@60Hz, or 30m (98ft) at 4K@60Hz. Using pure copper CAT6 or higher specification cable is highly recommended.
Does it support HDMI local loop-out?
Yes. The transmitter features an HDMI local loop-out port, allowing you to connect a local monitor near the source PC for real-time monitoring.
Do I need to connect power to both ends?
Yes. This model comes with two power adapters (DC 12V). Unlike POC extenders, both the transmitter (TX) and receiver (RX) need to be connected to a power source for stable operation.
How do I use the EDID button?
If the display has no image, distorted colors, or is not full-screen, connect the display to the TX's HDMI OUT port, power on the TX, and long-press the EDID button until the OUT indicator flashes for 5 seconds. Then, power cycle the TX.
